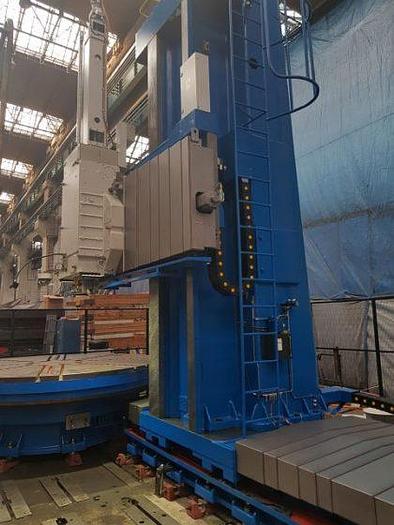

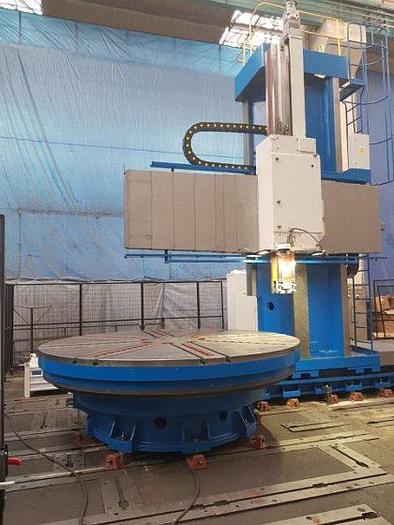

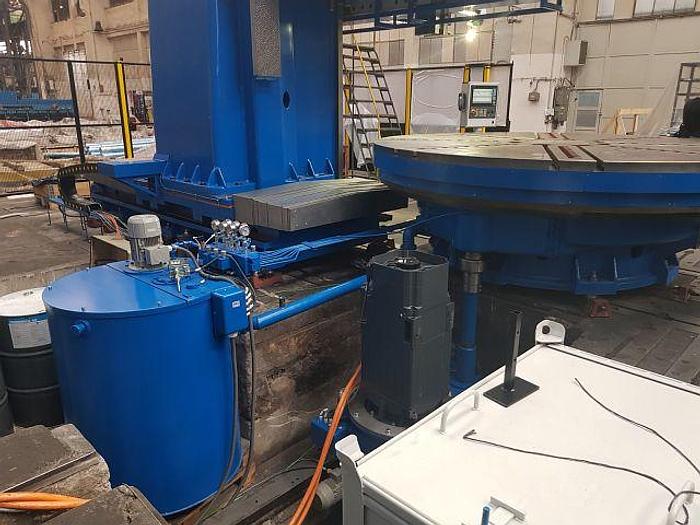

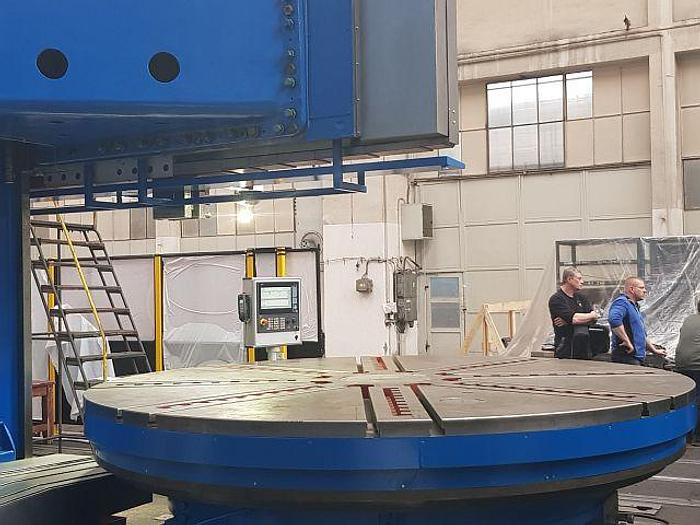

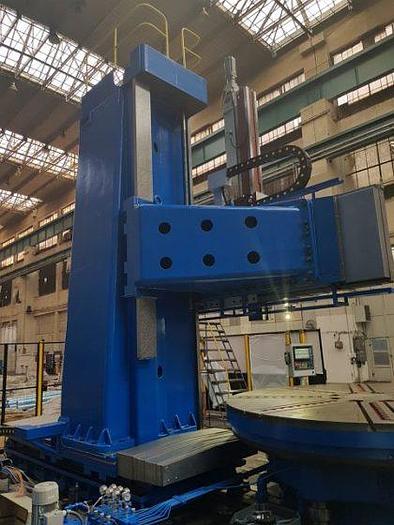

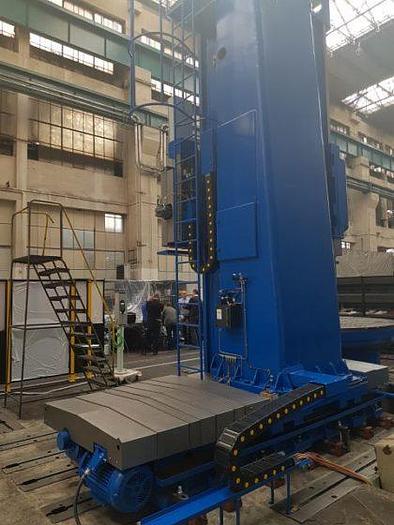

CKD SKJ 32/63 Single Column CNC Vertical Boring & Turning Mill
No longer available
CKD SKJ 32/63 Single Column CNC Vertical Boring & Turning Mill
Description

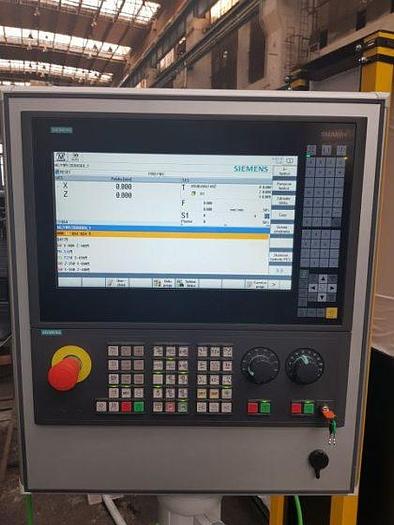

Siemens 840D CNC Control
Specifications
| Manufacturer | CKD Blansko |
| Model | SKJ 32/63 |
| Condition | Used |
| Stock Number | 10521 |
| Retrofit | 2018 |
| Table diameter | 3,200 mm |
| Swing | 6,300 mm |
| Turning height | 2,500 mm |
| Table capacity | 50,000 kg |
| Table turn speed | 80 rpm |
| Table drive power | 92 kW |
| Table drive torque | 130,000 Nm |
| X axis travel | 2,200 mm |
| Z axis travel | 1,600 mm |
| W axis travel | 1,900 mm |
| Cross beam tilting angle max | 30 Degree |
| Traverse velocity z | 1 - 1,600 mm/min |
| Traverse velocity x | 1 - 1,600 mm/min |
| Z axis column slide travel | 1,900 mm |
| X axis column slide travel | 1,600 mm |
| Column slide tilting angle max | 15 Degree |
| Space requirement left/right | 11,500 mm |
| Space requirement front/back | 8,500 mm |
| Total height | 8,000 mm |
| Total weight approx. | 65,000 kg |
