Schiess 40DS 350/4000 – 250/160 CNC Double Column Vertical Turning & Boring Machine with Live Spindle & C-Axis
Schiess 40DS 350/4000 – 250/160 CNC Double Column Vertical Turning & Boring Machine with Live Spindle & C-Axis
orCall 770-509-0744
Description

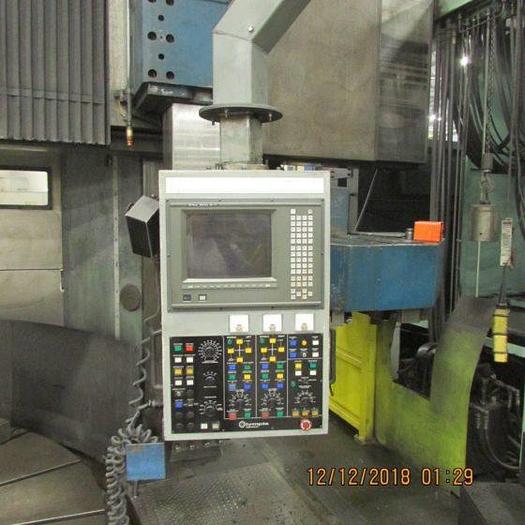

Fanuc 16 TT-B CNC Control 2 Vertical Rams on the Crossrail Vertical Boring Head Live Spindle – Table C Axis
Table Turn Speed (2 step) 0.9 - 90 rpm Hydrostatic Faceplate Bearing Assembly
Specifications
| Manufacturer | Schiess |
| Model | 40DS 350/4000 |
| Year | 1982 |
| Condition | Used |
| Stock Number | 10582 |
| Retrofit | 1997 |
| Table diameter | 3,500 mm |
| Swing | 4,000 mm |
| Turning height | 2,500 mm |
| Table capacity | 40 Ton |
| Table turn speed | 90 rpm |
| Live spindle speed | 1,600 rpm |
| Z axis travel | 1,600 mm |
| W axis travel | 2,000 mm |
| X axis travel | 2,660 mm |
| Table turn speed milling | 0.45 - 1.8 rpm |
| Table drive | 100 kW |
| Travel speed | 0.1 - 6,000 mm/min |
| Table rotary feed | 0.01 - 6,000 mm/min |
| Rapid traverse of tool holder | 6,000 mm/min |
| Cross rail speed | 450 mm/min |
