Dorries Scharmann VC 4600/450 CNC Vertical Turning Lathe
No longer available
Dorries Scharmann VC 4600/450 CNC Vertical Turning Lathe
Description

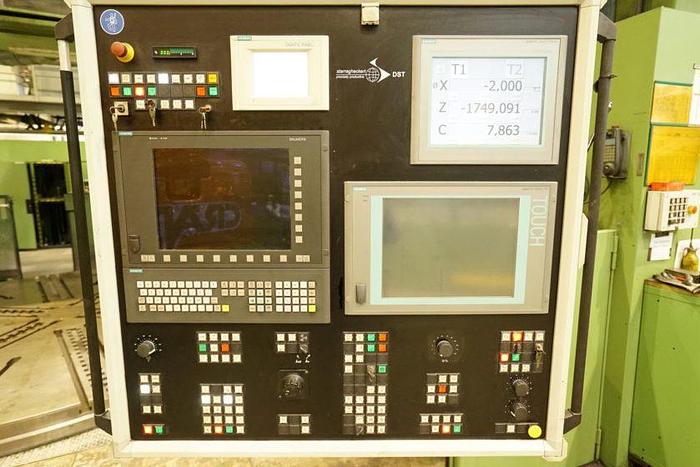

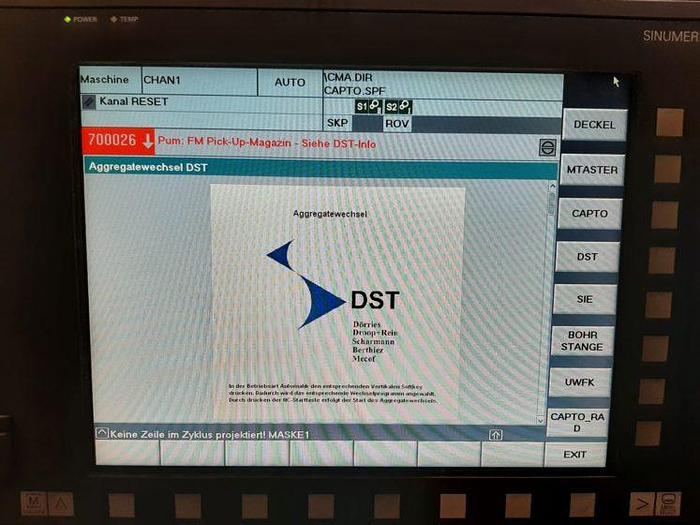

Siemens Sinumerik 840D sl CNC Control (modernization 2011) Tool Magazine with 12 Stations
Table Speed Range #1 - 0.45 - 21 rpm

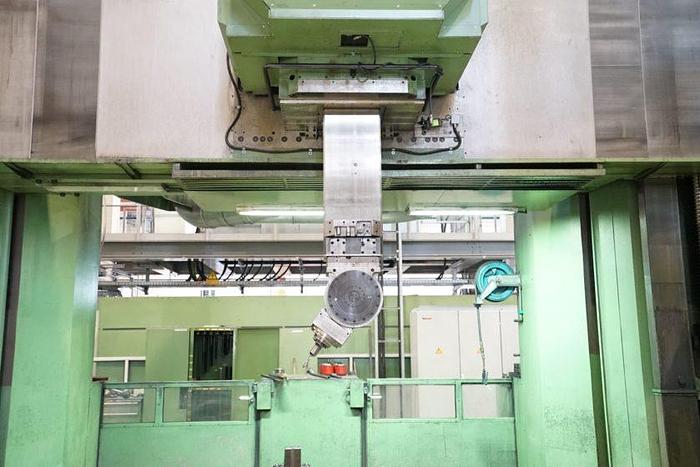

Table Speed Range #2 - 1.7 - 80 rpm Motorized Operating Platform Motorized Control Pendulum Chip Protection Hinge Band Chip Conveyor Workpiece Measurement Spray Mist Extraction Slewing Crane (1) One Set of 4 Clamping Jaws (1) One Universal Head (1) One Measuring Probe (1) One Horizontal Turning Tool Holder (1) One Vertical Turning Tool Holder (1) One Capto Holder Documentation
Specifications
| Manufacturer | Dorries Scharmann |
| Model | VC 4600 / 450 |
| Year | 1996 |
| Condition | Used |
| Stock Number | 10761 |
| Retrofit | 2011 |

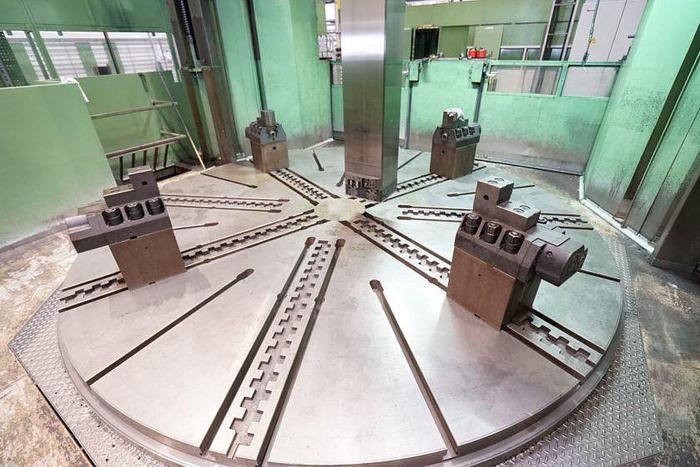

| Table diameter | 4,500 mm |
| Swing | 4,600 mm |
| Turning height | 4,500 mm |
| Table capacity | 100 ton |
| Table turn speed | 80 rpm |
| Z axis | 2,500 mm |
| W axis travel | 3,200 mm |
| X axis | -2,500 / + 2,500 mm |
| Torque - table | 125 kNm |
| Feed speeds x + z, infinitely variable | 0.1 - 3,000 mm/min |
| Rapid speed x + z | 8,000 mm/min |
| Total power requirement | 257 kVa |
| Machine weight | 190 ton |
| Machine dimensions | 10.2 x 16.8 x 11.3 m |
