Dorries VCE 2400/220 MC Single Column CNC Vertical Turning & Boring Machine with Live Spindle & Table C-Axis
No longer available
Dorries VCE 2400/220 MC Single Column CNC Vertical Turning & Boring Machine with Live Spindle & Table C-Axis
Description

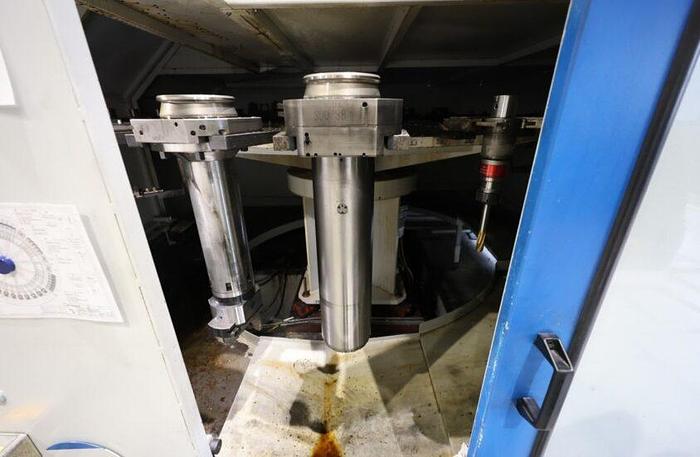

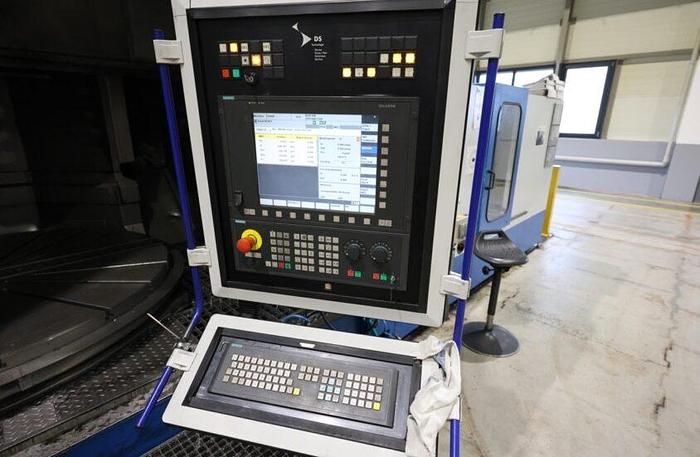

Siemens 840D CNC Control Live Spindle Table C-Axis Adjustable Crossbar Tooling
Specifications
| Manufacturer | Dorries |
| Model | VCE 2400/220 MC |
| Year | 2008 |
| Condition | Used |
| Stock Number | 11023 |
| Table diameter | 2,200 mm |
| Swing | 2,400 mm |
| Turning height | 2,145 mm |
| Table capacity | 17 Ton |
| Table turn speed | 250 rpm |

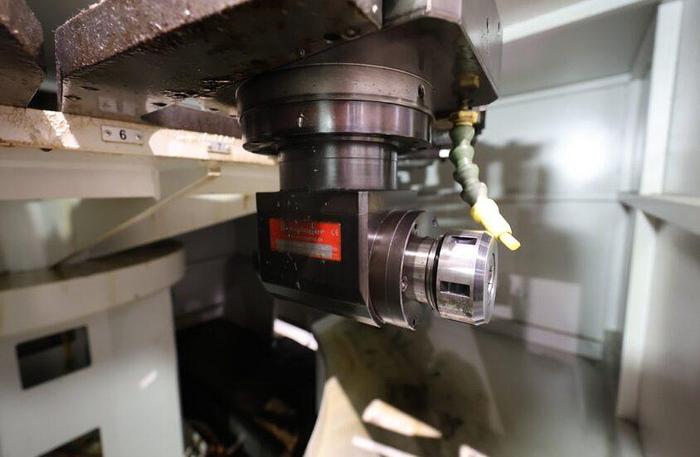

| Live spindle speed | 1,500 rpm |
| X axis travel | ± 1,350 mm |
| Z axis travel | 1,500 mm |

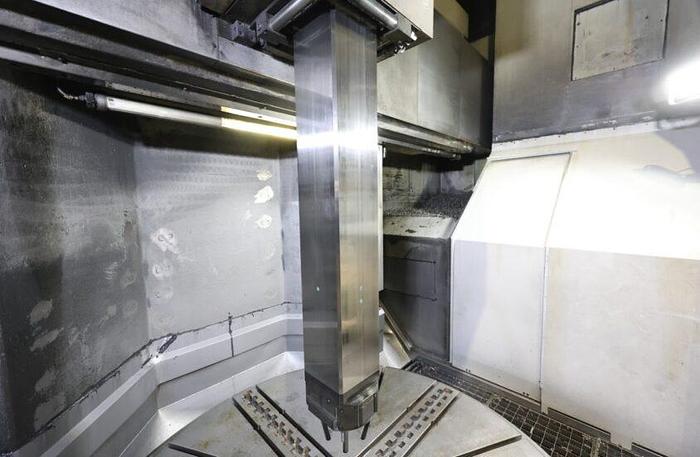

| Ram cross section size | 250 x 250 mm |
| Speed range c-axis | 0.0025 – 3.15 rpm |
| Smallest input increment of the c-axis | 1/1000 ° |
| Speed steps of main gearbox | 2 |
| Table motor capacity | 100 kW |
| Table torque | 35700 Nm |
| Positioning of the crossbar - grid spacing | 100 mm |
| Workpiece weight | 35,700 kg |
| Power capacity - milling spindle | 37 kW |
| Machine weight, approximate | 62.5 Ton |
