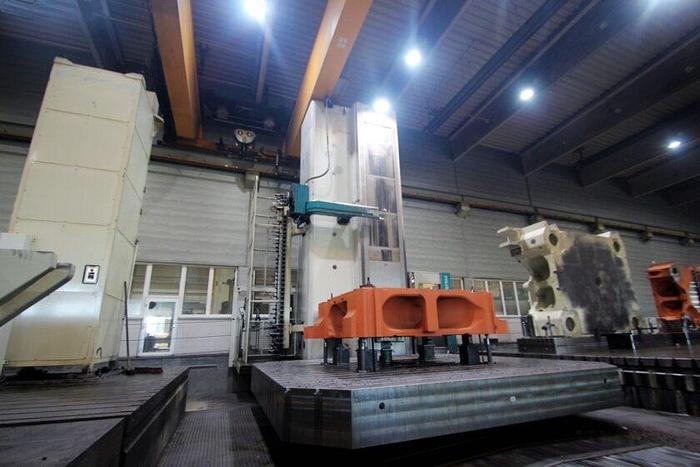

Pama Speedram 3000 CNC Ram/Floor Type Horizontal Boring & Milling Machine
Pama Speedram 3000 CNC Ram/Floor Type Horizontal Boring & Milling Machine
orCall 770-509-0744
Description

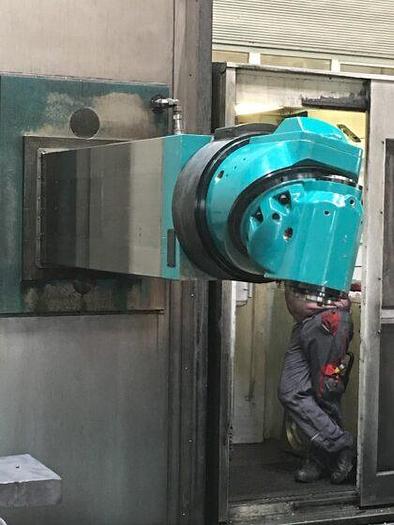

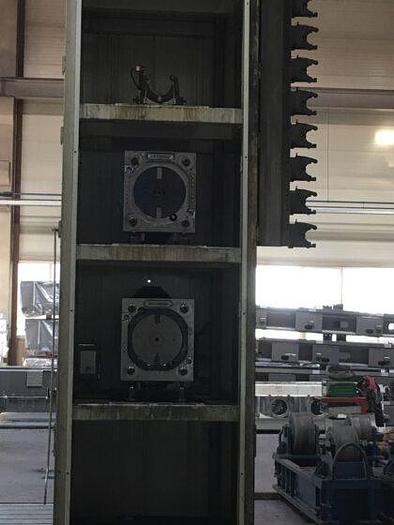

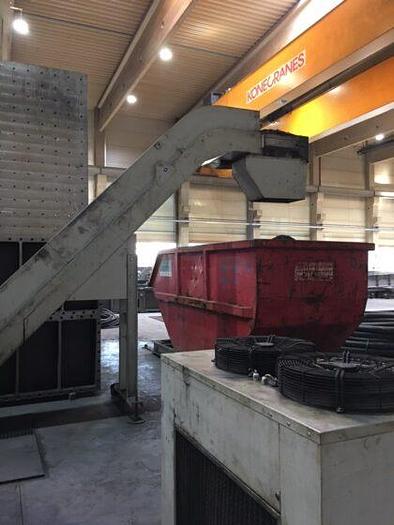

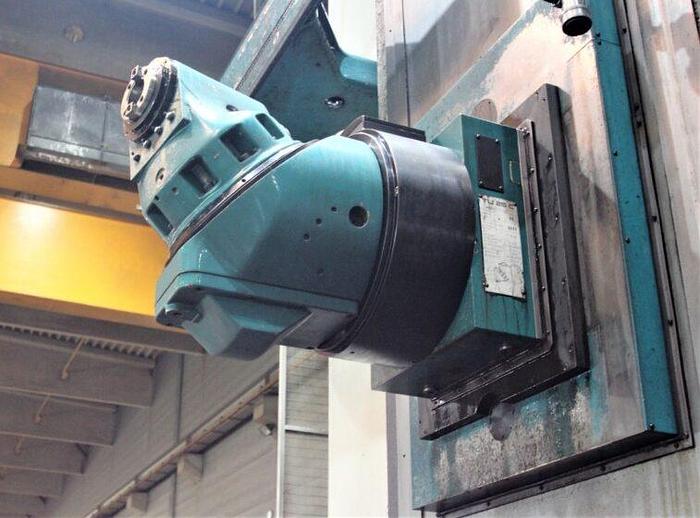

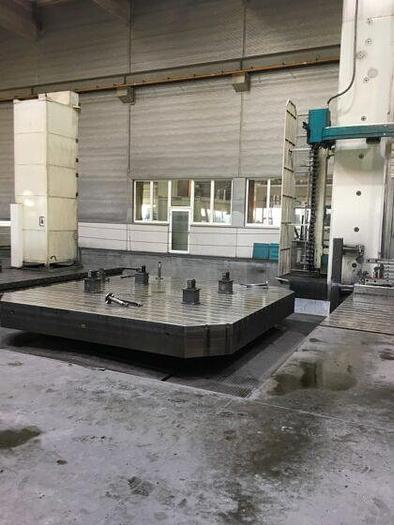

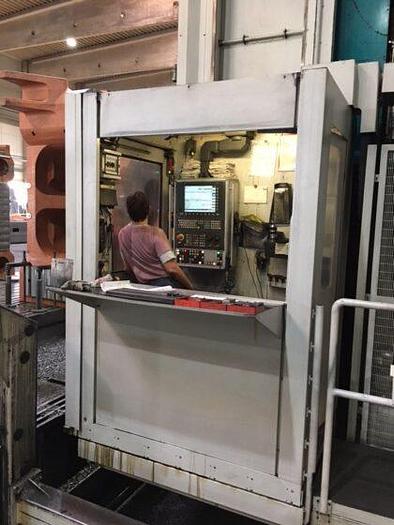

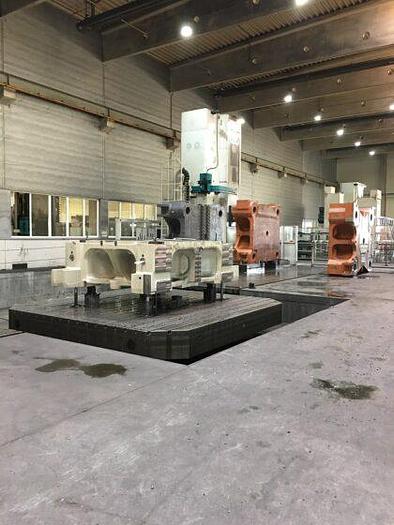

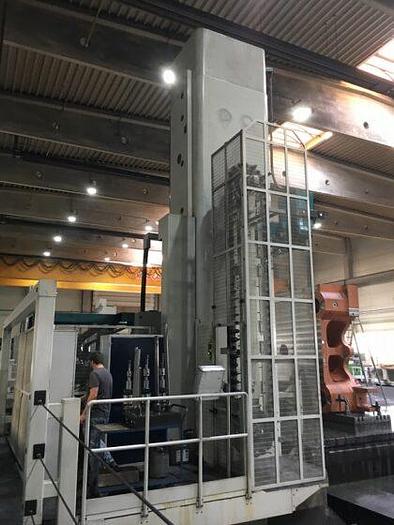

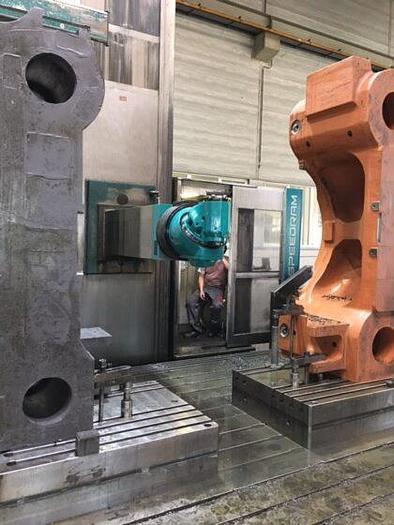

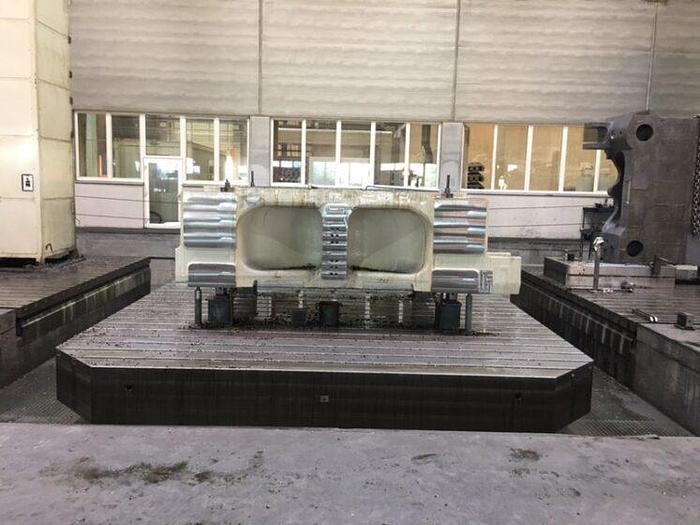

Siemens 840D SL CNC Control 120 Position Automatic Tool Changer Automatic Attachment Changer Pama CNC TU 25C Universal Milling Head Pama CNC TS 80 360 Right Angle Milling Head Pama CNC Heavy Duty Infeeding Rotary Table – 5,000 x 5,000 mm – 100 Ton Capacity External Coolant Coolant Through Spindle Operator Platform Chip Conveyor
Specifications
| Manufacturer | Pama |
| Model | Speedram 3000 |
| Year | 2011 |
| Condition | Used |
| Stock Number | 10988 |
| Retrofit | 2022 |
| Spindle diameter | 200 mm |
| Spindle speeds | 2,200 rpm |
| X axis travel | 20,000 mm |
| Y axis travel | 5,500 mm |
| Z axis travel | 1,400 mm |
| Table dimensions | 5,000 x 5,000 mm |
| Table capacity | 100 Ton |
| W axis travel | 1,200 mm |

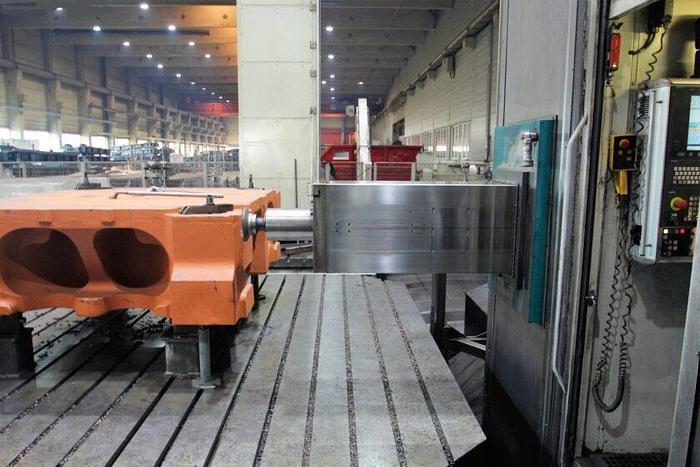

| Ram dimensions | 460 x 520 mm |
| Spindle taper | ISO 60 |
| Spindle motor | 91 kW |
| Z+w axis spindle + ram travel | 2,600 mm |
| Feed range (x,y,z,w) | 0.5 - 6,000 mm/min |
| Rapid travel (x,y,z,w) | 15,000 mm/min |
| V axis Table infeeding travel | 2,500 mm |
