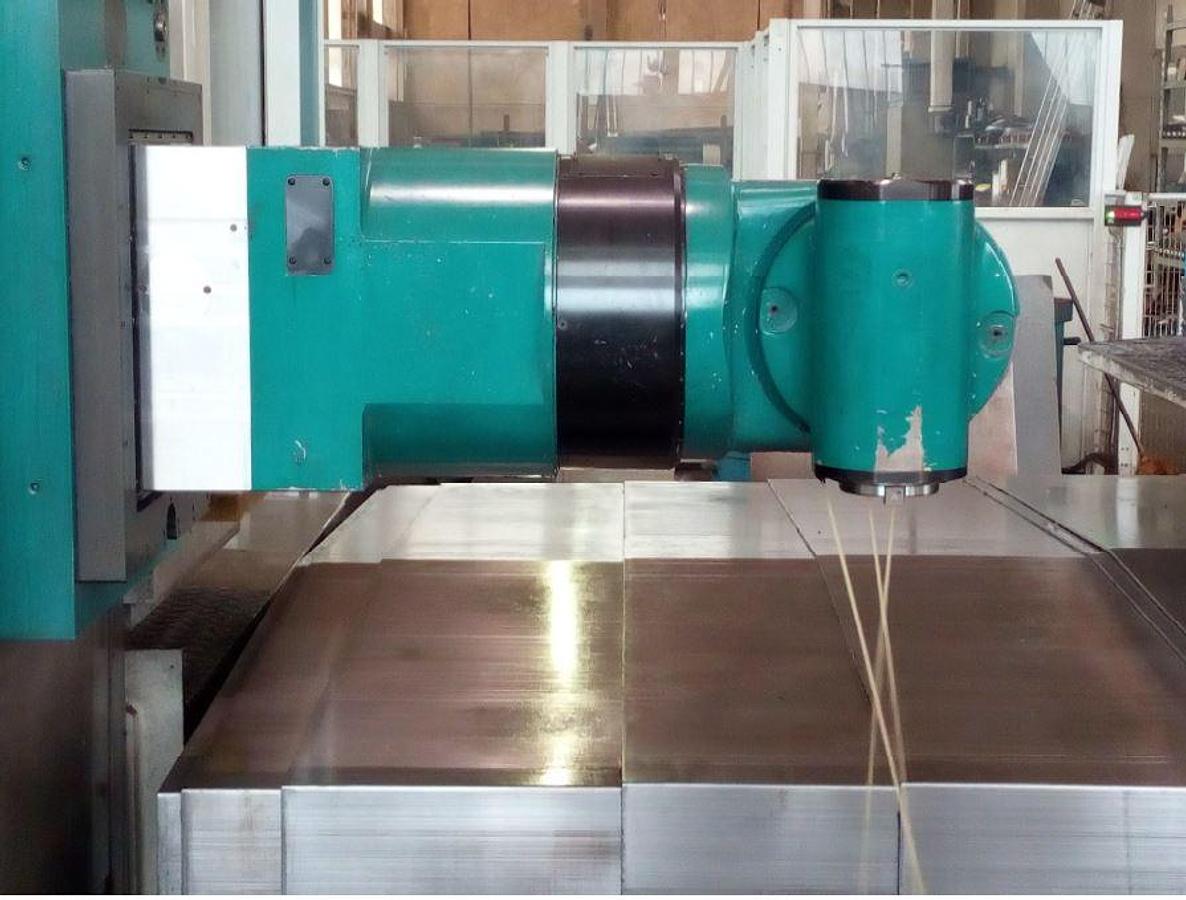

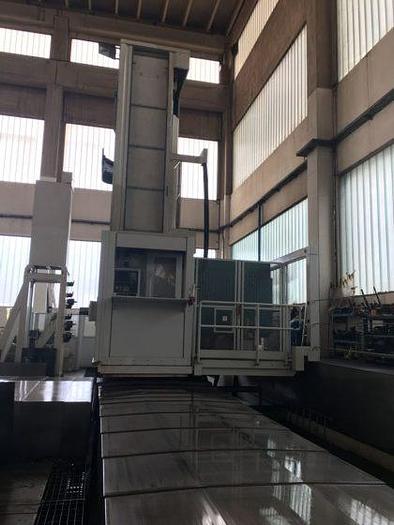

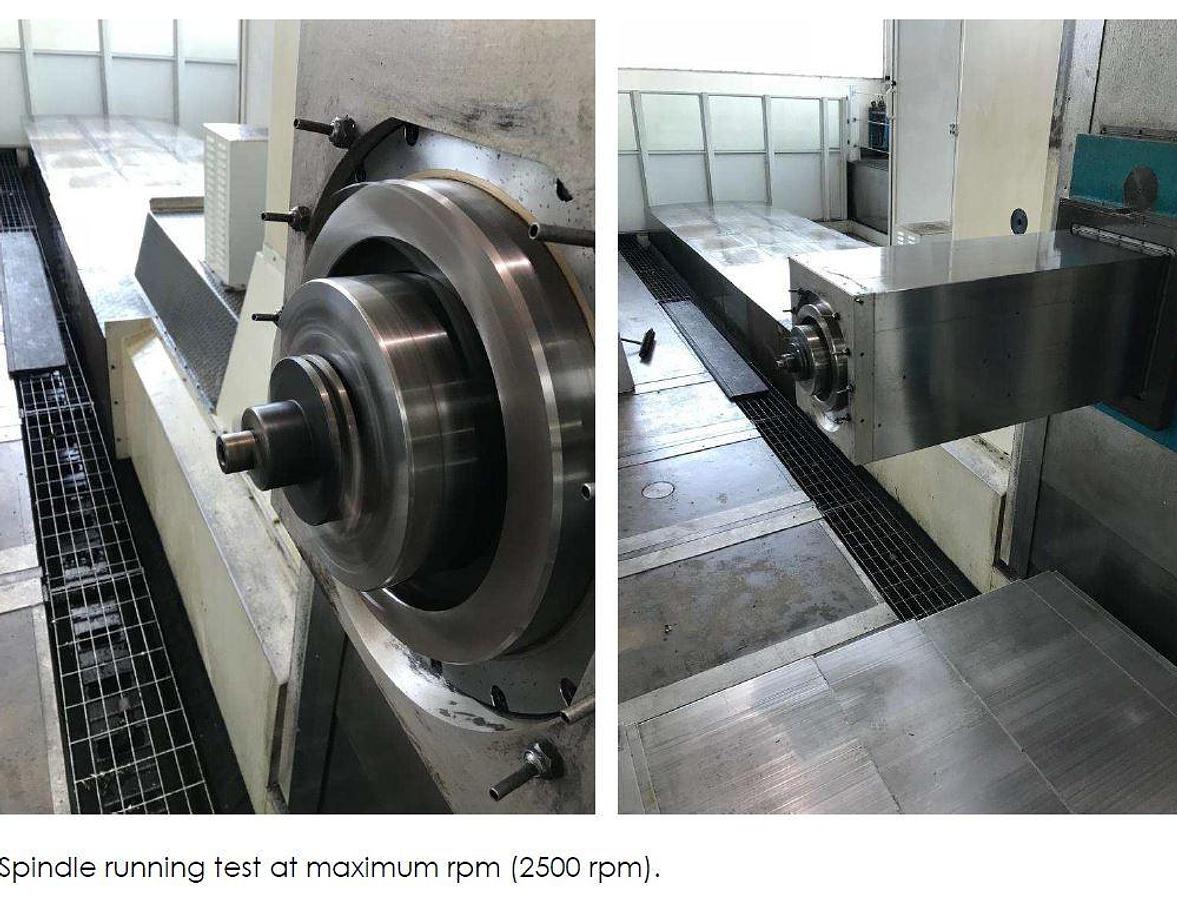

Pama Speedram 2000 CNC Floor/Ram Type Heavy Duty Horizontal Boring Machine
Pama Speedram 2000 CNC Floor/Ram Type Heavy Duty Horizontal Boring Machine
or
Call 770-509-0744
Description

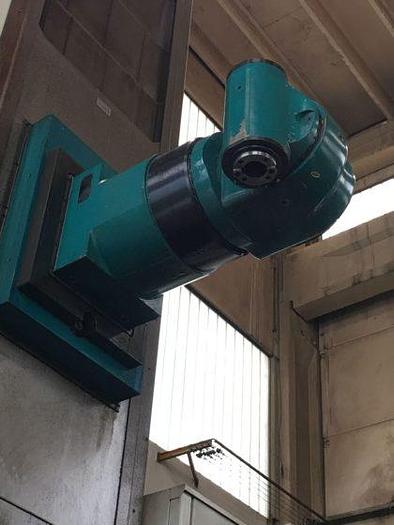

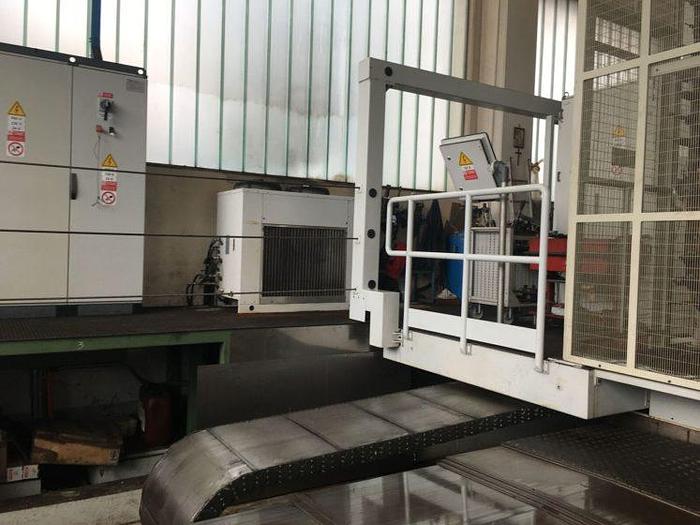

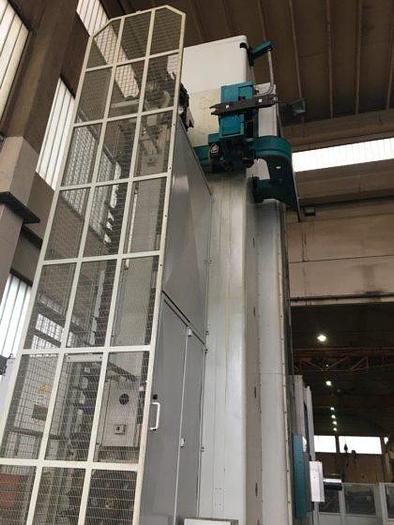

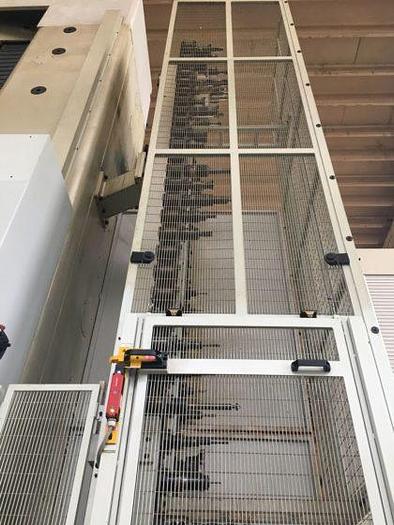

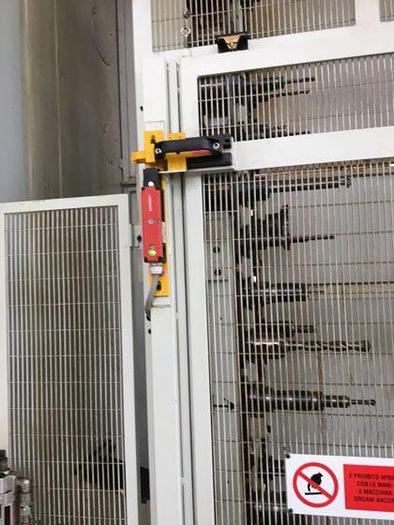

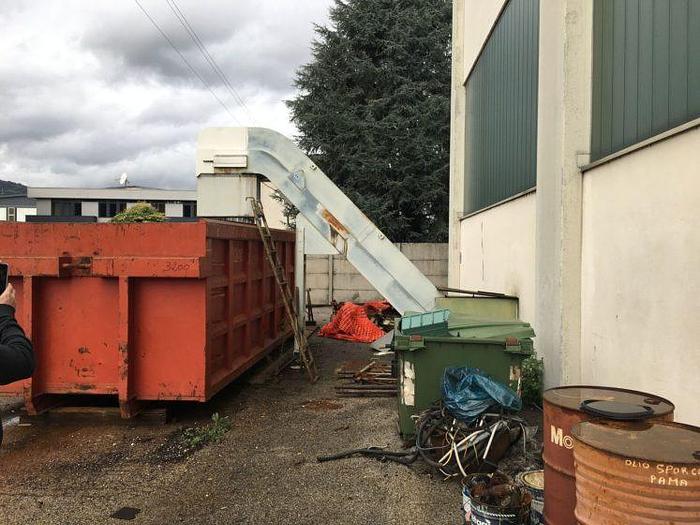

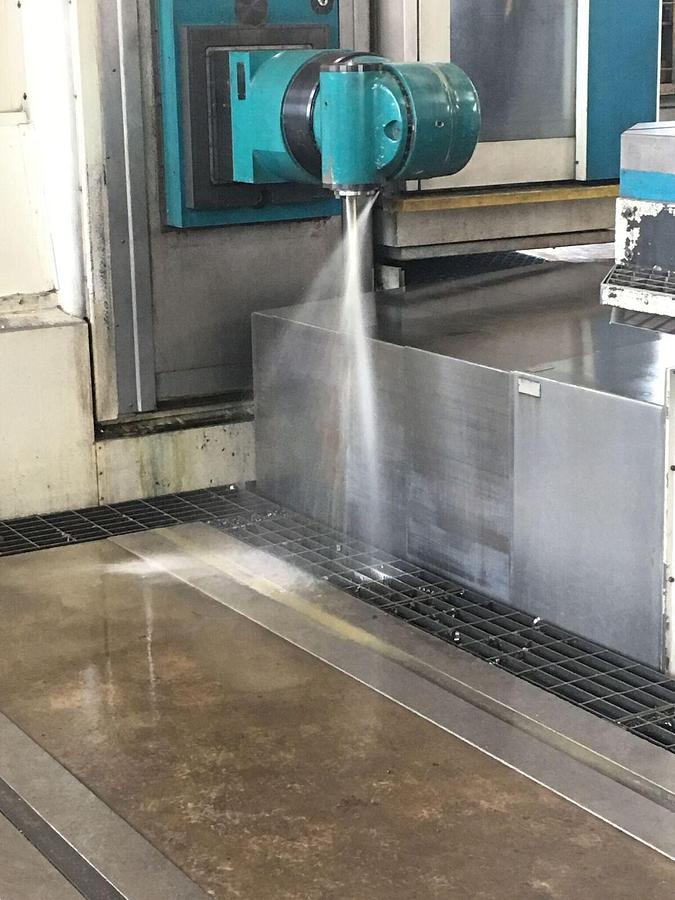

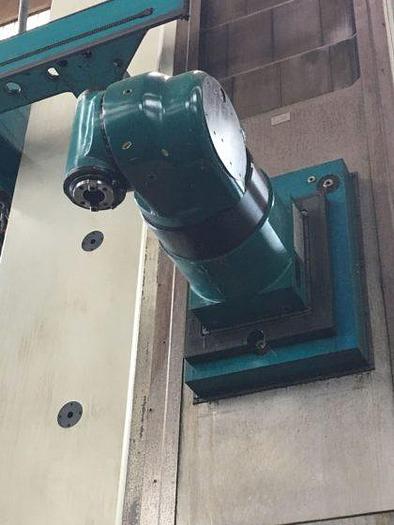

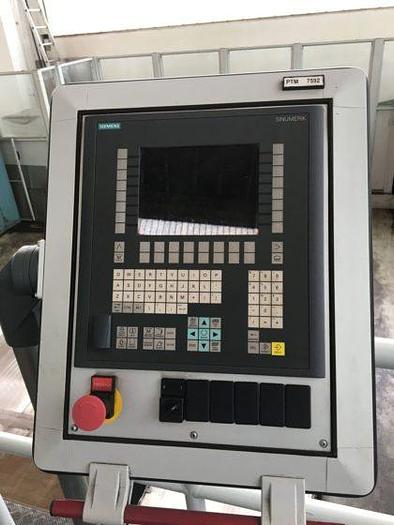

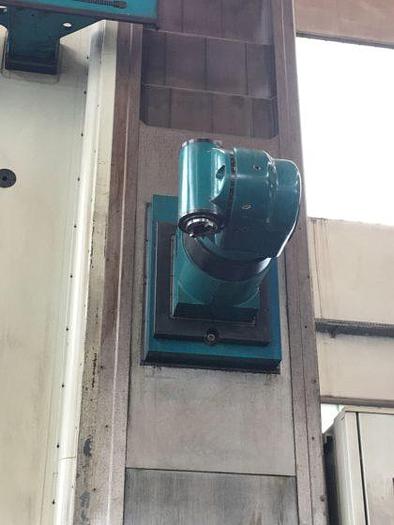

Siemens Sinumerik 840D CNC Control 80 Position Automatic Tool Changer PAMA Model CU 145 R Automatic Head Changer (AAC) 2 + 1 Store Capacity 6 Place Fixed Tool Rack Pama Model TH 100 Infeeding Rotary Table 3,000 x 3,500mm, V axis 3,000mm, 100 Ton Capacity Orthogonal TTL 2 25 360 CNC Milling Head Coolant Through Spindle (30 bar) External Coolant System Operator Platform Chip Conveyor Safety Fencing & Enclosure
Specifications
| Manufacturer | Pama |
| Model | Speedram 2000 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 10579 |
| Spindle diameter | 180 mm |
| Spindle speeds | 2,500 rpm |
| X axis travel | 13,000 mm |
| Y axis travel | 5,000 mm |
| Z axis travel | 1,200 mm |

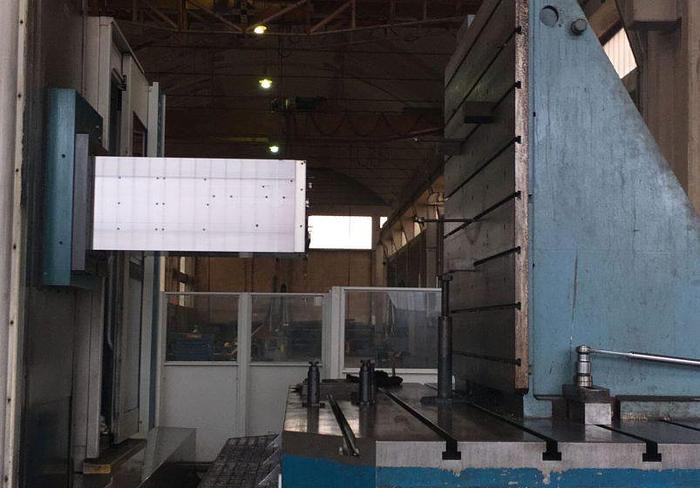

| Table dimensions | 3,000 x 3,500 mm |
| Table capacity | 100 Ton |
| Taper | ISO 50 BIG PLUS - DIN 69871/2 |
| Ram dimensions | 400 x 440 mm |
| Spindle power (s1) | 91 kW |
| W axis travel | 1,000 mm |
| Z + w axis travel | 2,200 mm |
| Working feed rates | 0.5 - 8,000 mm/min |
| Rapid feed rate x,y,z,w axis | 20,000 mm/min |
| Torque nominal (s1) | 9,050 Nm |
| Spindle max, power | 25 kW |
| V axis table infeed | 3,000 mm |
| B axis | 360 Degree |
| Speed ratio | 1:1 |
| Mandrel index | ±100 Degree : 200 Positions Every Degree |
| Rotation index | ±180 Degree : 360 Positions Every Degree |
| Nominal torque of rotation (b axis) | 80,000 Nm |
