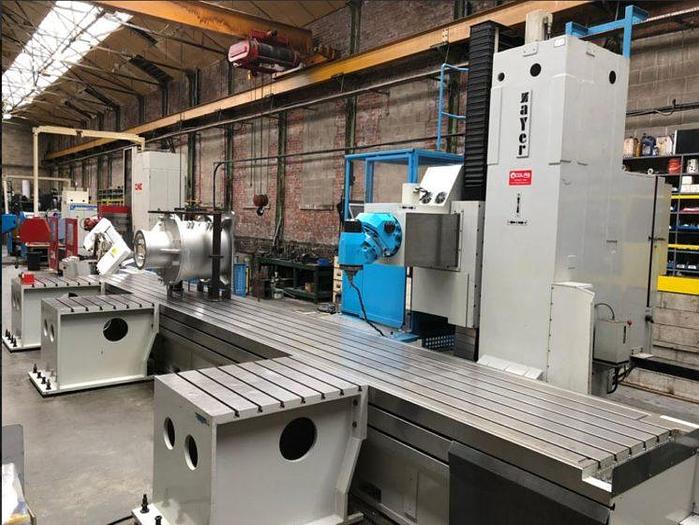

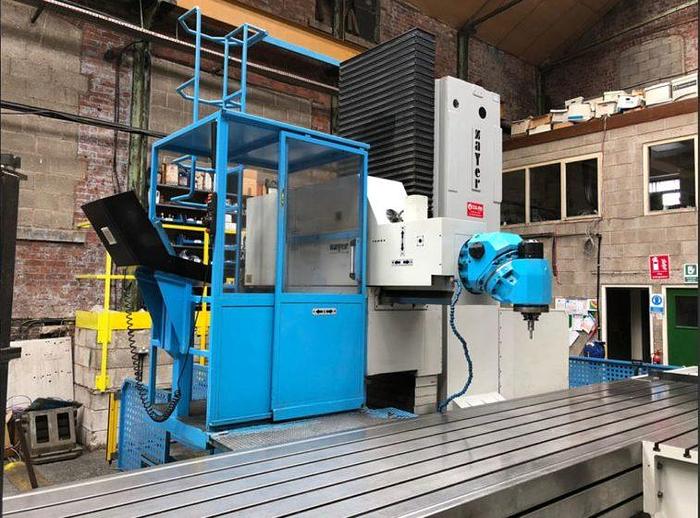

Zayer 30K M9000 CNC Traveling Column Milling Machine
Zayer 30K M9000 CNC Traveling Column Milling Machine
Description

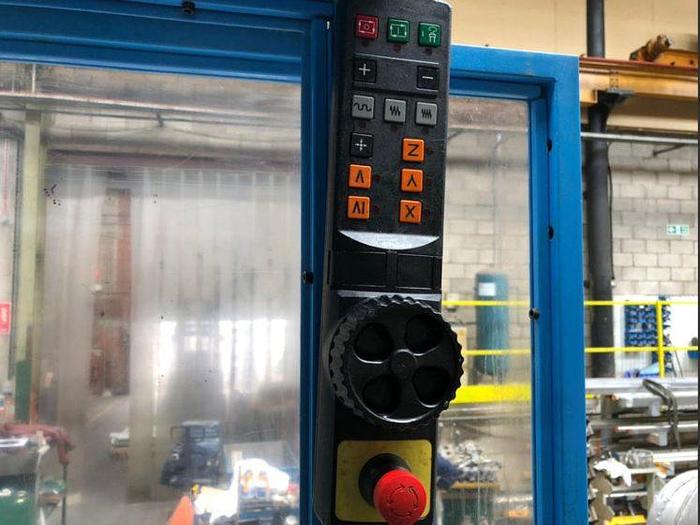

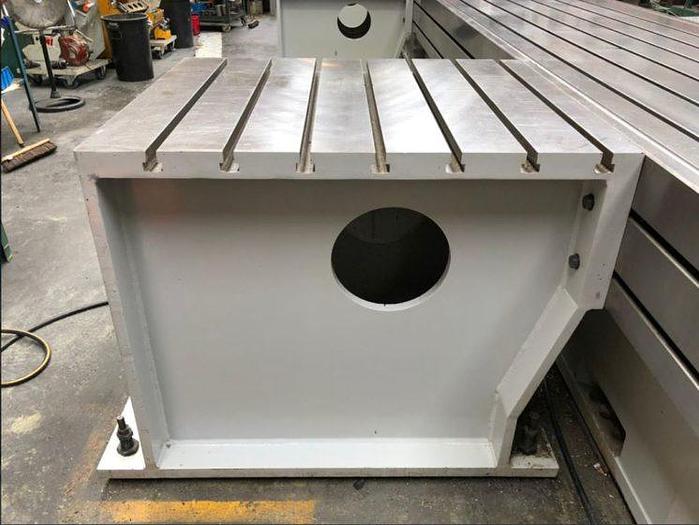

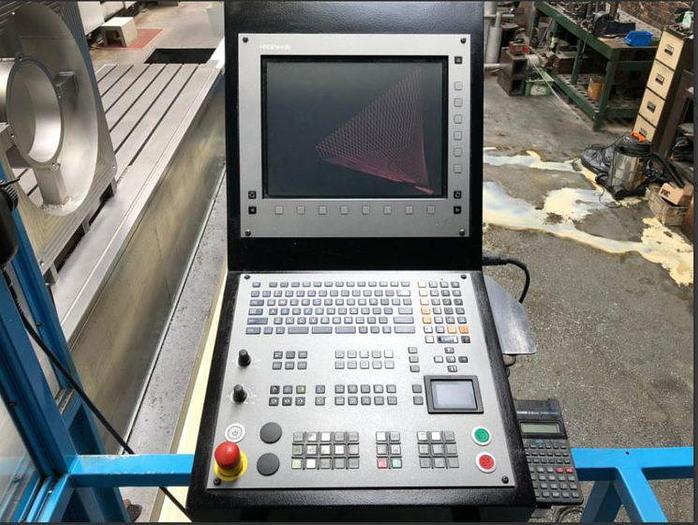

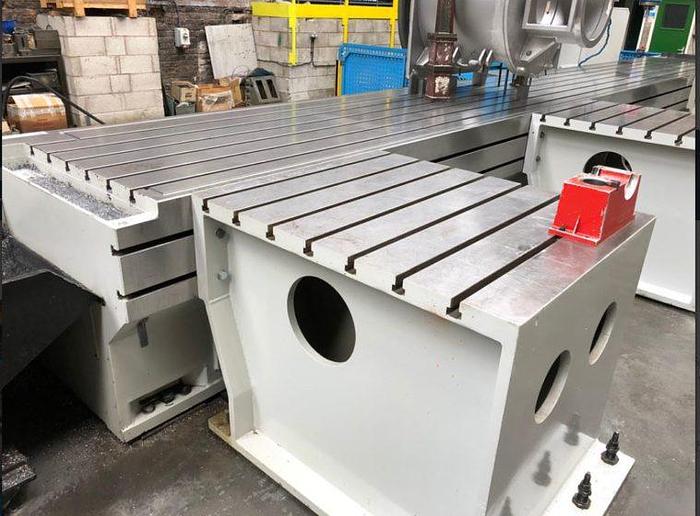

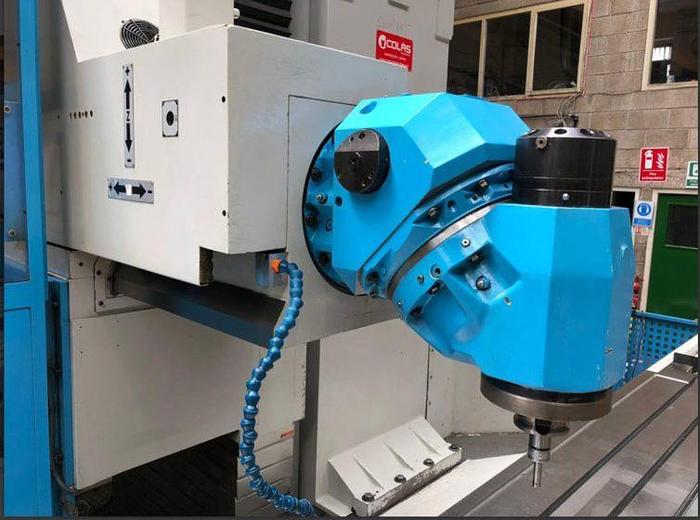

Heidenhain TNC 530 CNC Control System Heidenhain Portable Hand Wheel HR 410 30 Position Automatic Tool Changer Auto Index Head 2 Pos. x 180 deg. x 360 Position 4 Front Hub Supports The following Rebuild & Retrofit work Was Done In 2015: Totally dismantled. Totally cleaned. Oil System dismantled for the revision Mechanical revision X Axis ( change the bearings + spindle repair + change the strip) Mechanical revision Y Axis ( change the bearings + spindle repair + change the strip) Mechanical revision Z Axis ( change the bearings + spindle repair + change the strip) Adjustment and verification X Axis Adjustment and verification Y Axis Adjustment and verification Z Axis New oils and grease in every machine component New telescopic slides X axis Verification by the engineer of the Siemens servo drive systems in Axis and Head Geometric verification of the machine Complete repair of the control panel General revision of every machine component Adjustment with Renishaw laser Adjustment with Renishaw Ballbar Headstock Repair by Zayer – front and back side, change of bearings, pinions, joints….)
Specifications
| Manufacturer | Zayer |
| Model | 30K M9000 |
| Condition | Used |
| Stock Number | 10615 |
| Retrofit | 2015 |
| Spindle speeds | 3,000 rpm |
| X axis travel | 8,408 mm |
| Y axis travel | 1,258 mm |
| Z axis travel | 2,005 mm |

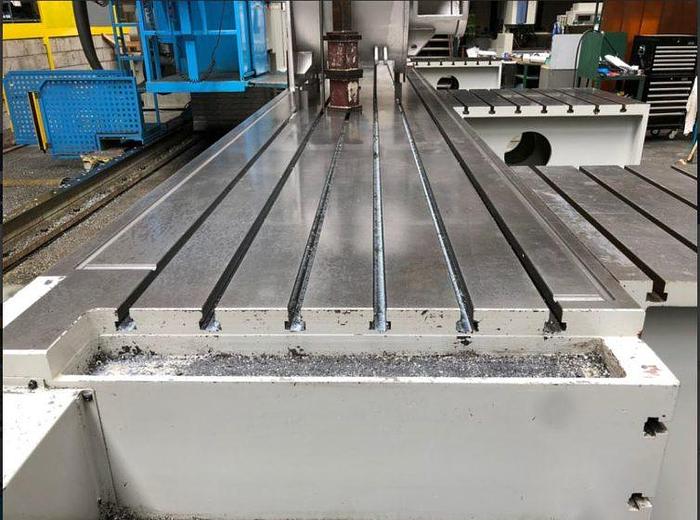

| Table dimensions | 9,700 x 1,200 mm |
| Table capacity | 30 Ton |
| Rapid traverse x axis | 10,000 mm/min |
| Rapid traverse y, z axis | 15,000 mm/min |
| Max working feed | 5,000 mm/min |
| Taper | ISO 50 |
| Main motor | 37 kW |
| Machine weight, approx. | 42,000 kg |
