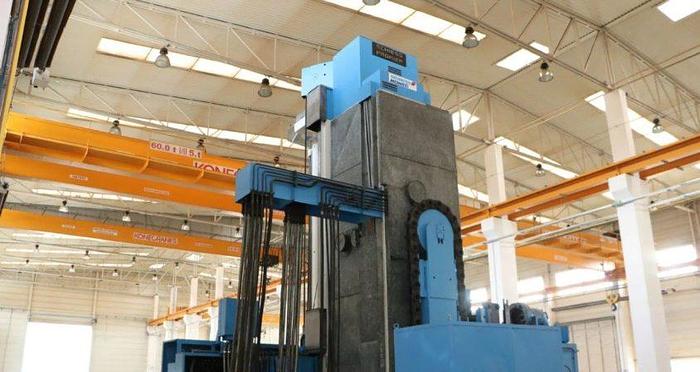

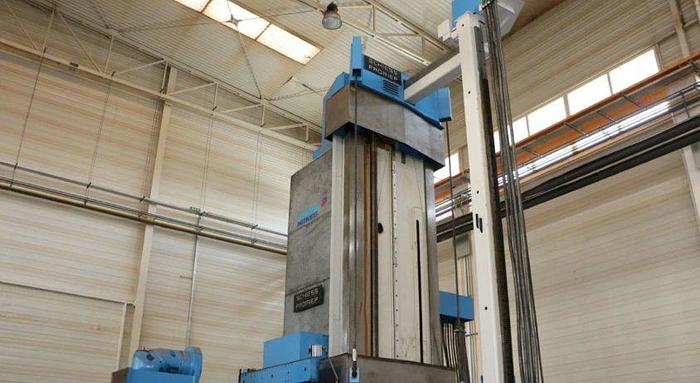

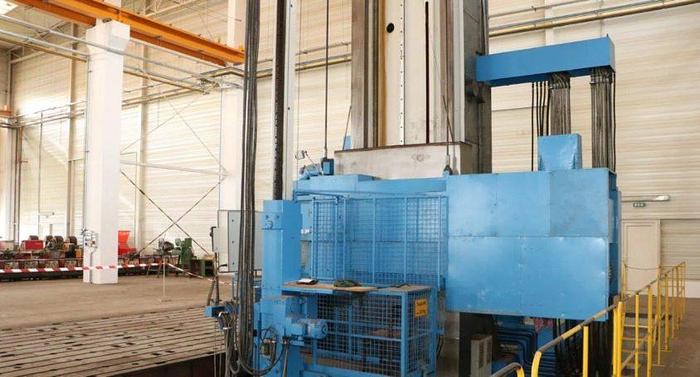

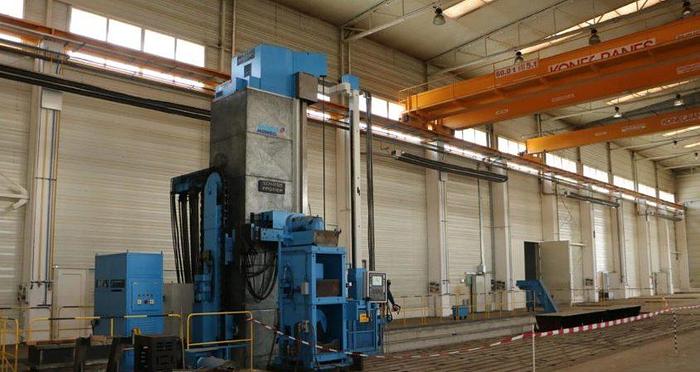

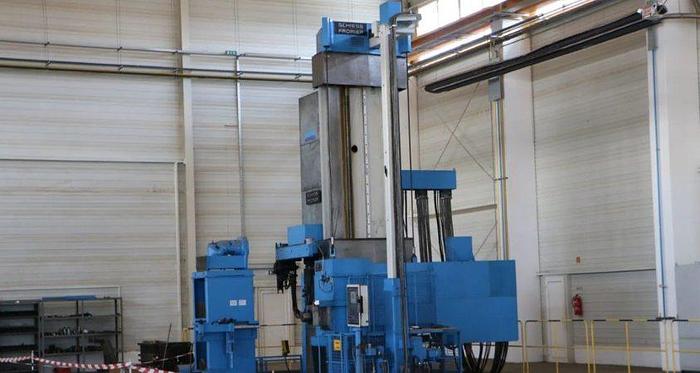

SCHIESS FRORIEP 1FB180 CNC FLOOR TYPE HORIZONTAL BORING MACHINE
SCHIESS FRORIEP 1FB180 CNC FLOOR TYPE HORIZONTAL BORING MACHINE
orCall 770-509-0744
Description

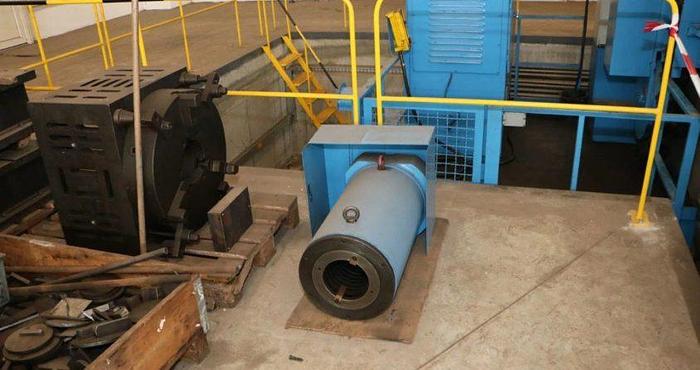

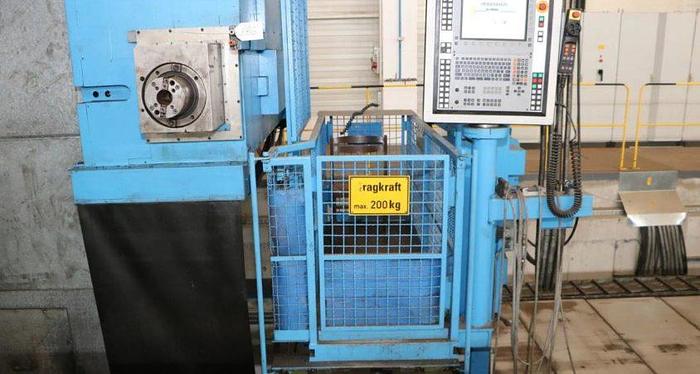

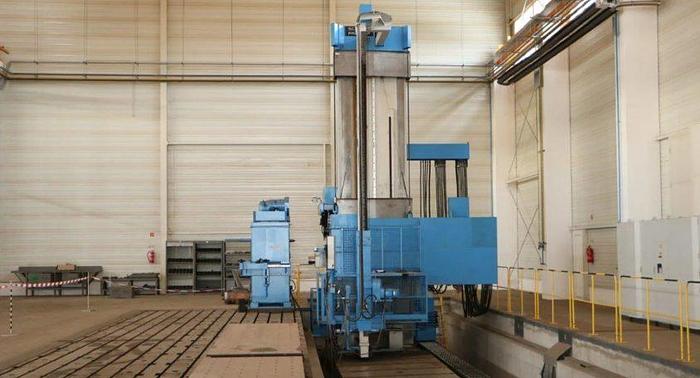

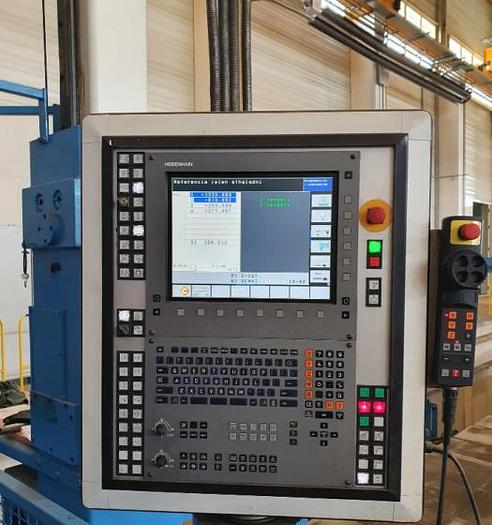

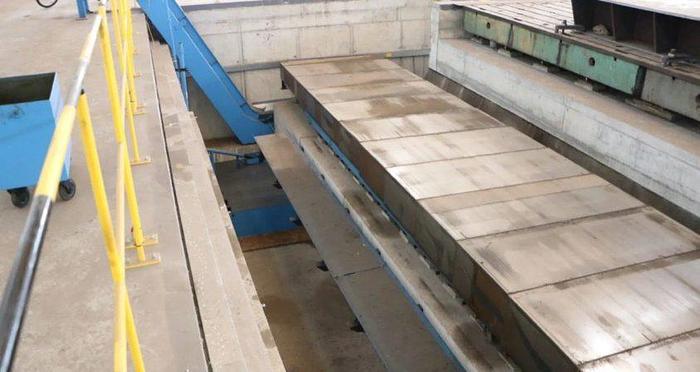

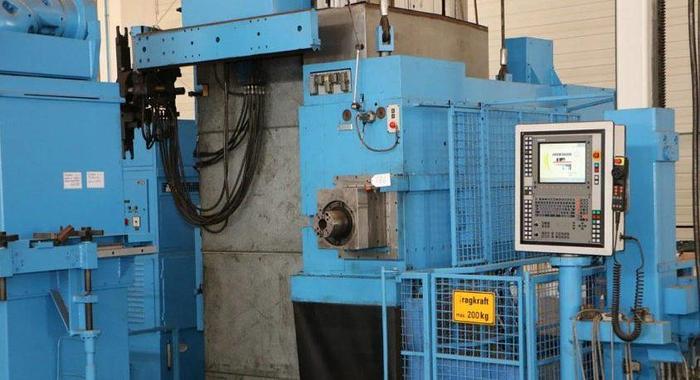

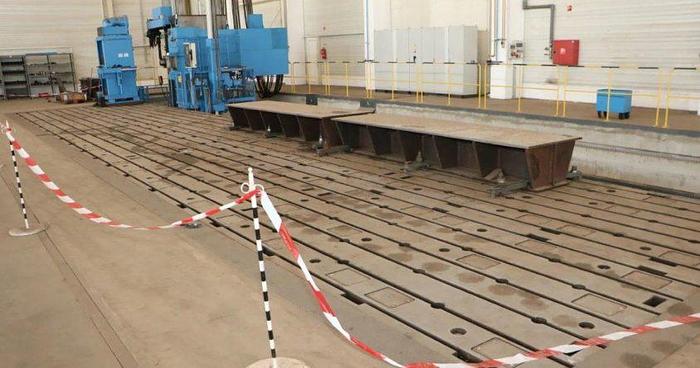

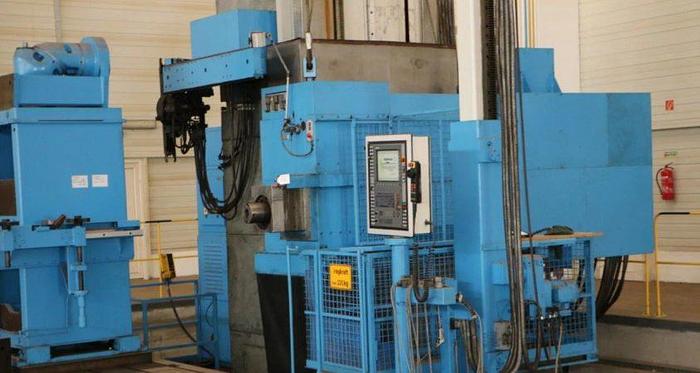

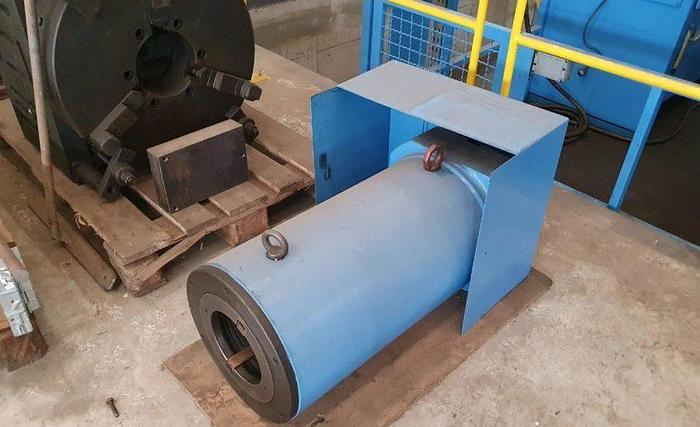

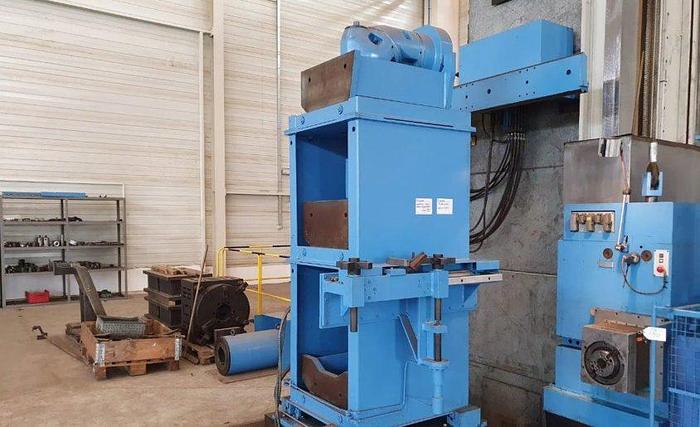

Heidenhain iTNC530 CNC Control Number of Controlled Axes – 4 Pick Up Head Station Including 4 Heads: Facing Head with U-Axis Universal Milling Head Boring Spindle Support Vertical Milling Head 60 Position Automatic Tool Changer Hydrostatic Guideways Hydrostatic Spindle Bearings Floor Plates 20.000mm x 4.200mm
Specifications
| Manufacturer | Schiess Froriep |
| Model | 1FB-180 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 10770 |
| Spindle diameter | 180 mm |
| Spindle speeds | 1,000 rpm |
| X axis travel | 18,500 mm |
| Y axis travel | 4,500 mm |
| Z axis travel | 950 mm |
| W axis travel | 900 mm |
| Spindle diameter - milling | 290 mm |
| Ram size | 400 x 340 mm |
| Spindle taper | ISO 60/50 ISO Bt/Mk |
| Power | 85 kW |
| Feed rate x,y,z,w axes | 0.1 - 5,600 mm/min |
| Machine dimensions (l x w x h) | 26 x 12 x 7 m |
| Machine weight, appprox | 110 + 65 Ton |
