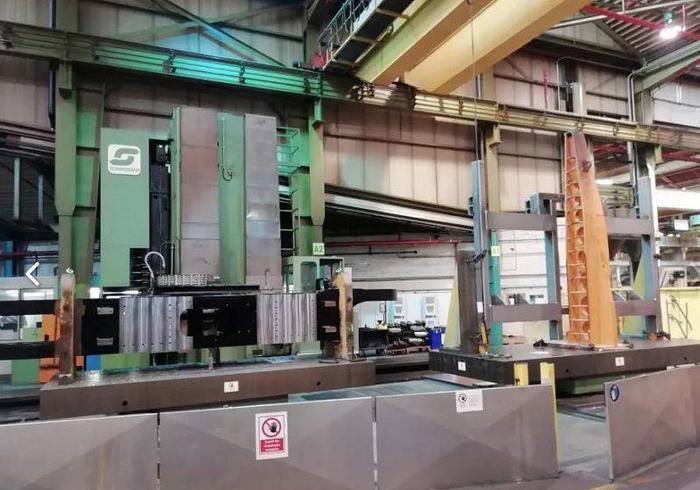

Scharmann Heavycut 2.3 CNC Ram/Floor Type Horizontal Boring Machine

Scharmann Heavycut 2.3 CNC Ram/Floor Type Horizontal Boring Machine

or
Call 770-509-0744

Description

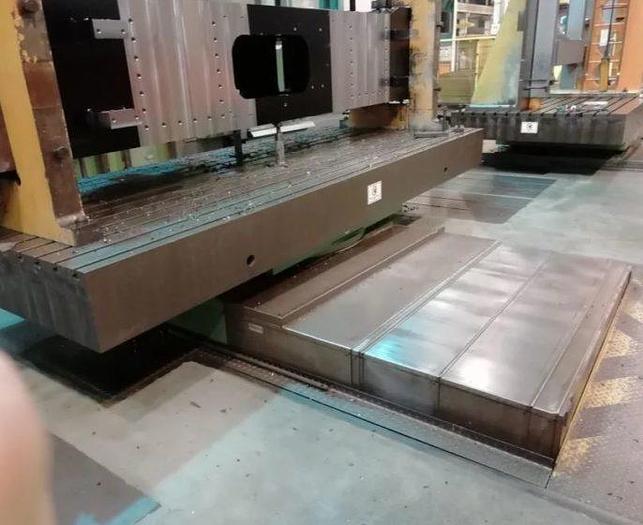

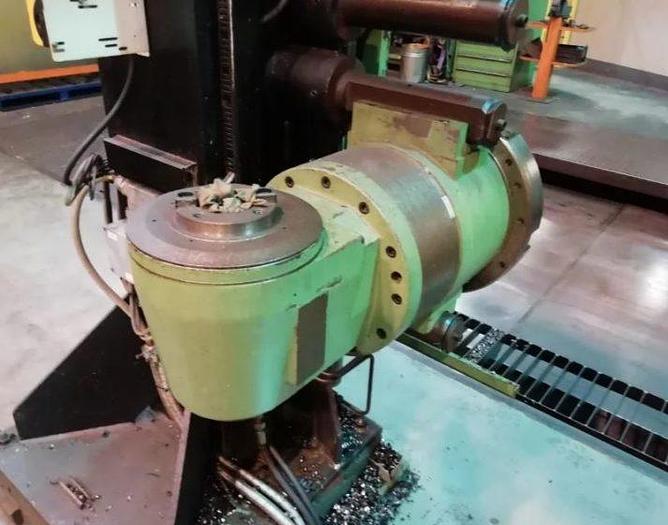

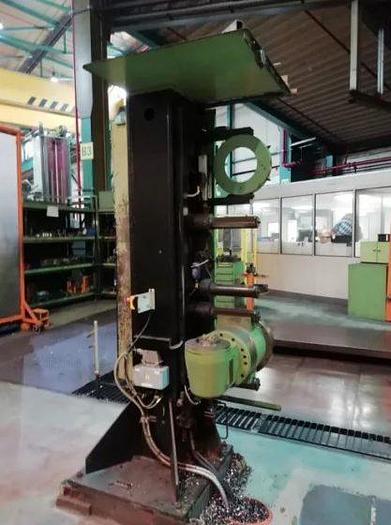

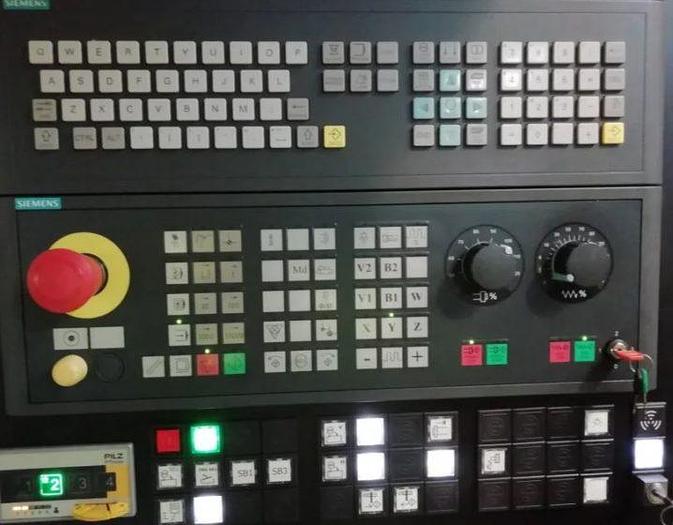

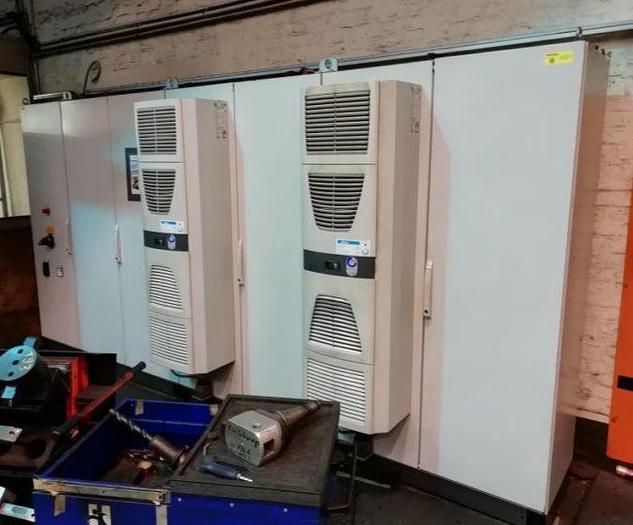

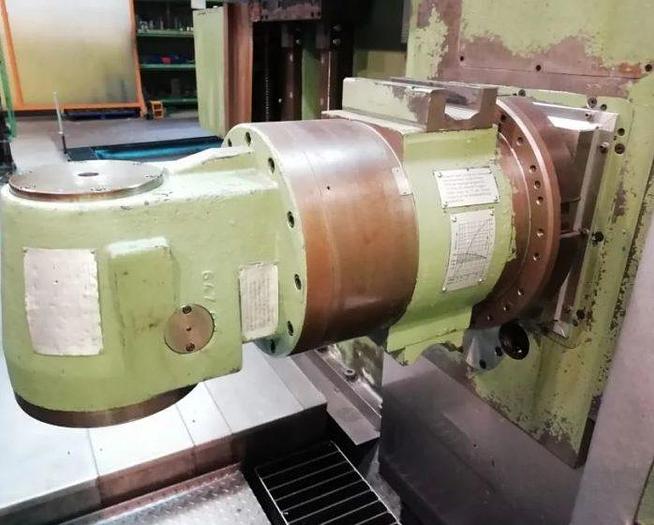

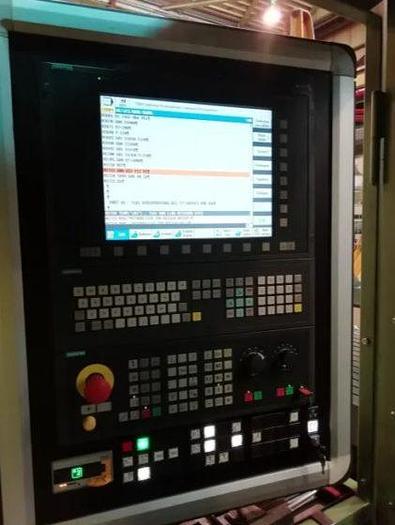

Siemens 840D CNC Control (2) Two Rotary Tables 60 Position Automatic Tool Changer 3 Position Head Changer with Magazine Chip Conveyor Cooling Unit

Specifications

ManufacturerScharmann
ModelHeavycut 2.3
ConditionUsed
Stock Number10889
Retrofit2016
Spindle diameter160 mm
Spindle speeds1,250 rpm
X axis travel15,000 mm
Y axis travel4,000 mm
Z axis travel800 mm

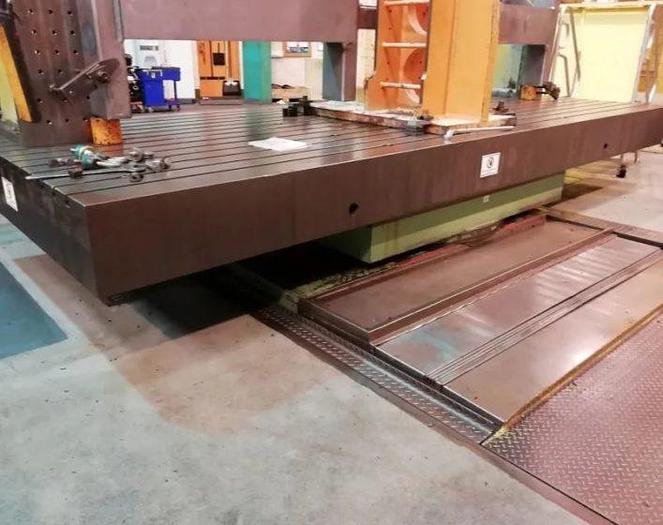

Table dimensions2,000 x 2,500 mm
Table capacity40 Ton
W axis travel700 mm
Ram dimensions325 x 325 mm
Spindle taperISO 50
Spindle power65/40 kW
V1 table infeeding travel2,000 mm
V2 table infeeding travel2,500 mm
Machine dimensions, approx.22 x 11 x 8 m
Machine weight, approx.132 Ton
