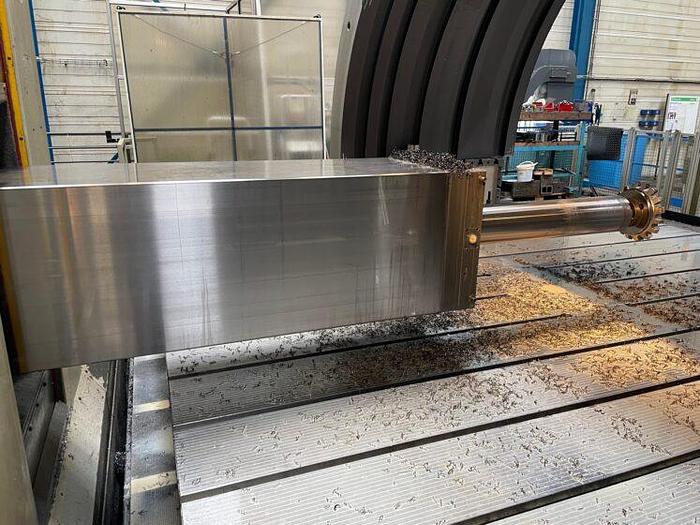

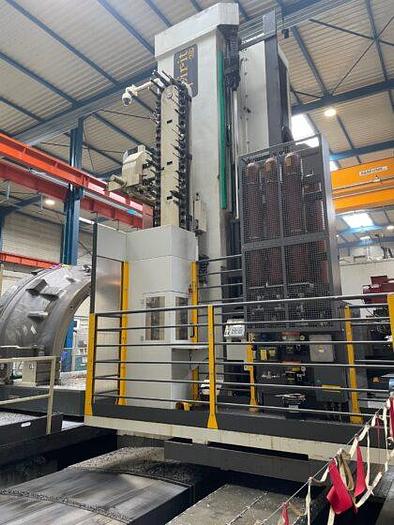

FPT Spirit 250 CNC Ram-Floor Type Horizontal Boring & Milling Machine
No longer available
FPT Spirit 250 CNC Ram-Floor Type Horizontal Boring & Milling Machine
Description

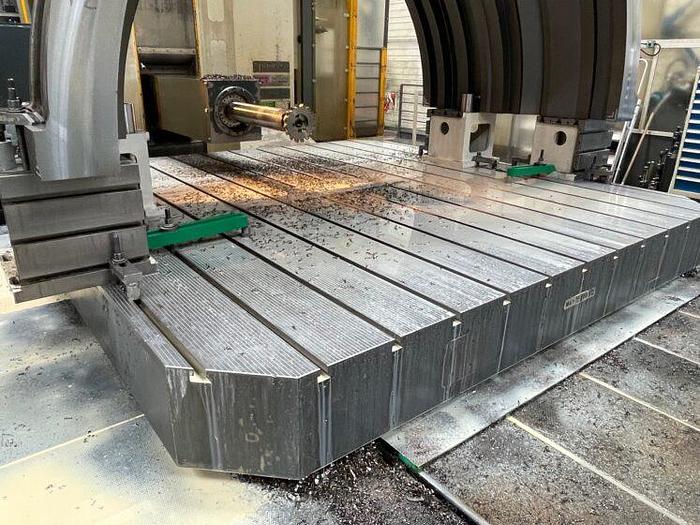

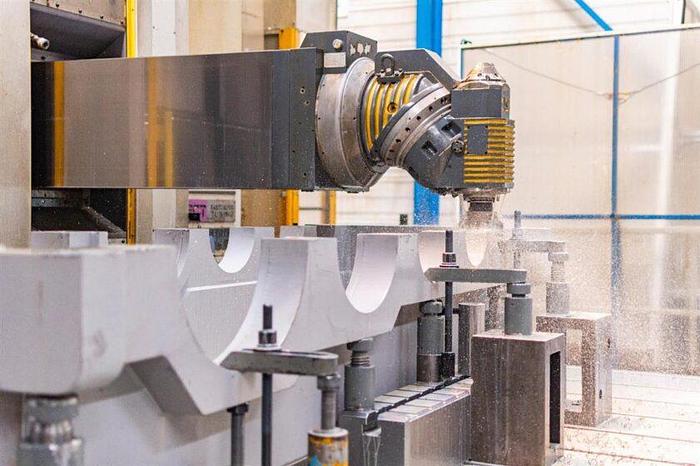

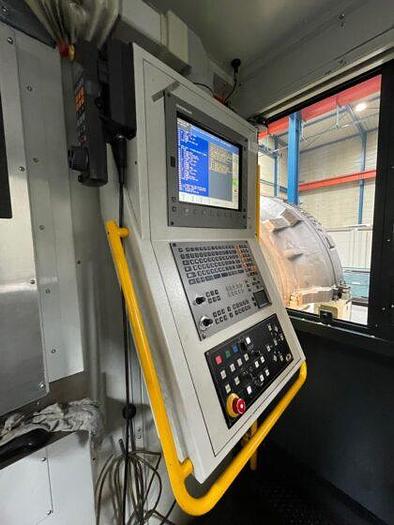

Heidenhain iTNC 530 CNC Control 80 Position Automatic Tool Changer CNC Rotary Table – 4,000 x 4,000 mm – 75 Ton Capacity – V Axis Longitudinal Travel 1,500 mm Automatic Head Changer Universal Milling Head – 5 Axis – 8,000 rpm RENISHAW Measuring Probe Belt Filtering Unit Through Spindle Coolant Chip Conveyor
Specifications
| Manufacturer | FPT |
| Model | Spirit 250 |
| Year | 2013 |
| Condition | Used |
| Stock Number | 10992 |
| Quill diameter | 160 mm |
| Spindle speeds | 3,000 rpm |
| X axis travel | 6,000 mm |
| Y axis travel | 5,000 mm |
| Z axis travel | 1,500 mm |
| Table dimensions | 4,000 x 4,000 mm |
| W axis travel | 900 mm |
| Spindle taper | ISO 50 |
| Spindle motor | 71 kW |
| Feed speeds | 1 - 5,000 mm/min |
| Rapid speeds | 25 m/min |
| Total power requirement | 187.6 kW |
| Dimensions of the machine, approximate | 14.1 x 13.4 x 7.8 m |
