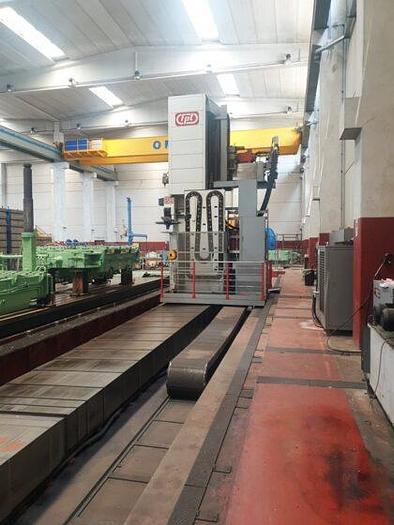

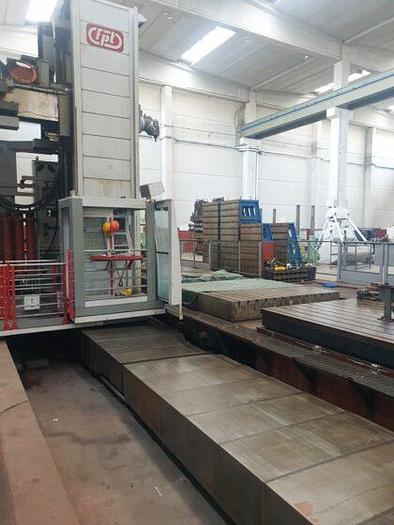

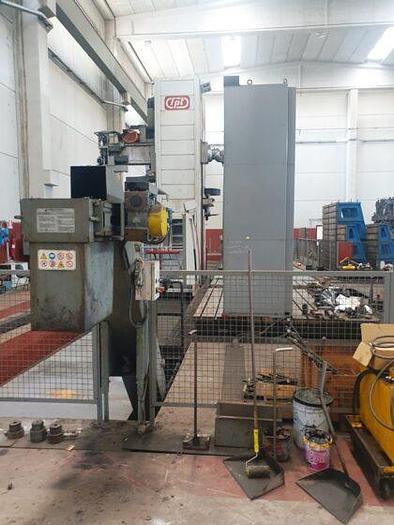

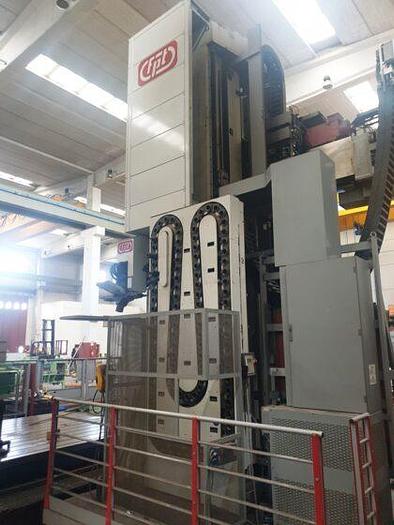

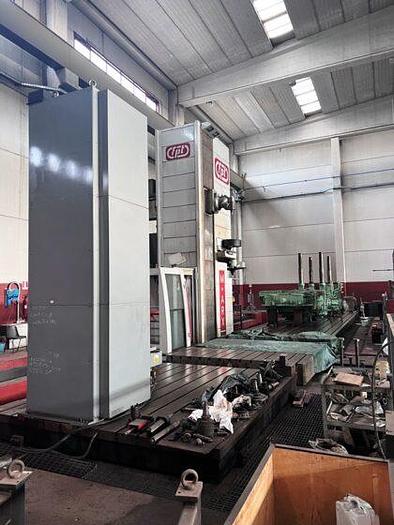

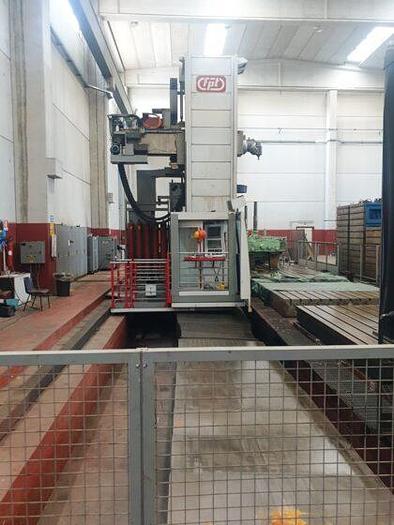

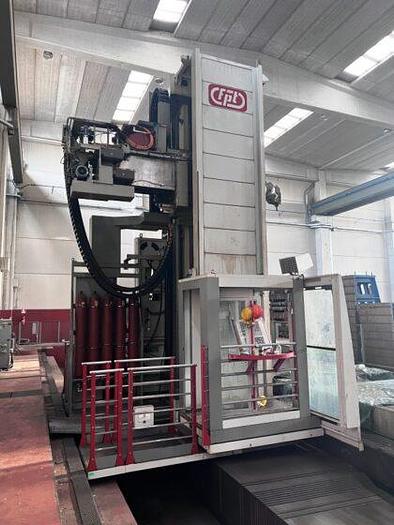

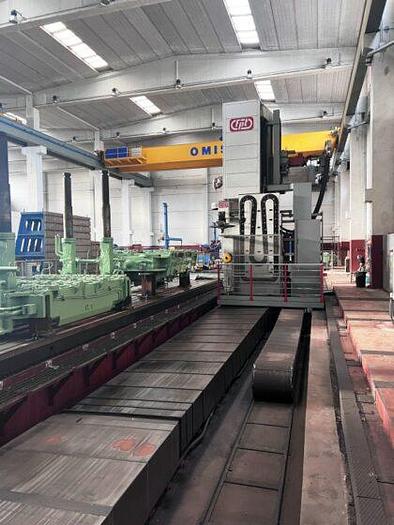

FPT M-ARX CNC Floor-Type Horizontal Boring Machine
FPT M-ARX CNC Floor-Type Horizontal Boring Machine
Description

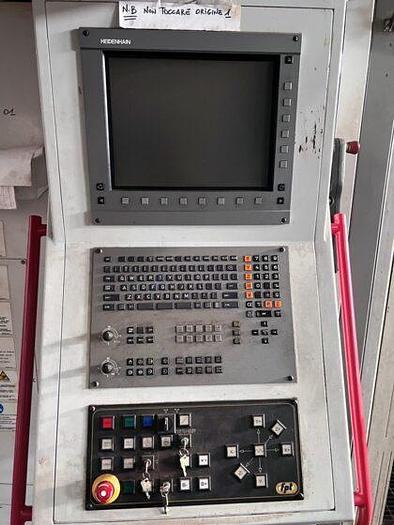

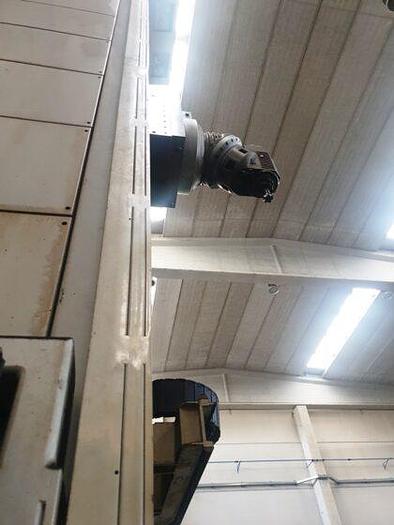

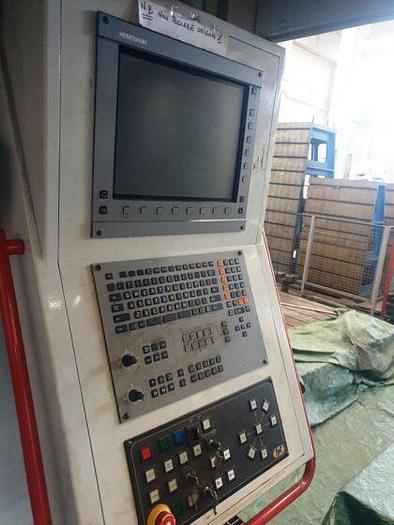

Heidenhain TNC 530 CNC Control 100 Position Tool Changer Hydrostatic System Nr. 1 Rotary Table 3,000 x 3,000 mm – 2,000 mm Stroke – 60 Ton Load Pick Up Head – 4 Positions Nr. 1 Automatic Universal Head with Continuous Positioning Nr. 1 Boring & Facing Head D’Andrea Model U-Tronic 630 Nr. 1 Mechanical Autolated Head External Coolant High Pressure Cooling Internal Spindle complete with Paper Filter & Potentiometric Adjustment Chip Conveyor – Output Right Side Remote Control Panel for Heidenhain CNC Work Area Lighting Laser Probe & Software to Check Tool Integrity & Measure Tool Radius Length Second Laser Probe & Tool Integrity Check + Software Static RTCP in Space Static RTCP Rotary Table Autocal Software for Automatic Calibration Measurement Probe & Piece Alignment Ethernet Communication Interface for Heidenhain CNC Rigid Tapping for Mechanical Heads Floor Plates for Total Length – 16,500 x 3,000 x 300 mm (650” x 118.1” x 11.8”)
Specifications
| Manufacturer | FPT |
| Model | M-ARX |
| Year | 2009 |
| Condition | Used |
| Stock Number | 11020 |
| Quill diameter | 160 mm |
| Spindle speeds | 3,000 rpm |
| X axis travel | 20,000 mm |
| Y axis travel | 5,000 mm |
| Z axis travel | 1,500 mm |
| Table dimensions | 3,000 x 3,000 mm |
| Tool taper | ISO 50 |
| V axis spindle travel | 900 mm |
| Table infeeding travel | 2,000 mm |
| Table capacity | 60 Ton |
| Spindle power (quill) power s1 | 51 kW |
| Spindle power (quill) power s6 | 68 kW |
| Spindle torque s1 | 1,856 Nm |
| Spindle torque s6 | 2,450 Nm |
| Spindle power | 30 kW |
| Spindle torque | 1,200 Nm |
