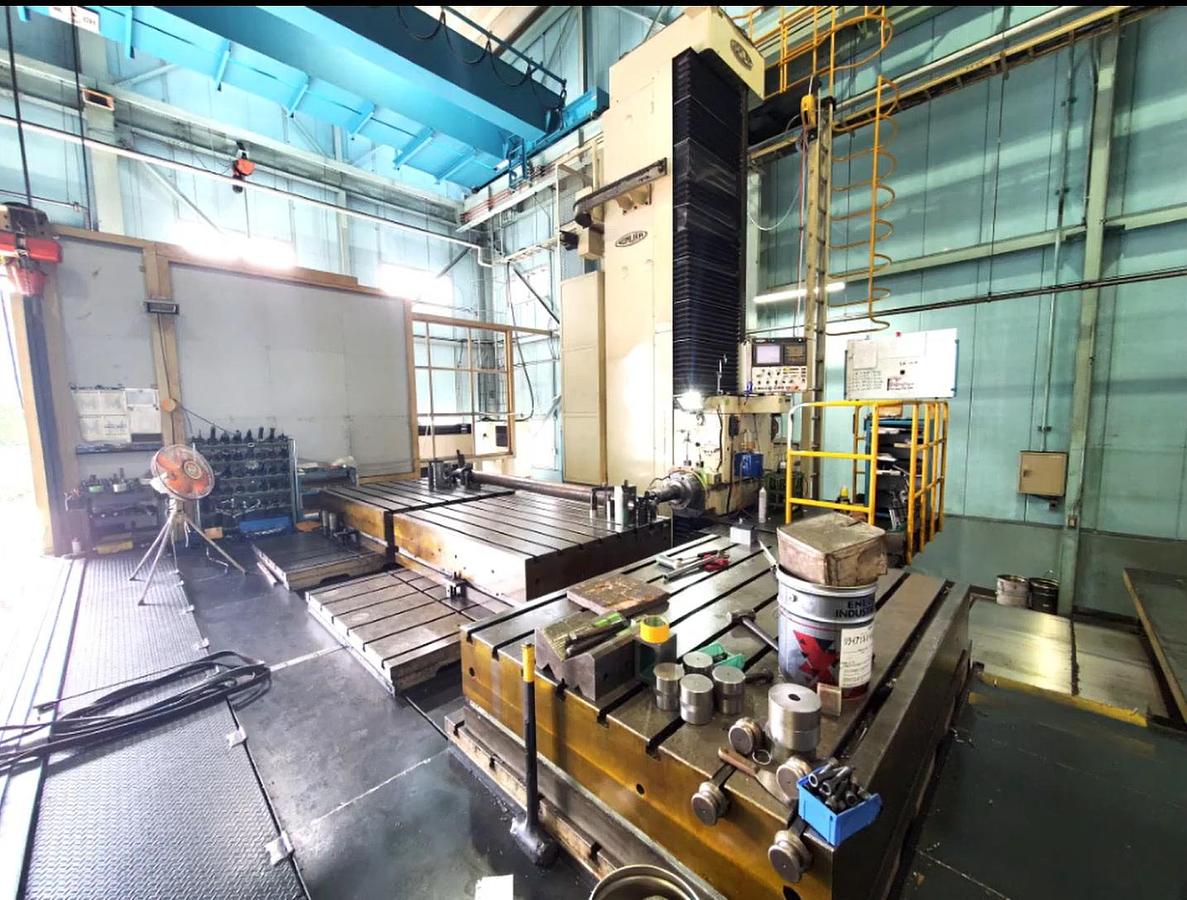

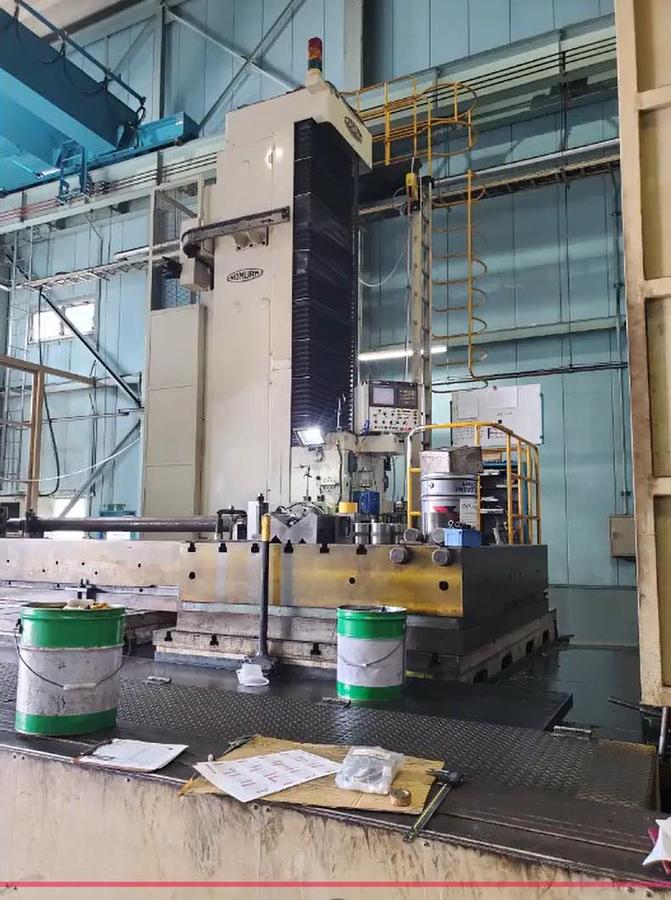

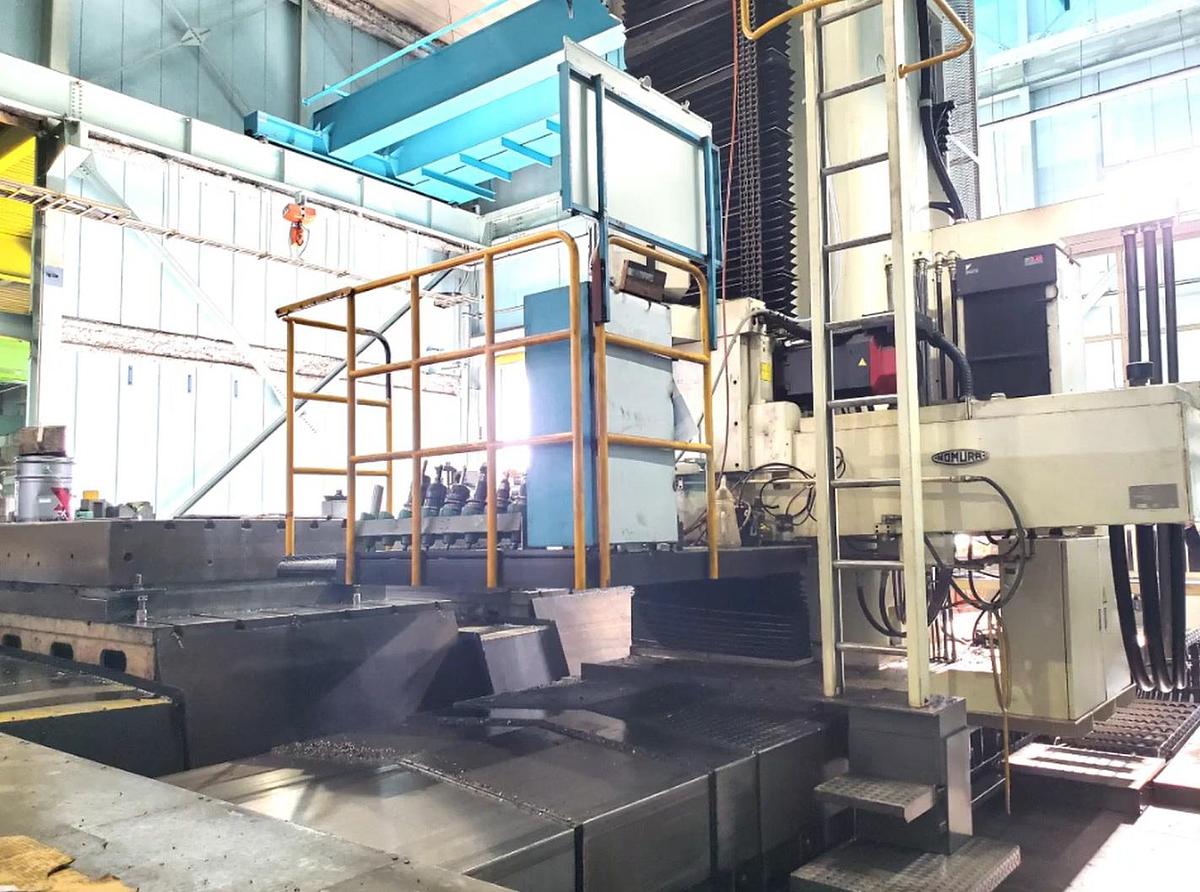

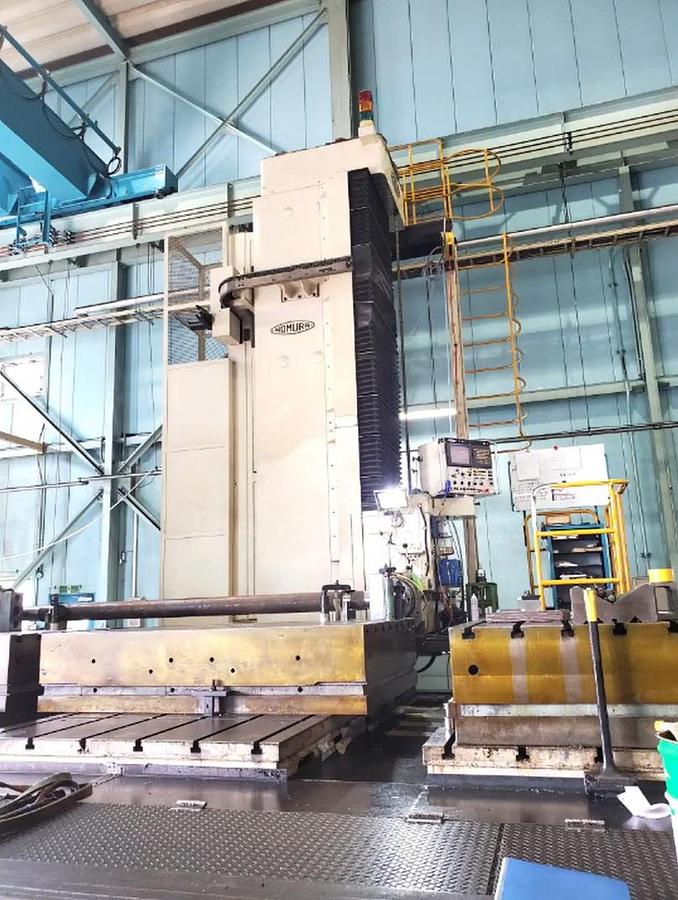

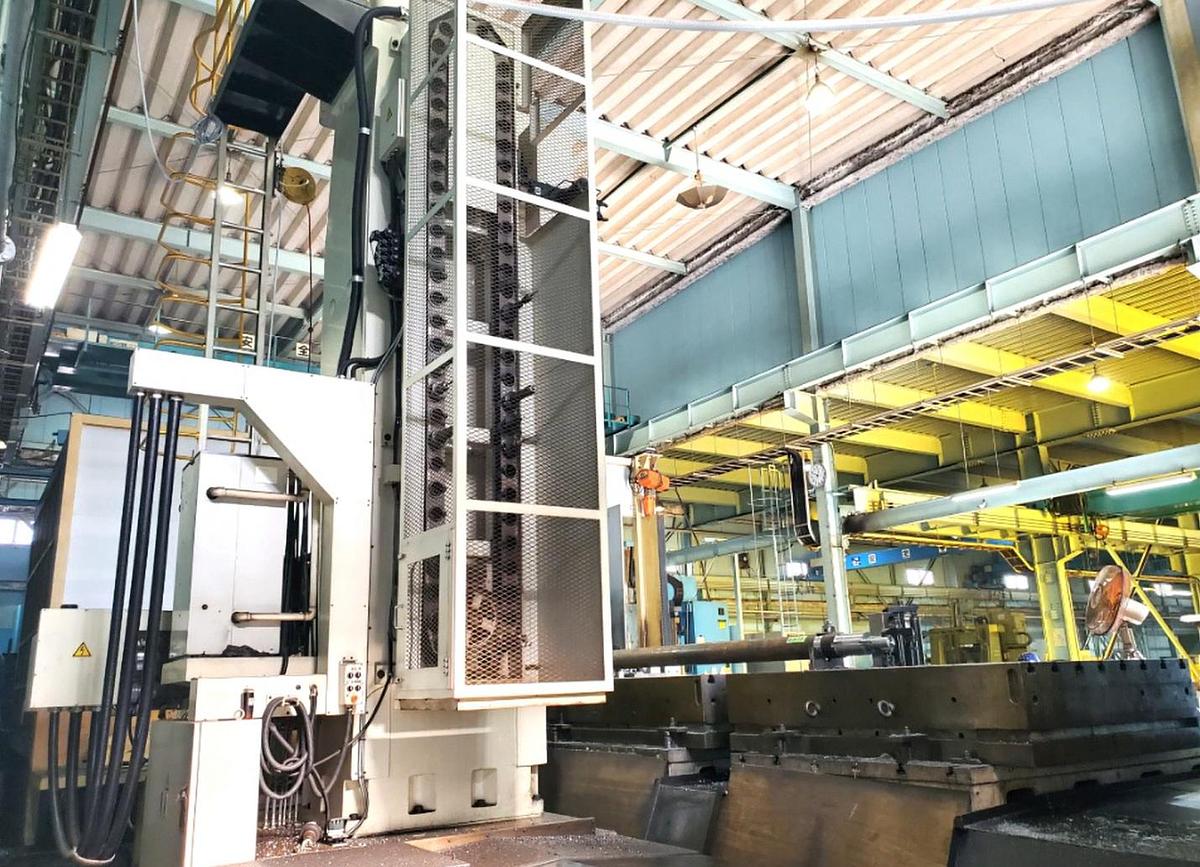

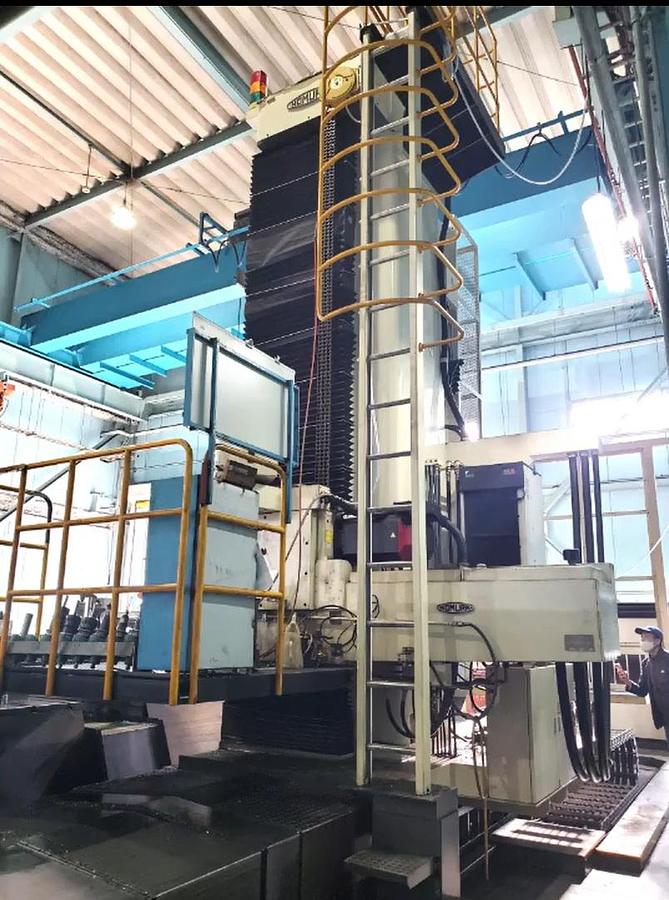

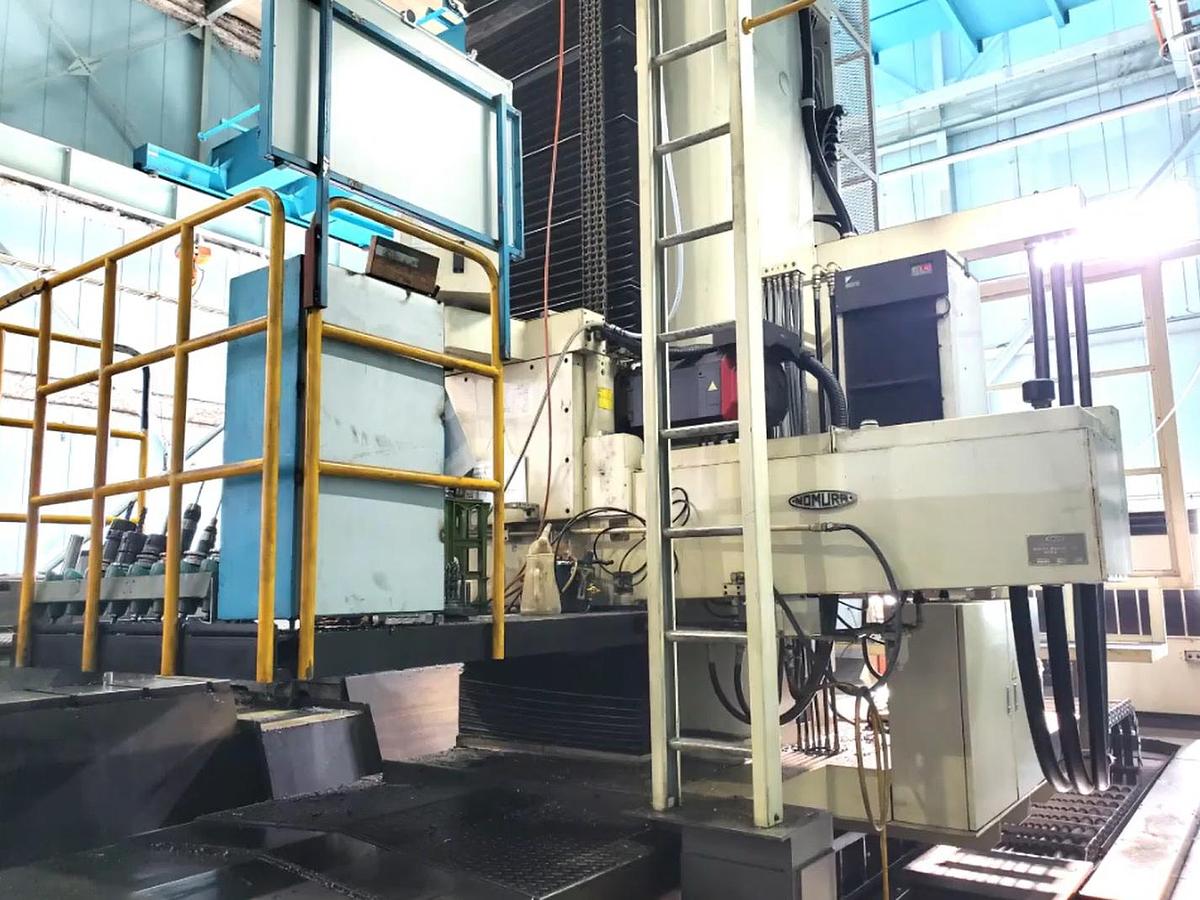

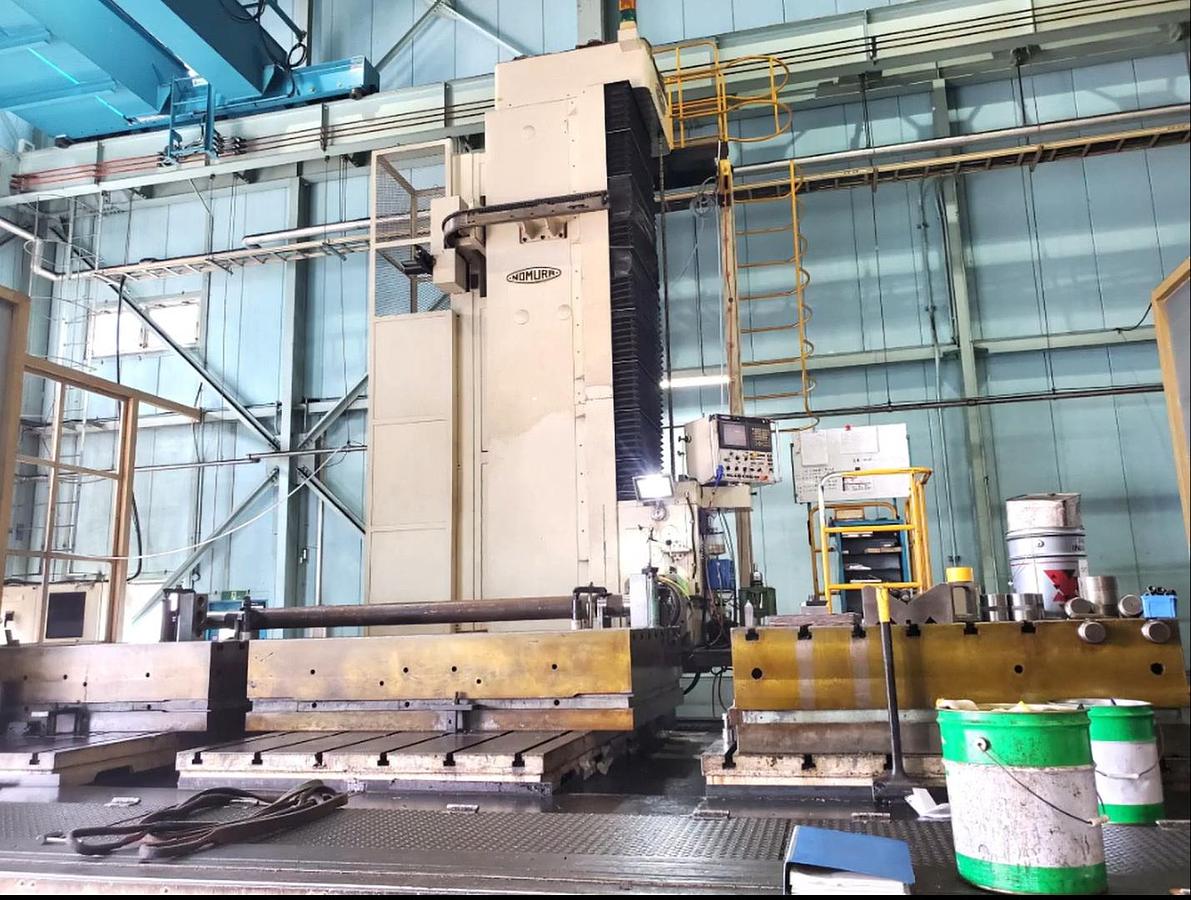

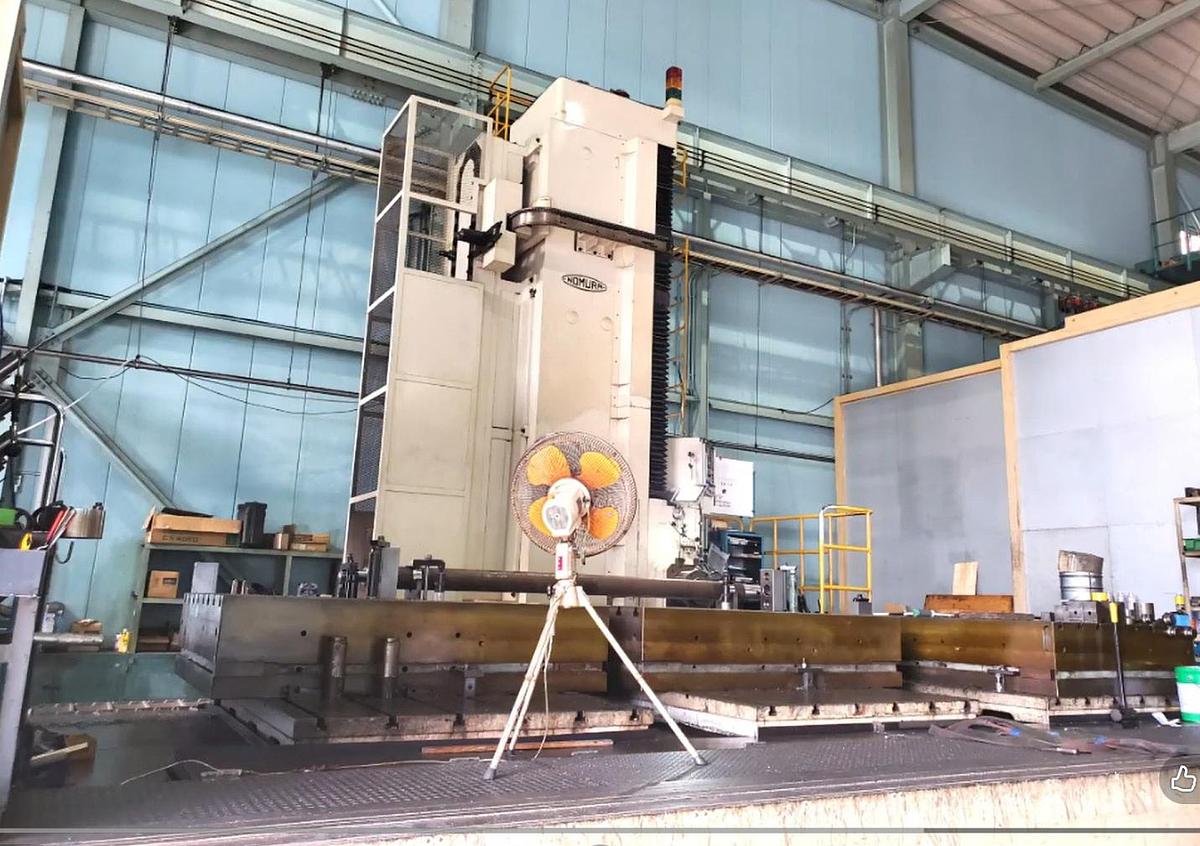

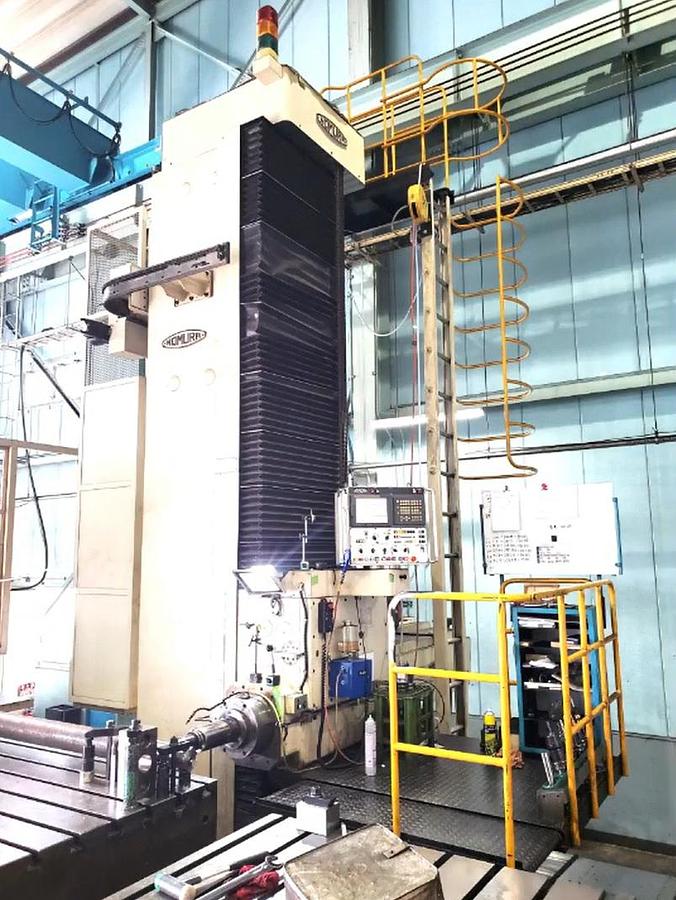

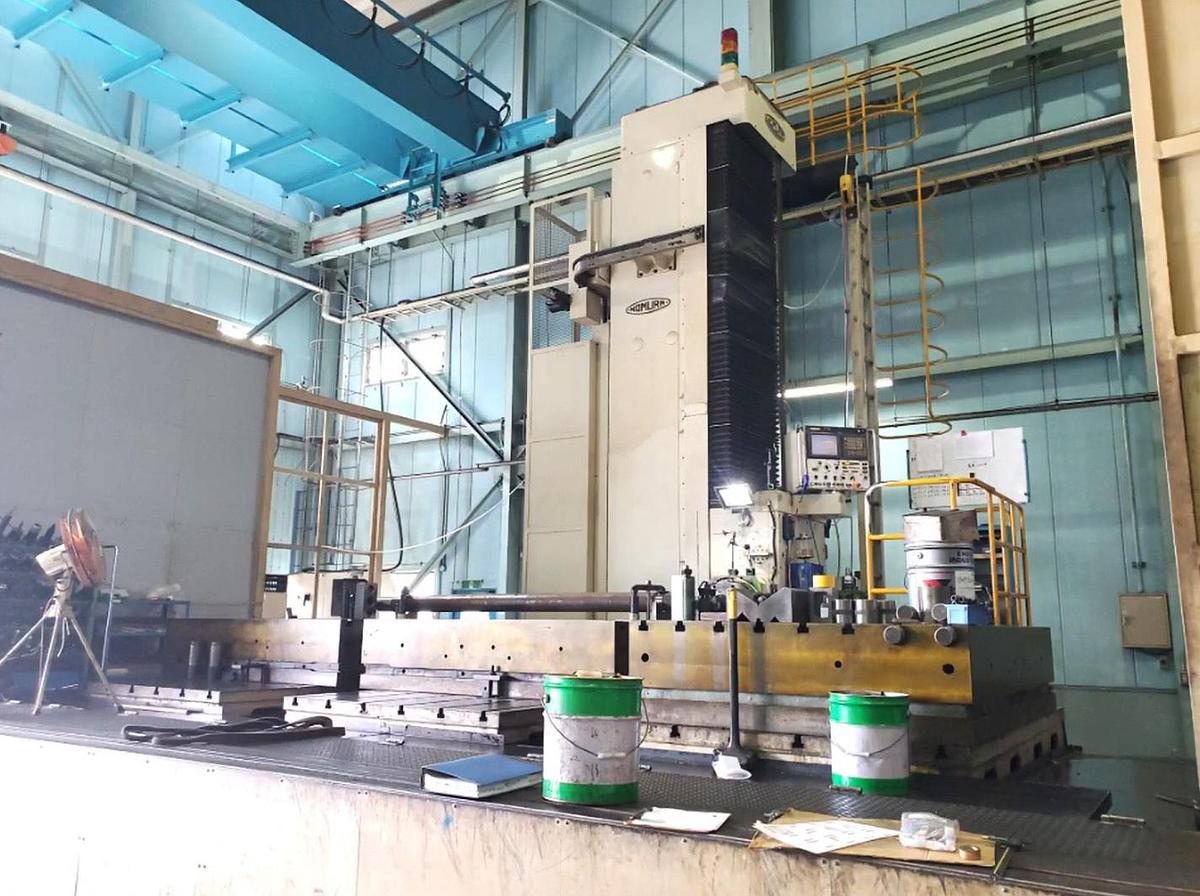

Nomura BN-135QF CNC Table Type Horizontal Boring Machine
Nomura BN-135QF CNC Table Type Horizontal Boring Machine
or
Call 770-509-0744
Description

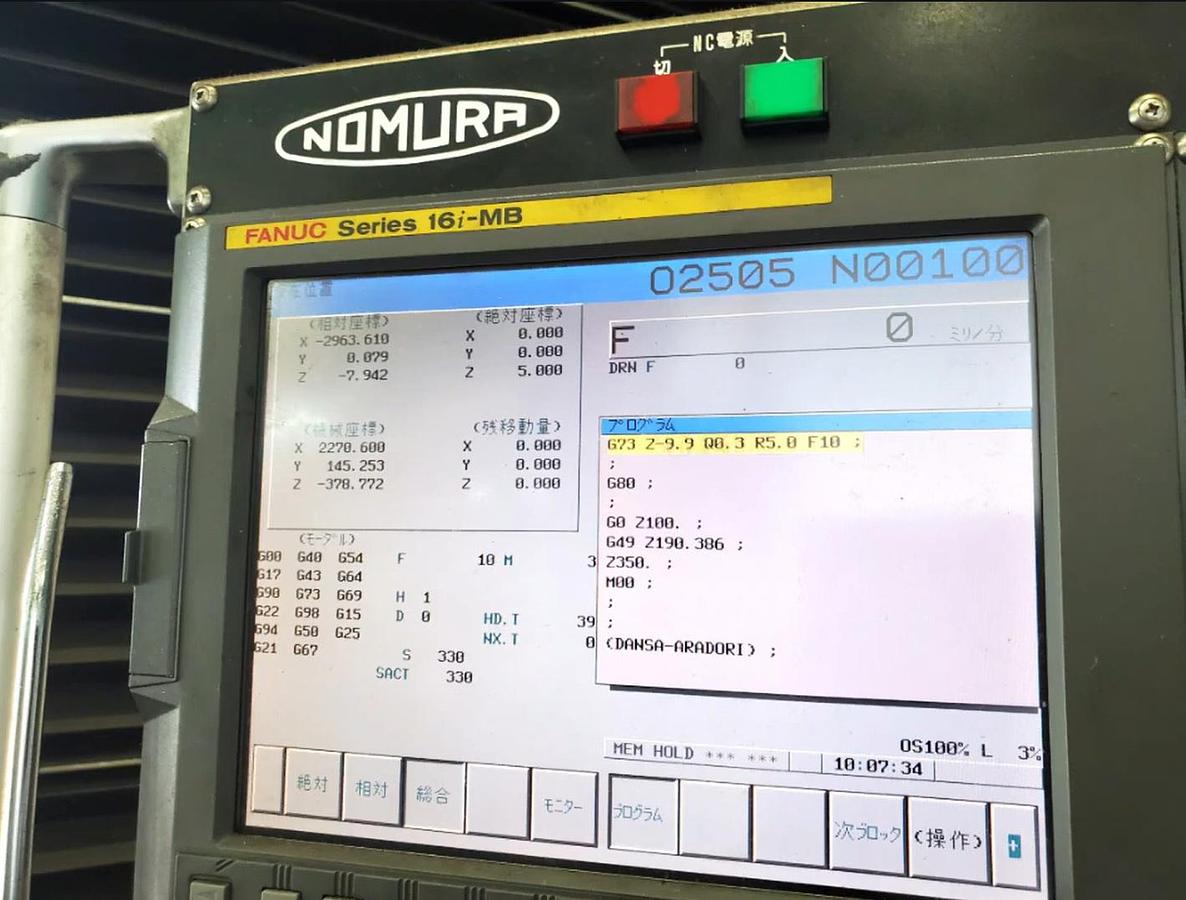

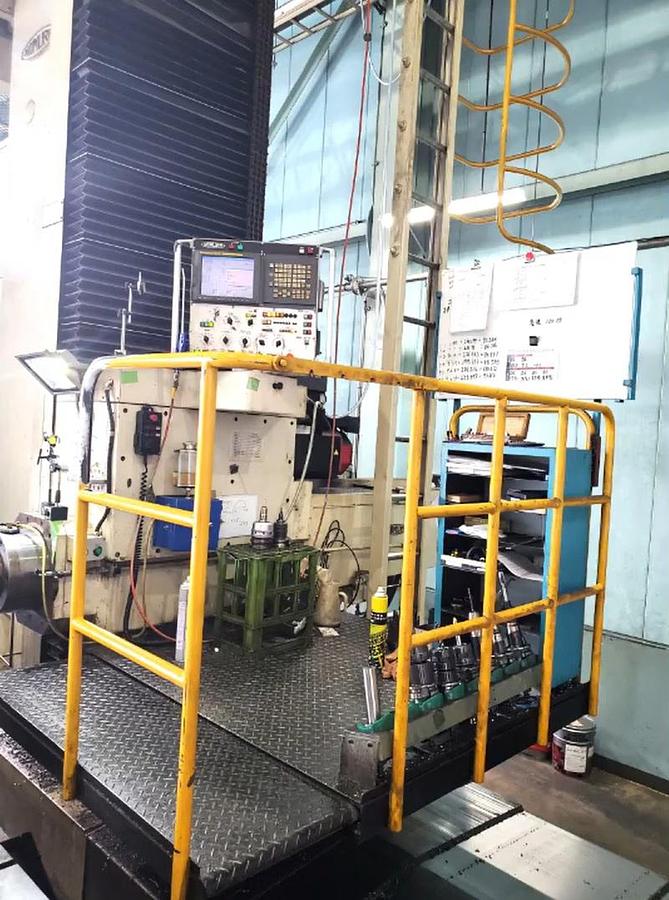

Fanuc 16i MB CNC Control
60 Position Automatic Tool Changer - BT 50
Chip Conveyor
Spindle Cooling Device

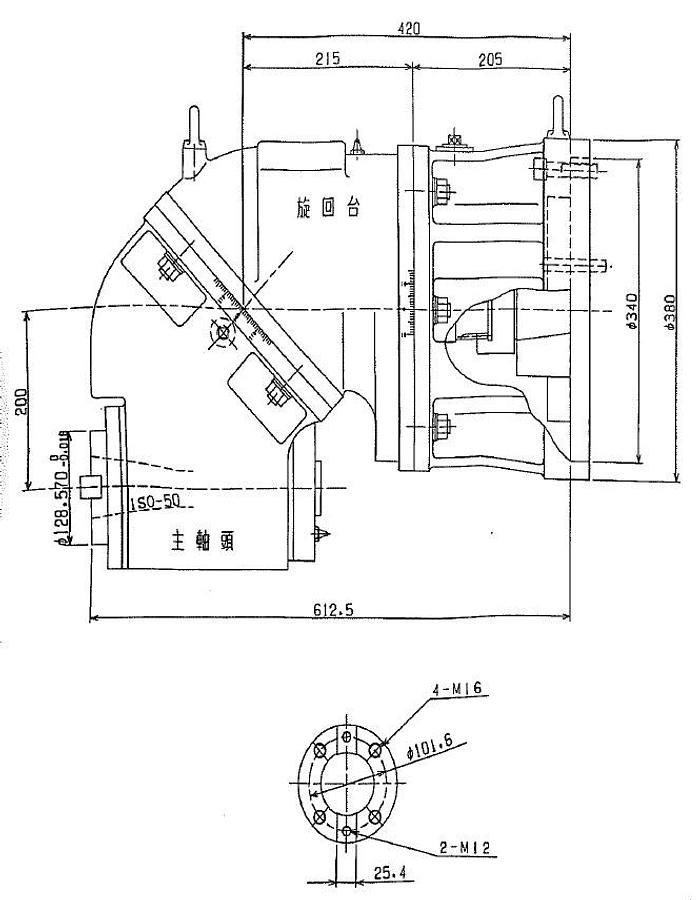

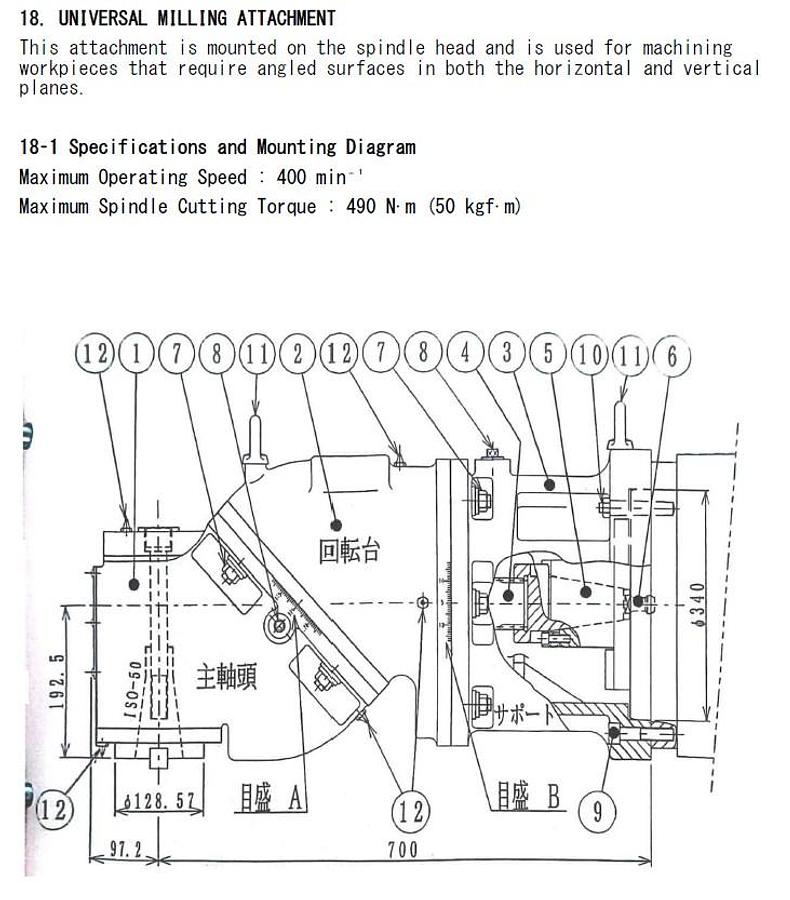

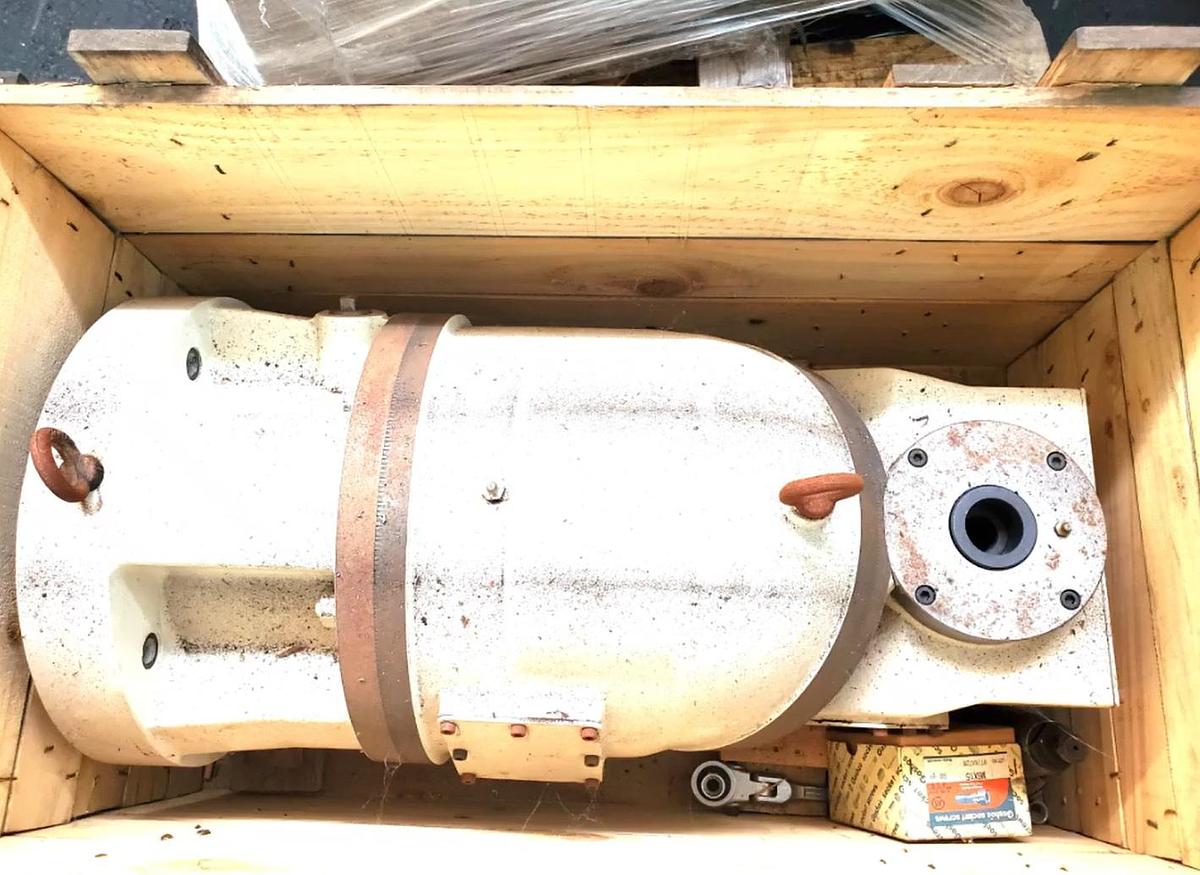

Universal Milling Attachment
Specifications
| Manufacturer | Nomura |
| Model | BN-135QF |
| Year | 2008 |
| Condition | Used |
| Stock Number | 5654322 |

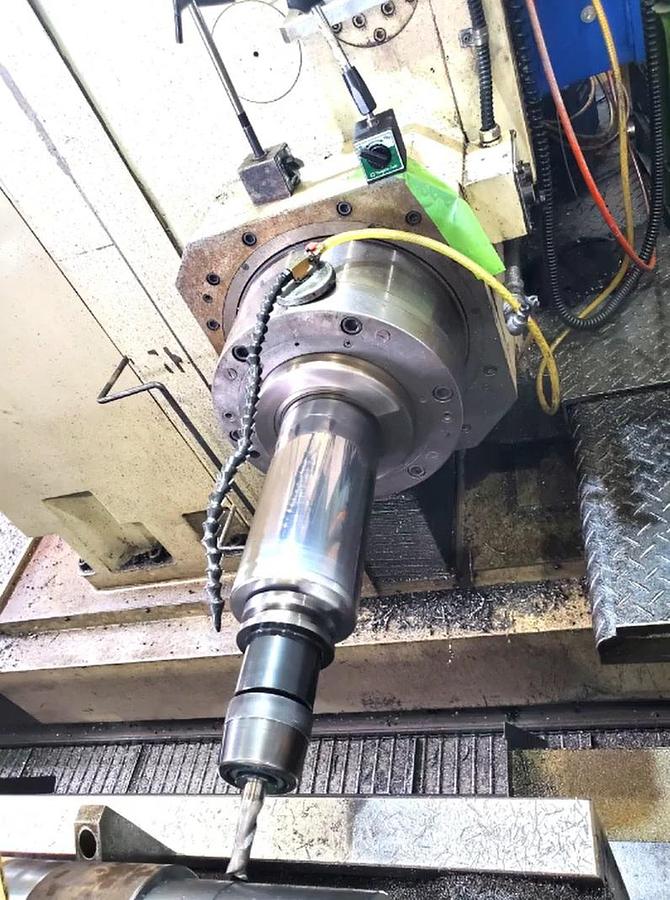

| Spindle diameter | 135 mm |
| Spindle speeds (2 range stepless) | 3 - 1,000 rpm |
| X axis travel | 6,000 mm |
| Y axis travel | 3,000 mm |
| Z axis spindle axial | 700 mm |
| W axis quill axial | 350 mm |
| Spindle + quill travel | 1,050 mm |
| Milling shaft diameter | 216 mm |
| Quill outer diameter | 340 mm |
| Tool taper | 7/24 No. 50 (MAS tool compatible) |
| Max spindle torque | 3920 Nm |
| Max spindle thrust | 29400 N |

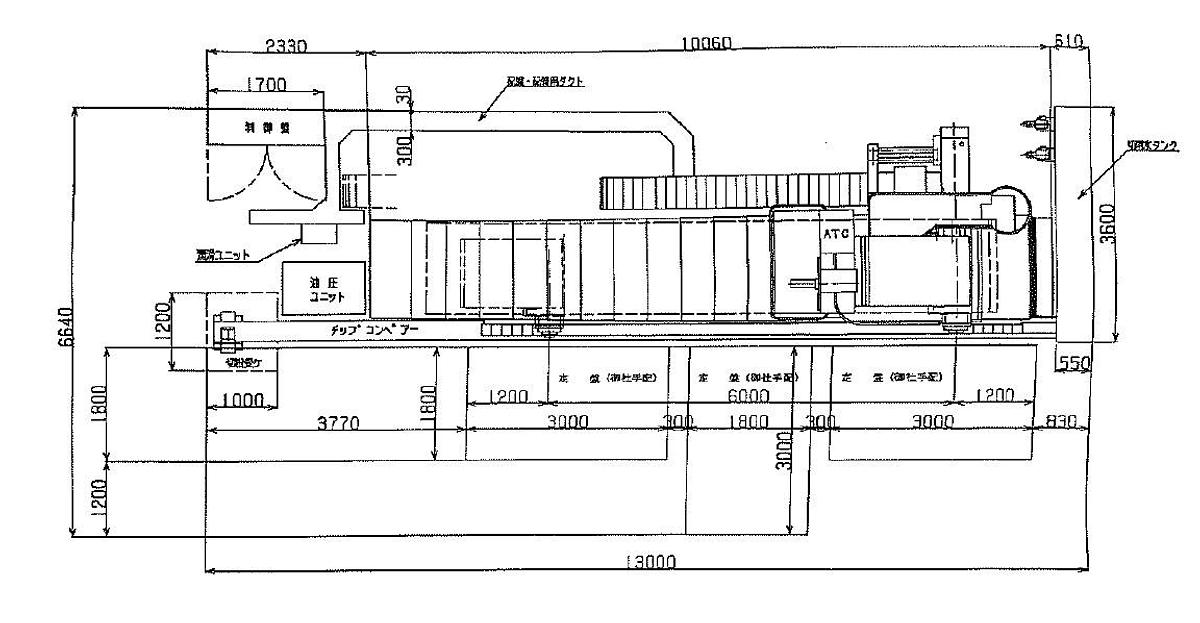

| Machine dimensions | 13,000 x 6,640 x 7,060 mm |
| Machine weight | 25,000 kg |
| Main motor | AC 30 / 37 kW |
