Doosan BM 2740 CNC Double Column Planer Type Machining Center
Doosan BM 2740 CNC Double Column Planer Type Machining Center
or
Call 770-509-0744
Description

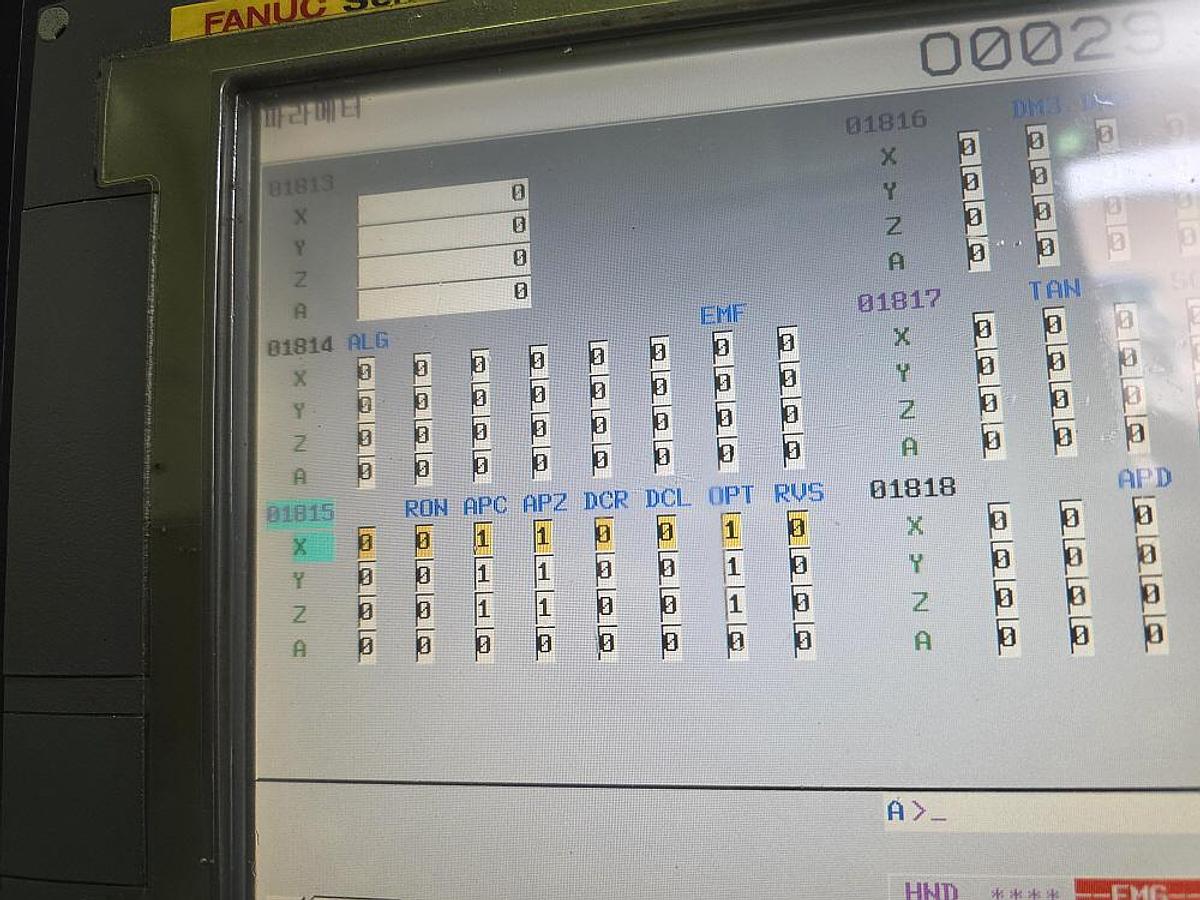

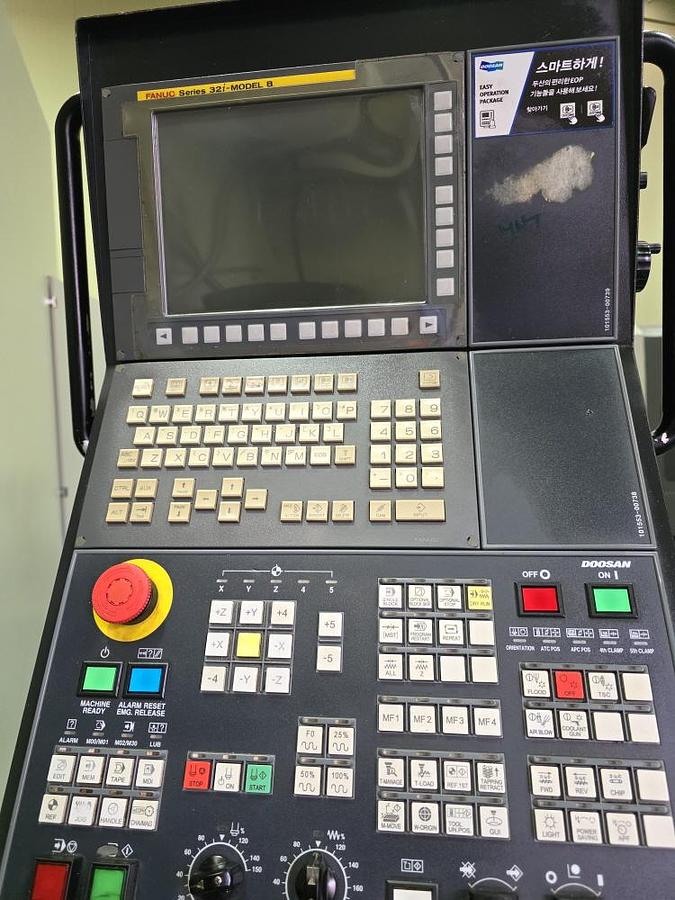

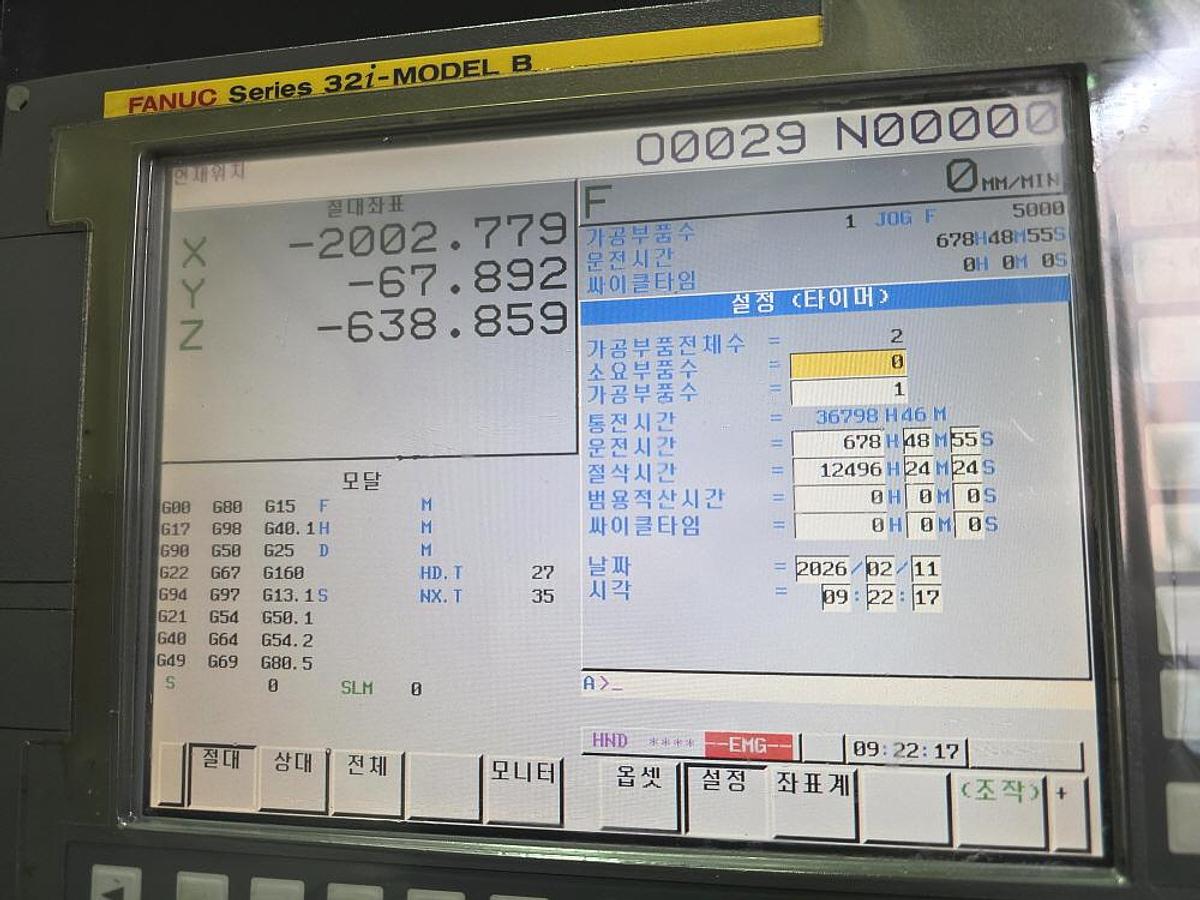

Fanuc 32iB CNC Control
Scales XYZ
40 tool ATC
Spindle thru coolant
Full enclosure
Chip conveyor
Specifications
| Manufacturer | Doosan |
| Model | BM 2740 |
| Year | 2016 |
| Condition | Used |
| Stock Number | 5654312 |
| Between columns | 2,700 mm |
| Spindle speeds | 10,000 rpm |
| X axis travel | 4,000 mm |
| Y axis travel | 2,700 mm |
| Z axis travel | 800 mm |
| Table size | 2,500 x 4,000 mm |
| Table capacity | 15 Ton |
| Spindle drive motor | 25 / 30 kW |
| Spindle taper | BT 50 |
| Electrics | AC 220 V, 3PE, 50/60 Hz |
| Machine weight | 45,000 kg |
