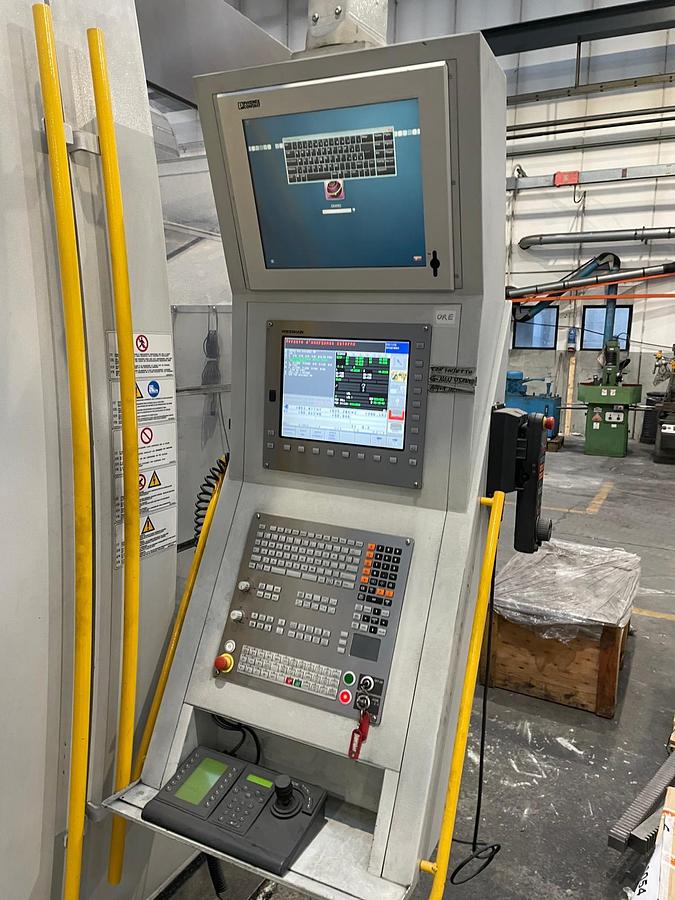

Heidenhain iTNC530 HSCI CNC Control

40 Position Tool Magazine

25 Position - ISO 50 Taper

15 Position - HSK 63A Taper

Automatic Head Magazine with 3 positions:

n.1 Universal bi-rotary head with continuous positioning

Spindle speed 5,000 rpm

Tool taper ISO 50 DIN 69871

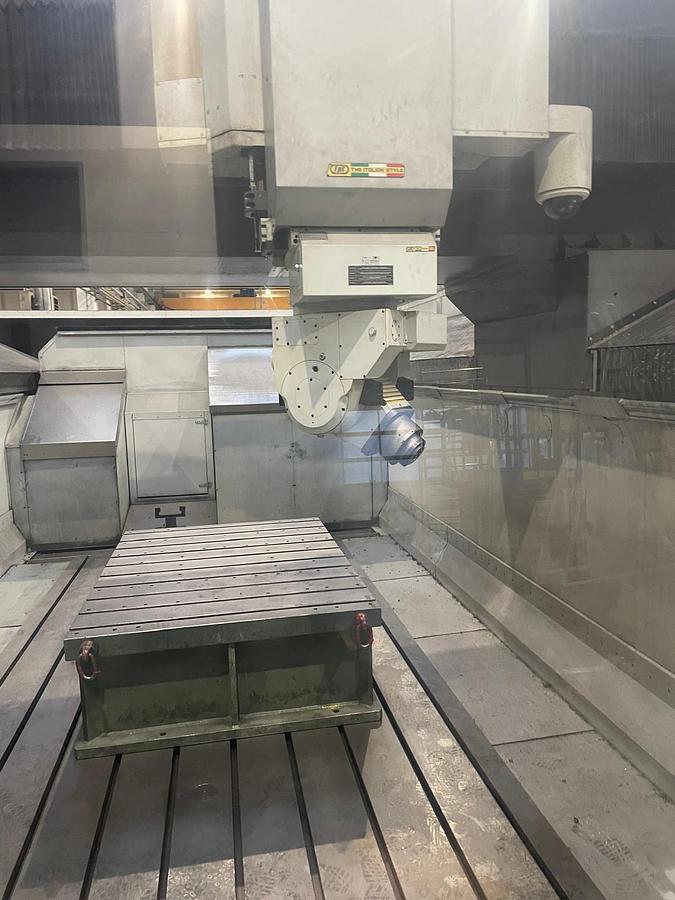

n.1 Twist head (fork type) with 2 continuous axes 31 kW

5-axis head with electrospindle

1st axis rotation +/- 210°

2nd axis rotation +115/- 97°

Spindle speed 18,000 rpm

Spindle taper HSK63A

Internal Coolant 20 bar

External Coolant 4 bar

n. 1 chip conveyor front of the table

n. 2 chip conveyors lateral to the table

Spindle extension mm 400 ISO 50 with cooling, 5,000 rpm

Remote control panel, Handwheel HR 550 FS

Tool measuring probe

Workpiece measuring probe

Electrospindle balancing control

Static and dynamic RTCP

Work Area Video Surveillance System

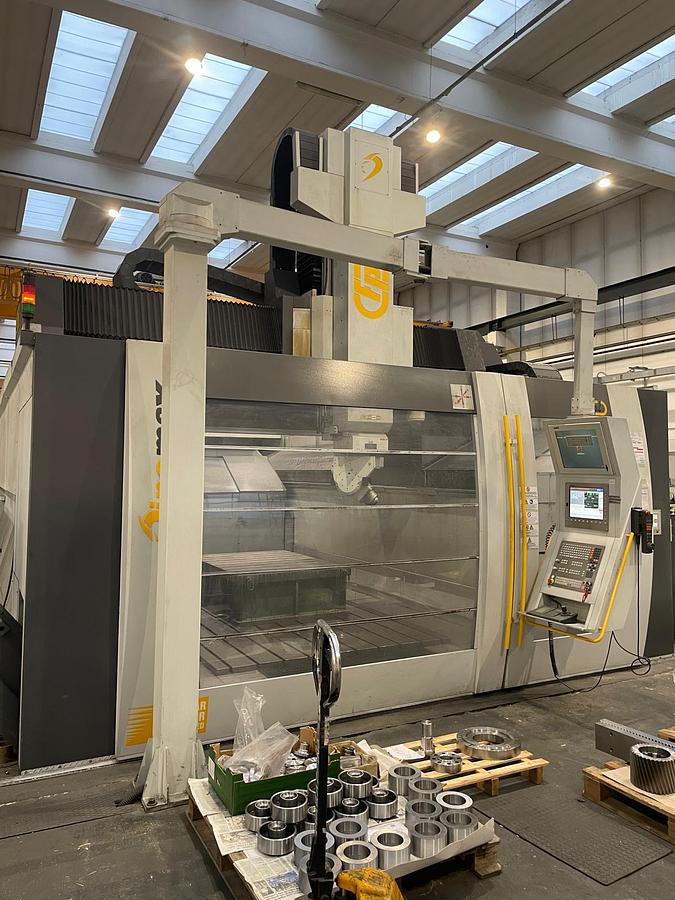

Manufacturer	FPT
Model	DINOMAX2 L60
Year	2016
Condition	Used
Stock Number	5654289
Max horizontal clearing	3,700 mm
Spindle speeds	5,000 / 18,000 rpm
Max vertical clearance under crossbeam	2,126 mm
Table height from ground	330 mm
X axis travel	6,000 mm (5,200 mm for head magazine)
Y axis travel	2,700 mm
Z axis travel	1,300 mm
Table dimensions	2,500 x 5,000 mm
Table height	300 mm
Table capacity	15 Ton
Max axis feed	50,000 mm/min
Max acceleration	4 m/sec²
Machine dimensions	9,500 x 6,975 x 5,180 mm
Machine weight	70,000 kg
