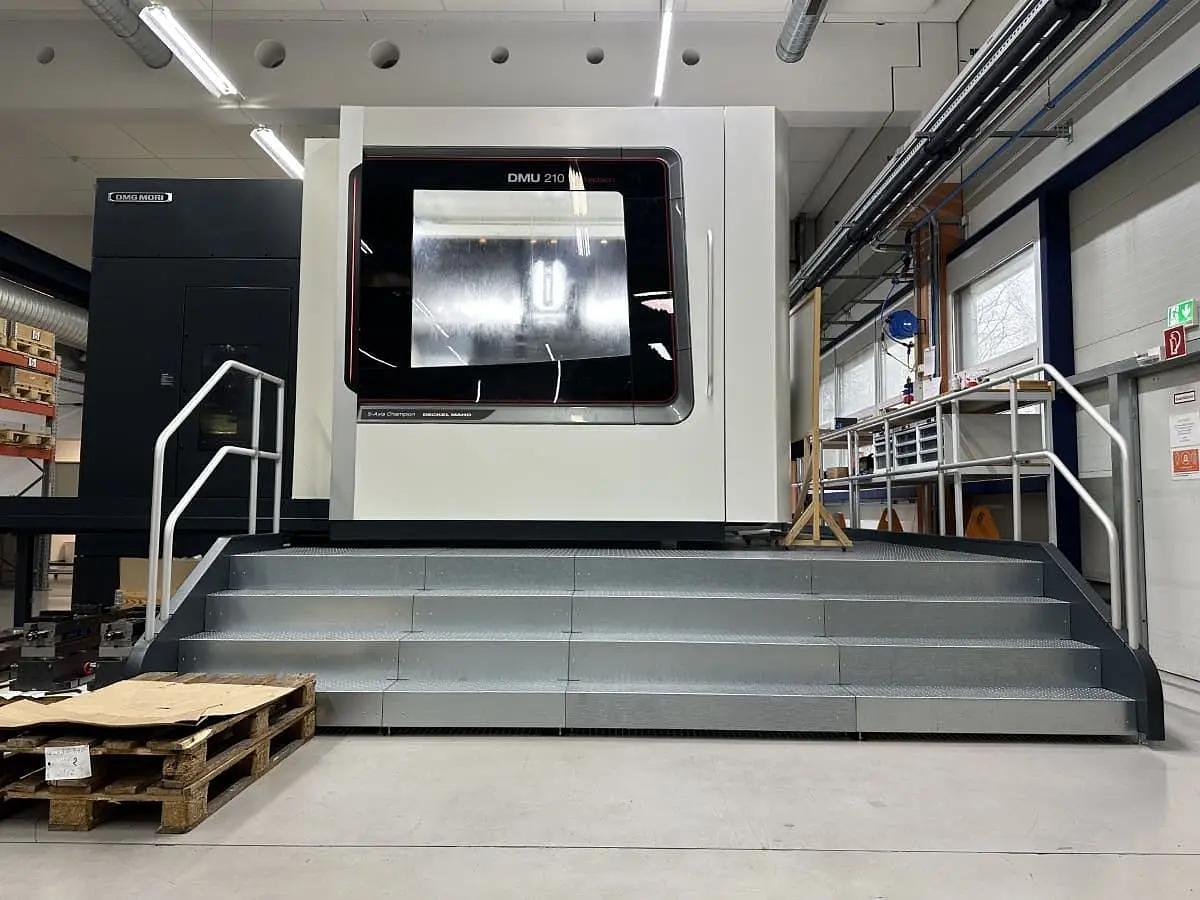

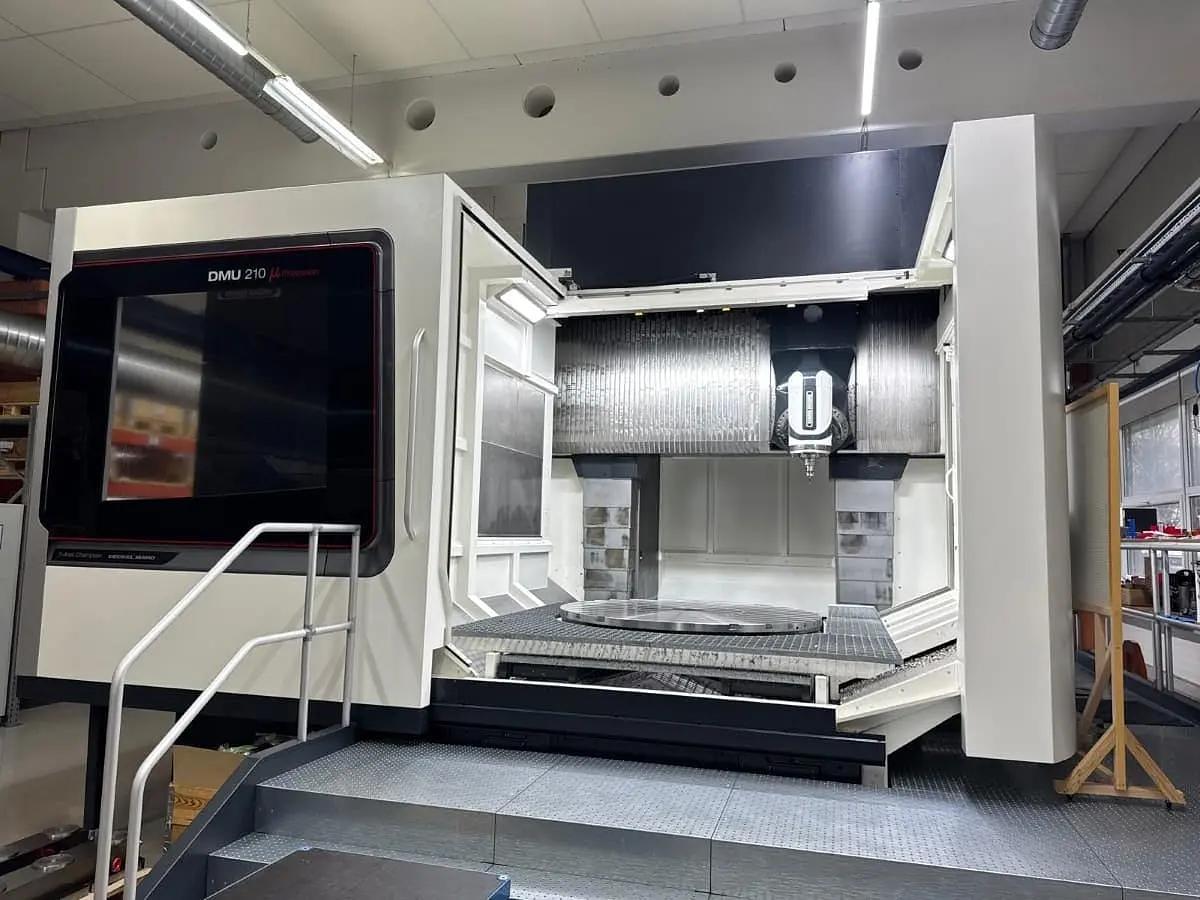

DMG DMU 210P u-Precision CNC 5-Axis Machining Center

Almost as good as new and immediately available! - DMG MORI DMU 210 P u-Precision

This immediately available DMG MORI DMU 210 u-Precision is a state-of-the-art 5-axis machining center for simultaneous multi-axis milling of large and complex components - ideal for single part production, prototype or series production in areas such as automotive supply, mould/tool making, aerospace or other heavy-duty machining.

Highlights / Key technical data for this machine

Year of manufacture: 2024

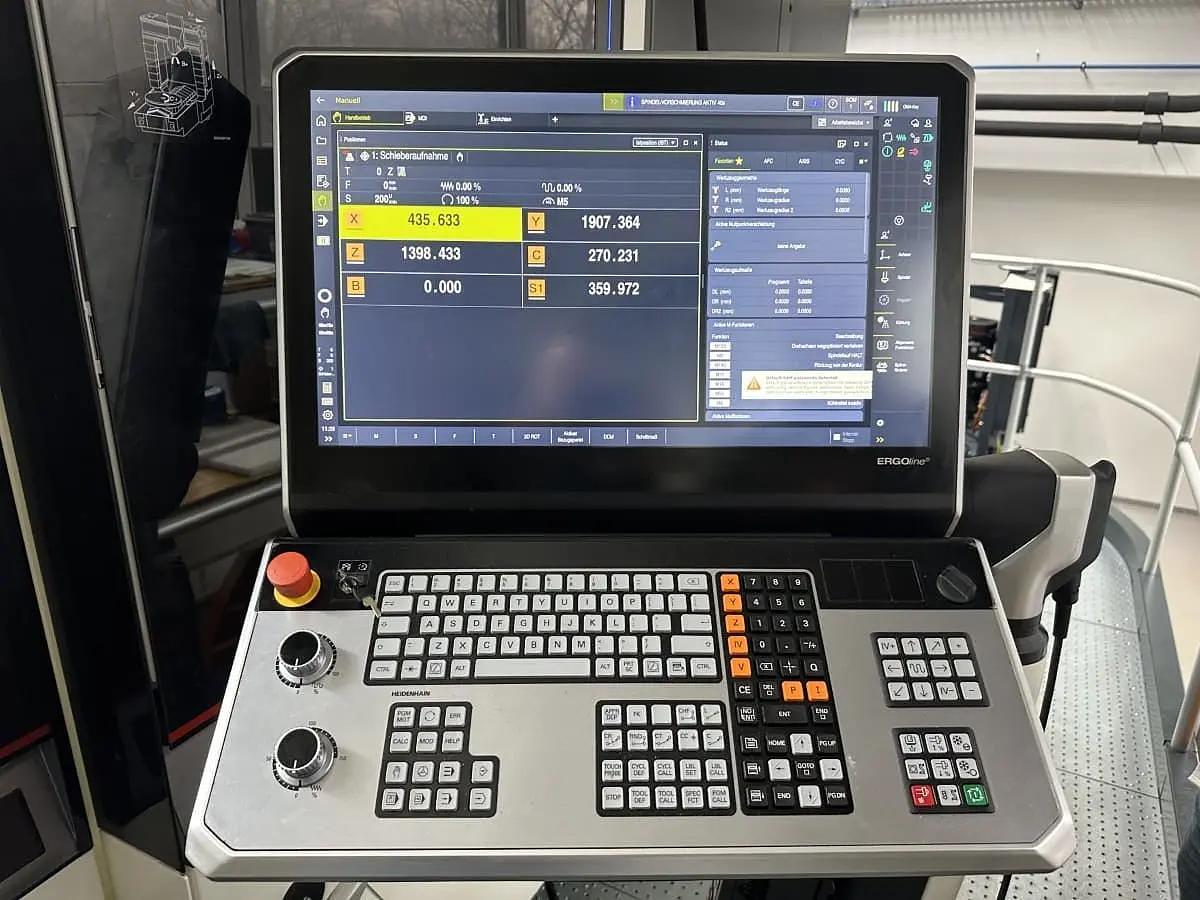

Heidenhain TNC 7 CNC Control

123 Position Wheel Magazine Automatic Tool Changer - with Cone Cleaning Rotating Brushes

u-Precision package: Extreme accuracy

Traverse paths X/Y/Z: 2,100 / 2,100 / 1,250 mm

Spindle: Motor spindle with 16,000 rpm, 52 kW power, 404 Nm

Gantry design: Extremely robust gantry design

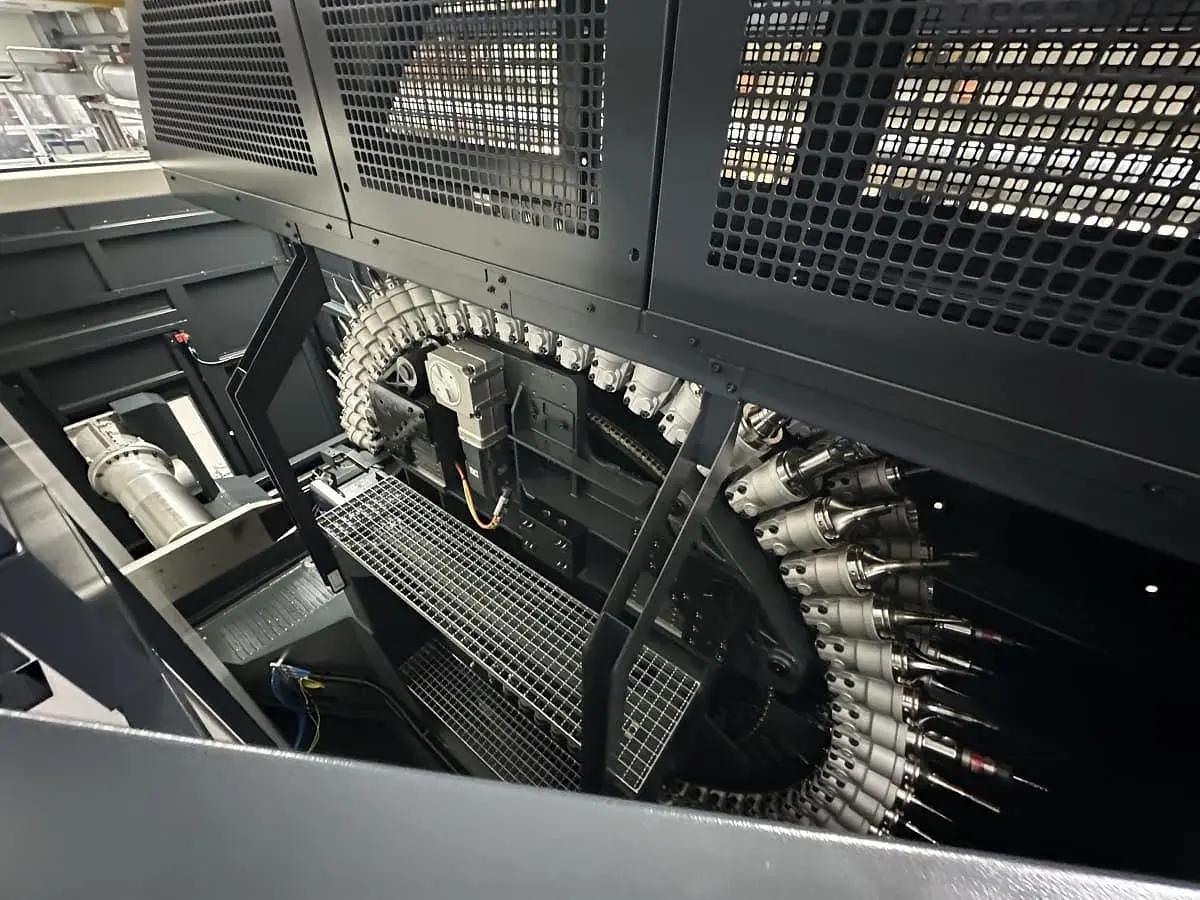

Tool magazine with 123 stations, wheel magazine with 2 wheels

Equipment:

Chip removal Chip conveyor

Coolant supply Internal coolant system, 40 bar

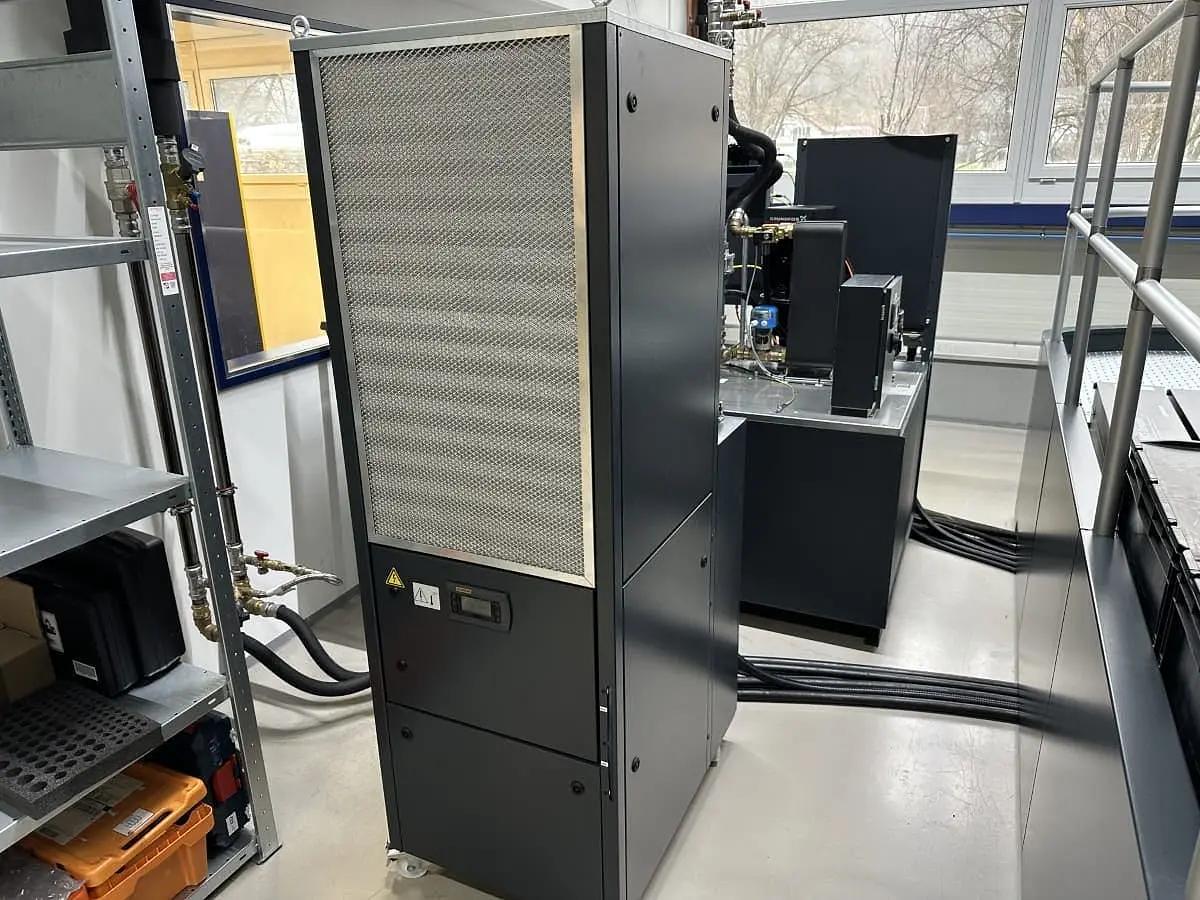

Coolant temperature Control Immersion recooler

Position Measuring Systems Direct in all axes

Accuracy package μ-Precision package

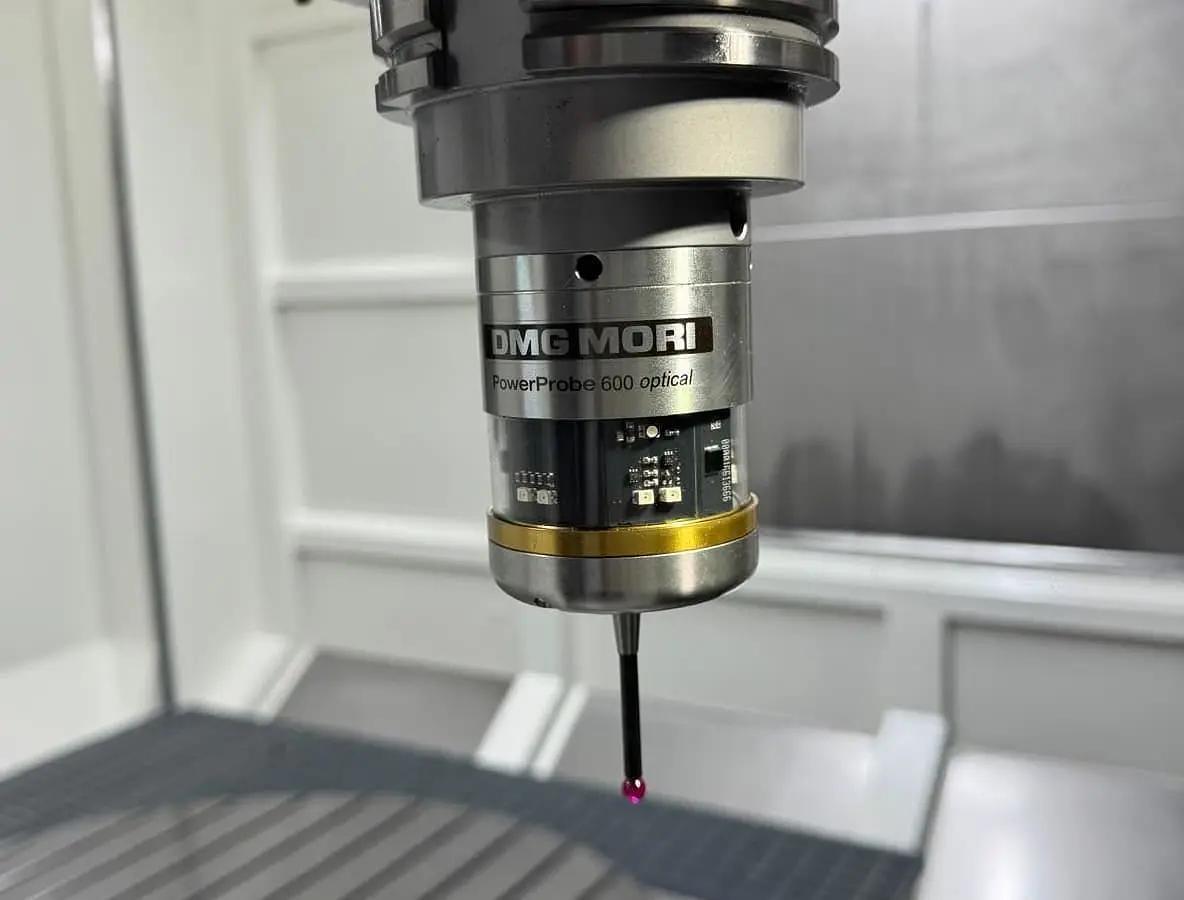

Workpiece Measurement Renishaw OMP 600

Tool measurement BLUM laser

Kinematics Measurement 3D quickSET

Process Monitoring Operating mode 4

Machine Protection MPC (quick shutdown)

Digital Manufacturing IOT Connector, MDC, NETservice

CAD Import DXF, STEP, and IGES formats

Emulsion Mist Separator Mechanical

Setup Mode Electronic handwheel

Why this machine is particularly interesting

The u-Precision package from DMG MORI is a high-precision variant of the gantry machine series, making the machine particularly suitable for demanding precision tasks where the smallest tolerances and highest dimensional accuracy are crucial - e.g. in mould making, medical or aerospace applications.

In combination with the proven portal design, thermo-symmetrical construction and 3-point machine bed (no foundation required), precision and stability are maintained even over long series runs.

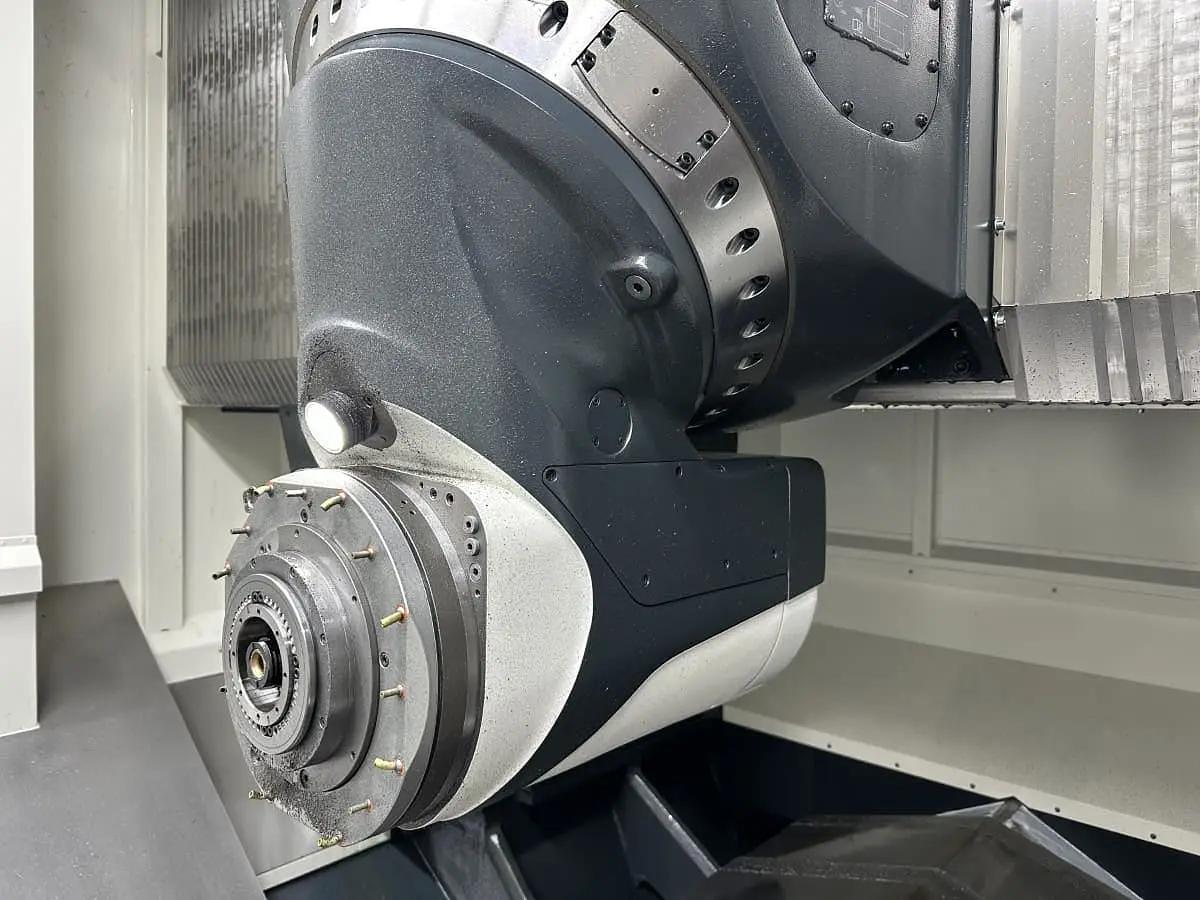

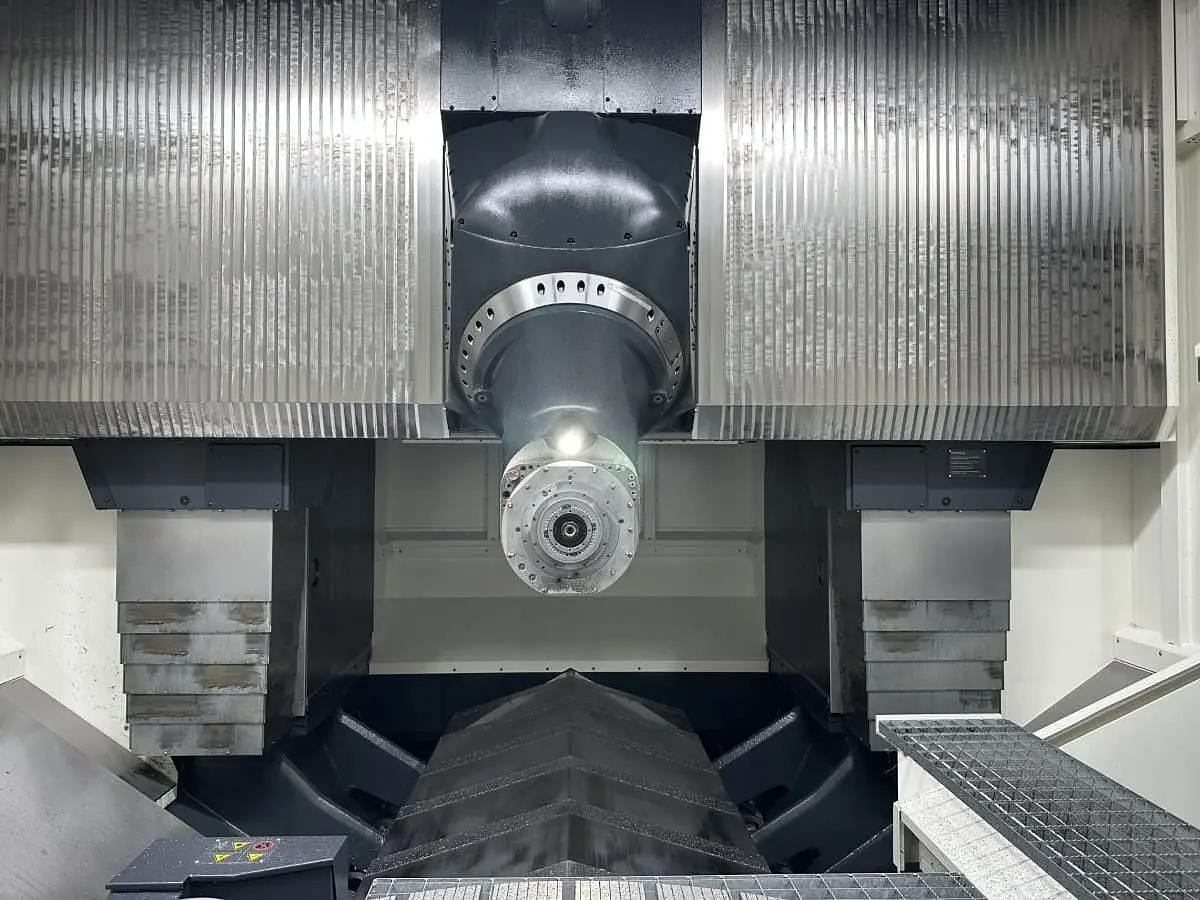

Milling Head:

Technology NC-Universal milling head

B-axis 250° (0°/-70°)

Spindle Motor spindle

Speed 16,000 rpm

Max. power 52 kW

Max. torque 404 Nm

Tool holder HSK 100

Media feed Blowing air + cooling lubricant

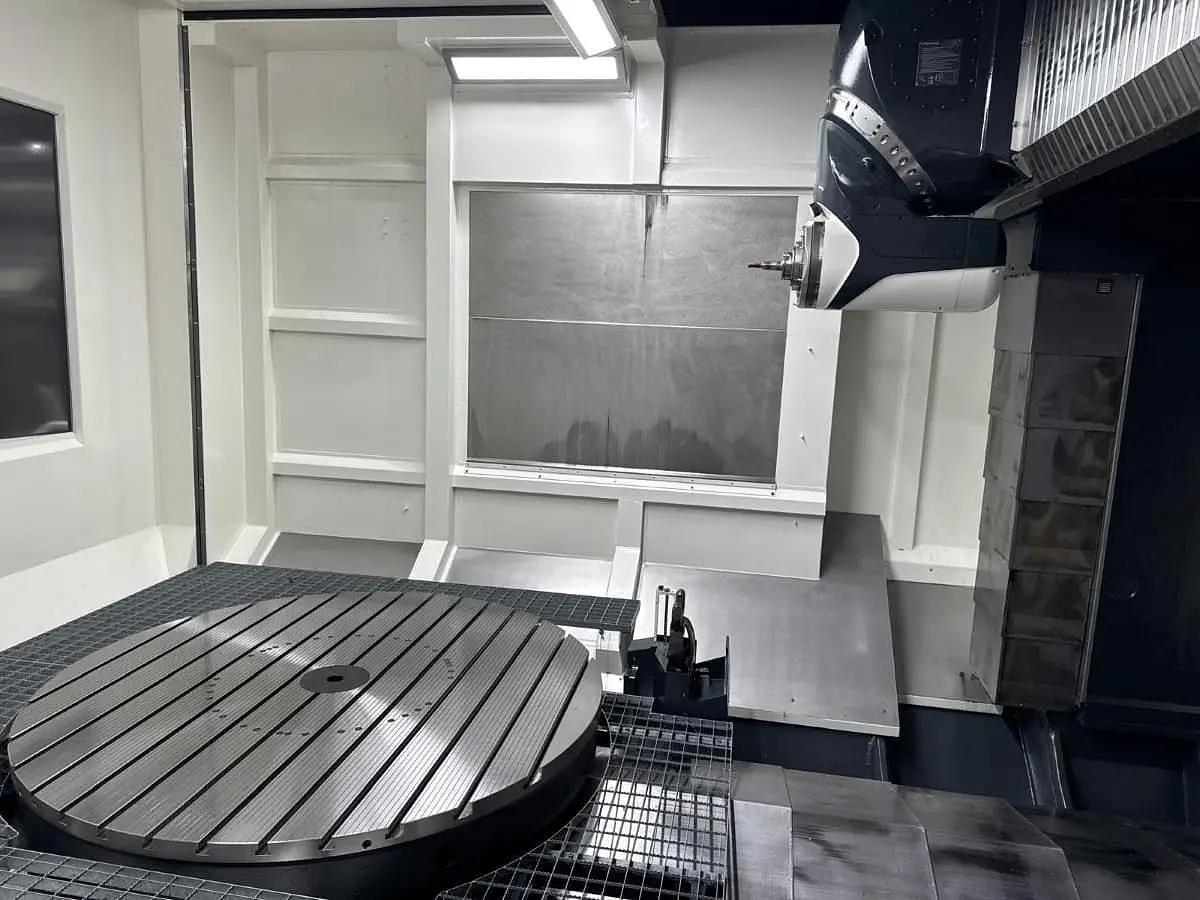

NC rotary Table:

C-axis 360°

Clamping surface 1,700 mm

Workpiece dimension max. ø 2.500 x 1.250 mm

Load capacity max. 8,000 kg
