Sachman PX 120 CNC Traveling Column Floor Type Milling Machine

Heidenhain TNC-530 CNC Control

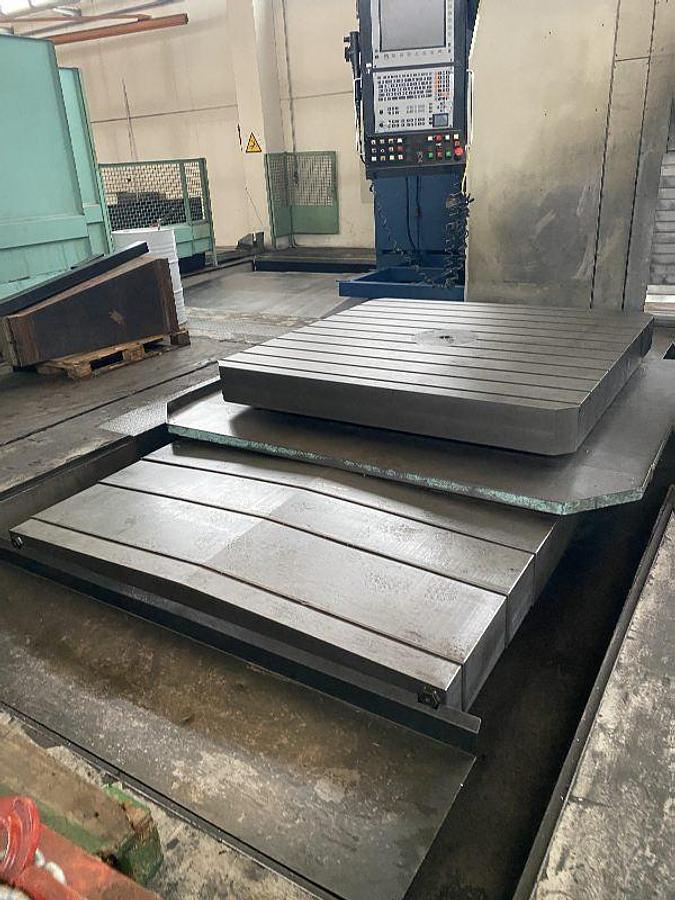

4th and 5th axis 2000x2000 x 1500 CNC controlled rotary translating table

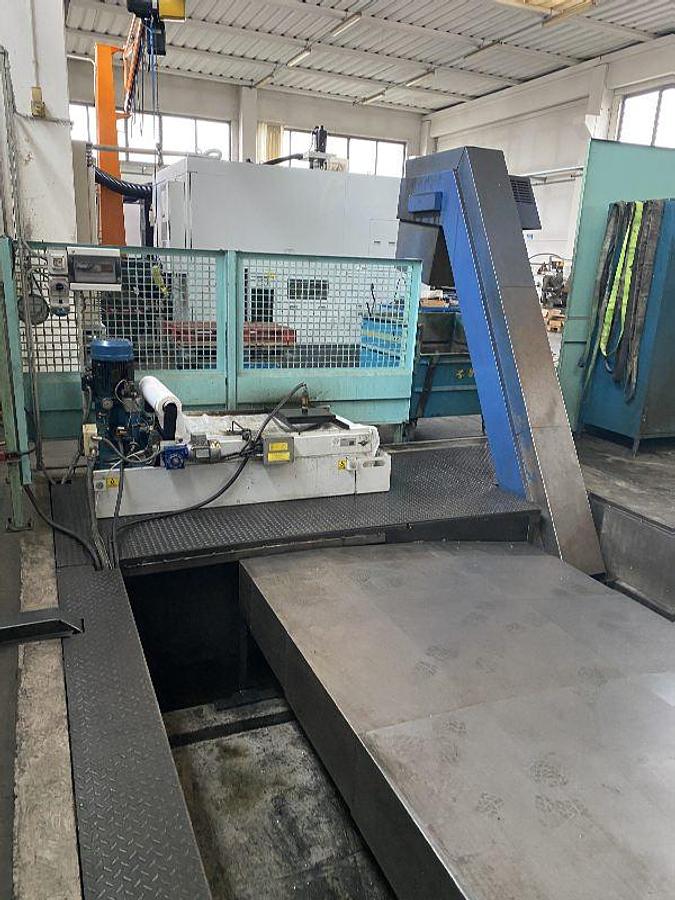

Chip conveyor chain type

Linear scale for all axis

N. 1 Stolle Floor Plates

Automatic head KOSMO 3 with 2 axes, divisions on the two joints every 0.02° x 0.02°

Coolant through spindle high pressure

60 Position Magazine Automatic Too Changer - Chain Type

Auto lubrication system

CE Mark

AUTOMATIC HEAD

● head model type KOSMO 3

● B-axis min. index angle 0.02°

● A-axis min. index angle 2.02°

● spindle motor 46 kW

● spindle speed 5,000 rpm

● spindle nose ISO 50

Floor Plates:

Stelle Floor Dimensions 4,000 x 2,000 mm

Number of Floor Plates #1

Floor Plates Capacity 10,000 kg/m²

PX 120 is the Sachman travelling column milling machine with a moving column, characterized by its large removal capacity and high precision and reliability. The morphology of the machine guarantees static and dynamic precision independent of the weight of the machined pieces.

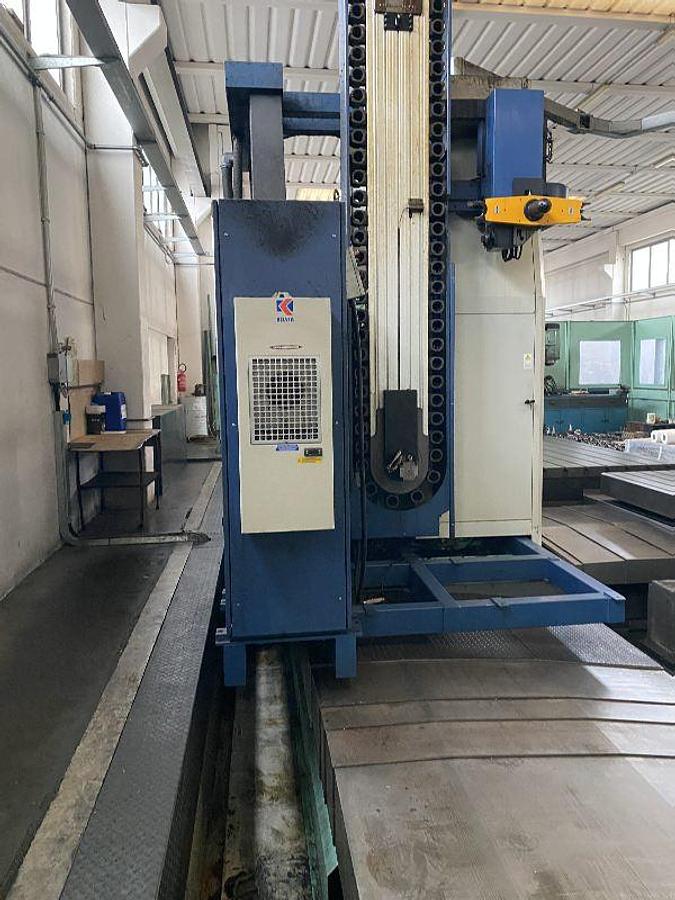

The rugged cast iron slide Is fitted with hardened guideways that slide on counter-ways lined with low friction material. The slide is securely supported by the structure of the vertical axis in order to operate in extremely harsh conditions and is fitted with a hydraulically controlled balancing system. The modular cast iron bed is fitted with guideways and recirculating roller blocks. The column, also made of cast iron, rests on the slide of the X-axis which driven by a rack-pinion system with dual-drive technology. The cast iron vertical slide moves by means of counter-ways lined with low friction material, on large, hardened guide ways integral with the column. All the electrical, hydraulic and pneumatic cabinets, the toot changer, and operator station are positioned on the slide of the X-axis, thus reducing the footprint of the PX 120.

The design of the machine allows for dual zone machining or the ability to work in a cell with other machines designed for other operations. Together with the horizontal spindle version, it is possible to use oil-cooled universal indexed heads, Kosmo and Kosmo 3, that can support and command high-speed electric spindles for finishing operations. The modular chain type tool changer is mounted to the column and is fitted with an exchanger arm that allows tool changes with the spindle in both the vertical and horizontal position.
