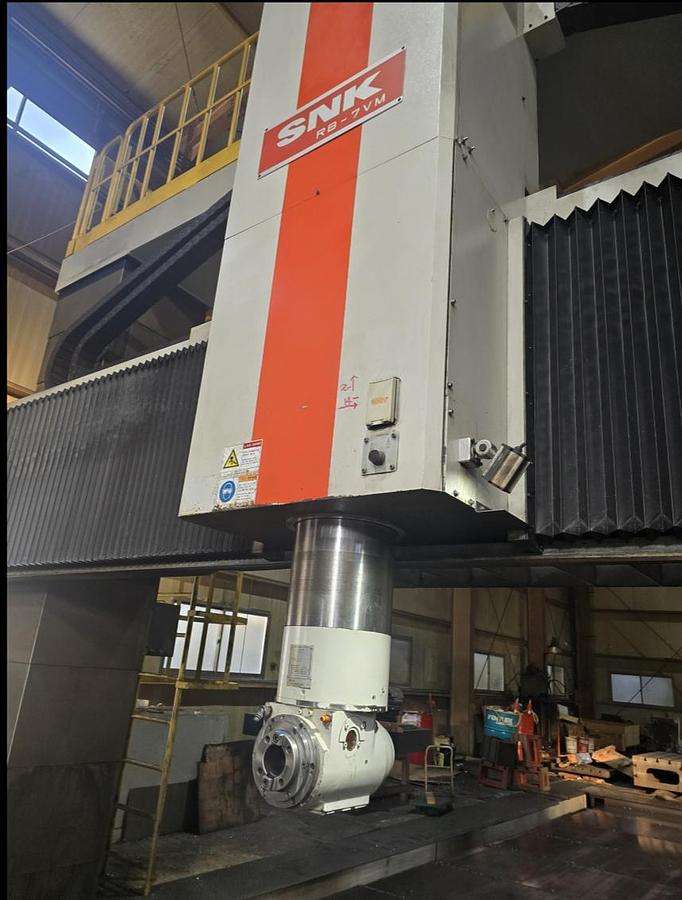

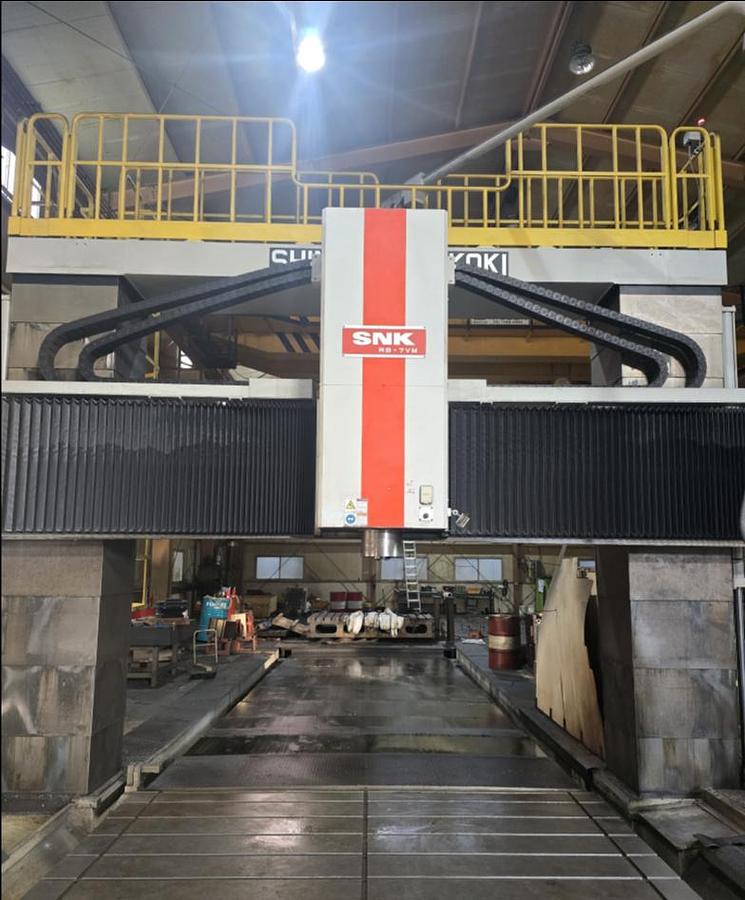

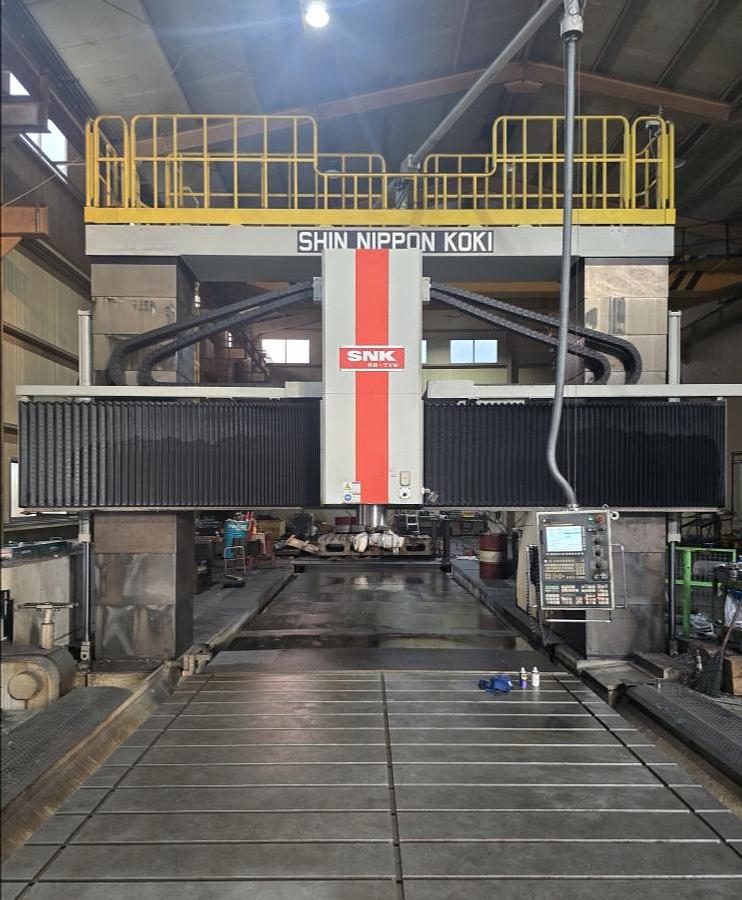

2017 SNK RB7 VM CNC DOUBLE COLUMN HIGH SPEED MULTI CENTER RB-7VM

2017 SNK RB7 VM CNC DOUBLE COLUMN HIGH SPEED MULTI CENTER RB-7VM

or
Call 770-509-0744

Description

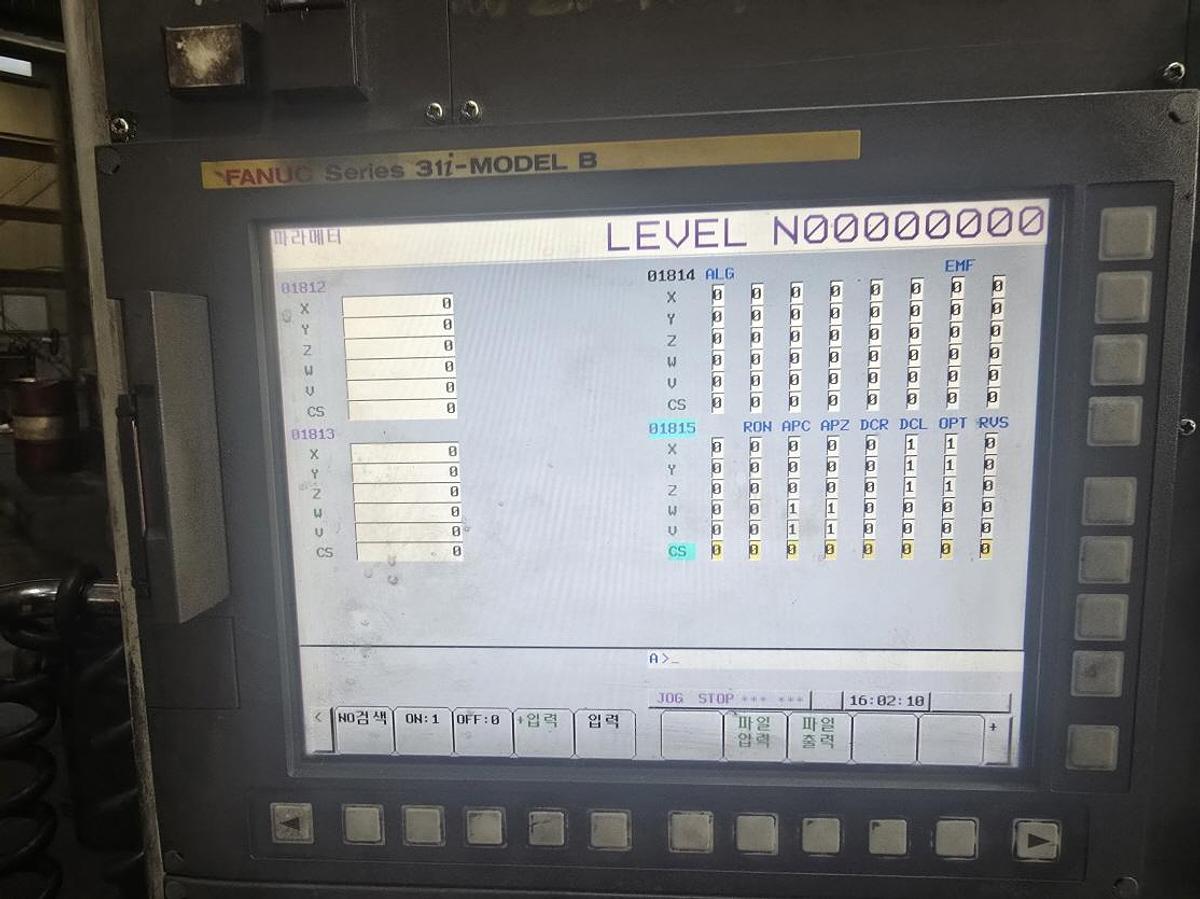

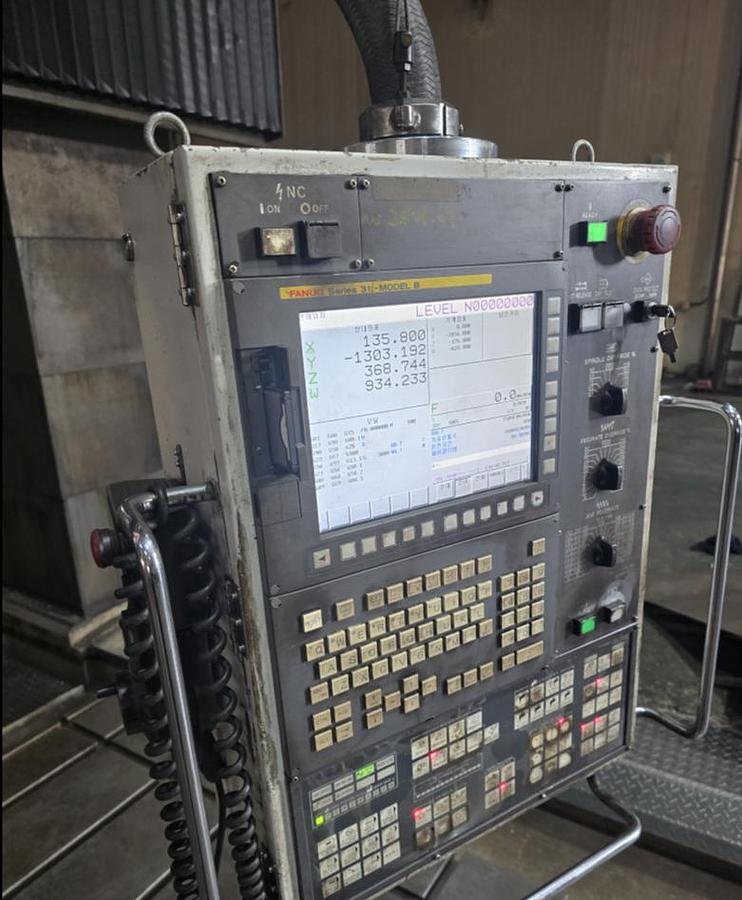

Fanuc 31i-B CNC Control

60 Position Automatic Tool Changer

Automatic Attachment Changer for one attachment

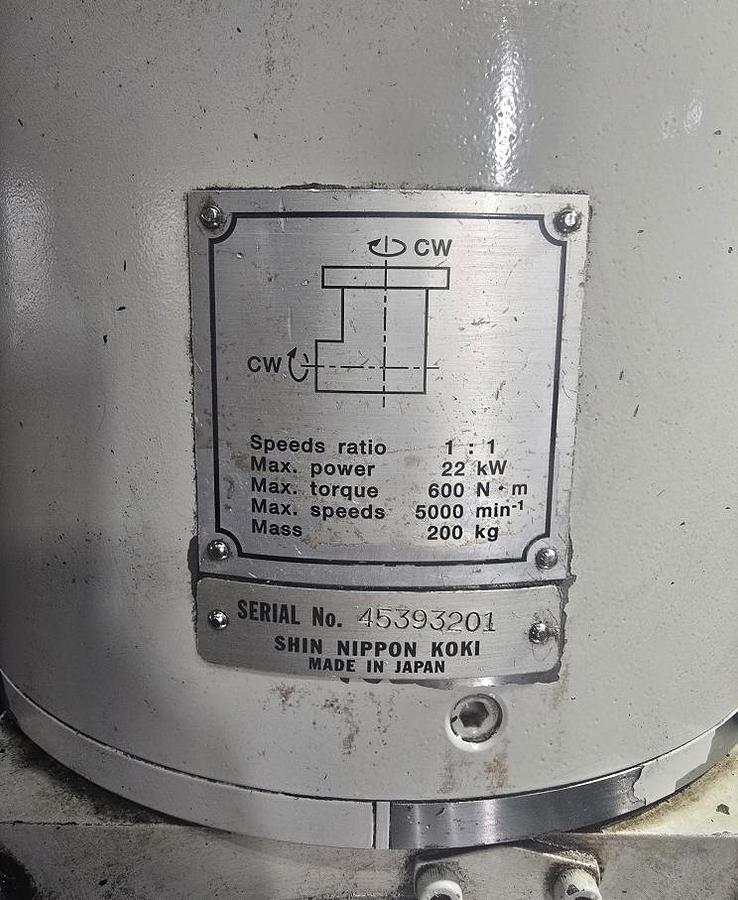

Right angle head (L: 300mm)

Scale feedback system X, Y and Z axes

Chip conveyor (3-conveyor type)

Automatic tool length measuring function

Broken tool detection (touch type)

Special five-face machining software (N5S-C5-01) for attachment 5° indexing

Specifications

ManufacturerSNK RB7 VM CNC DOUBLE COLUMN HIGH SPEED MULTI CENTER
ModelRB-7VM
Year2017
ConditionUsed
Stock Number5654279
Spindle / Quill diameter90 / 300 mm
Between columns4,100 mm
Spindle speeds8,000 rpm
Distance table to spindle end0 - 2,500 mm
X axis travel8,250 mm
Y axis travel4,500 mm
Z axis travel600 mm
W axis travel2,100 mm
Z + W axis (ram + crossrail)2,700 mm
Table size3,500 x 8,000 mm
Table capacity30 Ton
Spindle drive motor low speedAC 22 / 26 kW
Spindle drive motor high speedAC 22 / 30 kW
Spindle taperISO No. 50
Rapid feed X/Y/Z/W15 / 15 / 8 / 4 m/min
Cutting feed X/Y/Z1 - 6,000 mm/min
Cutting feed W1 - 4,000 mm/min
