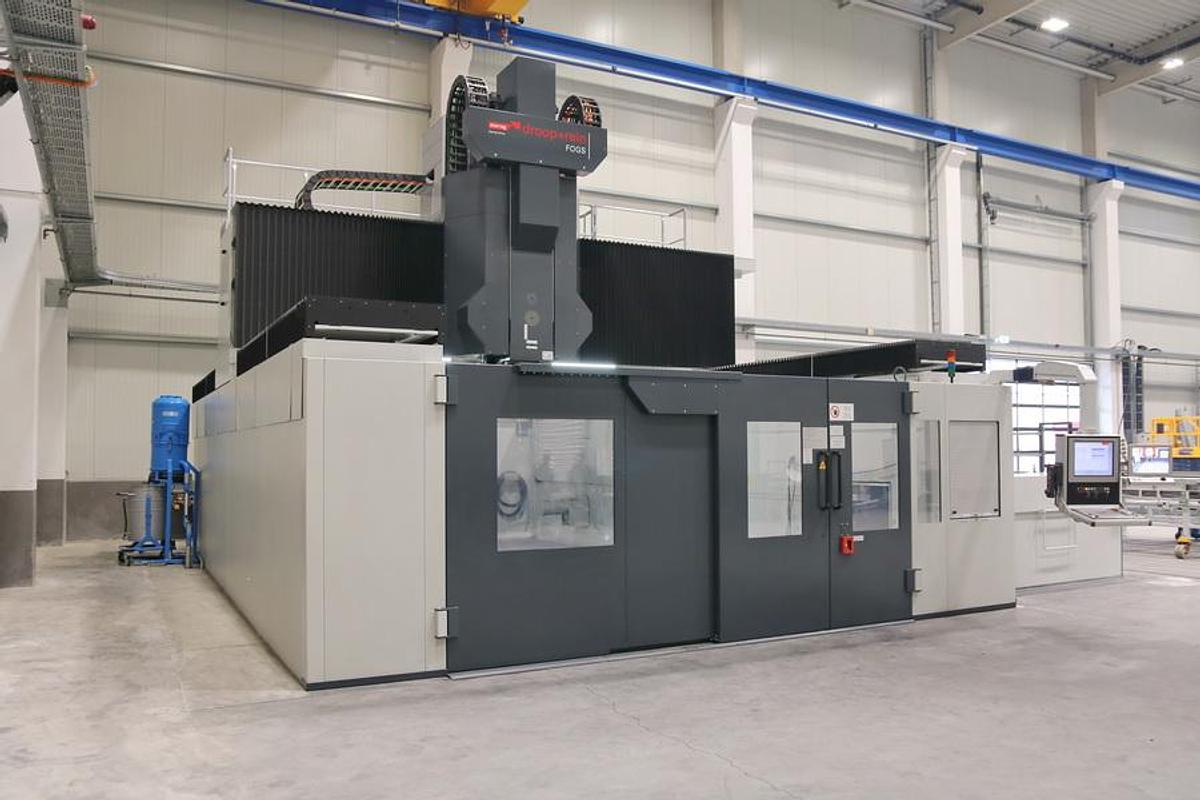

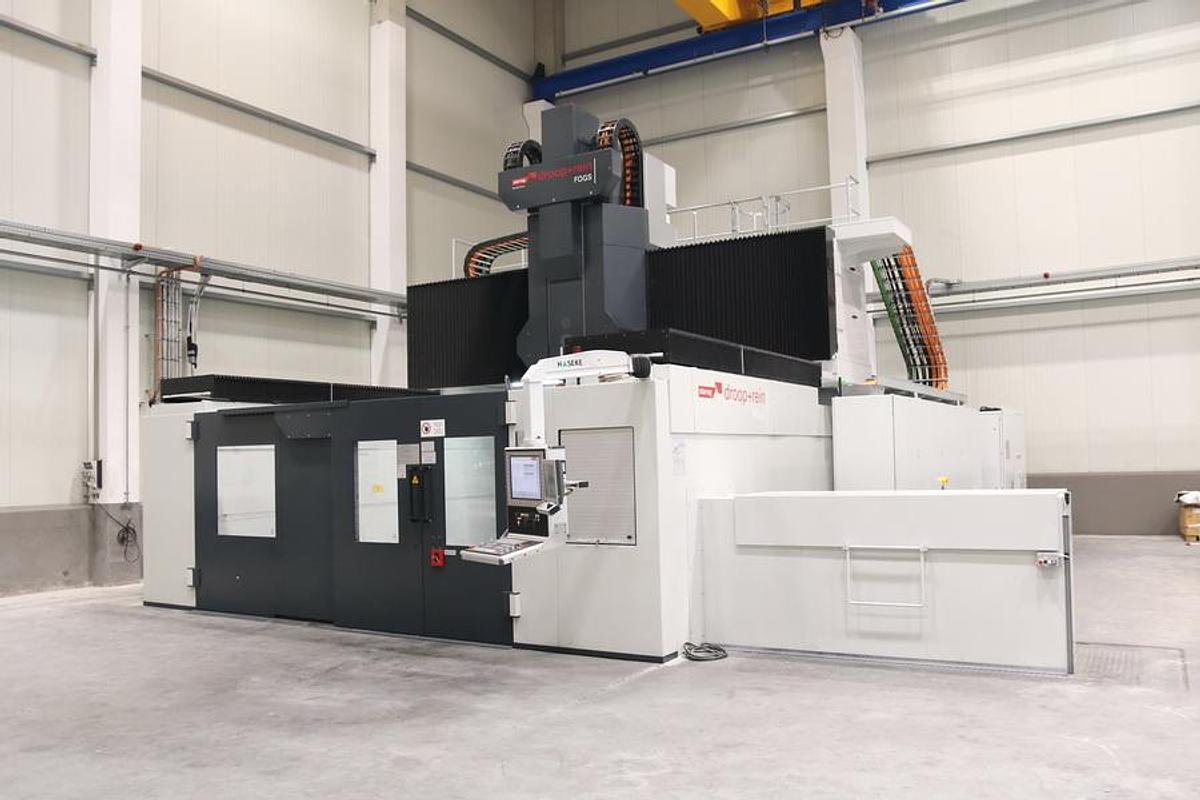

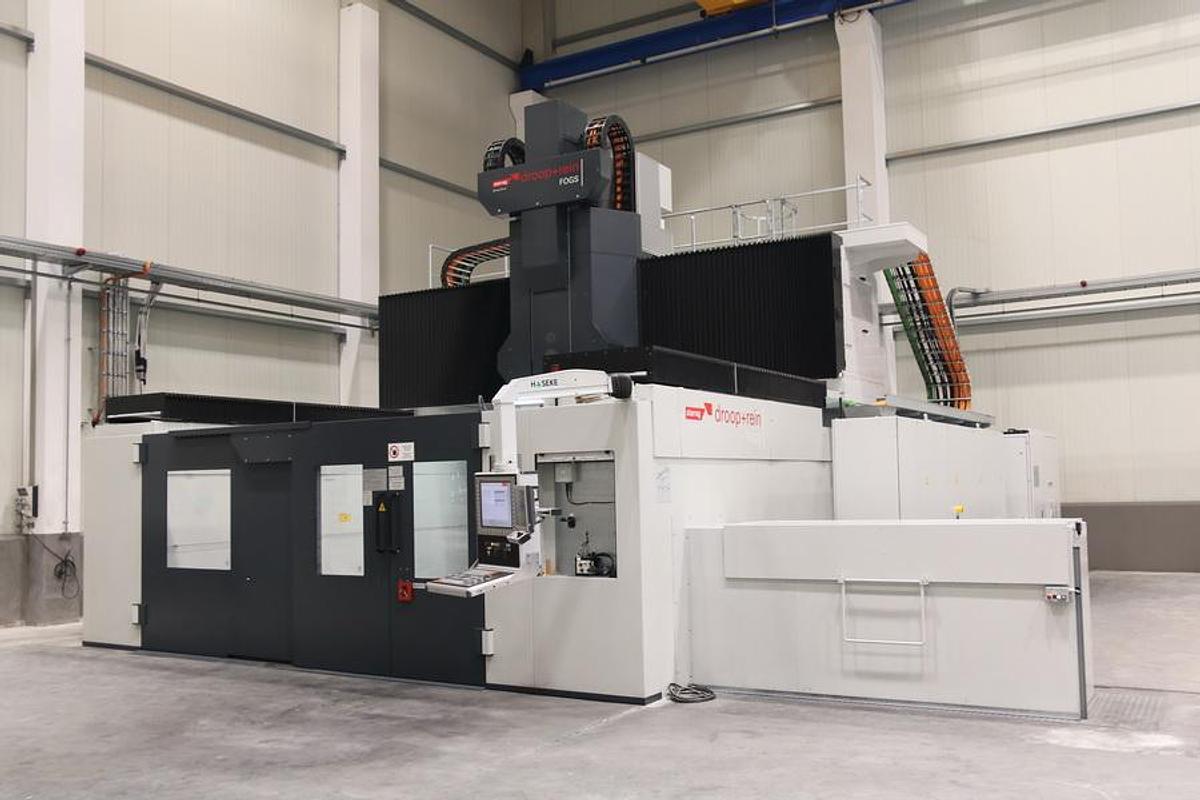

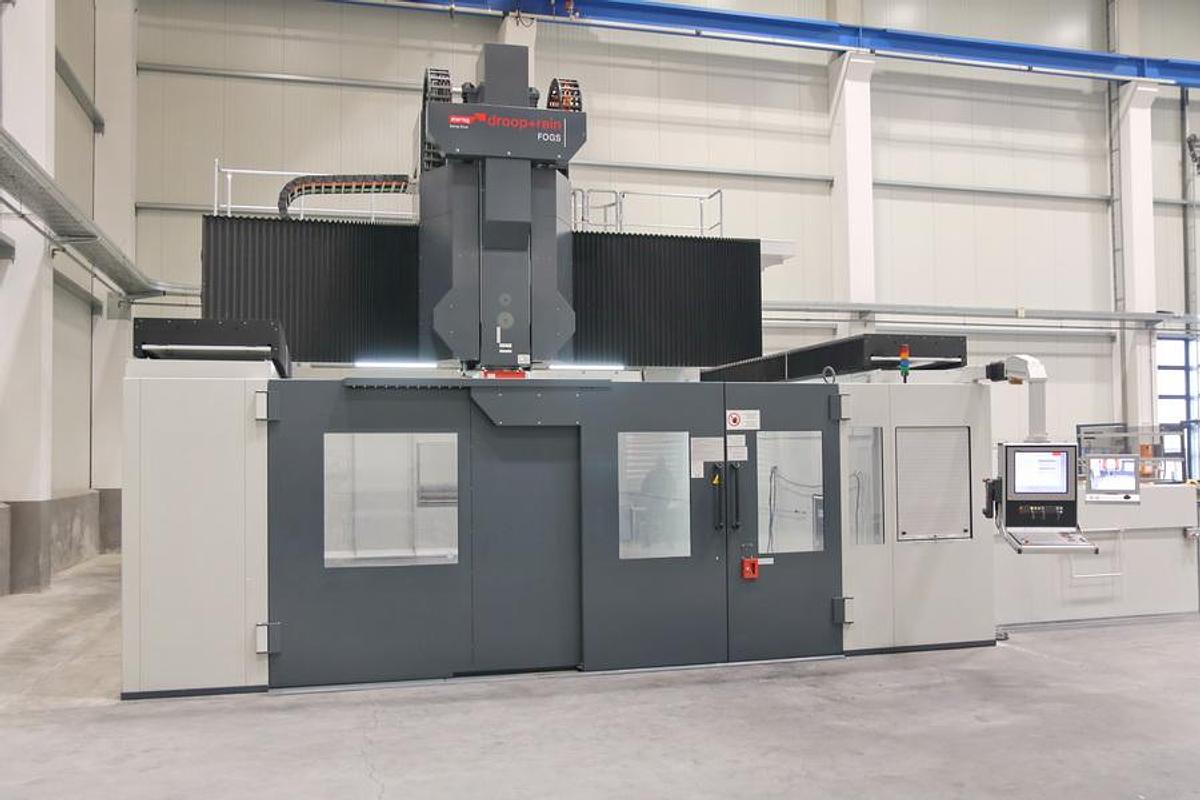

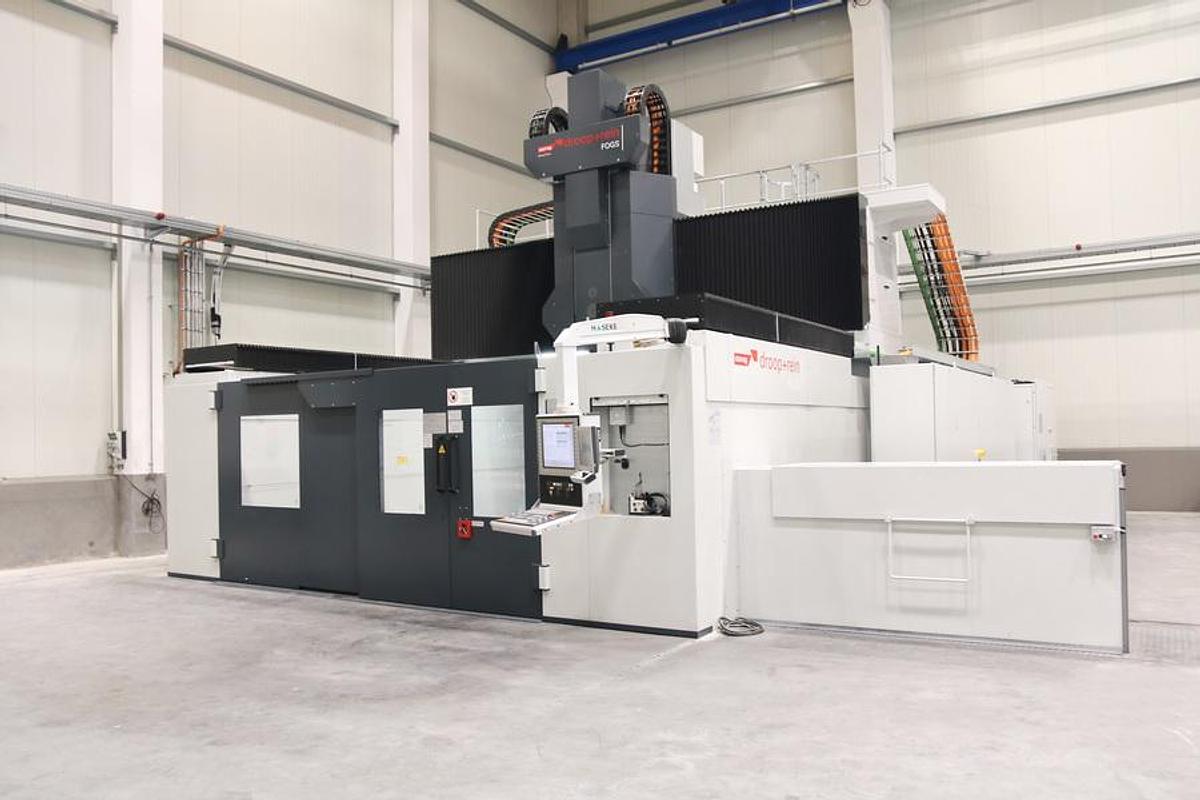

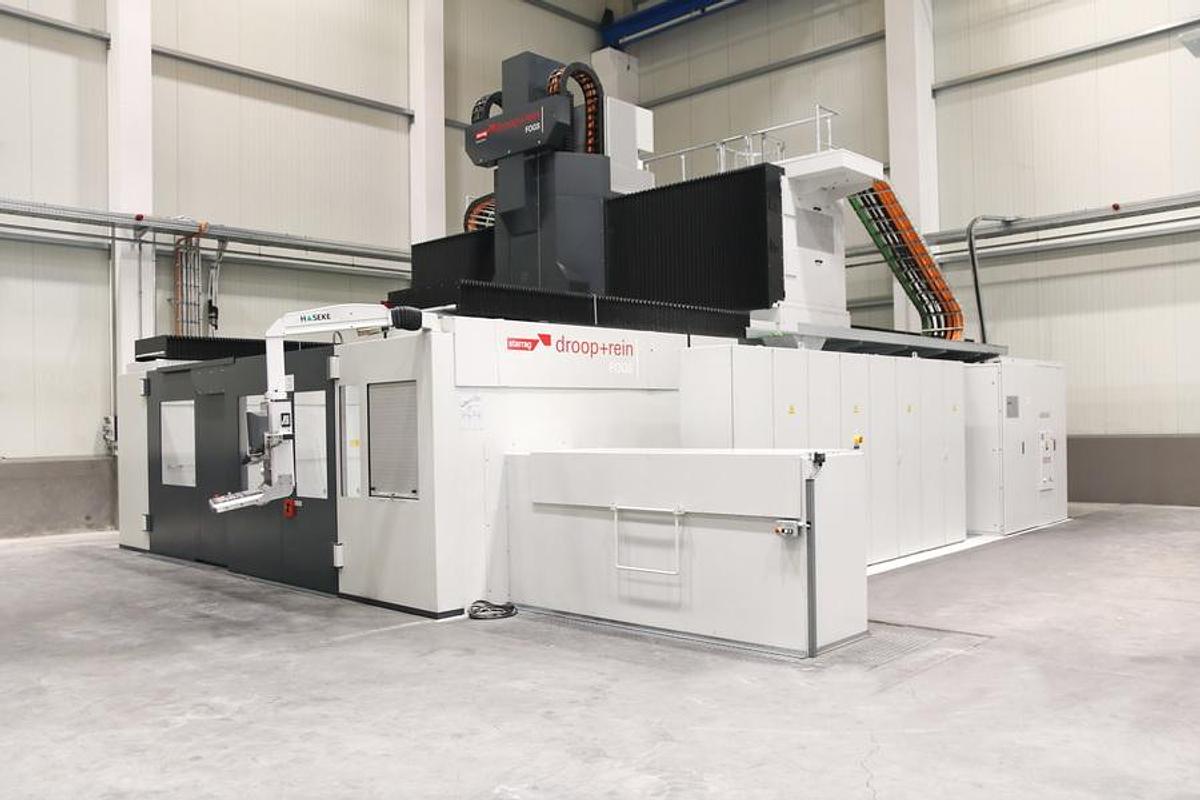

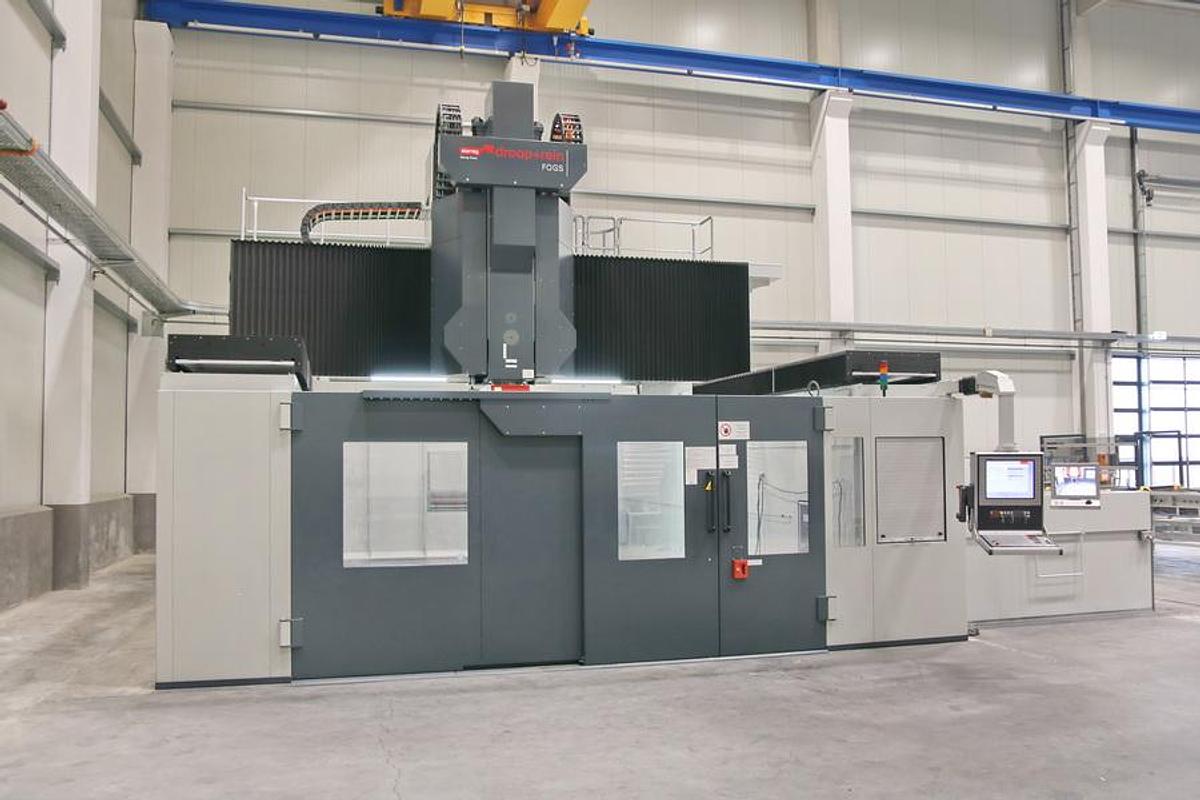

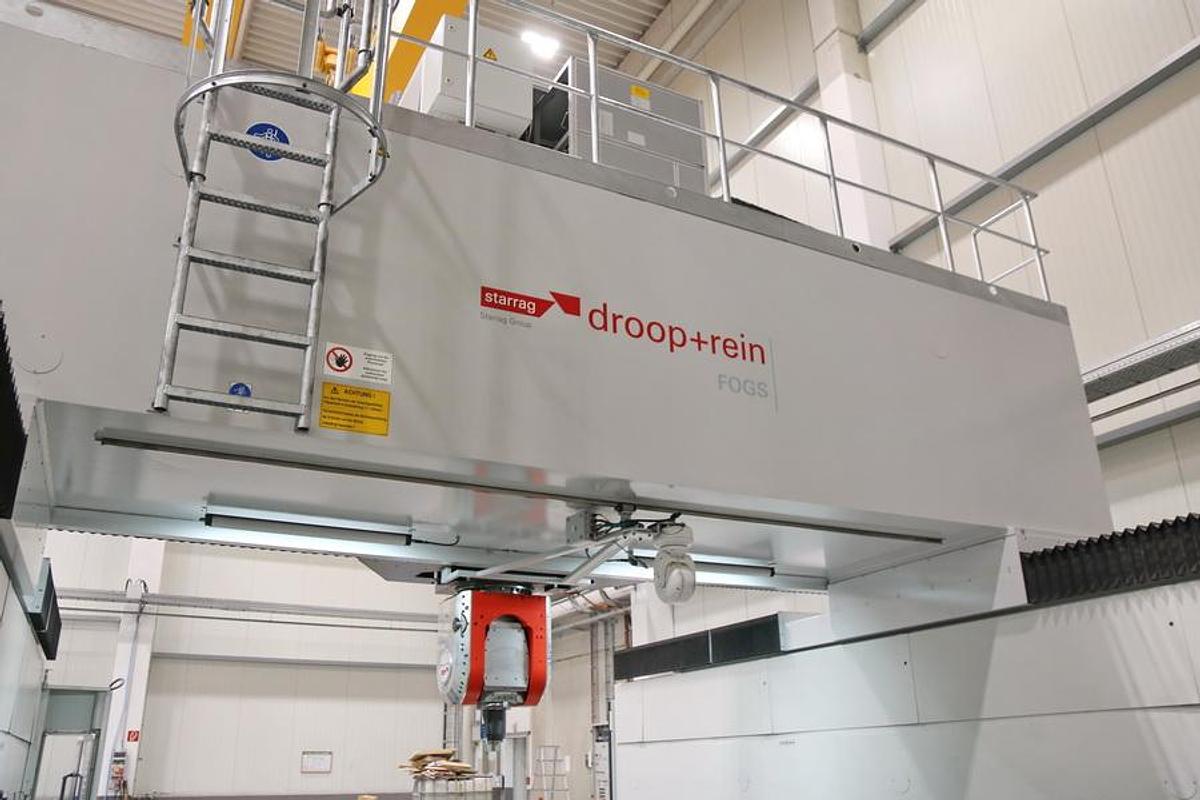

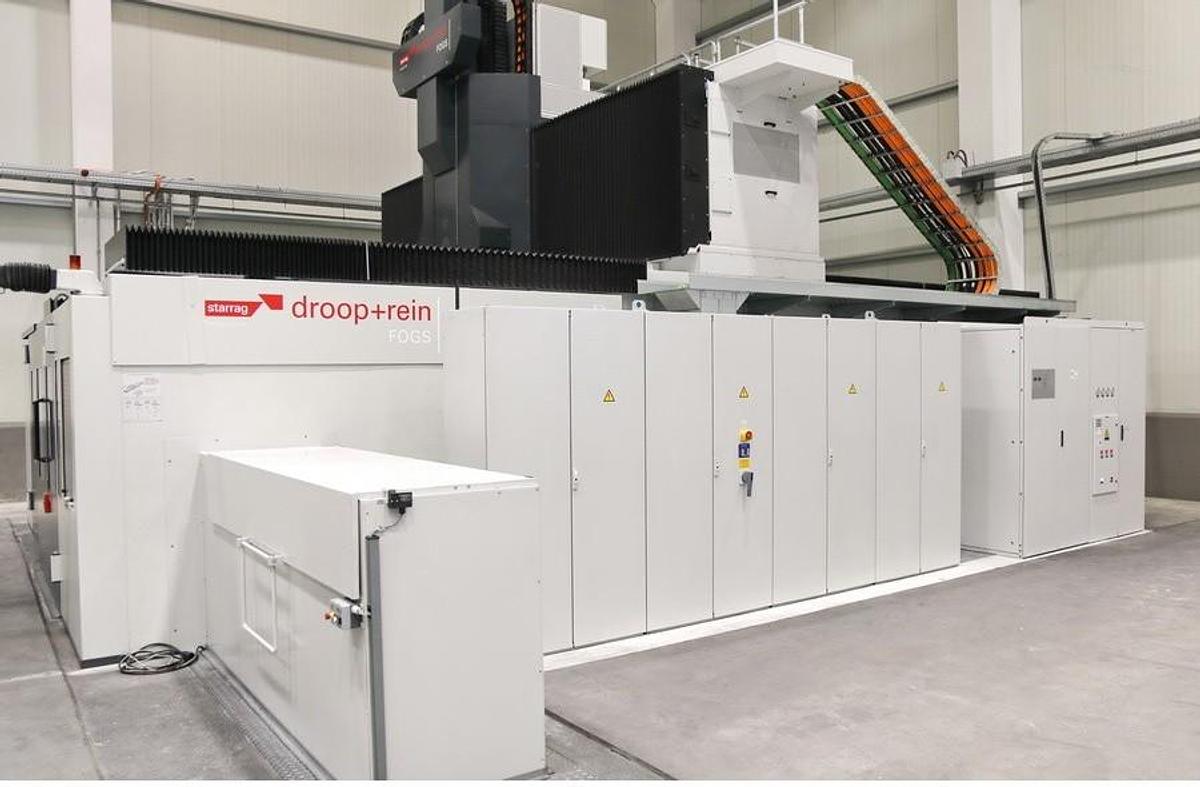

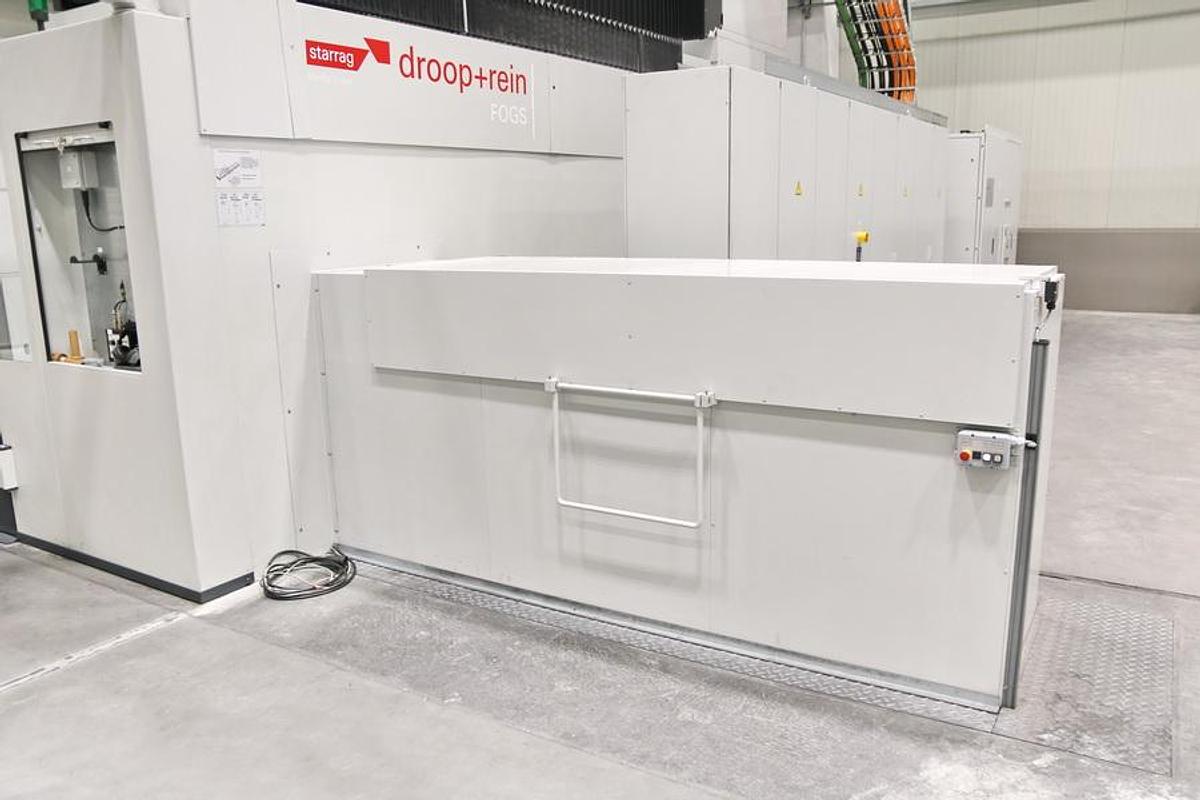

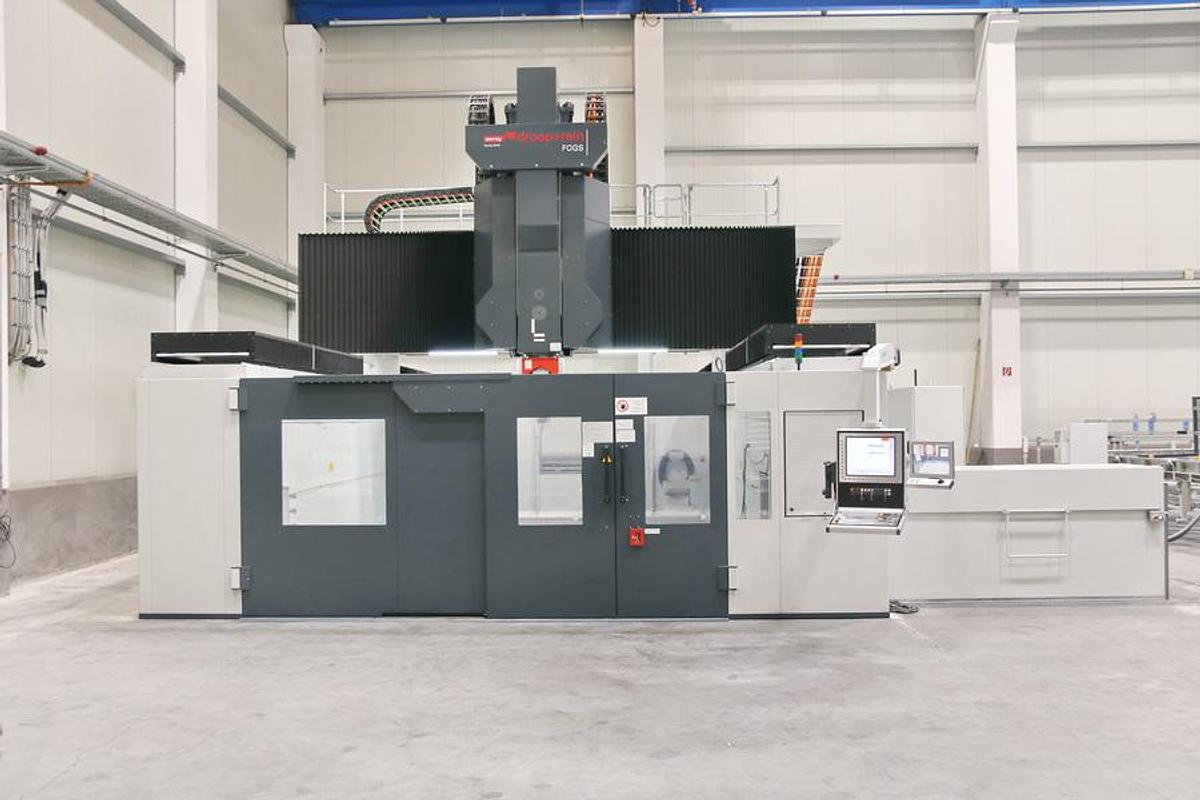

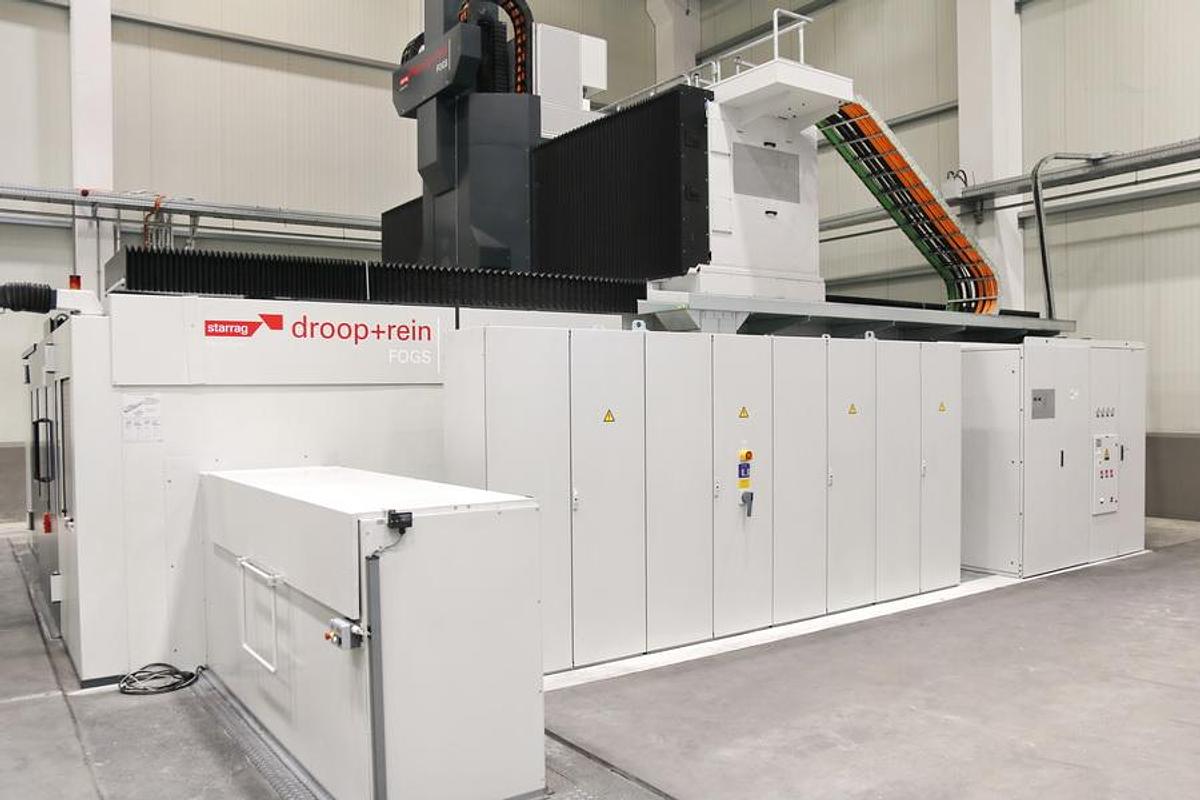

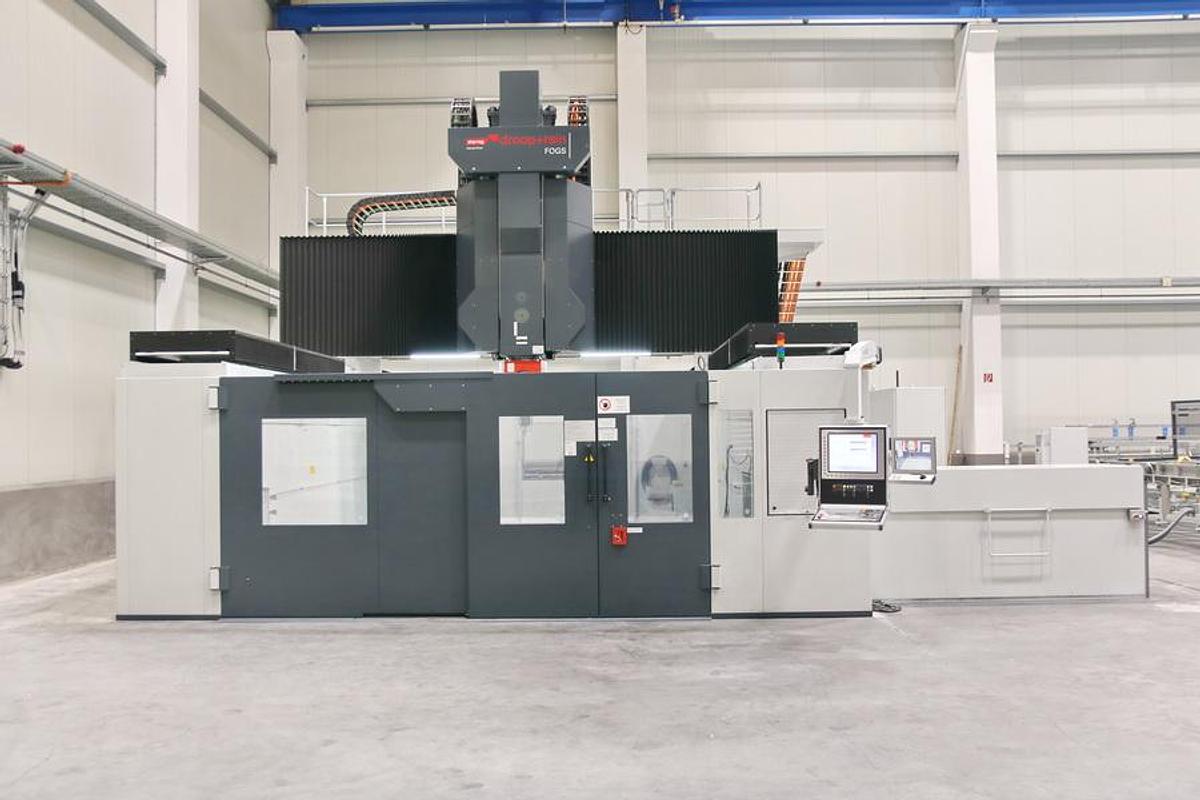

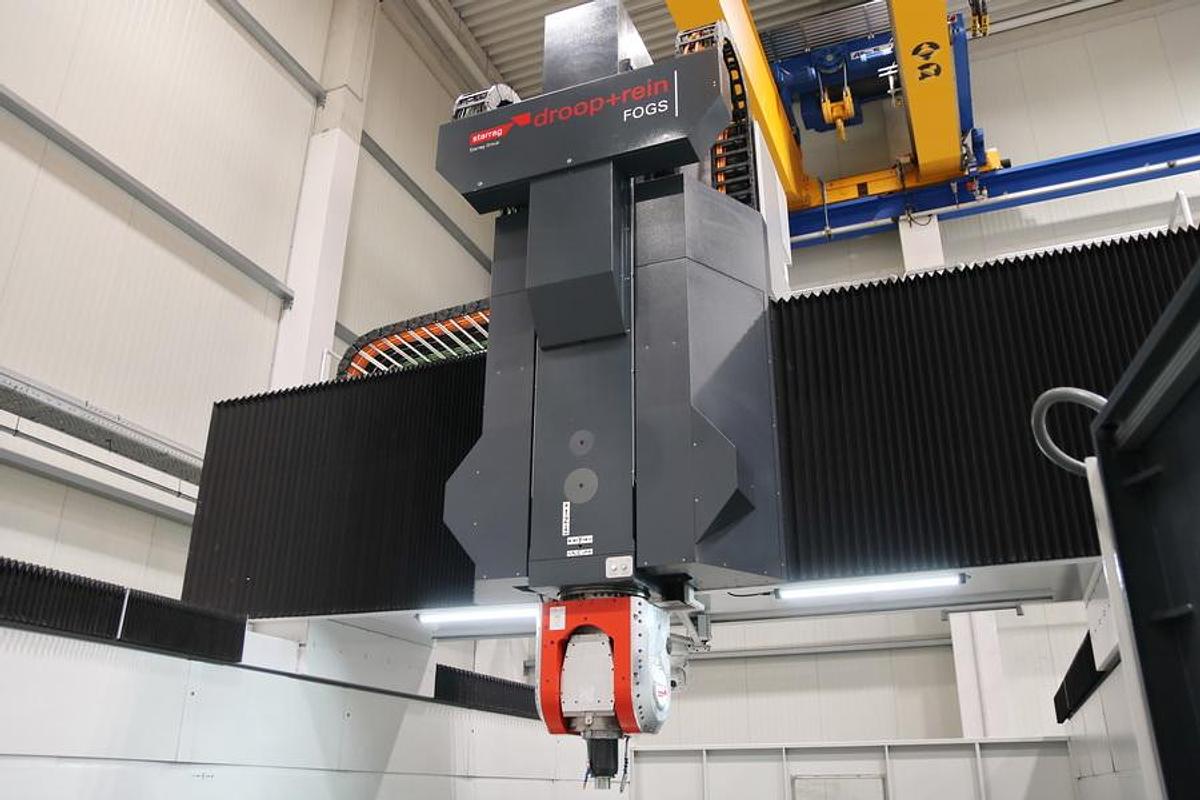

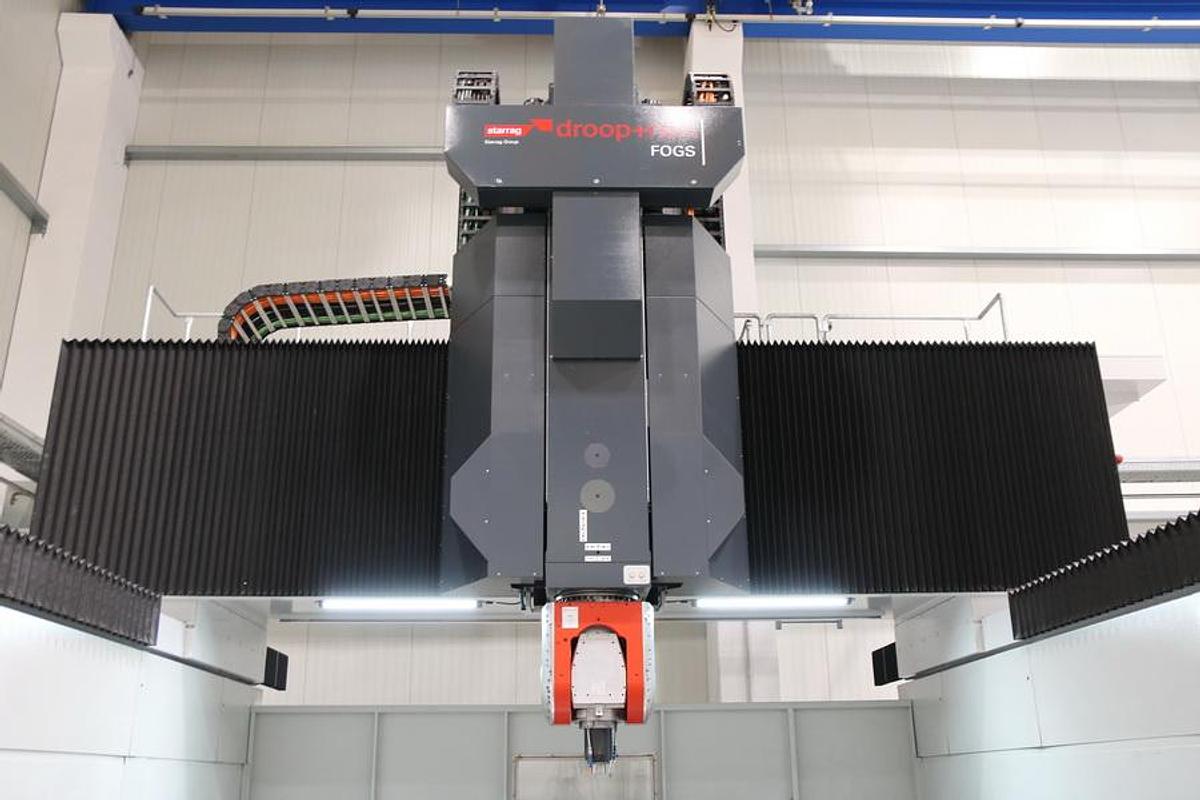

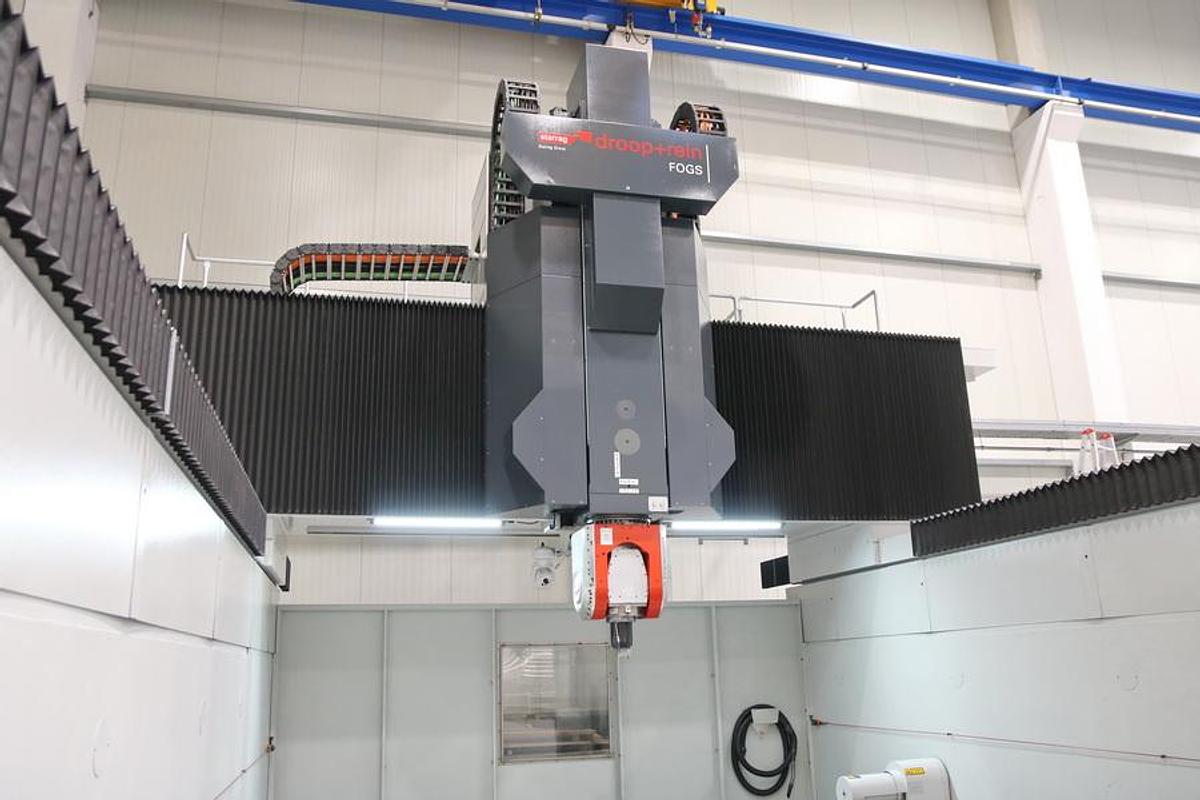

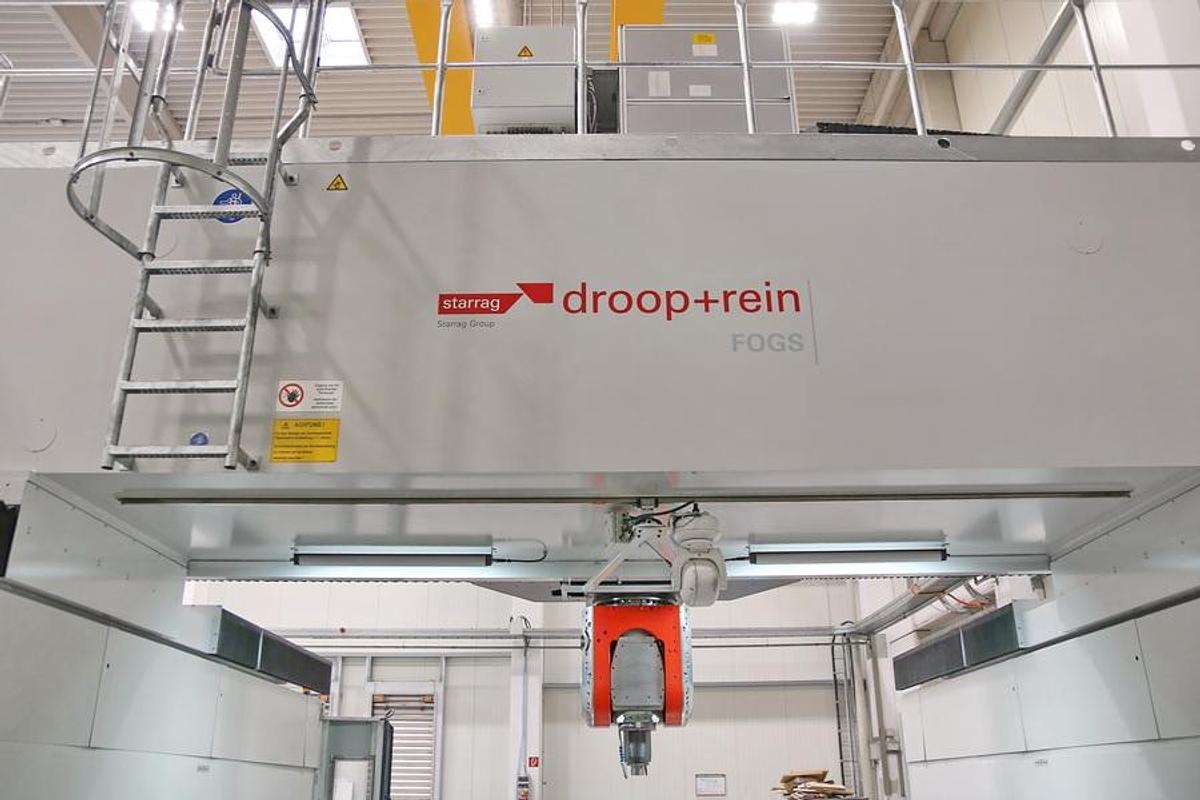

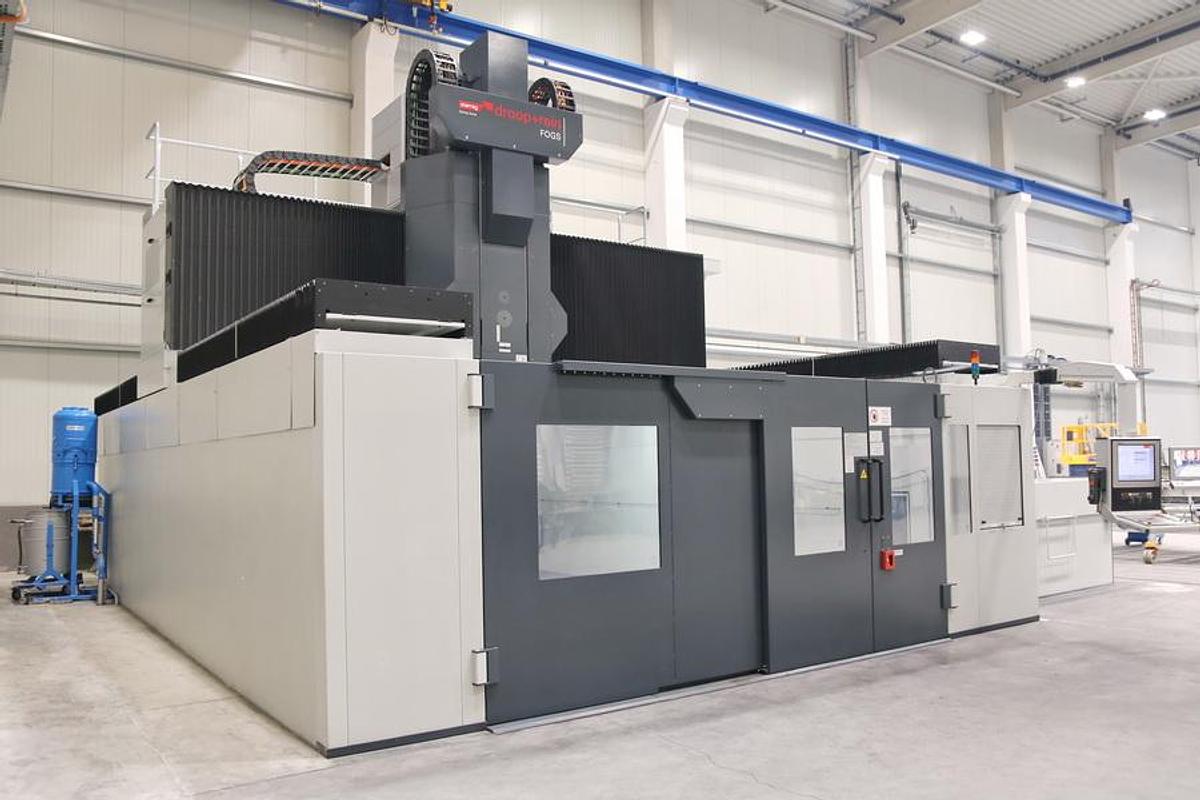

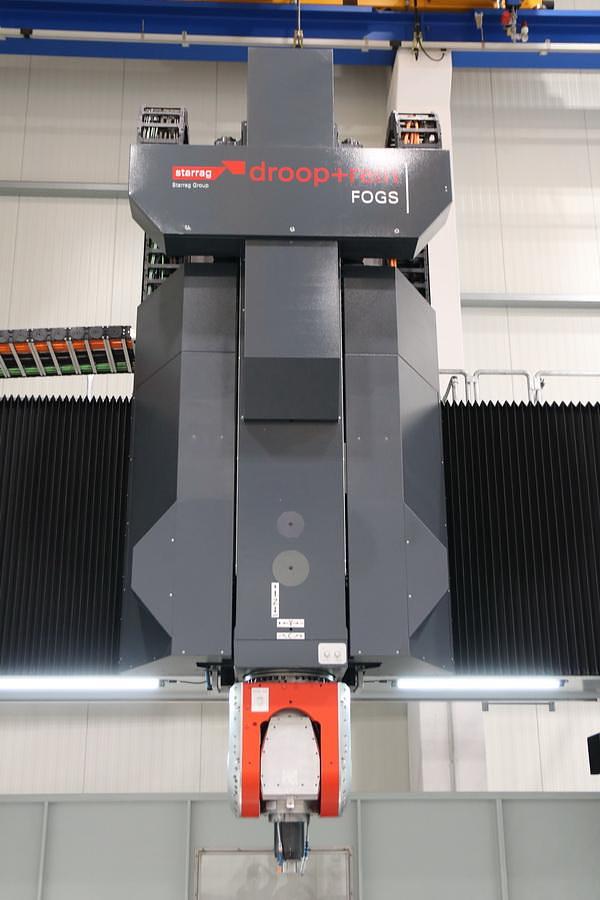

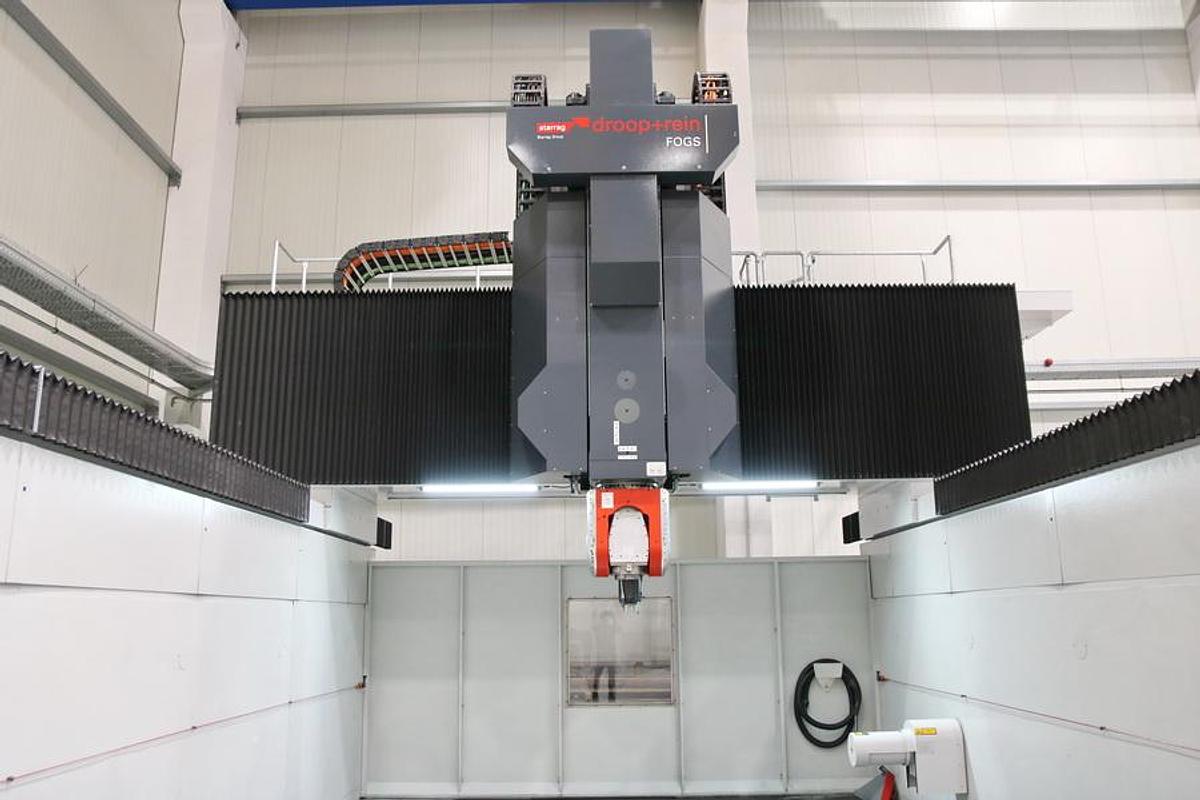

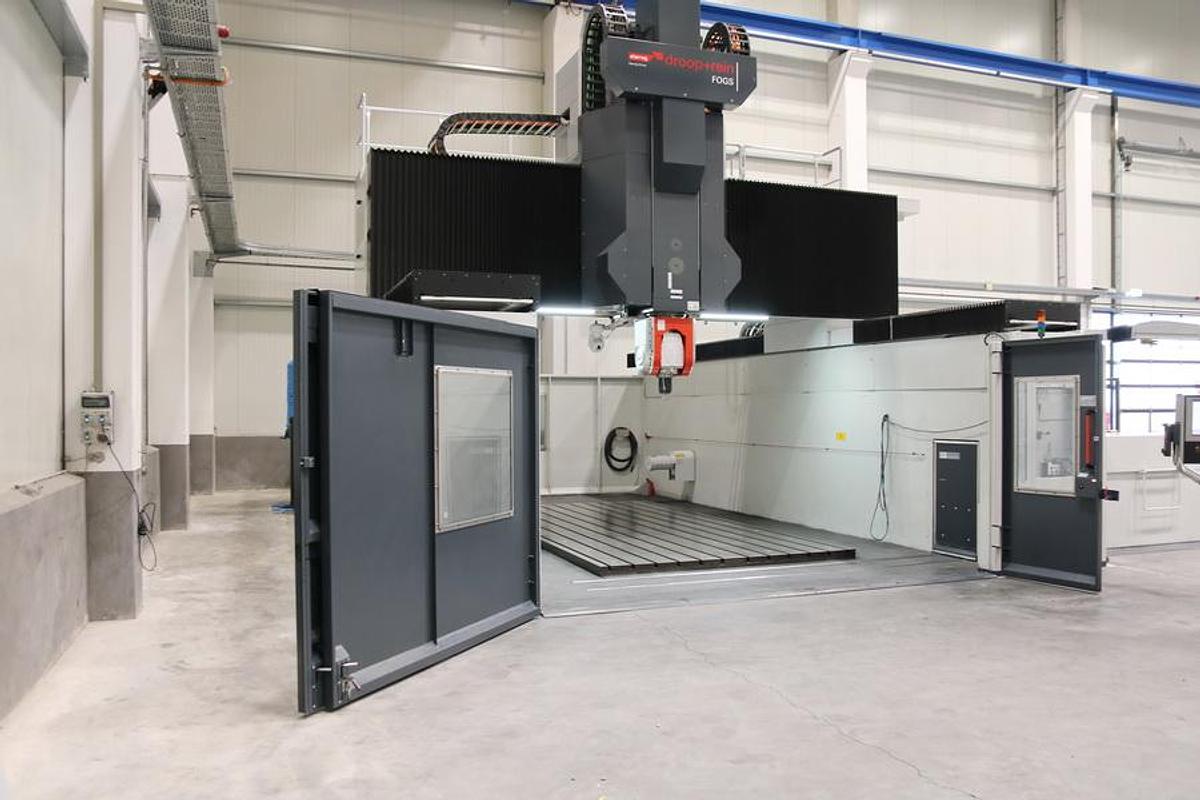

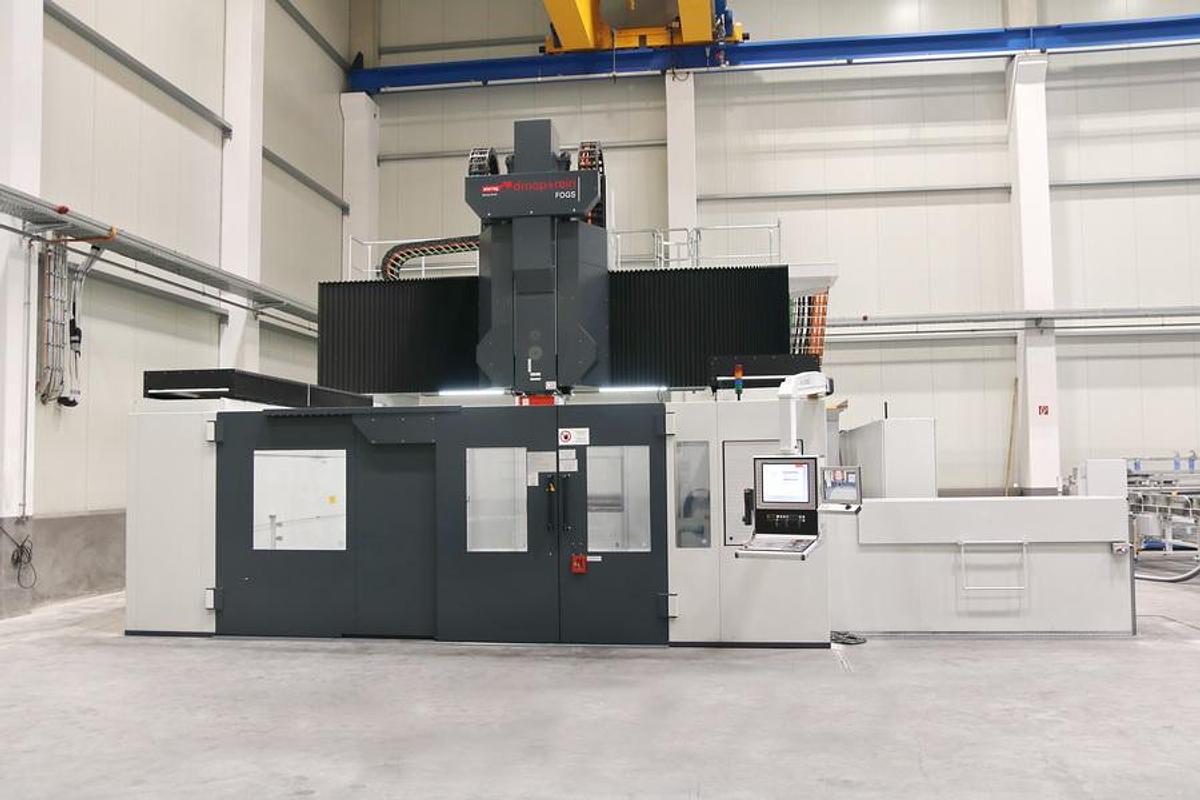

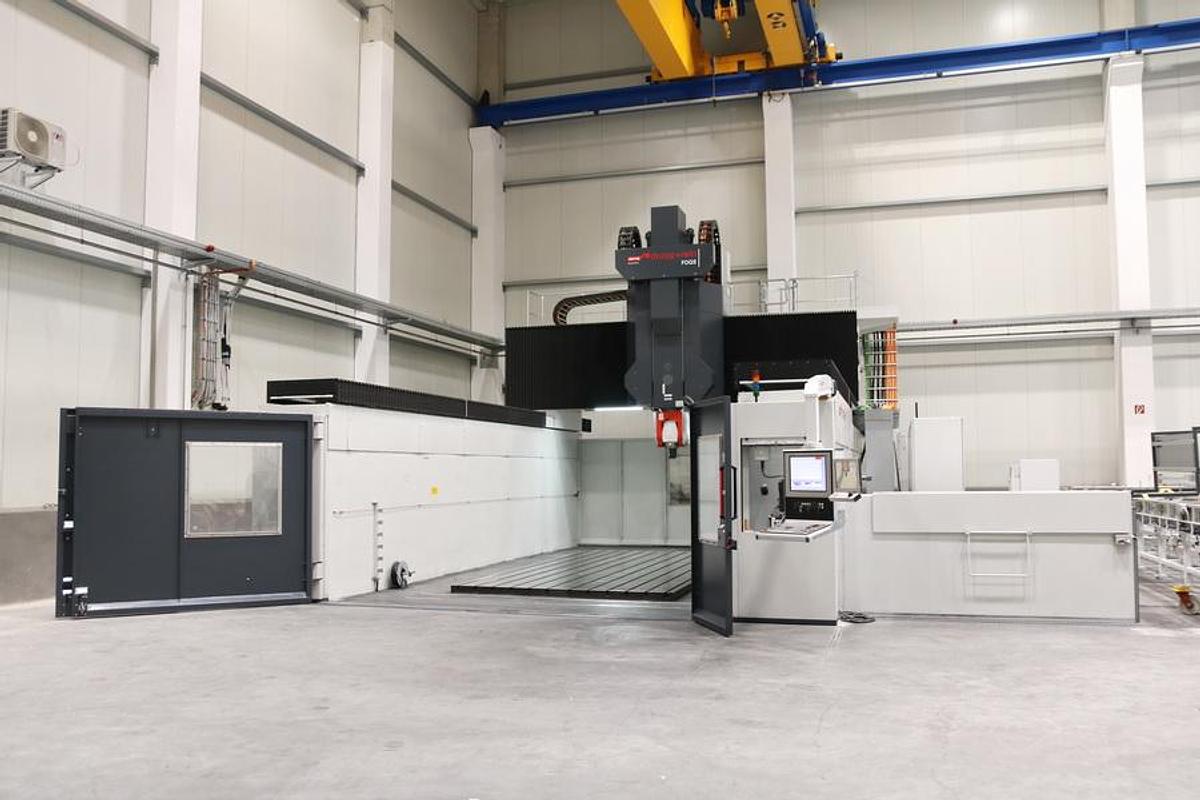

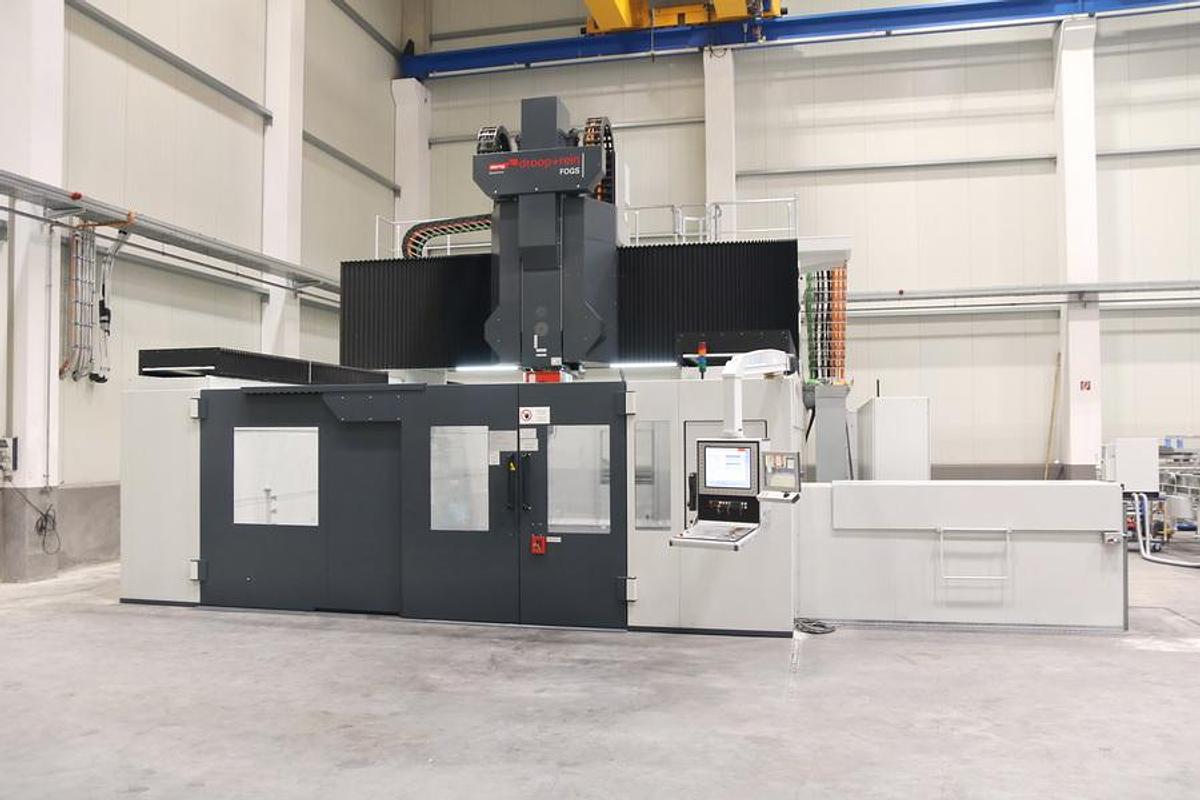

Droop + Rein FOGS 40 60 CNC 5-Axis High Speed Gantry Type Machining Center with 2 Spindles
Droop + Rein FOGS 40 60 CNC 5-Axis High Speed Gantry Type Machining Center with 2 Spindles
or
Call 770-509-0744
Description

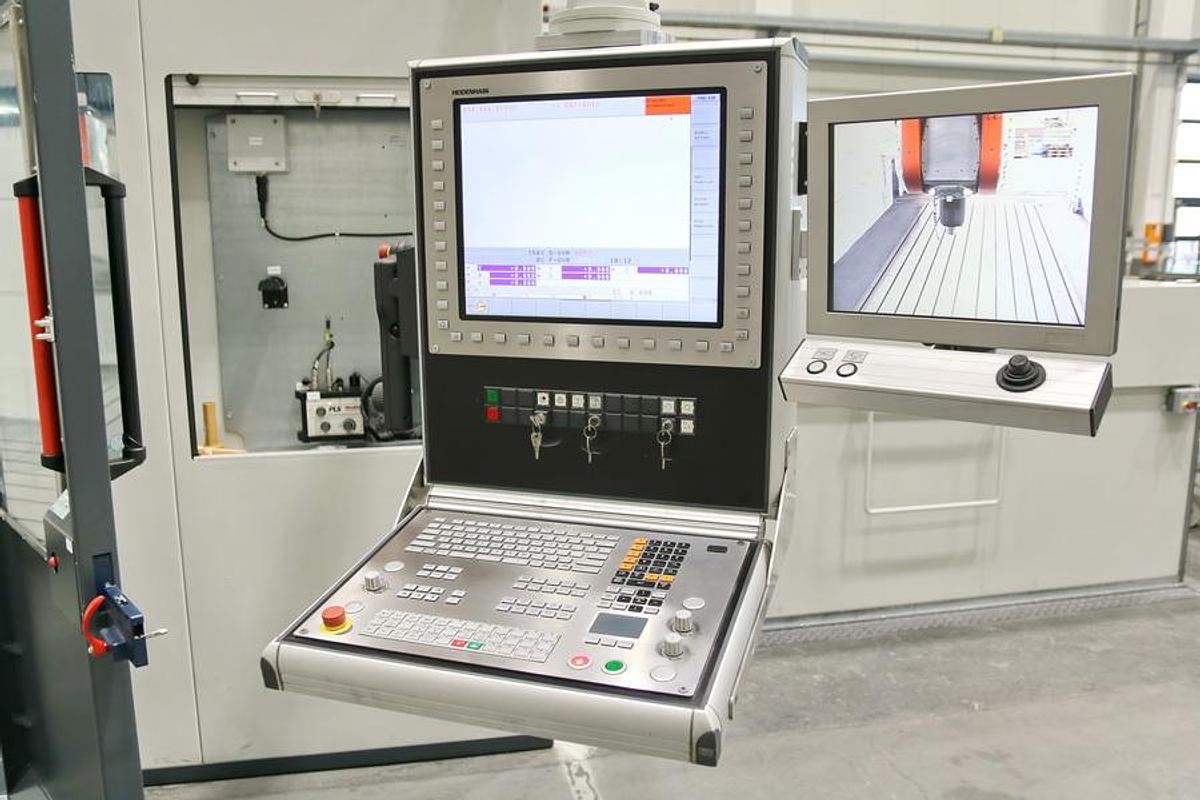

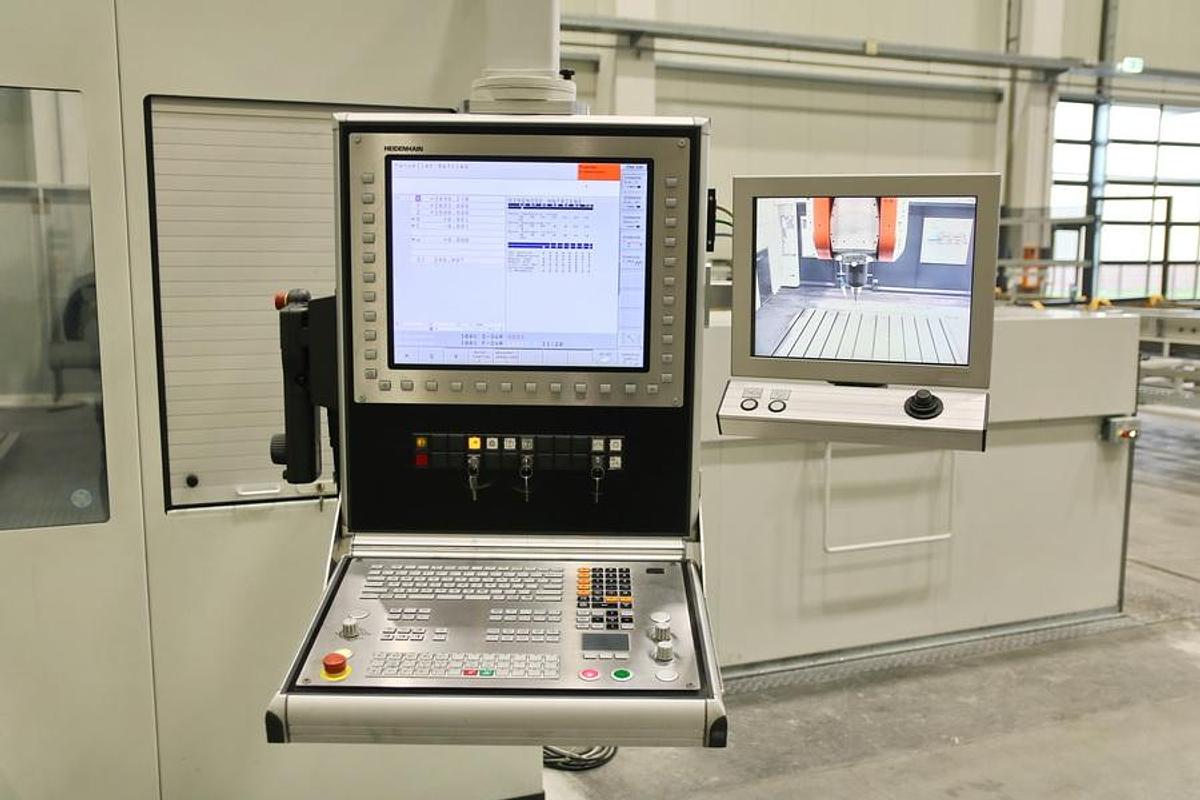

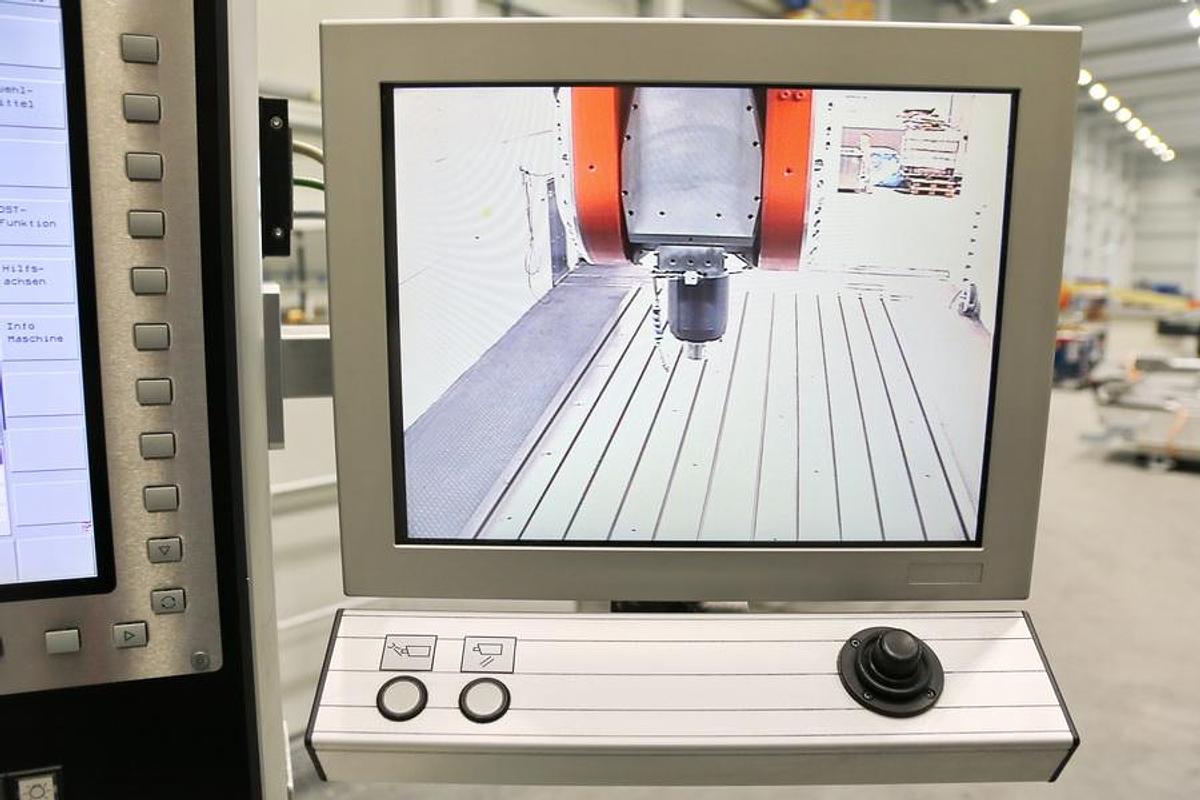

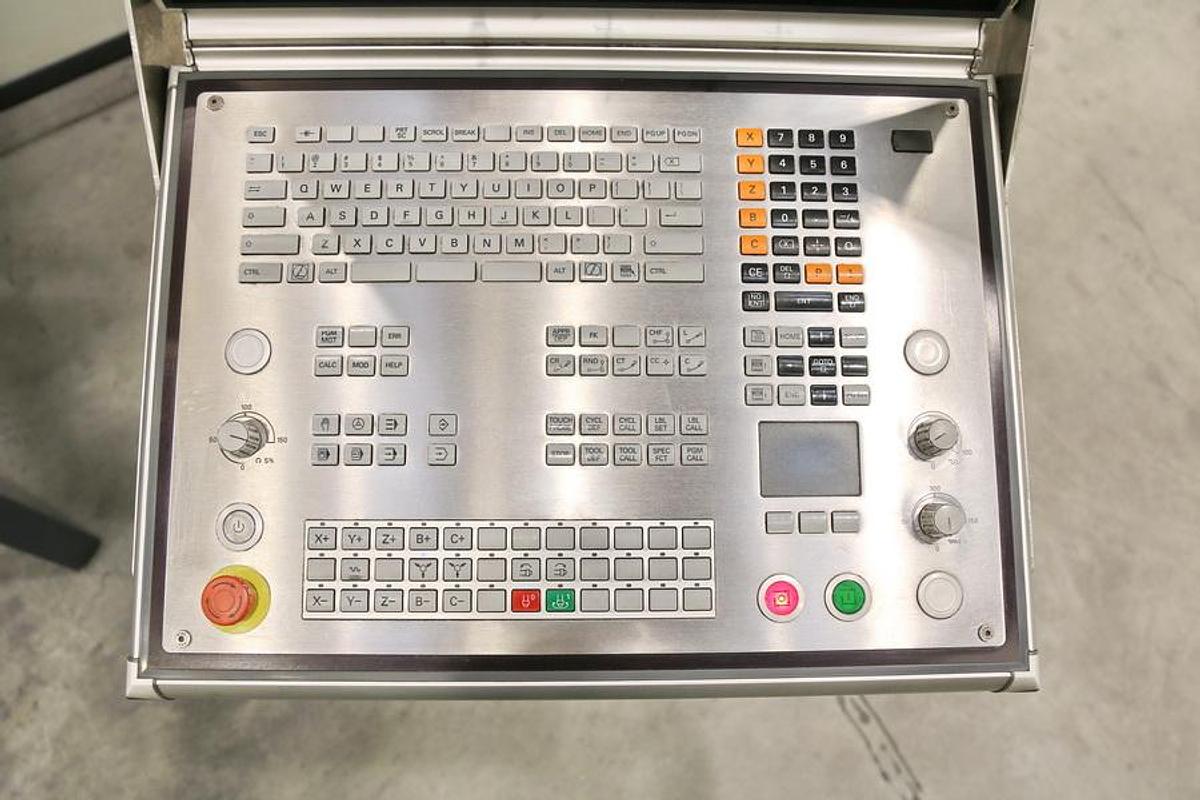

Heidenhain 530 iTNC HSCI CNC Control

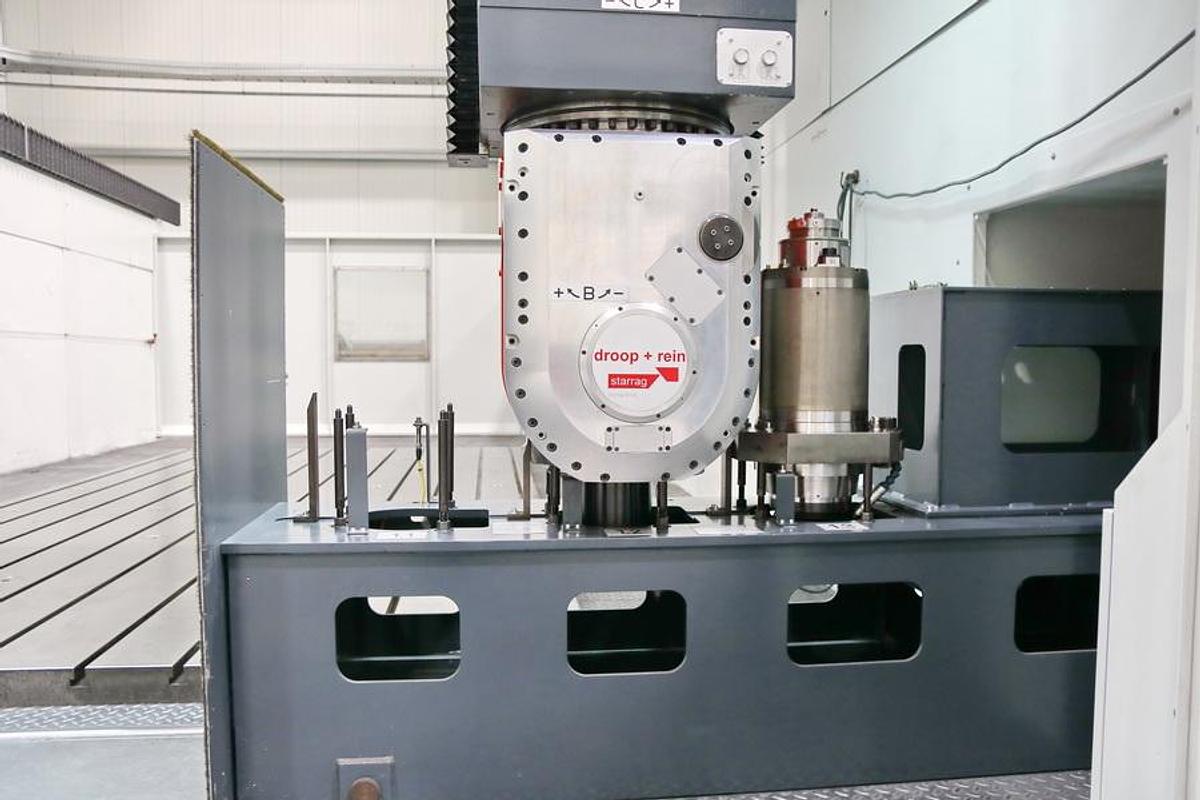

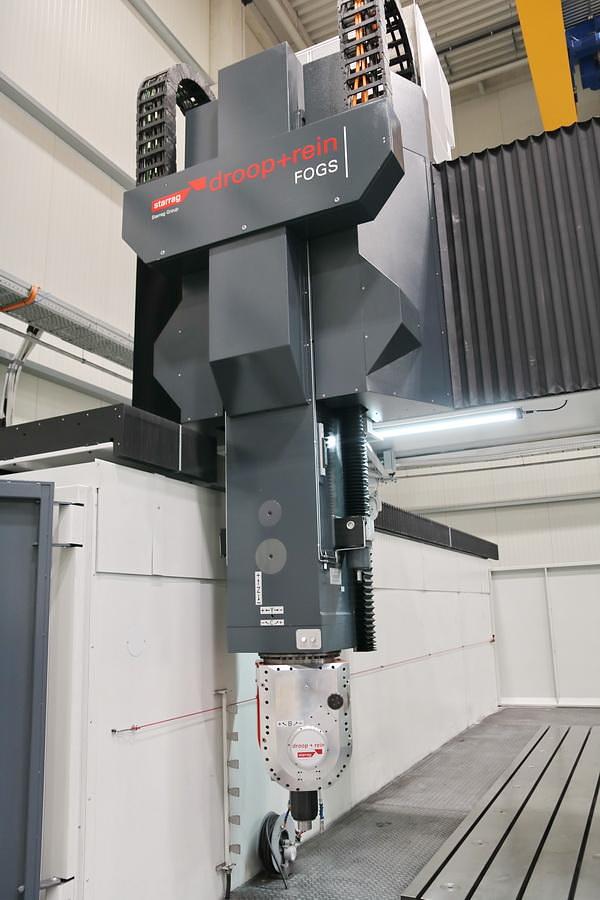

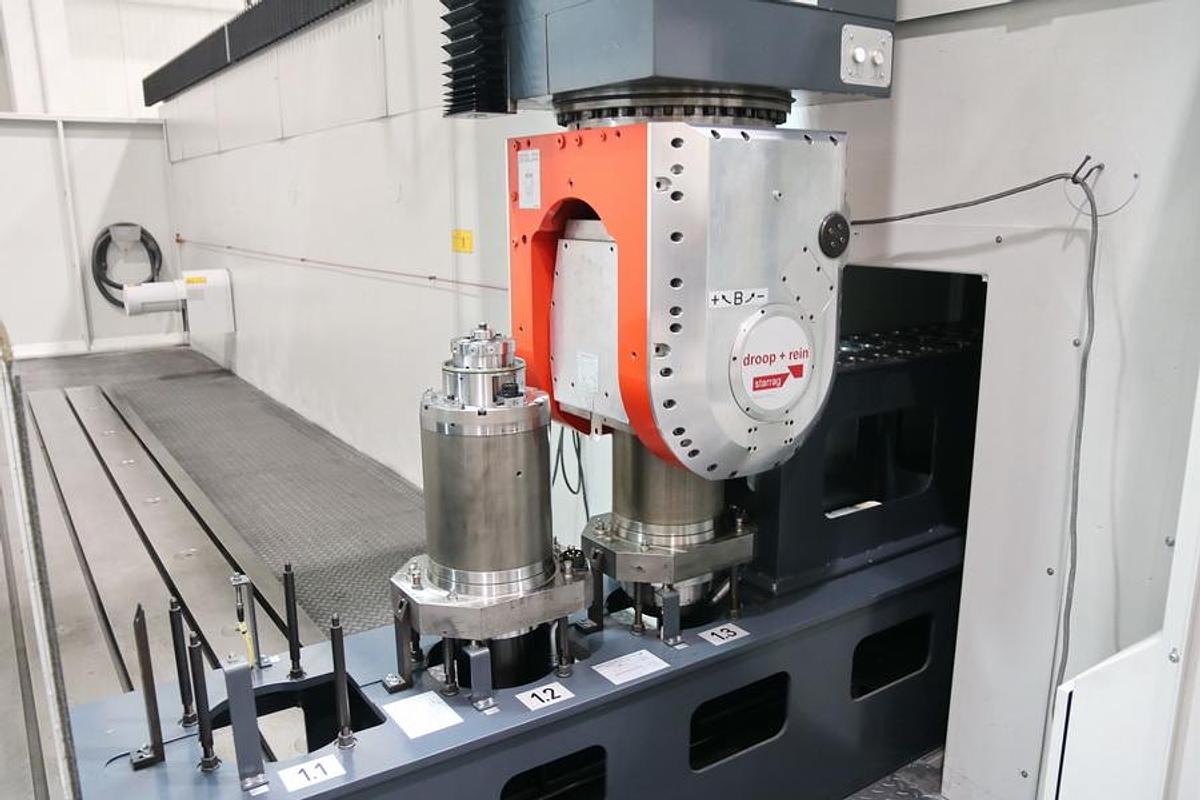

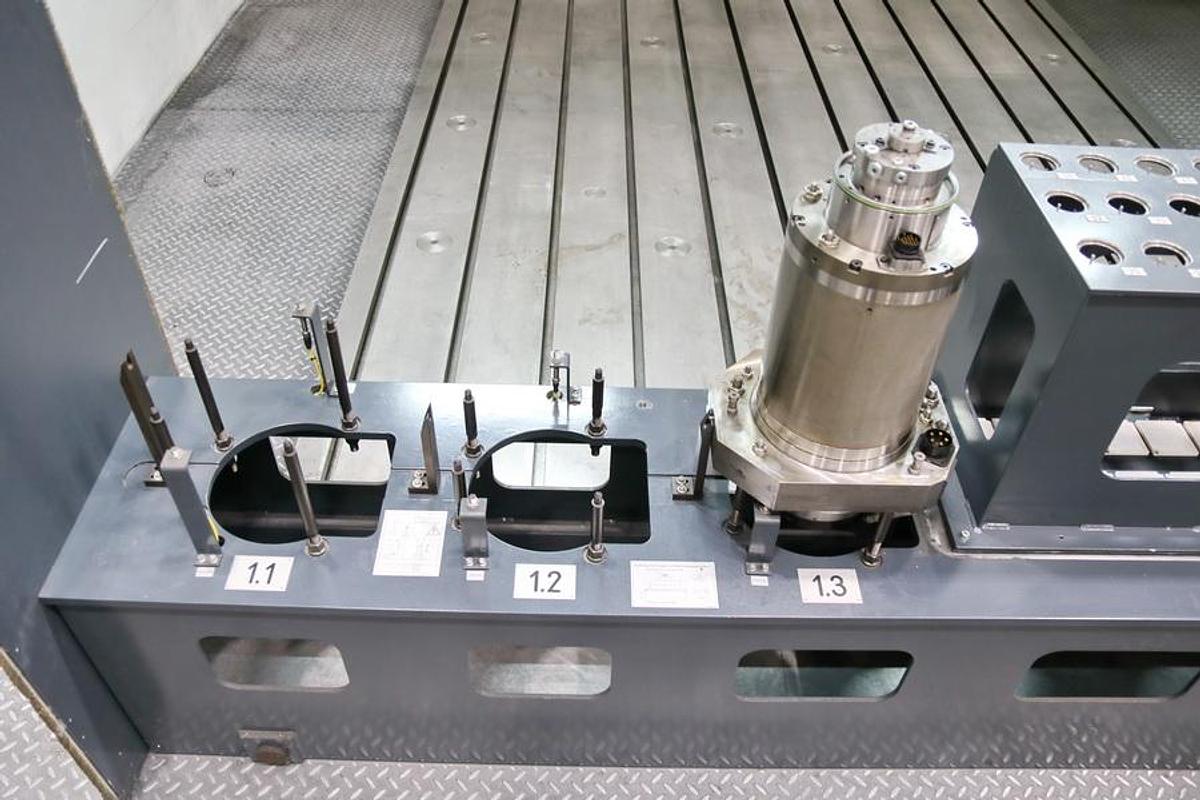

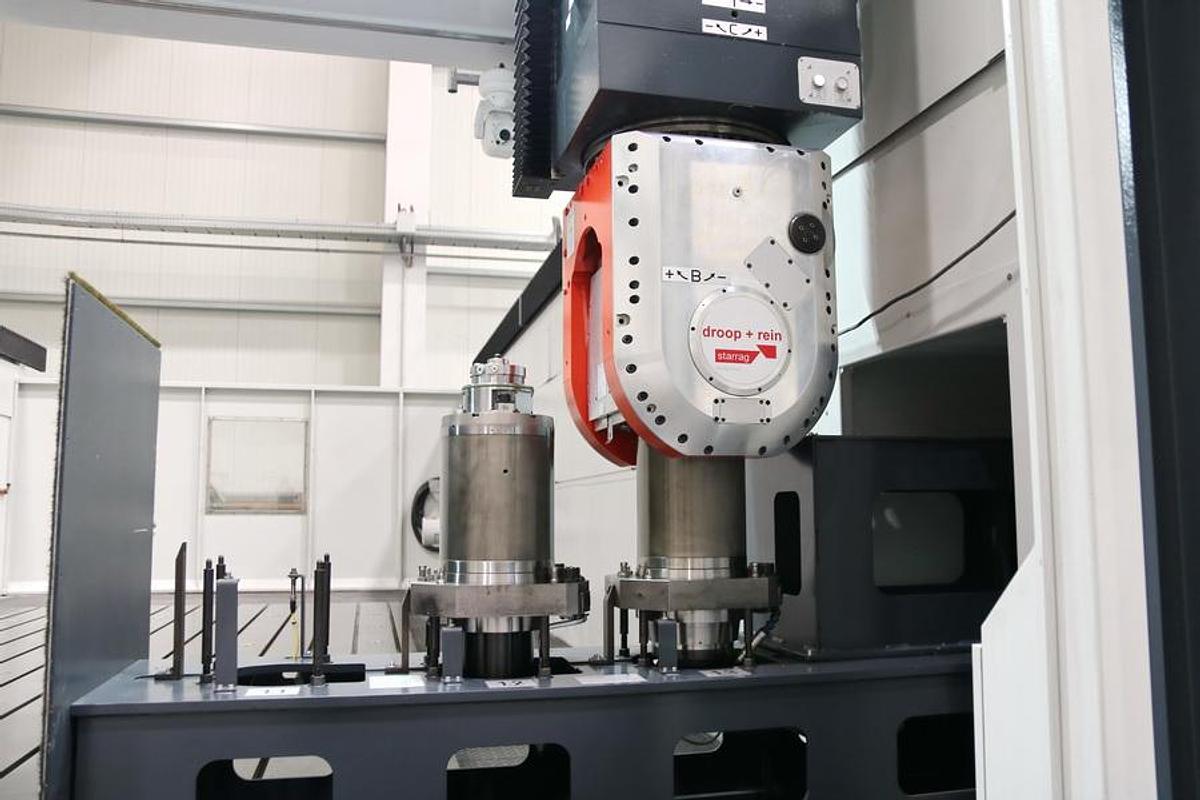

Machine Comes with 2 Spindles & Spindle Head Changer

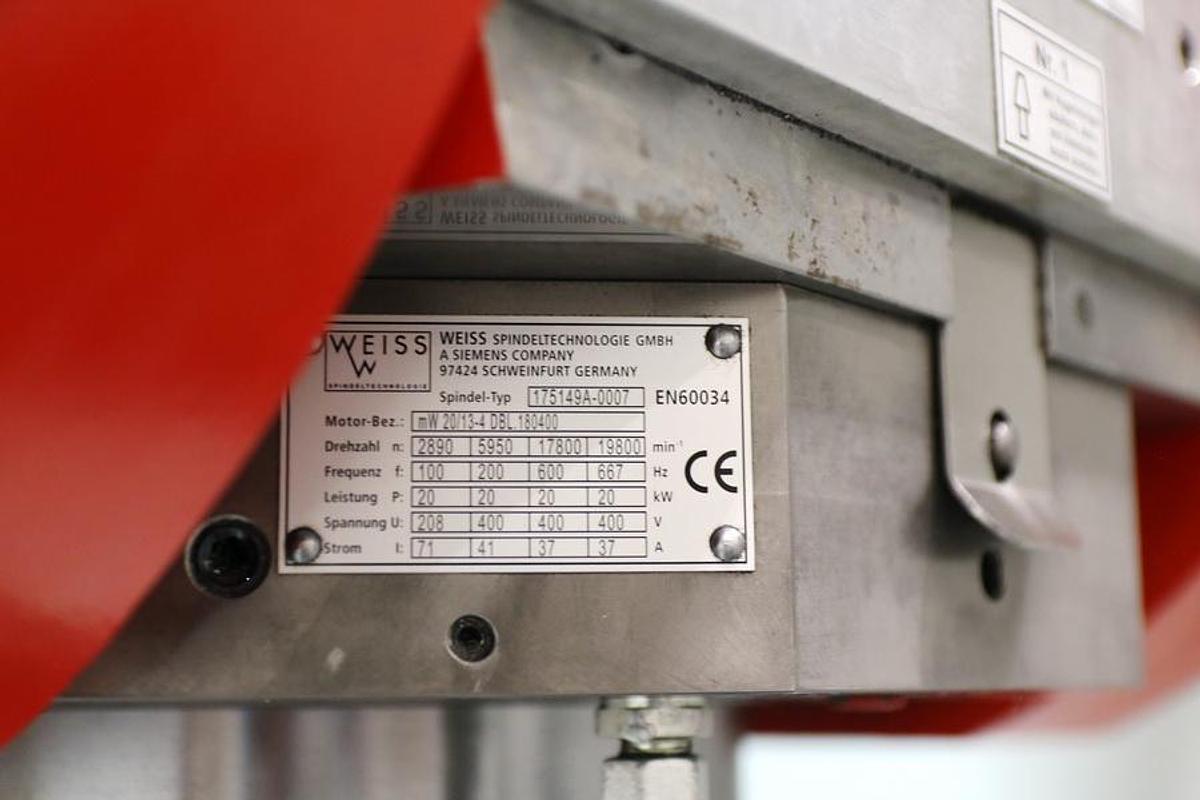

Spindle Head 1 - 19,800 rpm
Spindle Head 2 - 10,020 rpm

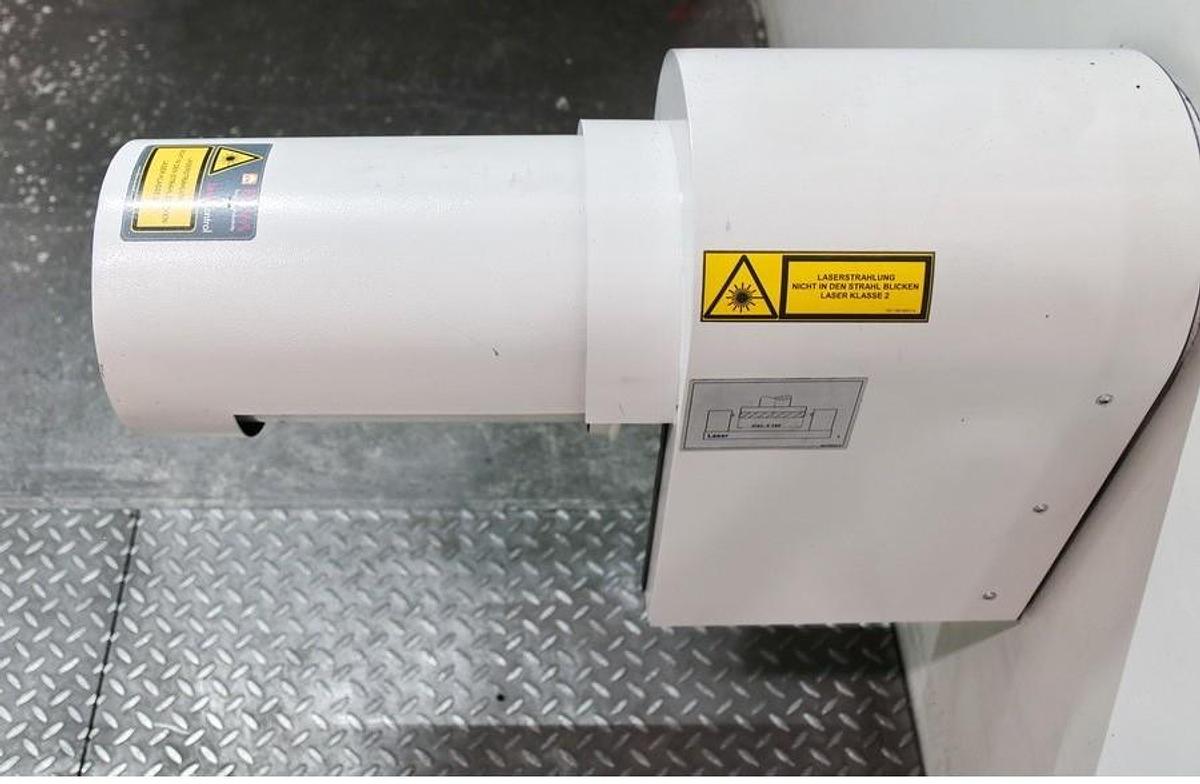

Blum Tool Setting

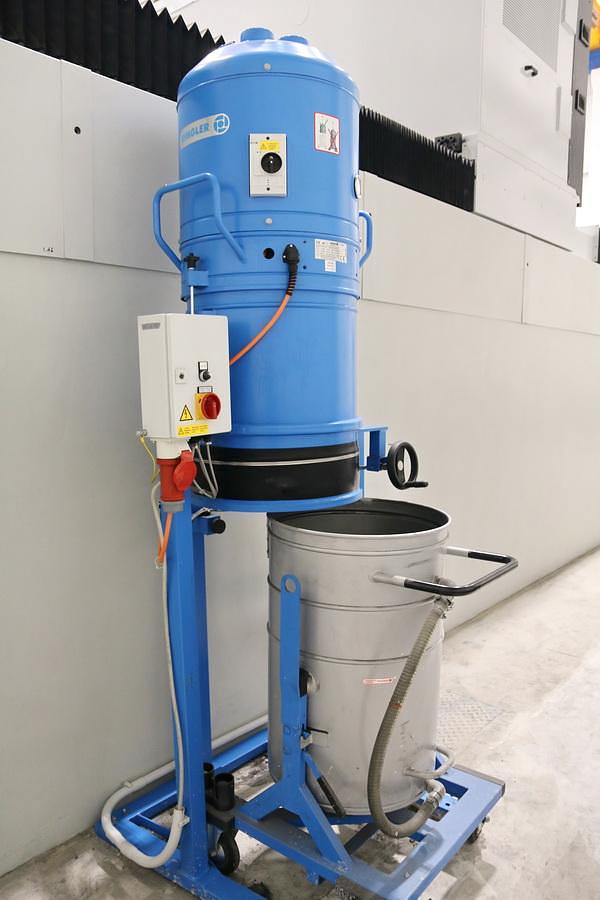

Ringler RI 333 D4 IE2 Exhaust Fan

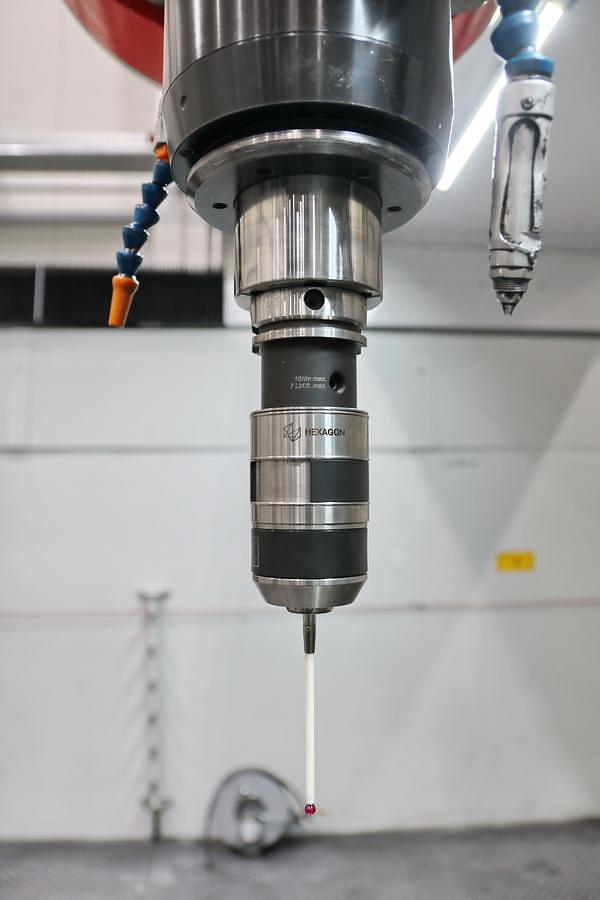

M&H RWP 20.41 Test Probe

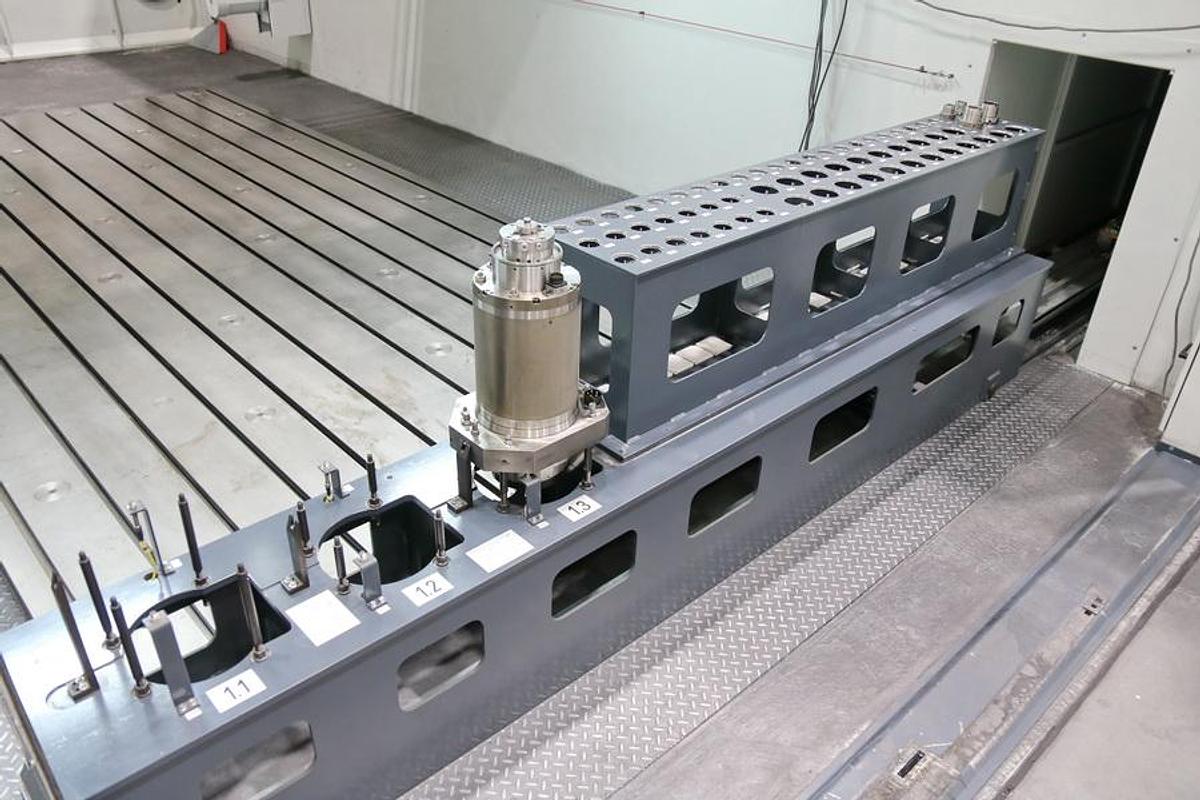

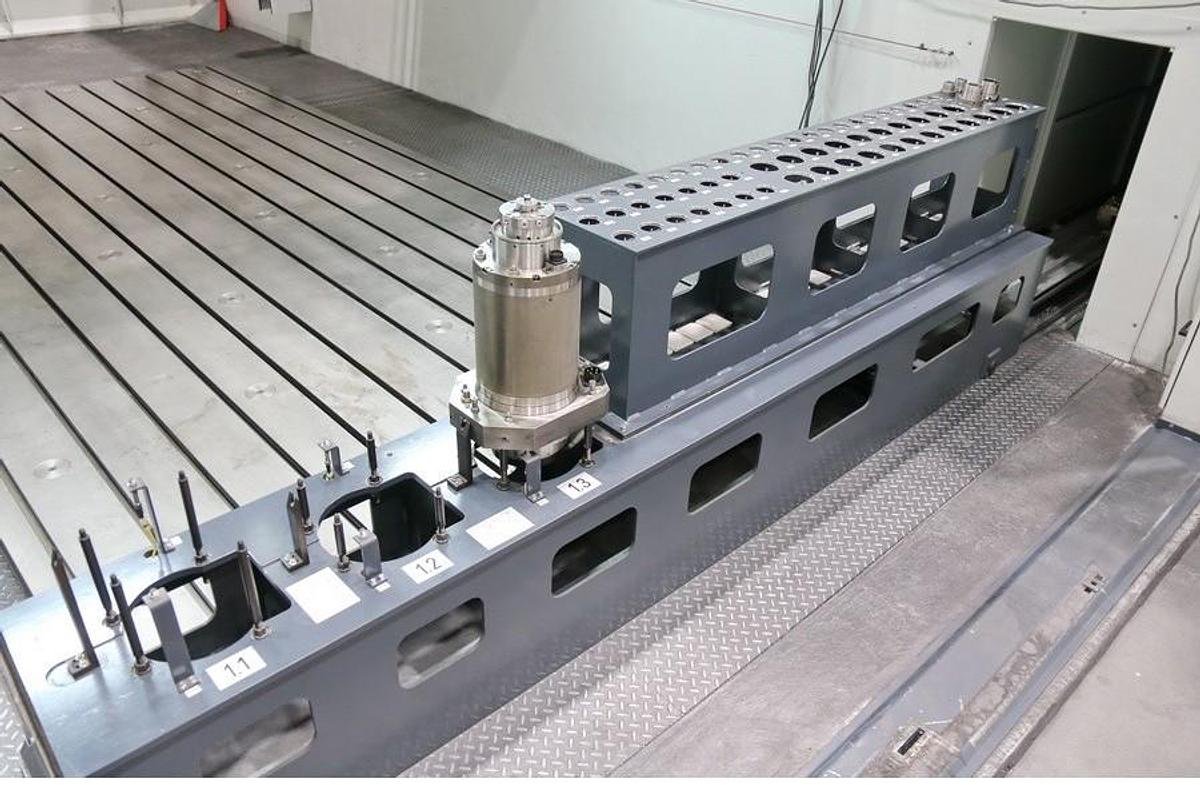

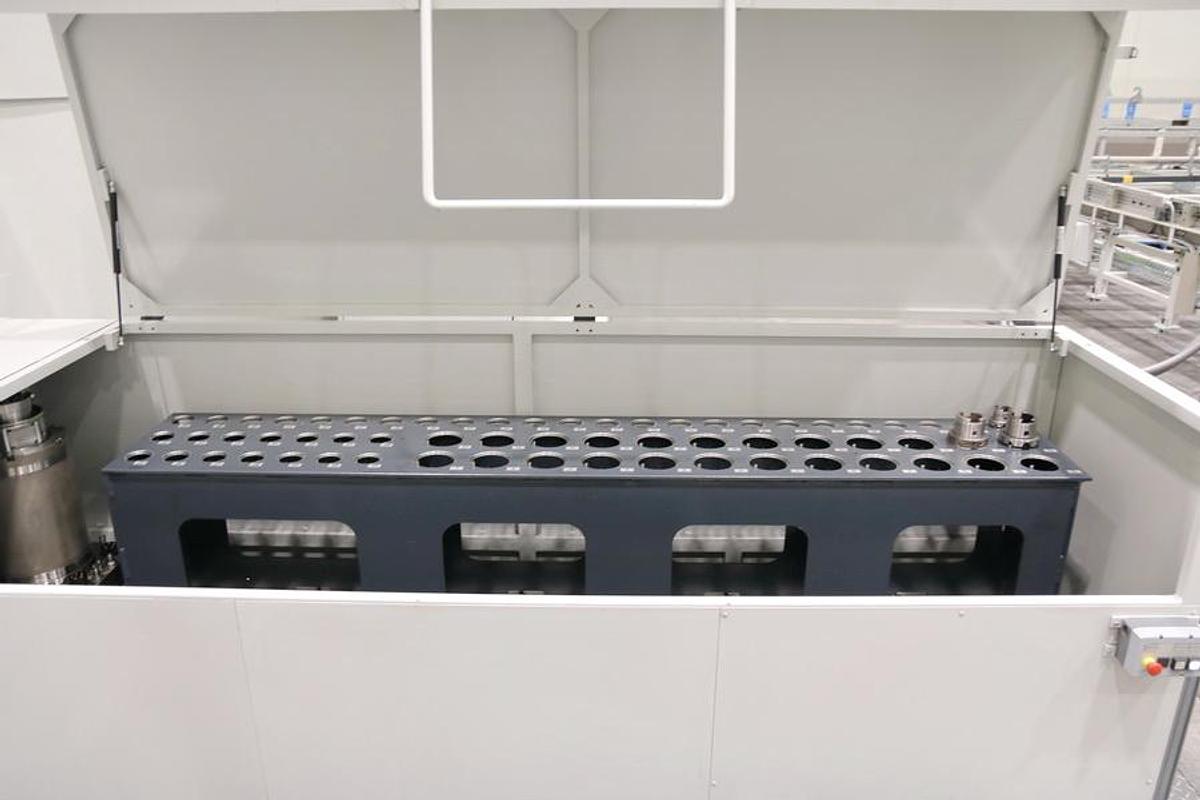

HSK A100: 23+1 position Tool Presetter
Max Tool Diameter - HSK A100: 80 mm
Max Tool Length - HSK A100: 450 mm

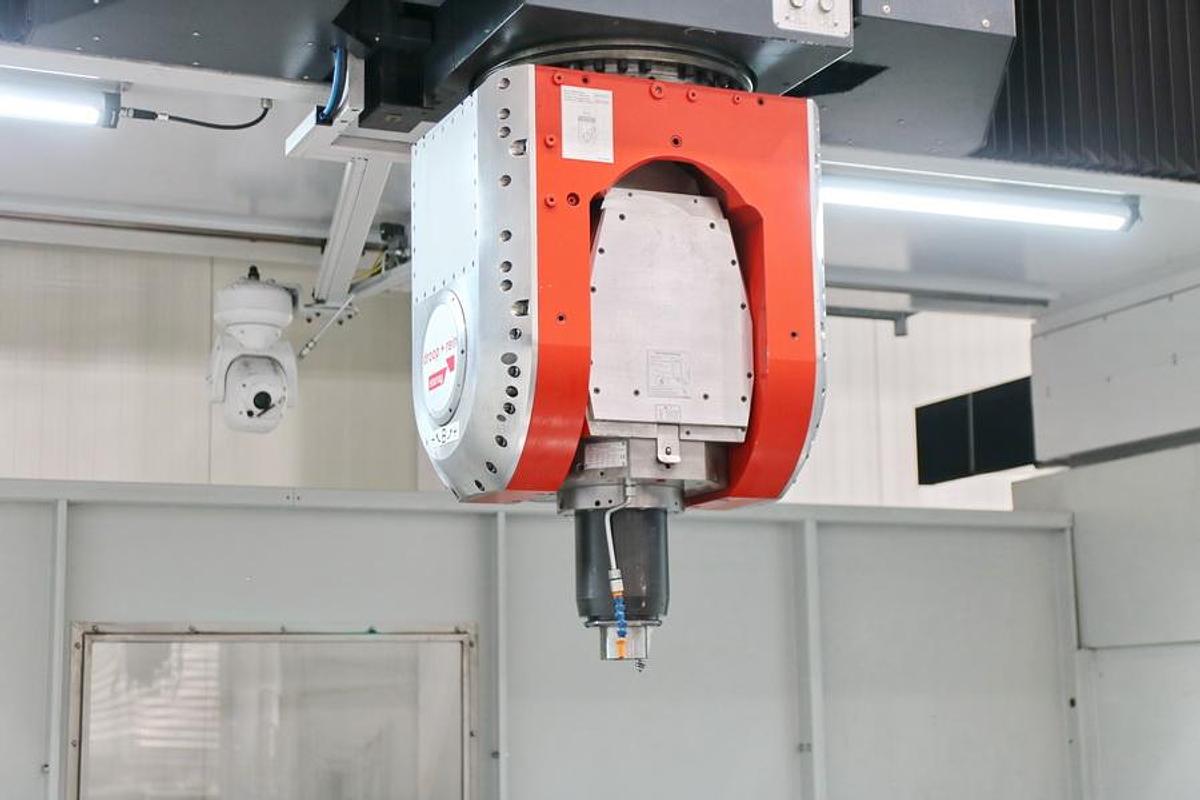

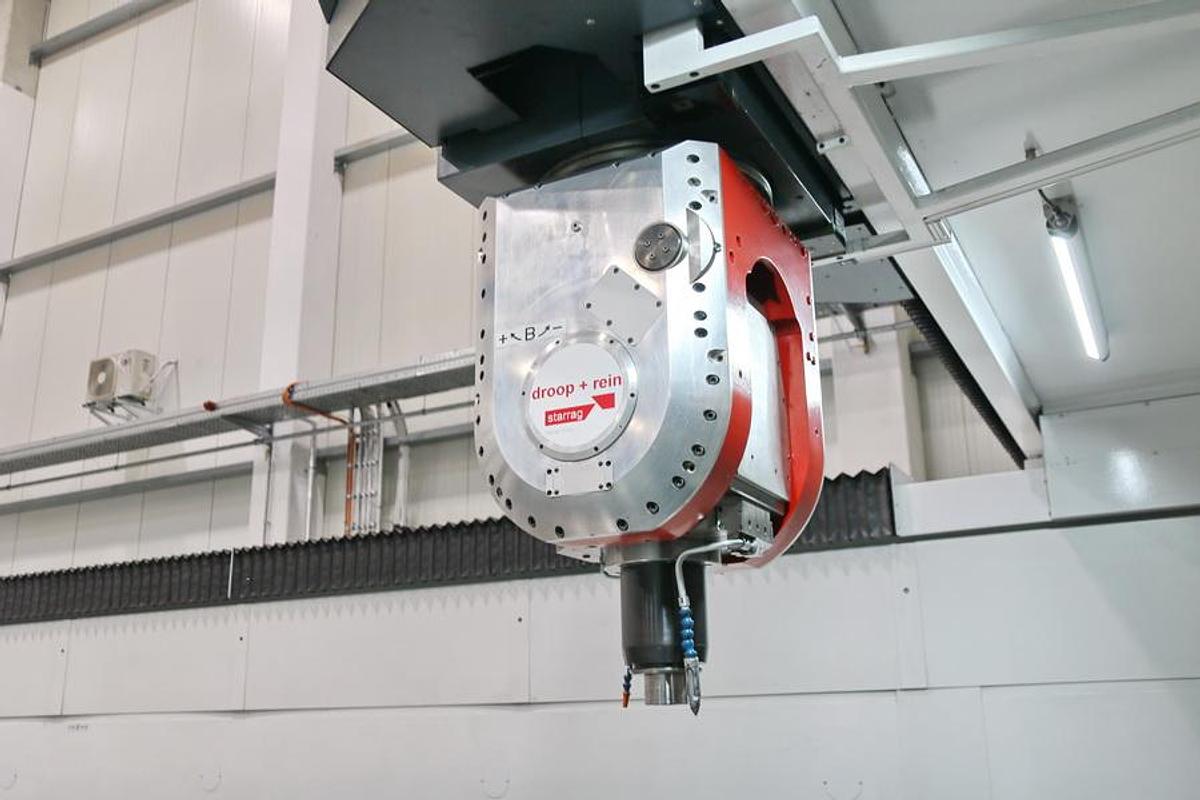

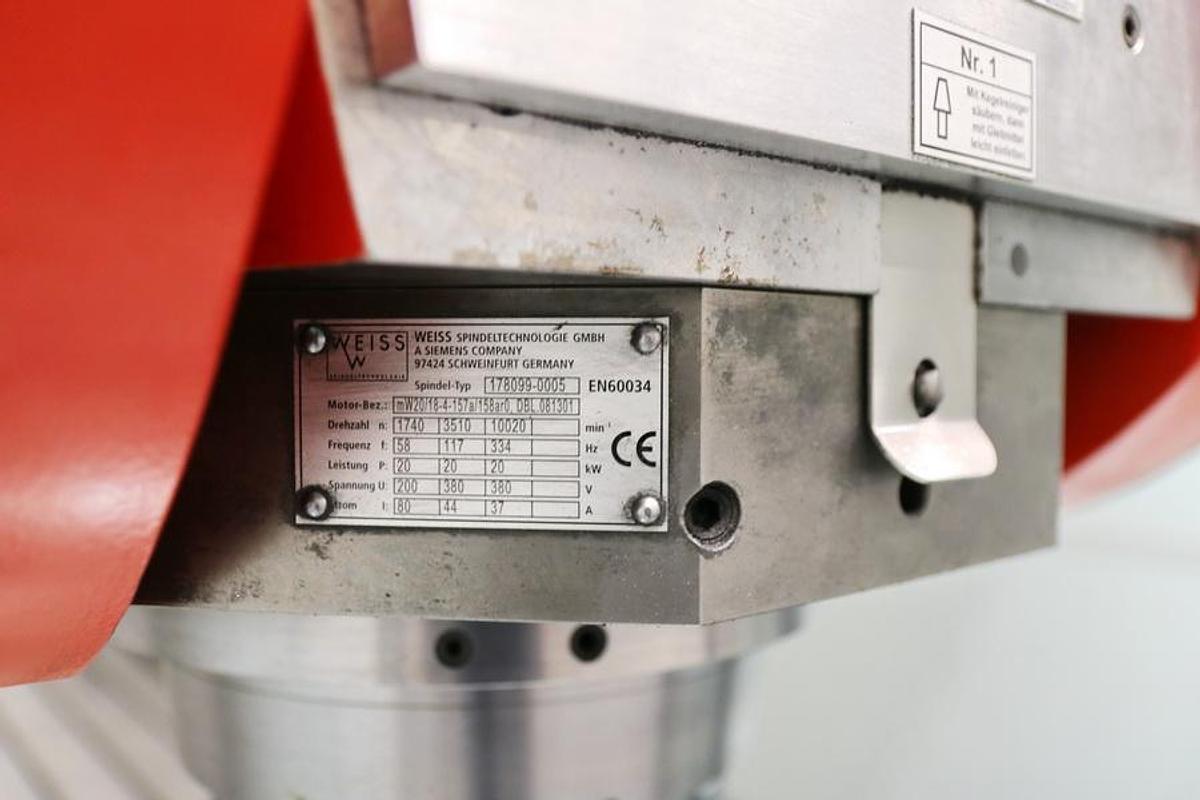

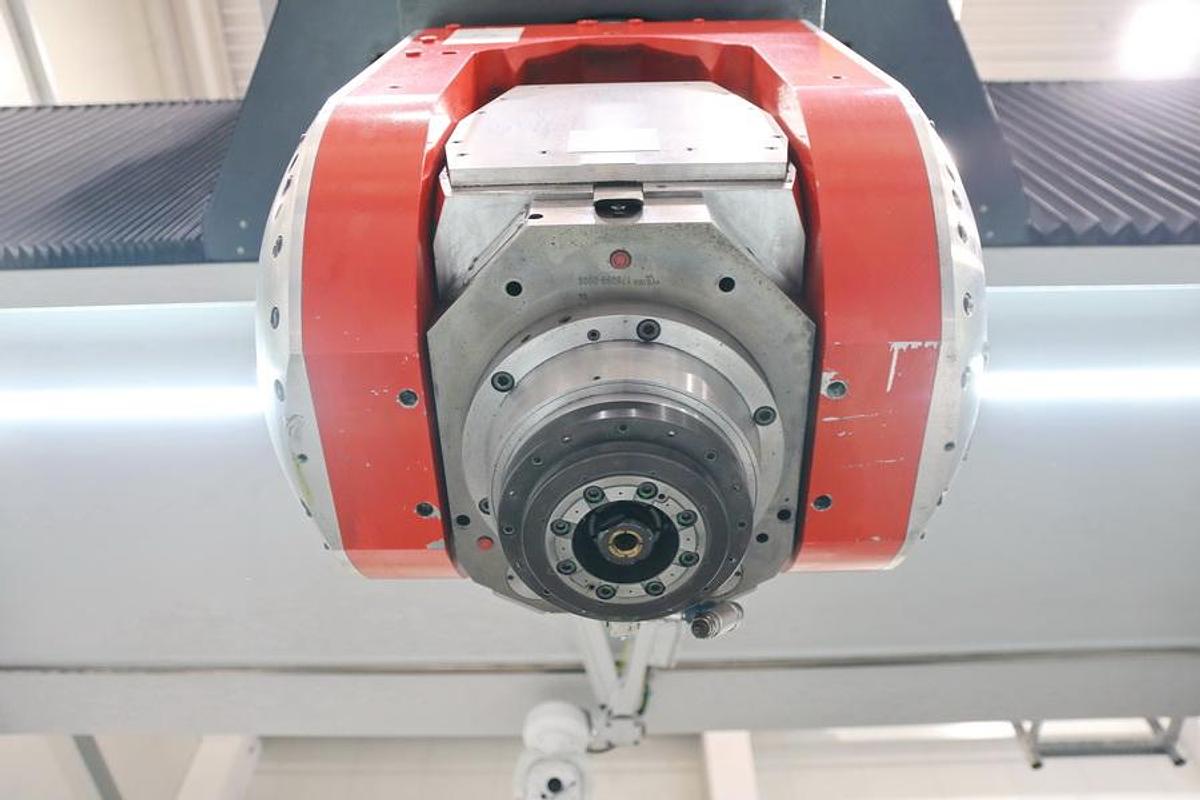

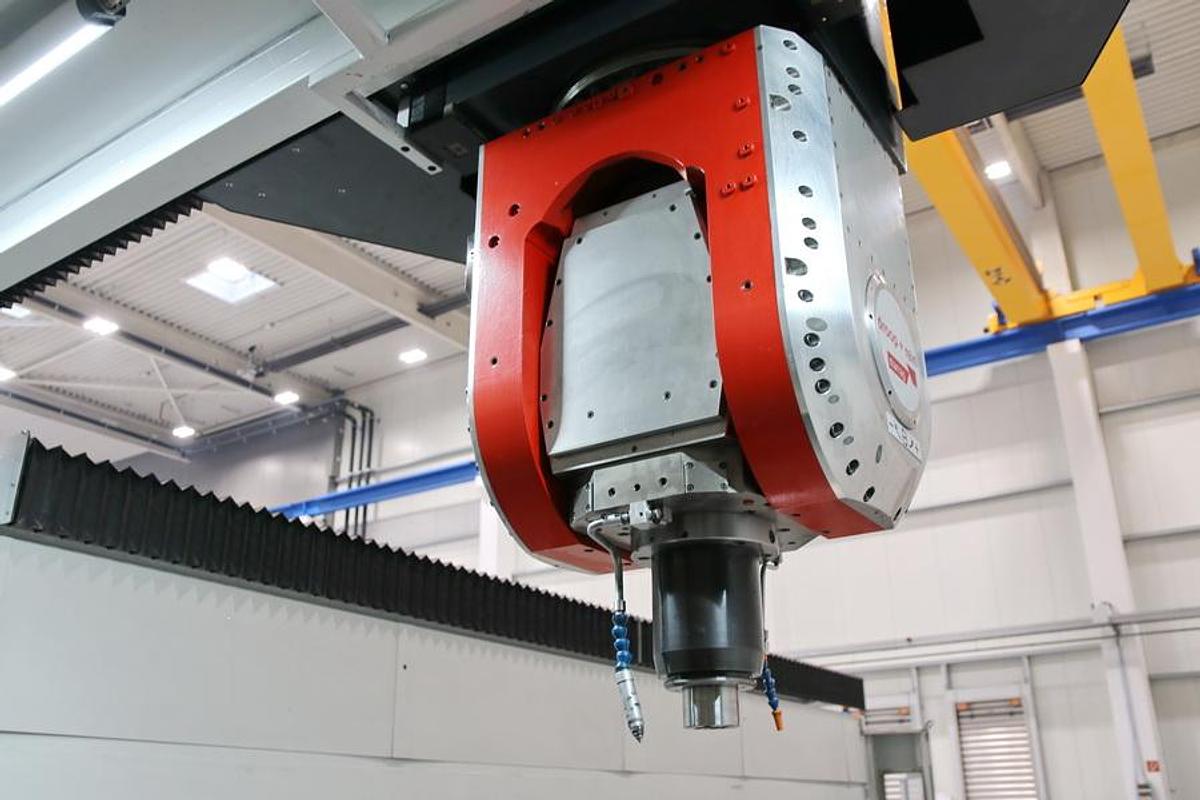

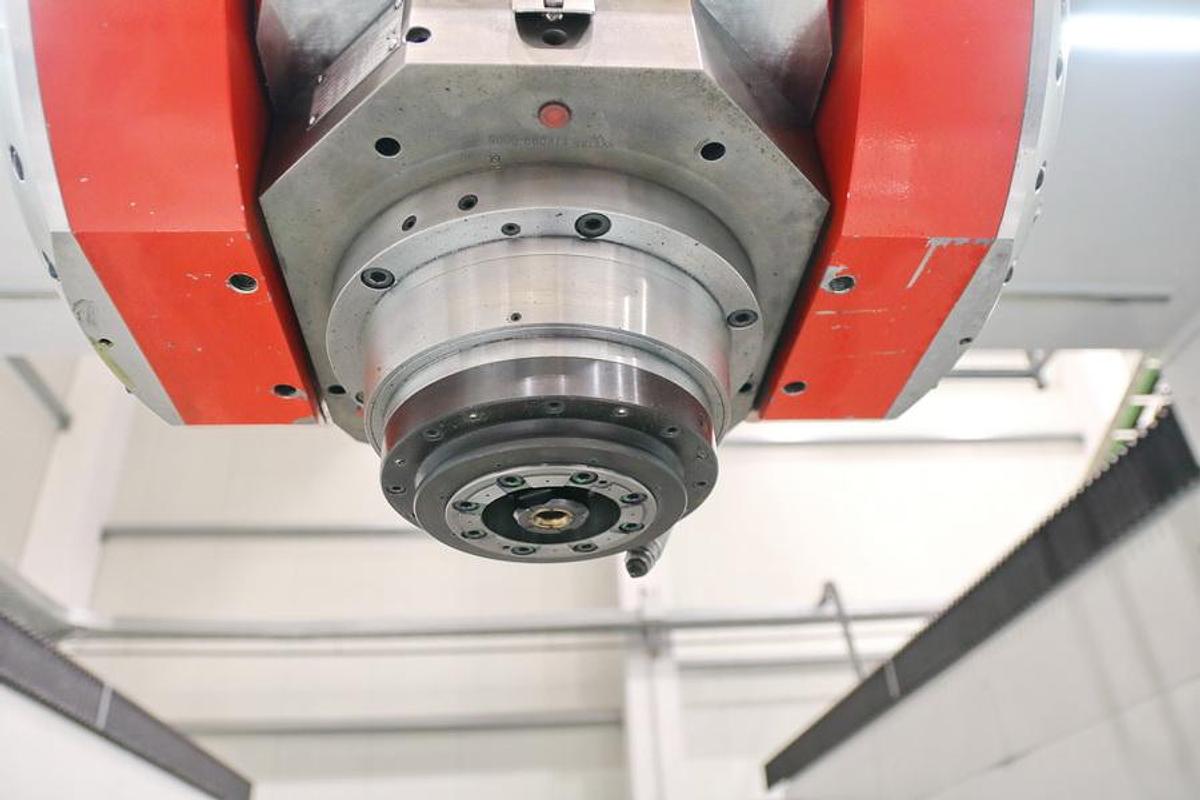

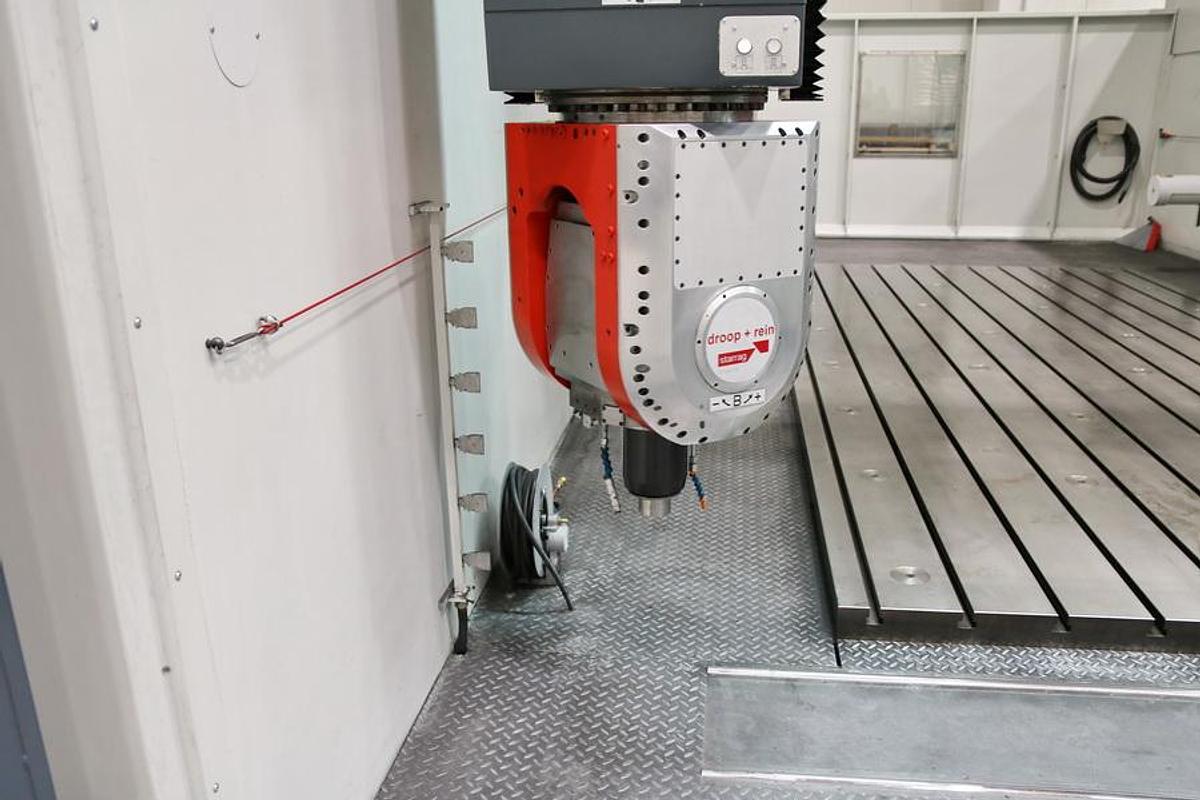

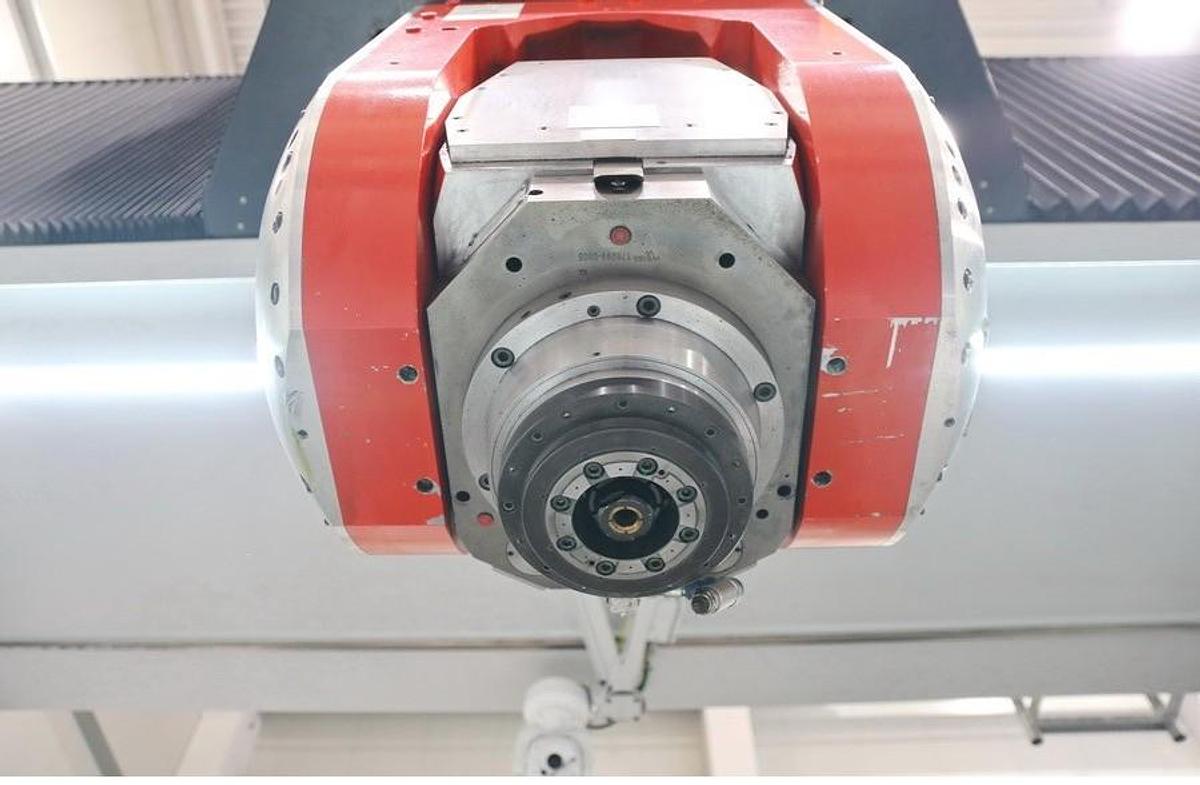

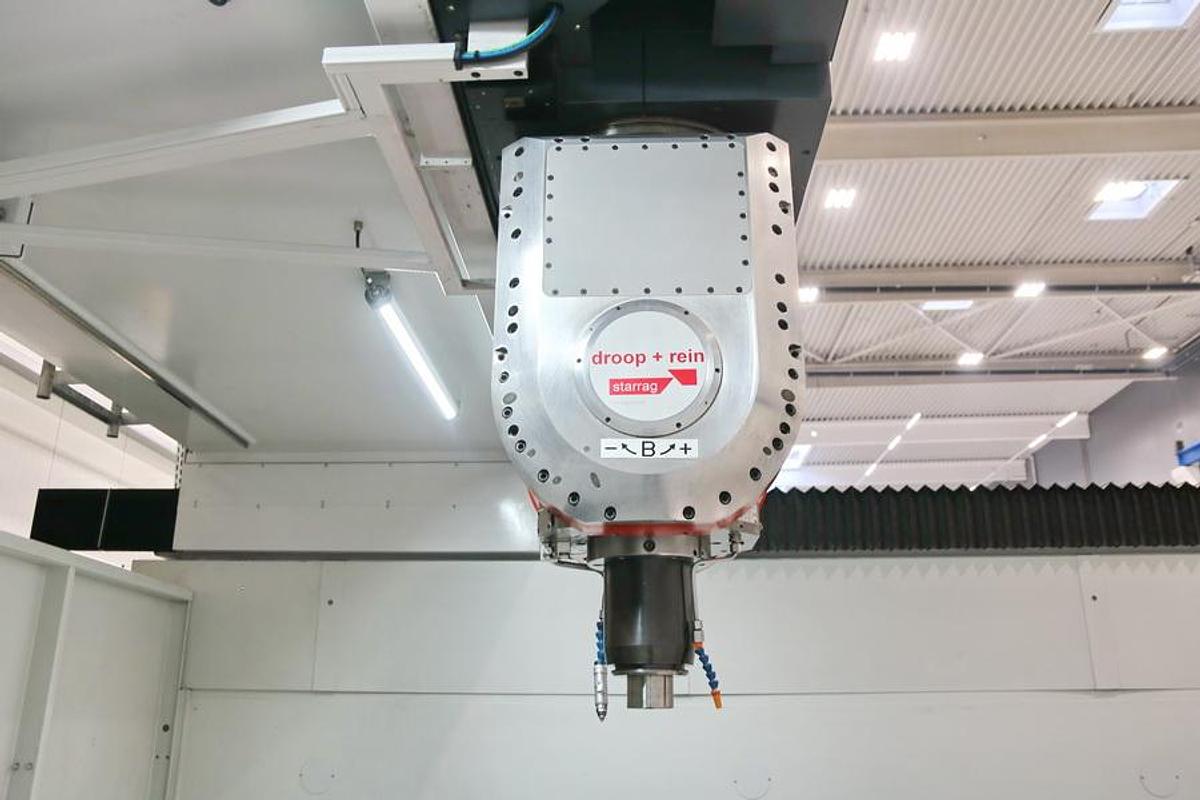

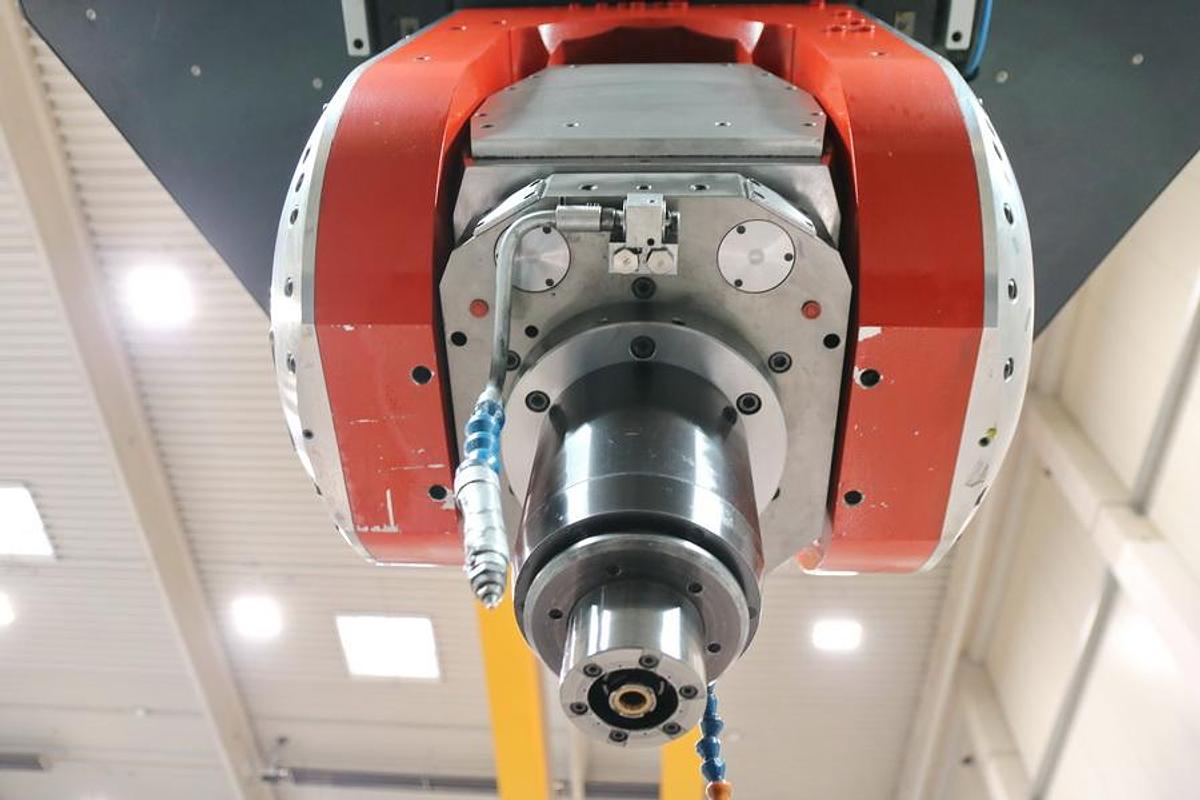

Main Spindle:
type 178099-0005
turning speed range - main spindle max. 10,020 rpm
power capacity - main spindle 20 kW
tool taper HSK-A100
swivellable B: +115° / -115 °
rotatable C: +/- 200 °

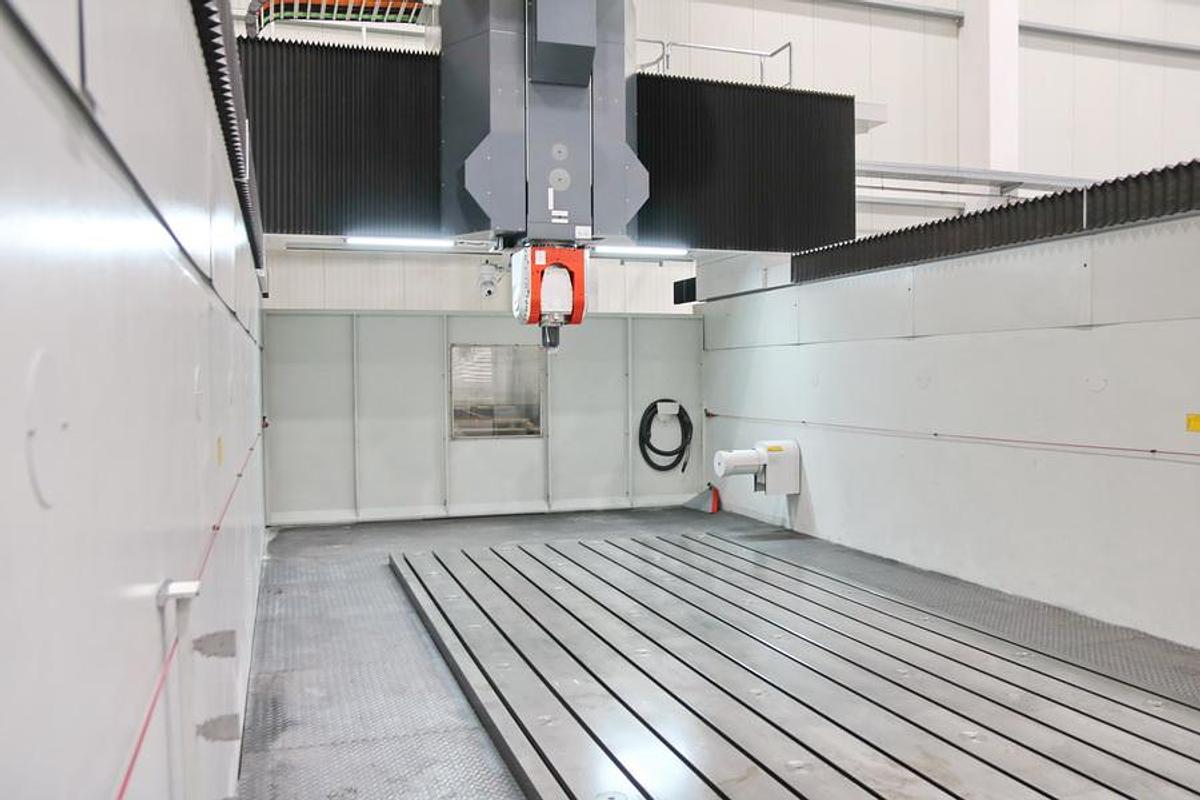

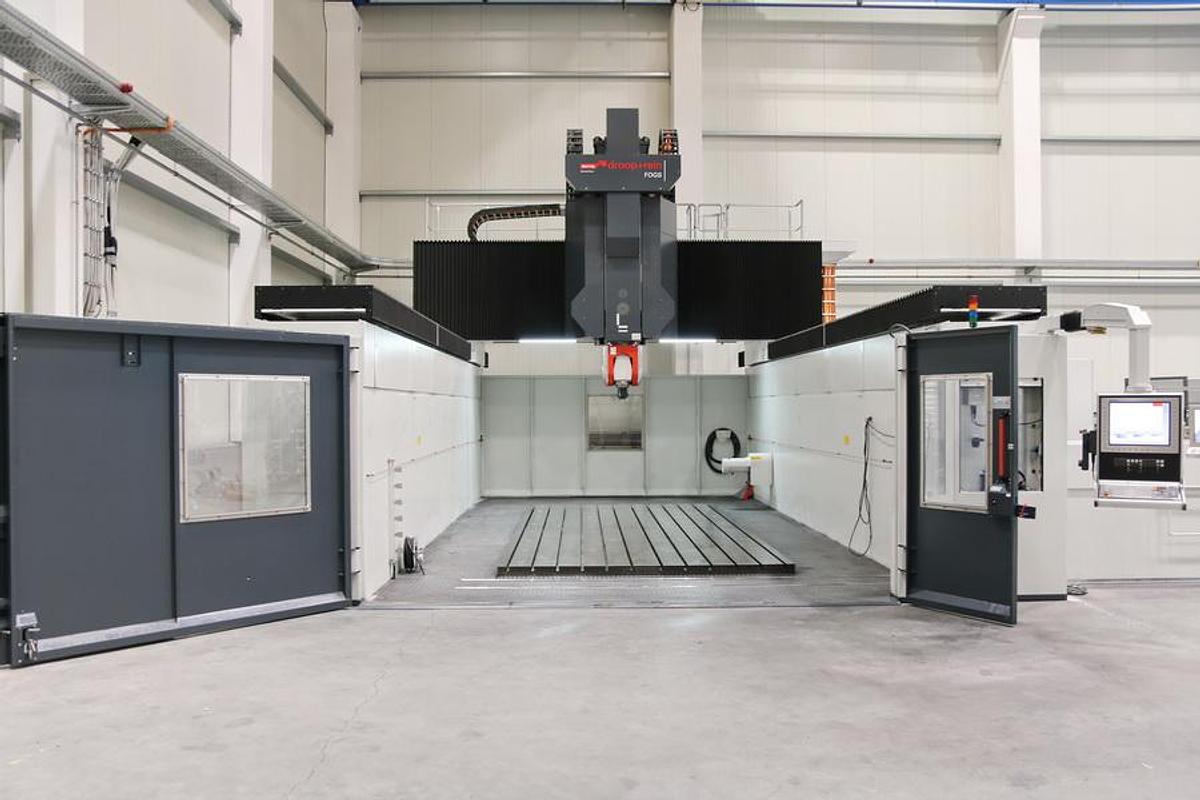

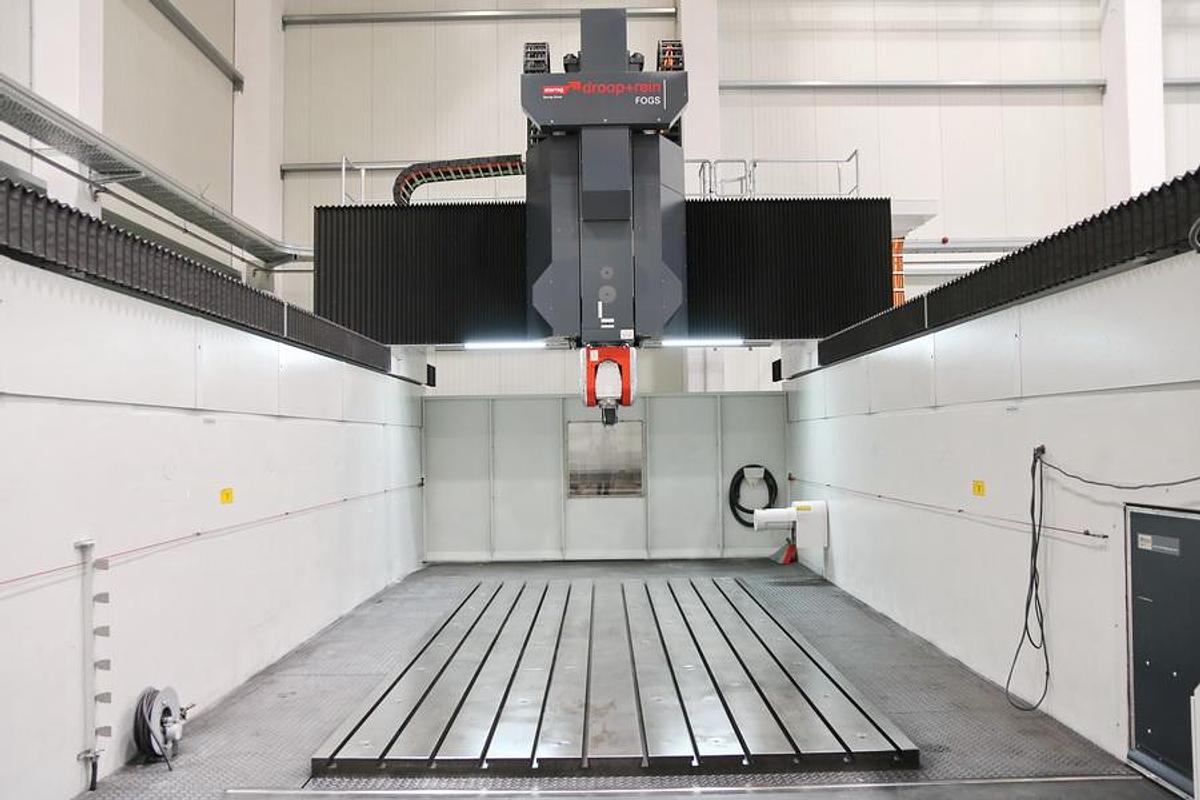

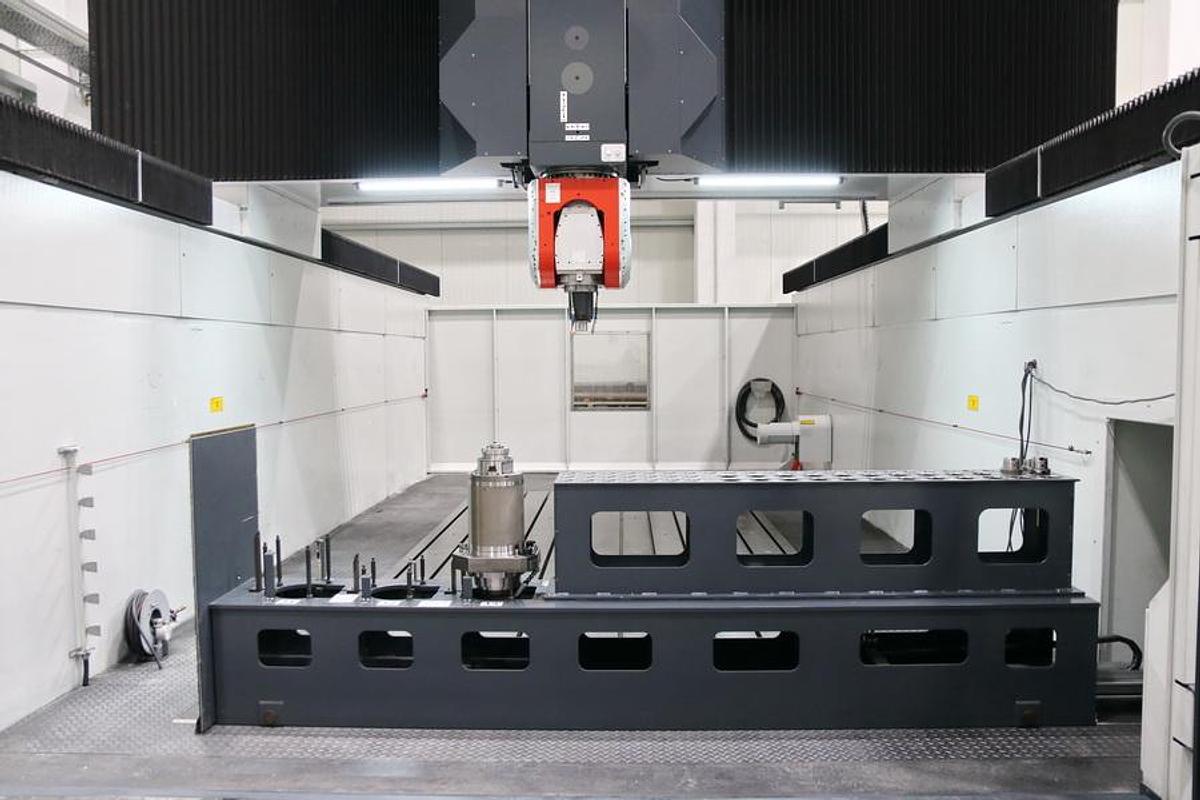

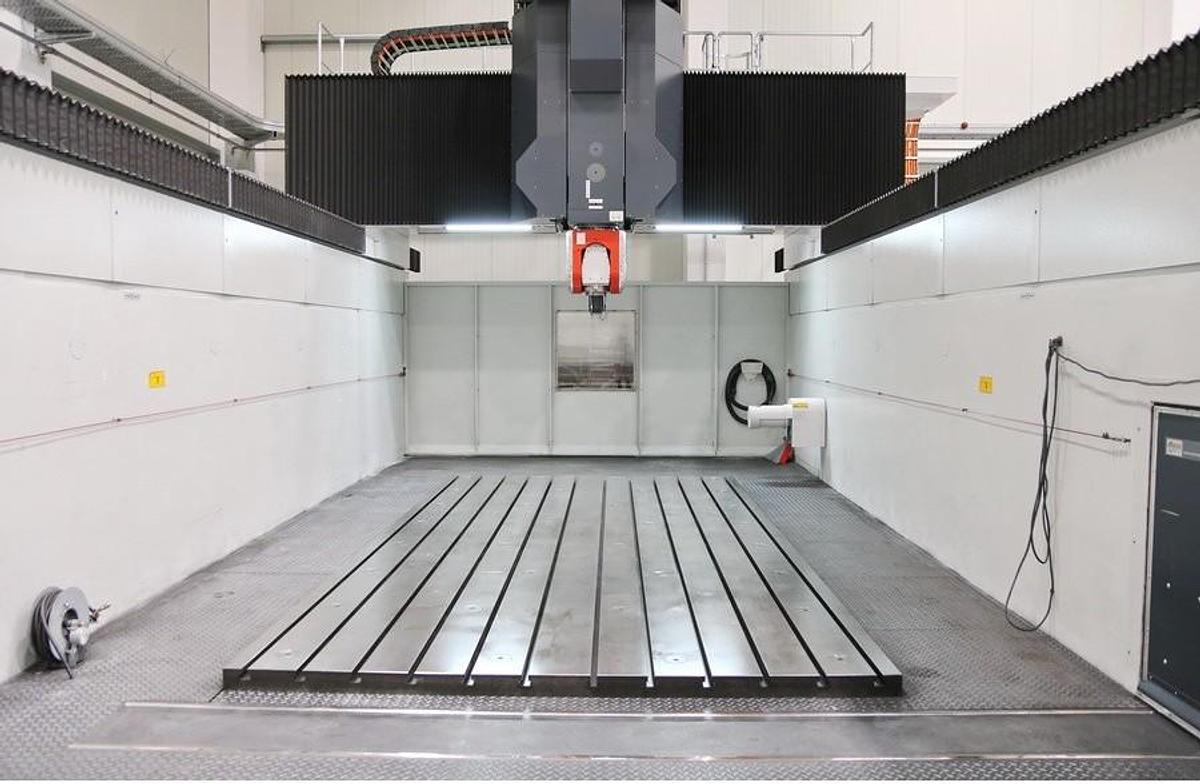

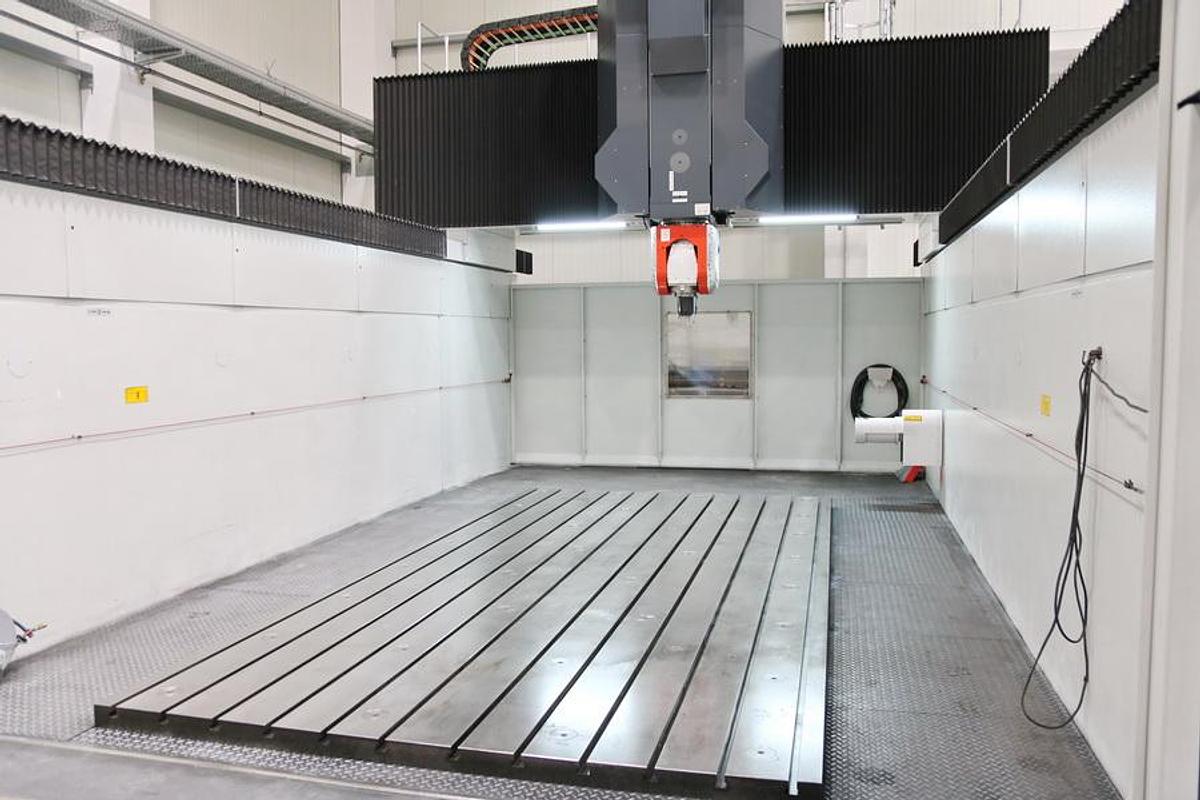

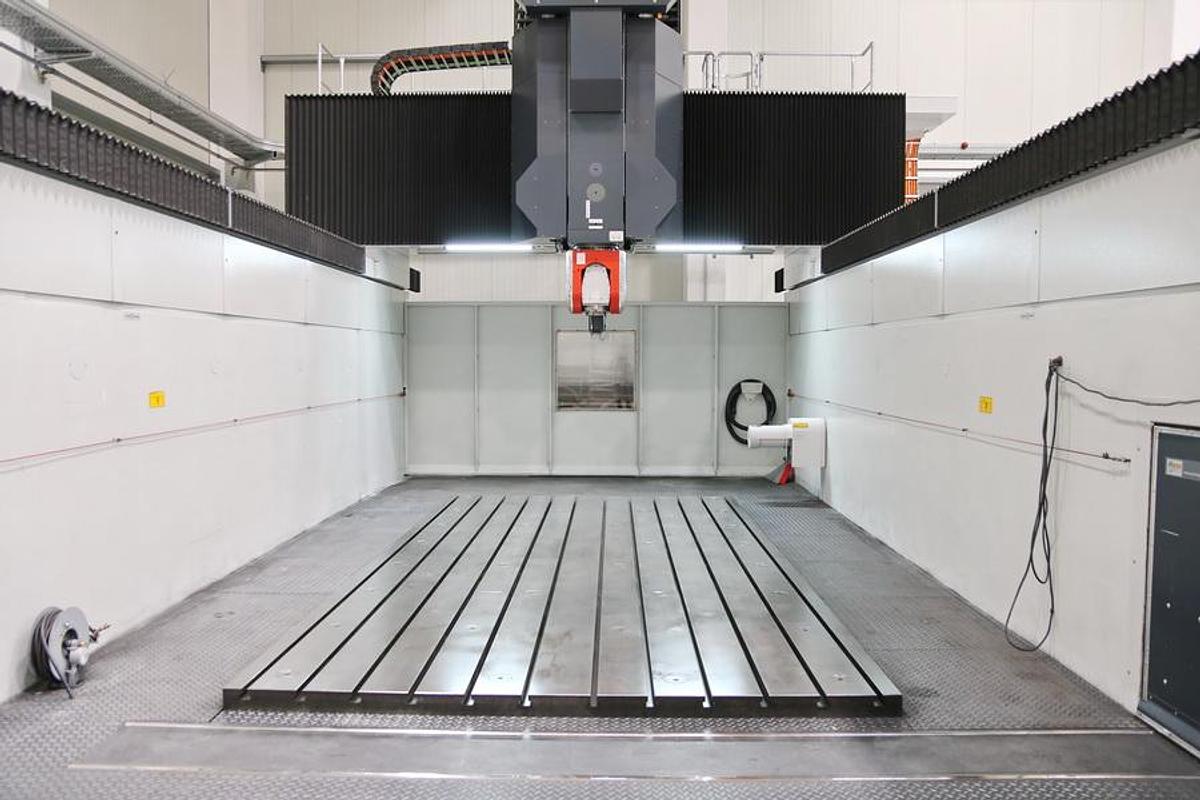

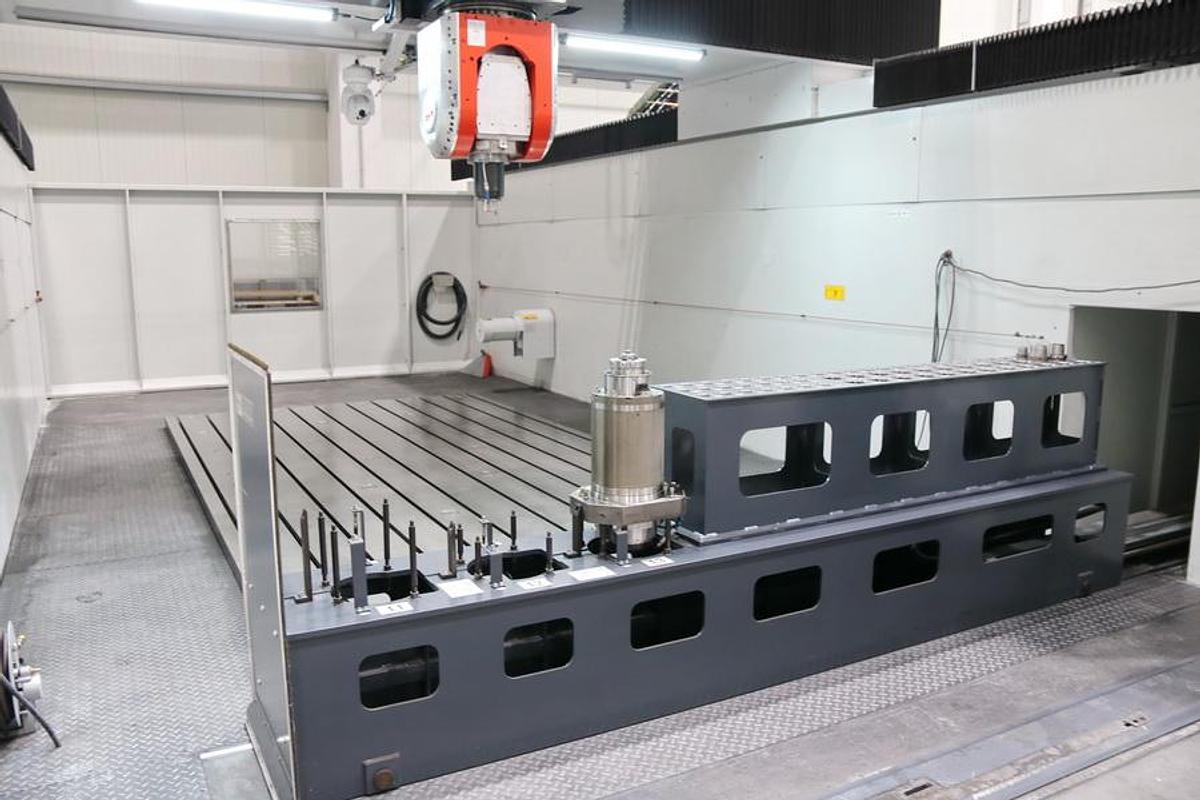

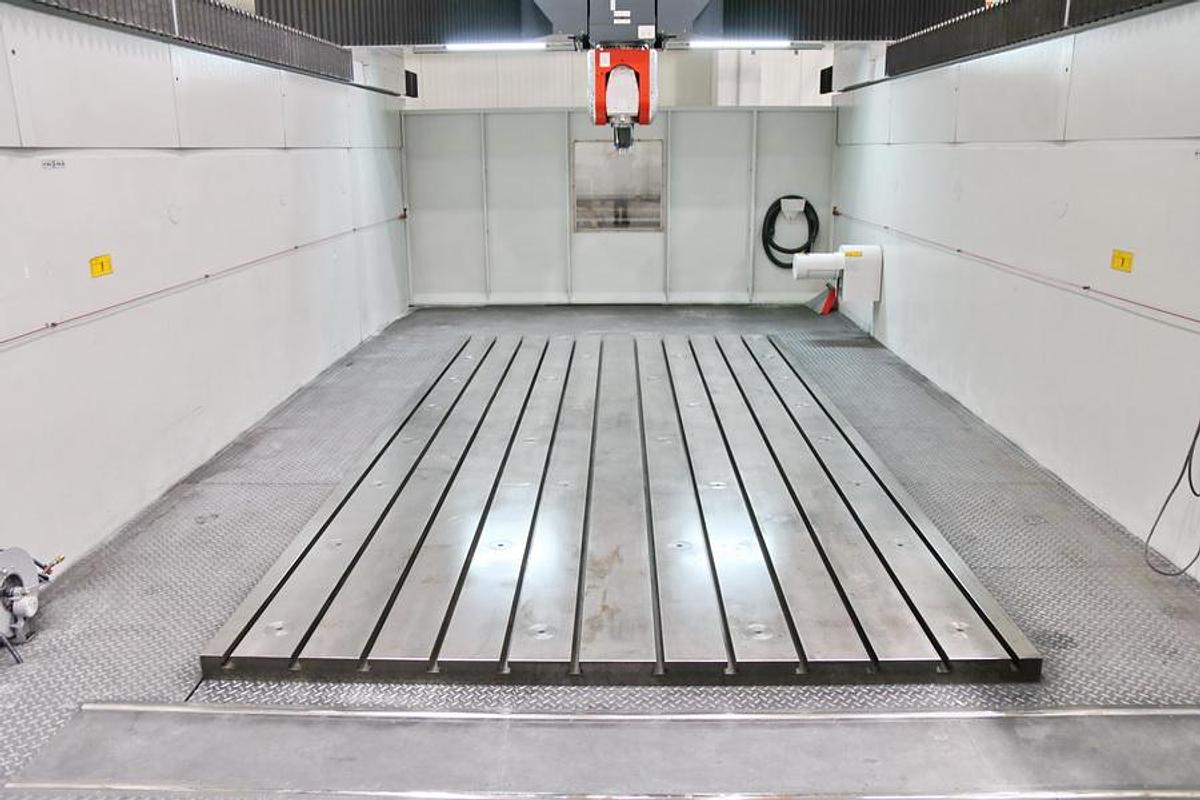

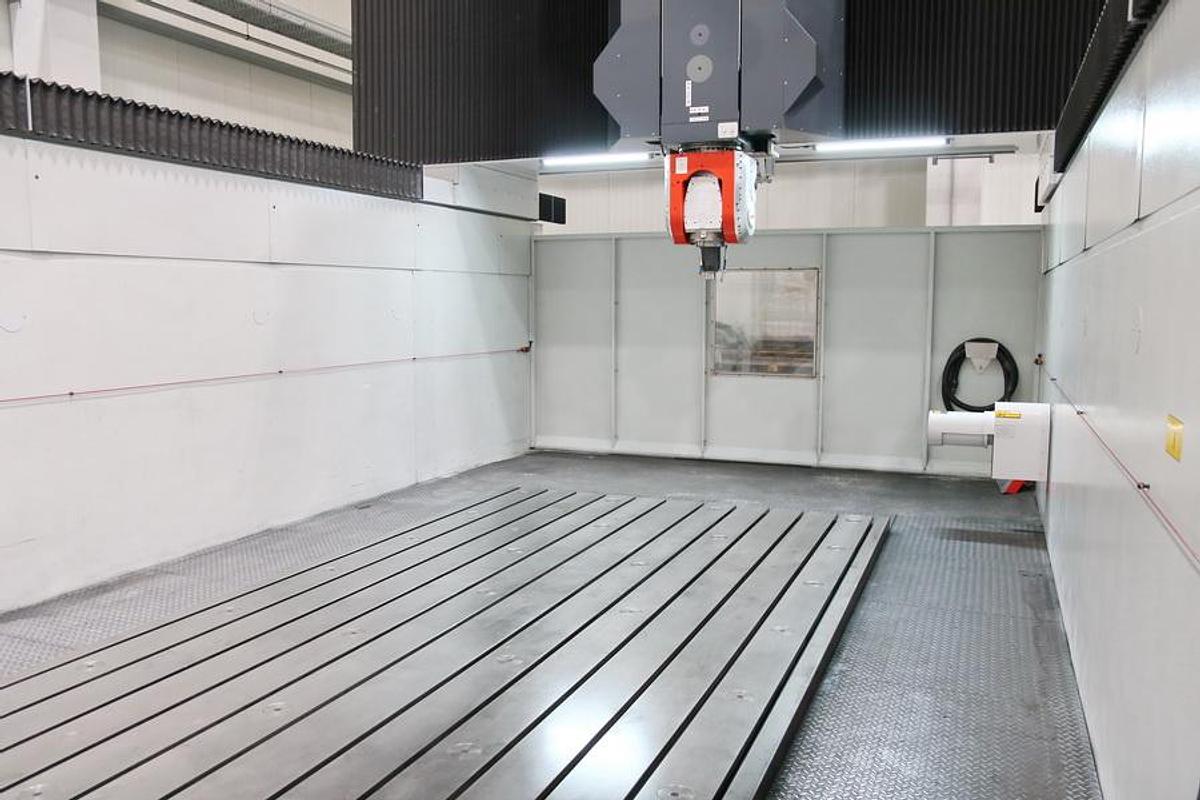

Work Table:
table surface area 6,000 x 3,000 mm
max. table load 50 Ton
height over floor 100 mm
number of T-slots 12
T-slot - width 28H12 mm
T-slot - distance 250 mm
Specifications
| Manufacturer | Droop + Rein |
| Model | FOGS 40 60 C |
| Year | 2016 |
| Condition | Used |
| Stock Number | 5654269 |
| Between columns | 5,090 mm |
| Spindle speeds | 19,800 / 10,020 rpm |
| Spindle center to table | 1,825 mm |
| X axis travel | 6,800 mm |
| Y axis travel | 4,000 mm |
| Z axis travel | 1,500 mm |
| Table dimensions | 6,000 x 3,000 mm |
| Table capacity | 50 Ton |
| B axis | +115°/ -115° |
| C axis | ±200° |
| Rapid Feed X/Y/Z | 40,000 mm/min |
| Rapid Feed B/C | 4,320 °/min |
| Feed Speed X/Y/Z | 30,000 mm/min |
| Feed Speed B/C | 2,160 °/min |
| Spindle taper | HSK A100 |
| Total power requirement | 180 kVA |
| Machine dimensions | 12.5 x 15 x 7 m |
