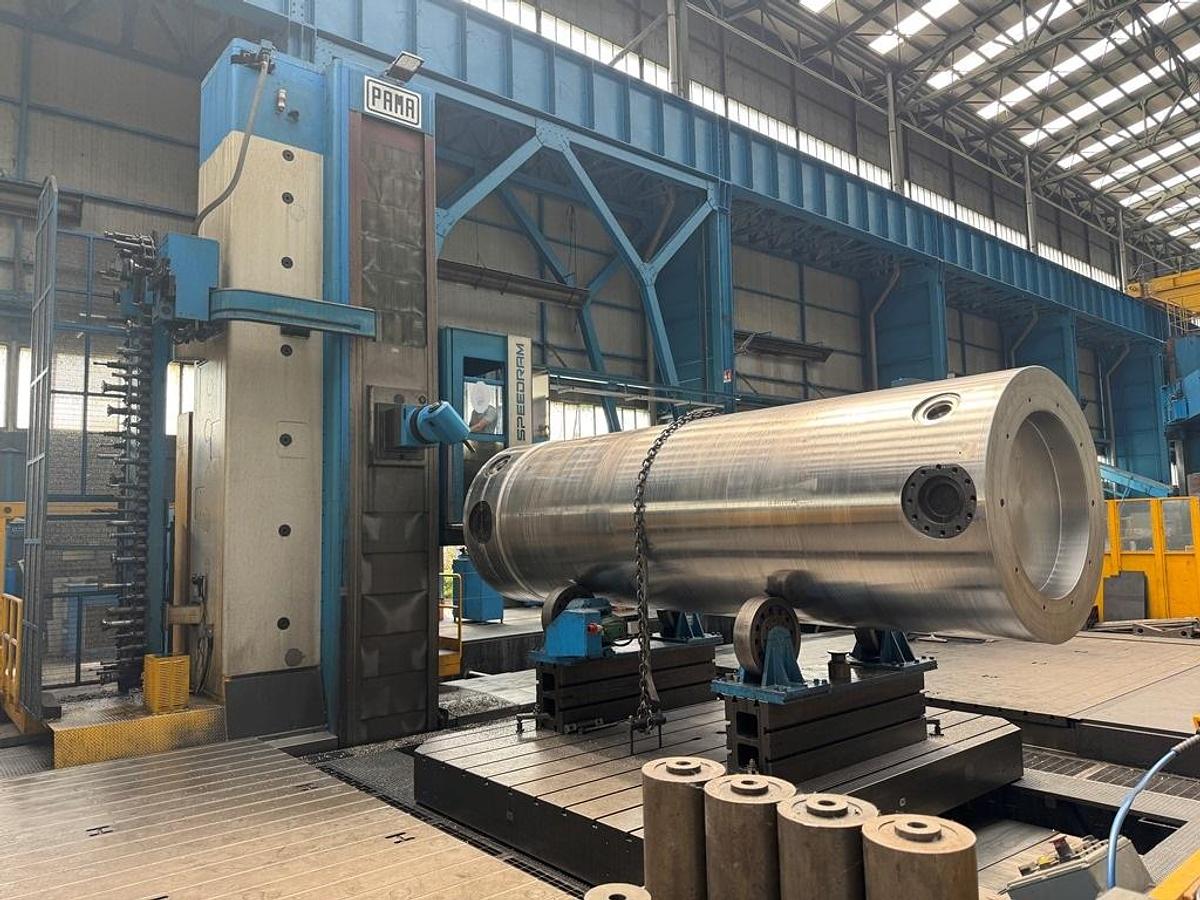

Pama Speedram 2000 CNC Floor/Ram Type Heavy-Duty Horizontal Boring Machine

Pama Speedram 2000 CNC Floor/Ram Type Heavy-Duty Horizontal Boring Machine

Description

  • Siemens Sinumerik 840D CNC Control
  • 80 Position Automatic Tool Changer

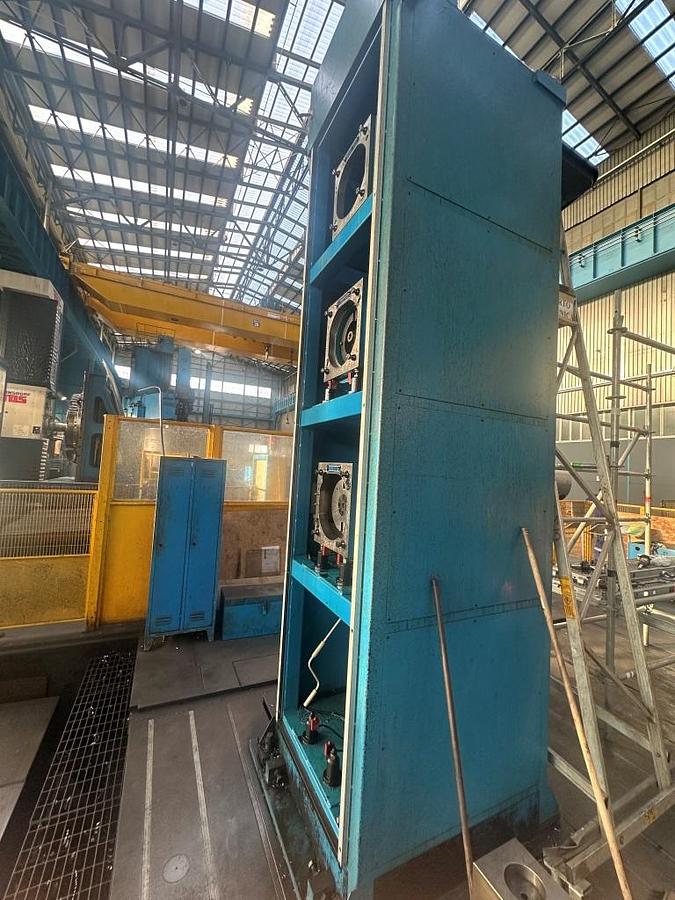

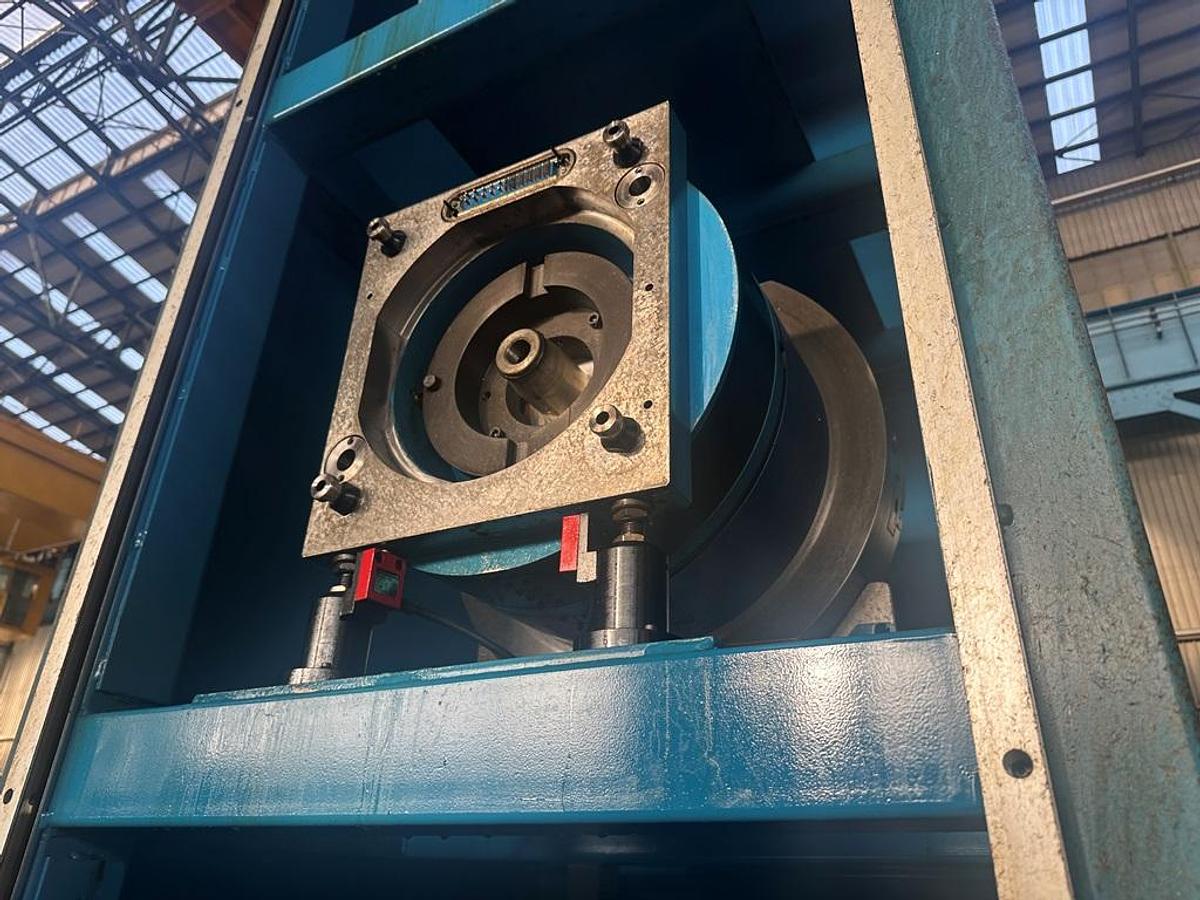

  • Automatic Head Changer (AAC) 3 + 1 Storage Capacity
  • Pama Model TH 100 Infeeding Rotary Table 3,500 x 4,500mm,

V axis 3,000mm, 100 Ton Capacity

  • Universal TU 30 ~ 360 CNC Milling Head
  • Automatic Right Angle Milling Head TS35 ~ 360
  • Facing Head UT 5 ~ 630s
  • Coolant Through Spindle

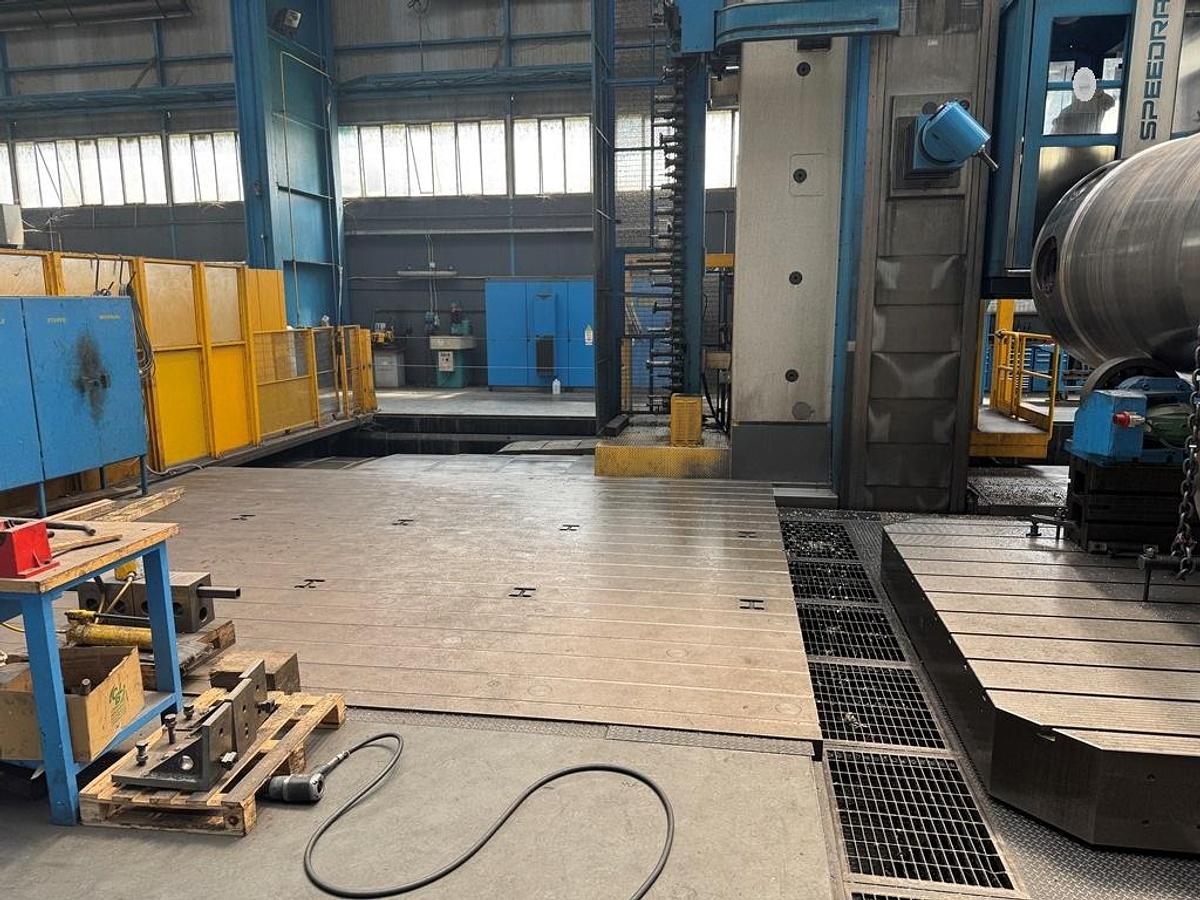

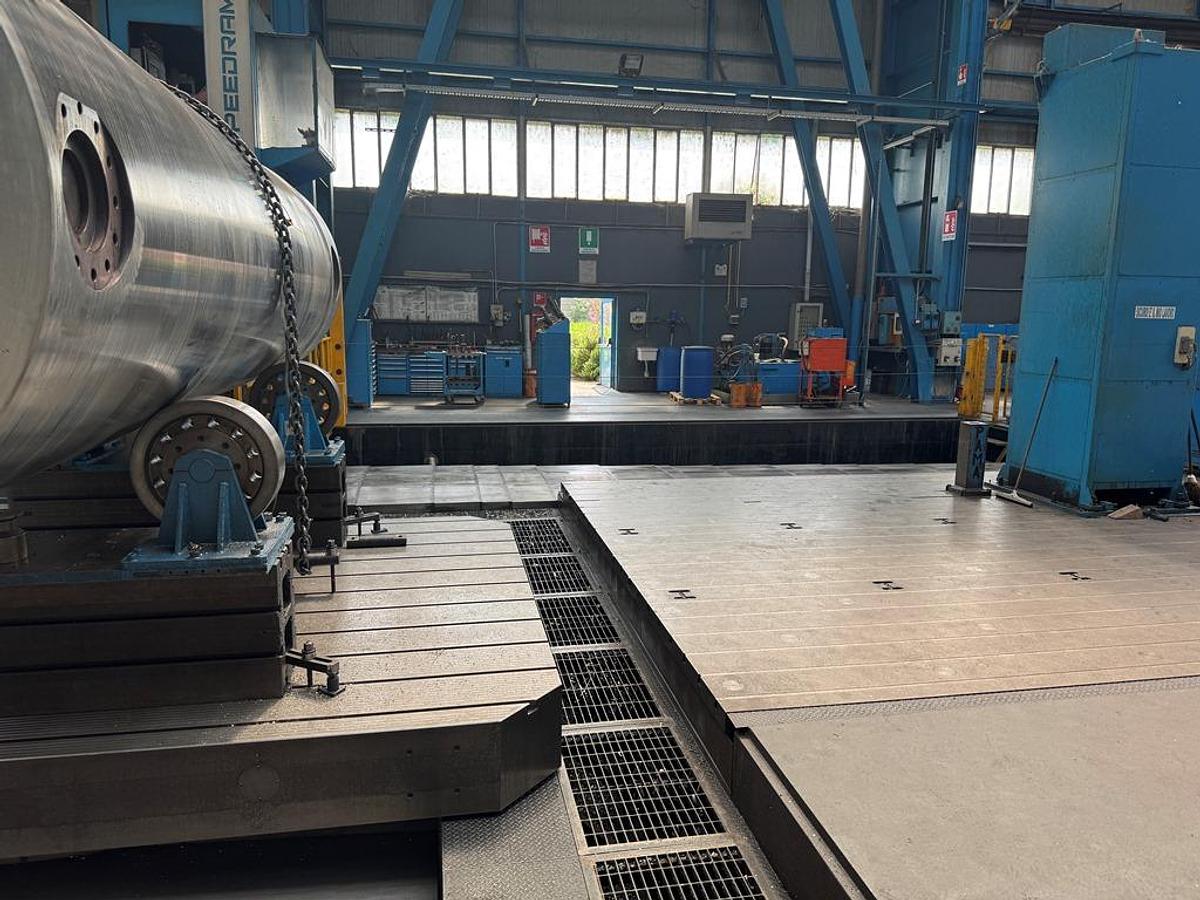

  • Floor Plates

2 pieces m2 30 + 30 = total 60

Plate size 1 mm 6.000 x 5.000

Plate size 2 mm 6.000 x 5.000

Load capacity Kg/m2 15.000

Thickness mm 300

T-slot dimensions mm 28 H12 - DIN 650

Slot pitch mm 250

  • External Coolant System
  • Operator Platform
  • Chip Conveyor
  • Renishaw Radio Transmission Workpiece Probe
  • Adaptive control technology
  • Tool life monitoring and twin tool management

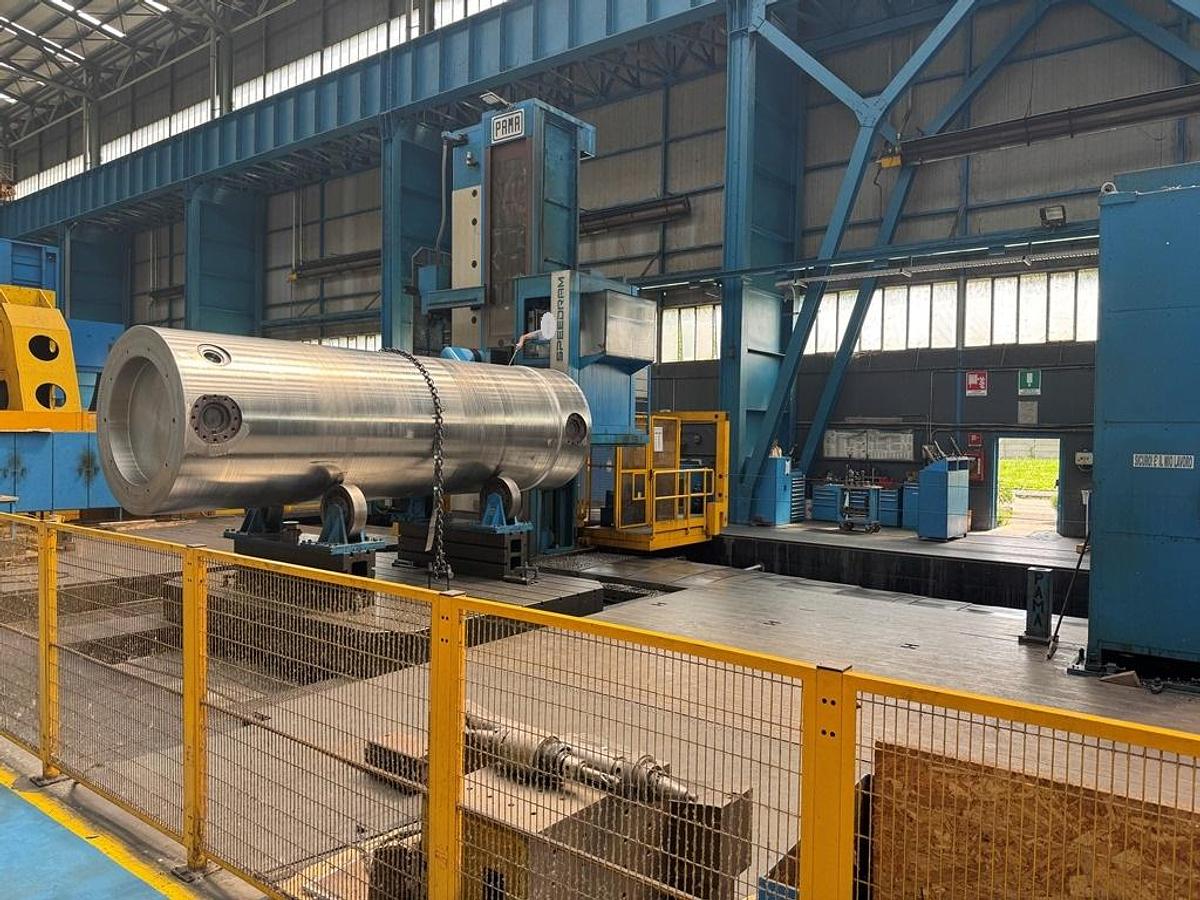

  • Safety Fencing & Enclosure

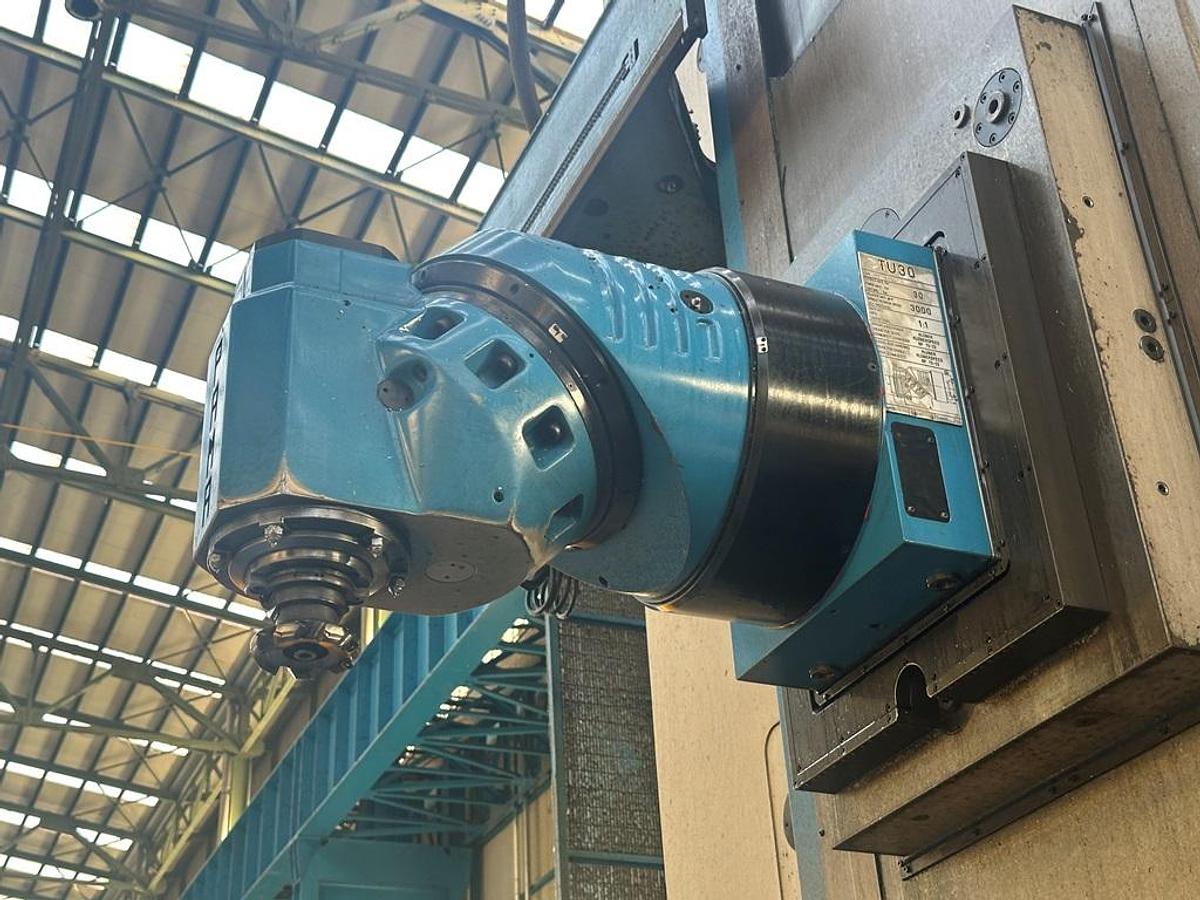

Universal TU 30 360 CNC Milling Head

ISO 50 - DIN 69871/2

Spindle diameter 128,57 mm

Max spinle speed 2.500 rpm

Facing platform – UT 5-630 S

Platform diameter 630 mm

Slide travel 200 mm

Slide feed speed 1/400 mm/min

Maximum executable diameter 1.250 mm


Pama Model TH 100 Infeeding Rotary Table

Table Size 3,500 x 4,500 mm

V Axis Table Infeed 3,000 mm

Table Load Capacity 100 Tons

Nominal Torque of rotation (B axis) 80,000 Nm

B-Axis 360 Degrees

Specifications

ManufacturerPama
ModelSpeedram 2000
Year2009
ConditionUsed
Stock Number5654264
Spindle diameter180 mm
Spindle speeds2,500 rpm
X axis travel13,000 mm
Y axis travel5,000 mm
Z axis travel1,200 mm
Table dimensions3,500 x 4,500 mm
Table capacity100 Ton
V axis table infeeding travel3,000 mm
W axis travel1,000 mm
Ram dimensions400 x 440 mm
Spindle motor power91 kW
Taper of boring spindleISO 50 BIG-PLUS
Z + W - ram + spindle travel2,200 mm
Working feeds0.5 - 8,000 mm/min
Rapid feeds X,Y,Z,W20,000 mm/min
Torque Nominal (S1)9,050 Nm
Voltage input and tolerance400 VAC ±10%
Power190 KVA (Full Load)
