IGREK FR 3500 TITAN CNC 5-AXIS GANTRY TYPE MILLING MACHINE. NEW MACHINE
IGREK FR 3500 TITAN CNC 5-AXIS GANTRY TYPE MILLING MACHINE. NEW MACHINE
or
Call 770-509-0744
Description
High Performance Aerospace, Heavy Industry, Steel and Titanium Machining
New Machine

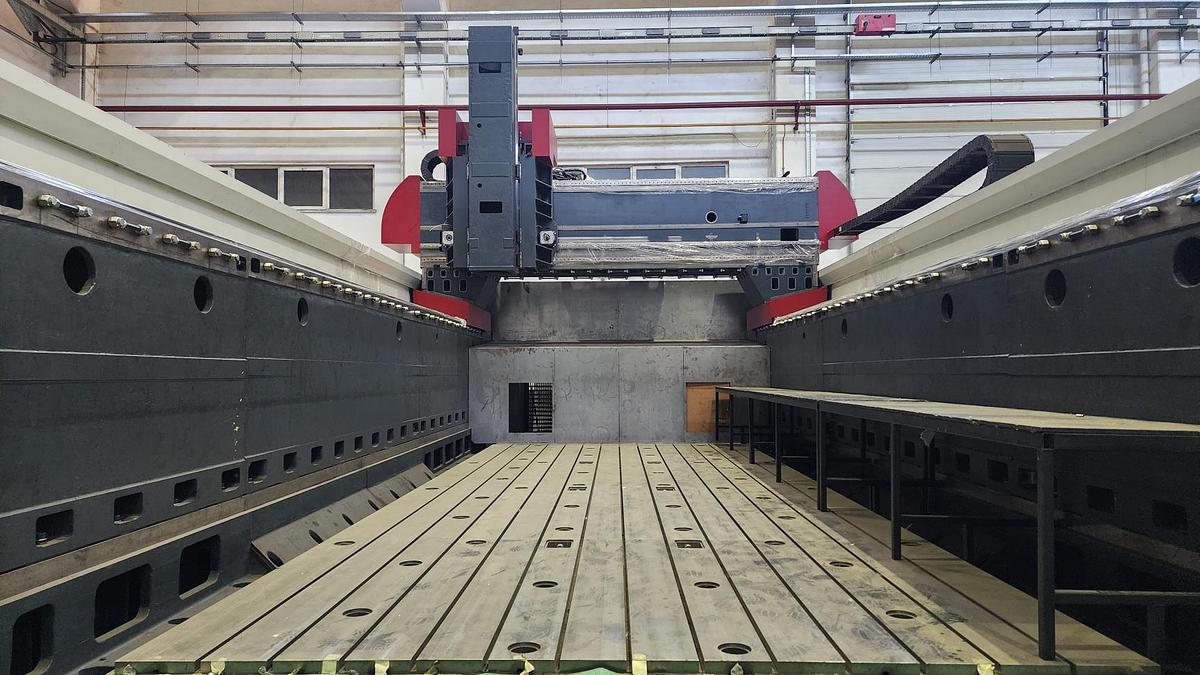

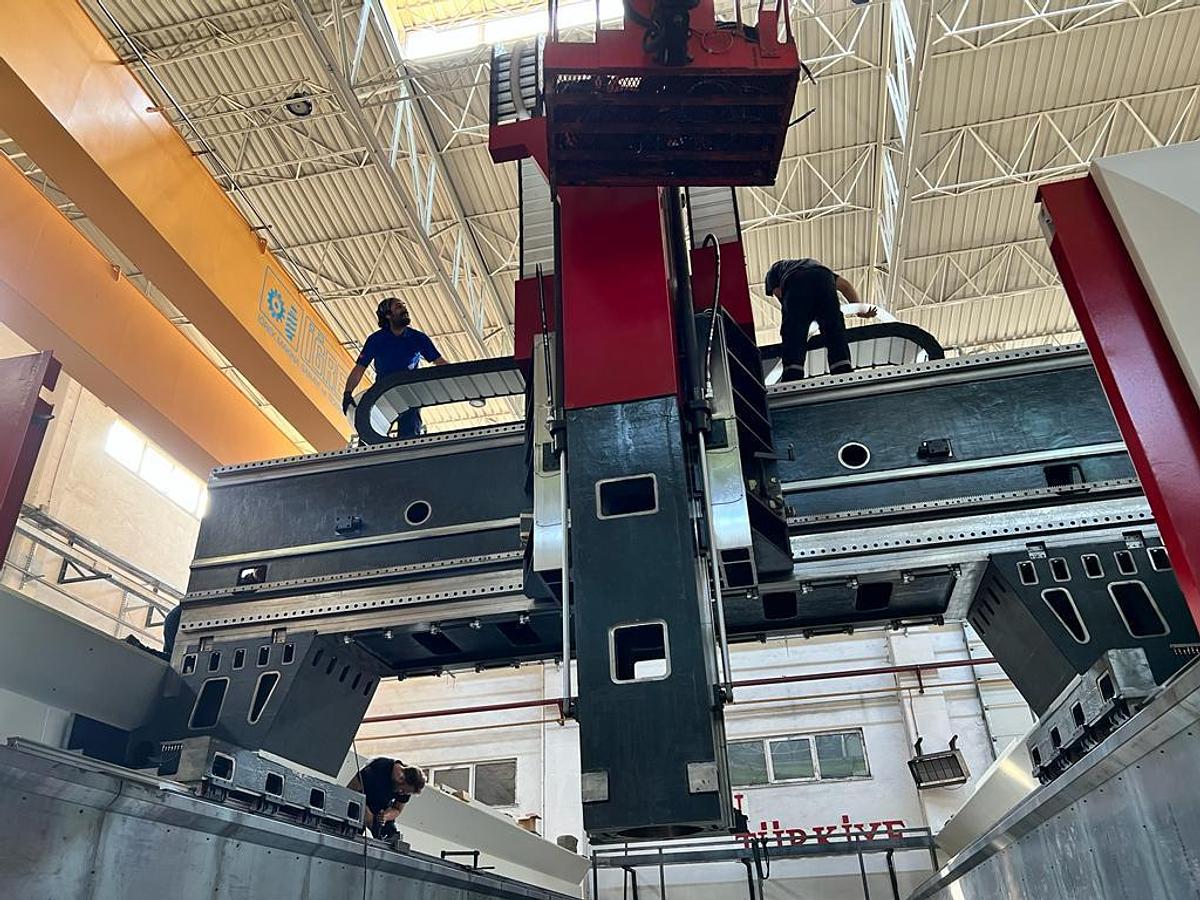

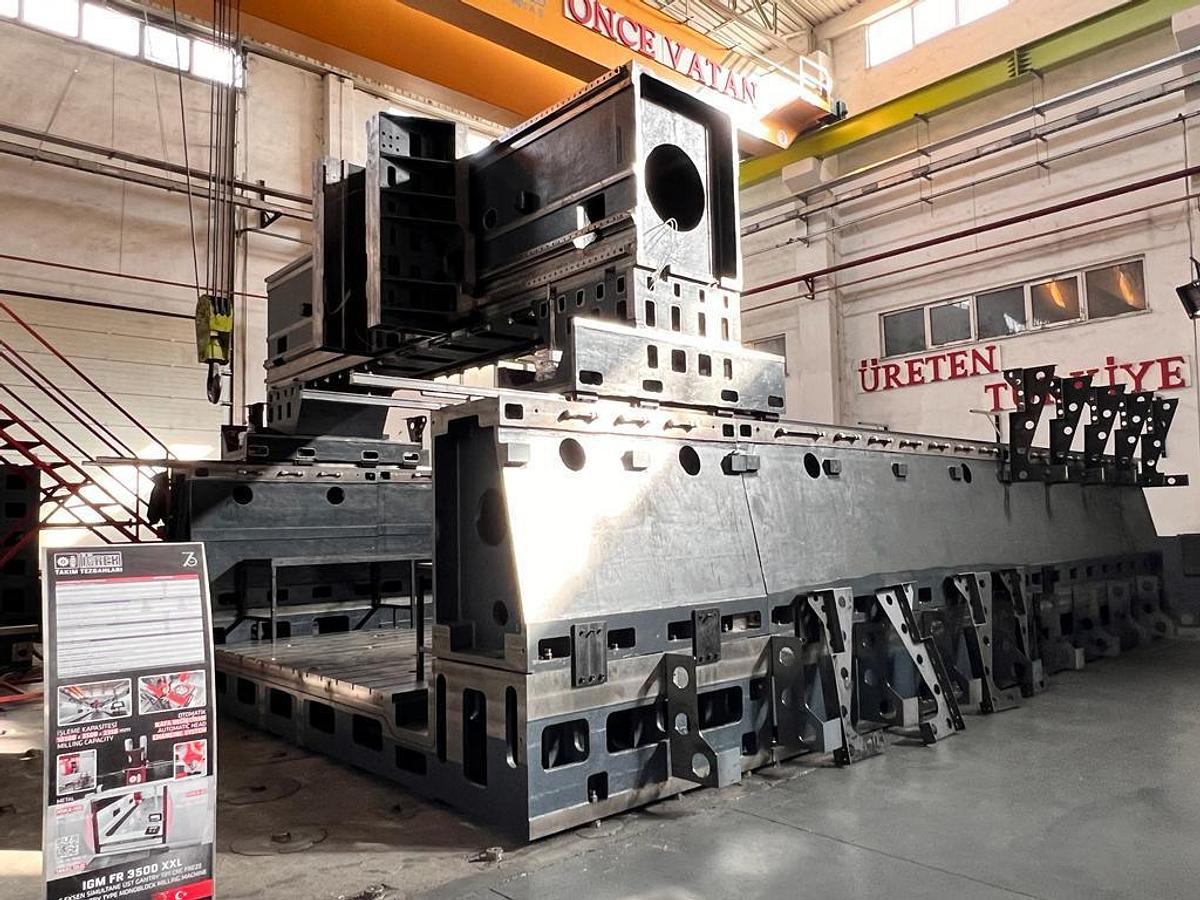

- Machine Structure–Casting Excellence
- 100% Cast Iron Body Structure
- Full cast iron construction for maximum rigidity, damping, and thermal stability.
- With massive table and dual side walls, reinforced side walls and T-slot table structure.
- FR 3500 Titan is The Ultimate CNC Milling Solution
- FR3500 TITAN ensures maximum power, precision, and productivity.

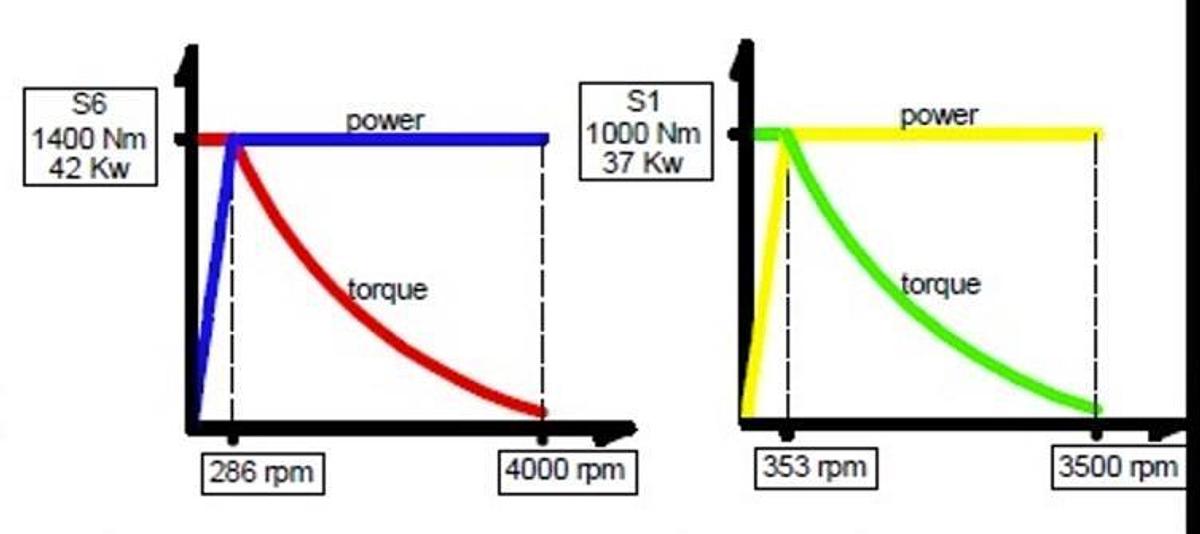

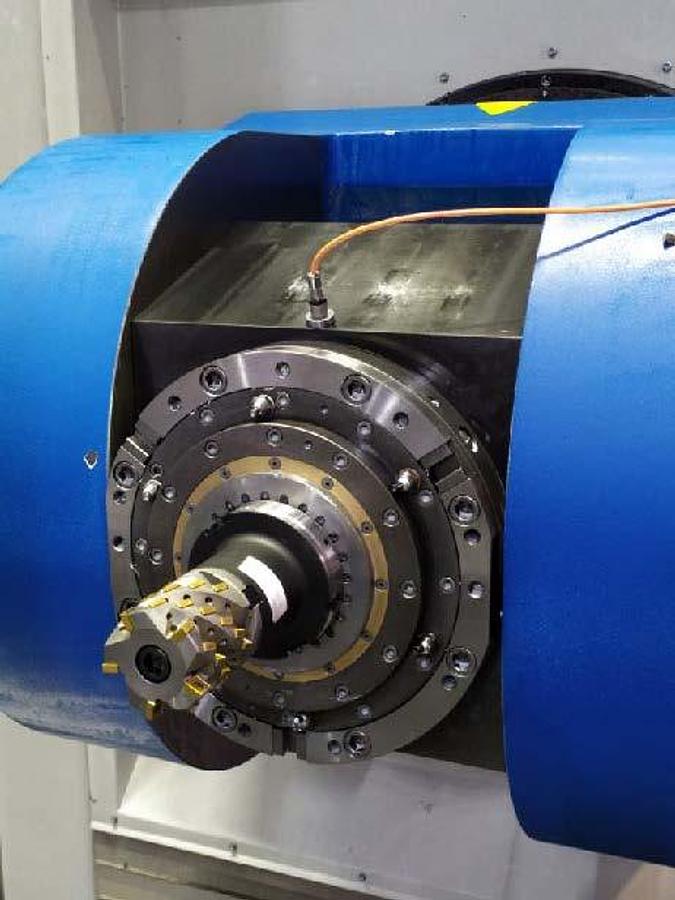

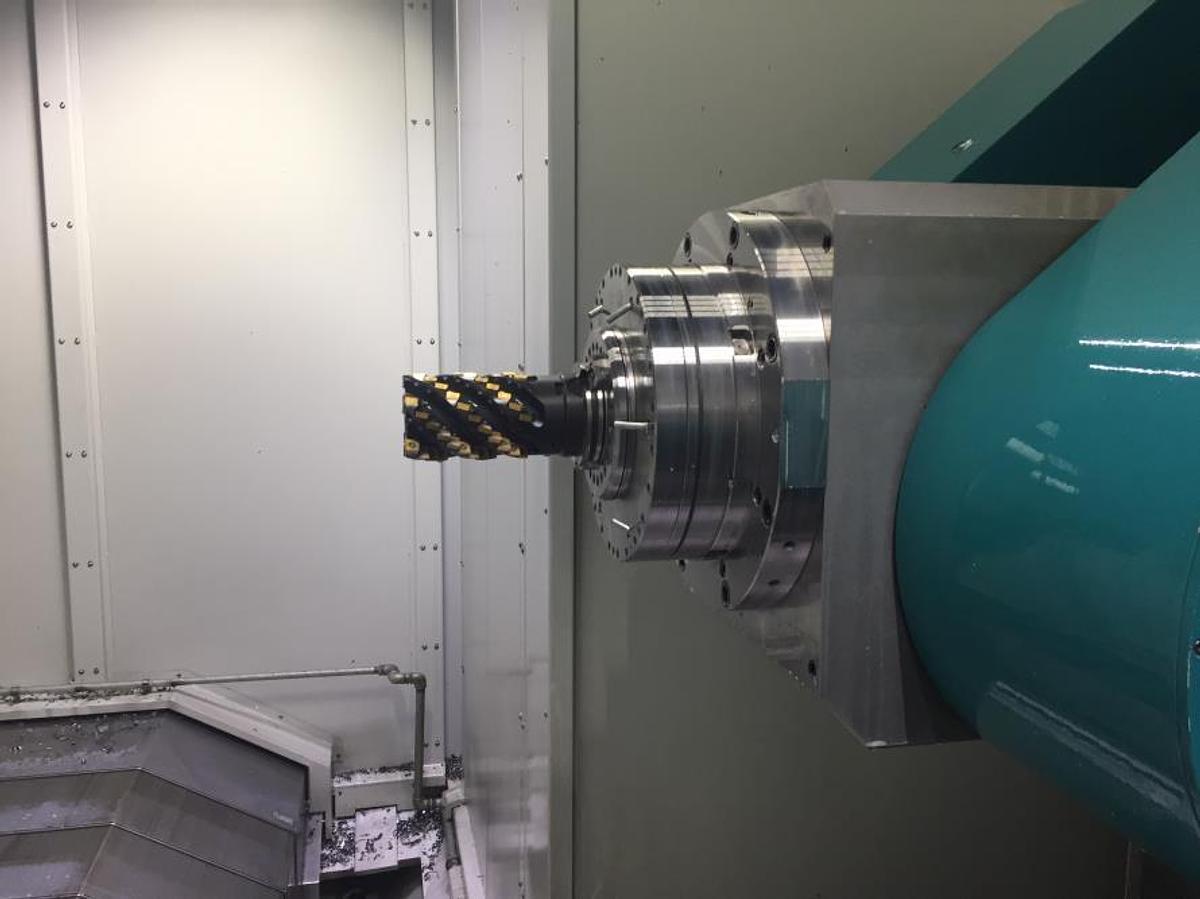

Milling Head Technical Features:
- High torque, full mechanical, simultaneous A&C axis for heavy duty milling.
- Max Torque(S1): 1000 Nm
- Max Power: 37 kW
- MaxSpeed: 4000 rpm
- Spindle Taper: DIN 69871 ISO50
- Coolant Through Spindle: 70 bar –60 l/min
- External Coolant: 20 bar –30 l/min
- A-Axis: +30°/ -115°
- C-Axis: +400°/ -400°
- Index Position: Infinite
- Mass: 1,220 kg
Specifications
| Manufacturer | IGREK |
| Model | FR 3500 Titan |
| Year | 2025 |
| Condition | Used |
| Stock Number | 5654261 |
| Spindle speeds | 4,000 rpm |

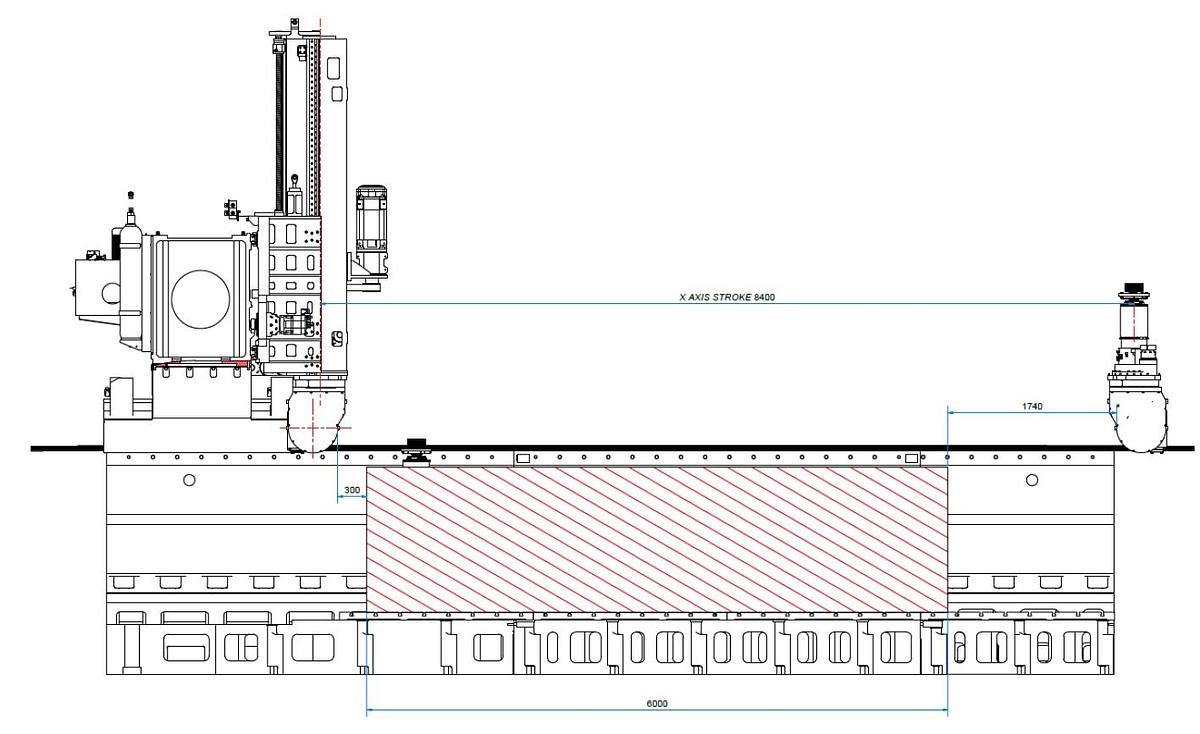

| X axis travel | 8,400 mm |

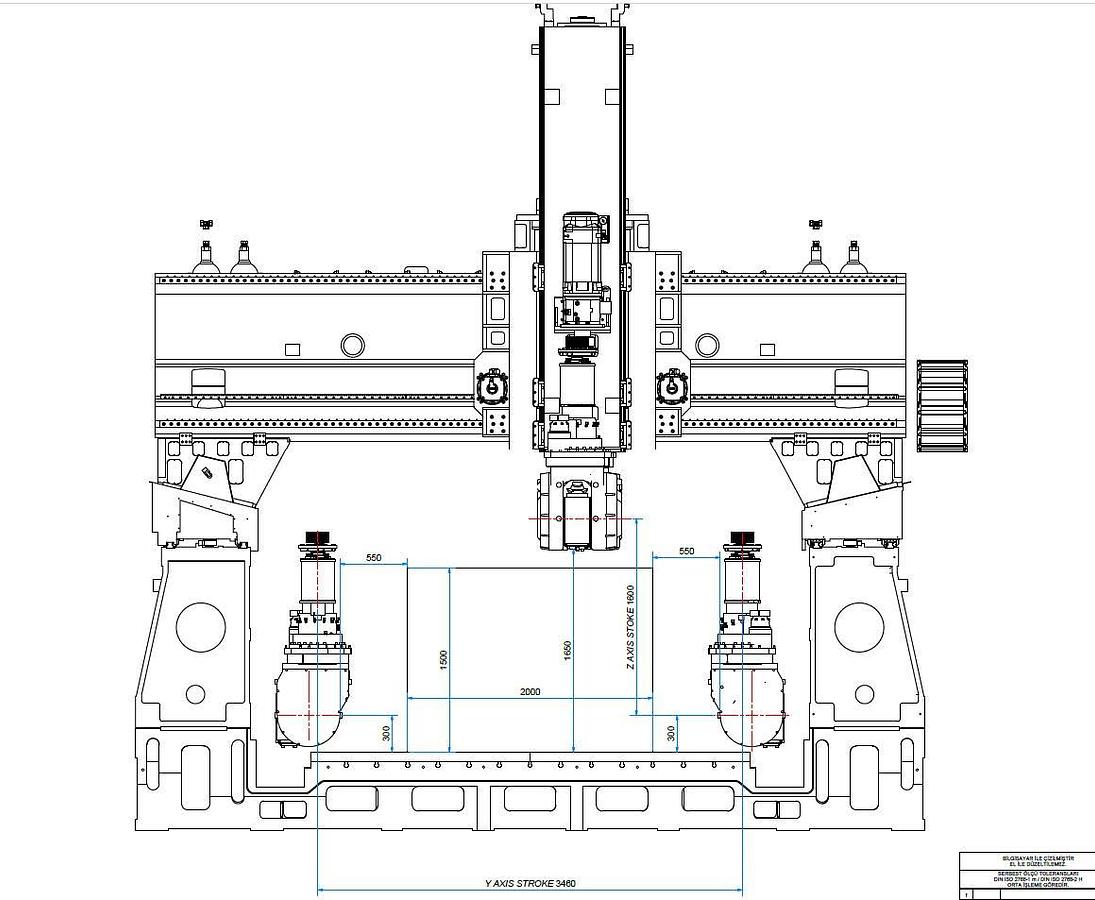

| Y axis travel | 3,460 mm |
| Z axis travel | 1,600 mm |
| Spindle power | 37 kW |
| Spindle torque | 1,000 Nm |
| A axis | +30° / -115° |
| C axis | +400° / -400° |
| Spindle head positioning | infinite |
| Spindle taper | DIN 69871 ISO 50 |
