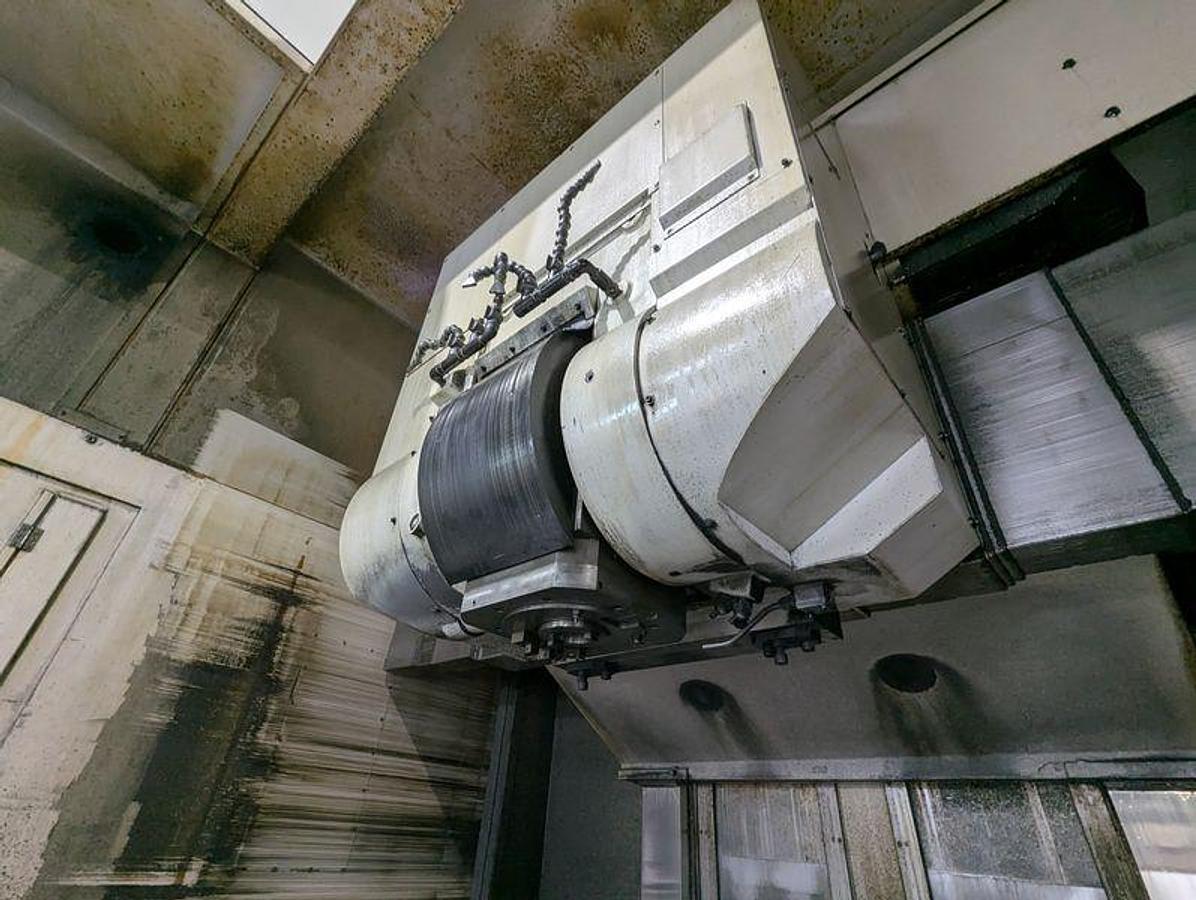

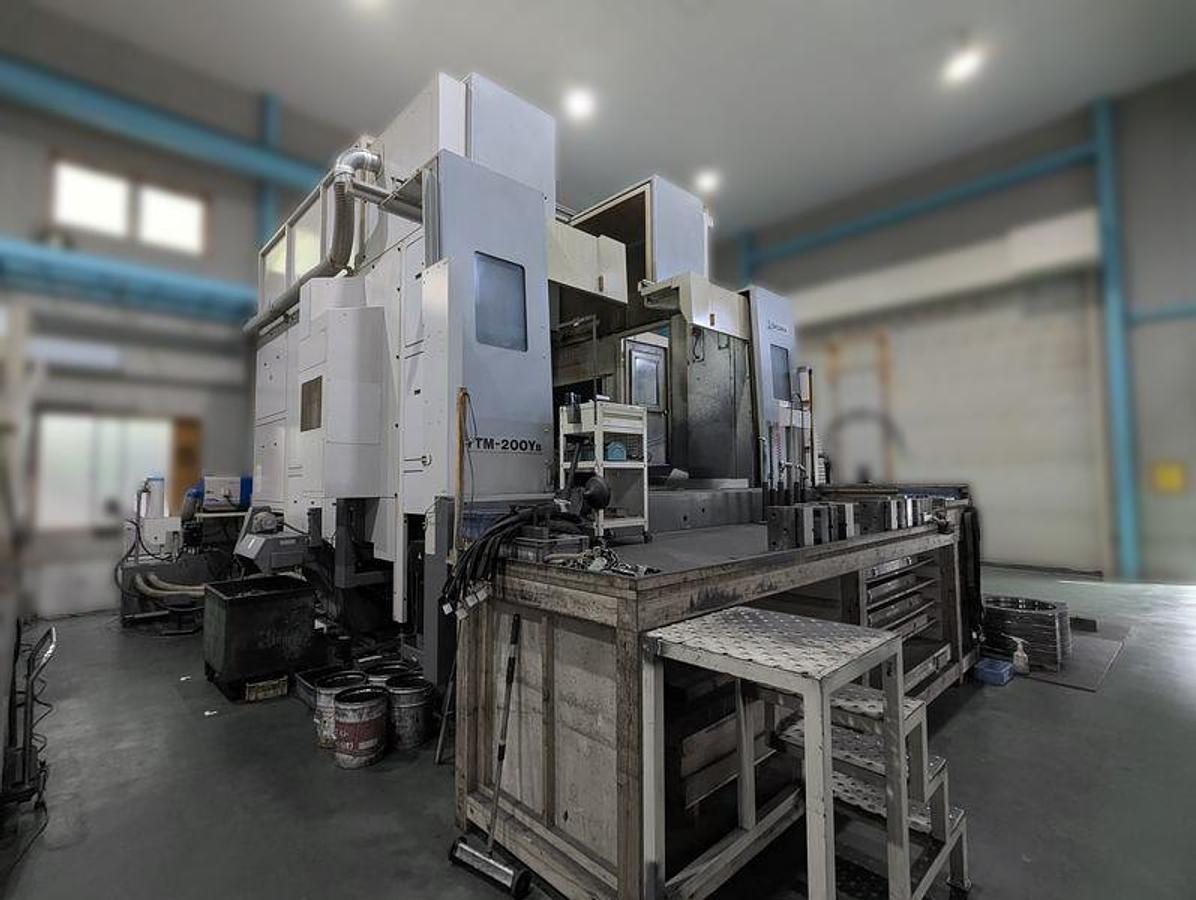

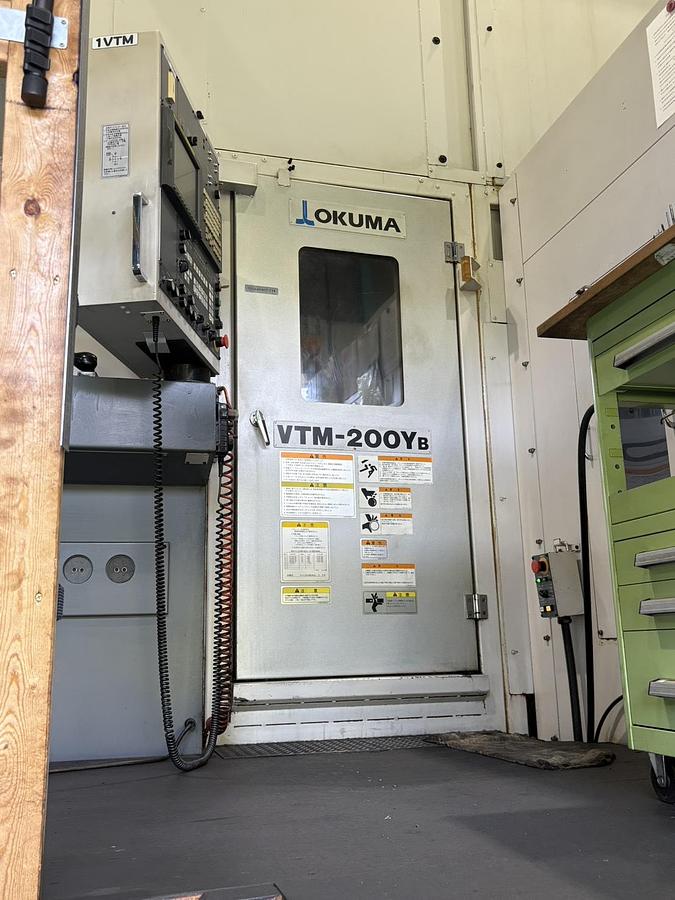

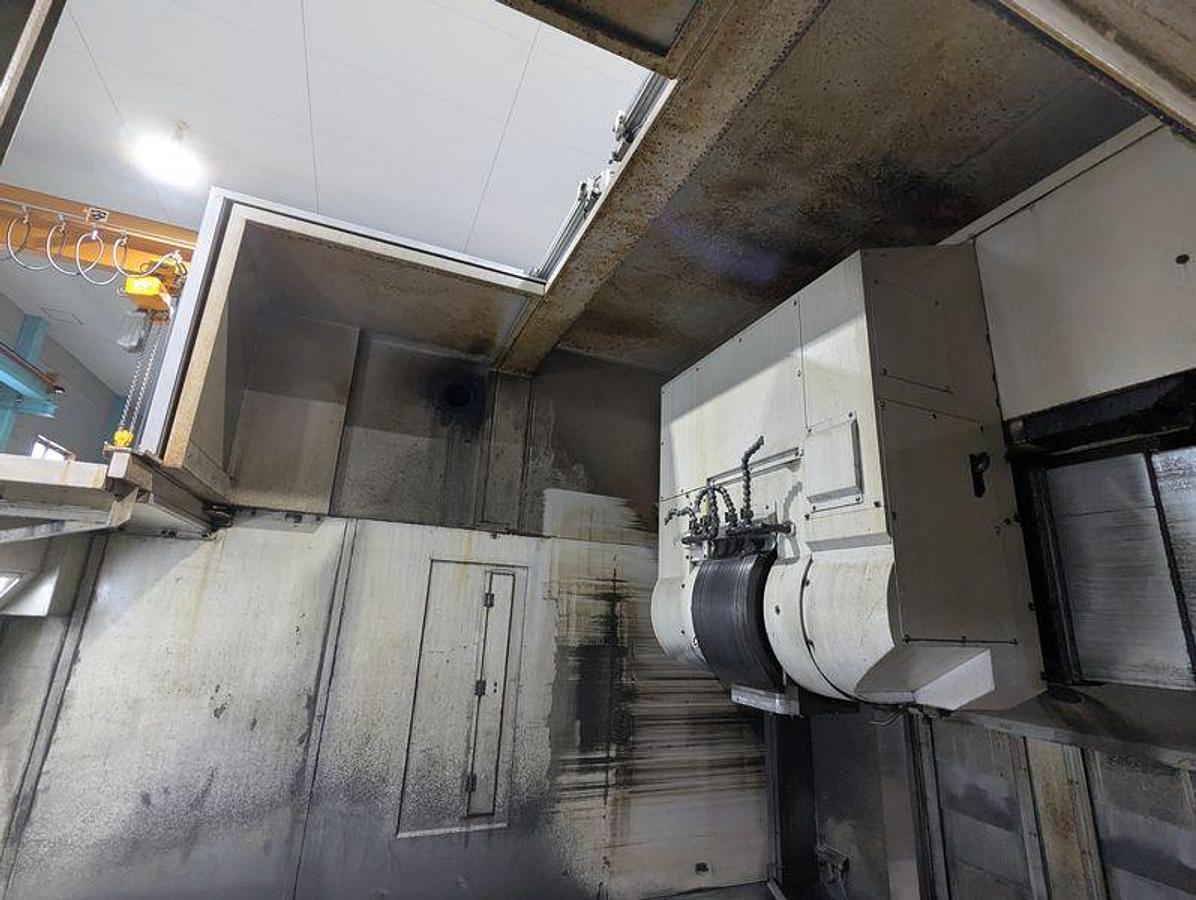

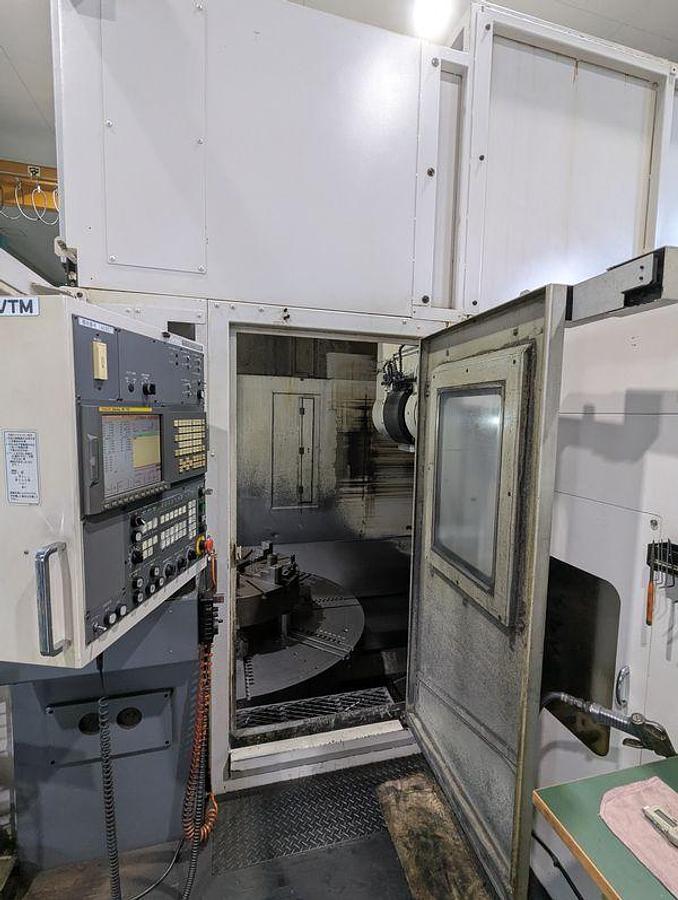

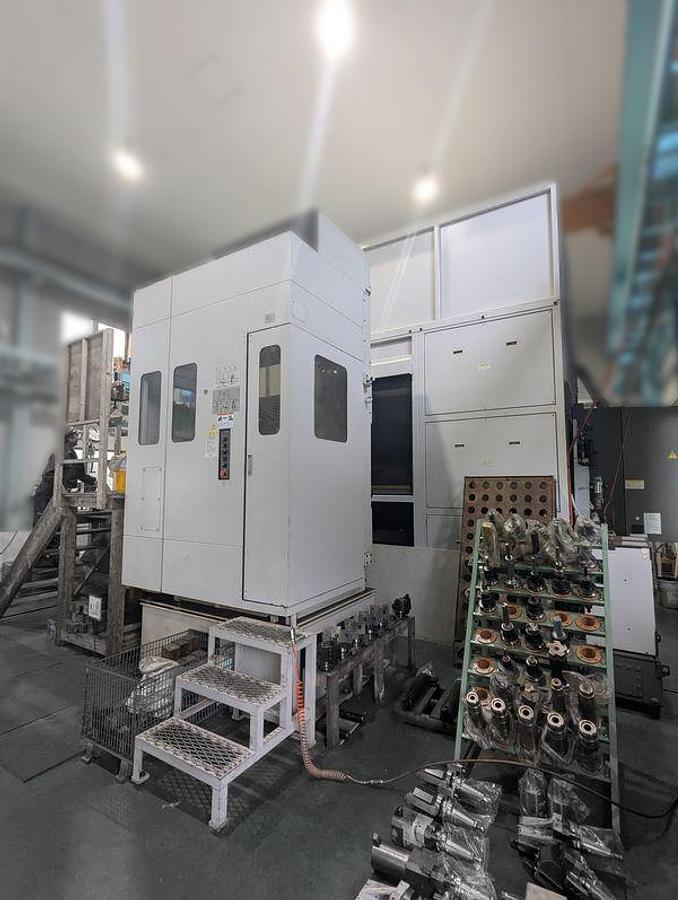

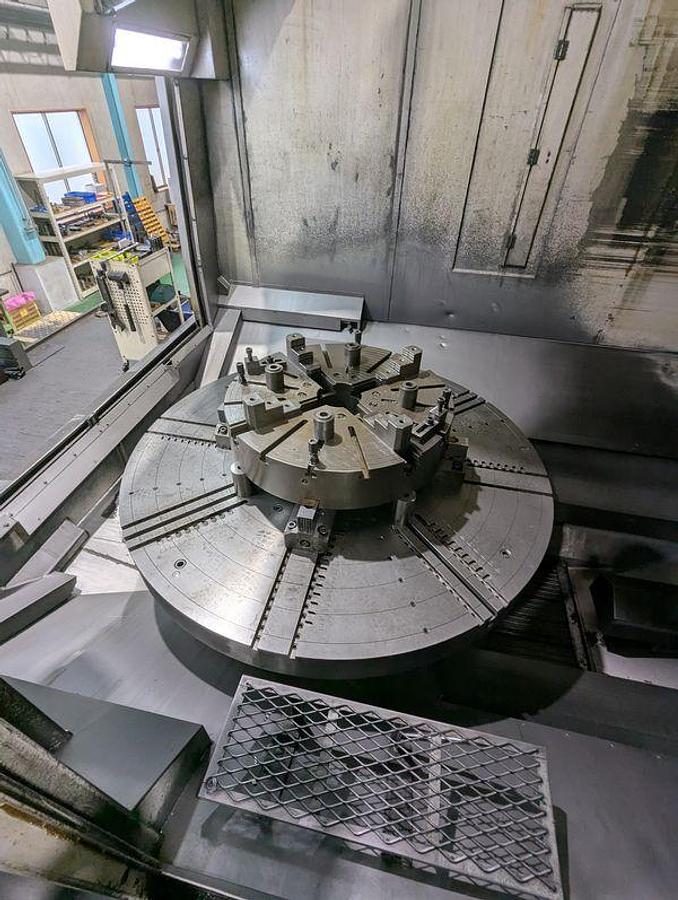

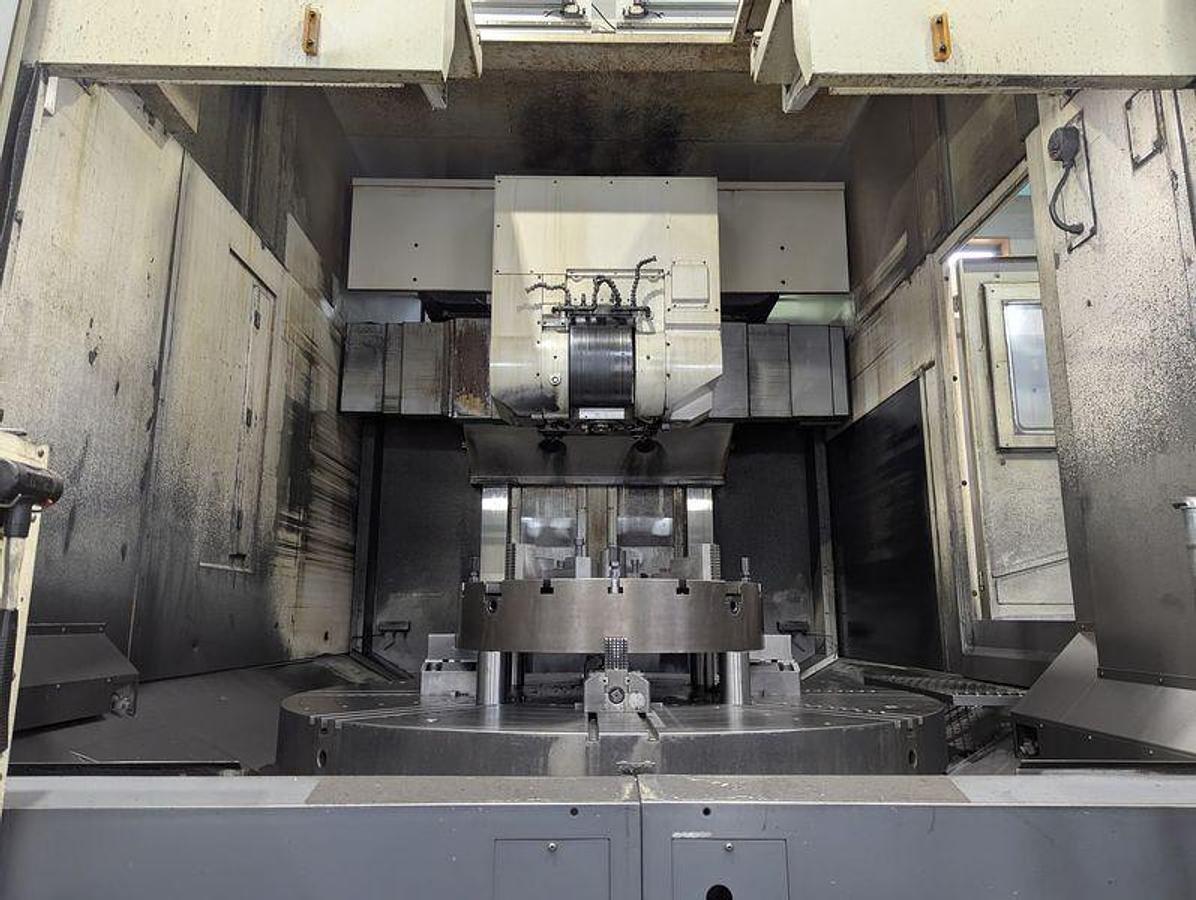

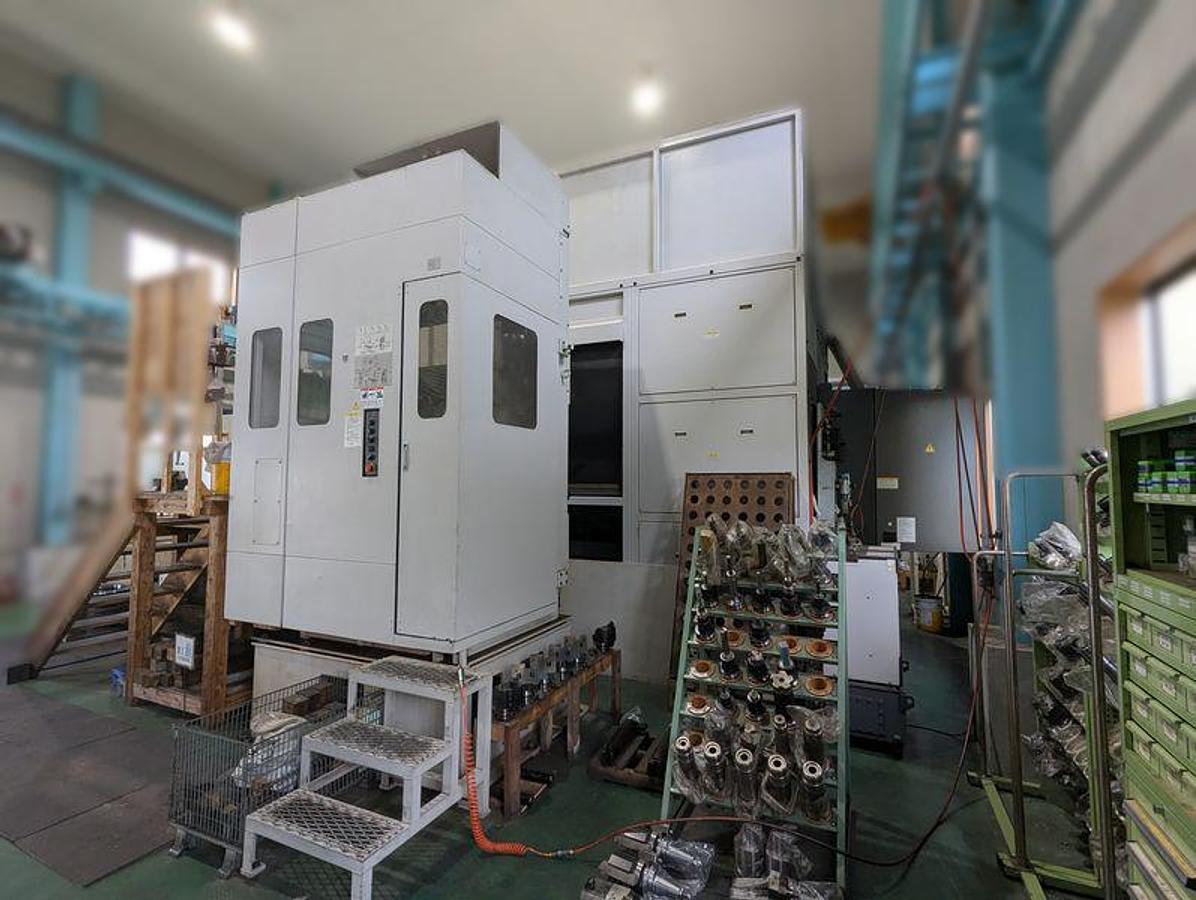

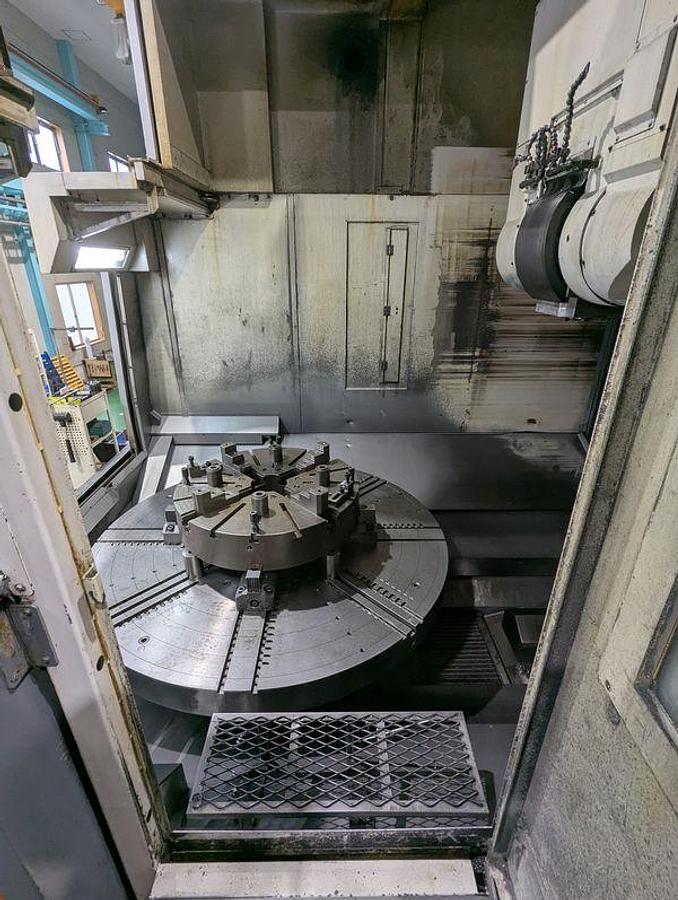

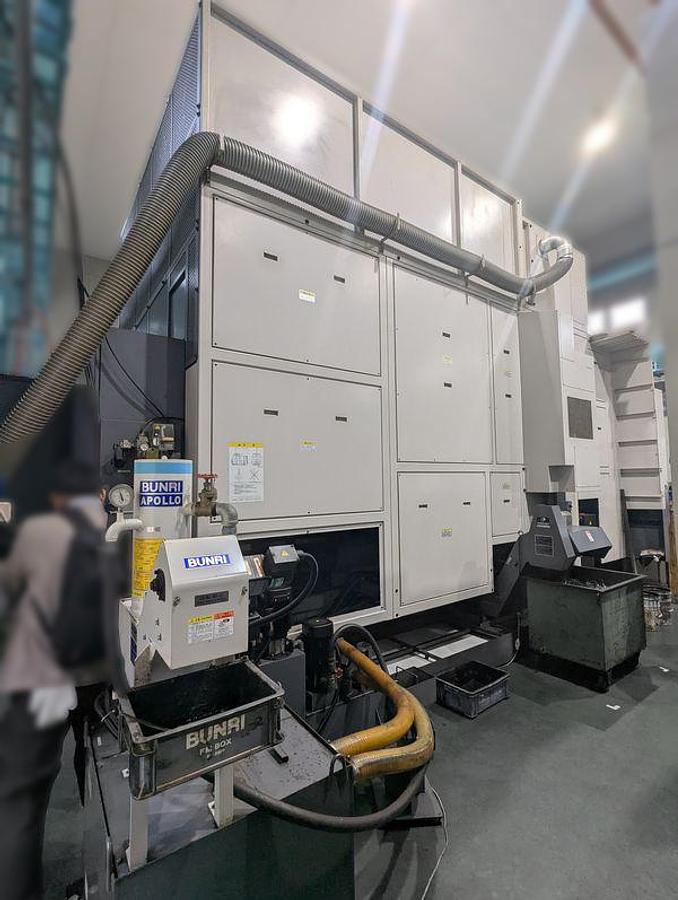

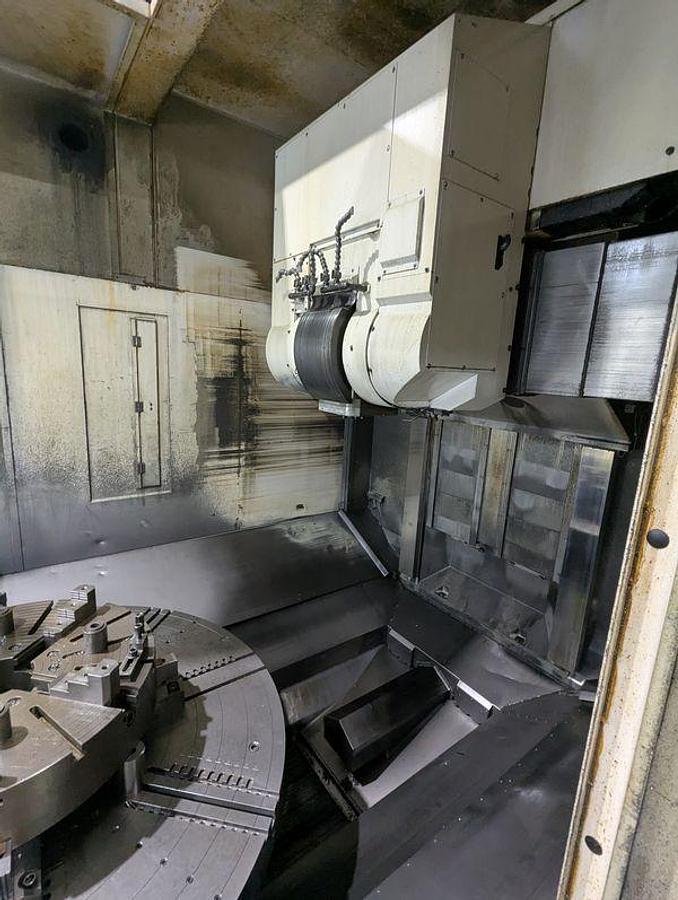

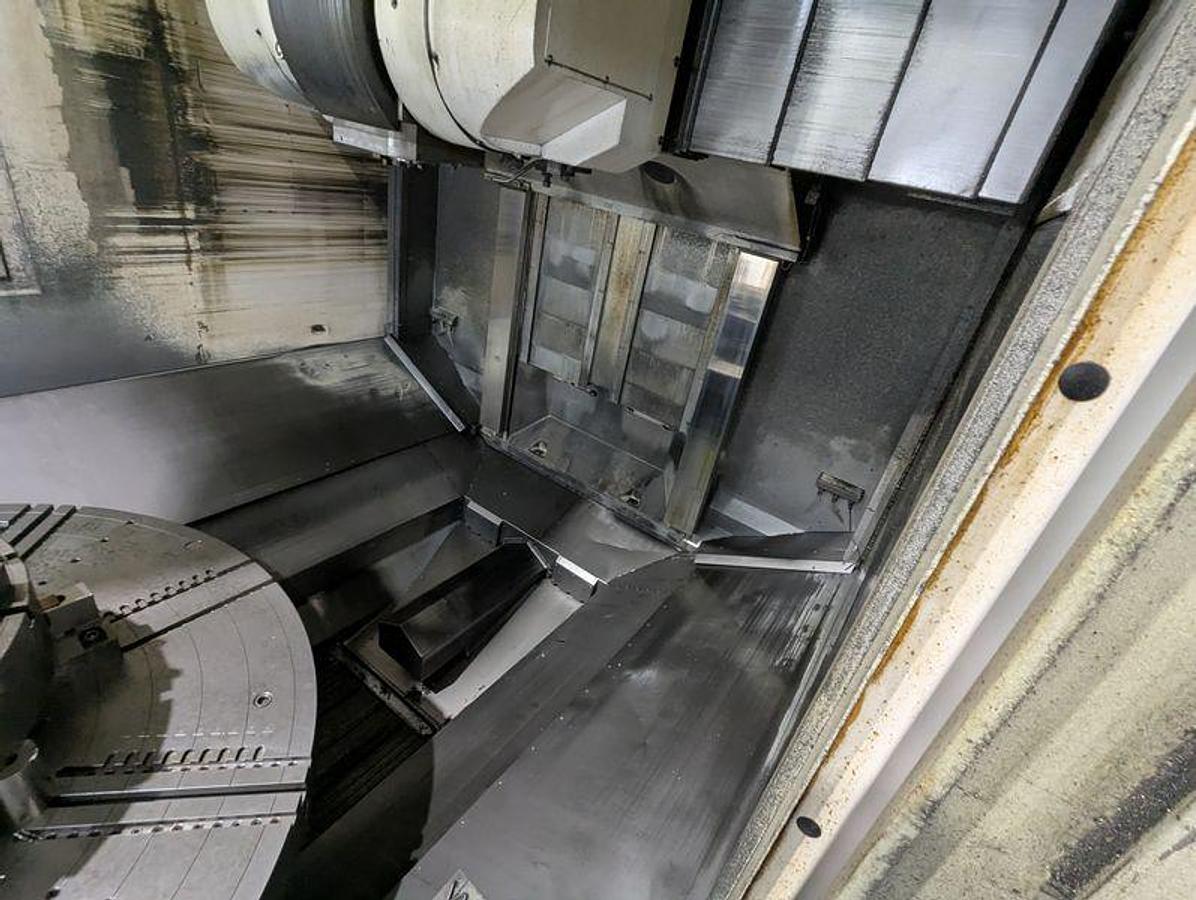

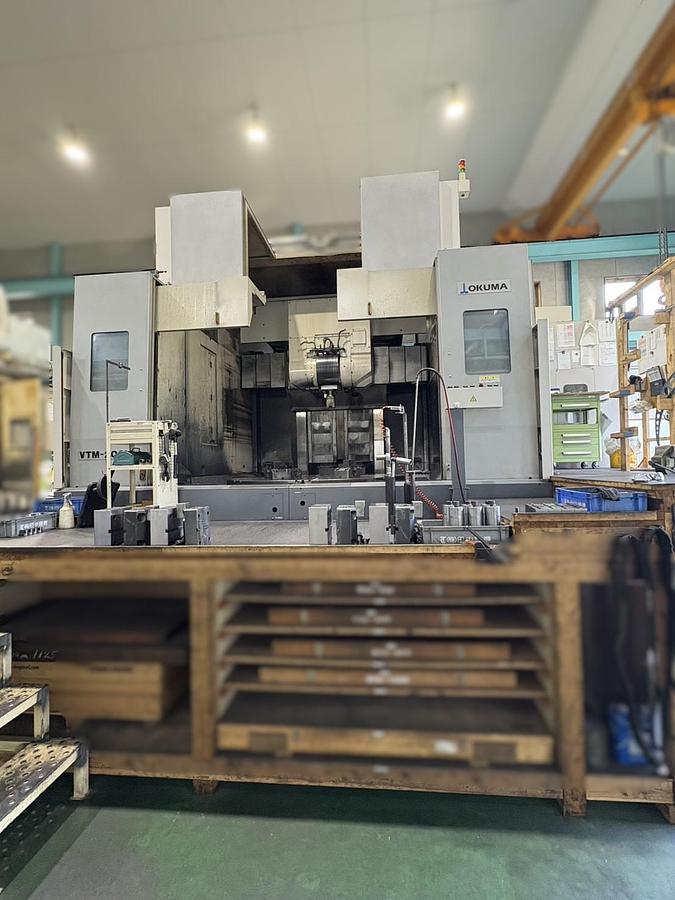

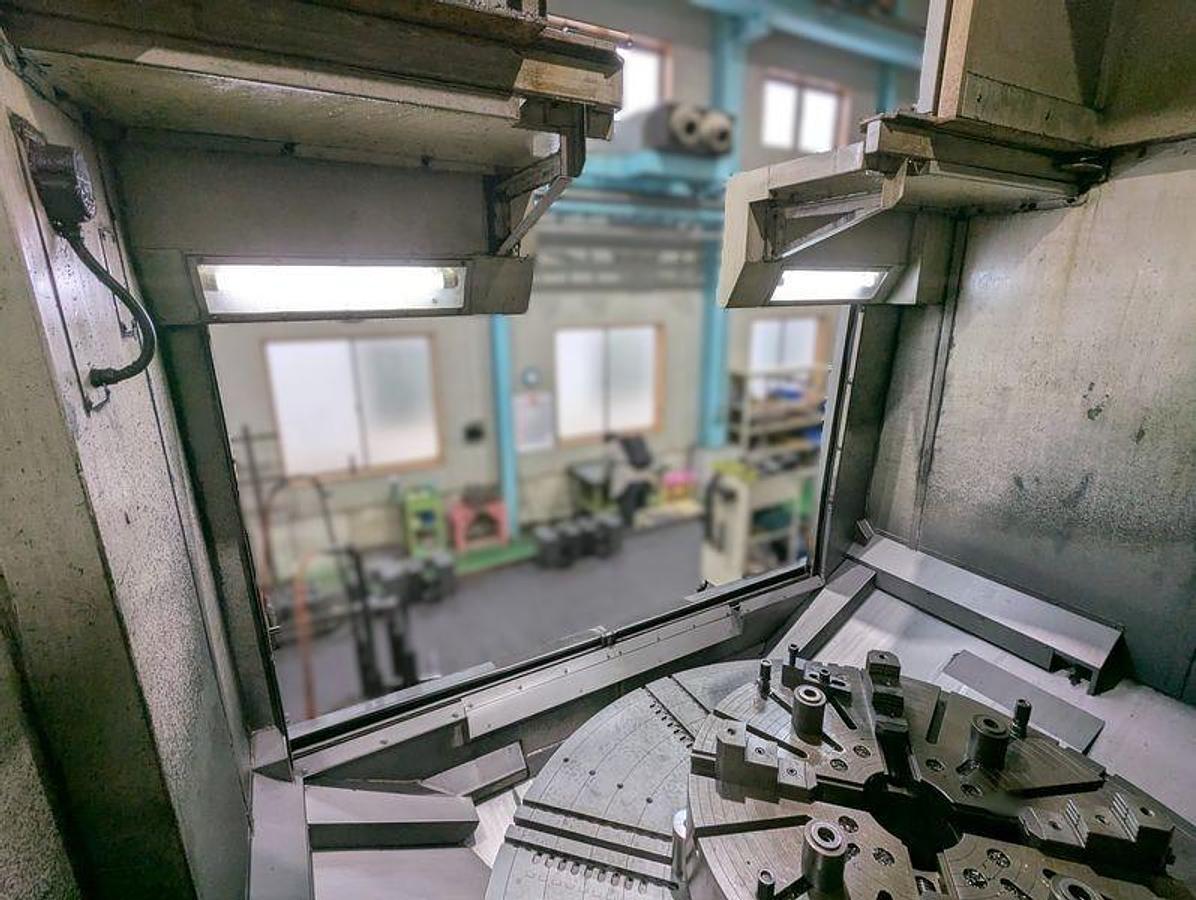

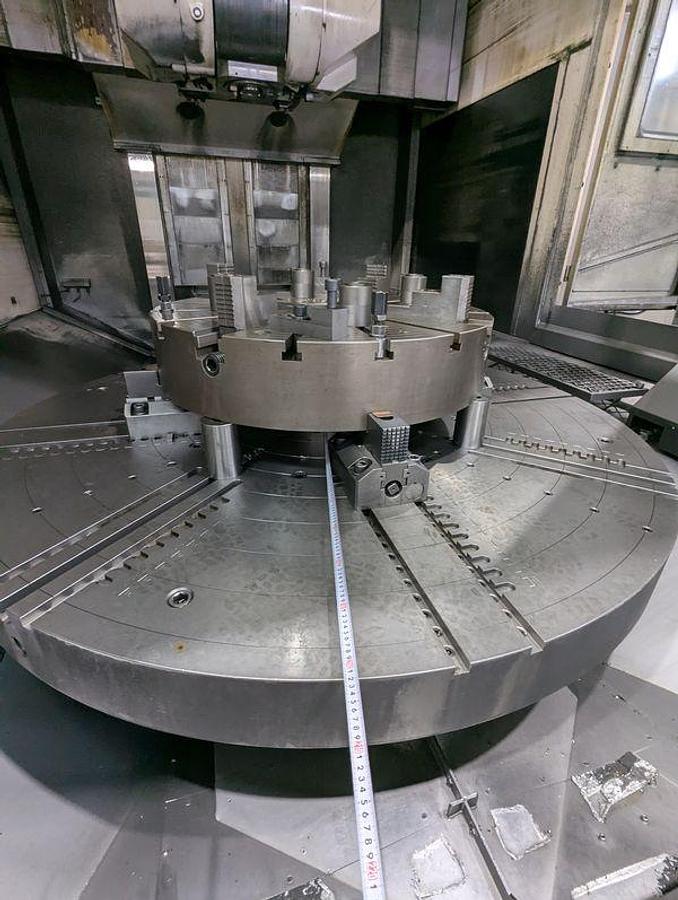

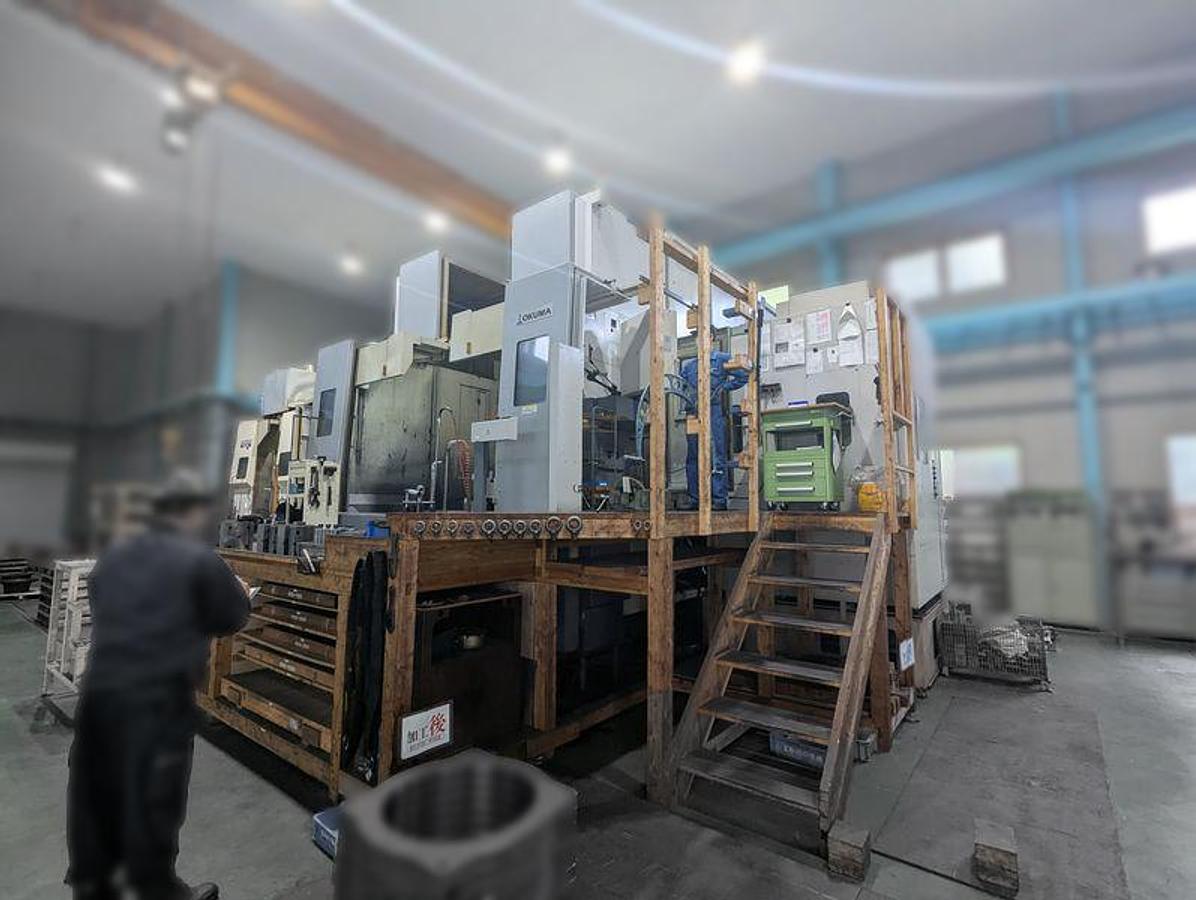

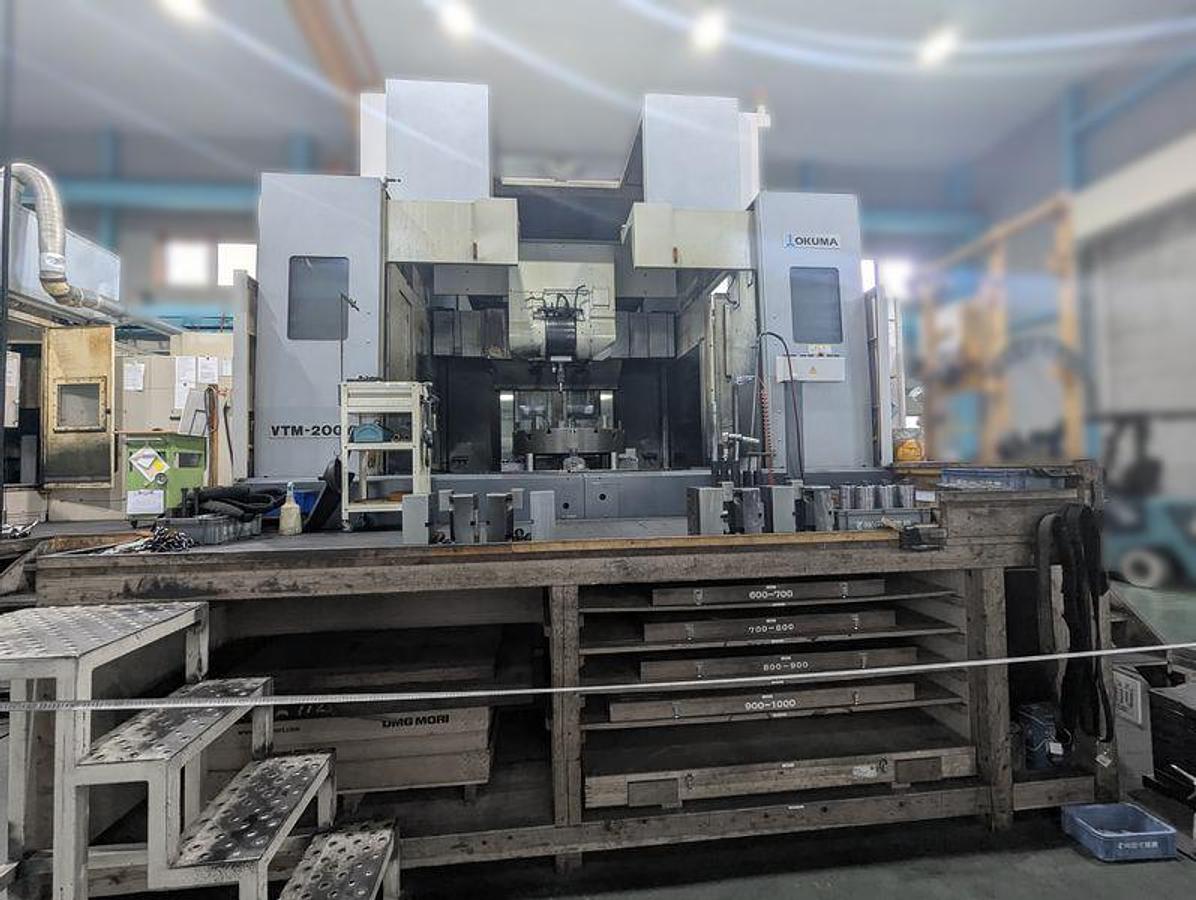

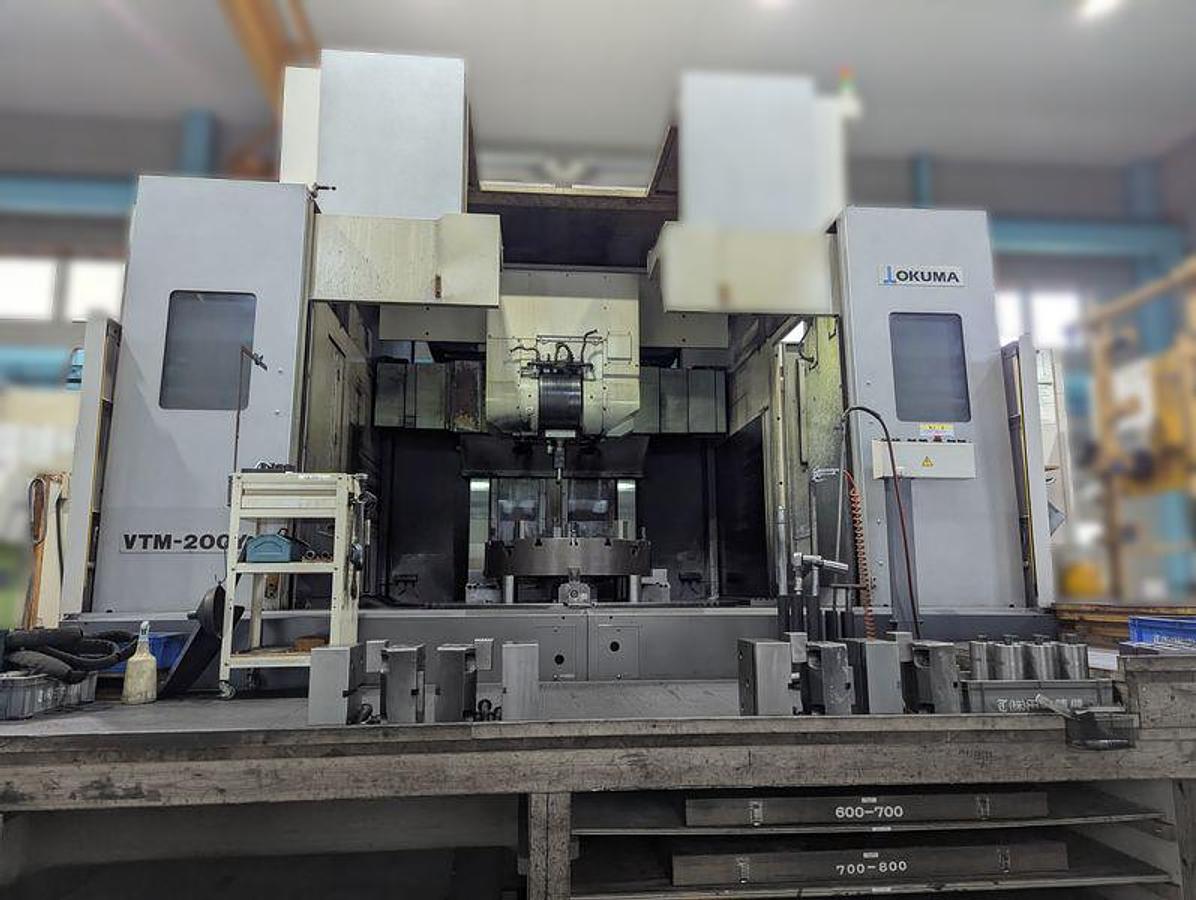

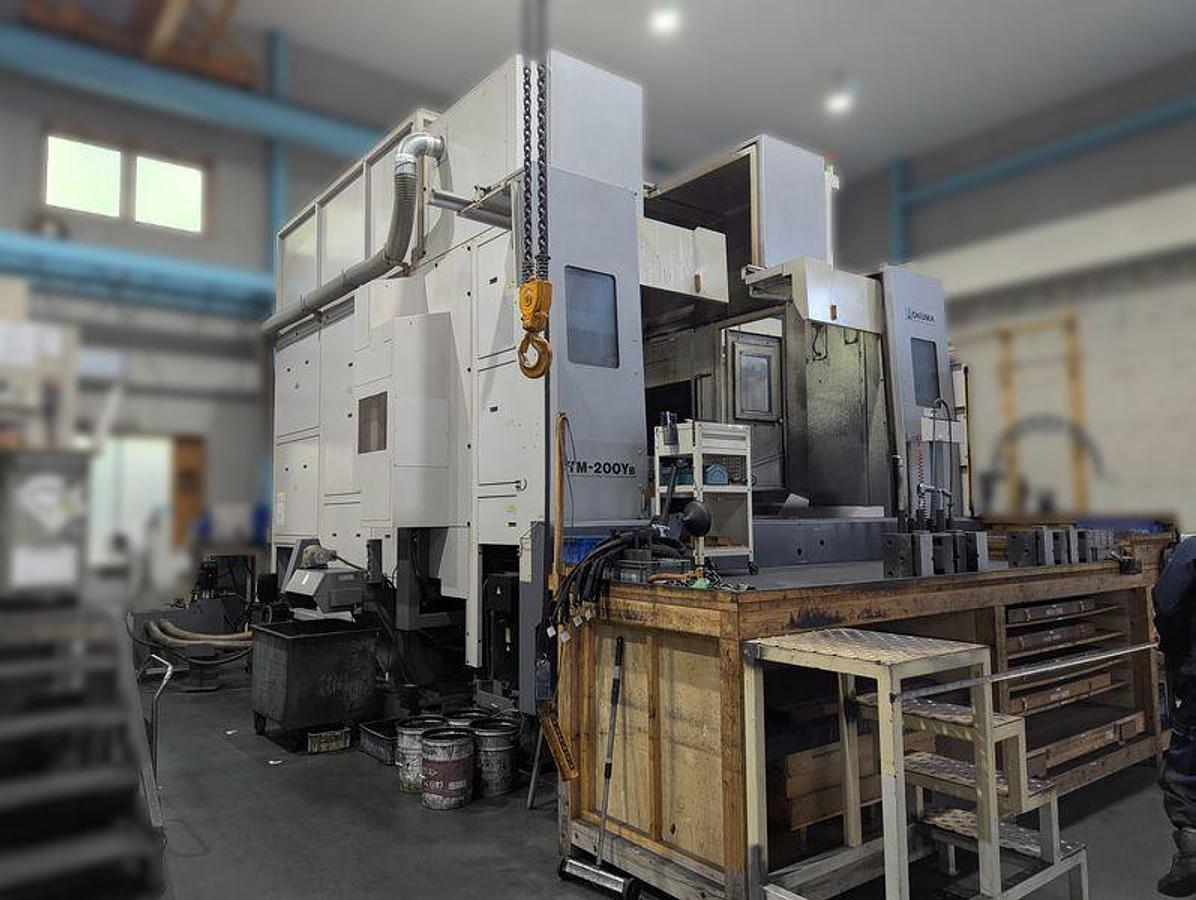

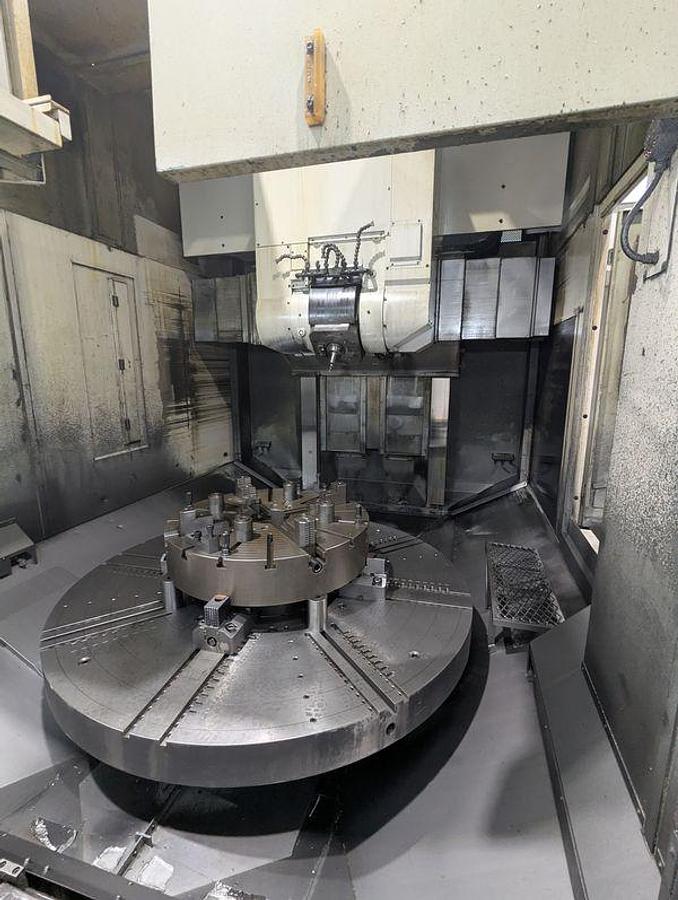

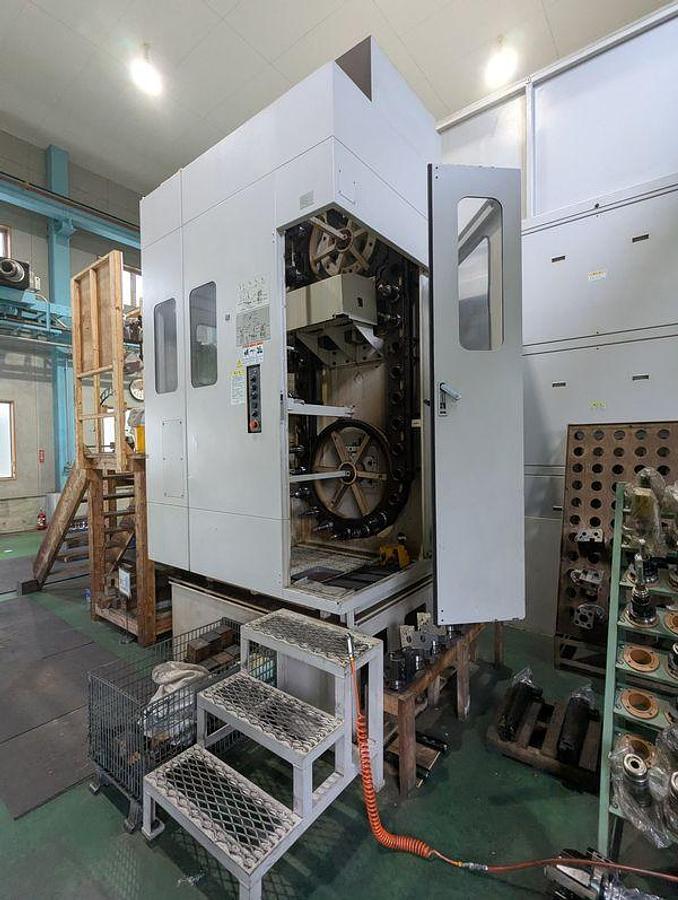

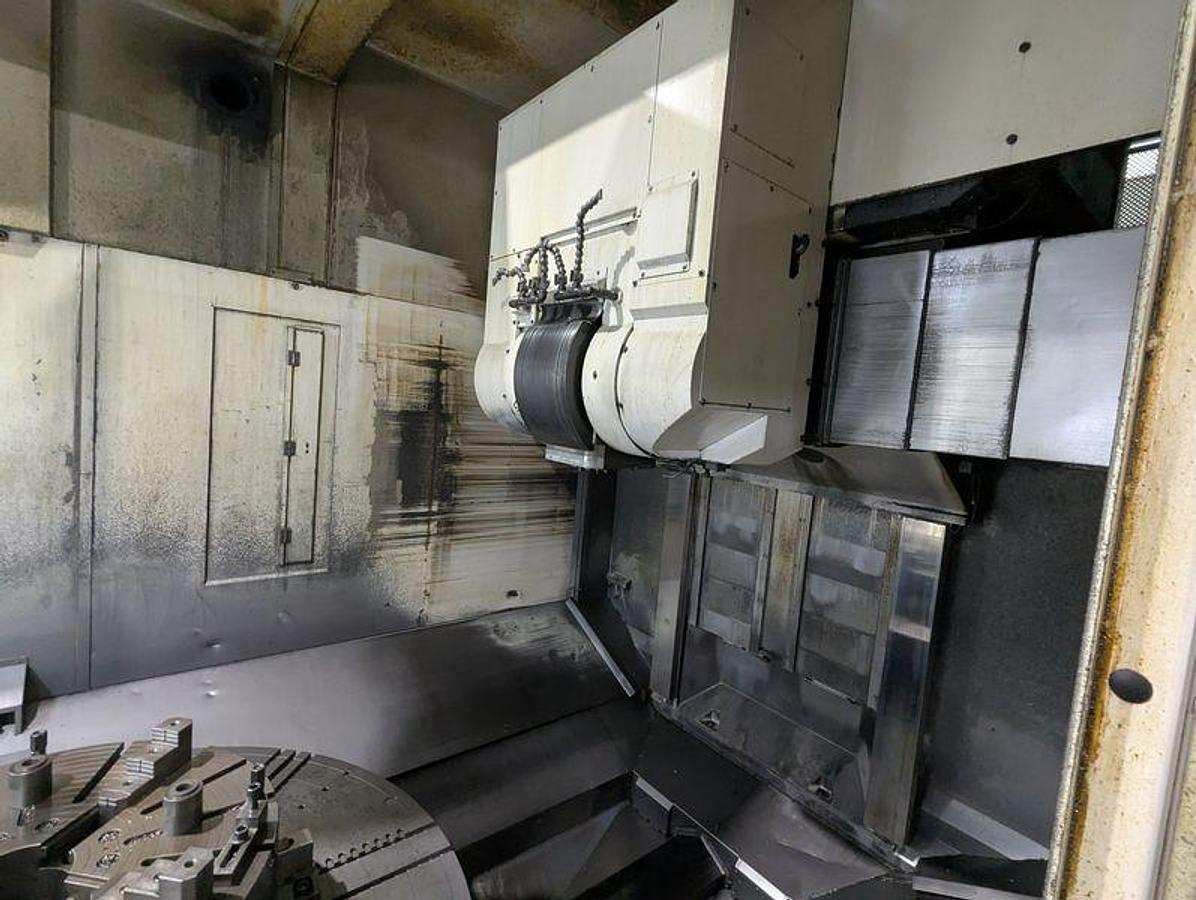

Okuma VTM 200YB CNC Vertical Multi-Tasking Machining Center
Okuma VTM 200YB CNC Vertical Multi-Tasking Machining Center
or
Call 770-509-0744
Description

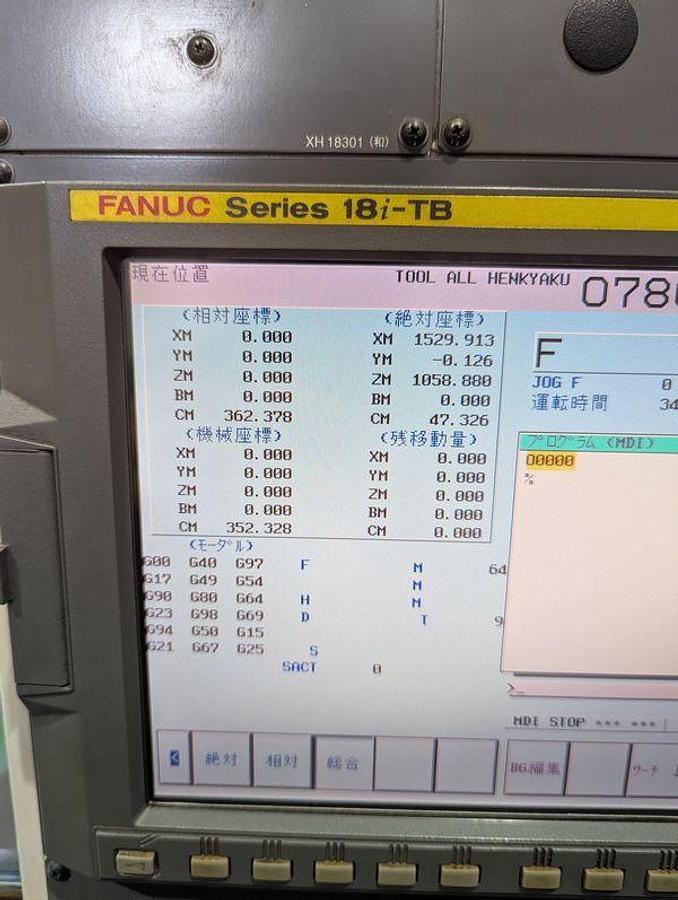

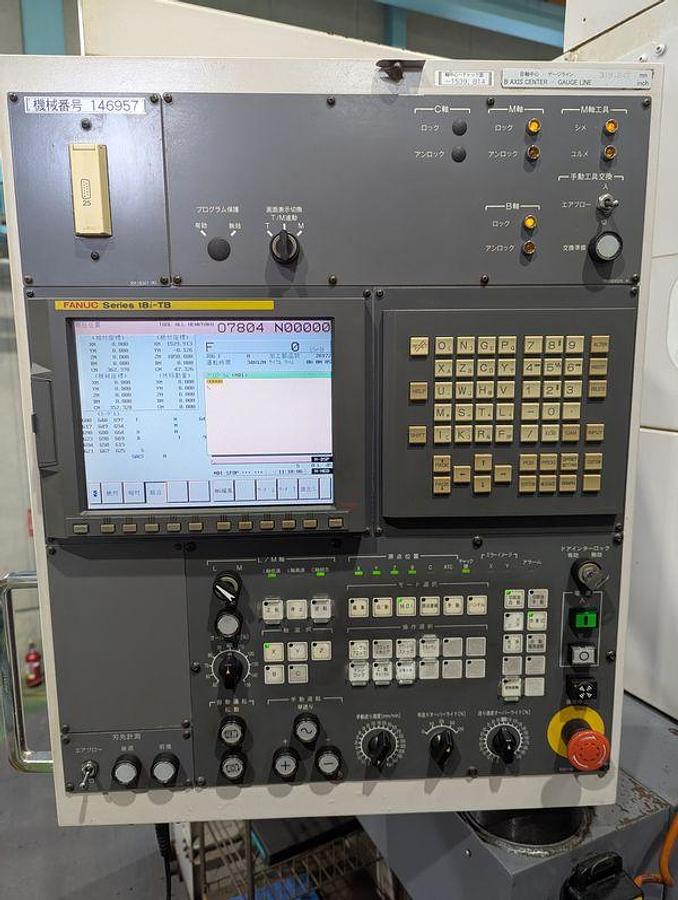

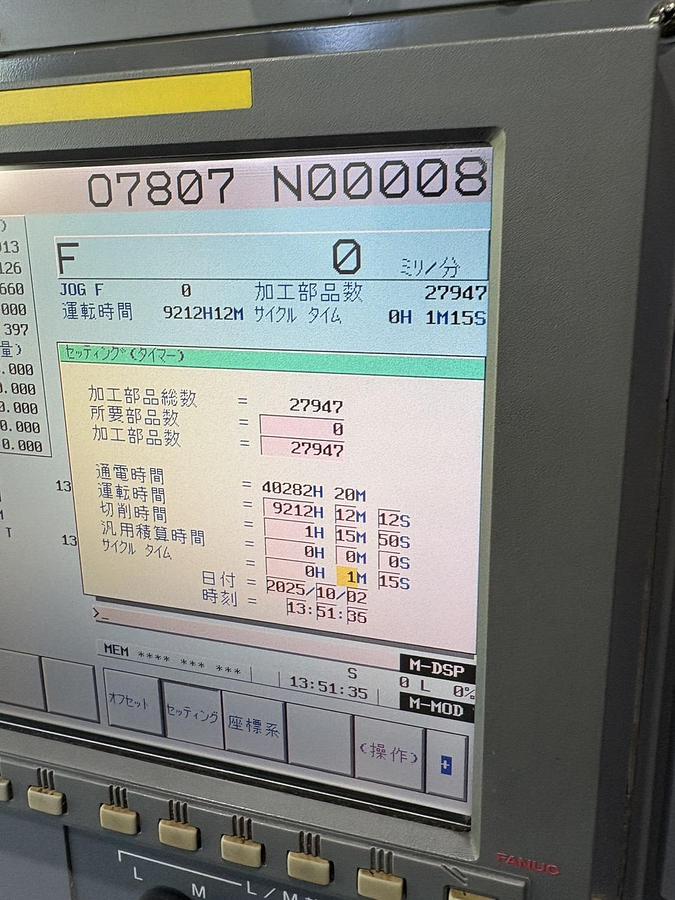

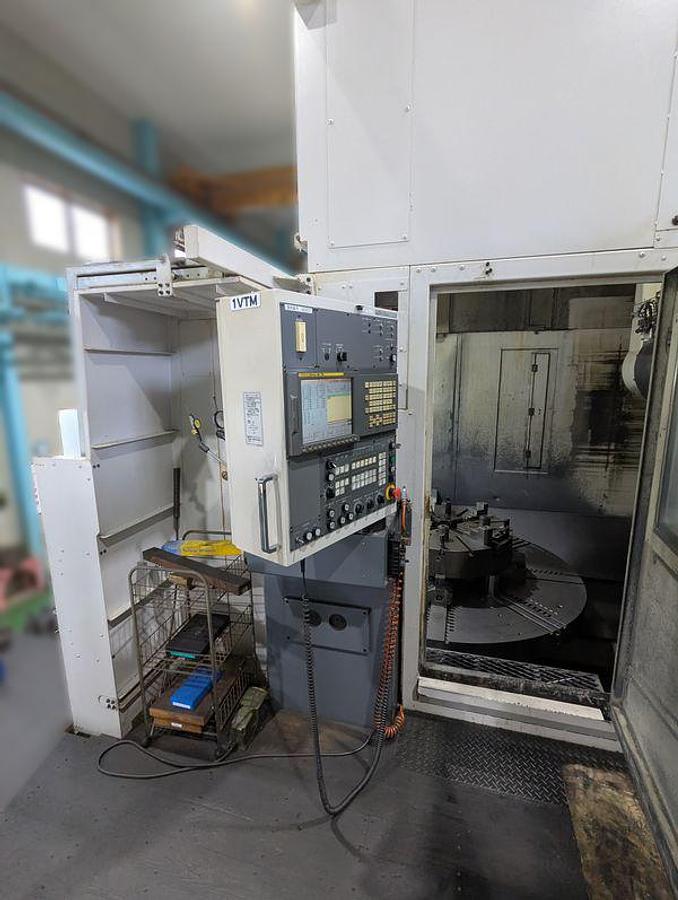

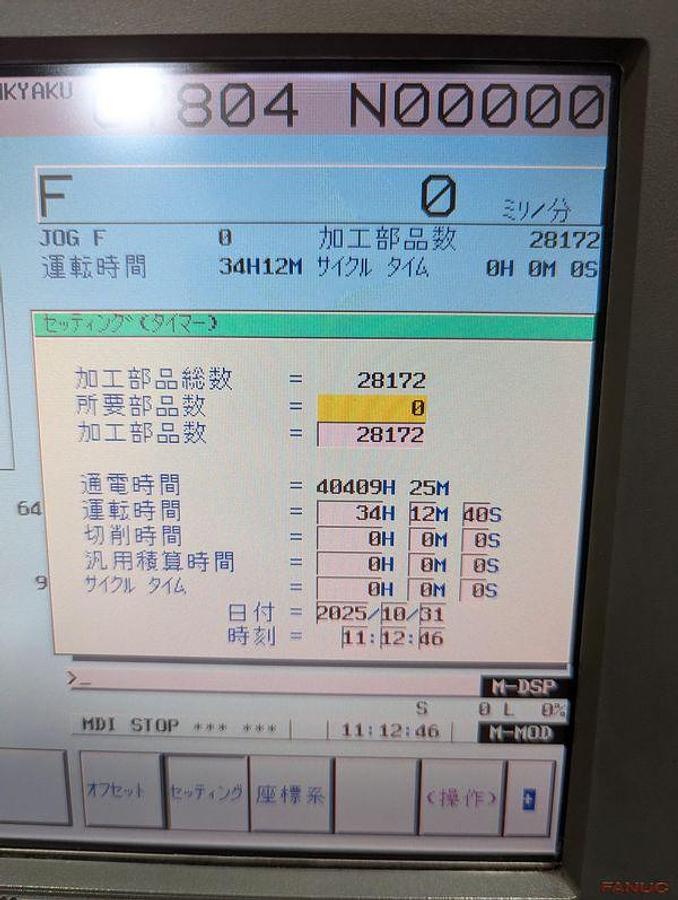

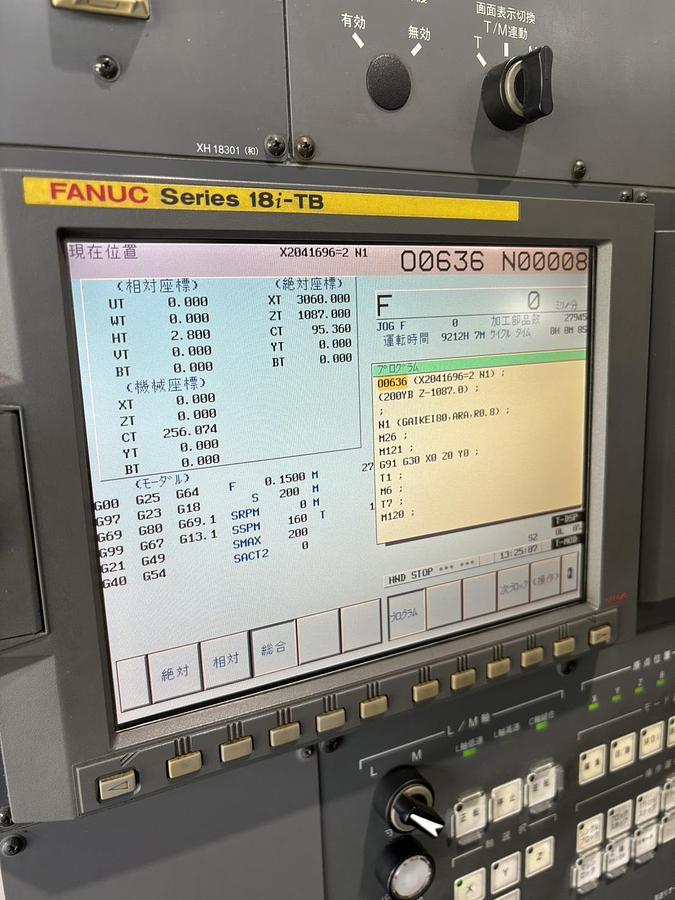

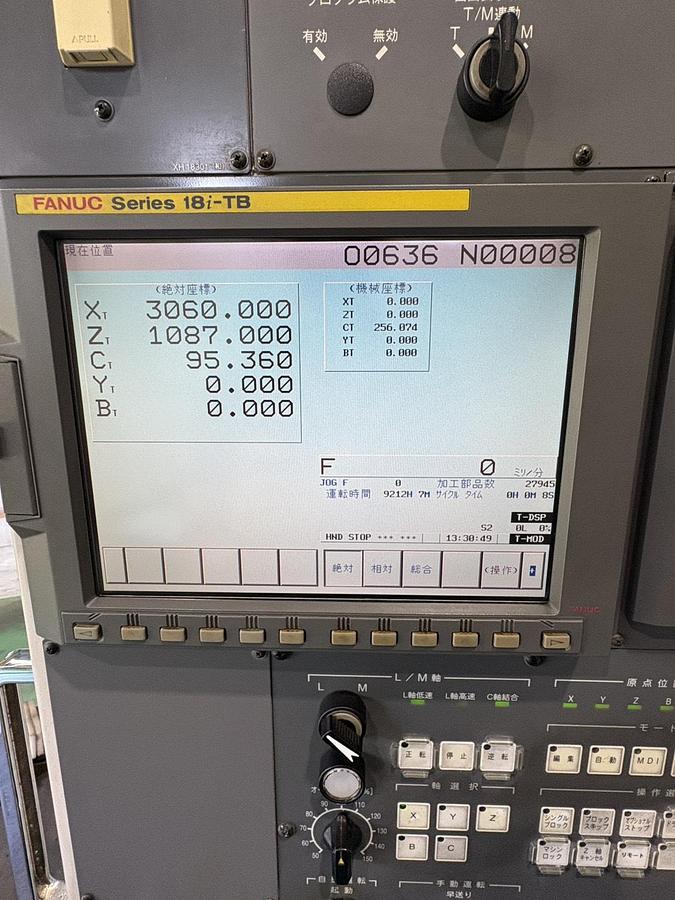

Fanuc 18iTB CNC Control

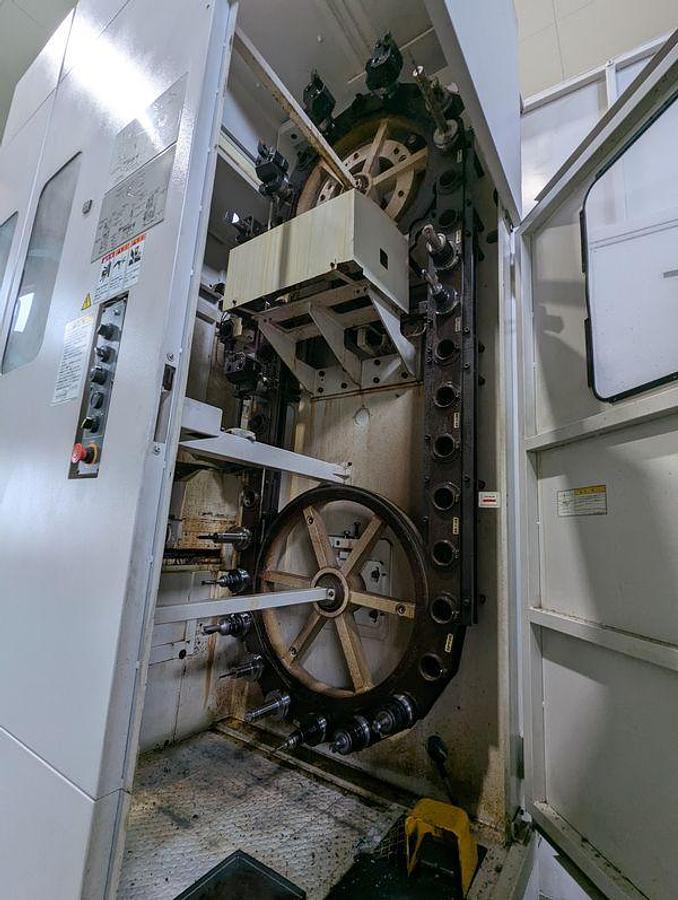

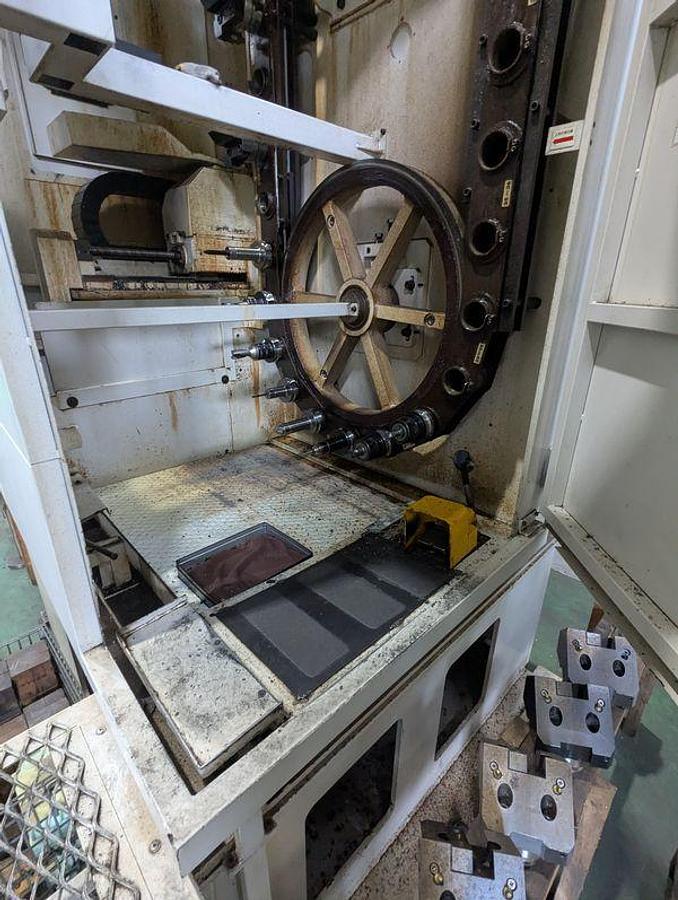

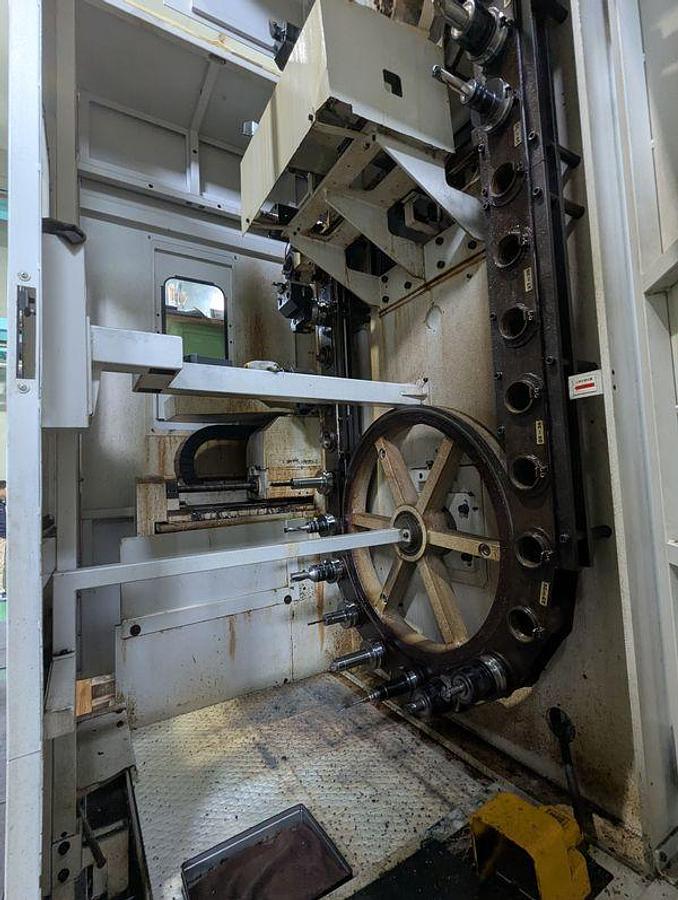

36 Position Automatic Tool Changer
BT50 BIG PLUS
Pull Stud P50T-II

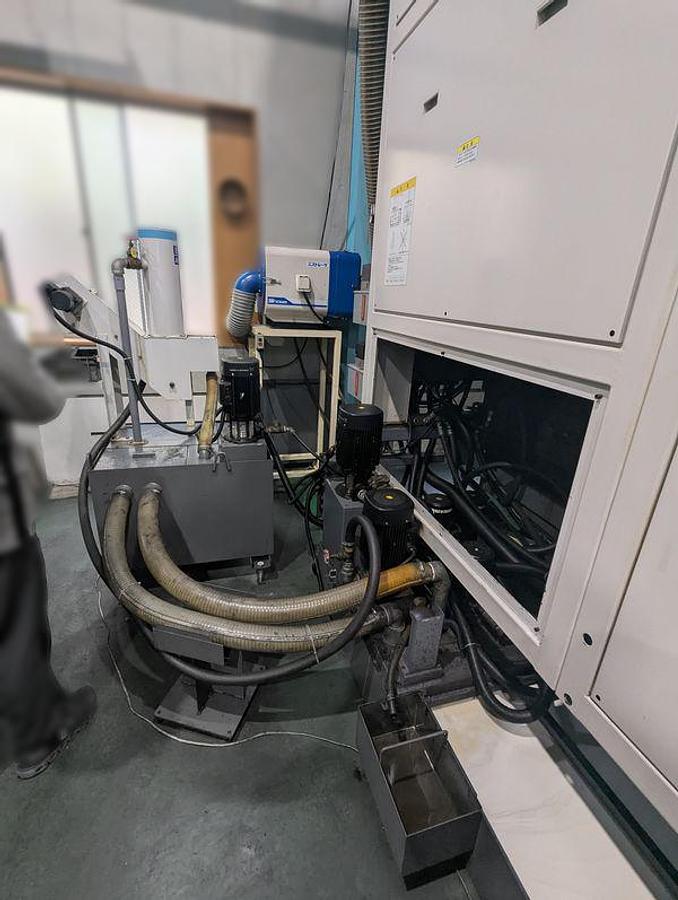

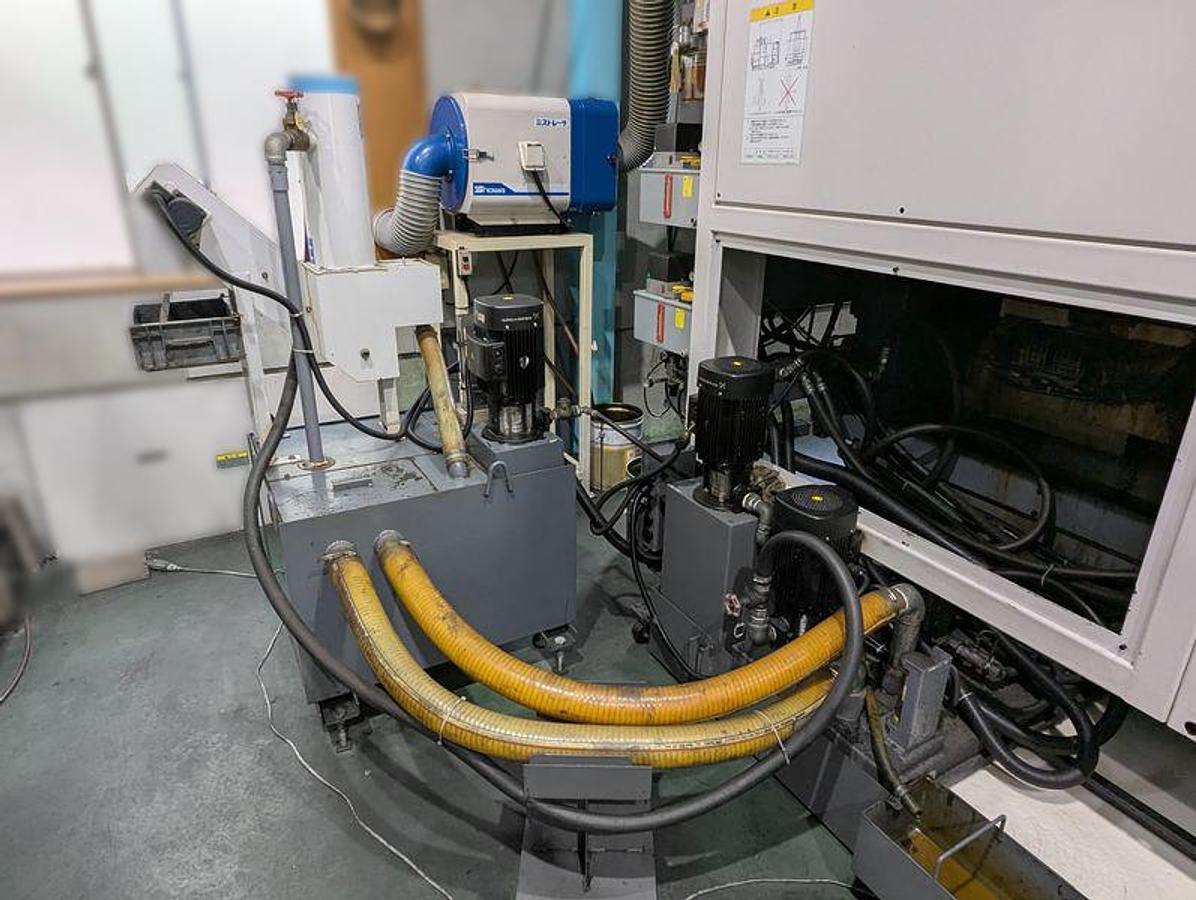

Hydraulic System
Lubrication Sliding Surfaces
(10 min/15 min) Spindle motor (30 min/continuous)
AC 45/37 (low speed)
AC 30/18.5 (low speed)
AC 30/22 (high speed)
(10 minutes/15 minutes) Spindle torque (30 min/continuous)
7670/6307 (low speed)
5113/3153 (low speed)
2701/1981 (high speed)
Specifications
| Manufacturer | Okuma |

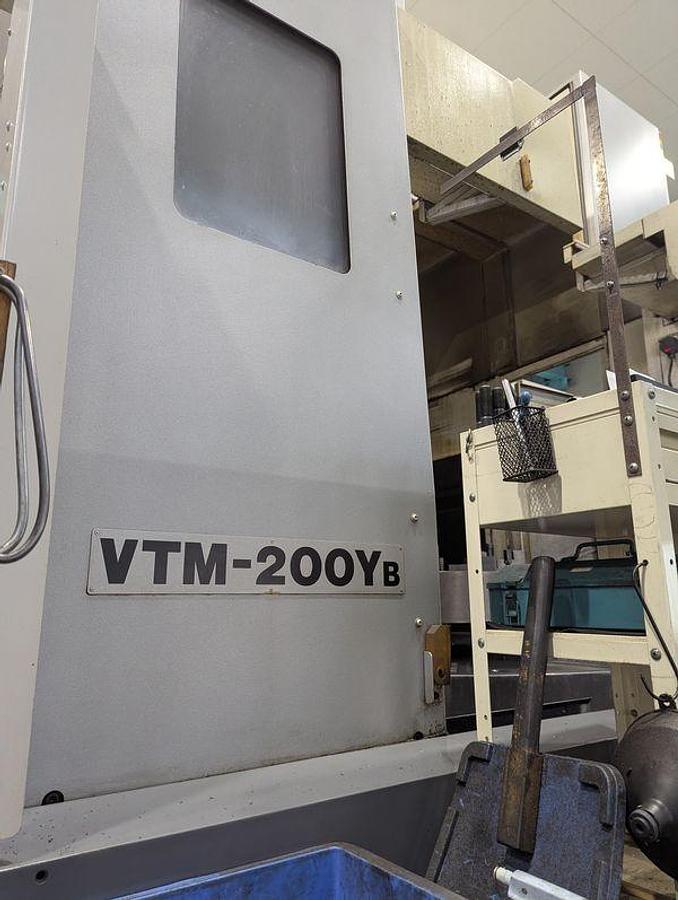

| Model | VTM 200YB |
| Year | 2010 |
| Condition | Used |
| Stock Number | 5654249 |

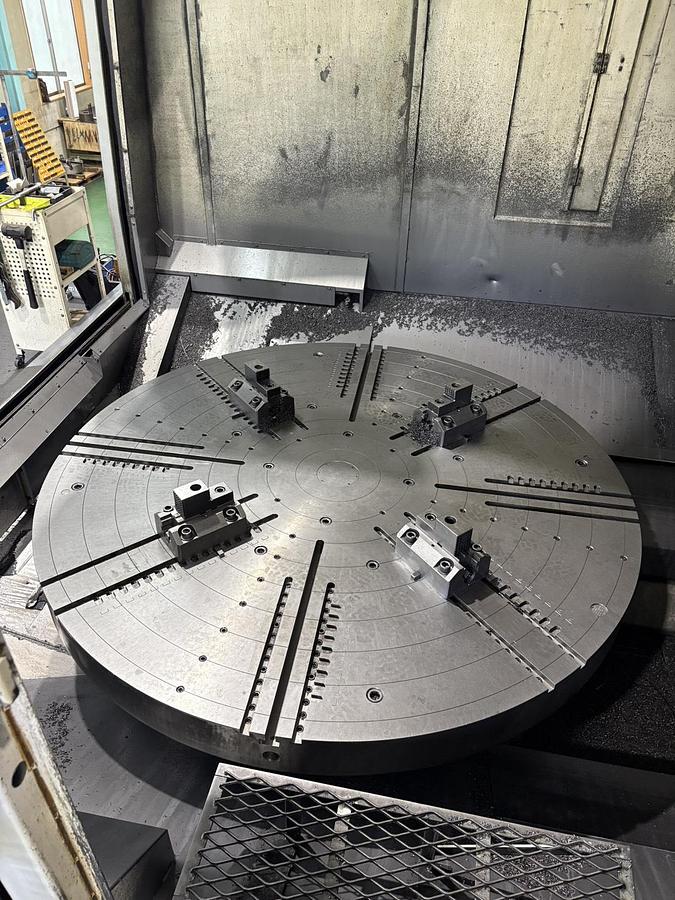

| Max workpiece diameter | 2,000 mm |
| Swing | 2,400 mm |
| Max workpiece length | 1,400 mm |
| Max workpiece weight | 7,000 kg (including chuck) |
| Height from floor | 1,210 mm |
| X axis travel | 1,600 mm |
| Y axis travel | ±800 mm |
| Z axis travel | 1,400 mm |
| Spindle end shape | 380 mm diameter, flat |
| Shaft diameter at front main shaft | 260 mm |
| Spindle hole taper XYZ | 164 mm 2° |
| Main shaft through hole diameter | 160 mm |
| Spindle support method | Two-point support by tapered roller bearings |
| Number of spindle speeds | stepless |
| Spindle speeds | Low 4 - 200 rpm. High 6 - 400 rpm |
| Spindle speed override | 50 - 150% |
| C axis minimum setting unit | 0.001° |
| C axis indexing accuracy | ±0.005° |

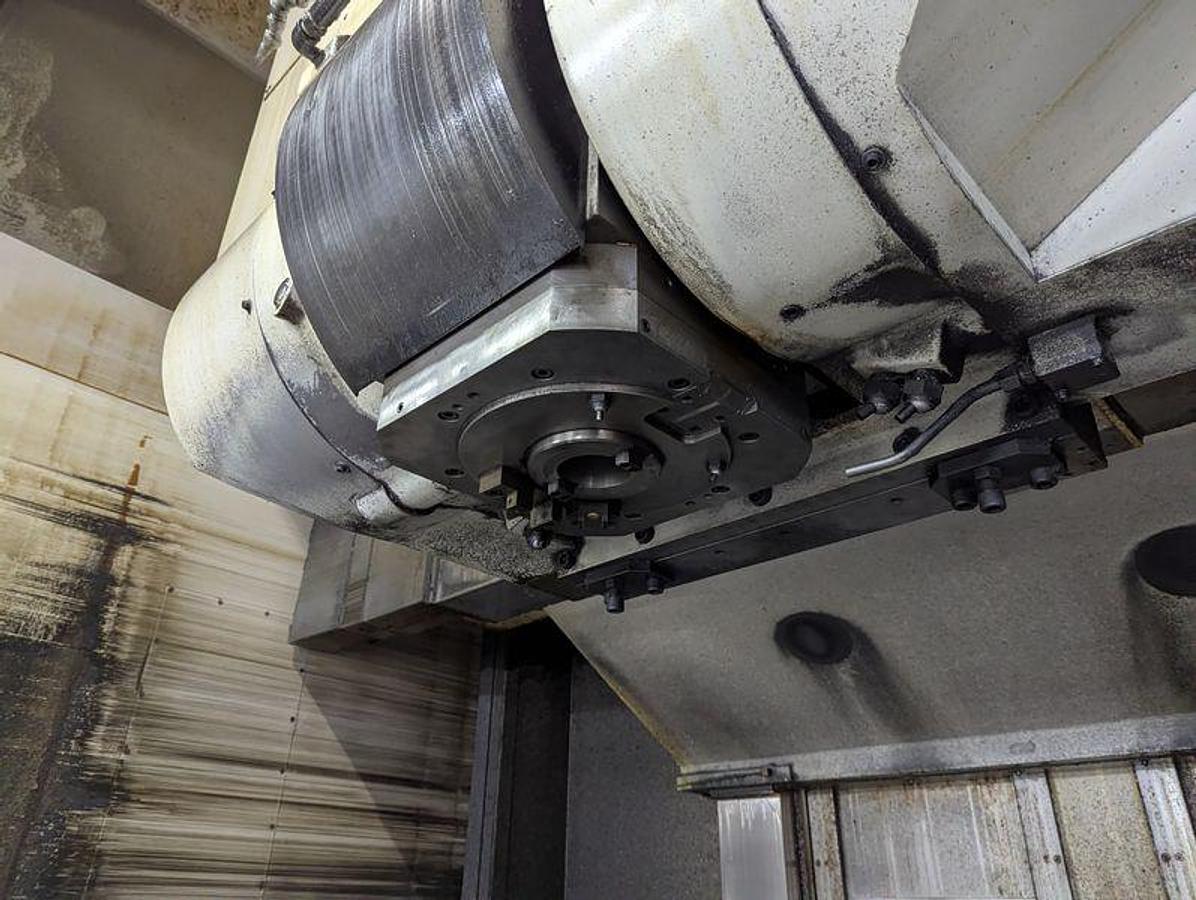

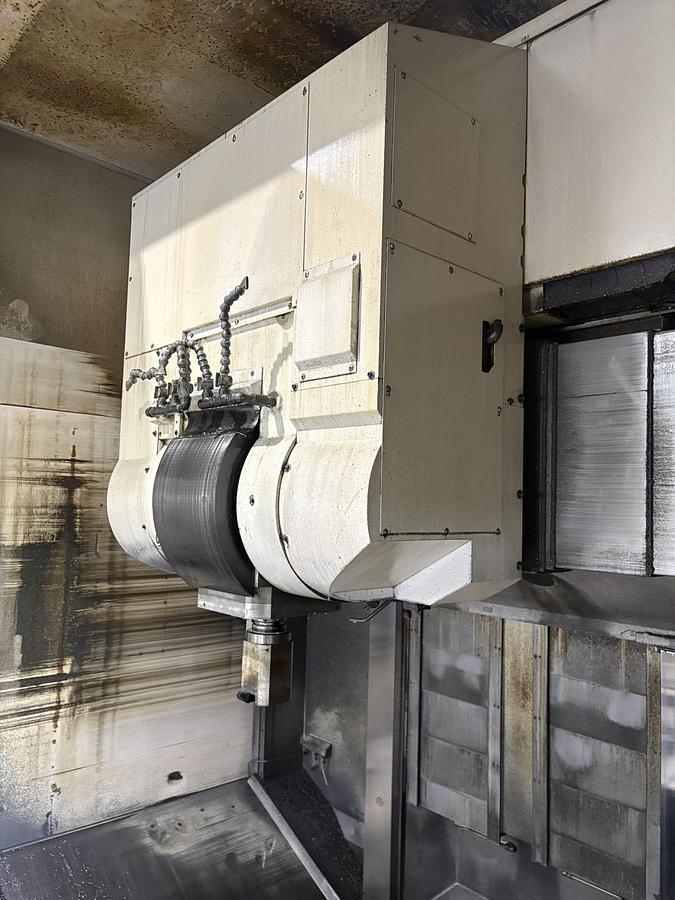

| Tool spindle M axis shaft diameter | 90 mm |
| Tool spindle M axis gear stage number | Stepless |
| Tool spindle M axis rotation speed | 4,000 rpm |
| Tool spindle B axis angle | 90° |
| Tool spindle B axis minimum setting unit | NC Indexing (5° indexing combined) |
| Rapid feed x/y/z | 16 m/min |
| Cutting feedrate x/y/z | 0.001 - 500 mm/rev |
| Power capacity | NFB 250A |

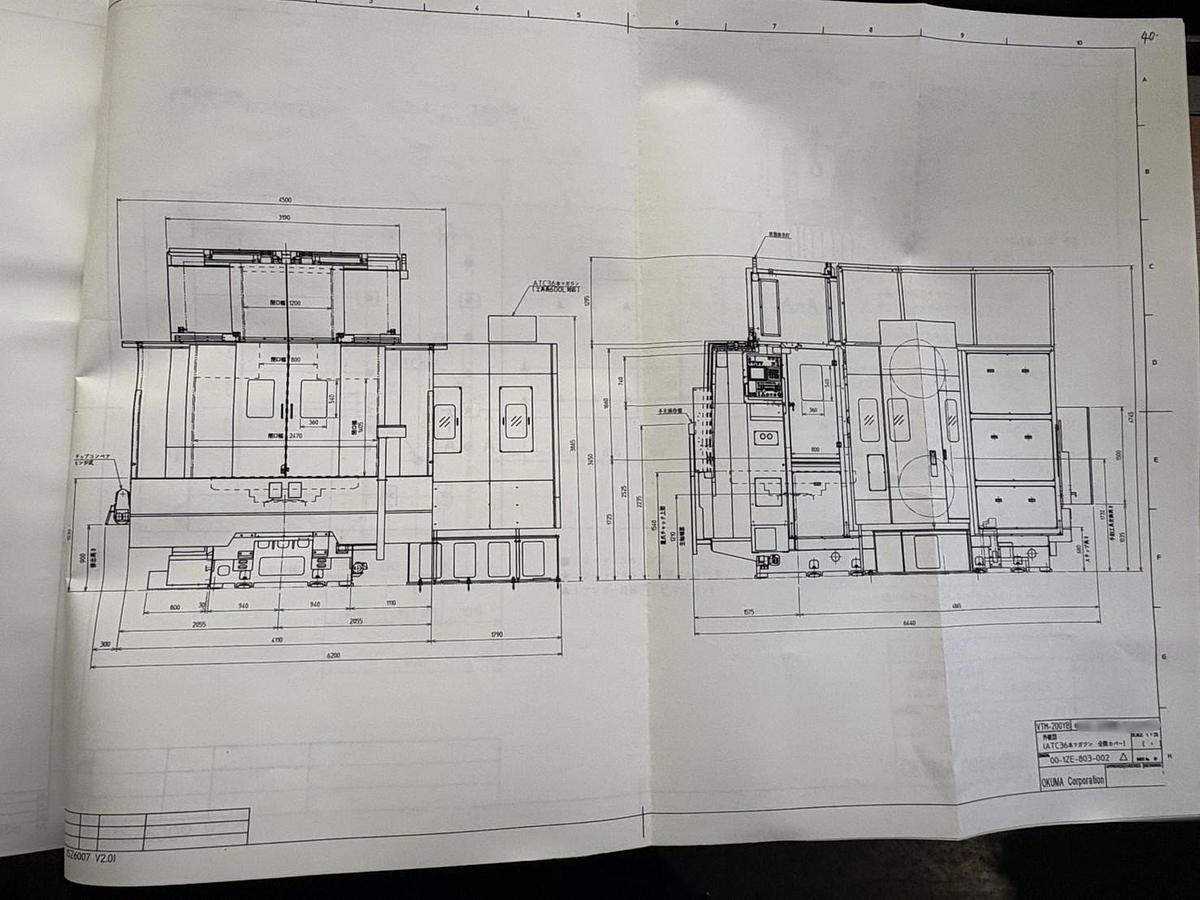

| Floor space | 6,195 x 7,325 mm |
| Machine weight | 35,000 kg (chuck & pallet not included) |
