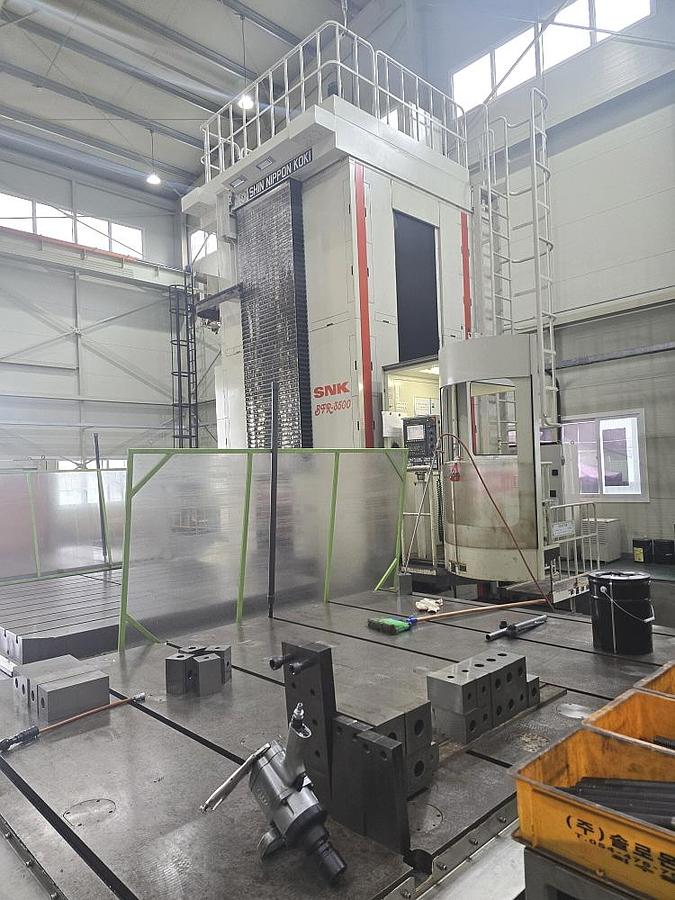

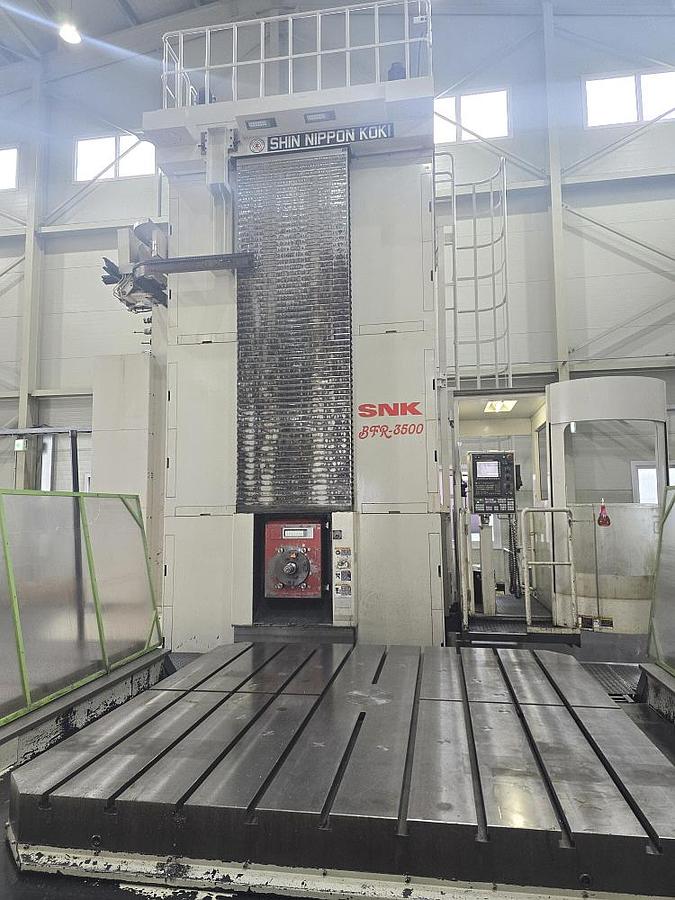

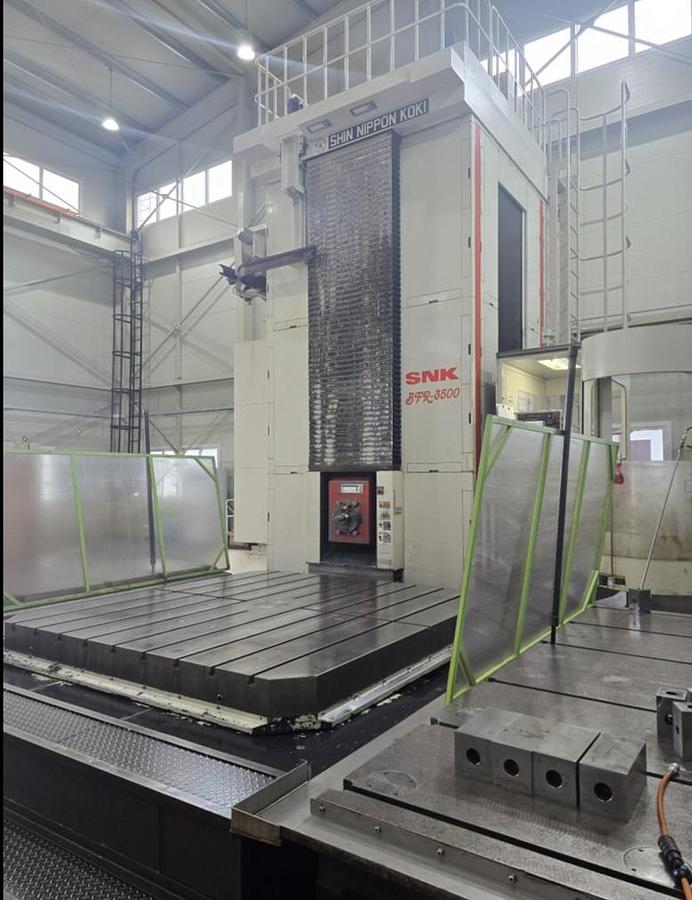

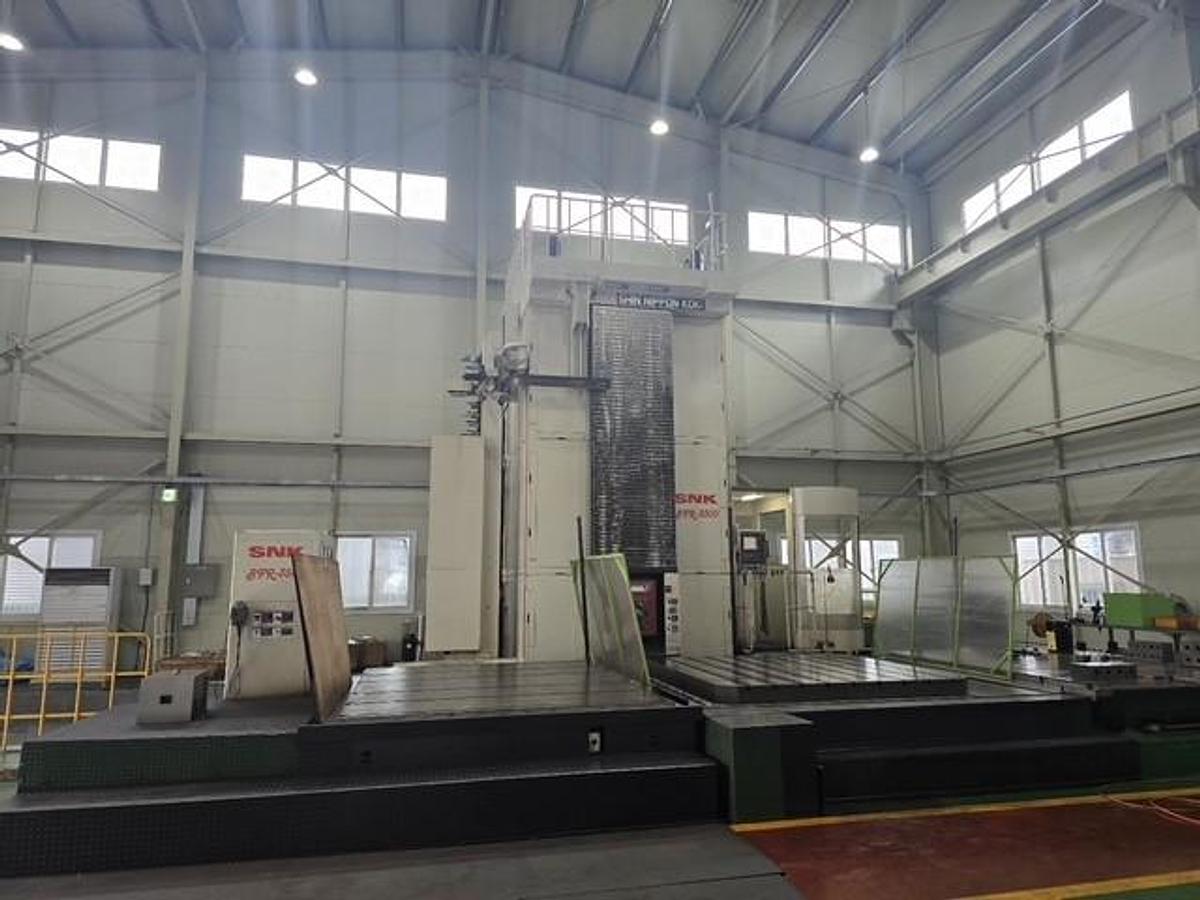

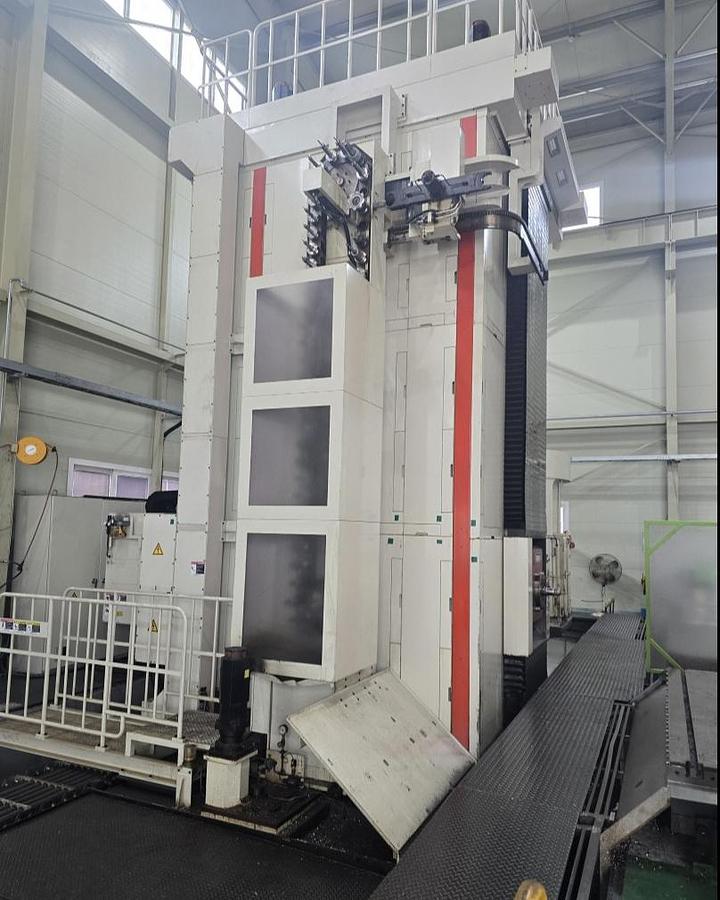

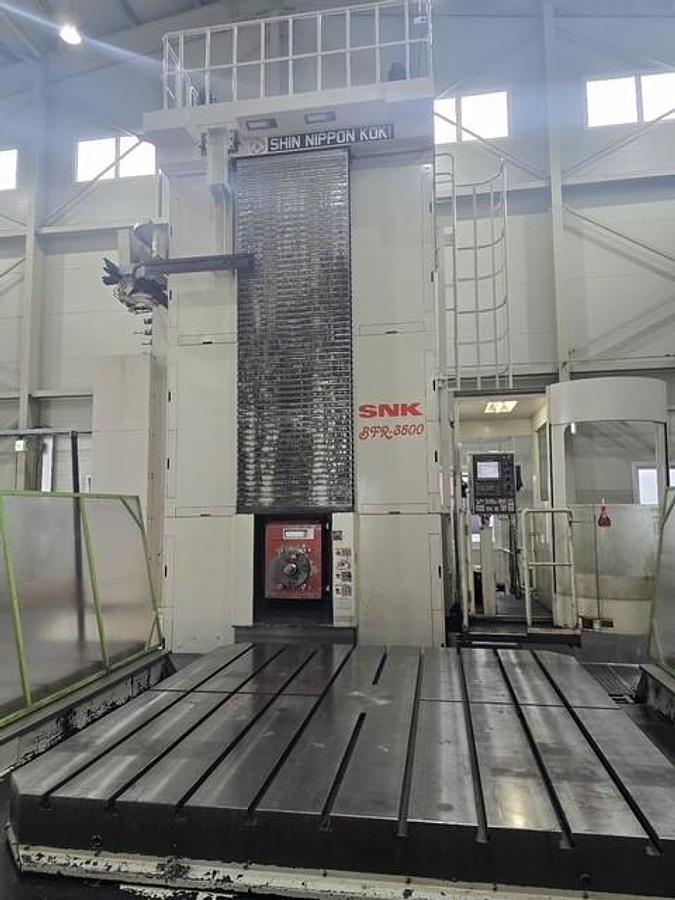

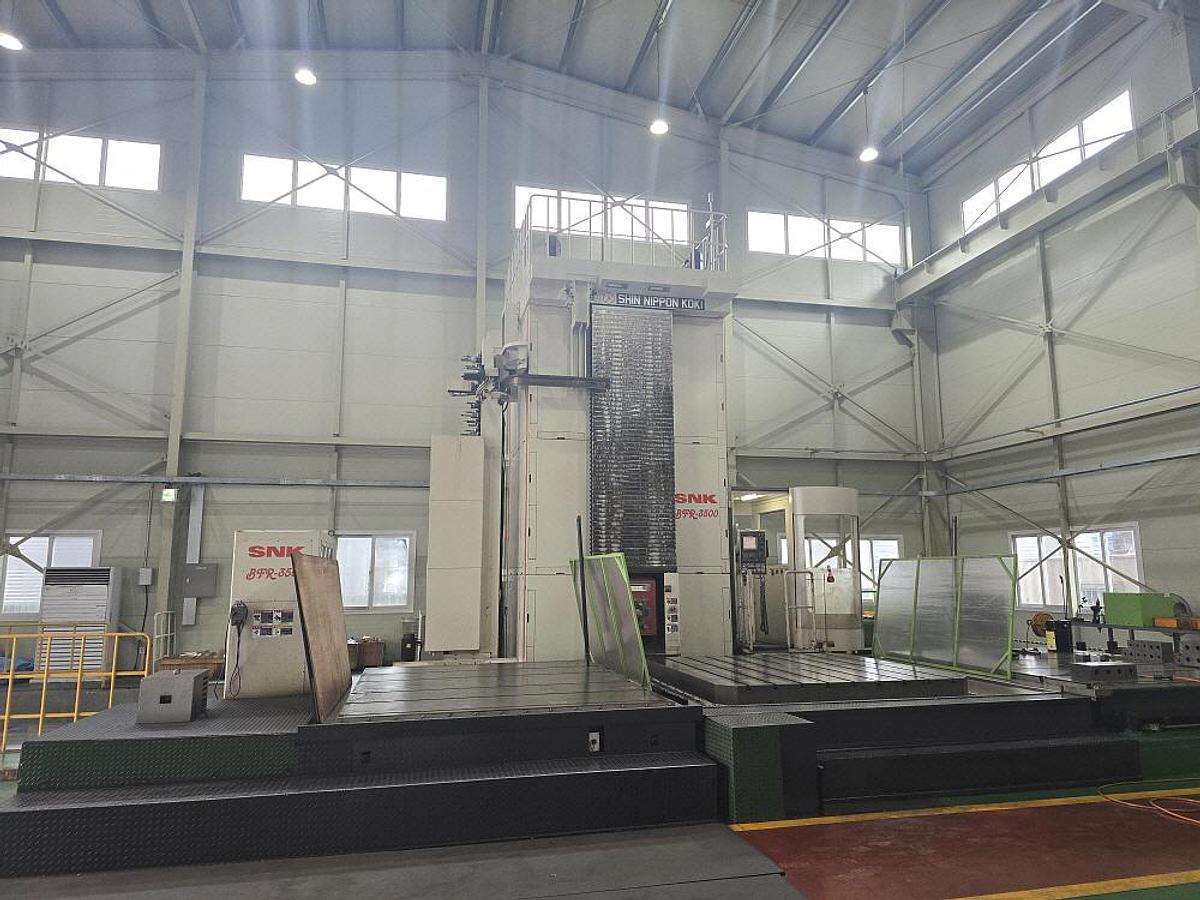

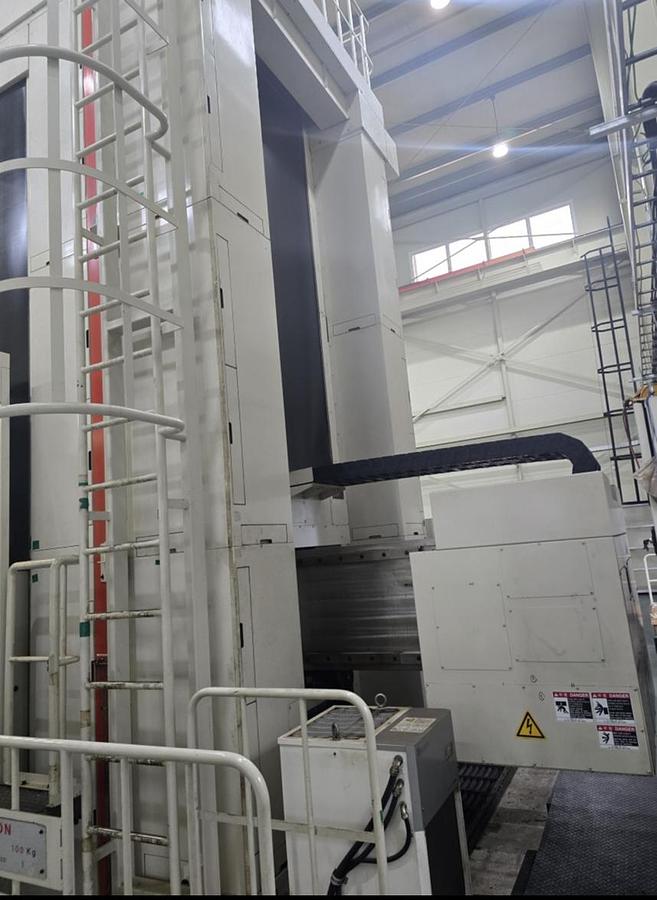

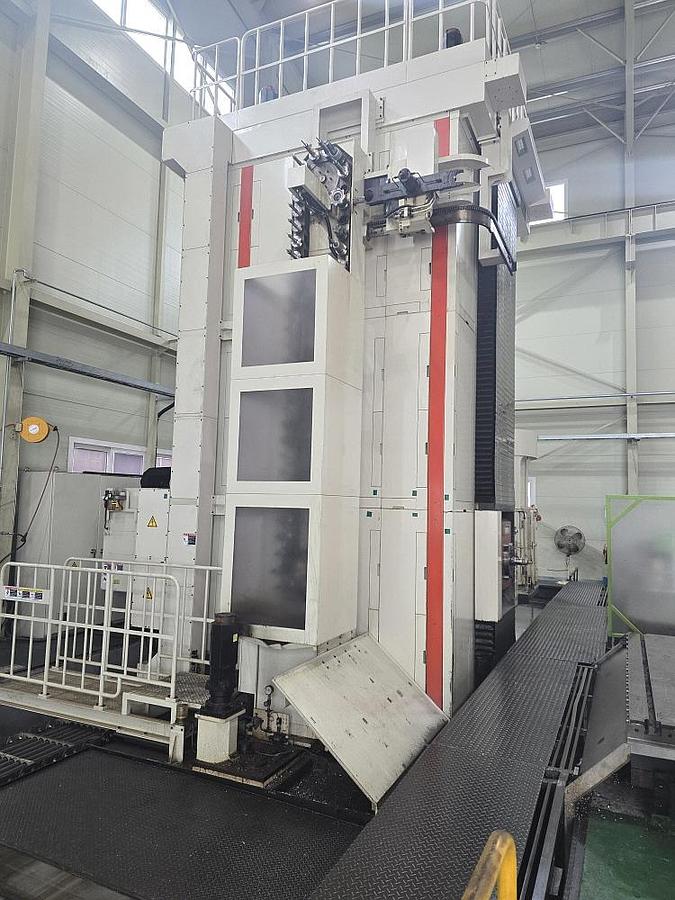

SNK BFR 3500 CNC Ram/Floor Type Horizontal Boring Machine
SNK BFR 3500 CNC Ram/Floor Type Horizontal Boring Machine
or
Call 770-509-0744
Description

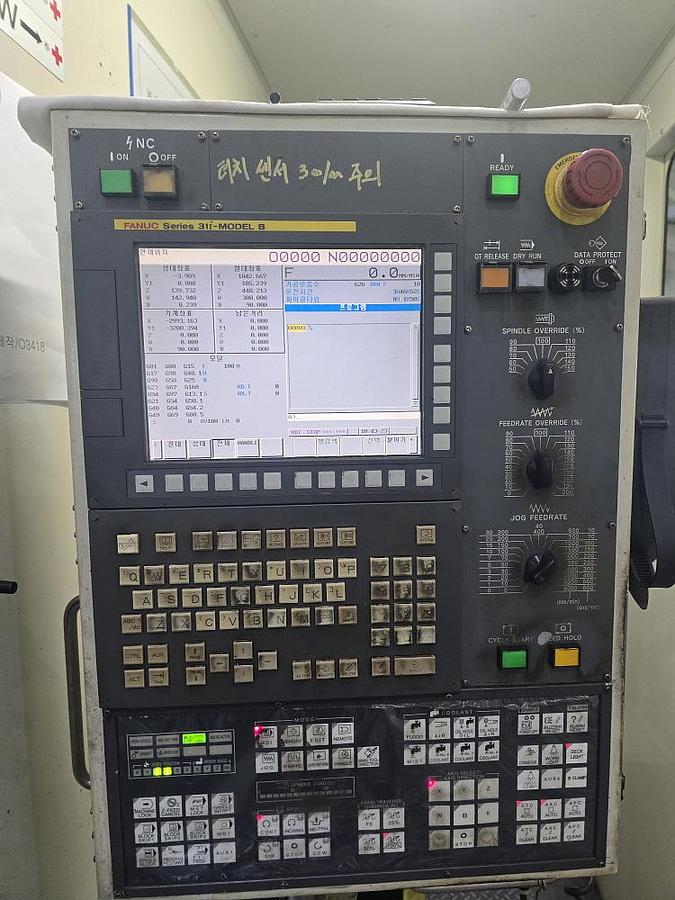

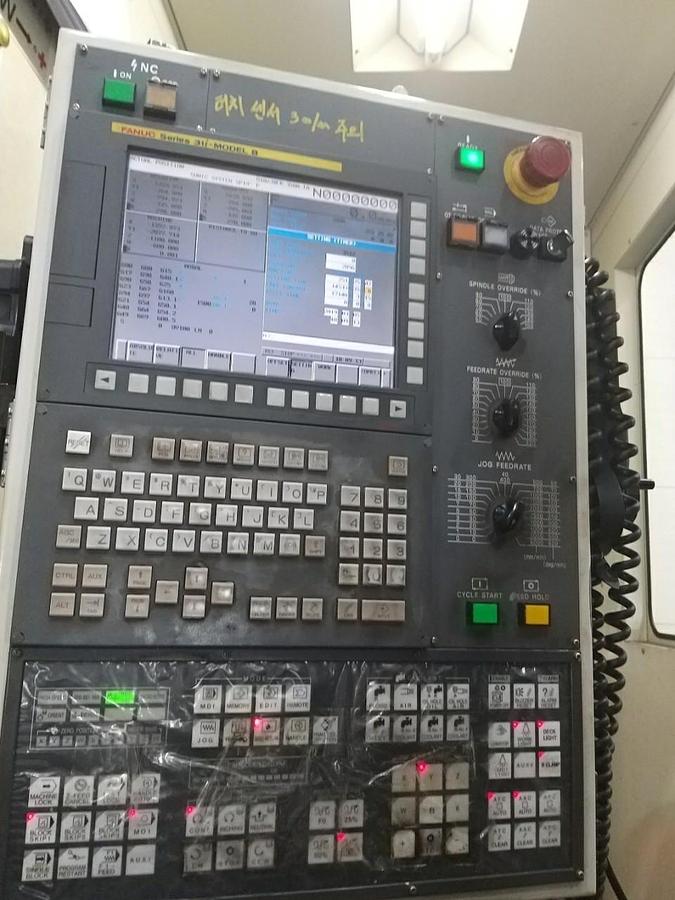

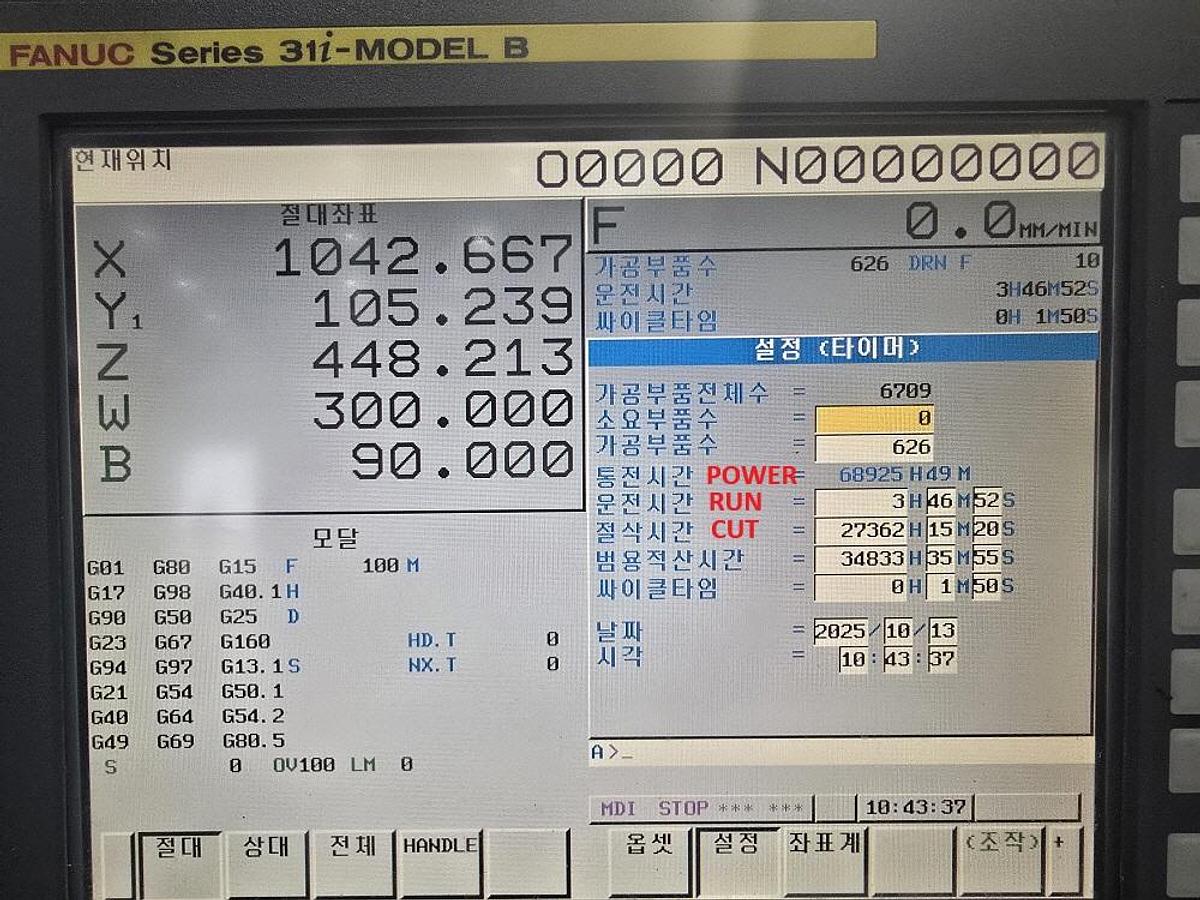

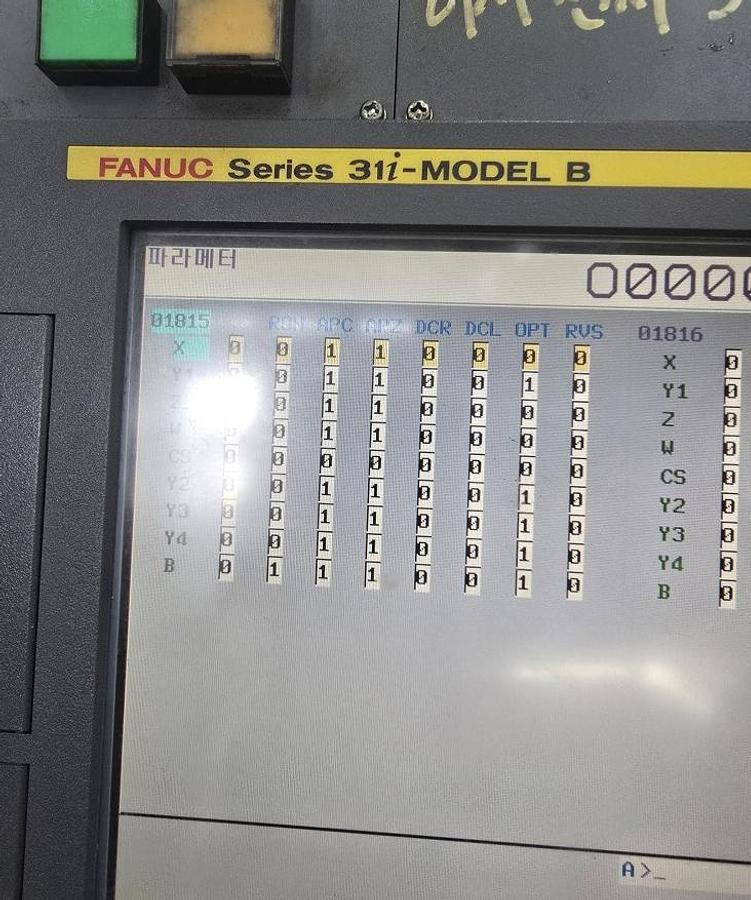

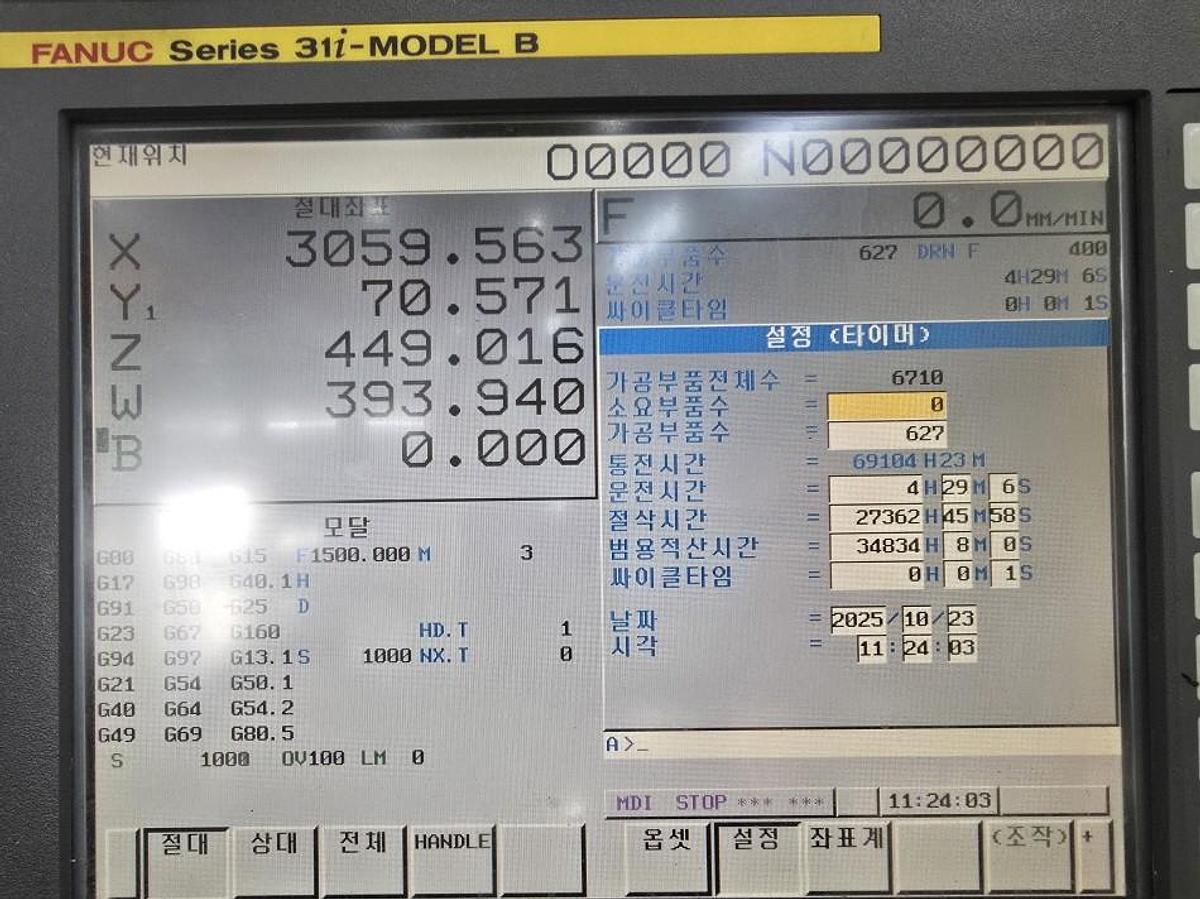

Fanuc 31iMB CNC Control

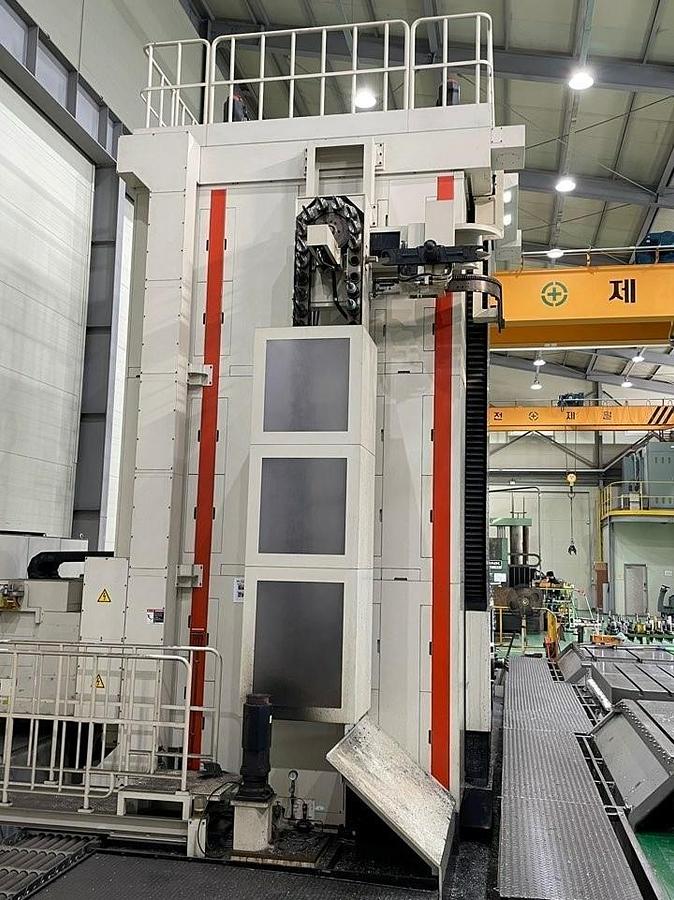

60 Position Automatic Tool Changer

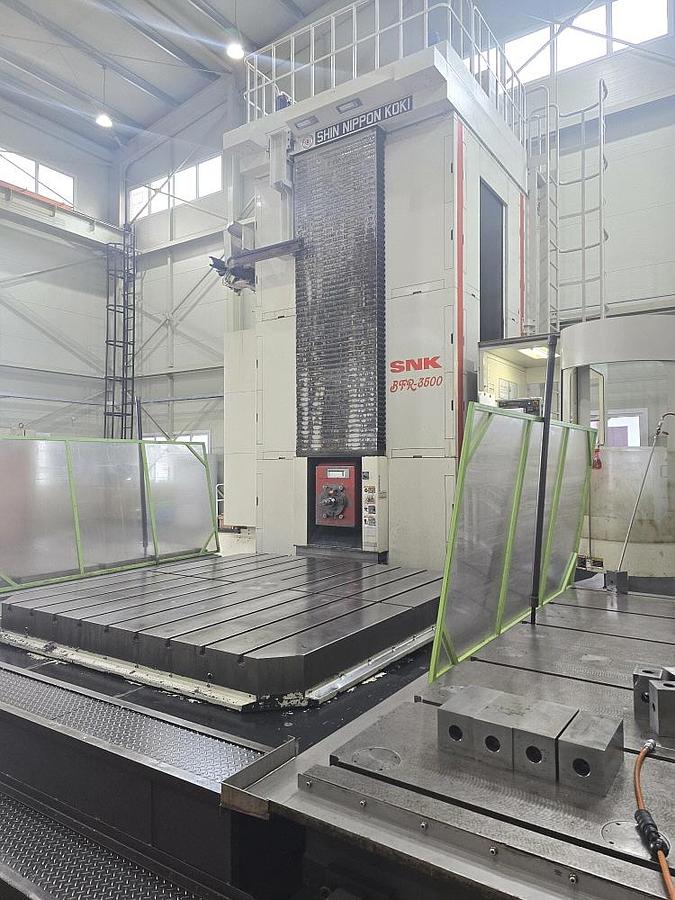

CNC Rotary Table
2,500 x 2,500mm
30 Ton Capacity
Floor plates
2 set
2,398 x 3,196 mm

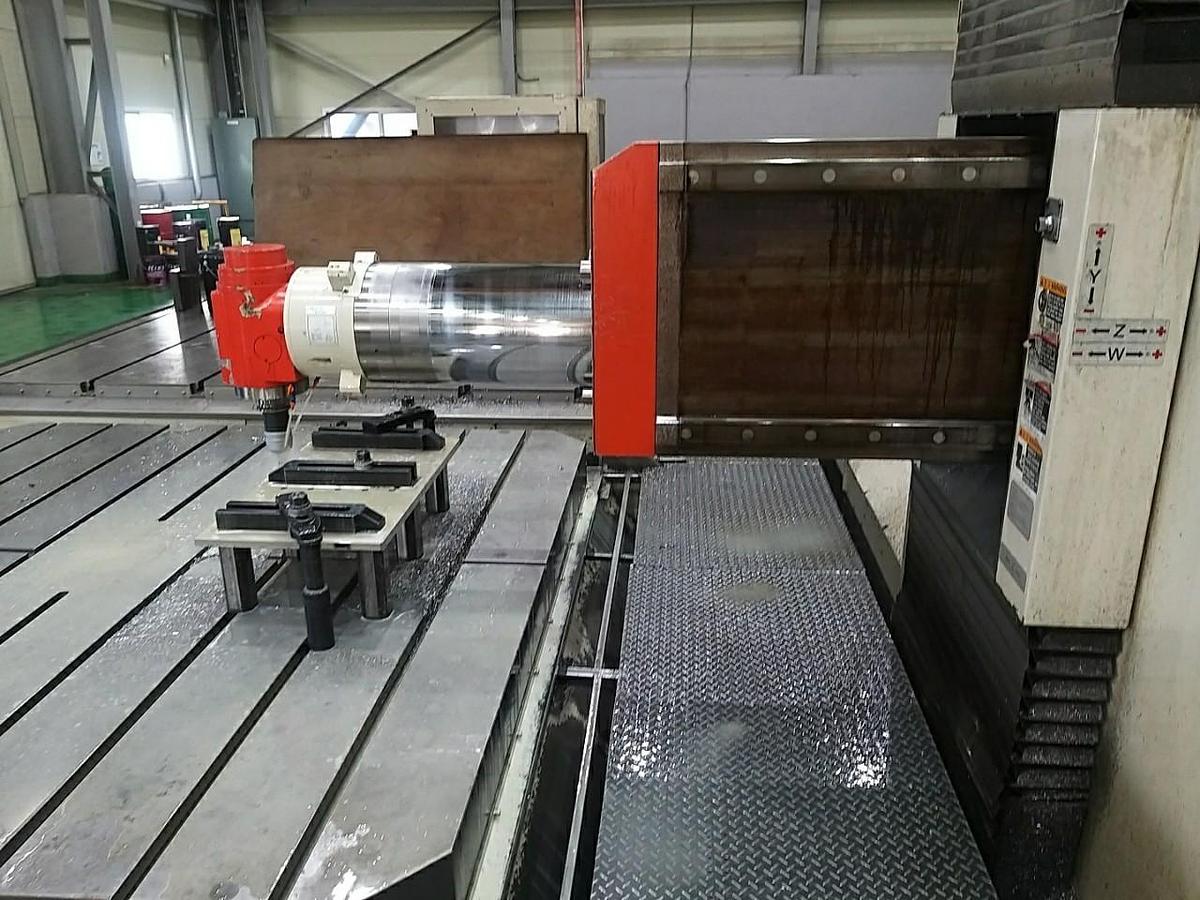

90-degree Angle Head
Quill Mounted Type
Both ATC & AAC are possible

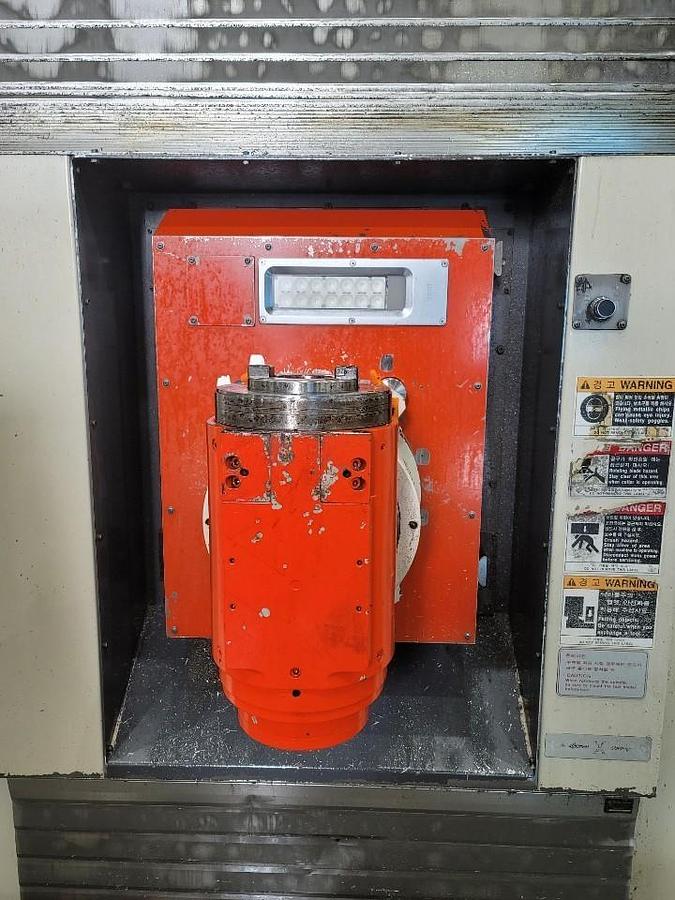

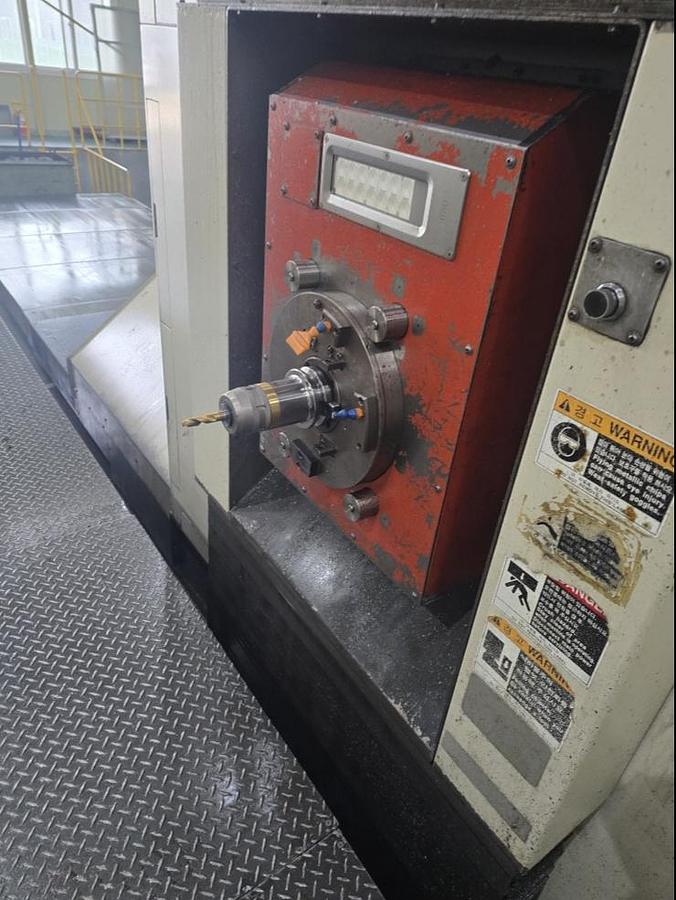

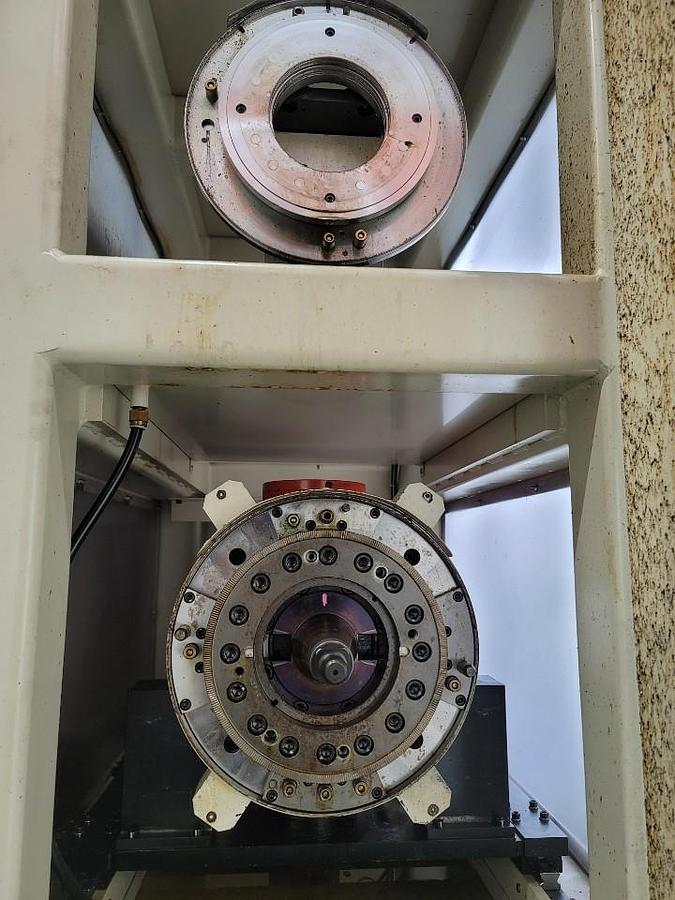

Automatic Attachment Changer
Chip Conveyor
Cutting Oil Tank 1,000 L
B Axis Scale Feedback System
Special BFR Software for Attachment
Specifications
| Manufacturer | SNK |
| Model | BFR 3500 |
| Year | 2014 |
| Condition | Used |
| Stock Number | 5654244 |
| Spindle speeds | 60 - 6,000 rpm |
| X axis travel | 8,000 mm + AAC |
| Y axis travel | 3,500 mm |
| Z axis travel | 1,100 mm |
| W axis travel | 600 mm |
| Spindle inner diameter | 90 mm |

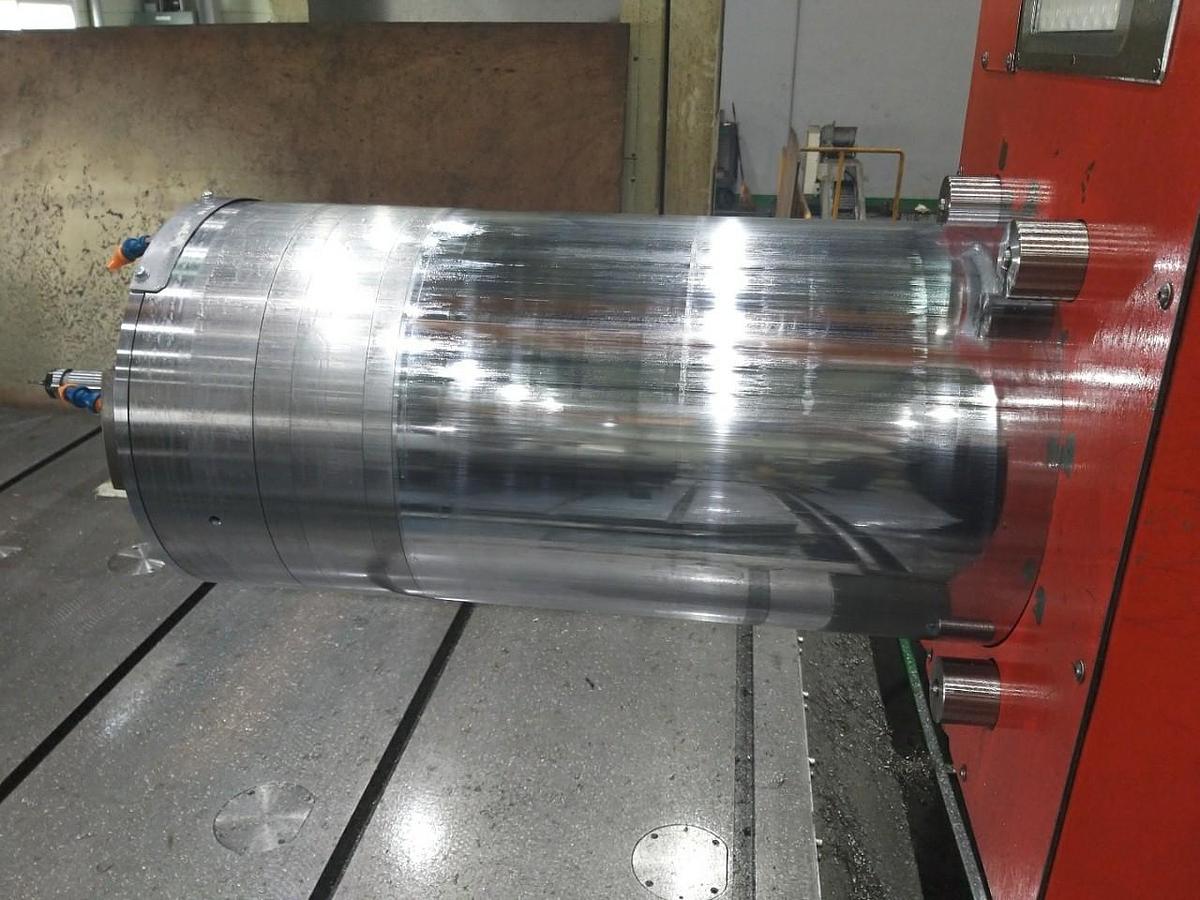

| Spindle head quill diameter | 330 mm |

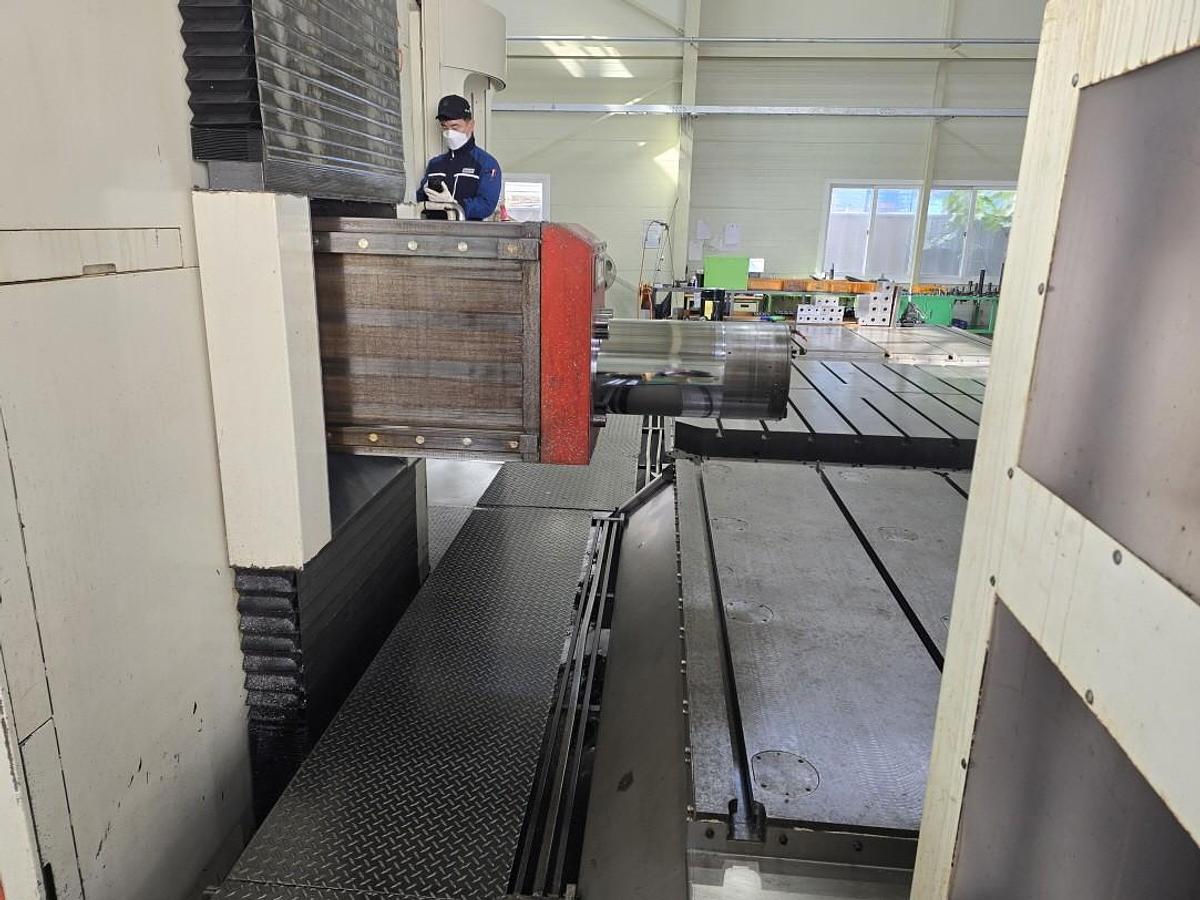

| Ram size | 550 x 750 mm |
| Spindle taper | ISO 50 |
| Main motor | 60 / 75 kW |
| Rotary table dimensions | 2,500 x 2,500 mm |
| Rotary table capacity | 30 Ton |
| Rapid feed X | 10 m/min |
| Cutting feed X | 1 - 6,000 mm/min |
| Rapid feed Y/Z/W | 8 m/min |
| Cutting feed Y/Z/W | 1 - 6,000 mm/min |
