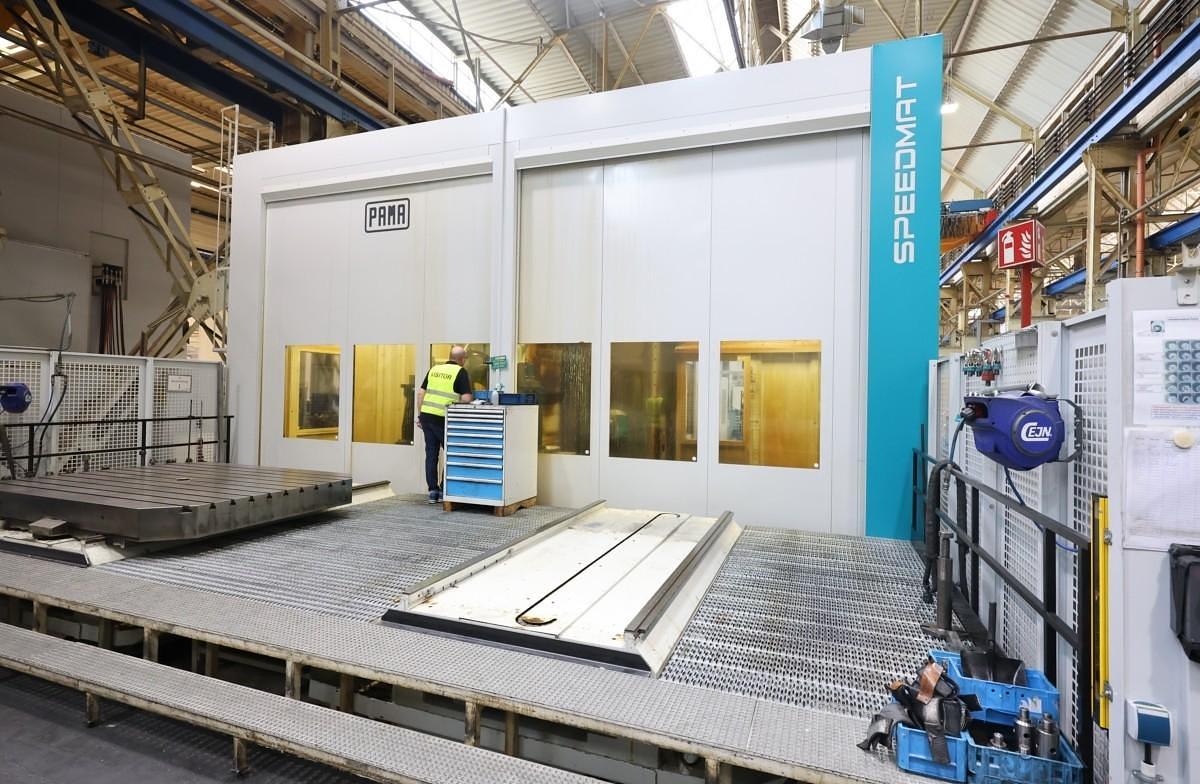

Pama Speedmat 4/TR 25 CNC Universal Machining Center with Twin Pallet Changer
Pama Speedmat 4/TR 25 CNC Universal Machining Center with Twin Pallet Changer
Description

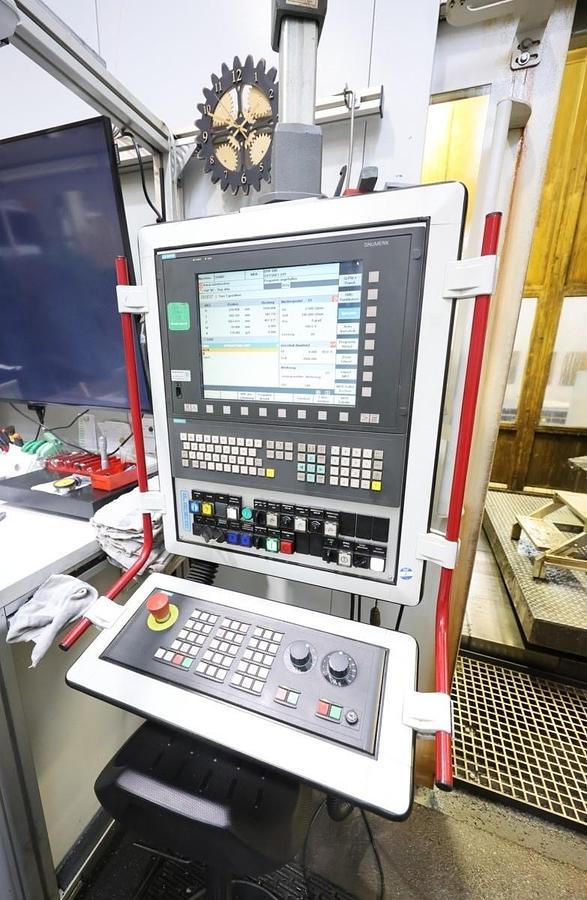

Siemens Sinumerik 840D CNC Control

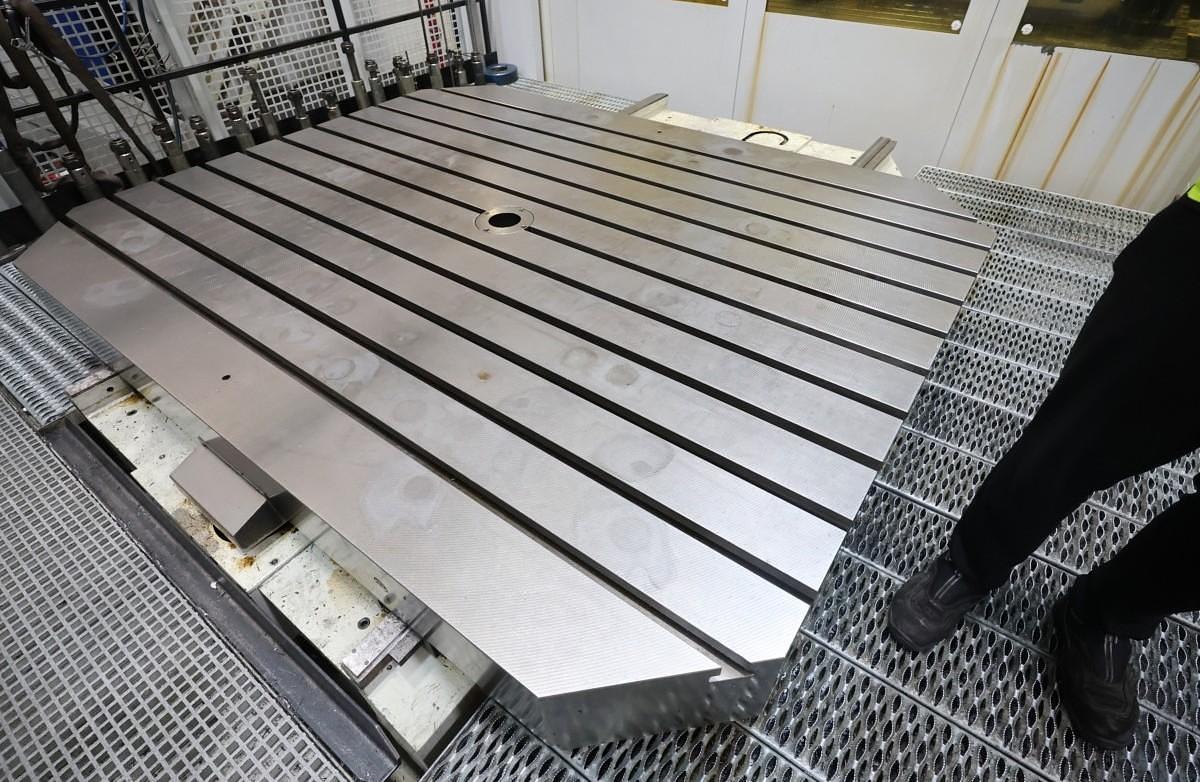

Work table
Clamping surface 2500 x 2000 mm
Table height above floor 800 mm
Feed speed
x-axis 0.5 to 10000 mm/min
y-axis 0.5 to 10000 mm/min
Z-axis 0.5 to 10,000 mm/min
Rapid traverse (X/Y/Z) 25 / 25 / 25 m/min
Max. feed force (X/Y/Z) 28,000 / 27,000 / 28,000 N
Spindle speeds
Gear stage 1: 6 to 848 rpm
Gear stage 2: 850 to 3000 rpm
Tool magazine:
306 slots divided as follows:
Number of slots max. length 700 mm: 54
Number of slots max. length 450 mm: 54
Number of slots max. length 300 mm: 63
Number of slots max. length 200 mm: 135
Tool weight max. 35 kg
Tool diameter with free auxiliary slots max. 325 mm
Tool diameter without free secondary spaces max. 105 mm
Accessories
Approx. 30 nos. SK 50 tool holders
1 measuring probe

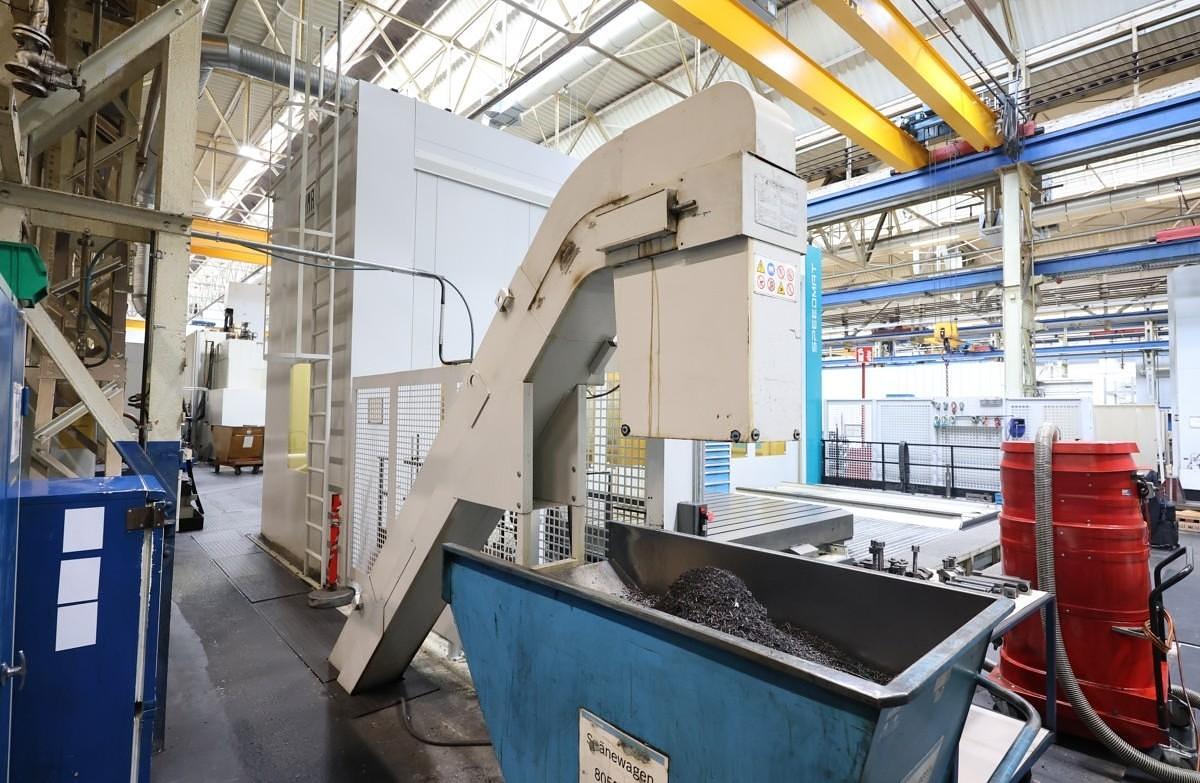

Coolant system/paper belt filter & chip conveyor
Cooler
Oil mist extraction
Documentation
Specifications
| Manufacturer | Pama |
| Model | Speedmat 4/TR 25 |
| Year | 2007 |
| Condition | Used |
| Stock Number | 5654239 |
| Spindle diameter | 160 mm |
| Spindle speeds | 3,000 rpm |
| X axis travel | 4,000 mm |
| Y axis travel | 3,000 mm |
| Z axis travel | 2,200 mm |
| Quill stroke | 800 mm |
| Max workpiece weight | 20,000 kg |
| Tool taper | ISO 50 BIG PLUS DIN 69871 |
| Max torque at spindle | 2,346 |
| Total power requirement | 65 kW |
| Machine dimensions | 12.8 x 11.8 x 5.7 m |
