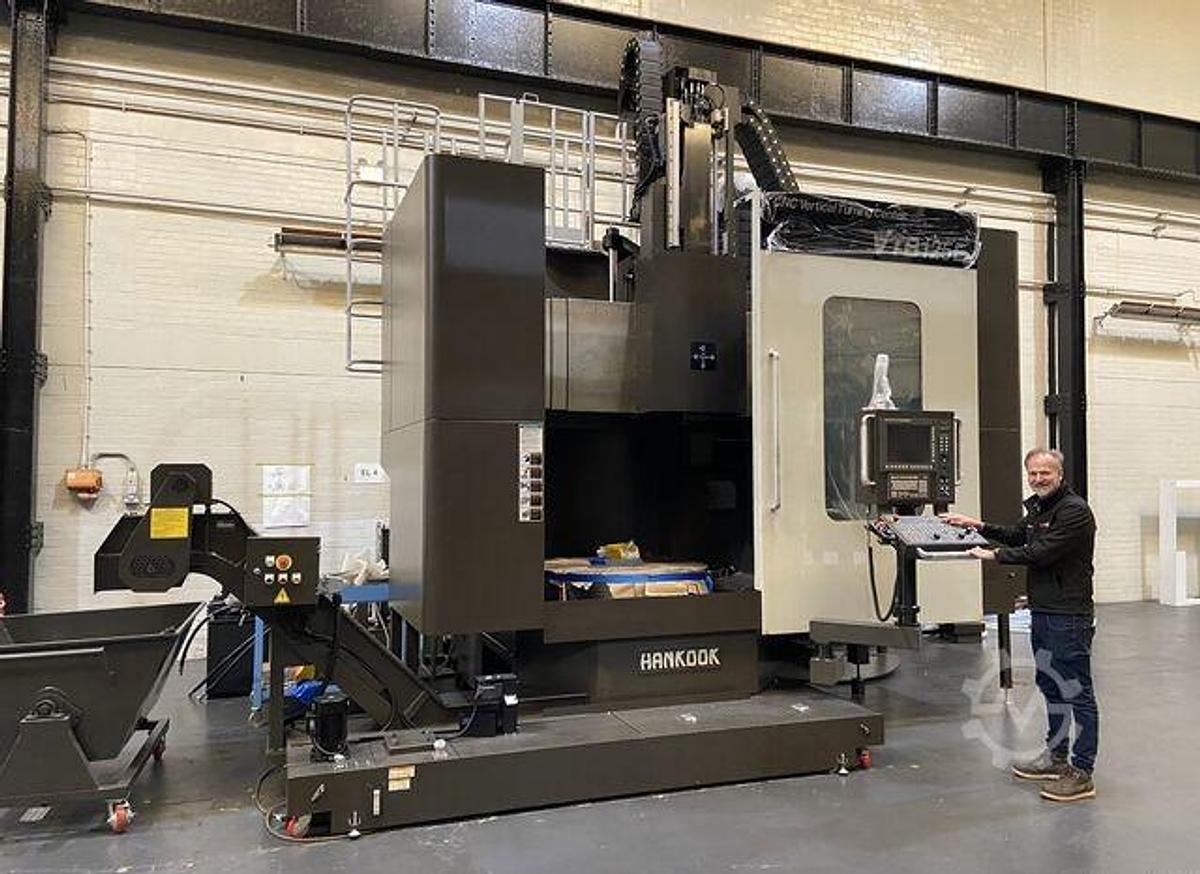

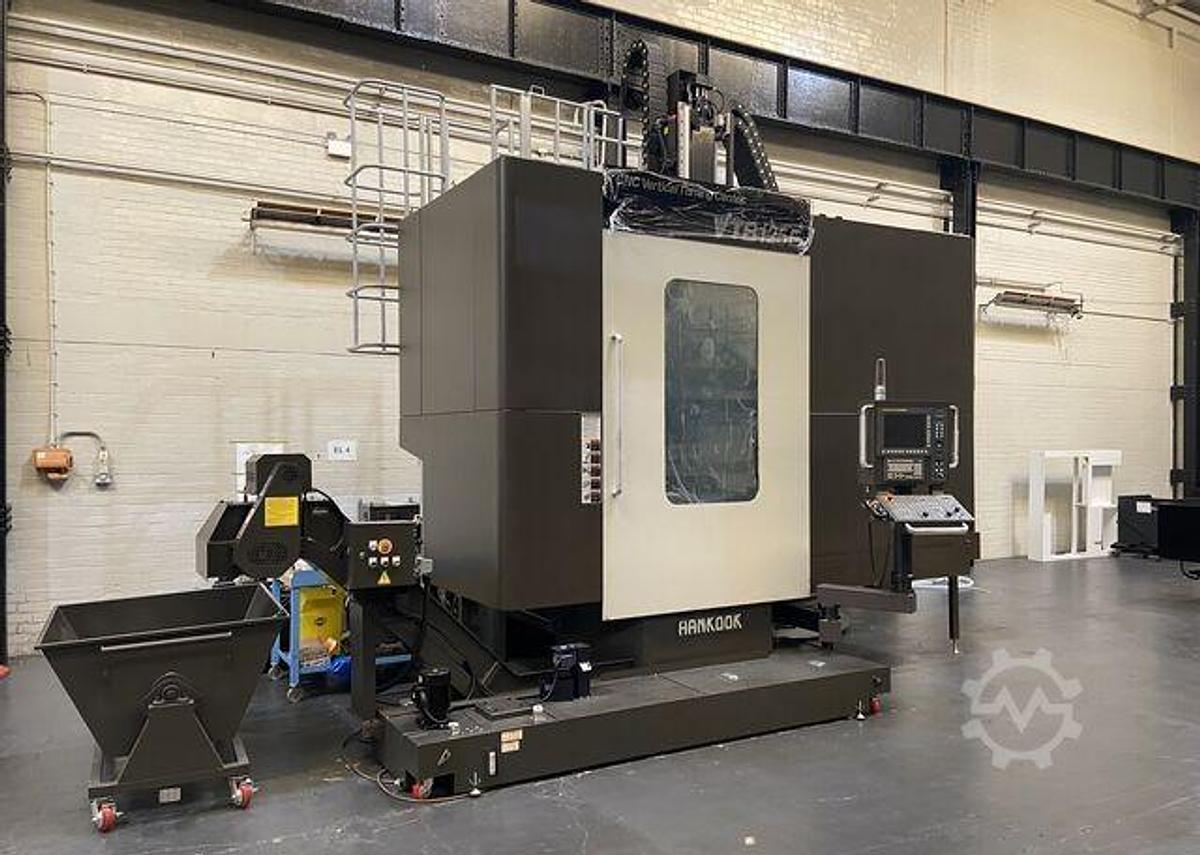

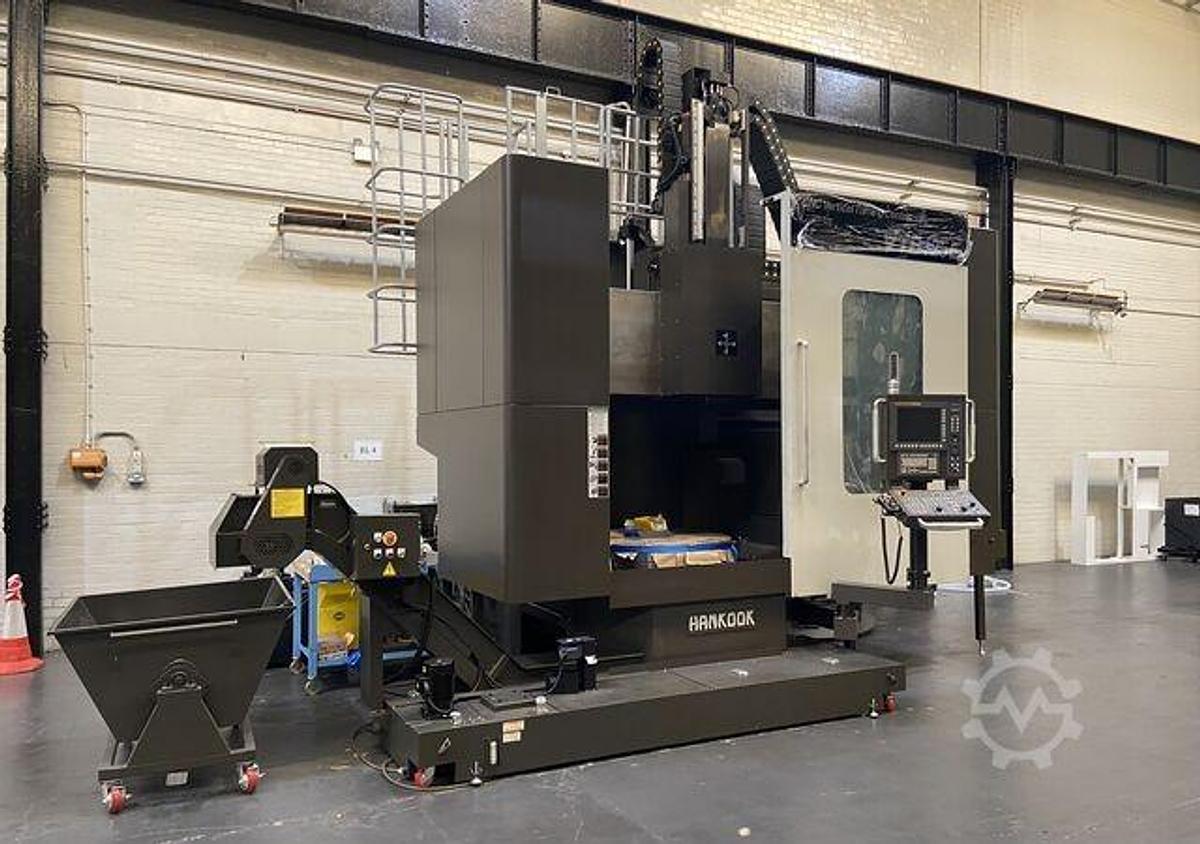

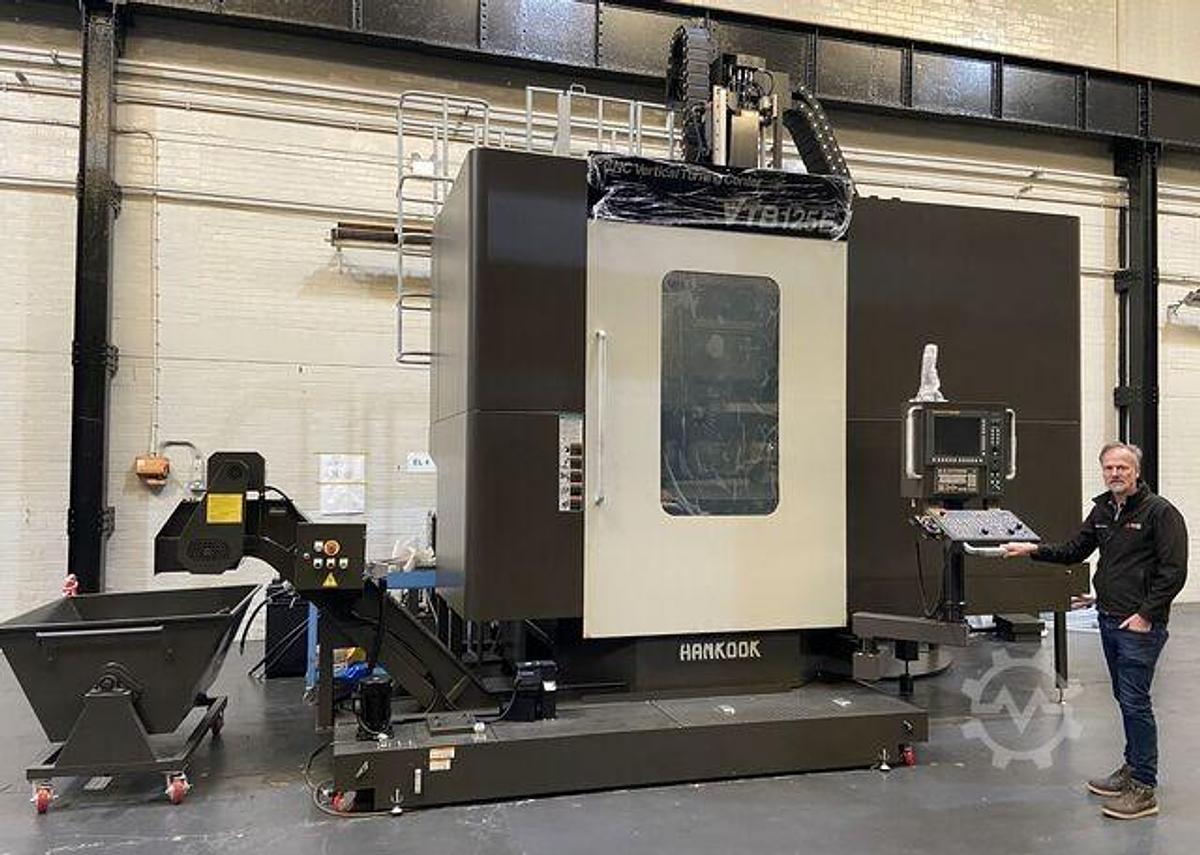

2018 Hankook VTB 125E
2018 Hankook VTB 125E
or
Call 770-509-0744
Description
FANUC 32I CNC Control
12 Position Automatic Tool Changer - MAS BT 50
Table, Servo Drives And Motors
4 Jaw Independent Chuck
Automatic Tool Change System
Lubrication Oil Cooler
Hydraulic Power Unit
Automatic Lubrication System for Guides
Coolant System & Wash Gun
Through Tool Coolant
Splash Guard & Safety Guard Rail
X-Axis Slideway Protect Steel Cover
Work Light
Patrol Lamp (Red, Yellow & Green)
NC Power Off
Chip Pan
Specifications
| Manufacturer | Hankook |
| Model | VTB 125E |
| Year | 2018 |
| Condition | Used |
| Stock Number | 5654226 |
| Table diameter | 1,250 mm |
| Swing | 1,600 mm |
| Turning height | 1,400 mm |
| Table capacity | 8,000 kg |
| Table turn speed | 0.9 - 360 rpm (Auto 2-step) |
| Z axis travel | 900 mm |
| X axis travel | 1,060 mm |
| Ram size | 220 x 220 mm |
| W axis | 700 mm |
| Max torque | 17,885 Nm |
| Max cutting force | 3,000 kgf |
| Spindle taper | ISO 7/24 #50 |
| Rapid feed X/Z | 7,500 mm/min |
| Rapid feed W | 300 mm/min |
| Table motor (cont./30 min) | AC 37/45 kW |
| X/Z servo motor | 7 kW |
| Input power supply | 415V / 50 Hz / 3 Ph |
| Power capacity | 80 kVA |
| Machine dimensions | 6,760 x 4,565 x 5,290 mm |
| Machine weight | 25,800 kg |
