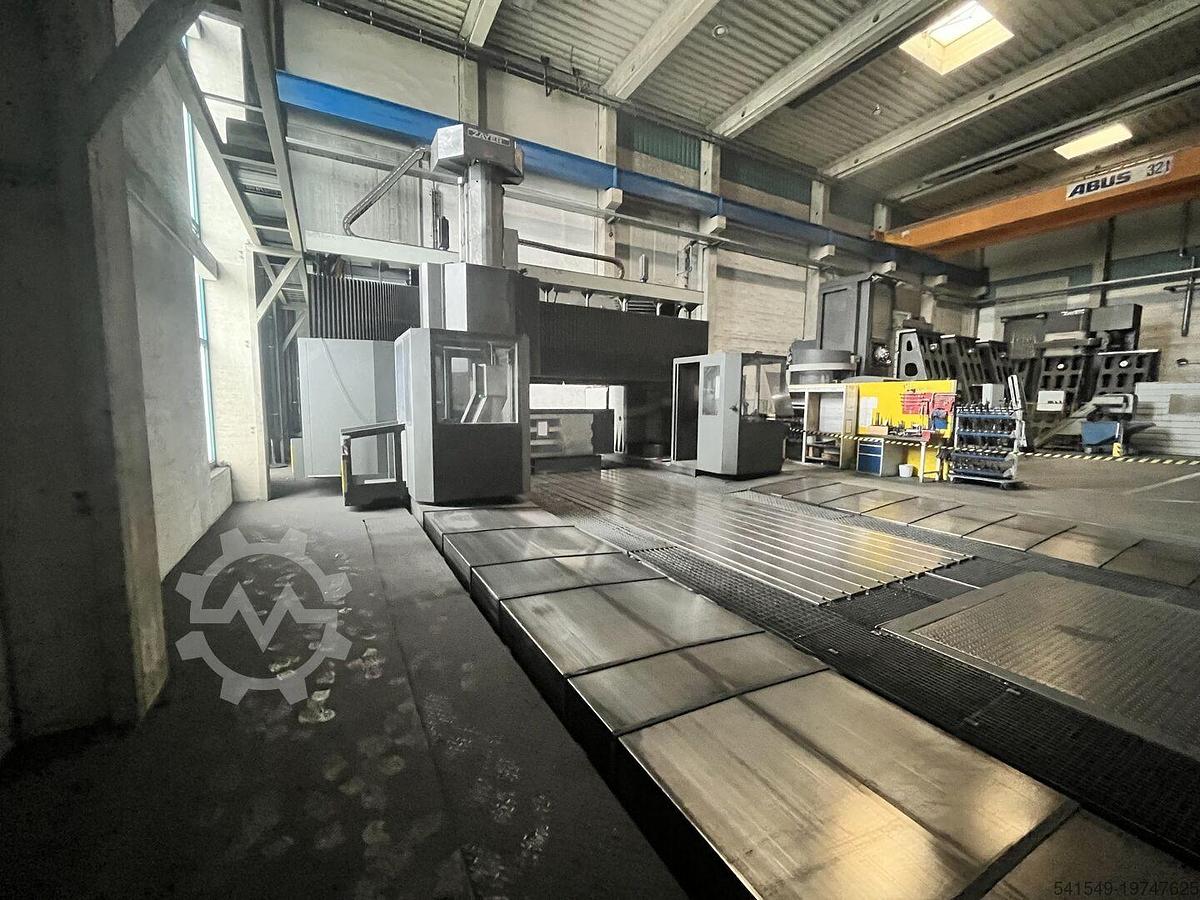

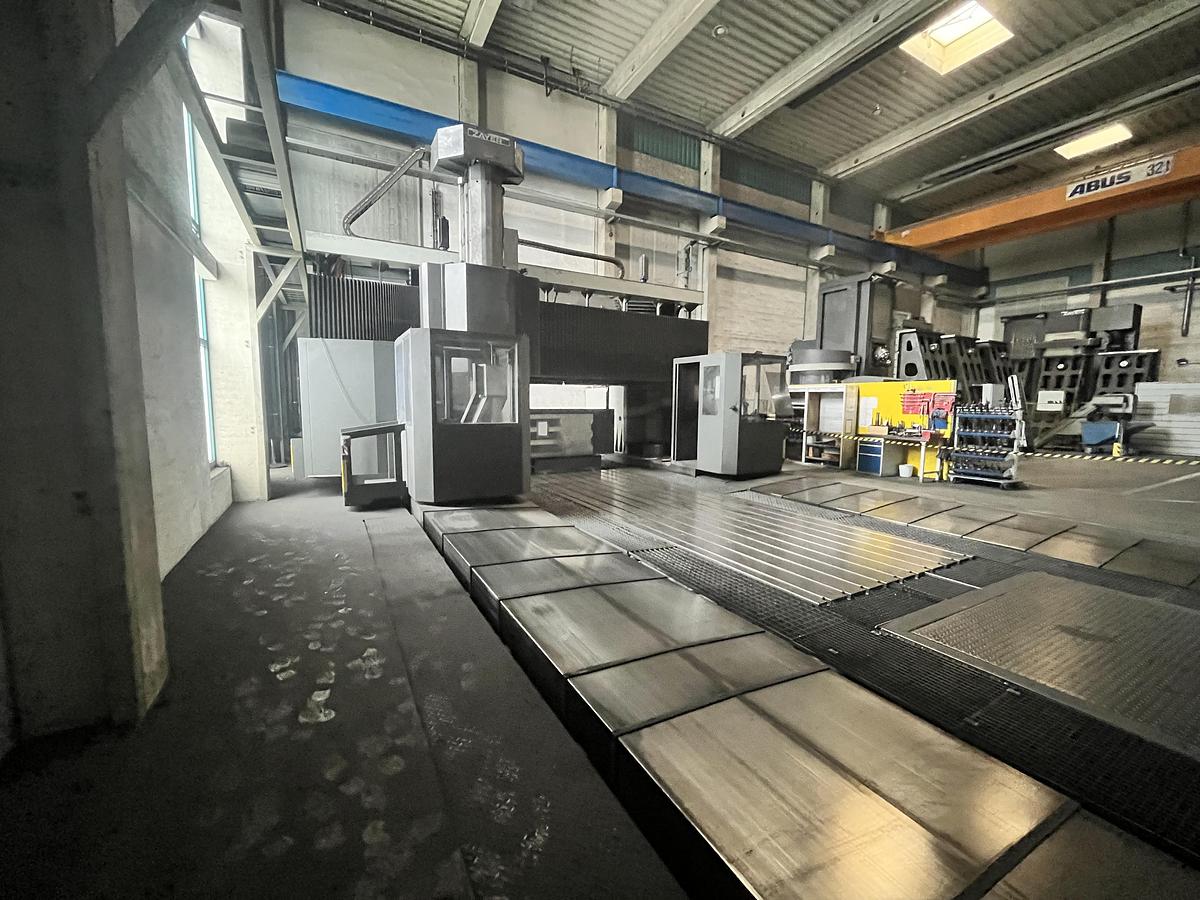

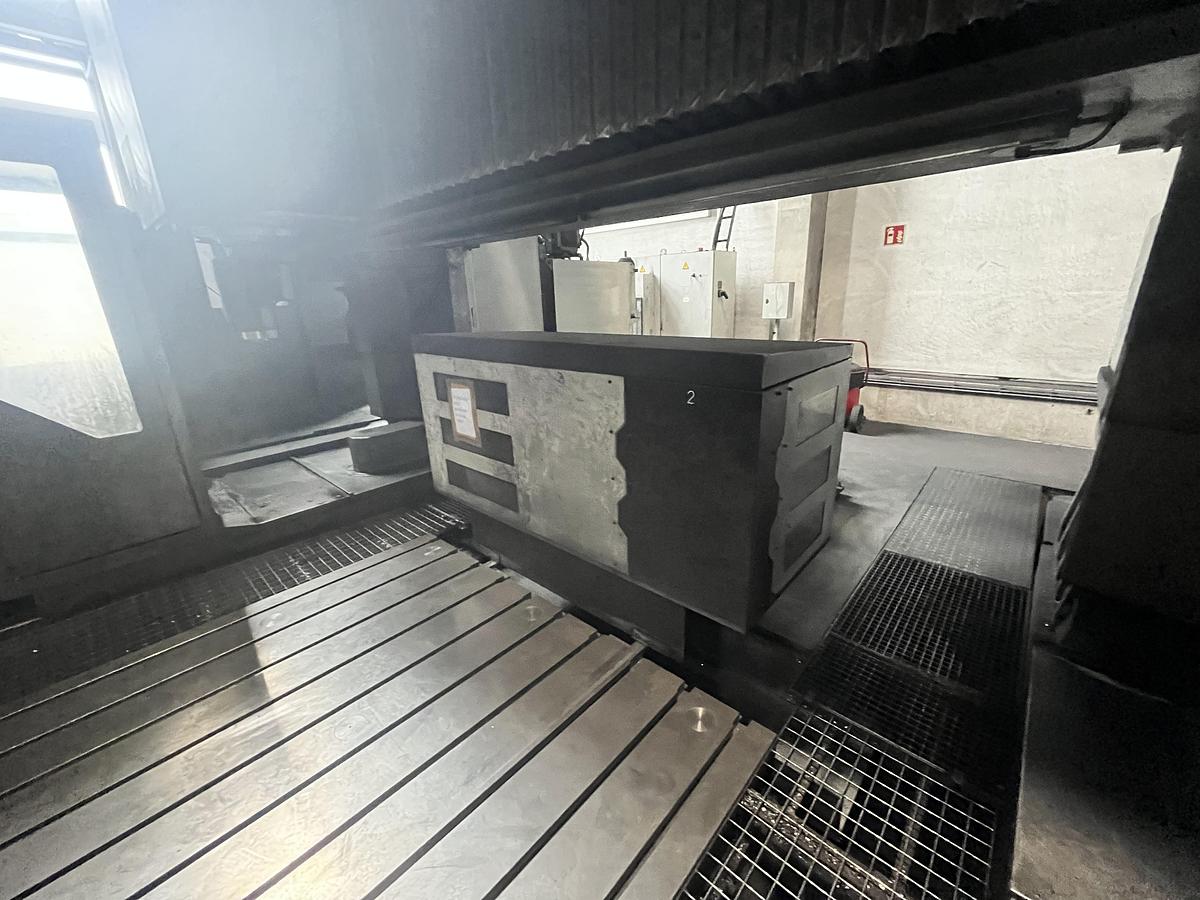

Zayer GMCU 6000-AR CNC Gantry Type Double Column Milling Machine
Zayer GMCU 6000-AR CNC Gantry Type Double Column Milling Machine
or
Call 770-509-0744
Description

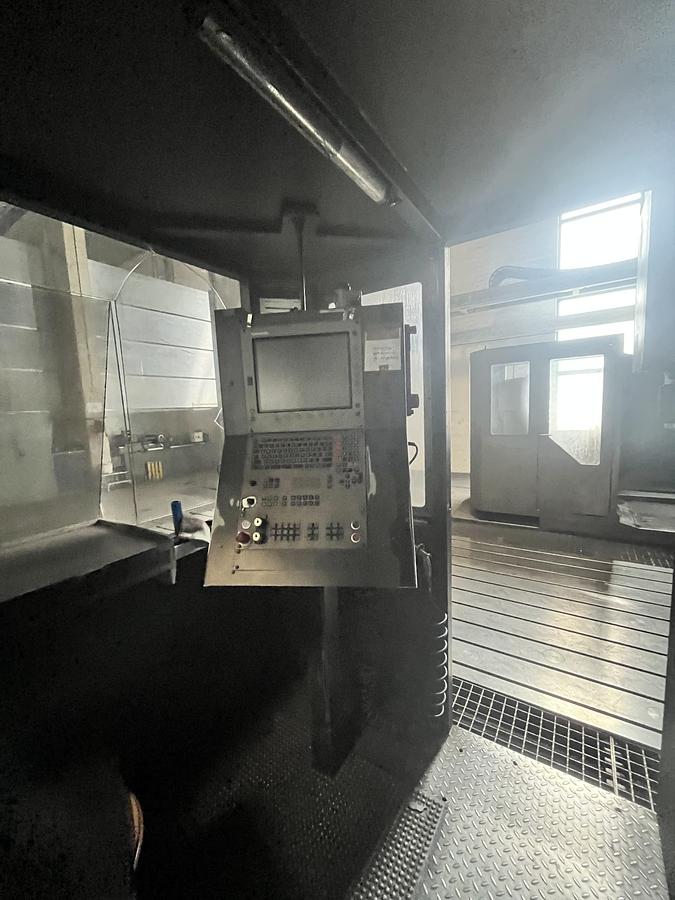

- HEIDENHAIN iTNC 530 CNC Control

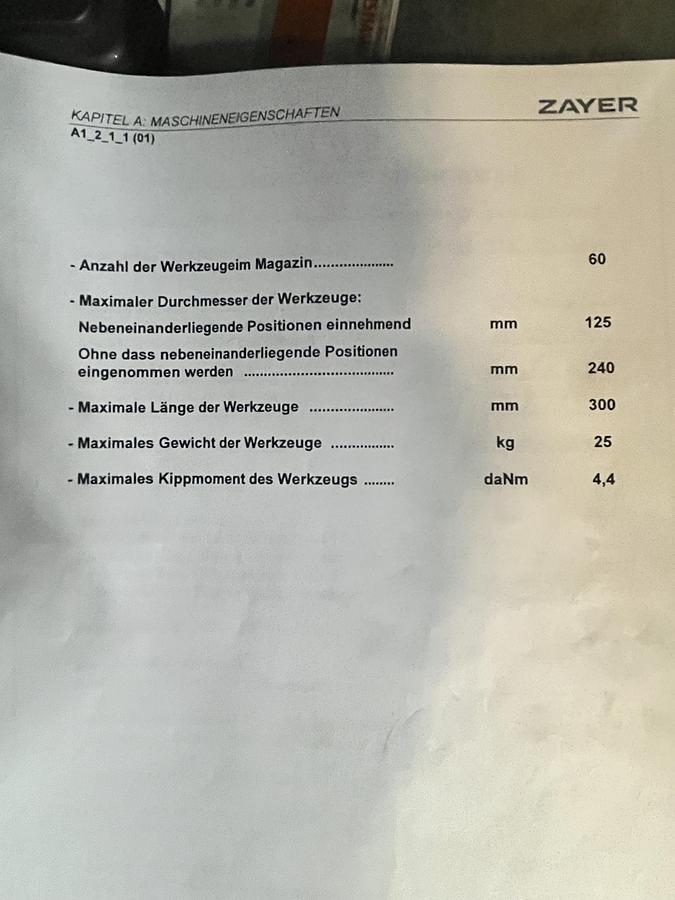

- 60 Position Automatic Tool Changer
- Chip Conveyor TECNIMETAL
- Coolant system

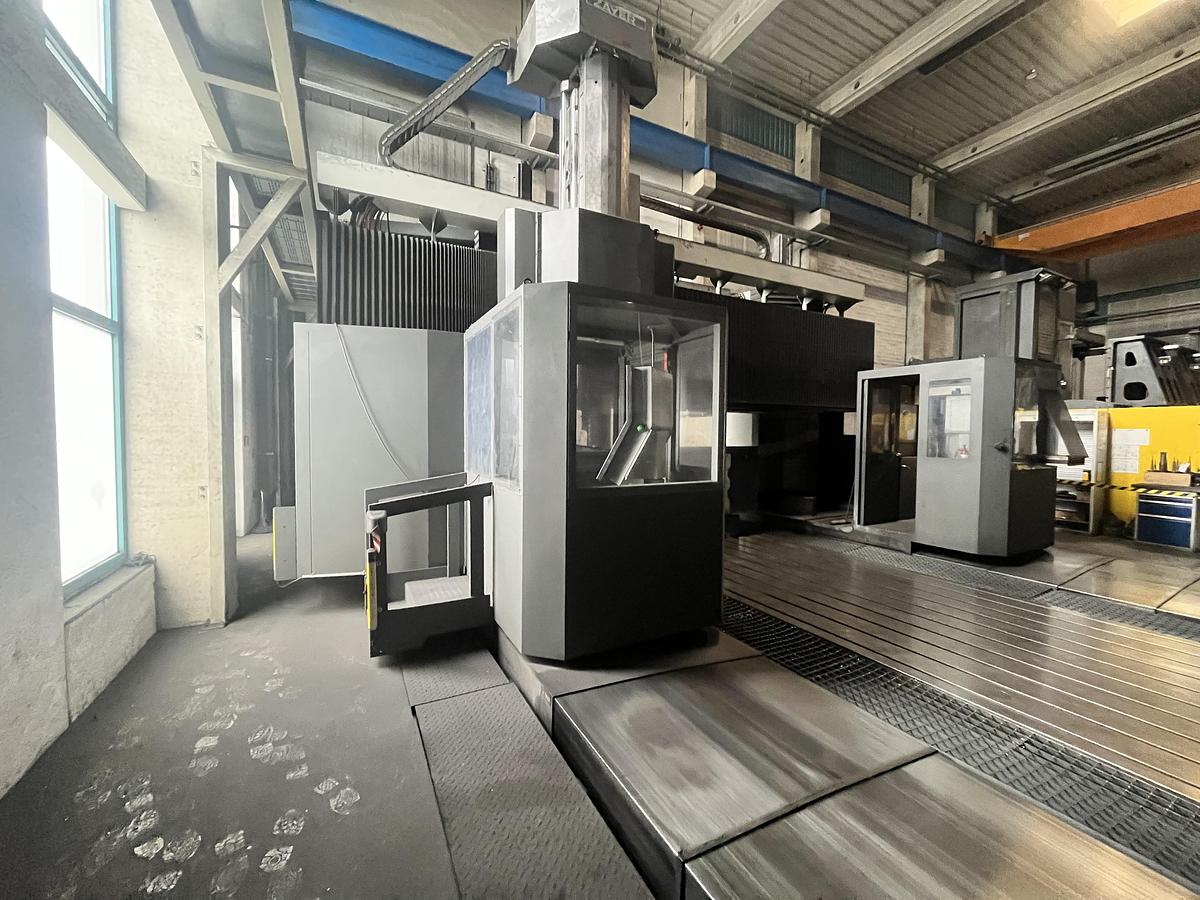

- Operator Control Cabin
- Safety Fence Barrier with photo electric barriers Lenze

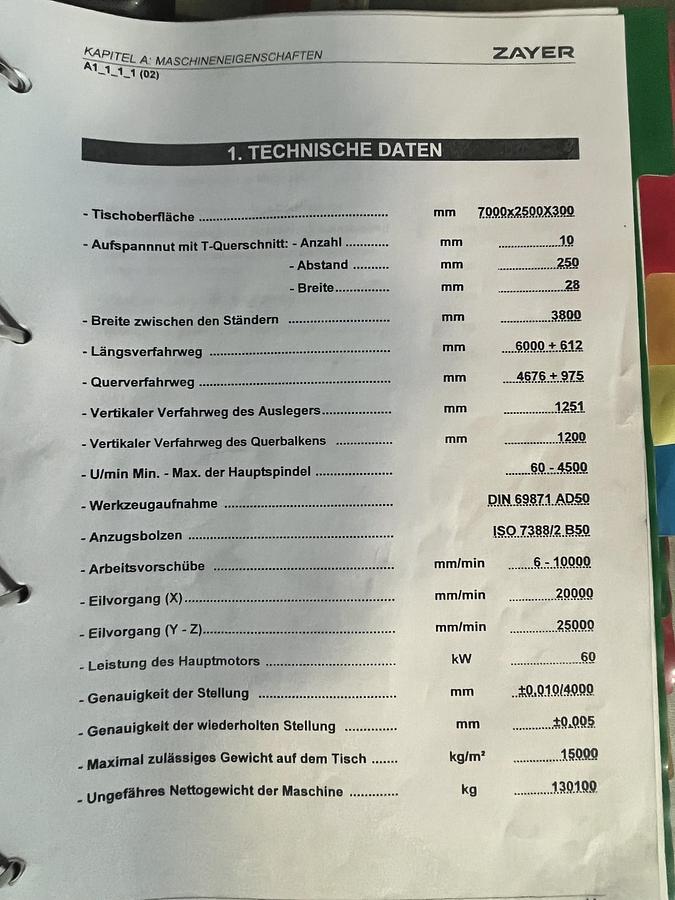

Specifications
| Manufacturer | Zayer |
| Model | GMCU 6000-AR |
| Year | 2014 |
| Condition | Used |
| Stock Number | 5654215 |
| Between columns | 3,800 mm |
| Spindle speeds | 4,500 rpm |
| X axis travel | 6,000 mm |
| Y axis travel | 4,676 mm |
| Z axis travel | 1,250 mm |
| W axis travel | 1,200 mm |
| Table dimensions | 7,000 x 2,500 x 300 mm |
| Table capacity | 15,000 kg/m² |
| Spindle power | 60 kW |
| Spindle taper | SK 50 |
| Feeds | 6 - 10,000 mm/min |
| Rapid feeds X | 20,000 mm/min |
| Rapid feed Y/Z | 25,000 mm/min |
