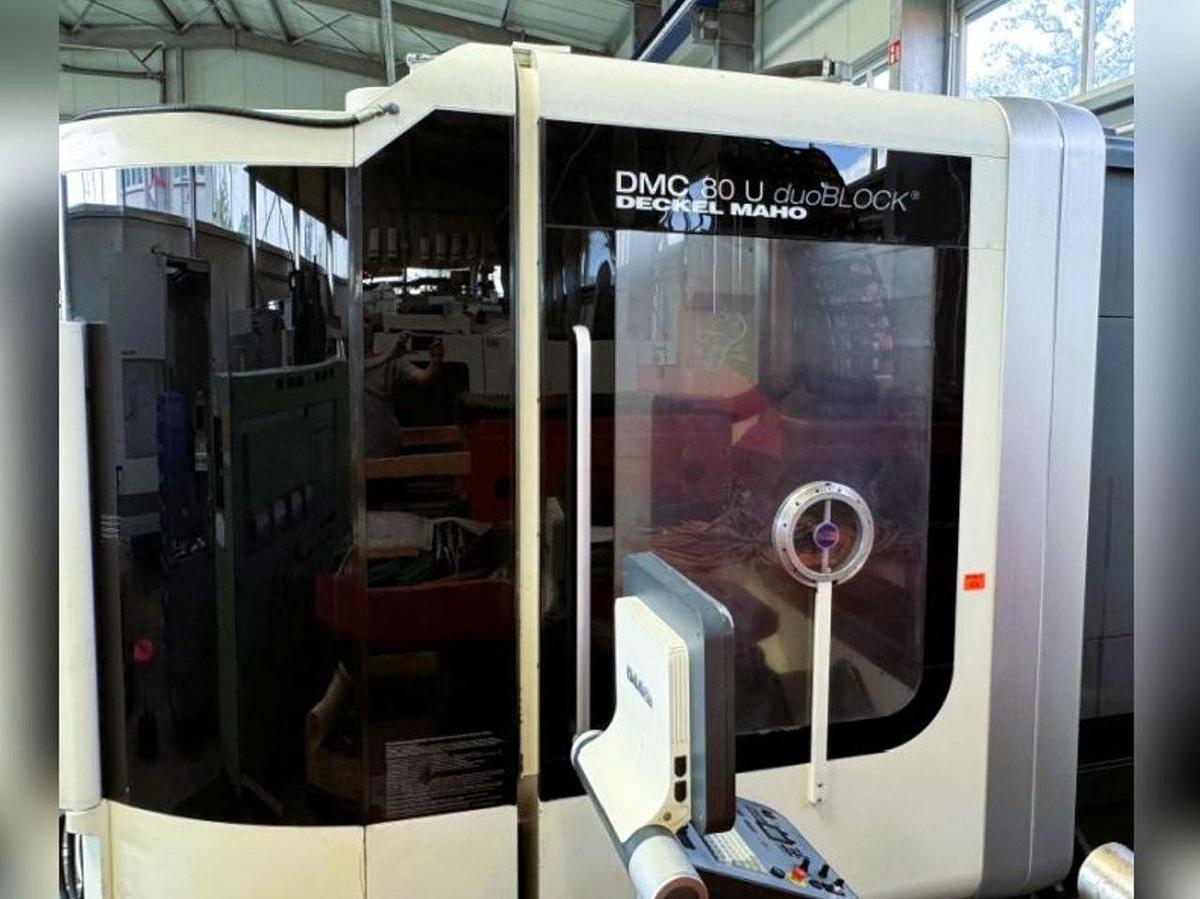

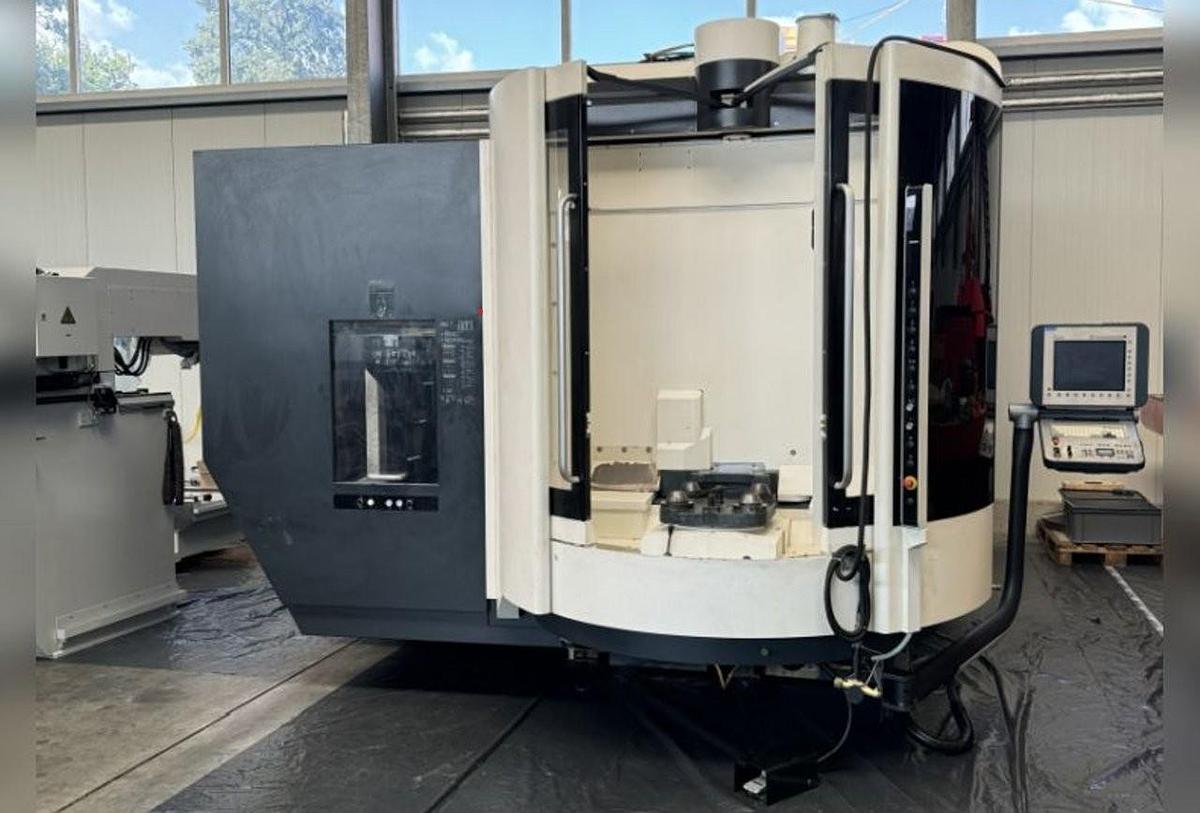

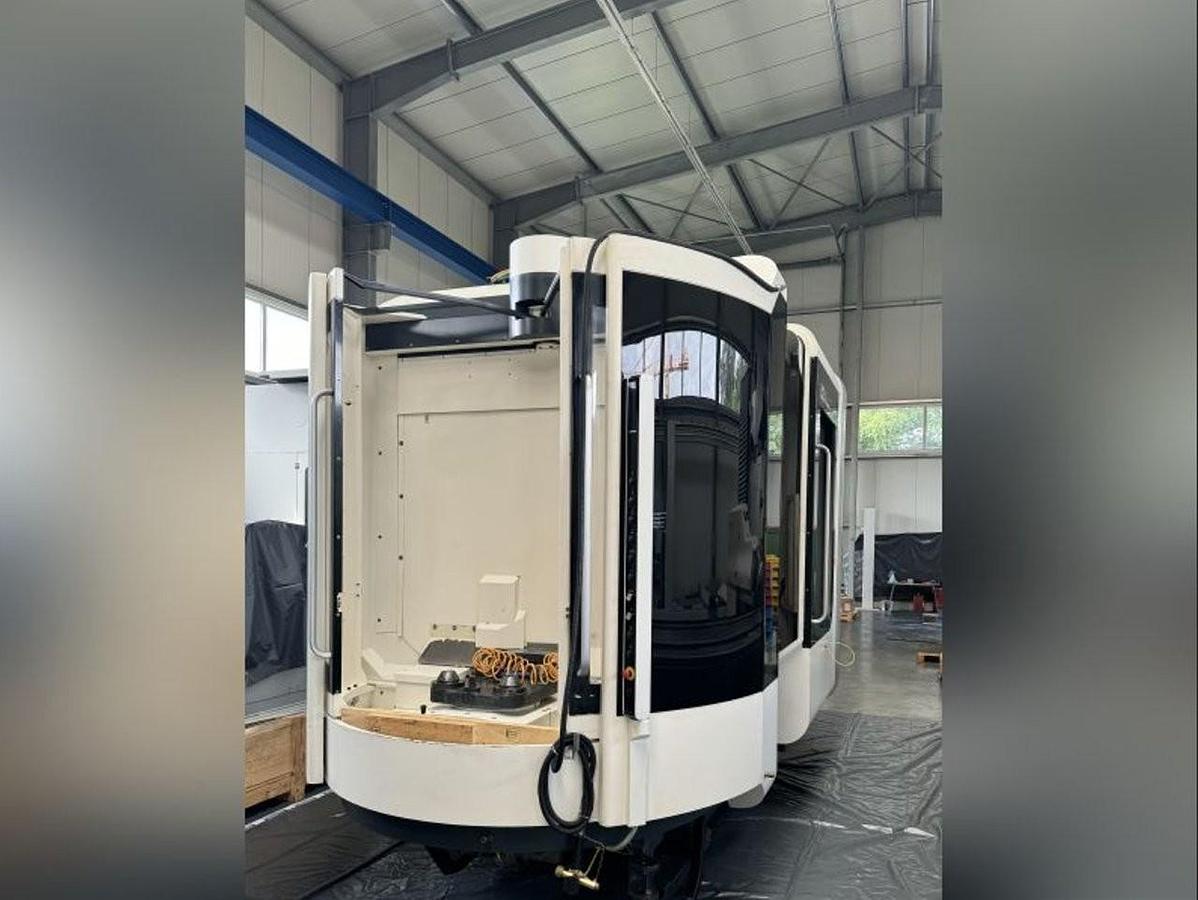

DECKEL MAHO - DMC 80U duoBlock 5 Axis Double Pallet Machining Center
DECKEL MAHO - DMC 80U duoBlock 5 Axis Double Pallet Machining Center
Available quantity:1
or
Call 770-509-0744
Description
This is a double pallet machine with very high accuracy and repeatability.
Featuring:

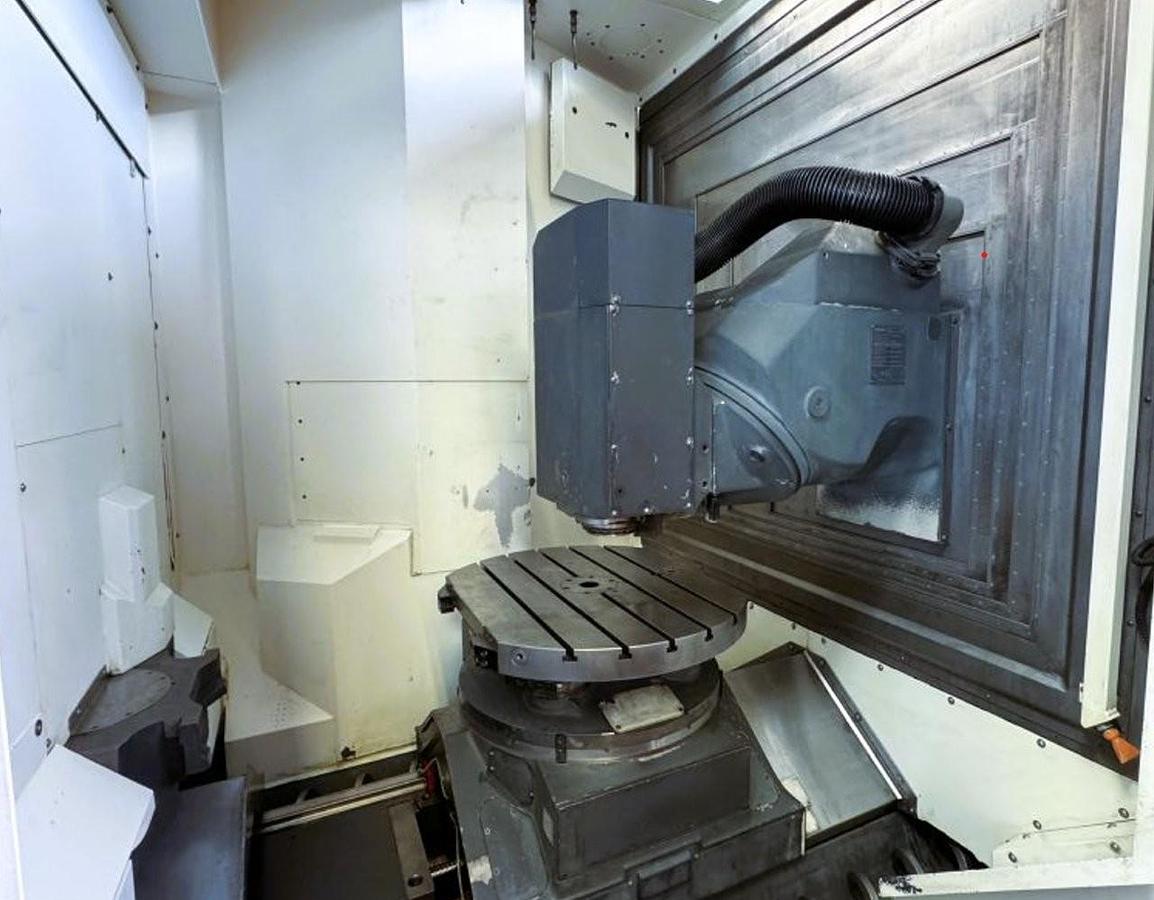

- Universal milling machine in a very solid "duoBlock" design with NC rotary table, tool magazine and pallet changer.

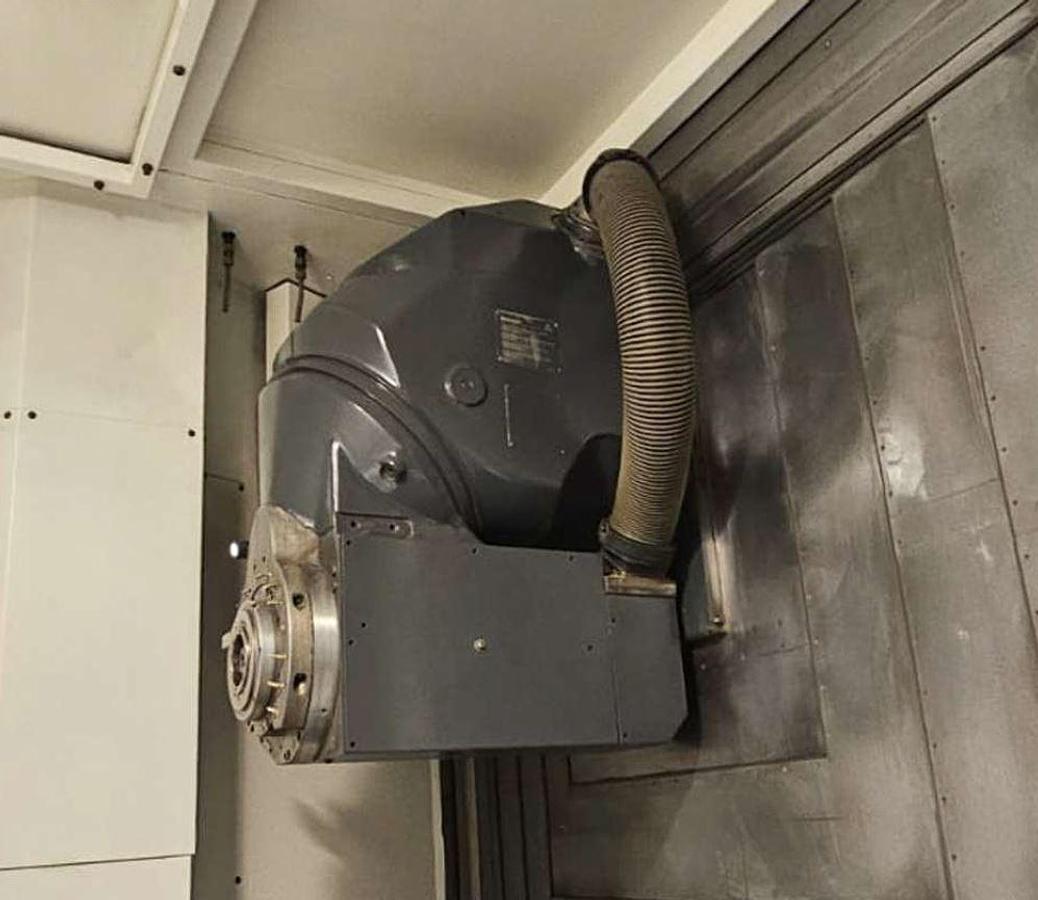

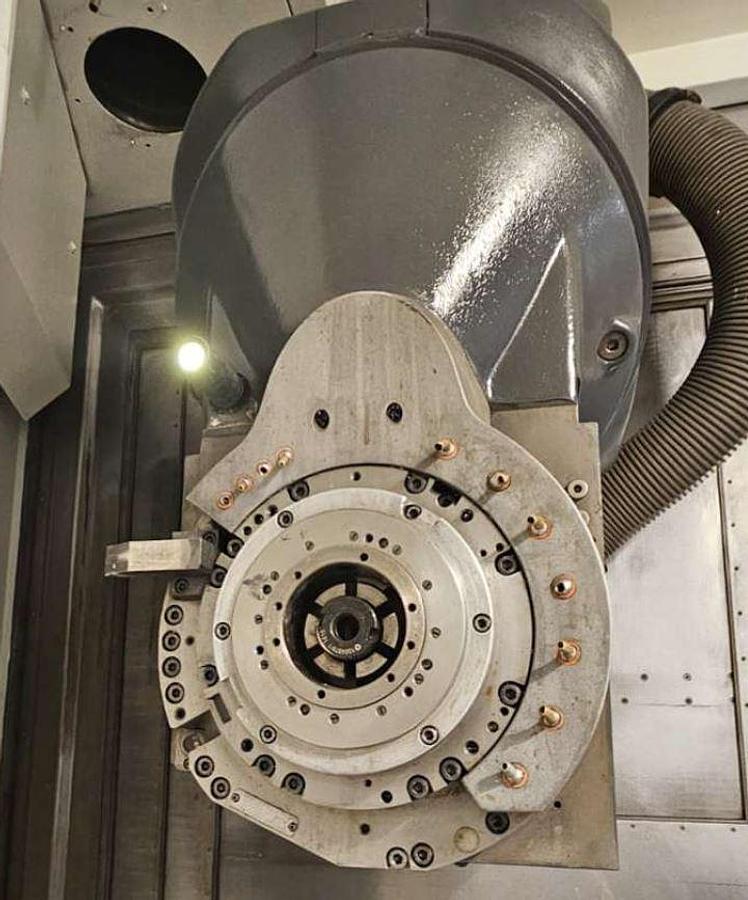

- NC-swiveling milling head with 18,000 rpm motor spindle for 5-axis simultaneous machining
- 3D CNC-control HEIDENHAIN Mill Plus iT
- Spindle cone HSK 63 with internal coolant supply (IKZ)
- Direct distance measuring system (glass scale in all three axes)
- Smart Key for operating mode 3
- Smart Key for operating mode 4

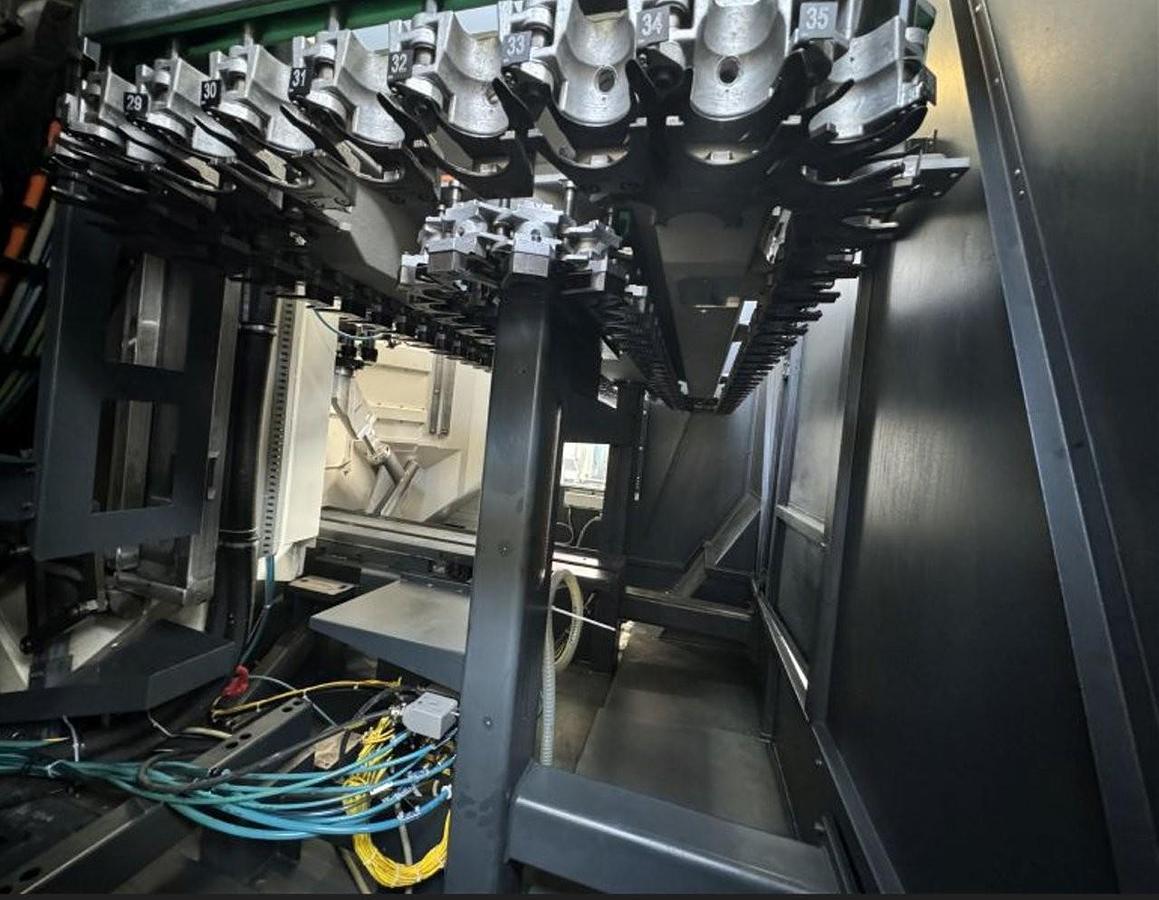

- 120-position tool magazine with automatic changer

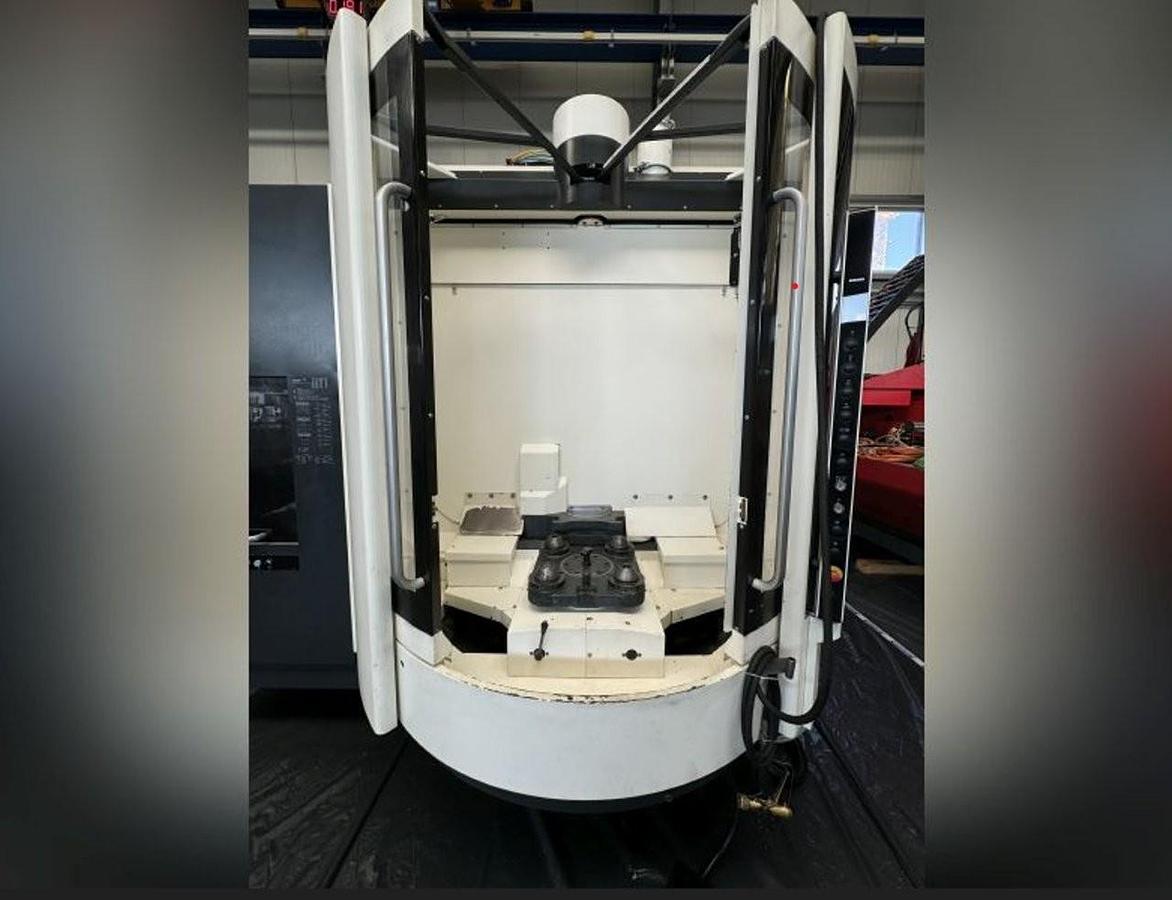

- 2 pcs. Exchangeable pallets Ø800 x 630mm

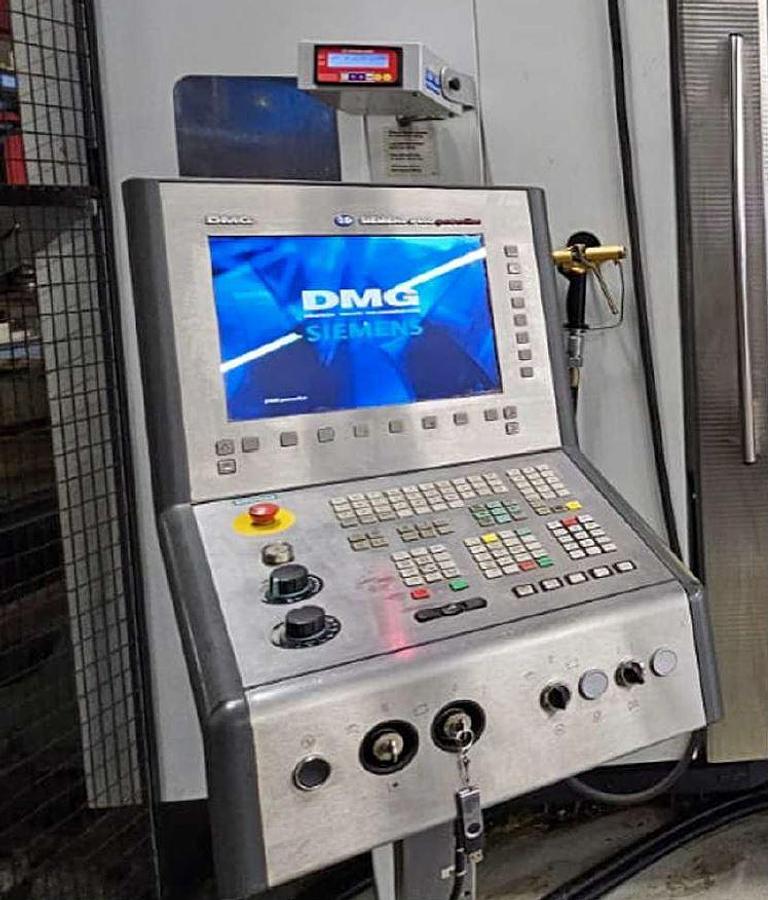

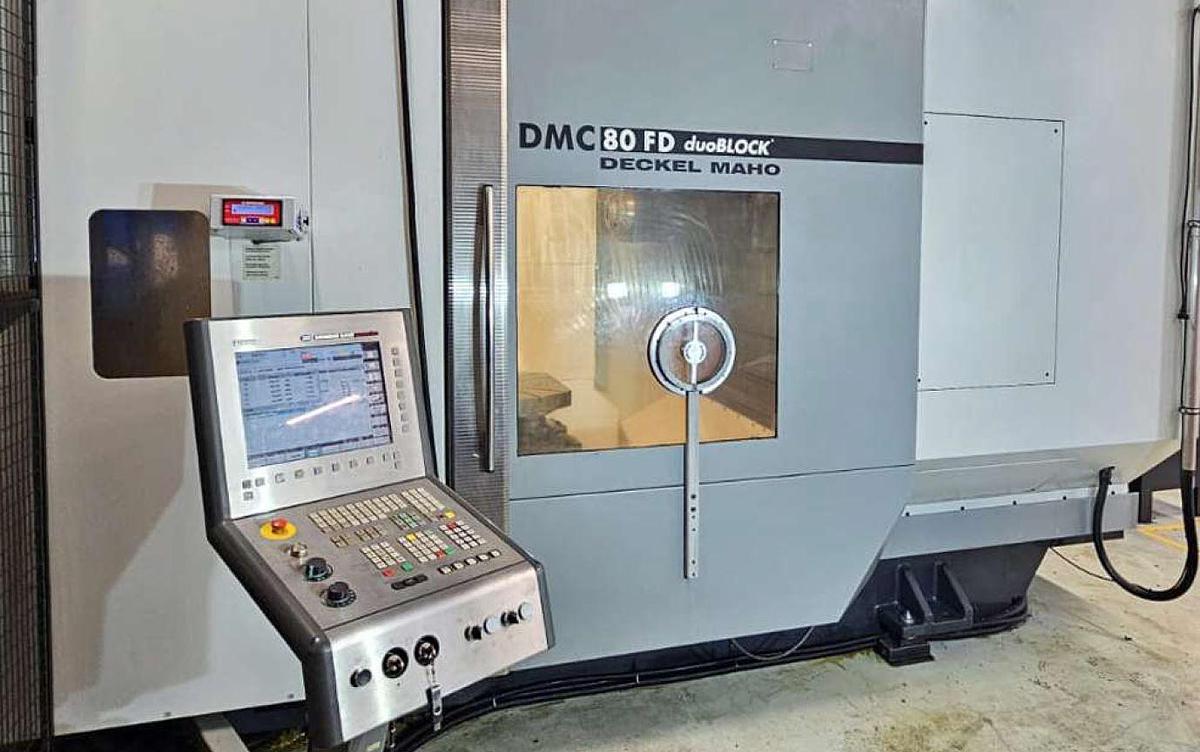

- Swiveling control panel for machine operator
- Exhaust system for oil/emulsion mist with separator

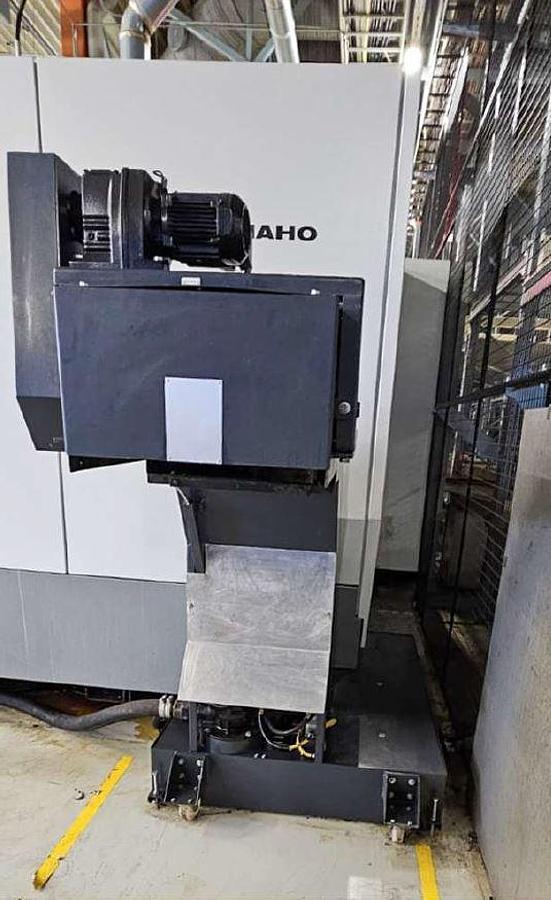

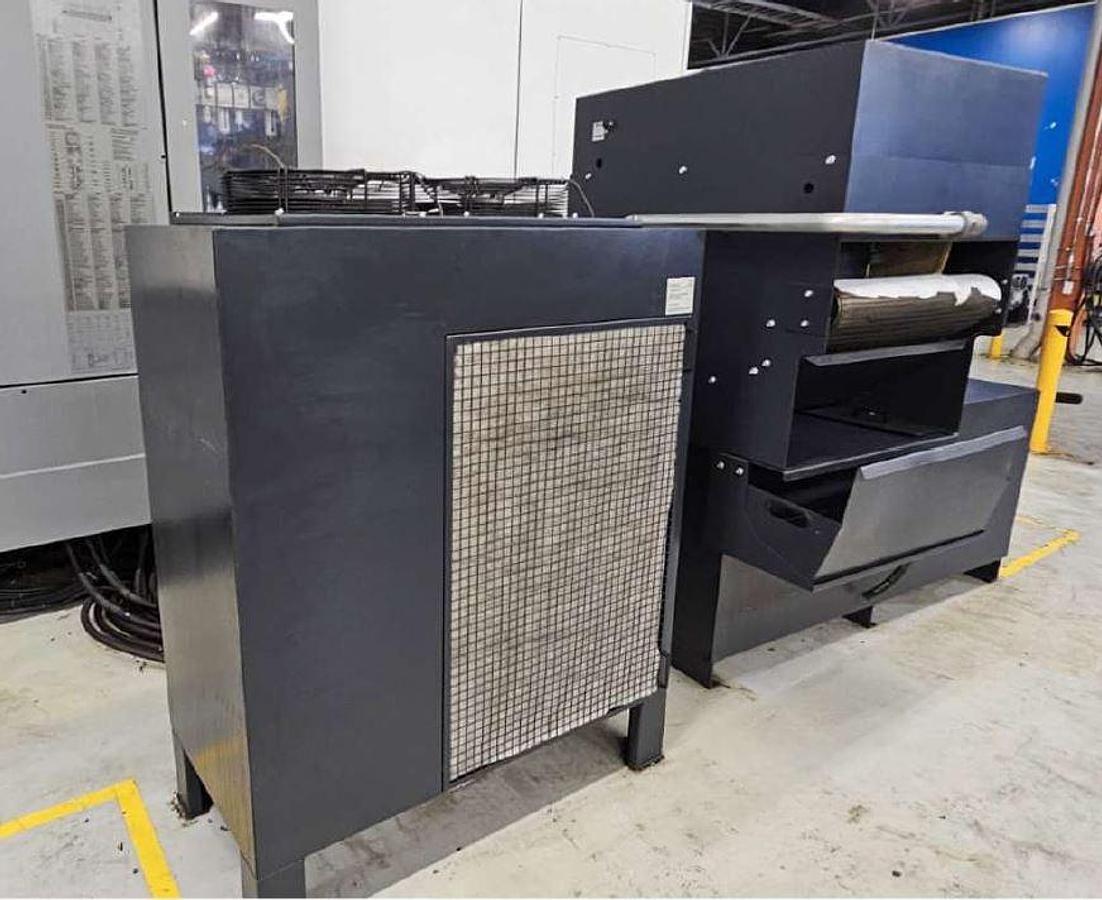

- Chip conveyor with discharge height approx. 956mm

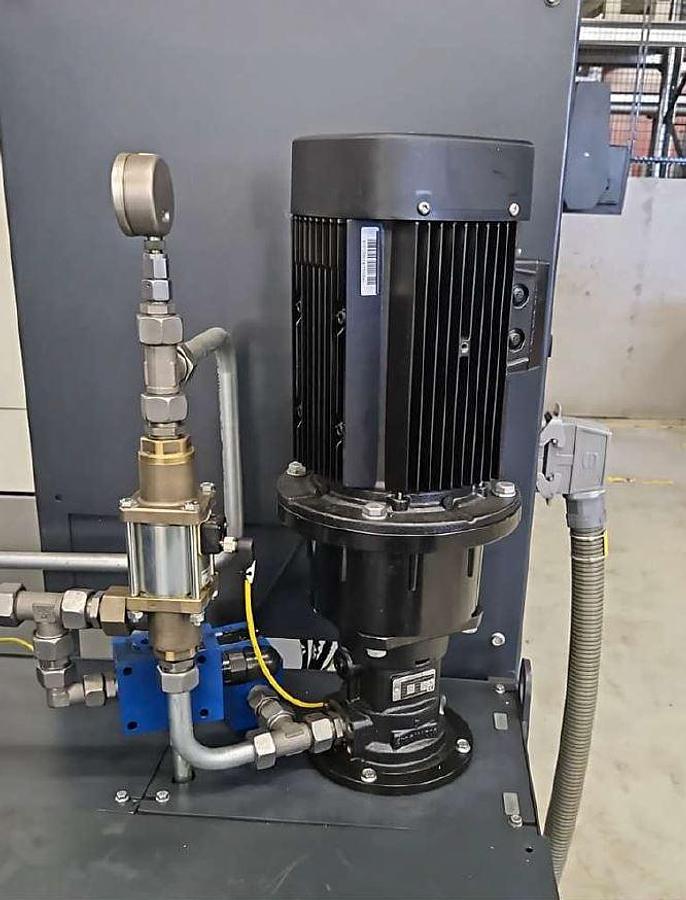

- Intermediate tank with feed pumps and high-pressure pump 40 bar)
- Machine prepared for central coolant supply
- Chip cleaning gun
- 3 pcs installation elements
- 3D Touch probe
- Machine in new design
Specifications
| Manufacturer | DECKEL MAHO - DMC 80U duoBlock 5 Axis Double Pallet Machining Center |
| Model | DECKEL MAHO - DMC 80U duoBlock 5 Axis |
| Year | 2009 |
| Condition | Used |
| Stock Number | 44567 |
| Cross (X ~ axis travel) | 800 mm |
| Table movement (Y ~axis travel) | 800 mm |
| Longitudinal (Z ~ axis travel) | 800 mm |
| Max. workpiece height | 1330 mm |
| Max. workpiece length | 450 mm |
| Max. workpiece diameter | 800 mm Diameter |
| X ,Y and Z ~ axis stepless | 0 ~60,000 mm/min. |
| Feeds in X, Y & Z axis | 60,000 mm/min. |
| Max. feeds rates X, Y, & Z axis | 12,000 N |
| Approx. acceleration in | 7 m/s 2 |

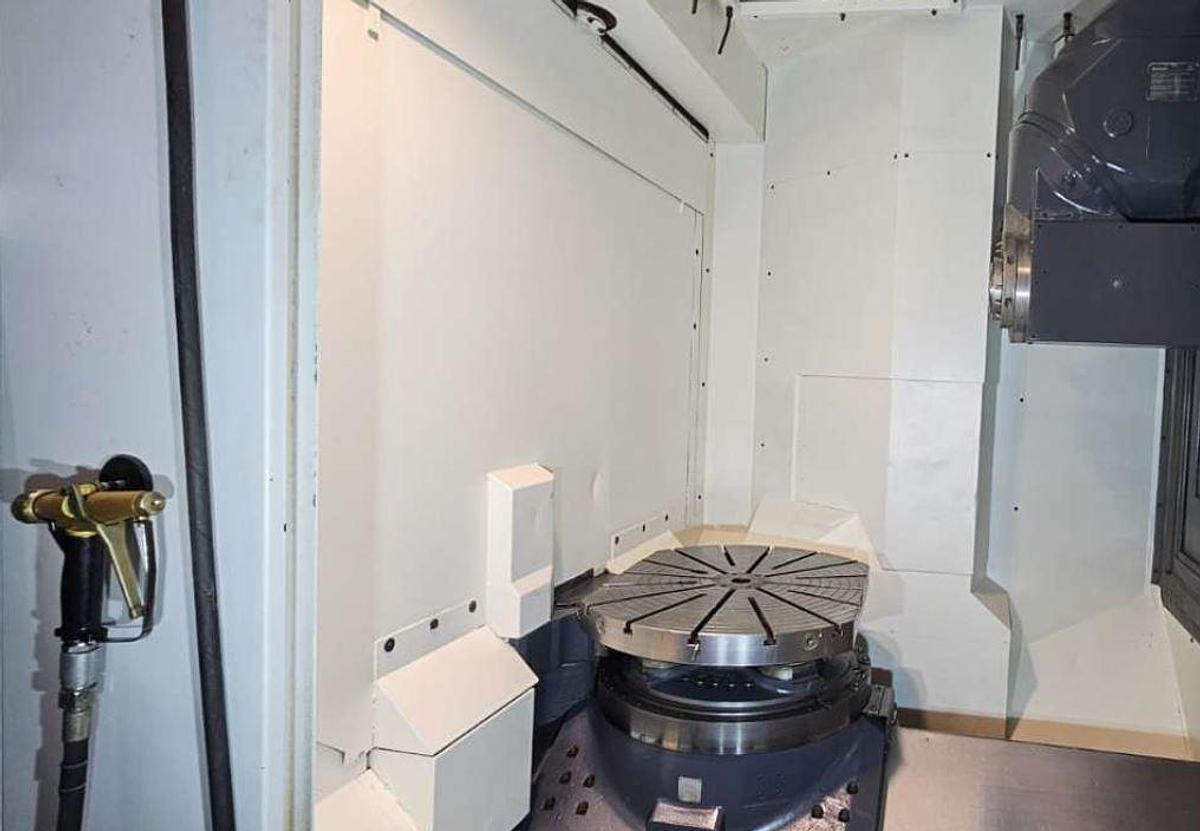

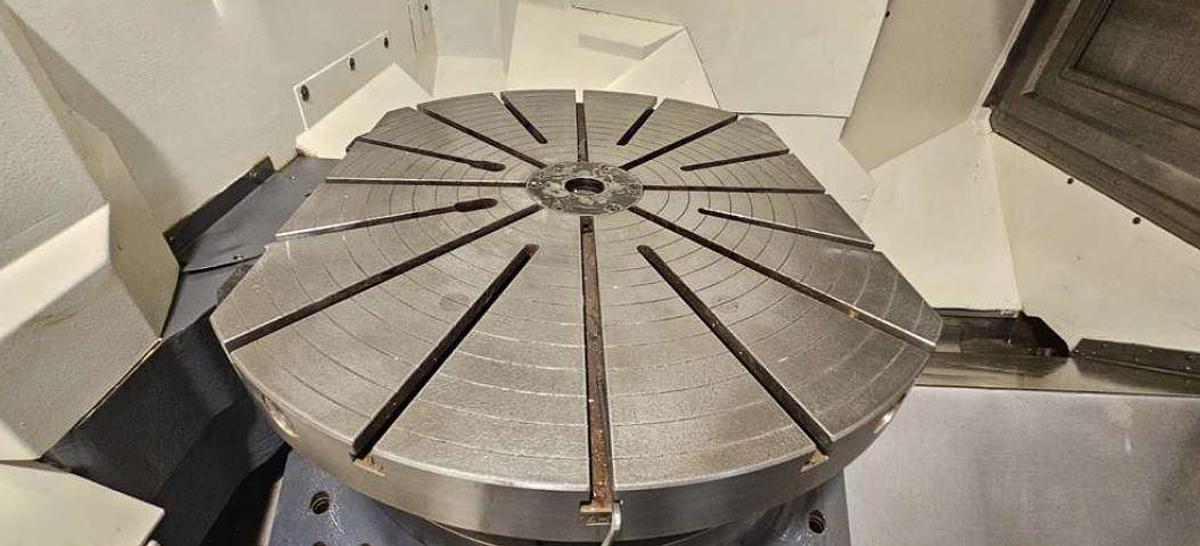

| NC Rotary Table Clamping surface | 800 mm Diameter x 630 mm Diameter |
| Revolution of C axis | 0,001 degree |
| Max. workpiece weight | 1200 kg |
| Max holding torque of the tale surface | 5000 Nm |
| Max. Speed of the table plate | 30 RPM |
| Permitted mass moment of inertia max. | 205 KGM 2 H12 |
| Number and size of T-slots | 100 mm |
| Center hole | 50 H6 mm dia |
| Universal NC Milling Head | B-axis, stepless 180 deg. |
| Resolution | 0,001 deg. |
| Type of spindle | Motor spindle |
| Max. power S3, 40% ED | 28 kW |
| Max. power S3, 40% | 121 Nm |
| Speed range stepless | 20 ~ 18,000 min-1 |
| Tool clamping system | HSK~63 DIN 69893 Form A |
| Automatic Tool Changer | 120 position |
| Tool length | 450 mm |
| Tool weight max. | 15 kg |
| Dimensions, Weight | Required space 4,500 x 4,600 mm |
| Total height ca | 3,400 mm |
| Machine weight | 17,500 kg |

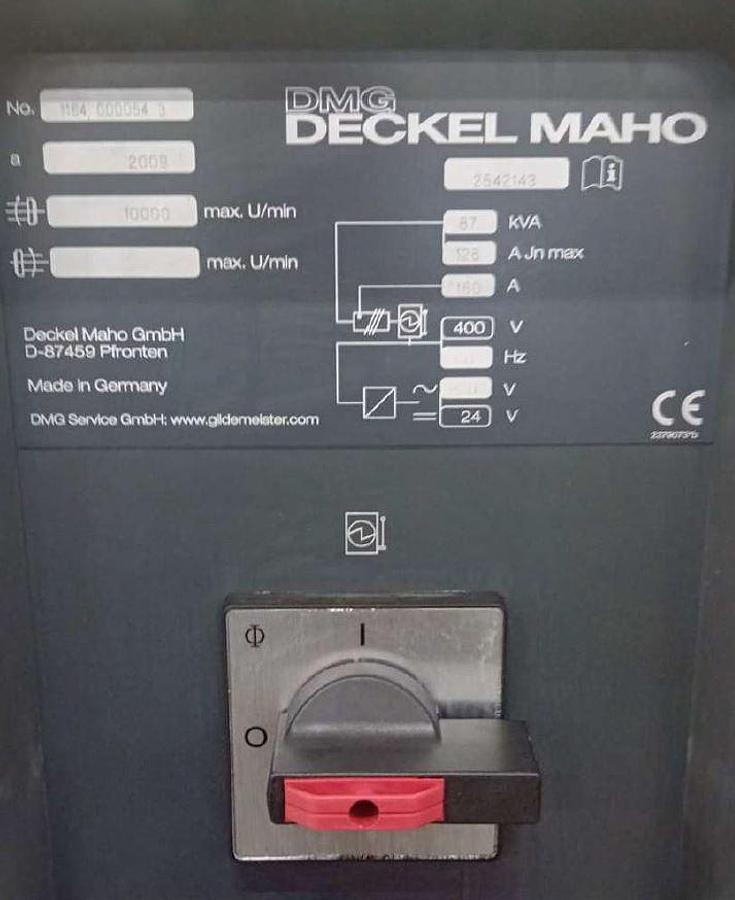

| Connection Date | Operation voltage 3 x 400 Volts |
| Total Power Consumption (100% ED) | Required main fuse |
