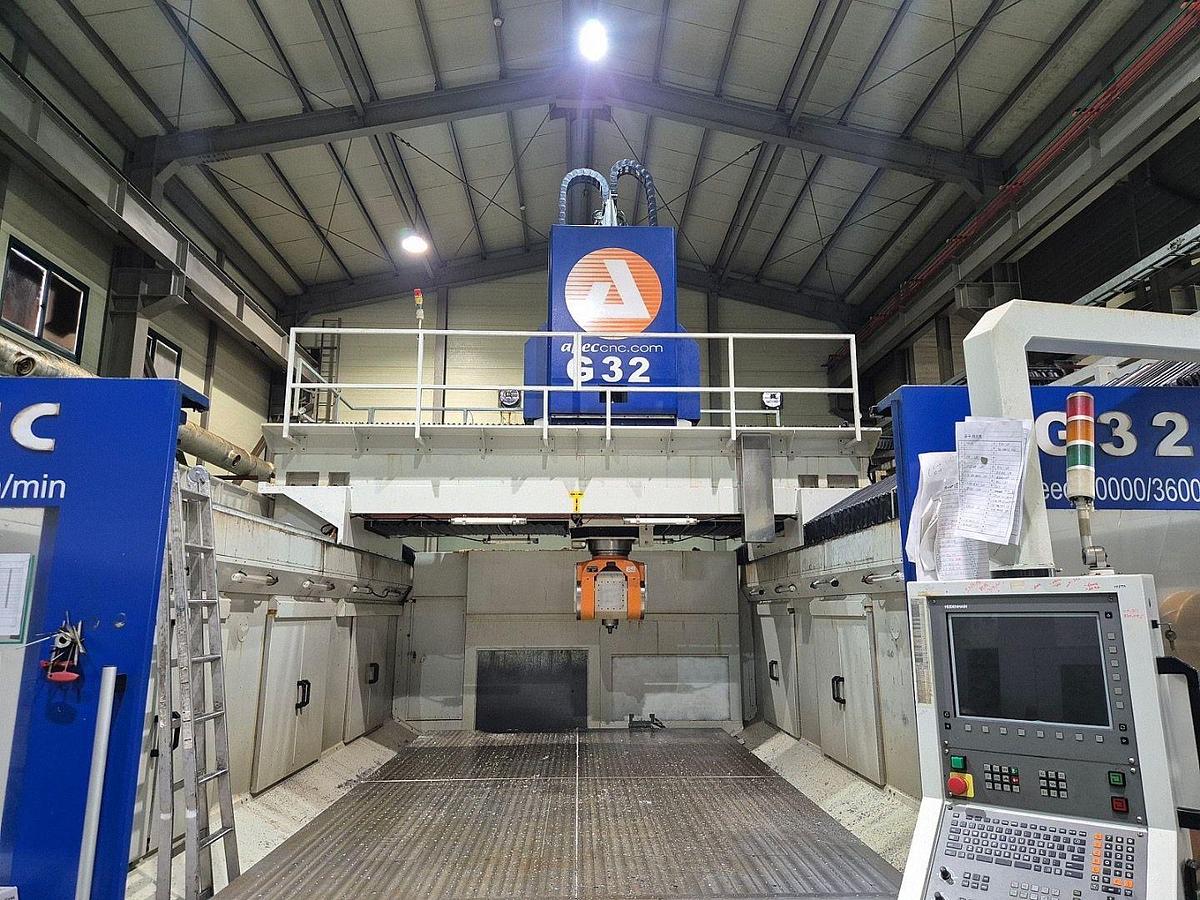

APEC G32 CNC 5-Axis Gantry Type Machining Center
APEC G32 CNC 5-Axis Gantry Type Machining Center
Description
- Heidenhain iTNC 530 CNC Control
- 5-Axis simultaneous Machining
- Two-axis head driven by direct drive motor
Excellent surface finish contour could be enhanced thanks to the
high torque direct drive motor system of two-axis heads. Small size appearance is suitable
for complex curved surface machining and the advantages include low error, high resolution
and high speed.
- 80 Position ATC HSK 100A - 30 Position ATC HSK 50A
- Screw Type Chip Conveyor
- Cooler for Linear Motors
- Cooler for Spindles
- X/Y axis driven by linear motor
Linear motor provides excellent dynamics and static rigidity. The rapid feed rate of the axis is
up to 60m/min and the acceleration is up to 0.5G ~ 0.7G.
- Z-axis driven by double ball screws with innovative hollow water cooling technology
Z-axis is driven by double ball screws which could ensure concentric of the moving part center and the
weight center and the weight center so that the vibration could be eliminated.
Moreover, it is equipped with hollow water cooling system for precise temperature control and thermal
deformation control.
Specifications
| Manufacturer | APEC |
| Model | G32 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 11232 |
| Between columns | 4,500 mm |
| Spindle speeds | 10,000 rpm |
| Distance spindle end to table | 250 - 1,450 mm |
| X axis travel | 6,000 mm |
| Y axis travel | 3,200 mm |
| Z axis travel | 1,200 mm |
| Table dimensions | 3,200 x 6,250 mm |
| Table capacity | 3000 kg / m2 |
| Spindle drive motor (S6) | 45 kW |
| Spindle torque (S6) | 400 Nm |
| Spindle taper | HSK 100A |
| Feedrate 3-axis rapid | 40 m/min |
| Machine size | 14,050 x 10,820 x 6,050 mm |
| Machine weight | 10,500 kgs |
