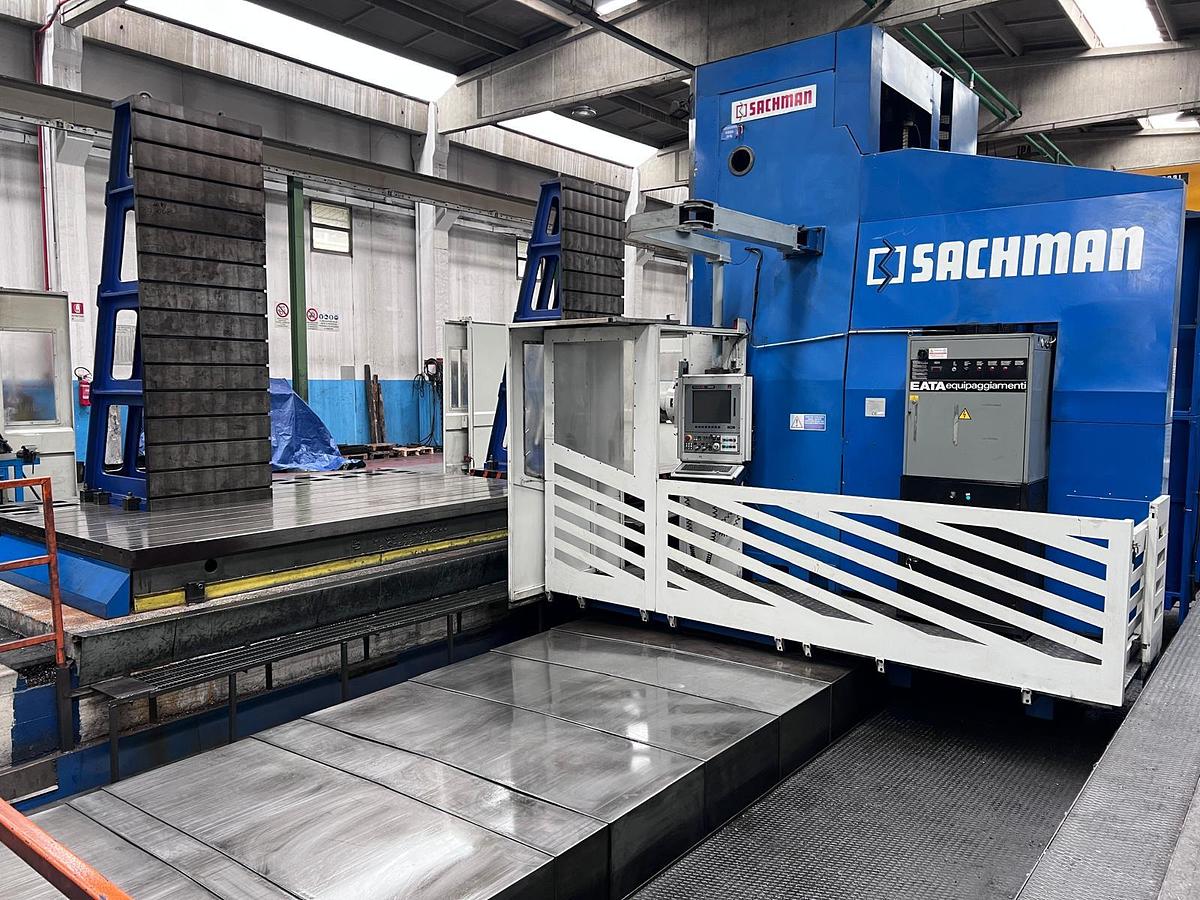

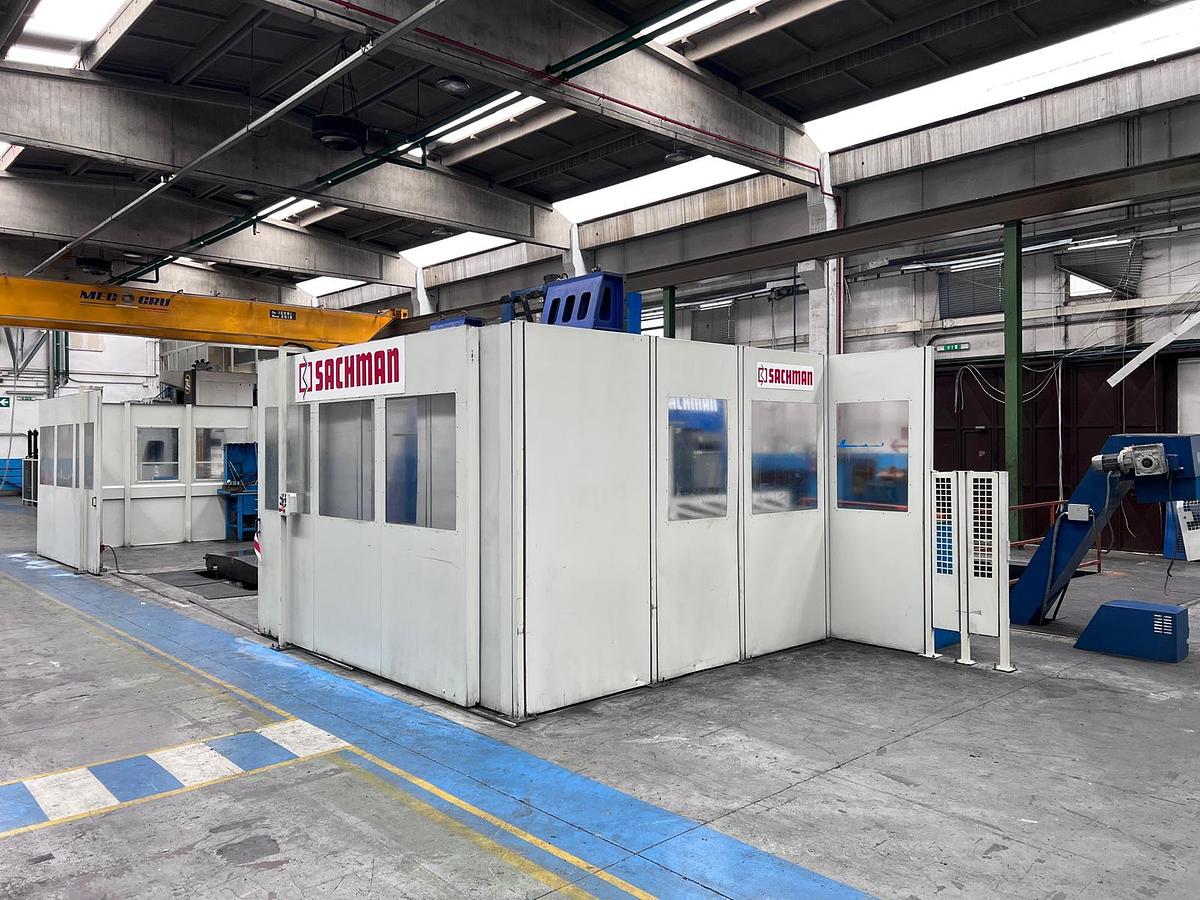

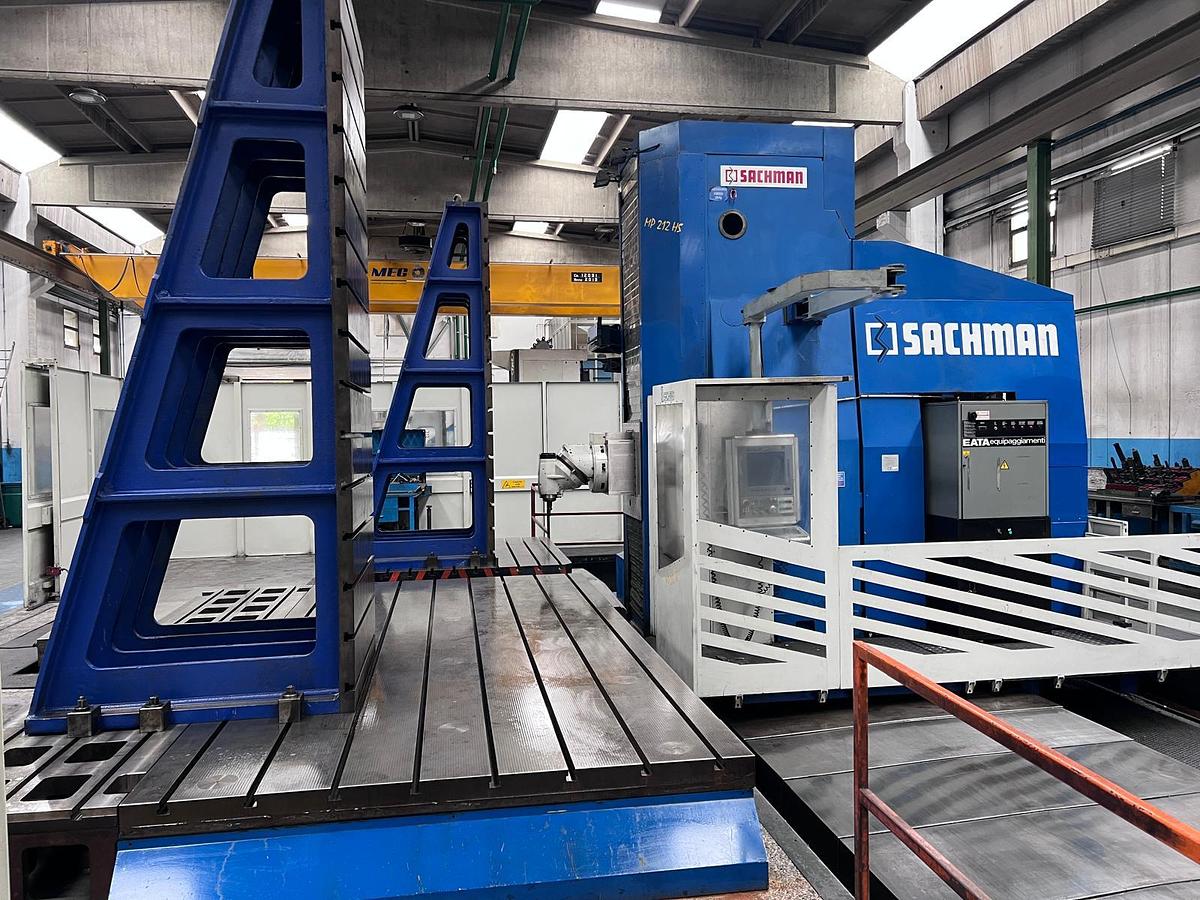

Sachman MP 212 CNC Floor Type Horizontal Boring Machine
Sachman MP 212 CNC Floor Type Horizontal Boring Machine
or
Call 770-509-0744
Description

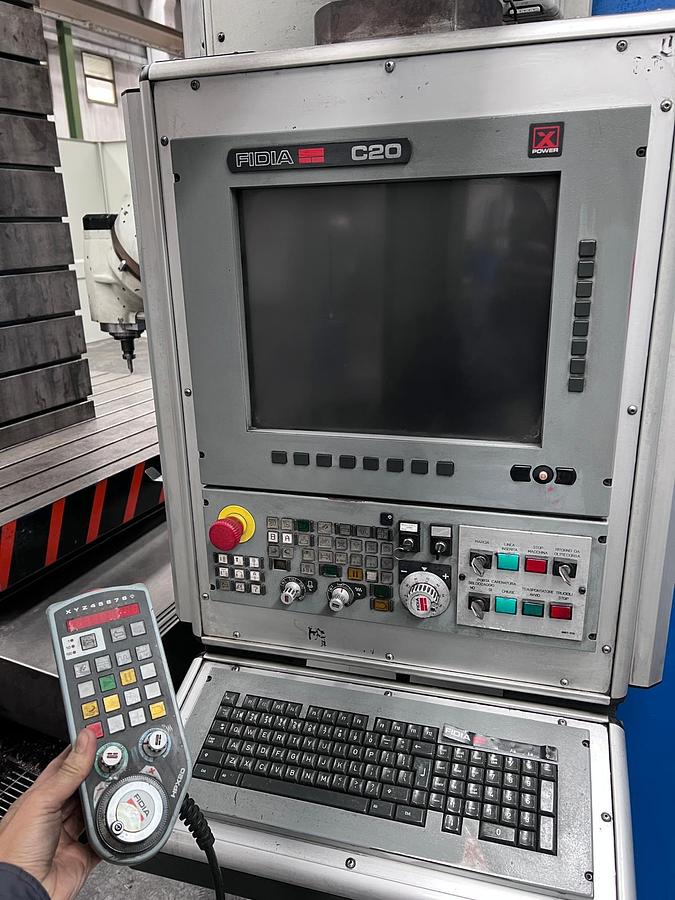

Fidia C20 CNC Control with Remote Handwheel
Clamping plate dimensions 4,000 x 2,000 mm
Rotary table 2,000 x 2,000 mm
SPINDLE

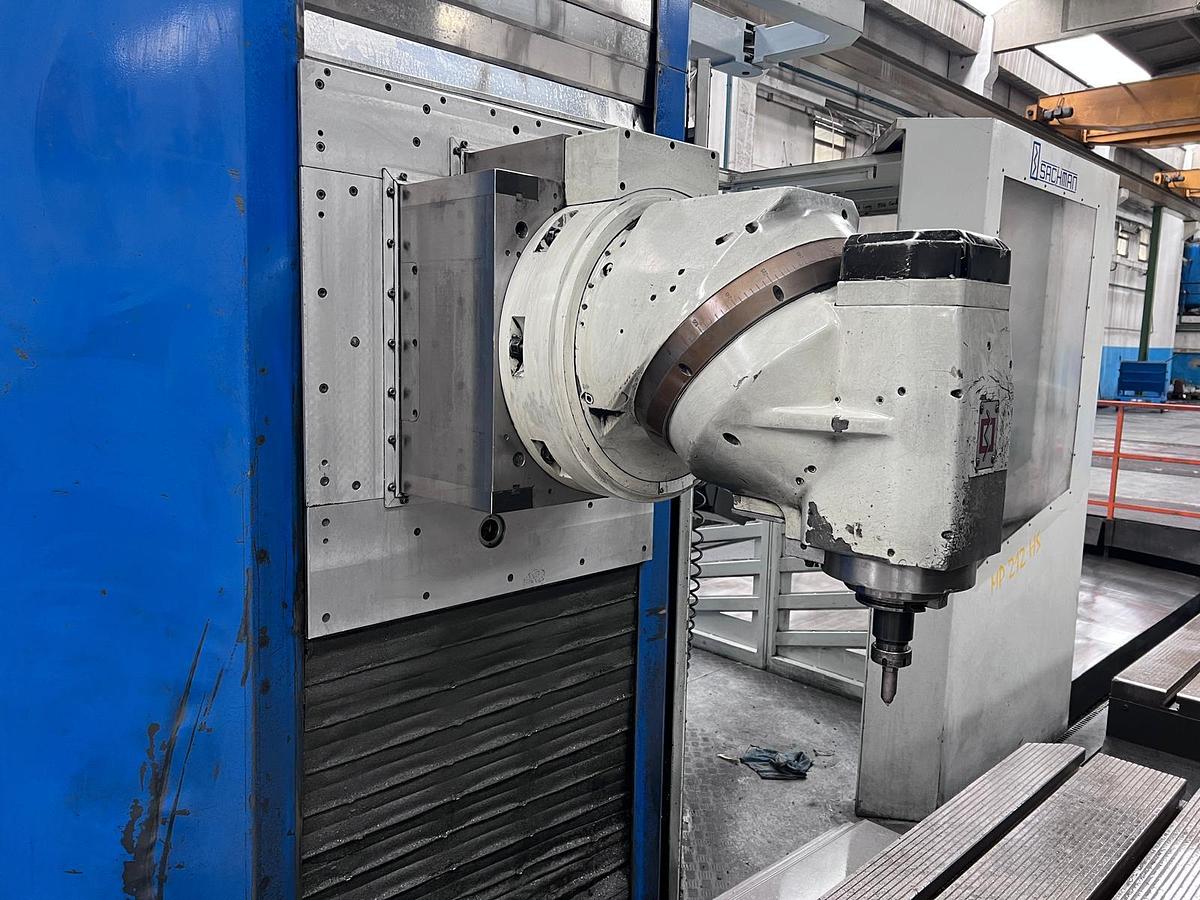

Universal automatic milling head Type KOSMO 3
Motor spindle power Kw 37/55
Max spindle speed 5.000 Rpm
Max torque Nm 1298
Spindle nose ISO 50
Chain Type Chip Conveyor
Automatic Tool Change 40 positions

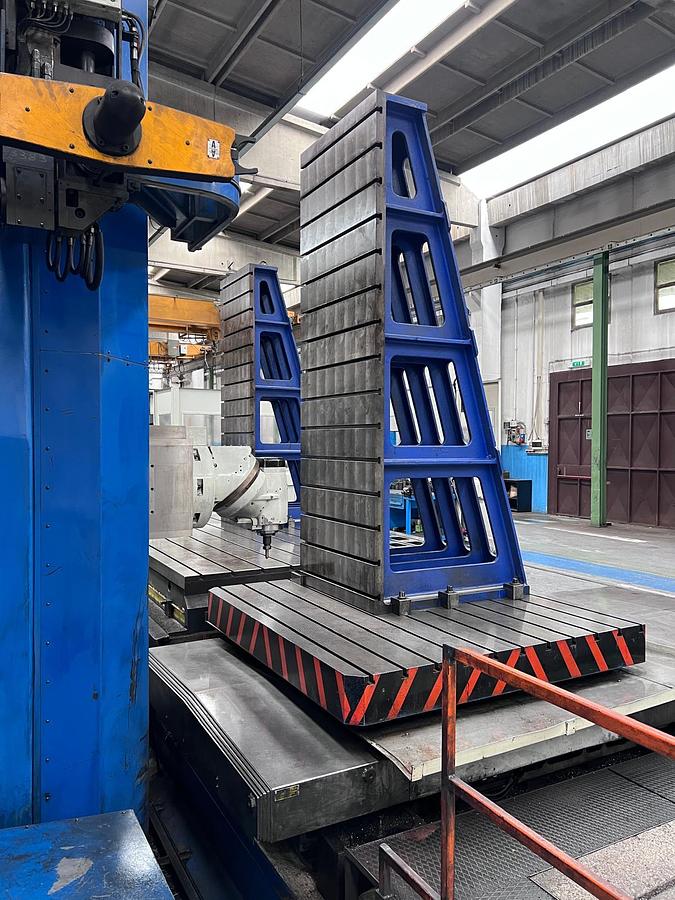

N.2 Angle plate 3 000 x 1,200 x 1,000 mm
Specifications
| Manufacturer | Sachman |
| Model | MP 212 |
| Year | 2006 |
| Condition | Used |
| Stock Number | 11230 |
| Spindle speeds | 5,000 rpm |
| X axis travel | 6,000 mm |
| Y axis travel | 1,400 mm |
| Z axis travel | 2,500 mm |
| Table dimensions | 2,000 x 2,000 mm |
| Rotary table travel | 1,500 mm |
| Table capacity | 15,000 kg |
| Spindle motor power | 37 / 55 kW |
| Taper of boring spindle | ISO 50 |
| Spindle torque | 1,298 Nm |
| Machine dimensions | 12,000 x 9,000 mm |
| Machine weight | 66,800 kg |
