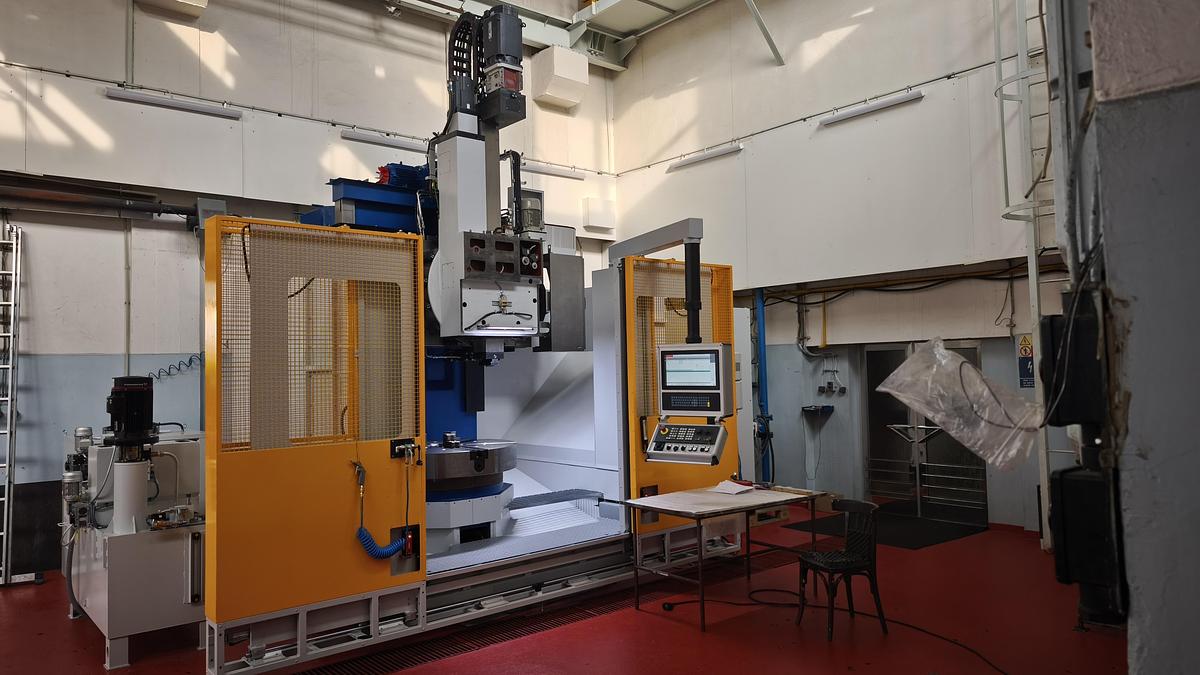

TOS HULIN SKQ 12 CNC Vertical Turning, Drilling, Milling, Grinding Machine

TOS HULIN SKQ 12 CNC Vertical Turning, Drilling, Milling, Grinding Machine

Description

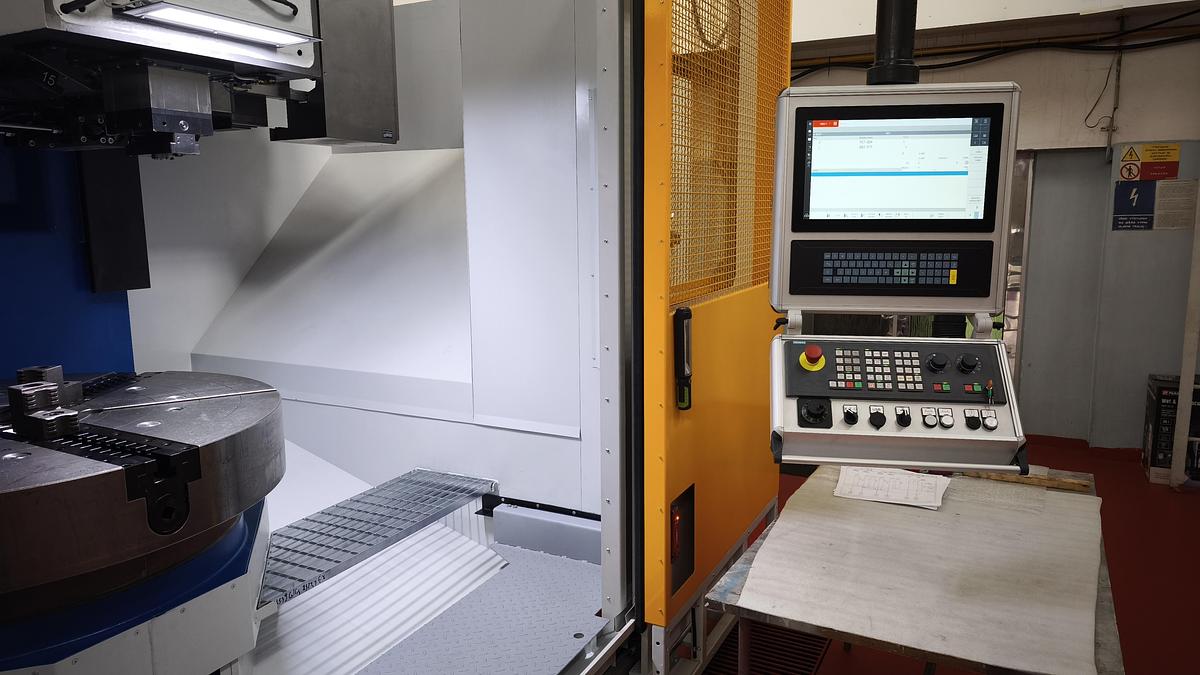

  • Siemens Sinumerik ONE CNC Control
  • 15 tool automatic tool exchanger with set of tool holders

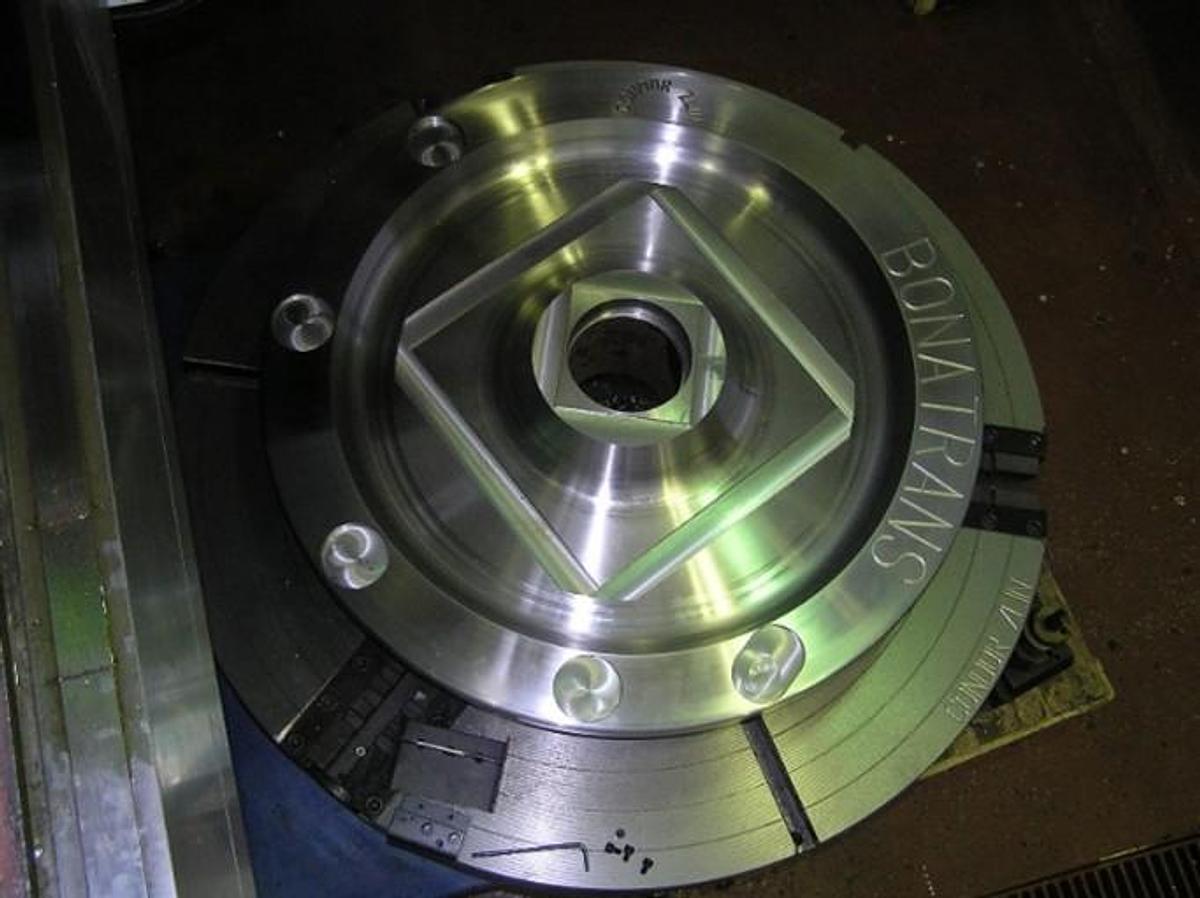

  • Clamping plate with 3 jaws automatic hydraulic chuck
  • Combineted ram with rotary spindle and inside cooling system
  • Movable adjustable crossbar with steel telescopic covers
  • Master Slave controlled table – 58 kW, 4 special gearboxes
  • Drive of rotary tools by 22kW motor and 2 steps gear box -1:1, 1:4
  • Special cooling system of gearboxes and main crossbearing of plate
  • Hydraulic tank included lubrication unit,compressed air unit
  • Front chip conveyor with cooling container 300 liters
  • Safety covers an automatic stepping platform for the operator
  • Unit for blowing the workpiece with water or air
  • Hardened surfaces on crossrab saddle and ram with linear guide bias
  • Rittal switchboard with 2 cooling units and Siemens components
  • External and internal cooling system of the workpiece and tools
  • Storage of all cables and hoses above floor level
  • The machine does not require any special foundation, is stored on the floor of the hall.. Chip removal to the left or right side.
  • Heidenhain linear scale on X axe,
  • Set of tool holds for turning and milling operation
  • Input power 3x400V, 50 Hz,


Specifications

ManufacturerTOS HULIN
ModelSKQ 12
Year2025
ConditionUsed
Stock Number11229
Table diameter1,250 mm
Swing1,500 mm
Max workpiece height900 mm
Max workpiece weight6 Ton
Output power turning / milling58 / 29 kW
Table speed380 rpm
Output power on spindle motor22 kW
Spindle speeds3,000 rpm
Max cutting force50,000 N
