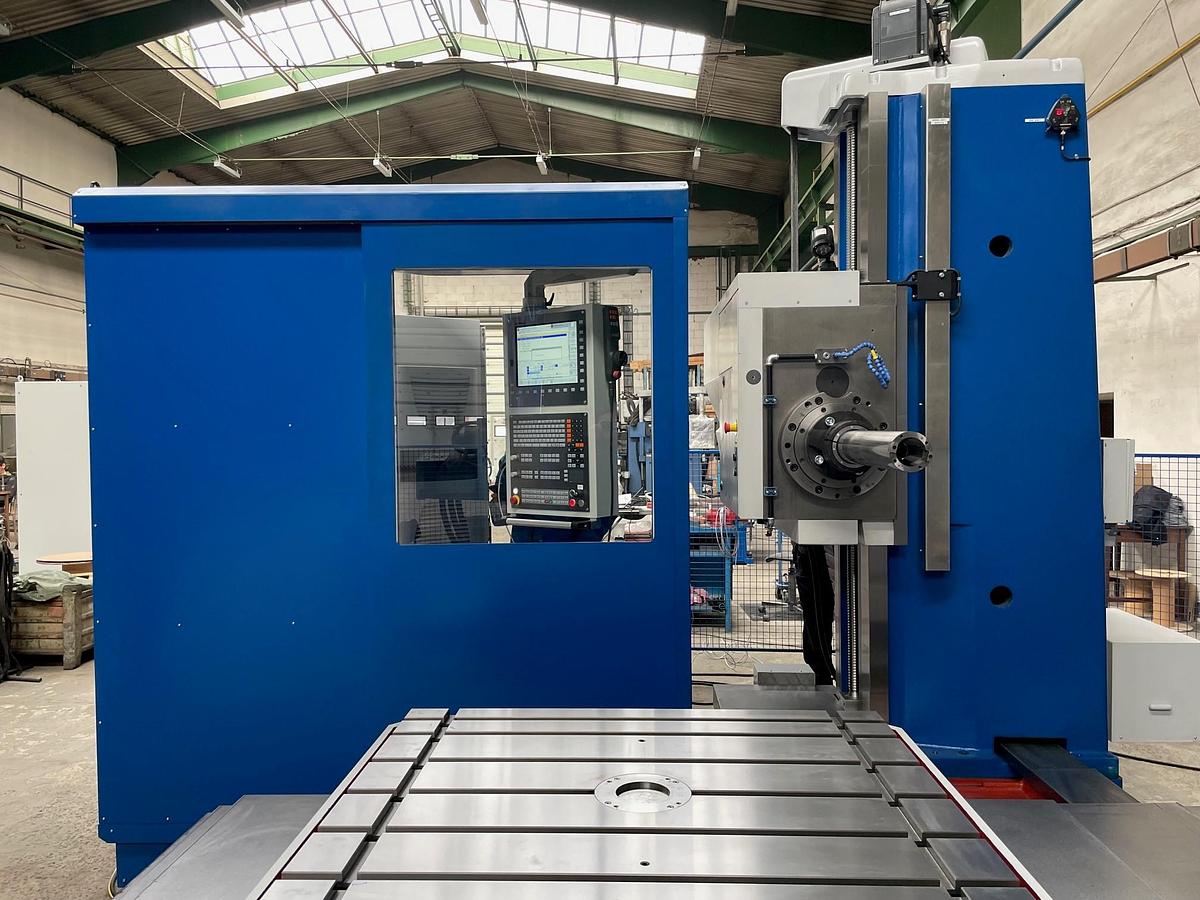

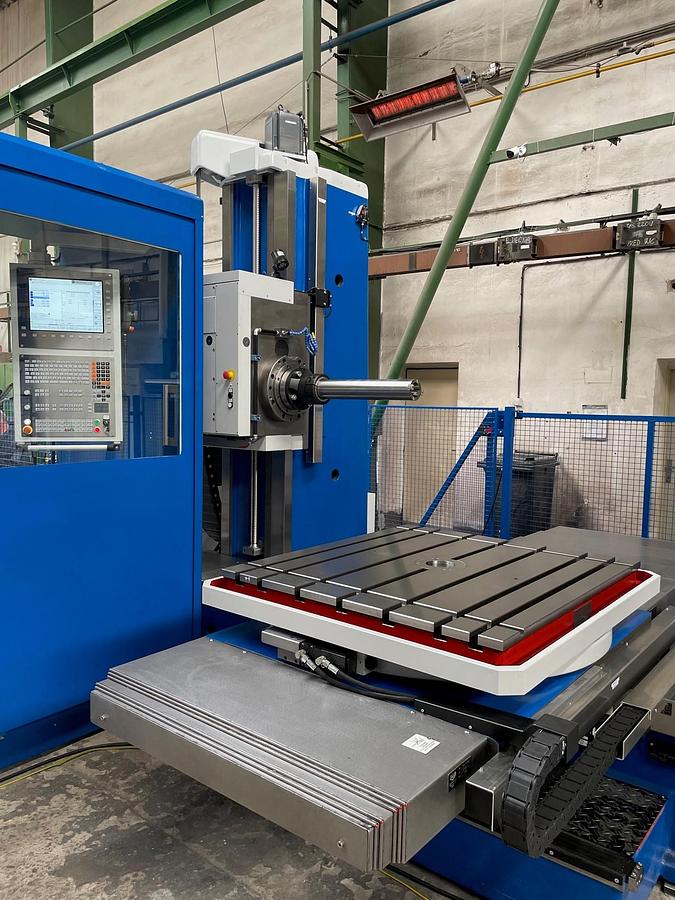

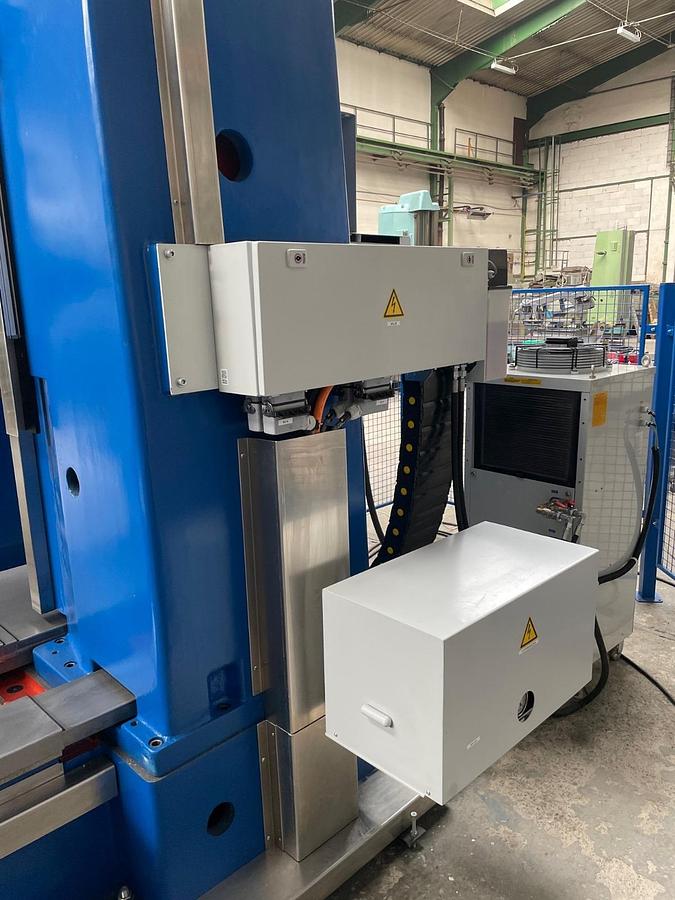

Tos Varnsdorf WH 10 CNC Table Type Horizontal Boring Machine

Tos Varnsdorf WH 10 CNC Table Type Horizontal Boring Machine

Description

CNC control system iTNC 620 Heidenhain Gen3

Servo-motors Siemens 1FKZ 100…(5 pcs.)

Spindle motor 1PH8135... - 22kW

Converter Heidenhain UM114D

Linear scales Heidenhain for X, Y and Z axes

Encoder Heidenhain ROD 480 for rotary table

Encoder Heidenhain TTR ERM for spindle - Oriental stop

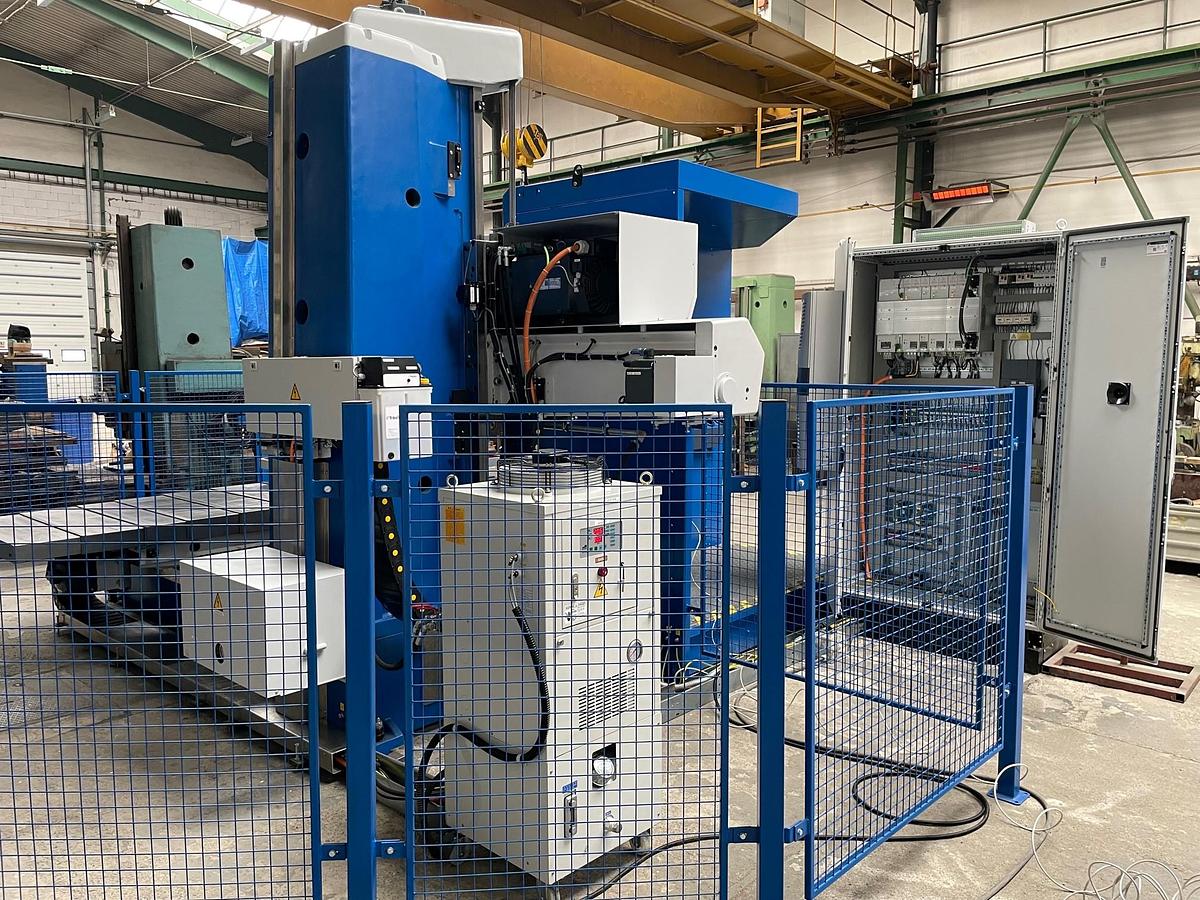

Control cabinet from Ritall with cooling unit

Wiring and modern electrical components

End-limit switches Balluff

Rotational control panel

Workplace lighting

Hardened guide surfaces on all axes

Biplast-V lining for the guide ways counter surfaces

Geometric accuracy according to the accuracy protocol TOS Varnsdorf WH 10

Sliding working spindle with diameter of 100 mm, spindle bearings - FAG, SKF

Hydraulic tool clamping set 22kN - Ott-Jakob

Headstock with cooling circuit - reTOS Varnsdorf

Ball screws on the X, Y, Z and W axes - KSK Kurim

Rim and pinion for precise rotary table positioning - reTOS Varnsdorf

Hydraulic system (unit, pumps, hoses, fittings) - Baseco

Rotary table reinforcement controlled by CNC system

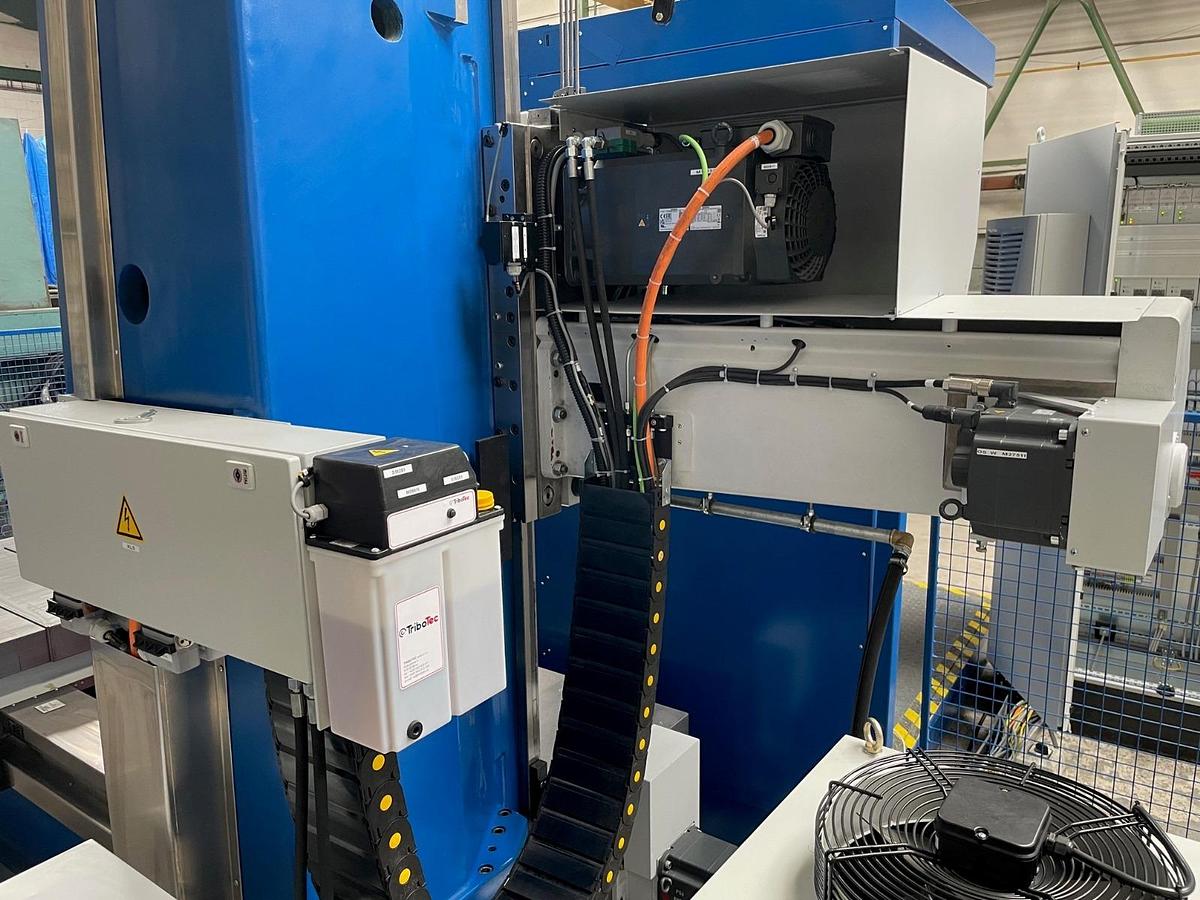

Central lubrication system controlled by CNC system - Tribotec

Telescopic covers (X and Z axes)

Specifications

ManufacturerTos Varnsdorf
ModelWH 10
Year2025
ConditionUsed
Stock Number11225
Spindle diameter100 mm
X axis travel1,250 mm
Y axis travel1,100 mm
Z axis travel1,000 mm
Spindle speeds2,500 rpm
Table dimensions1,000 x 1,000 mm
Table capacity3 Ton
W axis spindle stroke630 mm
Feed range4 - 6,000 mm/min
Spindle taperISO 50
Main motor (S1/S6 - 40%)22 / 34 kW
Spindle torque (S1/S6 - 40%)2173 / 3250 Nm
Total power consumption50 kVA
Machine weight13 Ton
