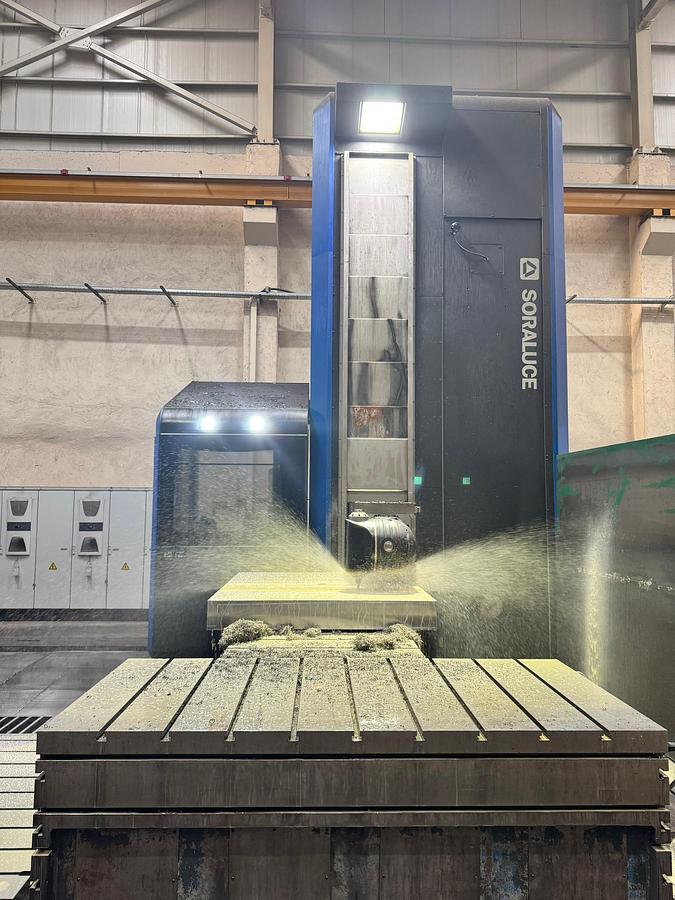

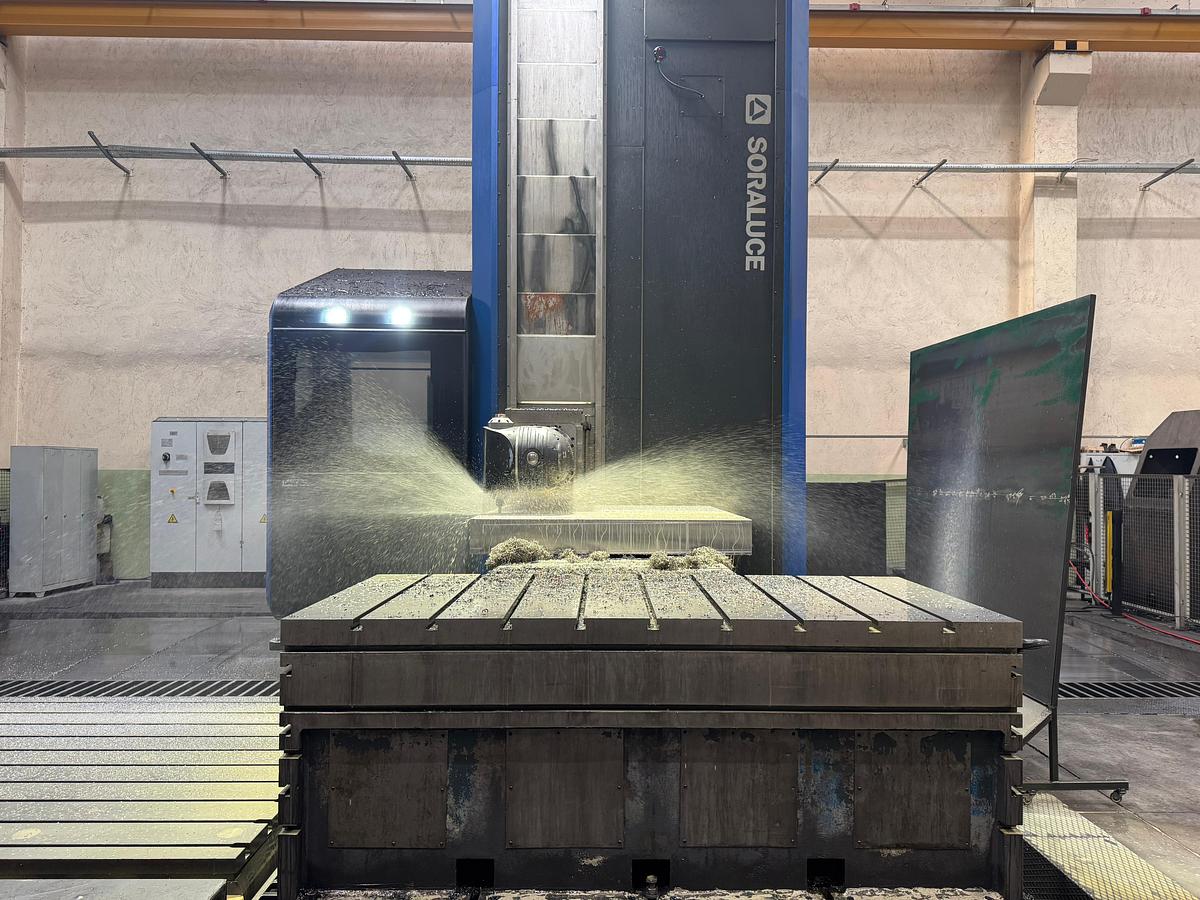

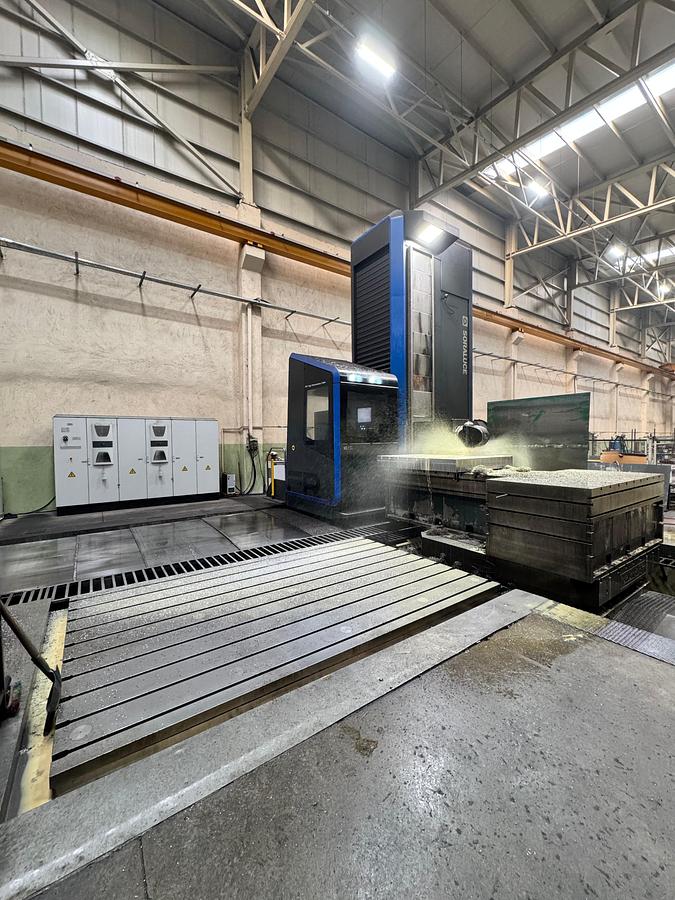

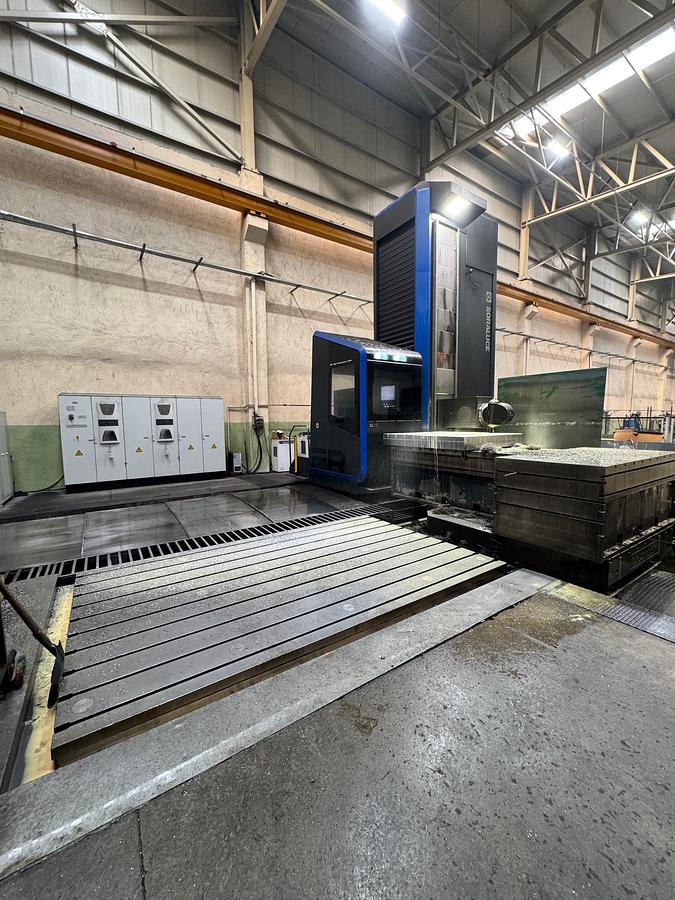

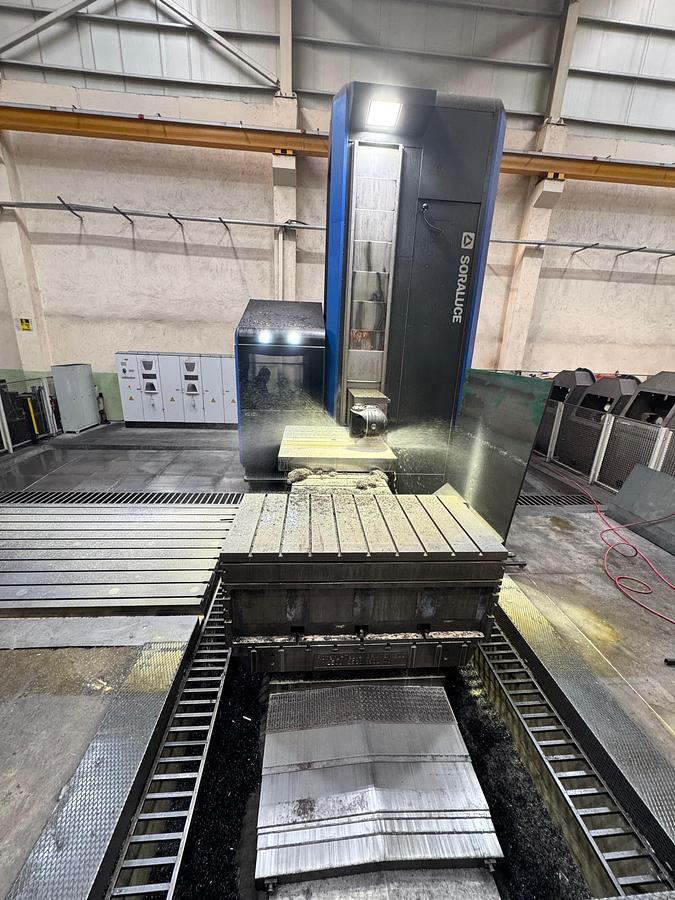

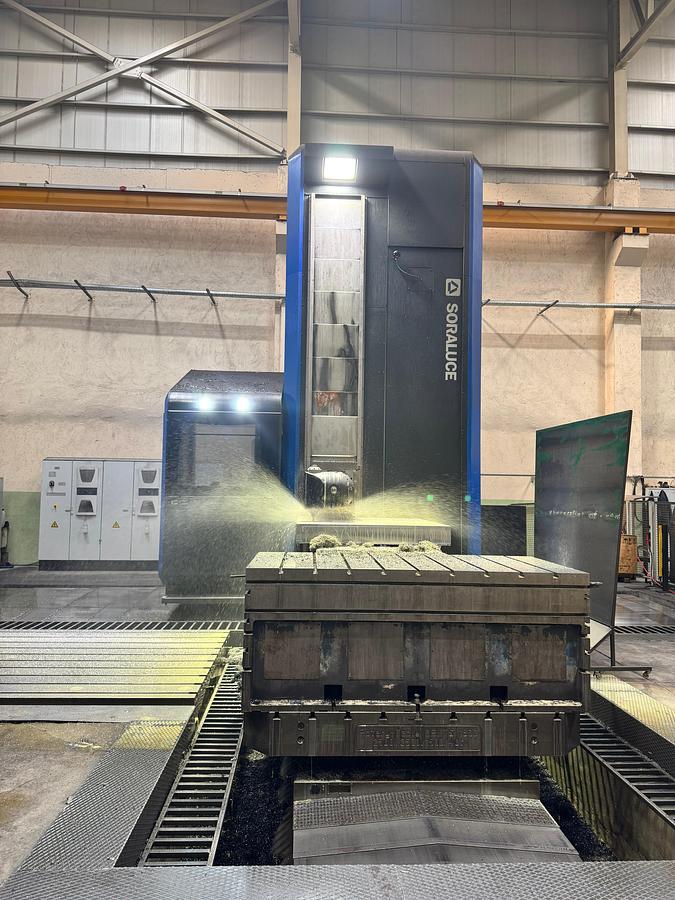

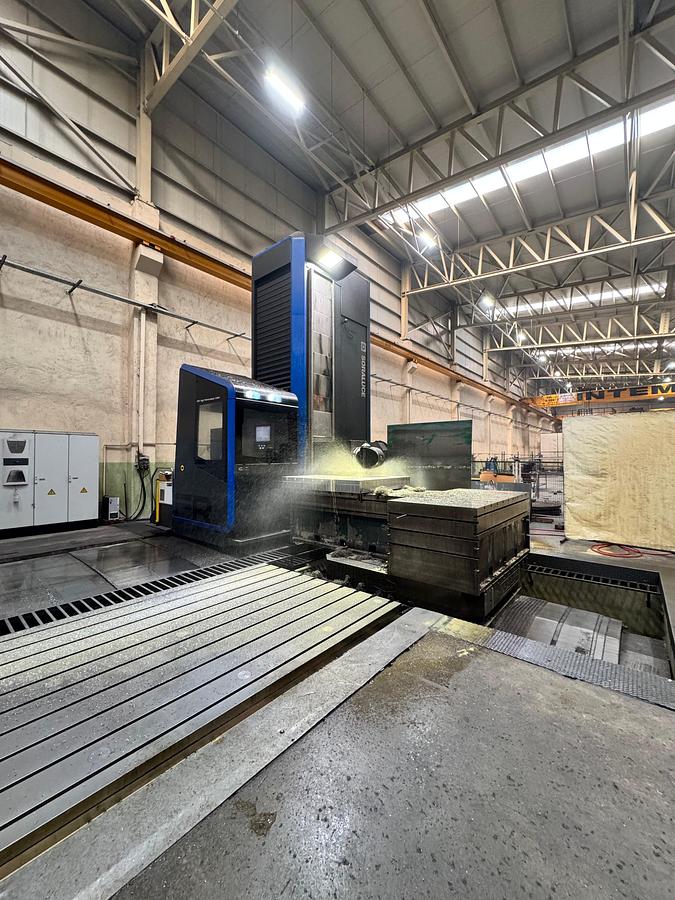

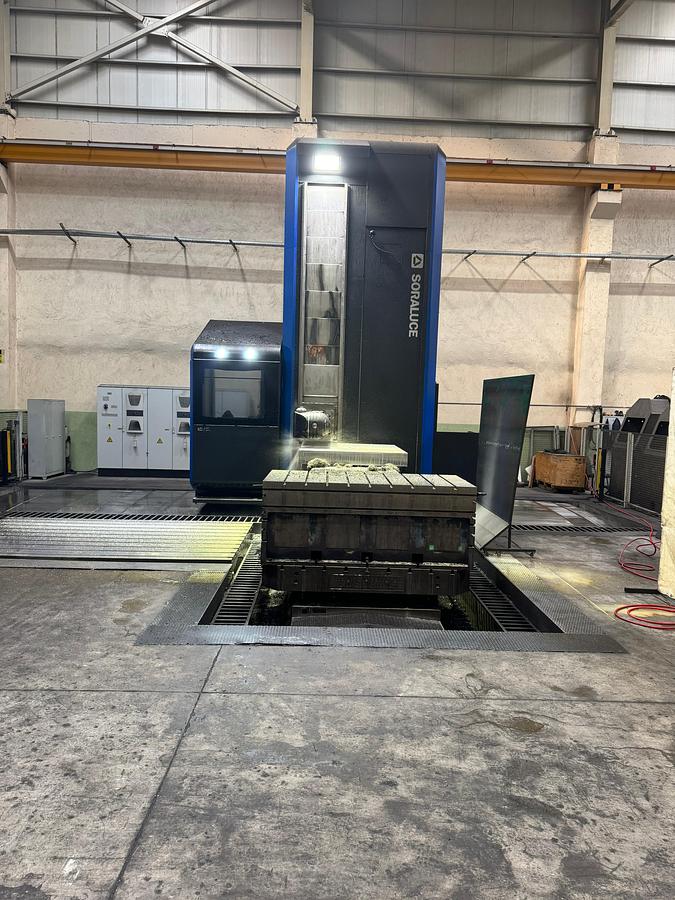

Soraluce FR 6000 CNC Floor Type Horizontal Boring Machine

Soraluce FR 6000 CNC Floor Type Horizontal Boring Machine

or
Call 770-509-0744

Description

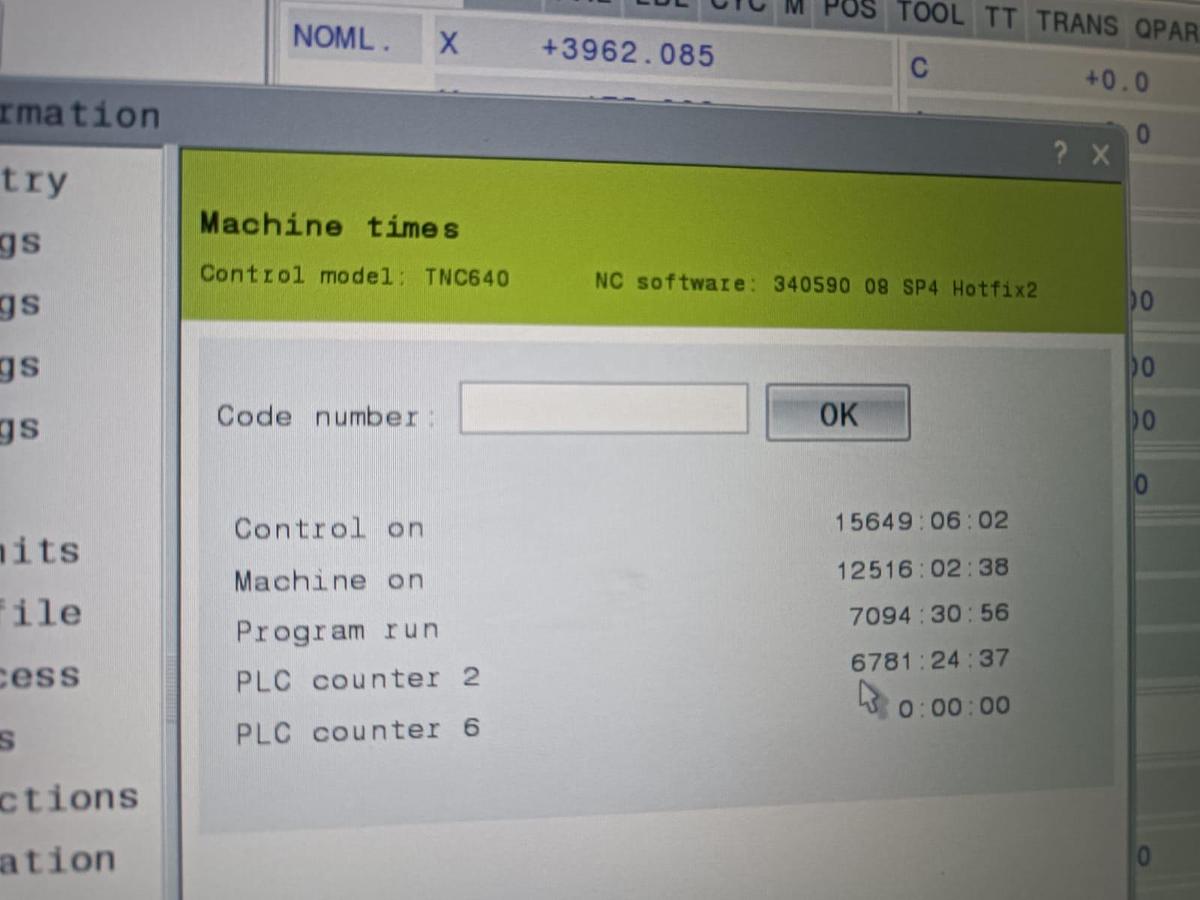

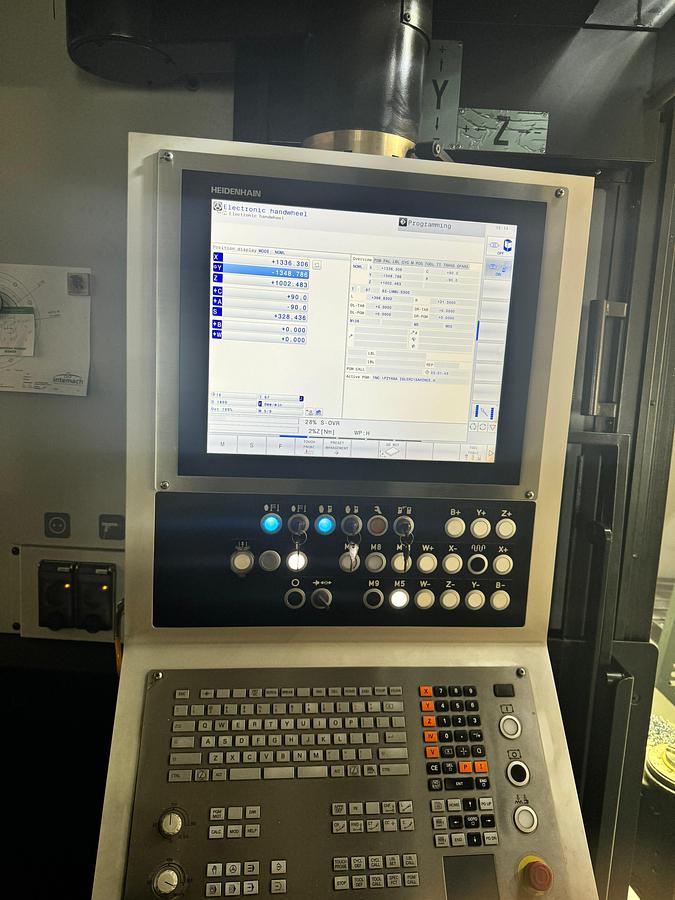

Heidenhain TNC 640 CNC Control

Heidenhain Electrical Servomotors Drives X,Y,Z Axes, Head, Rotating Axis and Transfer Axis of the Rotary Table

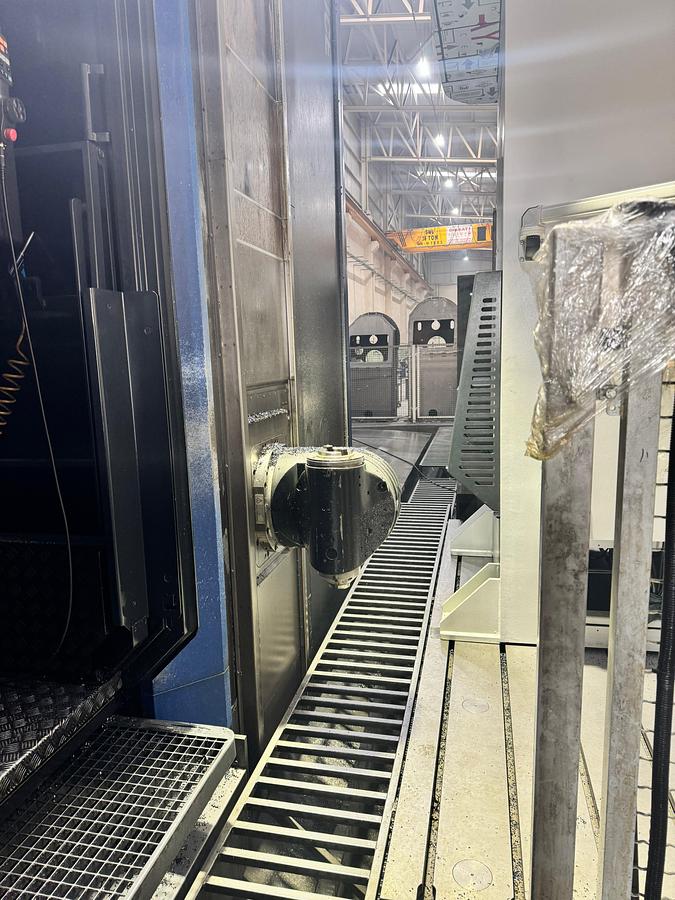

Automatic Orthogonal Head (1° x 1°)

Head Power (S1) 46 kW

Head Torque 1,532 Nm

Head Speed 4,000 rpm

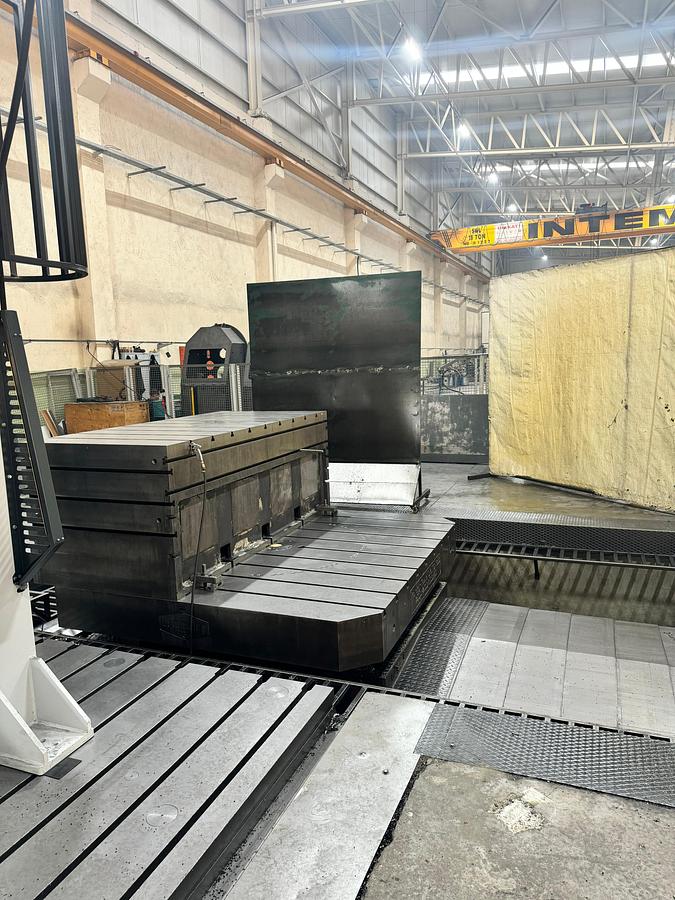

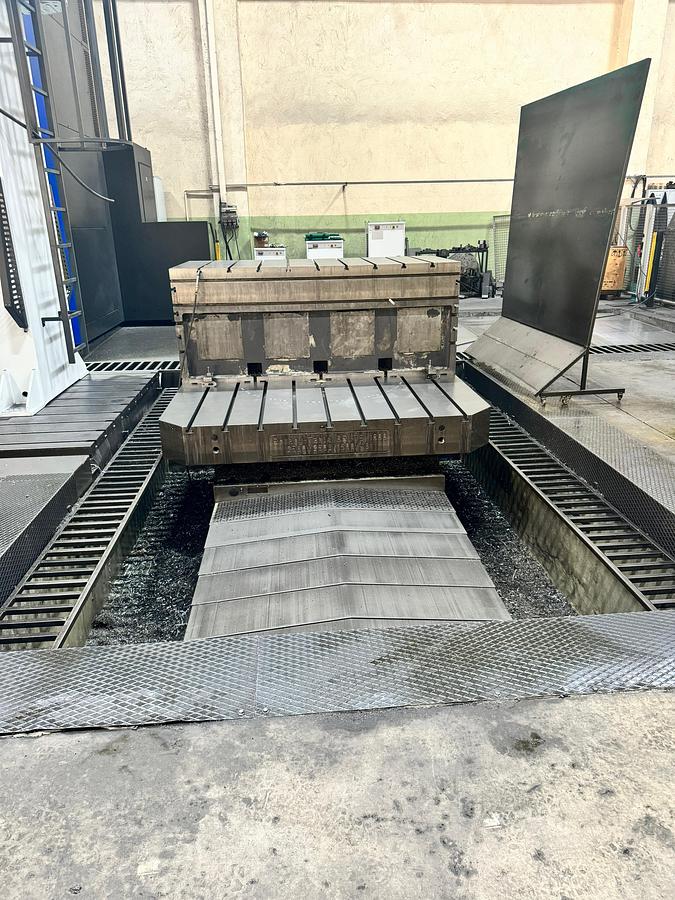

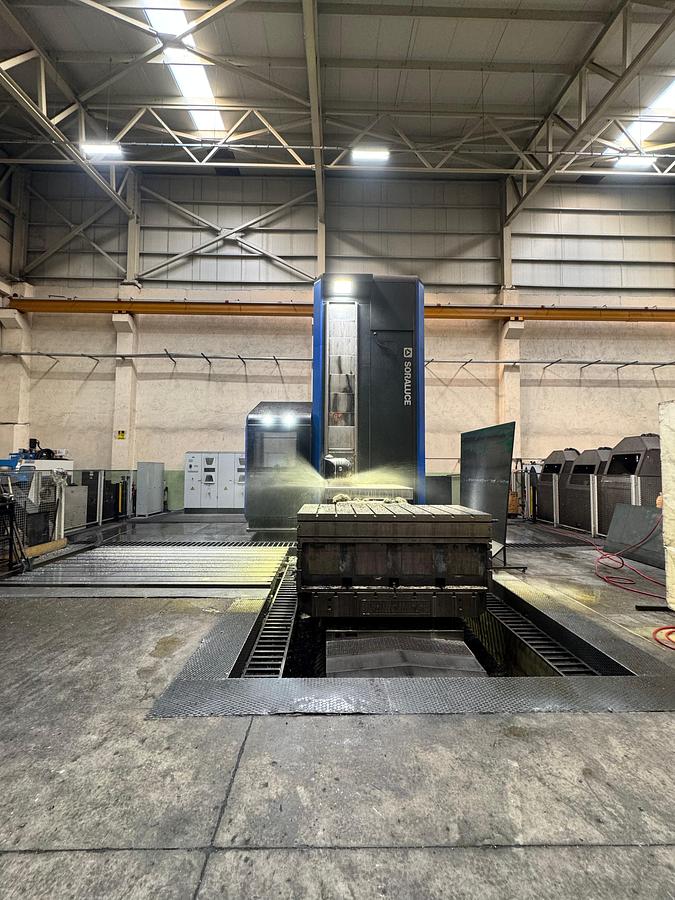

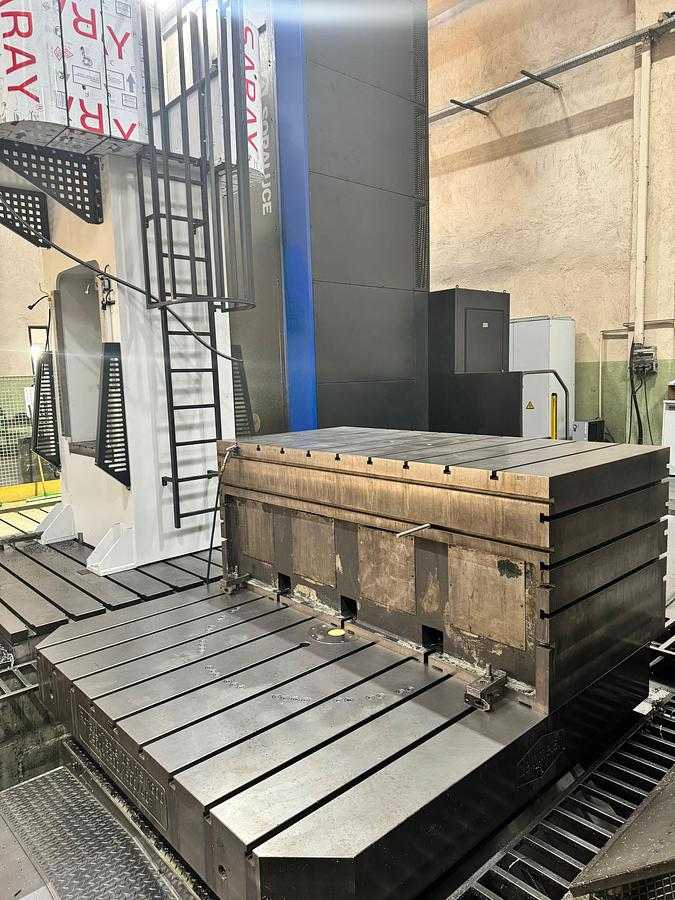

Rotary Table - 2,500 x 2,500 mm

Max Weight on Table 40 Ton

Positioning 360,000

Linear Axis Path 1,500 mm

Maximum Transfer Speed (W-Axis) 20,000 mm/min

Rotation Speed 3.4 rpm

Tilt Torque 175,000 Nm

Tangential Torque (Locked) 80,000 Nm

Tangential Torque (Milling) 32,000 Nm

Weight 18,200 kg

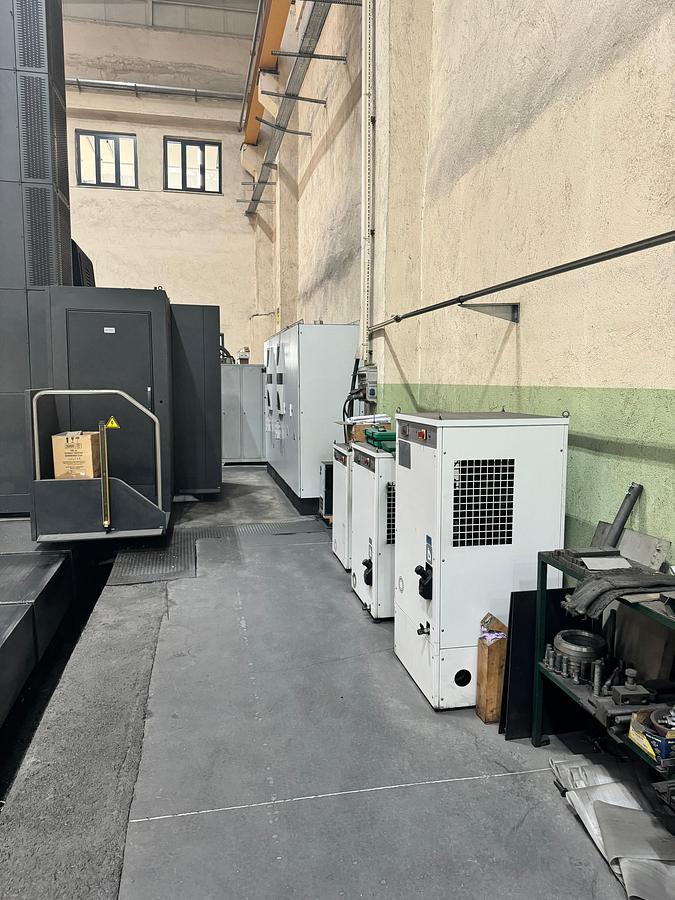

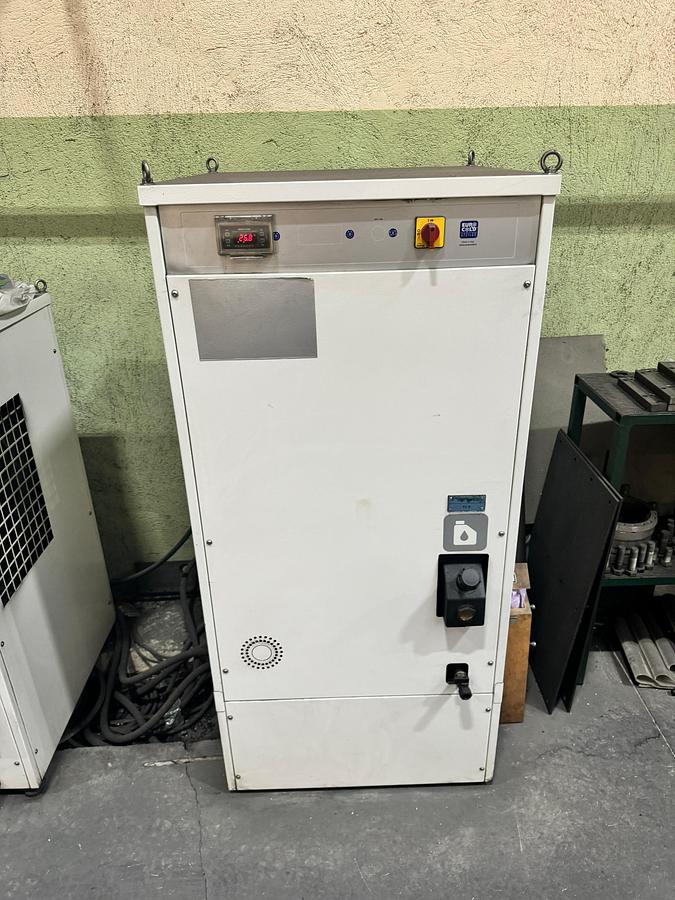

Tool Cooling System - 1,000L Tank

Specifications

ManufacturerSoraluce
ModelFR 6000
Year2019
ConditionUsed
Stock Number11213
Spindle speeds4,000 rpm
X axis travel6,000 mm
Y axis travel4,000 mm
Z axis travel1,600 mm
Table dimensions2,500 x 2,500 mm
Table capacity40 Ton
Head taperDIN 69871-AD BIG PLUS
Rapid feed rate X,Y,Z25 m/min
Thrust force X,Y,Z31,000 N
Machine dimensions15,900 x 11,500 x 6,550 mm
Machine weight36 Ton

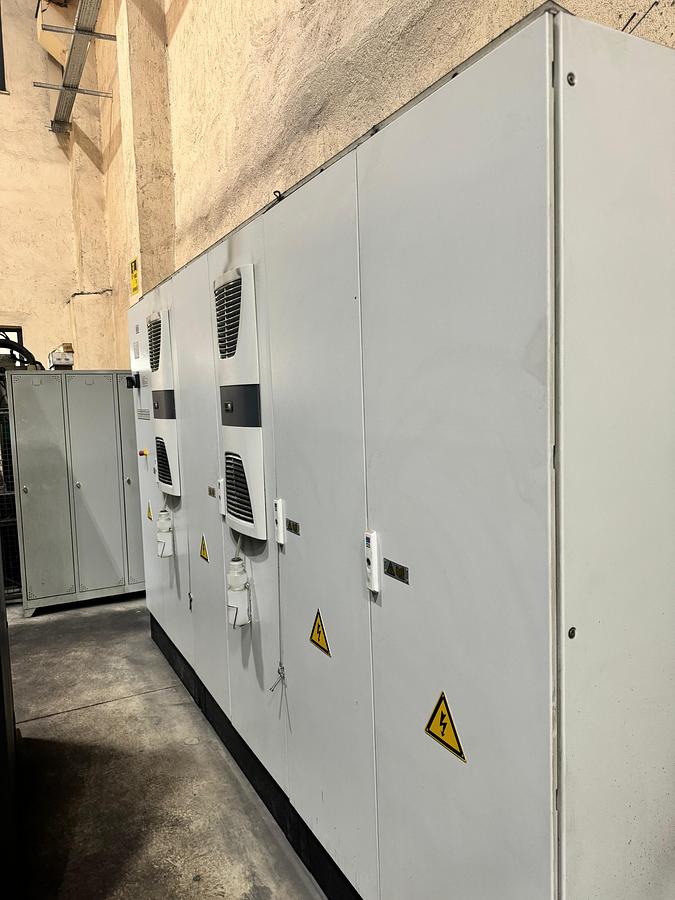

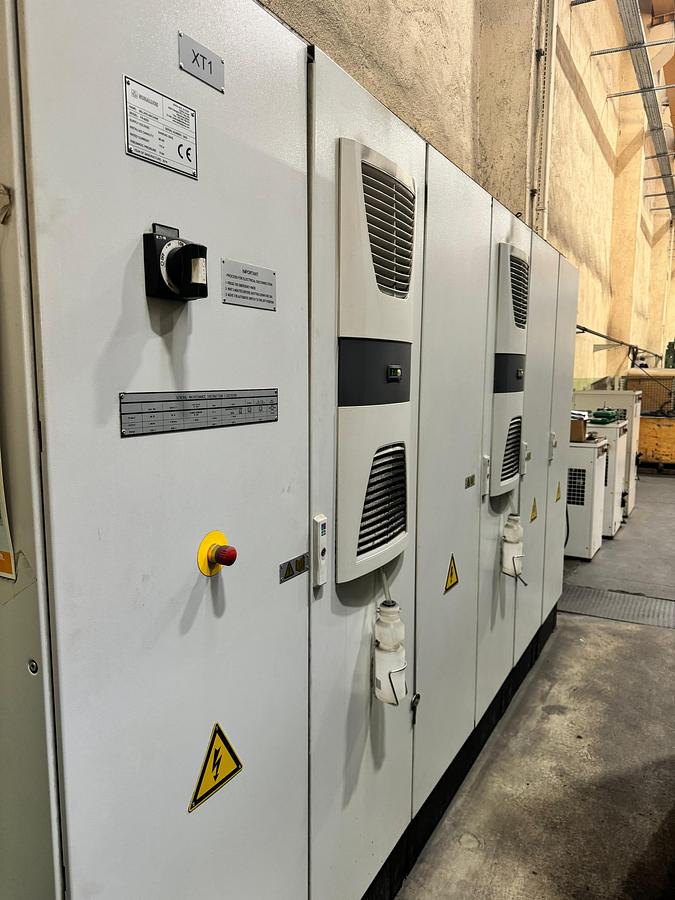

Electrics400 VAC - 96 kW - 50 Hz - 3 Phase
