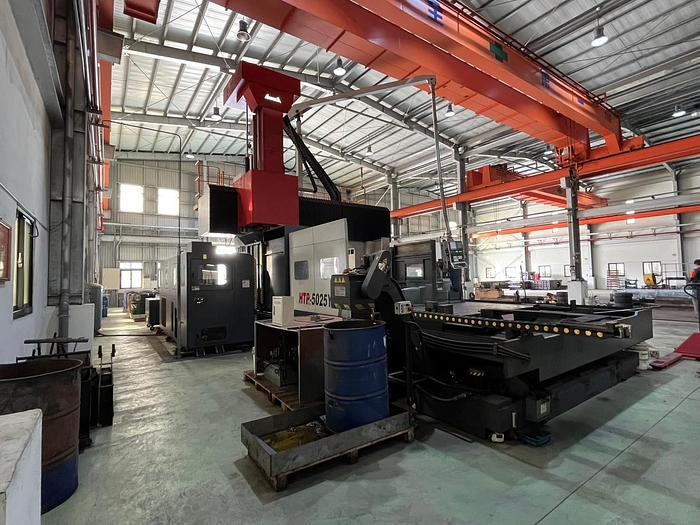

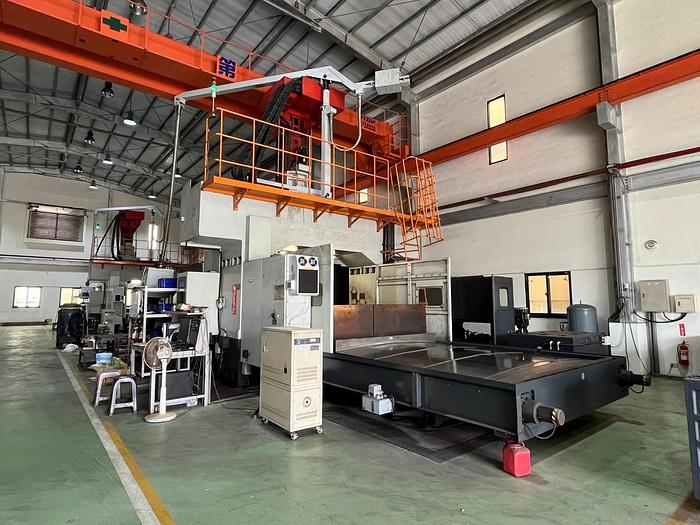

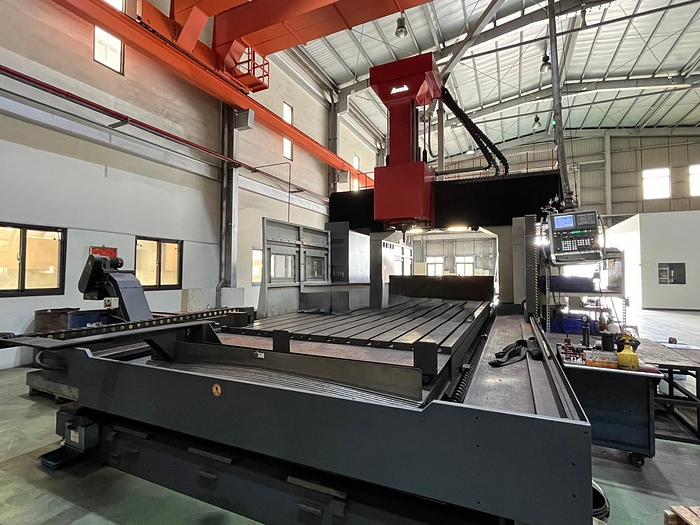

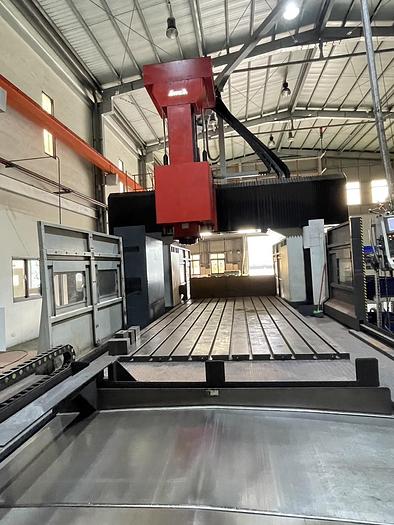

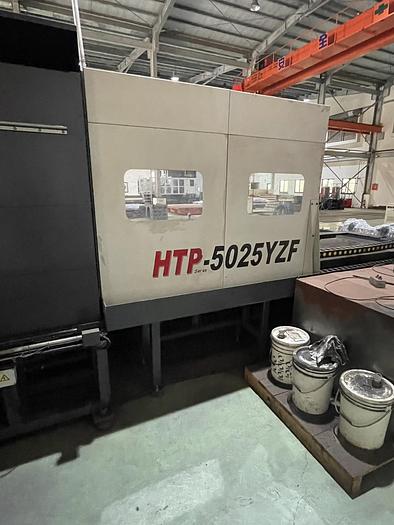

AWEA HTP-5025 YZF CNC Double Column Machining Center with Auto Universal Head (A & C Axis Auto 5 Degrees Indexing)
AWEA HTP-5025 YZF CNC Double Column Machining Center with Auto Universal Head (A & C Axis Auto 5 Degrees Indexing)
Description

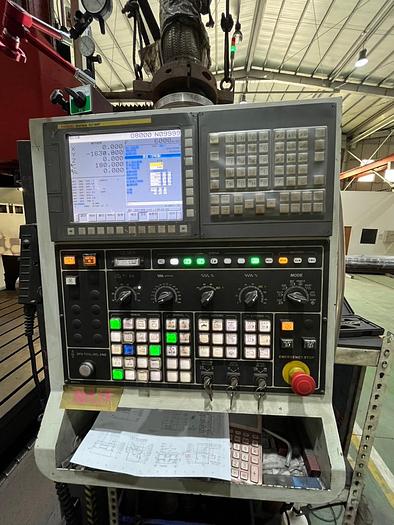

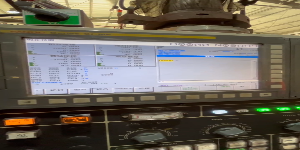

Fanuc Series Oi-MF CNC Control

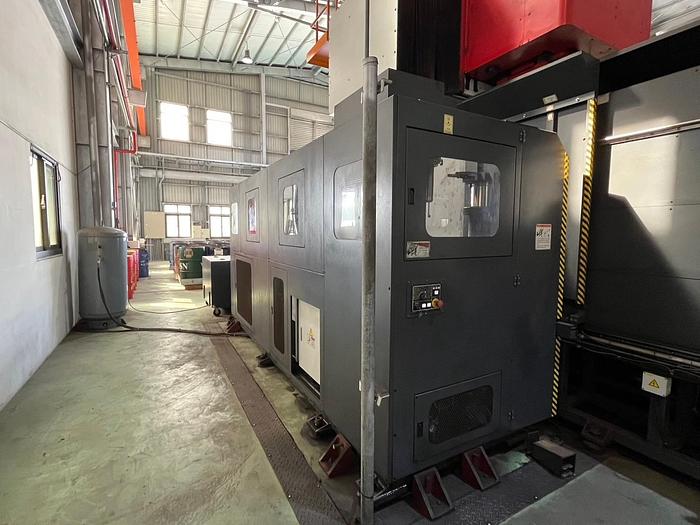

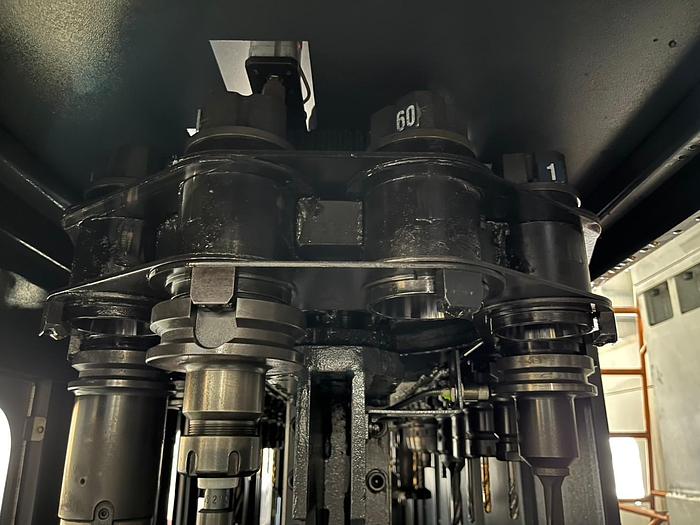

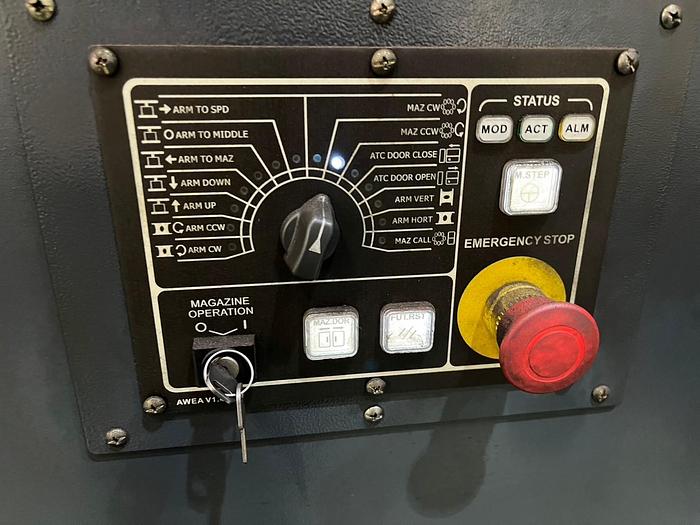

60 Position Automatic Tool Changer (V+H)

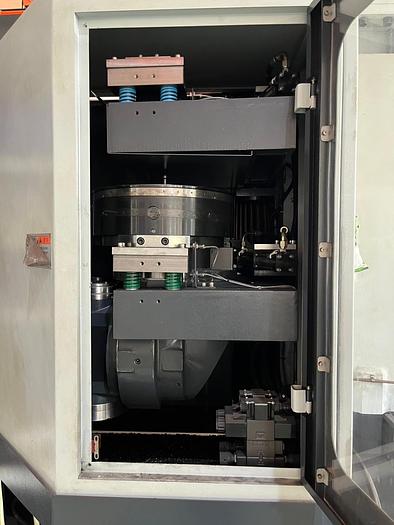

Auto head storage:
Auto 90 degrees head (Max. 3,000 rpm)

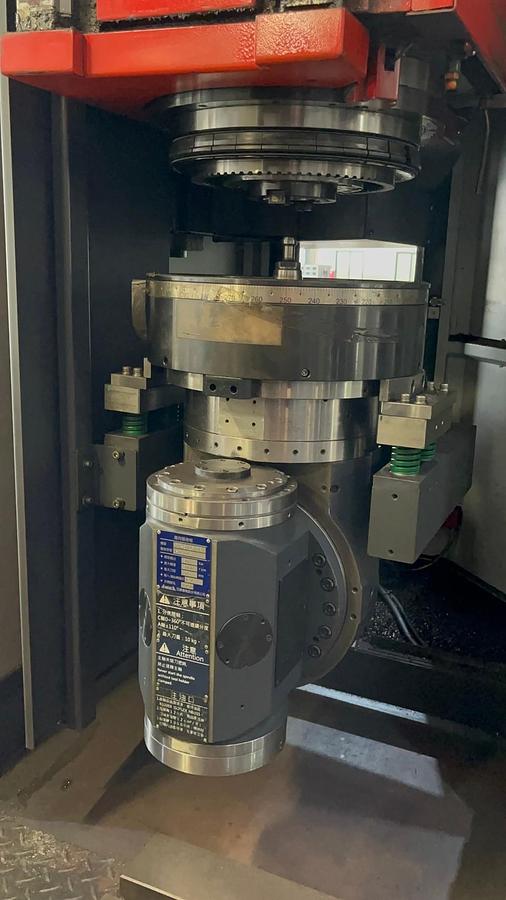

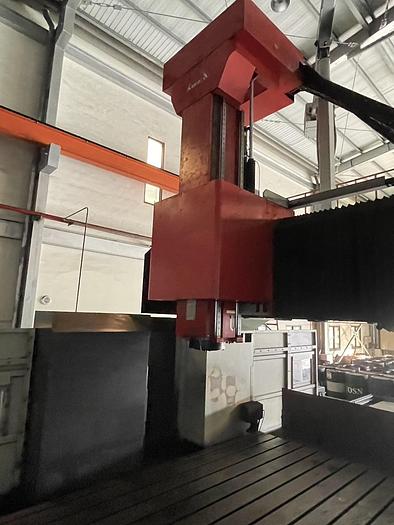

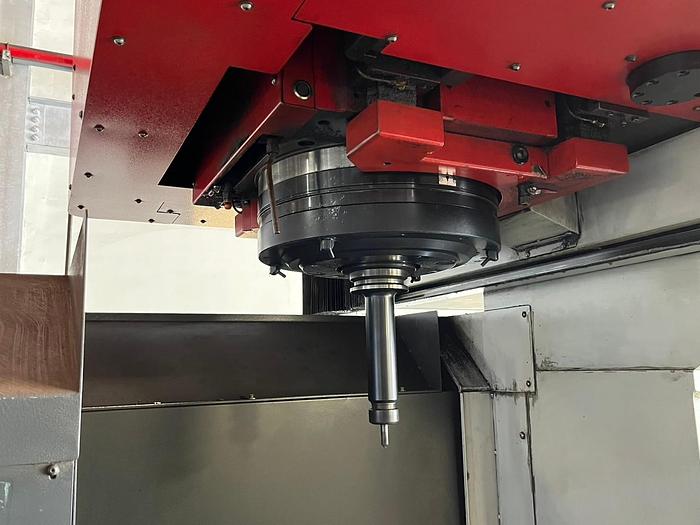

Auto universal head (A/C axis auto 5 degrees indexing)

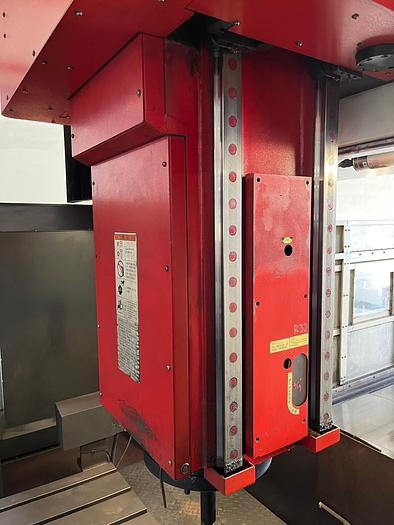

Y axis 3 roller linear guide way / Z axis 4 roller linear guide way
X/Y axis linear scale
Coolant thru spindle 20 bar
BLUM tool measuring system
Spindle Speed 6,000 rpm (gear driven)
The highly rigid HTP series is equipped with a high torque spindle for outstanding heavy cutting performance. It can easily increase the chip removal rate, reduce cycle time and complete tough material machining easily
Best linear guideway arrangement
High quality 4 linear guideways supporting the X-axis and 3 guideways supporting the Y-axis allow the HTP series to easily surpass its competition in structural rigidity, table load and accuracy.
Flexible multi-face machining capability
An automatic head changer and a two positions ATC system are optional upgrades for improved multi-face machining.
A new generation of in-house made attachment heads is available now.
Exceptional capability of chip removal and cooling

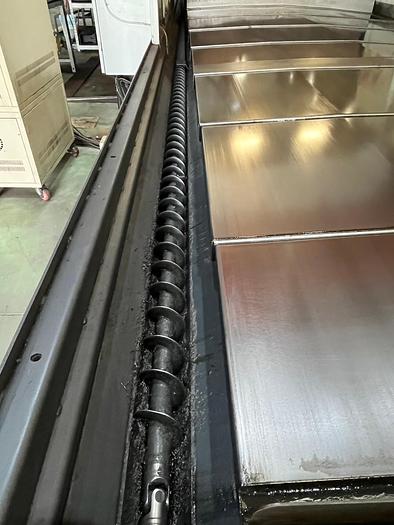

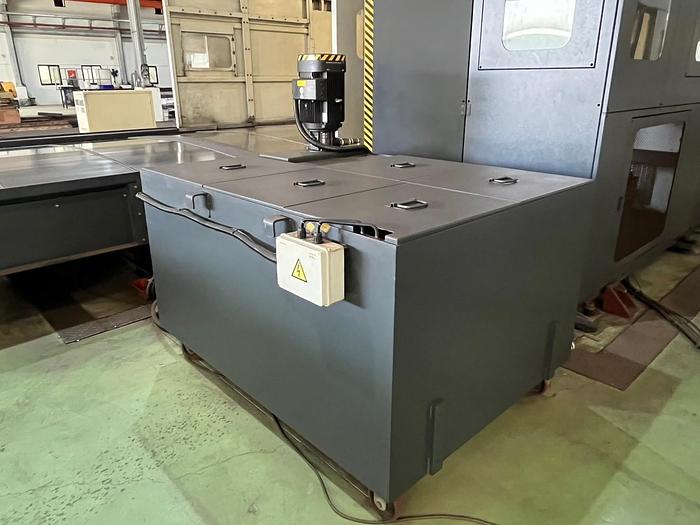

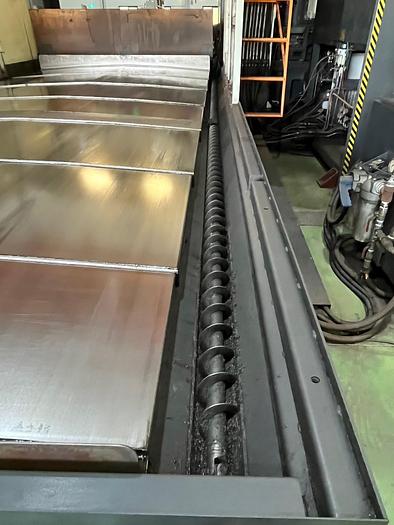

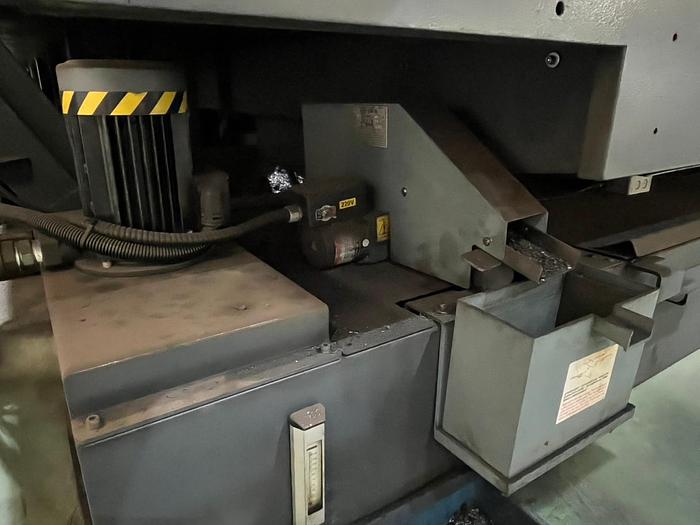

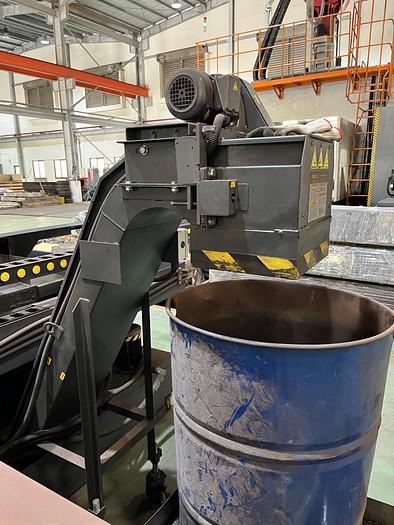

Standard two coil type chip augers and a caterpillar type chip conveyor efficiently remove chips. The coolant tank effectively reduces cutting fluid heating, thus ensuring better machining accuracy.
Maximum Strength Construction
Finite Element Method
Employing the Finite Element Analysis ( FEM ) in the design process assures optimal rigidity and helps reducing the machine weight.
Precision hand scraping
The contact surfaces of column, base, cross beam and all sliding members are precision hand scraped to provide maximum assembly precision, structural rigidity, and optimal load distribution.
Roller type linear guide ways

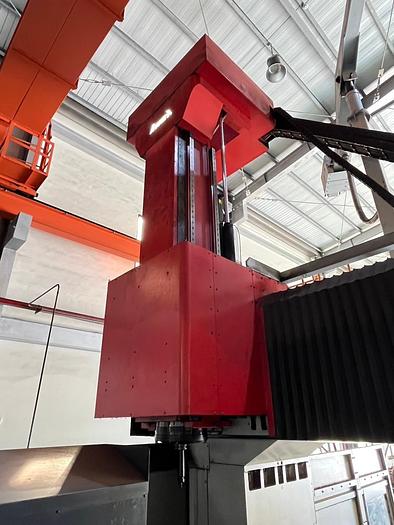

Super rigid roller type linear guide ways on all three axes provide support for heavy-duty cutting and fast, low friction movements.
Precision feedback system
The semi-closed loop system with encoders directly connected to the ball screws ensures high repeatability and positioning accuracy.
Specifications
Manufacturer | AWEA Super Rigid Bridge Type Machining Centers |
Model | HTP-5025 YZF |
Year | 2020 |
Condition | Used |
Stock Number | 11175 |
Between columns | 2,700 mm |
Spindle speeds | 6,000 rpm |
Height from spindle nose to table top | 1,600 mm |
X axis travel | 5,000 mm |
Y axis travel | 3,200 mm |
A & C Axis Auto Universal Milling Head Auto 5 Degrees | A & C Axis Auto Universal Milling Head Auto 5 Degrees |
ISO 50 | ISO 50 |
