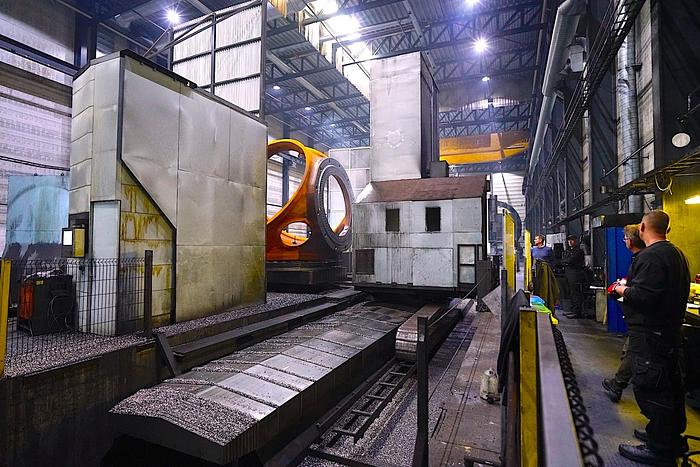

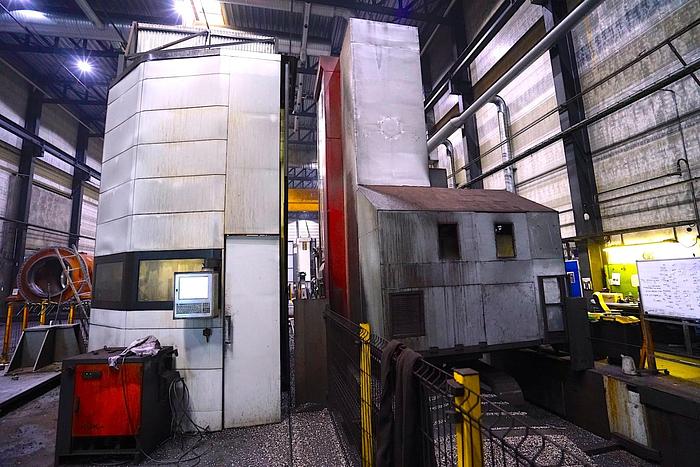

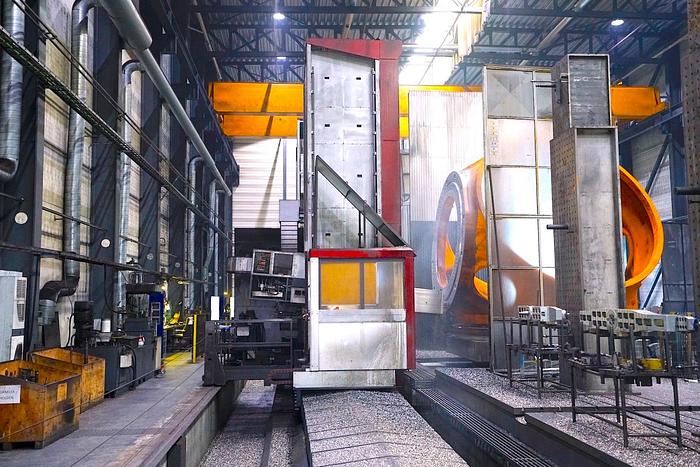

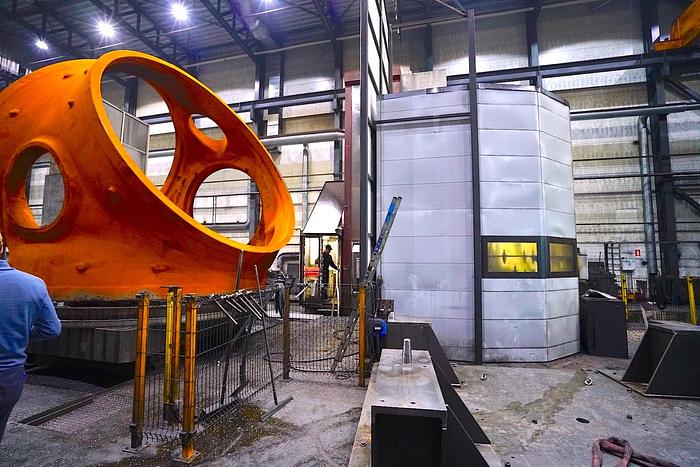

Fermat WRF 150(2G) CNC Floor Type Horizontal Boring Machine
No longer available
Fermat WRF 150(2G) CNC Floor Type Horizontal Boring Machine
Description

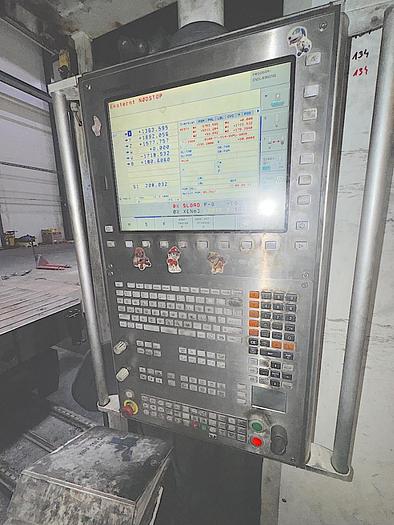

Heidenhain iTNC 530 CNC Control
HR 520 Heidenhain Hand Wheel (MPG), Separate Control Panel with 15" LCD Screen
Linear Scales for X, Y1-Y2, Z, V Axes
Automatic Lubrication System
Through Spindle Coolant - 50 bar
Tilting Headstock with Tilting 0 to -8
Available for Hydraulic Permanent Locking in 0 Position

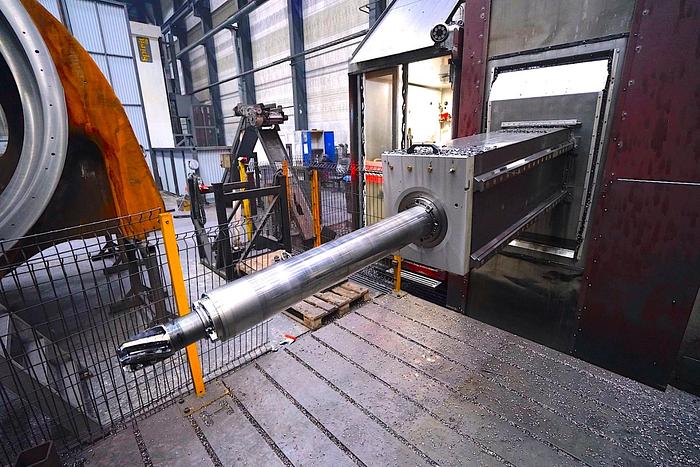

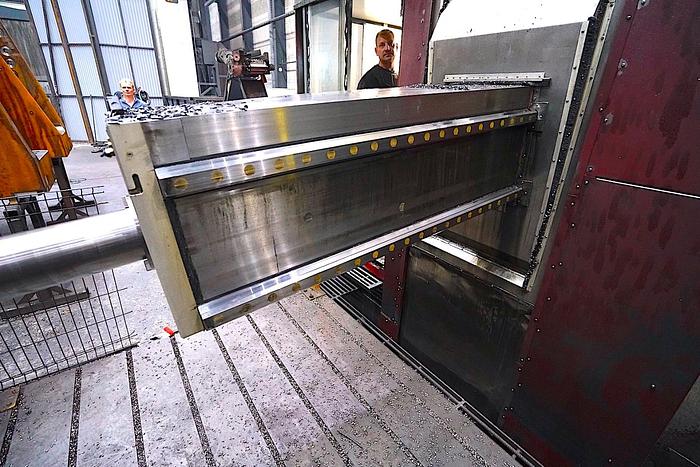

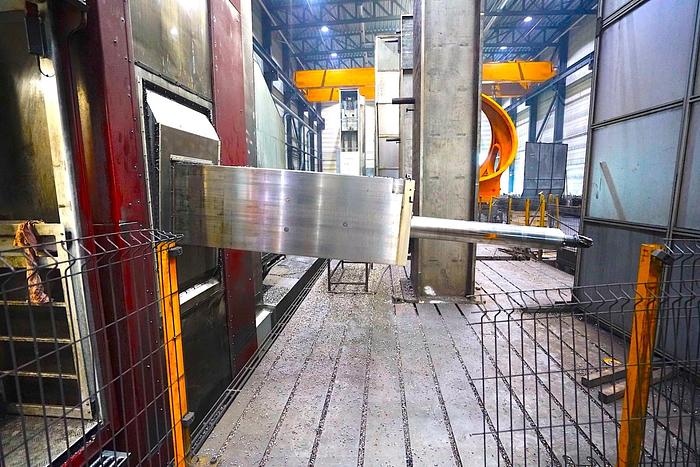

Ram of Headstock on 3 Linear Guide Ways and 1 Hydraulic Clamping Feature
Siemens Spindle Motor Power 74 kW (S1) - Gearbox CE18, Ratio 1:4
External Coolant - 4 bar

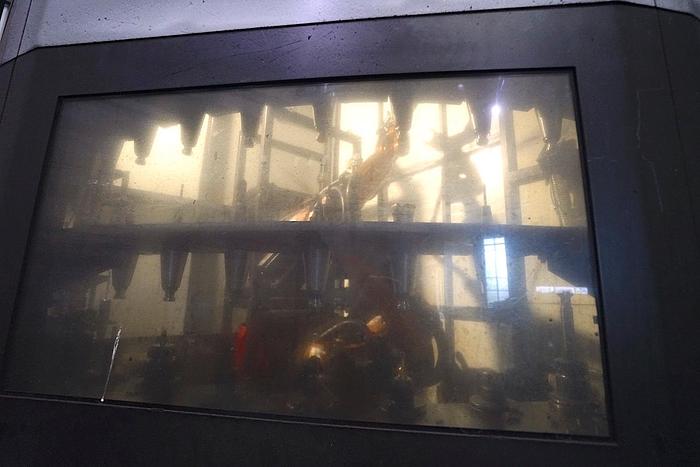

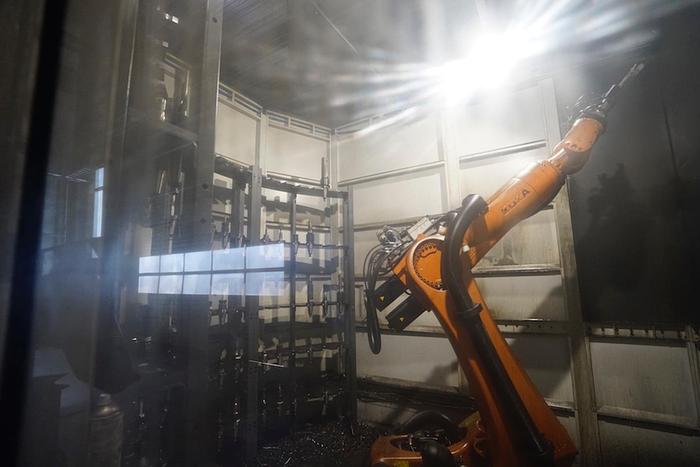

90 Position Robotic Automatic Tool Changer
4 Position Pickup Station
Universal Micro Positioning Head - 30 kW
Right Angle Head - 60 kW

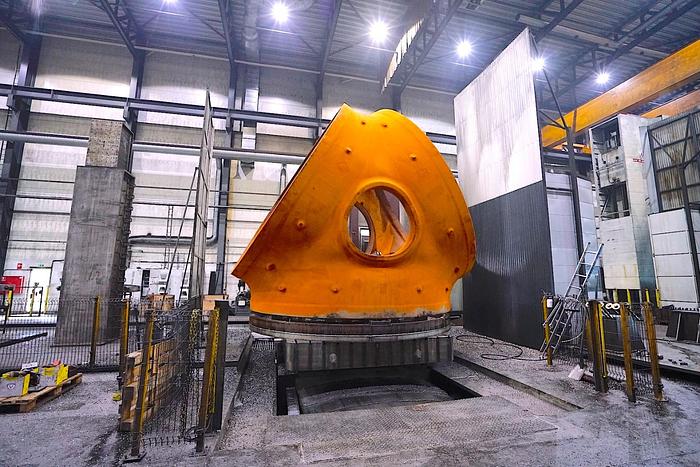

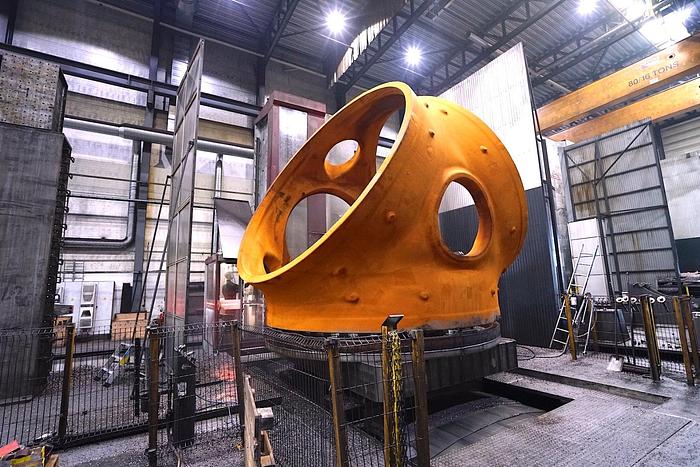

Rotary Table - 3,000 x 4,000 mm - 80 Ton Capacity

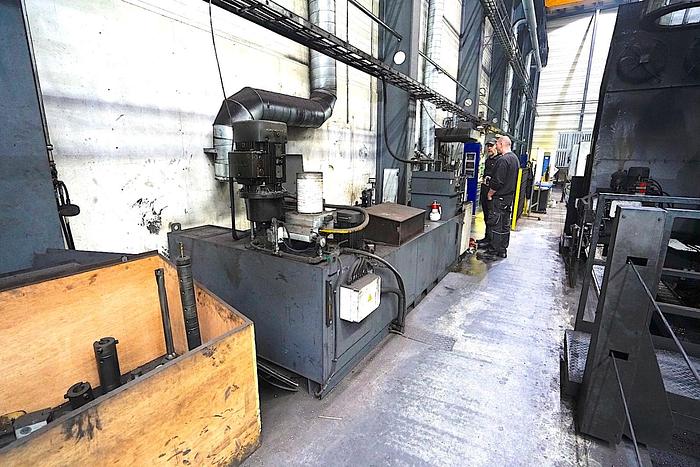

Hydraulic System
Headstock Gearbox Oil Chiller
Specifications
| Manufacturer | Fermat |
| Model | WRF 150(2G) |
| Year | 2018 |
| Condition | Used |
| Stock Number | 11122 |

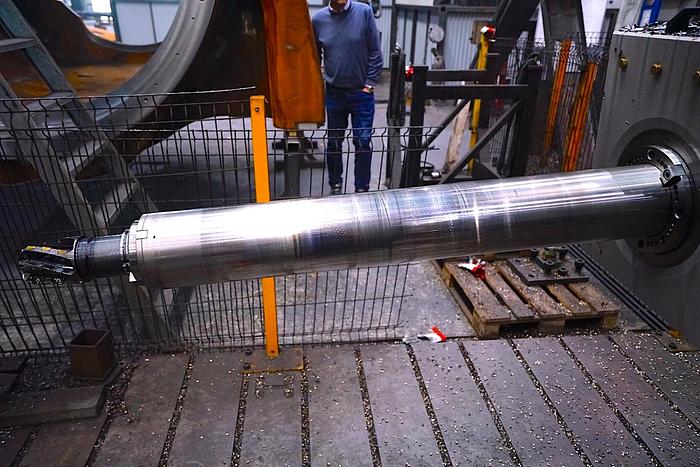

| Spindle diameter | 150 mm |
| Spindle speeds | 2,800 rpm |
| X axis travel | 17,800 mm |
| Y axis travel | 6,000 mm |
| Z axis travel | 1,500 mm |
| Table dimensions | 4,000 x 3,000 mm |
| Table capacity | 80 Ton |
| W axis travel | 1,000 mm |
| Ram dimensions | 520 x 520 mm |
| Spindle motor power, 2 steps, ZF | 74/91 kW |
| Spindle taper | ISO 50 |
| Z + w - ram + spindle travel | 2,500 mm |
| V axis table travel | 3,000 mm |
| C axis | 360,000° |
| Machine weight | 146 Ton |
| Machine dimensions | 27.7 x 13 x 8.9 m |
| Installed input | 225 kVA |
| Tool shank | ISO 7388-1AD (DIN 69872A) |
| Pull studs | 7388-2A (DIN 69872A) |
| Operating voltage frequency | 50 Hz |
