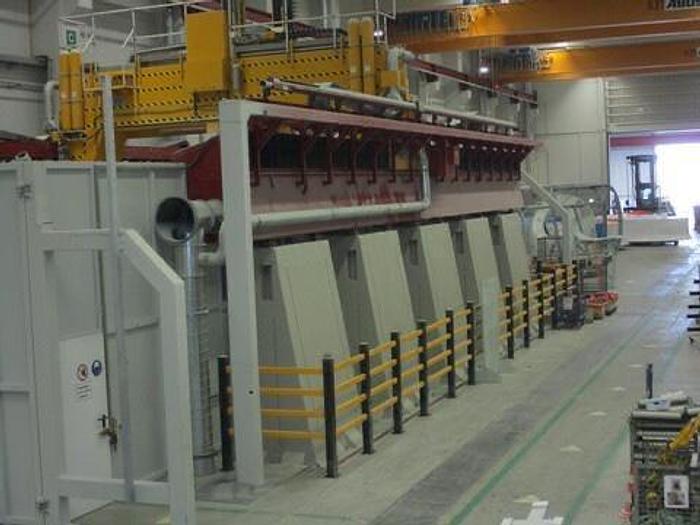

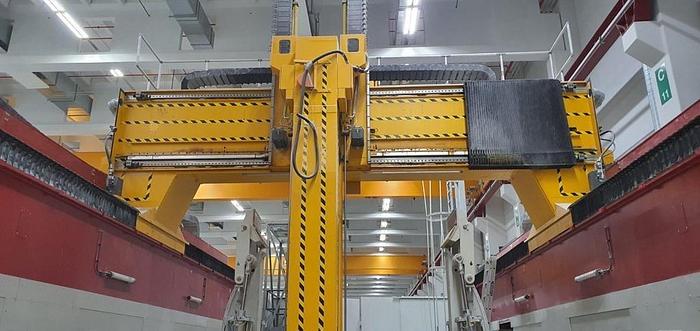

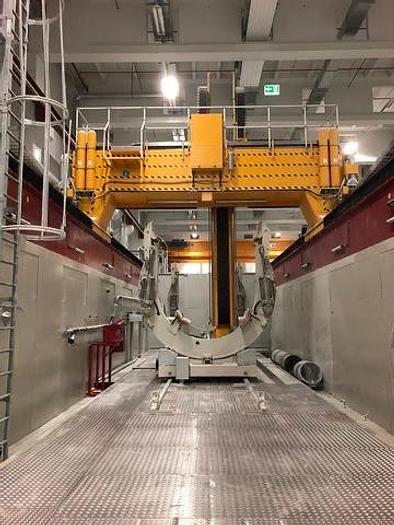

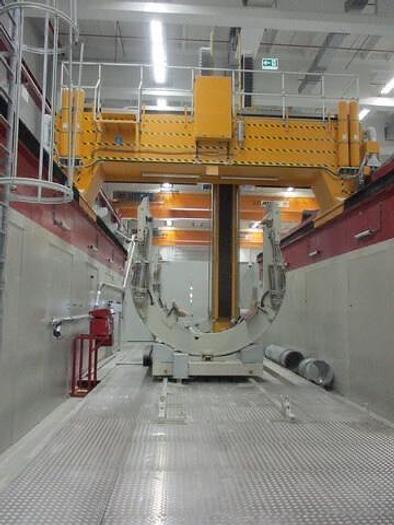

Zimmermann FZ 42 CNC Gantry Type Milling Machine
Zimmermann FZ 42 CNC Gantry Type Milling Machine
orCall 770-509-0744
Description

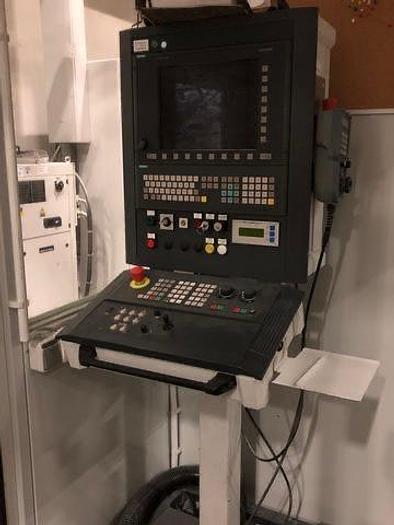

Siemens 840D PL CNC Control

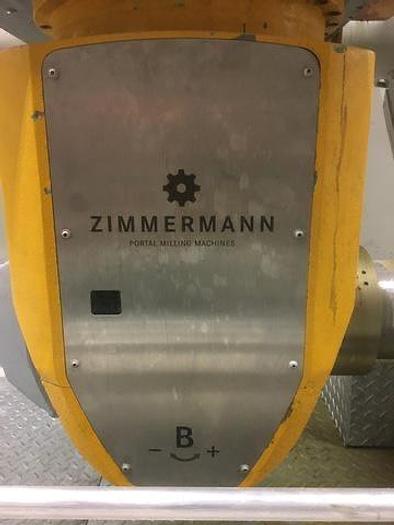

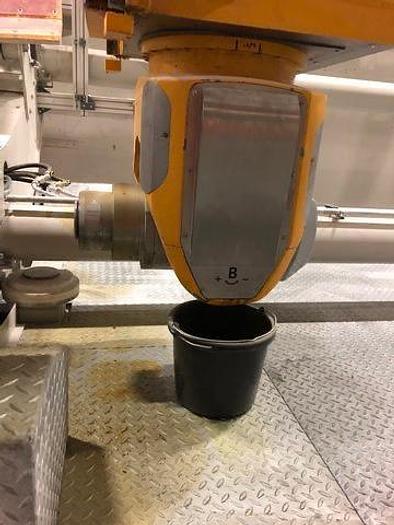

Milling Head VH3
B Axis Swivel Angle without Suction ±110°
B Axis Swivel with Suction +35° / -110°
Milling Spindle Power Max Constant 6,000 rpm 60 kW
Torque Max up to 5,000 rpm 95 Nm
Spindle Speed Infinitely Variable 10,000 rpm
Compressed Air
Column clearance width - 6,130 mm
Transverse clear beam height - 6,380 mm
Specifications
| Manufacturer | Zimmermann |
| Model | FZ 42 |
| Year | 2012 |
| Condition | Used |
| Stock Number | 11057 |
| Between columns | 6,130 mm |
| Spindle speeds | 10,000 rpm |
| X axis travel | 12,500 mm |
| Y axis travel | 5,000 mm |
| Z axis travel | 3,500 mm |
| Feed speed X axis | 50 m/min |
| Feed speed Y axis | 60 m/min |
| Feed speed Z axis | 50 m/min |
| Acceleration max | 3 m/s² |
| Reduced milling spindle speed setup mode | 2,000 rpm |
| Reduced milling spindle speed operating mode | 5,000 rpm |
| C axis swivel speed | 60 °/sec |
| Holding torque clamped | 2,000 Nm |
| Nominal swivel torque simultaneously | 1,000 Nm |
| Reduced feed setup mode | 2 m/min |
| Operating mode | 5 m/min |
| Operating voltage | 400 V |
| Frequency | 50 Hz |
| Nominal current | 205 kVA |
| Back up fuse | 315 A |
| Control voltage | 24 V |
| Short-circuit strength | 25 KV |
| Machine width | 12,000 mm |
| Machine height | 12,200 mm |
| Machine weight | 249 Ton |
