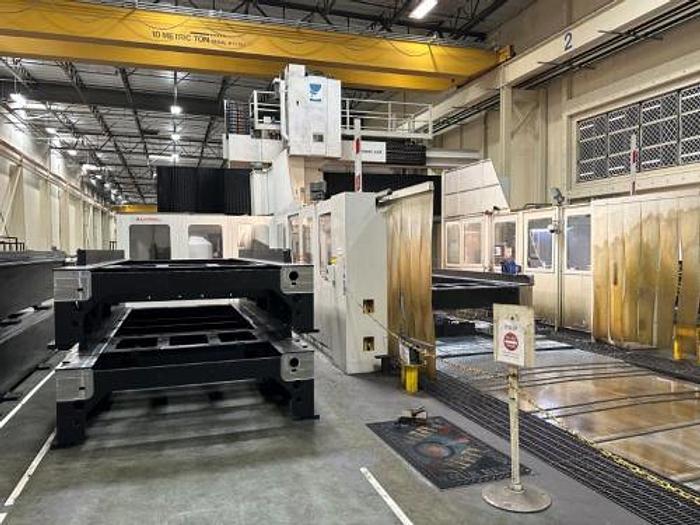

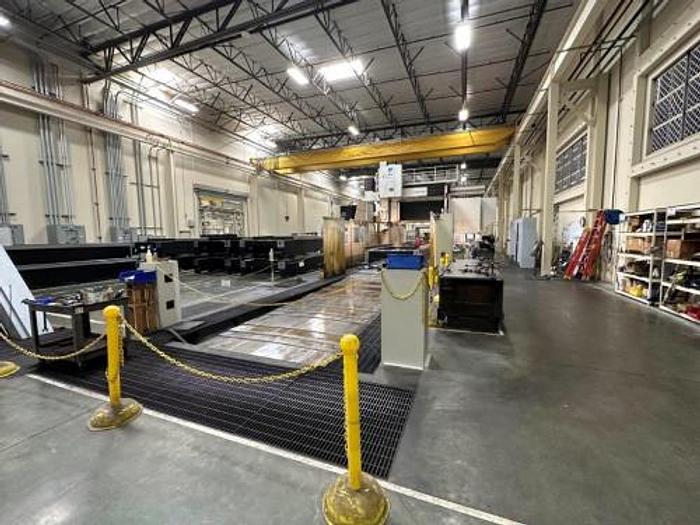

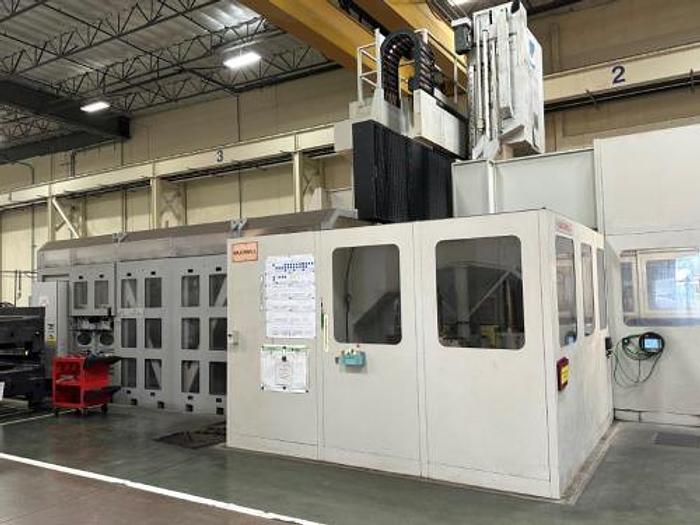

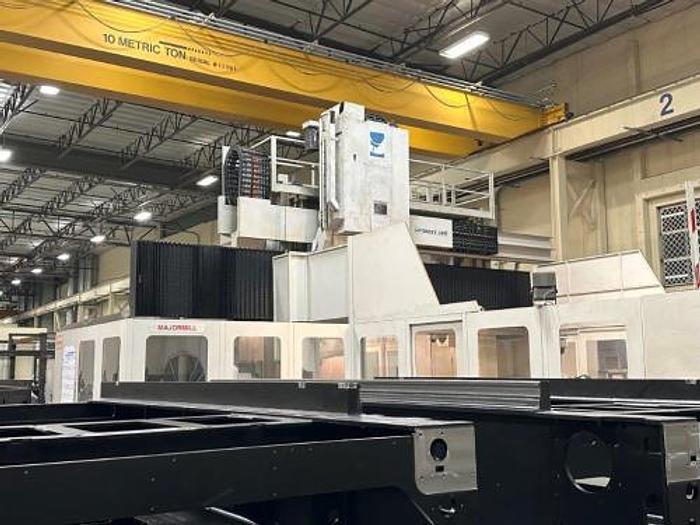

Forest Line Five Lines Majormill 350TA 2T CNC Bridge Type Milling Machine with Double Table

No longer available

Forest Line Five Lines Majormill 350TA 2T CNC Bridge Type Milling Machine with Double Table

Description

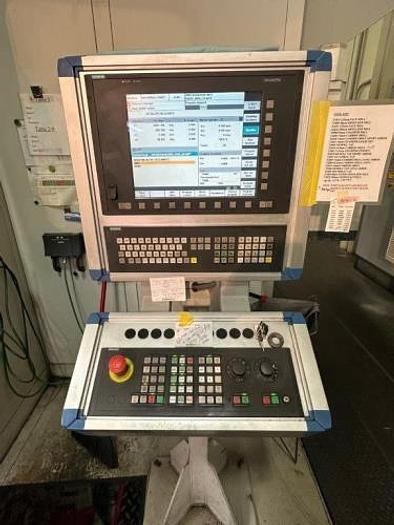

SIEMENS 840D SL CNC CONTROL

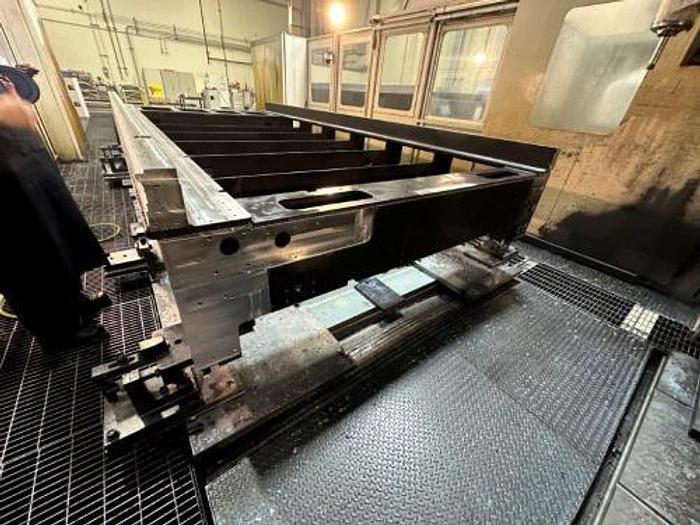

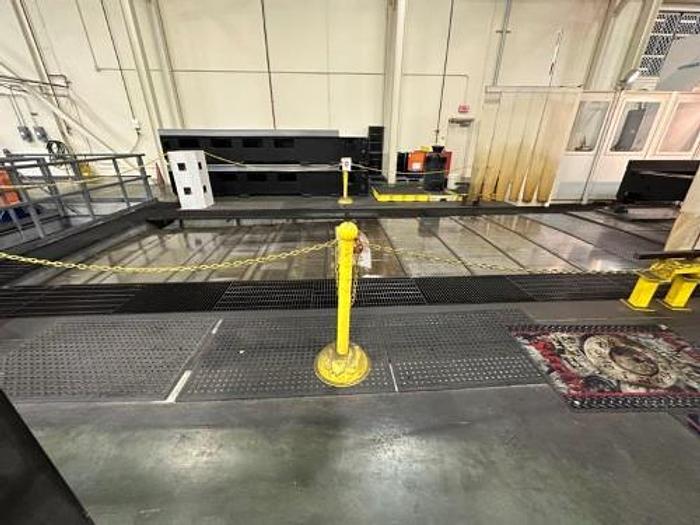

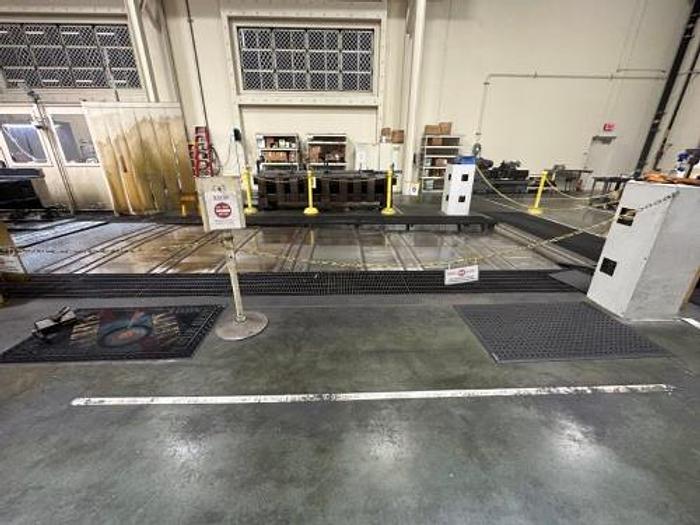

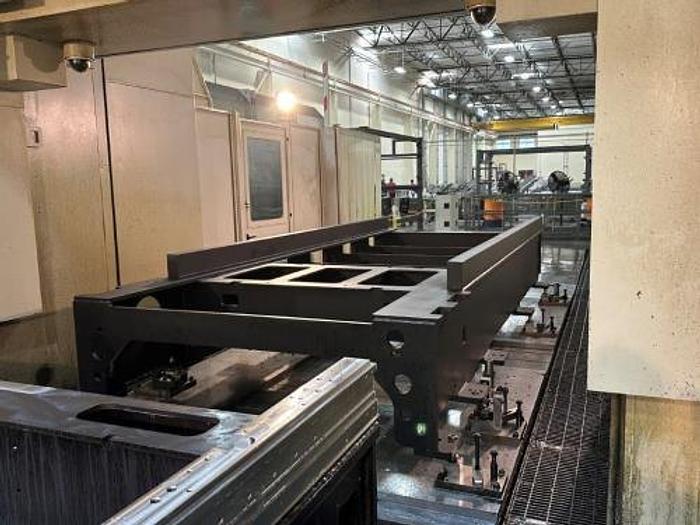

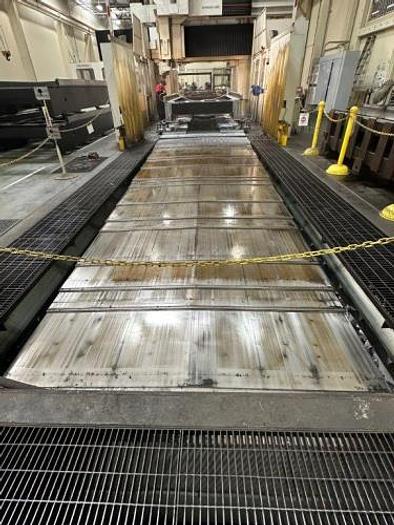

2 x CAST IRON TABLES

MAX LOAD SINGLE TABLE 20 TON / COUPLED TABLES 30 TON

120 TOOL AUTOMATIC TOOL CHANGER

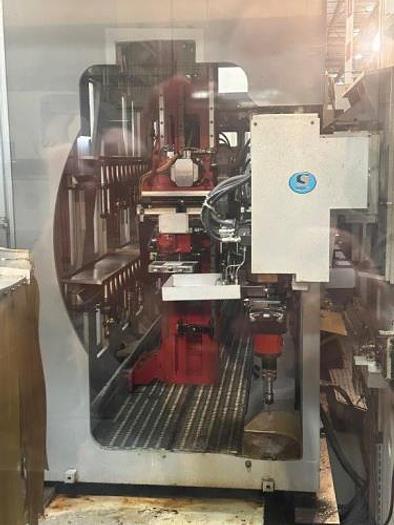

STORAGE OF SPINDLE UNITS (5 STATIONS)

SPINDLE ATTACHMENTS:

VERTICAL SPINDLE (b8-856-01996B)

TYPE - BV 40

POWER 40 kW

TORQUE 1530 NM

MAX SPINDLE SPEED 6,000 rpm

UNIVERSAL SPINDLE (B8-856-01997C)

TYPE RU SPECIAL

POWER 20 kW

MAX SPINDLE SPEED 2,000 rpm

POSITIONING INDEXING 5°

RIGHT ANGLE SPINDLE B8-856-01995C)

TYPE RE 40 LONG

POWER 40 kW

MAX SPINDLE SPEED 6,000 rpm

RIGHT ANGLE SPINDLE (B8-856-01998B)

TYPE RE 15

POWER 15 kW

MAX SPINDLE SPEED 6,000 rpm

EXTERNAL AND THROUGH SPINDLE COOLANT SYSTEM

2x CHIP CONVEYORS

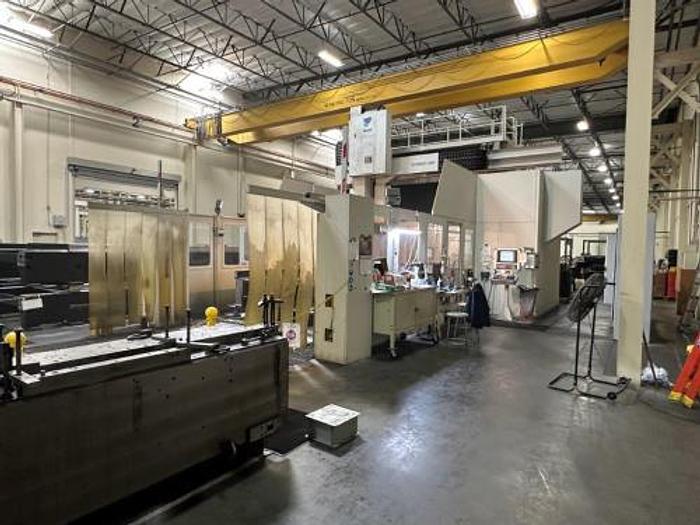

ENCLOSURE OF THE WORKING AREA

TOOL MANAGEMENT AND IDENTIFICATION BALUFF

TOOL BREAKAGE CONTROL RENISHAW TS20

TOUCH PROBE RENISHAW RMP60

AUXILIARY PANEL SIEMENS HT8

WIRELESS HANDWHEEL HUBITRON

AUTOMATION OF THE HOUSING BARRIERS

VIDEO SYSTEM WITH 4 CAMERAS

COALESCENT OIL SEPARATOR OPTIONAL EQUIPMENTS

SMOKE EXHAUST DEVICE / CONNECTED ROOF

TOOL CONTROL AND BREAKAGE LASER BEAM BLUM NT

ANTI-COLLISION SYSTEM UNDER CROSS RAIL

Specifications

ManufacturerForest Line
ModelFive Lines Majormill 350TA 2T
Year2011
ConditionUsed
Stock Number11032
Between columns3,500 mm
Spindle speeds6,000 rpm
Machining height2,600 mm
X axis travel13,300 mm
Y axis travel4,000 mm
Z axis travel1,500 mm
Table dimensions(x2) 6,000 x 2,750 mm
Table capacity20 Ton
Table capacity - coupled tables30 Ton
Height under rail3,000 mm
Tool taperISO 50
X axis travel - single table6,500 mm
W axis travel1,500 mm (250 mm x 6)
C axisN x 360°
A axisN x 360°
Feed speed X/Y/Z/W30/40/30/1 m/min
Milling headFA 315C
Ram cross section425 x 425 mm
Machine dimensions33.1 x 10.43 x 8.045 m
Machine weight155 Ton
