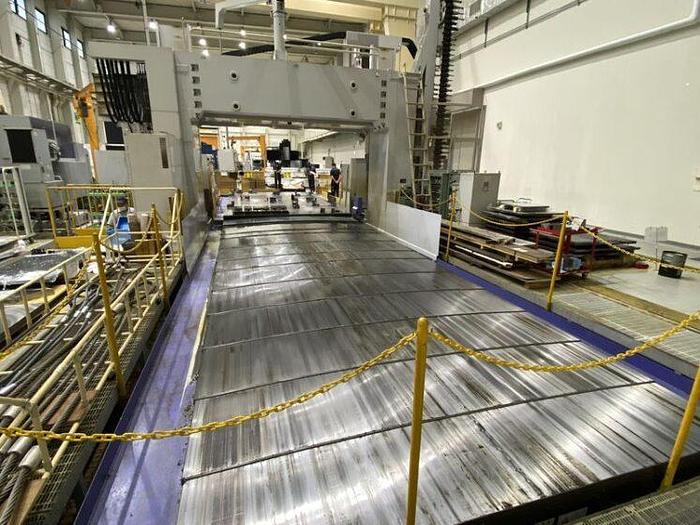

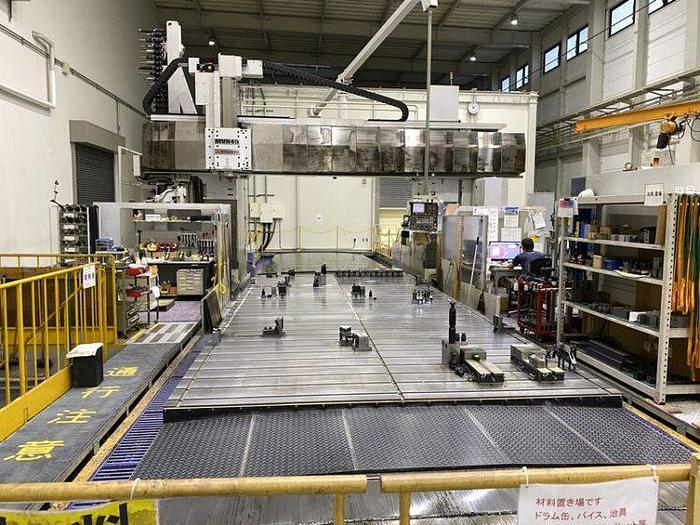

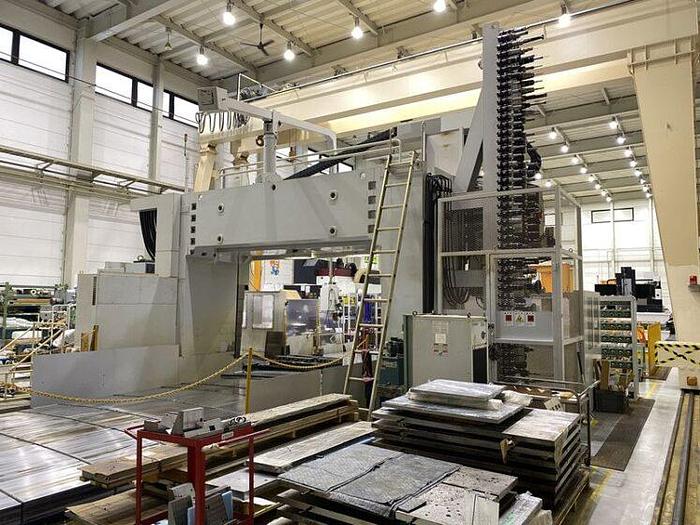

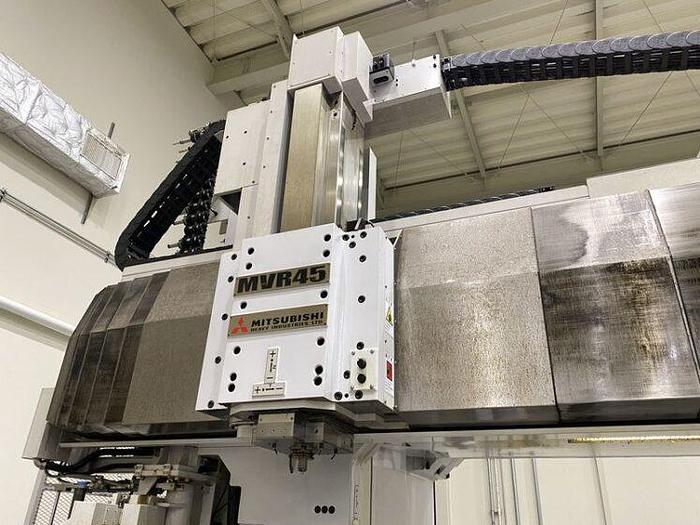

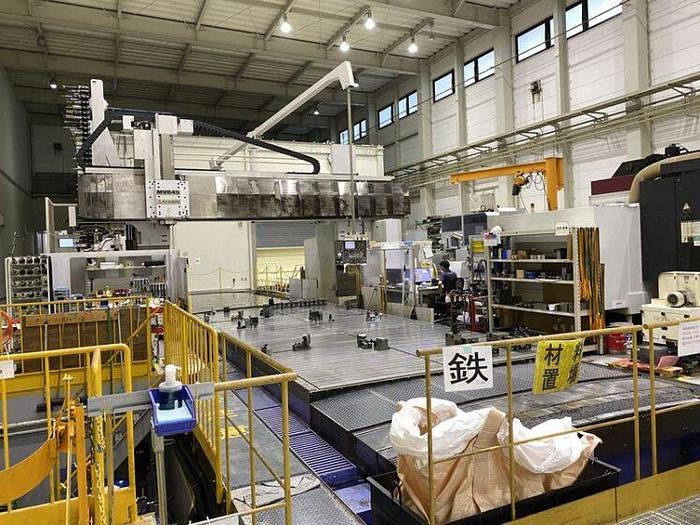

Mitsubishi MVR45 CNC Double Column 5-Face Double Column Machining Center
No longer available
Mitsubishi MVR45 CNC Double Column 5-Face Double Column Machining Center
Description

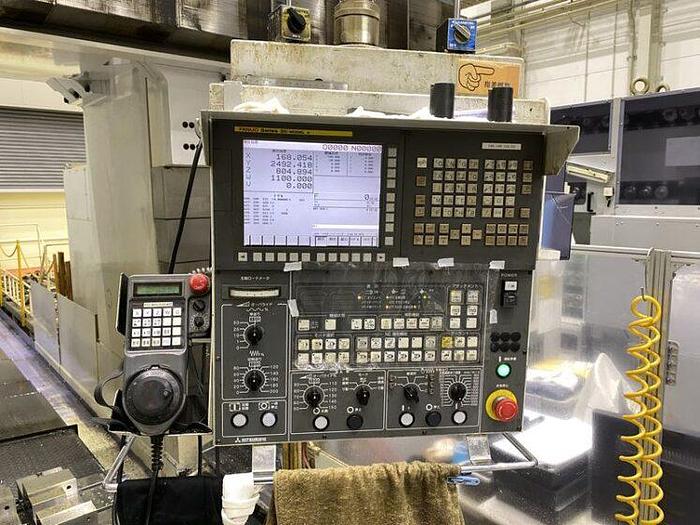

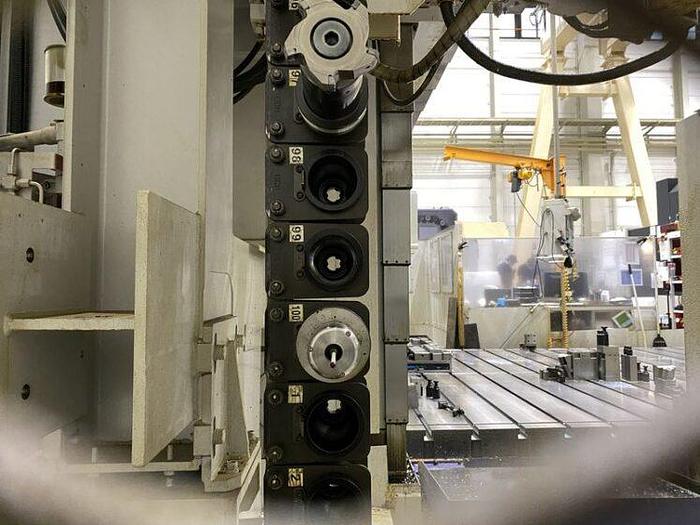

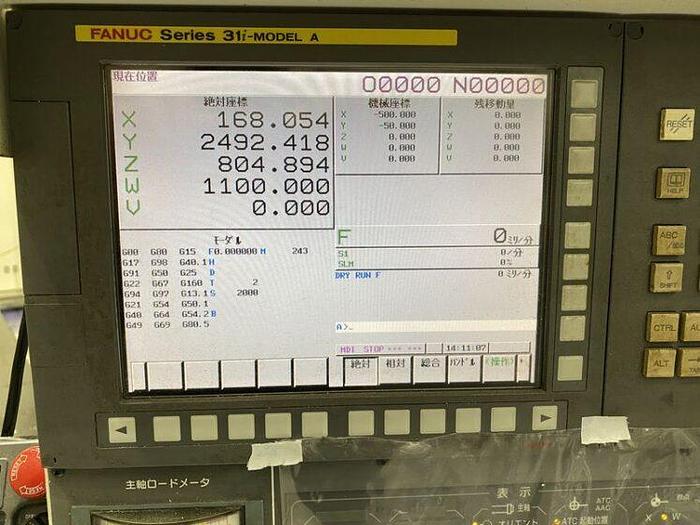

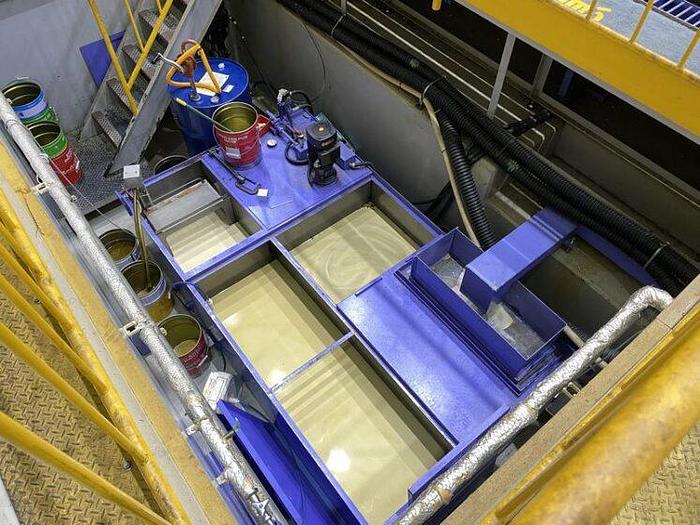

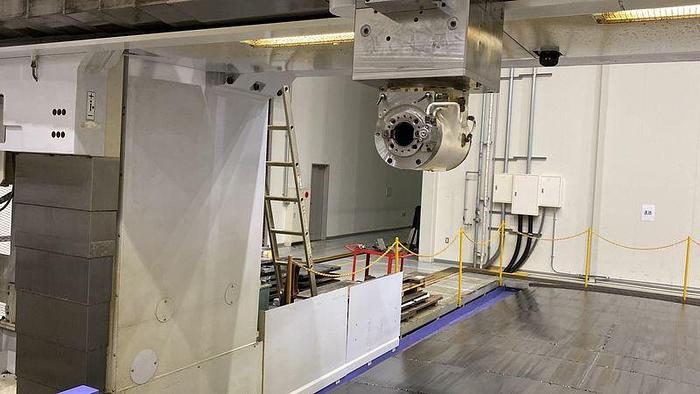

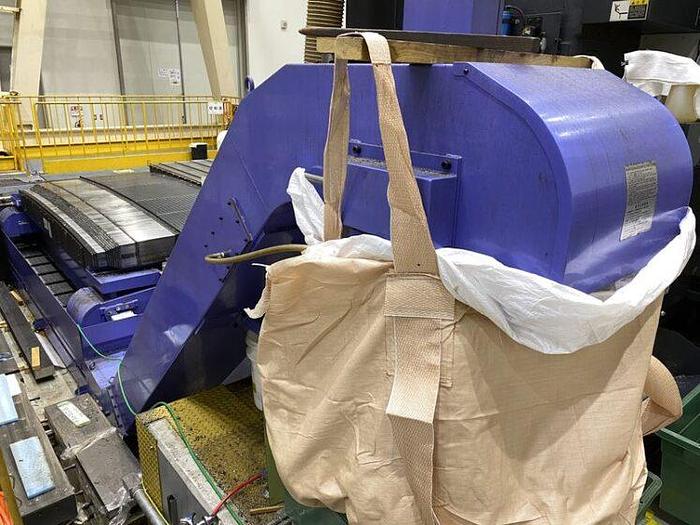

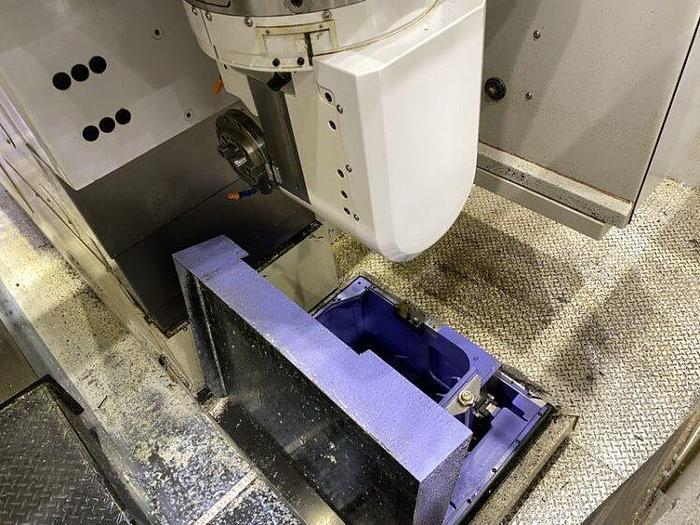

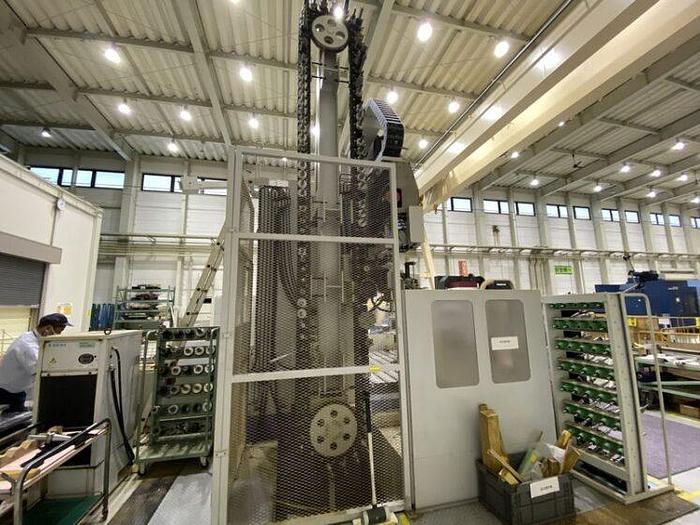

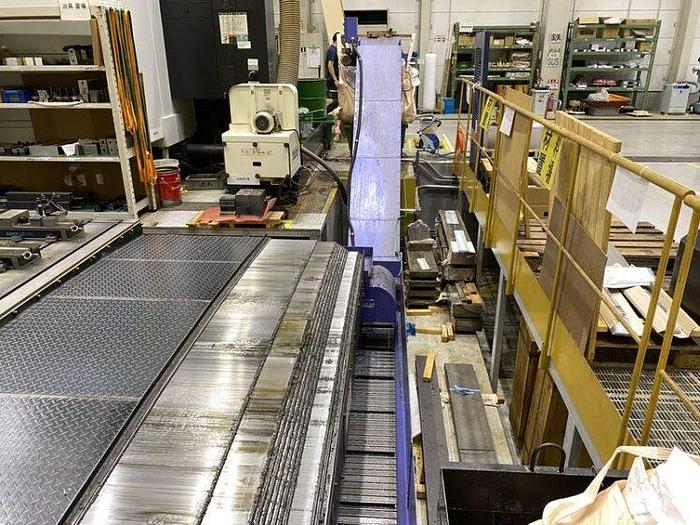

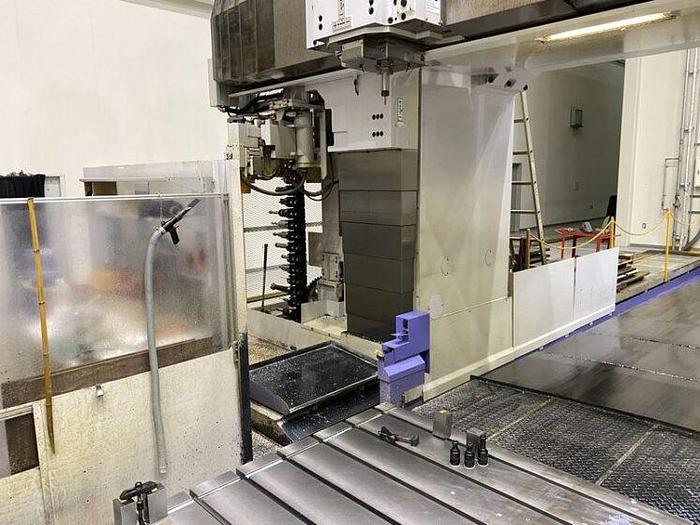

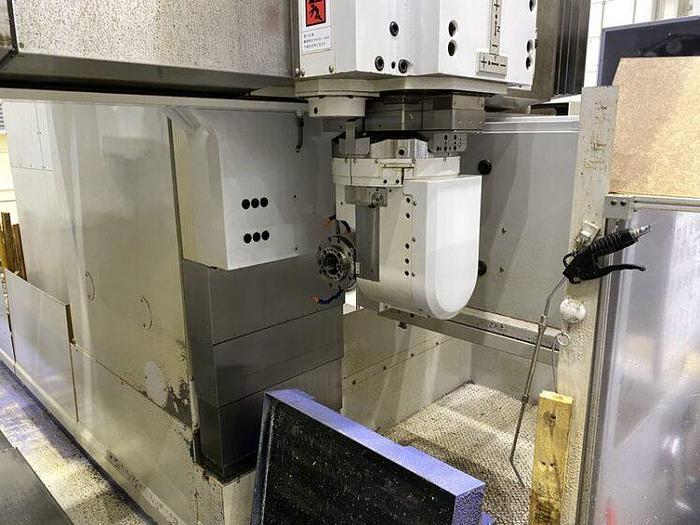

Fanuc 31iMA CNC Control Head Indexing 1 Degree 100 Position Automatic Tool Changer 4 Position Automatic Attachment Changer Dummy 90 Degree Angle High Speed Extension Universal Head Chip Conveyor Air Blow Flood Coolant Scale Feedback Tool Measuring Device
Specifications
| Manufacturer | Mitsubishi |
| Model | MVR45 |
| Year | 2010 |
| Condition | Used |
| Stock Number | 11009 |
| Between columns | 4,250 mm |
| Spindle speeds | 6,000/15,000 rpm |
| X axis travel | 8,200 mm |
| Y axis travel | 4,900 mm |
| Z axis travel | 800 mm |

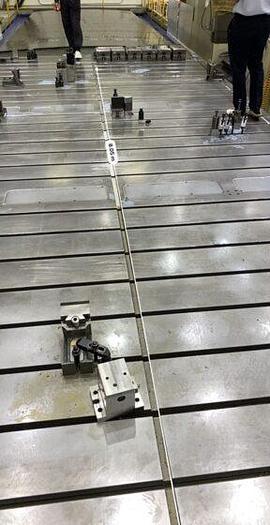

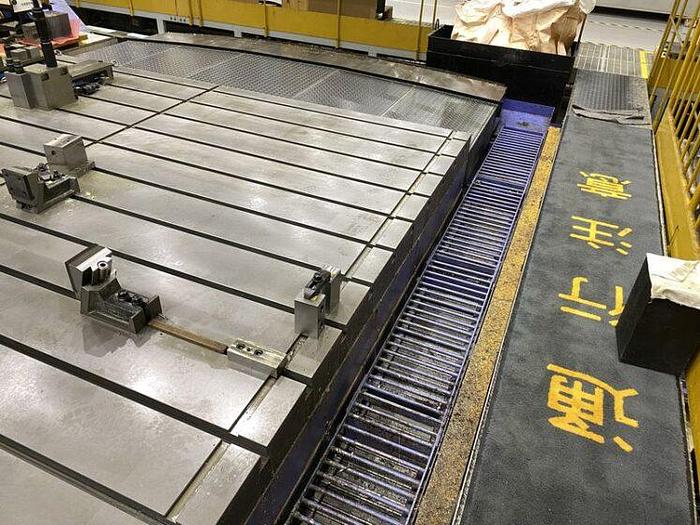

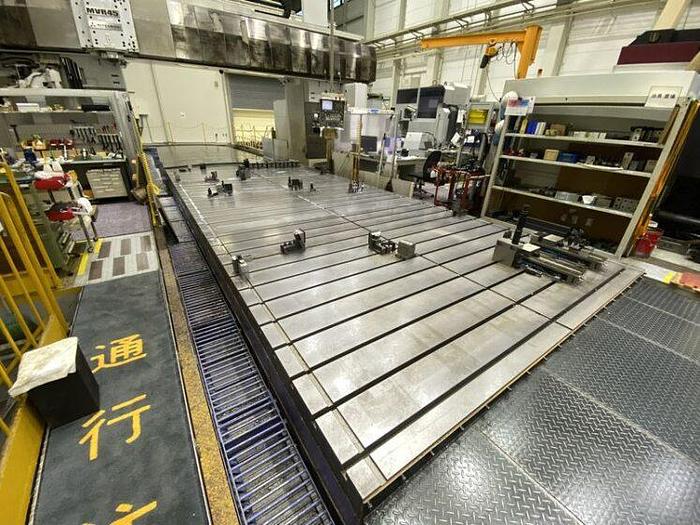

| Table dimensions | 3,500 x 8,000 mm |
| W axis travel | 1,100 mm |
| Spindle size | 100 mm |
| Main axis taper | JIS B6101 Tapper No. 50 |

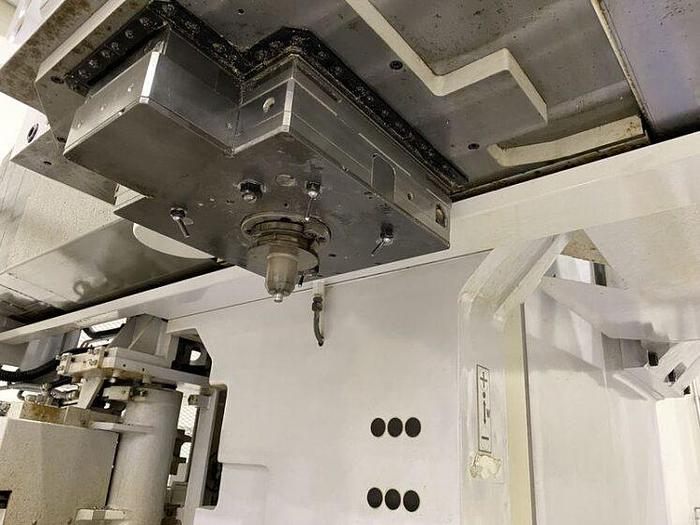

| Extension milling head | 90/JIS B6101 Tapper No. 50 |
| Main axis output torque | 600 Nm |

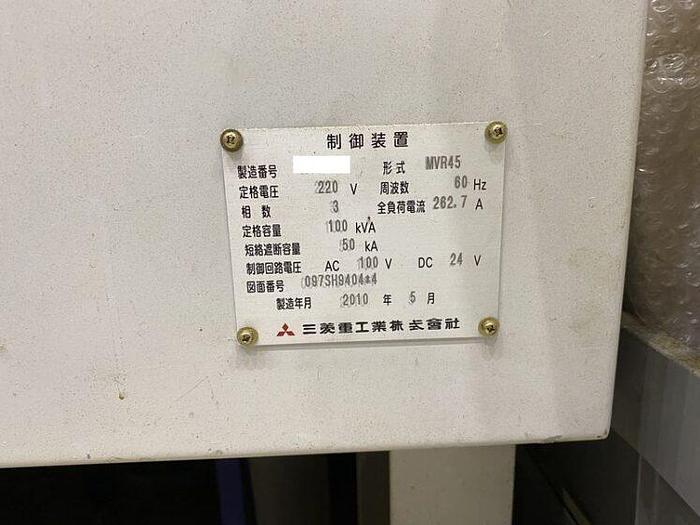

| Main power | AC 37 / 30 kW |
| Rapid feed x | 15,000 mm/min |
| Rapid feed y | 22,000 mm/min |
| Rapid feed z | 10,000 mm/min |
| Rapid feed w | 3,000 mm/min |
| Machine weight | 116.95 Ton |
