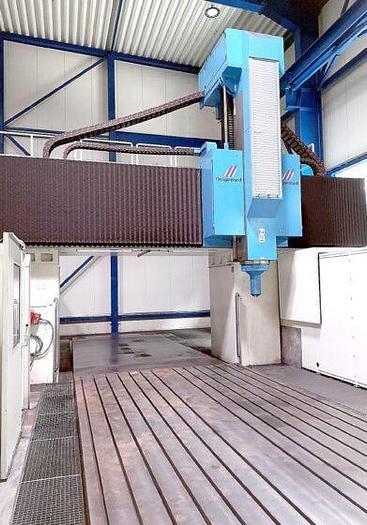

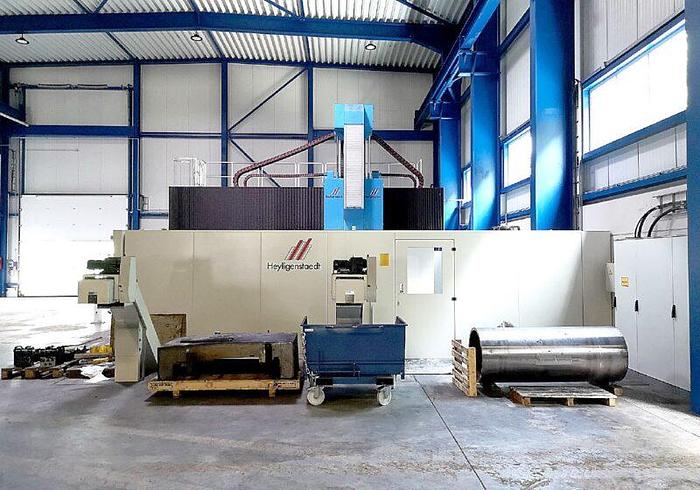

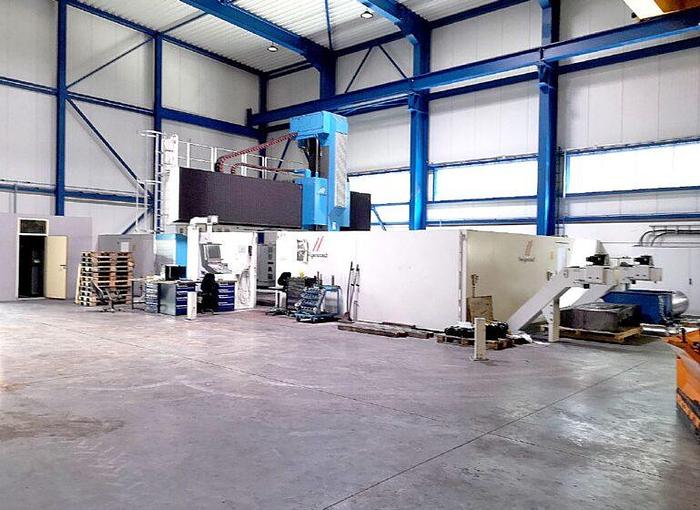

Heyligenstaedt Heynumill 3500-PF 5-Axis CNC Double Column Portal Milling Machine
Heyligenstaedt Heynumill 3500-PF 5-Axis CNC Double Column Portal Milling Machine
Description

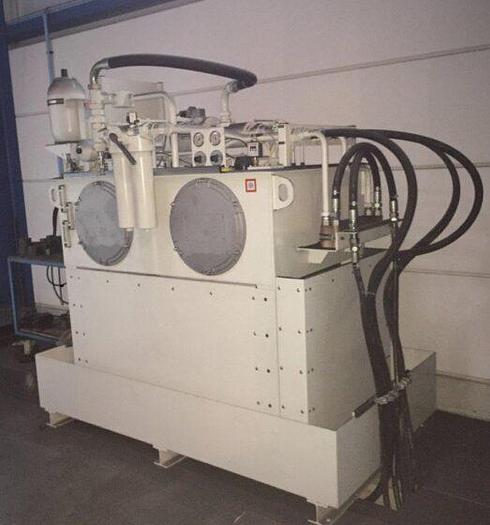

Heidenhain TNC 640 CNC Control C-axis endless turning Machine control panel on telescopic swivel arm Interchangeable attachment milling heads Spindle (infinitely variable) 2 stage spindle gear 0 - 800 rpm / 5 - 5,000 rpm Straight milling head FK 120/450/6000 2-axis fork-type milling head FK 110/2D/6000 Angle milling head WFK 100/560 Collision monitoring system Brankamp CMS M&H workpiece measuring probe SK50 incl. radio receiver Machine bed in granite design Machine enclosed on 2 sides Laterally mounted tool head changer Tool table with T-slots, size 28 Underfloor chip conveyor with 2 ascending parts manufacturer Fa. Knoll Machine cooling system Fa. Lahntechnik Hydraulic power unit Fa. Kuwega Switch cabinets (air-conditioned) separately installed
Specifications
| Manufacturer | Heyligenstaedt |
| Model | Heynumill 3500-PF |
| Year | 2020 |
| Condition | Used |
| Stock Number | 11007 |
| Between columns | 3,500 mm |
| Spindle speeds | 5,000 rpm |
| Machining height | 2,200 mm |
| X axis travel | 6,000 mm |
| Y axis travel | 4,400 mm |
| Z axis travel | 1,500 mm |
| Table dimensions | 5,500 x 3,000 mm |
| Table capacity | 40 Ton |
| C axis | 360 Degree |
| Ram size | 600 x 635 mm |
| Milling power s1 | 79.6/96 kW |
| Torque gear stage 1 s1 | 2925 Nm |
| Torque gear stage 2 s1 | 585 Nm |
| Feeds x y axis | 30,000 mm/min |
| Feeds z axis | 15,000 mm/min |
| Feeds c a axis | 4320 deg/minute |
| Acceleration of the linear axis | 1.5 m/sec2 |
