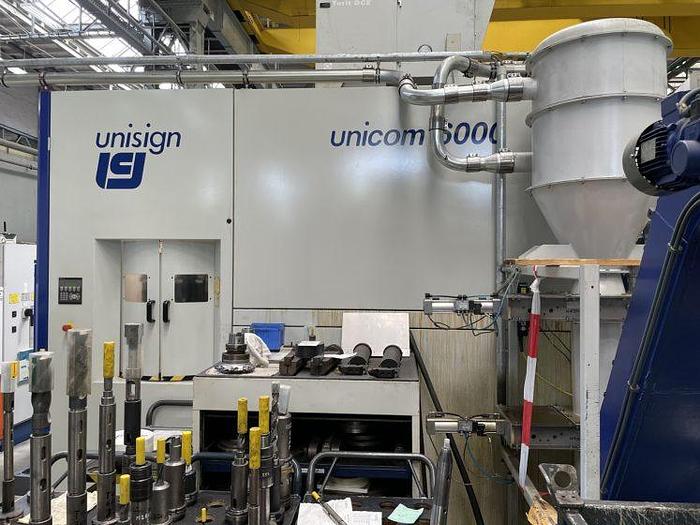

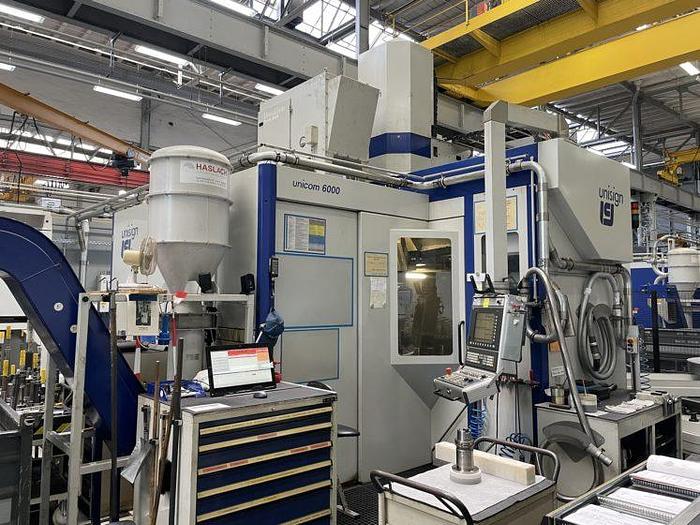

UNISIGN UNICOM 6000 CNC VERTICAL TURNING & MILLING CENTER with AUTOMATIC PALLERT CHANGER for 3 PALLETS
UNISIGN UNICOM 6000 CNC VERTICAL TURNING & MILLING CENTER with AUTOMATIC PALLERT CHANGER for 3 PALLETS
Description

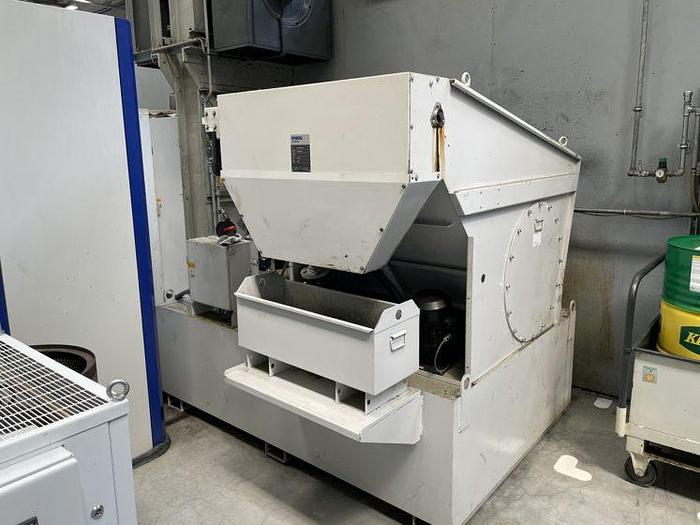

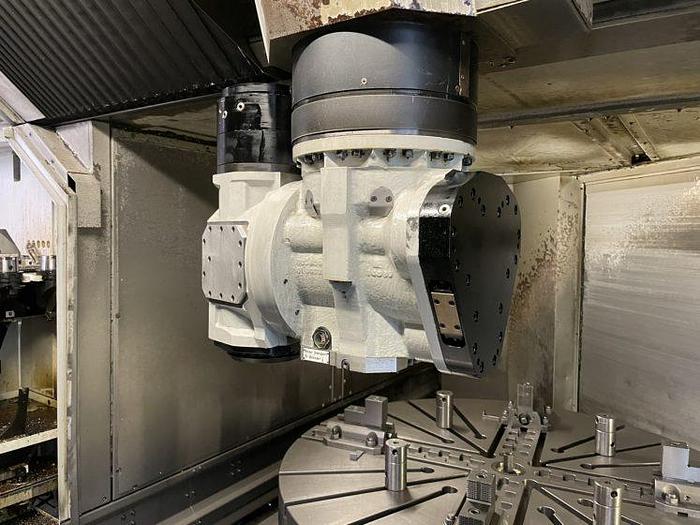

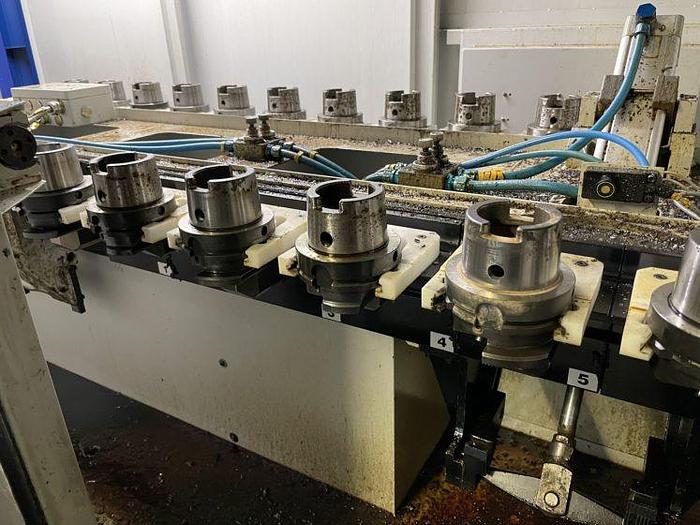

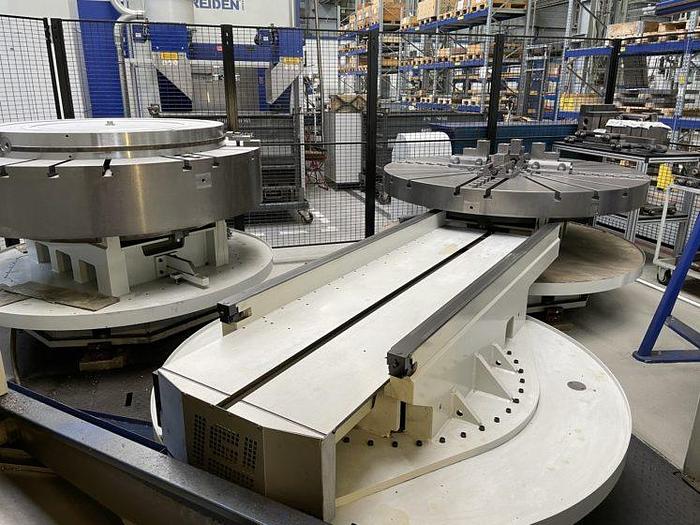

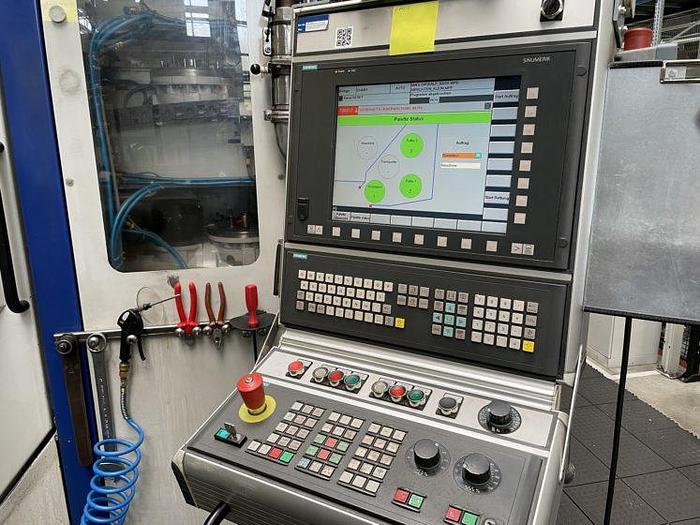

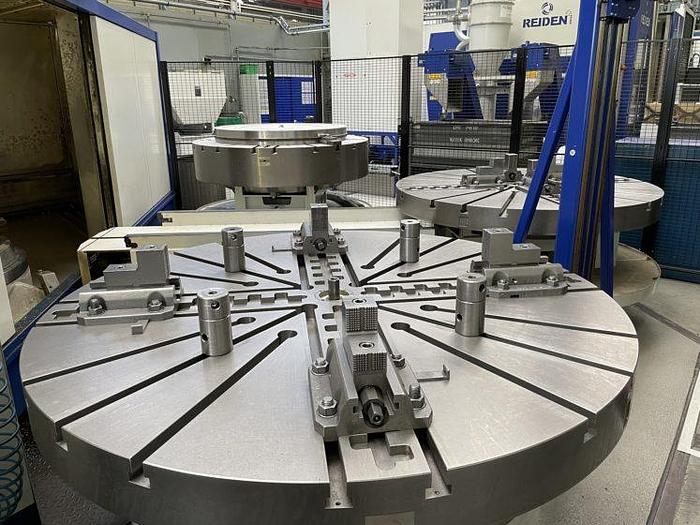

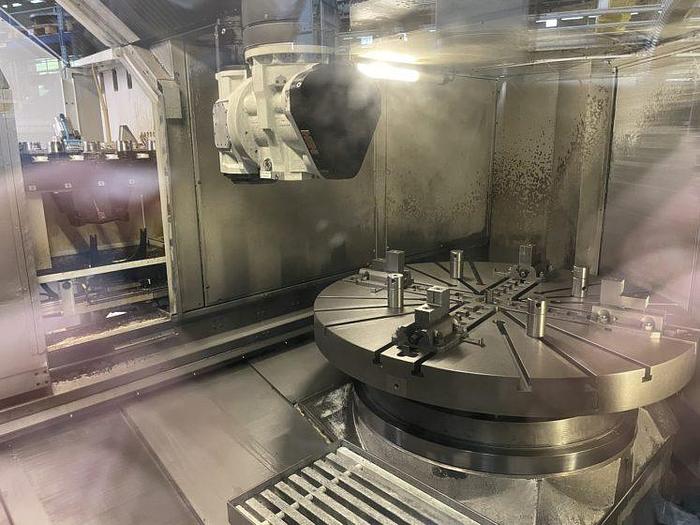

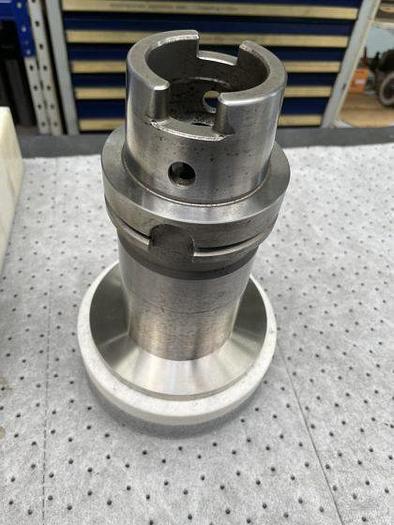

Siemens 840D CNC Control Automatic Pallet Changer for 3 Pallets Drive Power of Faceplate – 70 kW Pallet Turning Speed 300 rpm Max Torque 25,200 Nm (3) Three Pallets Included: 1 x 1,800 mm Diameter – raised version 2 x 1,800 mm Diameter Each with 4 Claw Boxes Type DS Alignment Station Vertical Main Spindle Unit Speed 0 – 6,000 rpm Power 36 kW, 720 Nm Tool Holder HSK 100 Universal Angle Drilling & Milling Head Speed 6,000 rpm Power 36 kW, 720 Nm Tool Holder HSK 100 Division 2.5 Degrees Angular Drilling & Milling Head Speed 0 – 6,000 rpm Power 36 kW, 720 Nm Tool Holder HSK 100 Division 2.5 Degrees Grinding Device 141 Position Chain Type Automatic Tool Changer – Turning Tool Holder HSK 100, Universal Milling Head & Turning Tools from magazine Coolant Supply & Filter System with High Pressure Pump to 50 bar Internal & External Coolant Supply Chip Conveyor Integrated Measuring Probe on a Separate Slide Radio Probe Brankamp Collision Monitoring Interior Extraction Electronic Handwheel
Specifications
| Manufacturer | Unisign |
| Model | Unicom 6000 |
| Year | 2008 |
| Condition | Used |
| Stock Number | 10763 |
| Table diameter | 1,800 mm |
| Swing | 2,000 mm |
| Turning height | 1,200 mm |
| Table turn speed | 300 rpm |
| Live spindle speed | 6,000 rpm |
| Z axis travel | 1,000 mm |
| X axis travel | 2,150 mm |
| Y axis travel | 1,425 mm |
| Turning diameter | 1,800 mm |
| Passage height | 1,330 mm |
| Interference diameter | 2,000 mm |
| Total power requirement | 130 kVA |
| Weight of the machine, approximate | 45 Ton |
