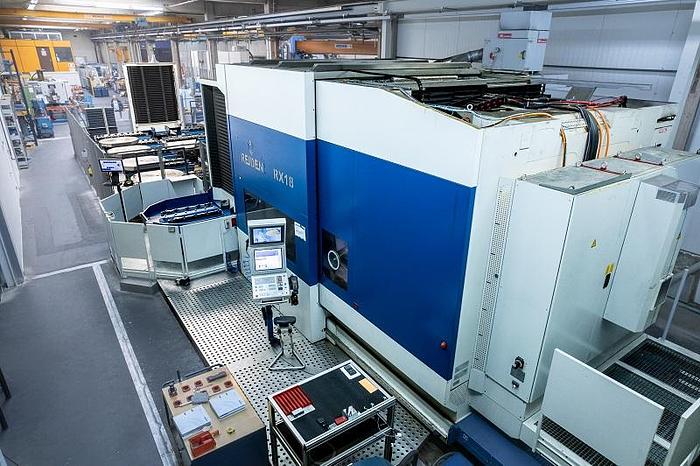

Reiden RX18 5-Axis Universal Machining Center with 12-Fold Pallet Changer

Reiden RX18 5-Axis Universal Machining Center with 12-Fold Pallet Changer

orCall 770-509-0744


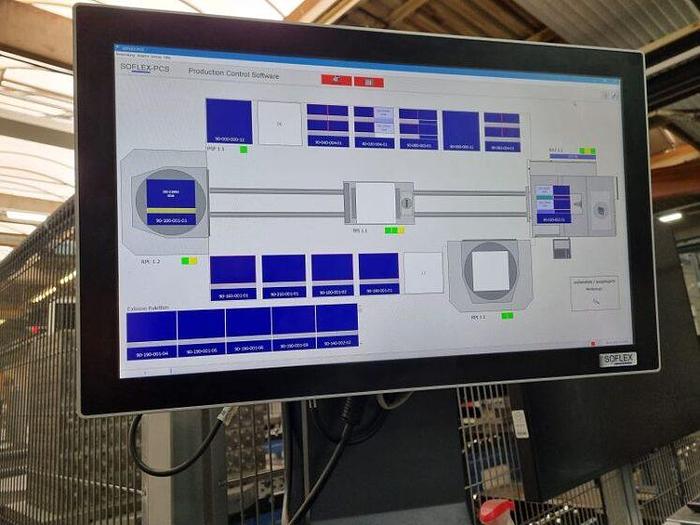

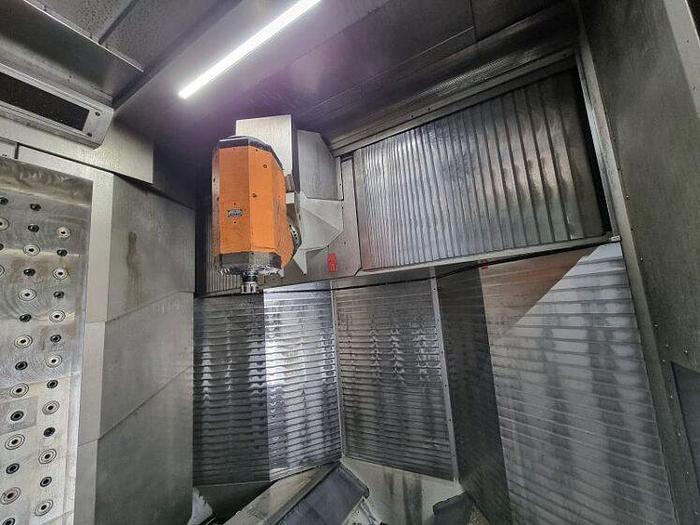

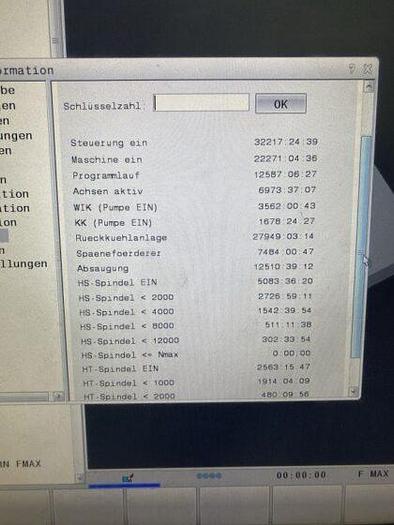

Heidenhain TNC 640 CNC Control Travels: X – 2,200, Y – 2,200, Z – Axis 1,610 mm NC – rotary table, drive by means of preloaded worm drive, pitch 0,001° Trigonal milling head with DDT – Double Drive Technology Direct measuring systems on all axes from HEIDENHAIN incl. sealing air HEIDENHAIN DCM, collision monitoring between the machine and the tool 12-fold pallet storage, pallet size 1,400 x 1,200 mm, 2 separate set-up stations Interface connection to SOFLEX Level-Five production control system Tool magazine with 304 places SK 50, own operating terminal on the magazine side HEIDENHAIN HR550 FS electronic radio handwheel 3D radio measuring probe make BLUM, TC60 KinematicsOpt incl. calibration ball on magnetic stand Camera in machining area, delay time 200 ms Machine enclosure with completely closed working area, interior covered with chrome steel plate 3 chip conveyors lengthwise, 1 chip conveyor crosswise Coolant system with paper belt filter, inner coolant supply with frequency-controlled pressure pump max. 50 bar at 28 l/min, outer coolant supply by means of shower ring, belt skimmer, tank capacity 2,500 l, coolant recooling system Blow air through spindle center selectable via M-function TRS2 tool breakage detection system contactless Oil and emulsion mist separator ARNO 3VF A, air capacity 4,000m³/h, 4-stage filtration (metal, glass fiber pocket, panel filter) Automatically operated working doors Rotating viewing window at the operator station (Visiport)


ModelRX 18
Stock Number10980
X axis milling head cross travel2,200 mm
Y axis table longitudinal travel2,200 mm
Z axis vertical milling head travel1,610 mm
C axis nc rotary table360,000 Degrees
A axis milling head swivelling±105 Degree
A axis feed torque2,555 Nm
Feed rate a axis40 rpm
Holding torque hydraulic clamping sleeve3,000 Nm
Max power high speed motor (100/40%)63 / 75 kW
Max torque high speed motor (100/40%)200 / 275 Nm
Max speed high speed motor10,000 rpm
Max power high torque motor (100/40%)105 / 125 kW
Max torque high torque motor (100/40%)898 / 1,220 Nm
Max speed high toque motor3,000 rpm
Pallet size1,400 x 1,200 mm
Max speed10 rpm
Perforated pallet 130 x diameter 16 f7100 x 100 mm Hole Pattern
Smallest partial step0.001 degree
Oscillating circuit (limited)2,200 (2,600) mm
Max table load centric4 Ton
Feed range in x, y, z axis1 - 40,000 mm/min
Feed force in x,y, z axis 100% ed22 Kn
Rapid traverse in x, y, z axis40 m/min
Rapid traverse b-axis (nc rotary table)14 m/min
Space requirements (machine only)8.2 x 6 x 4.6 m
Machine weight100 Ton
Connected load173 KVA
Supply line fuse250 A
Operating voltage400V 3AC
