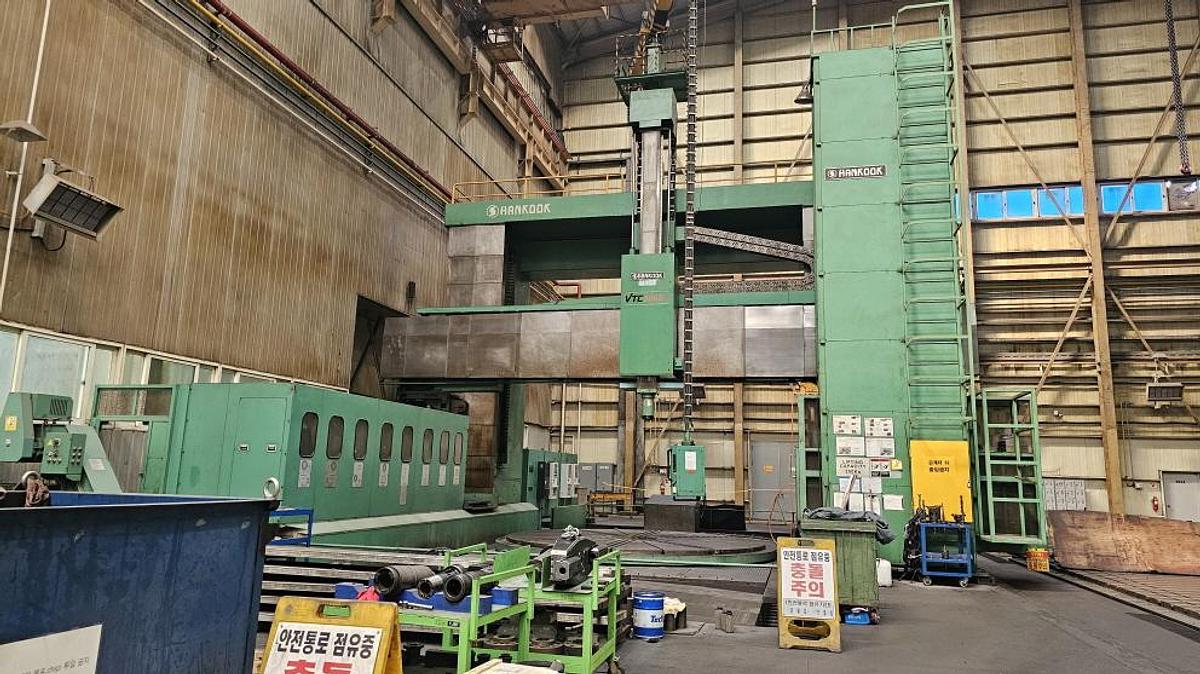

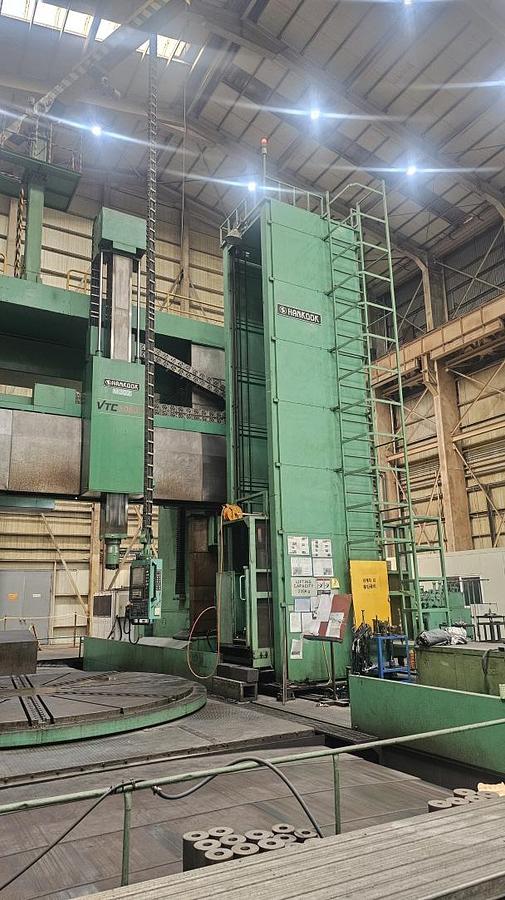

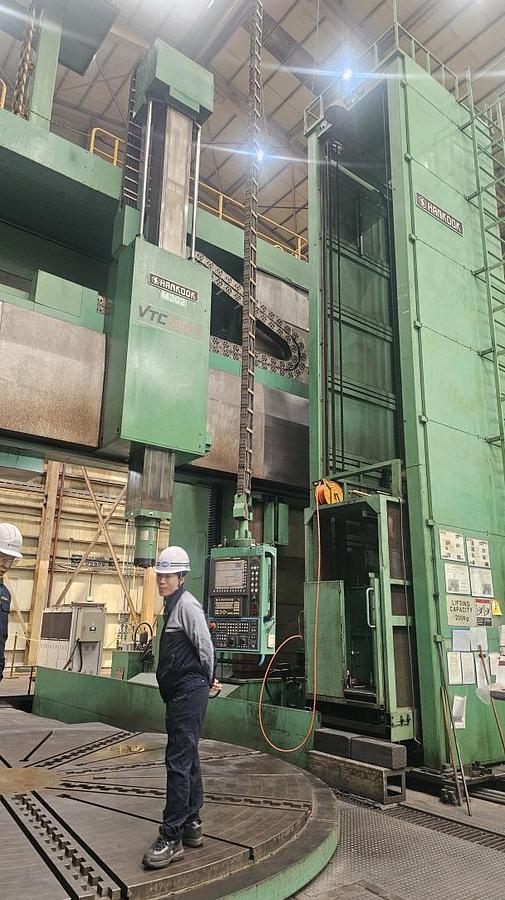

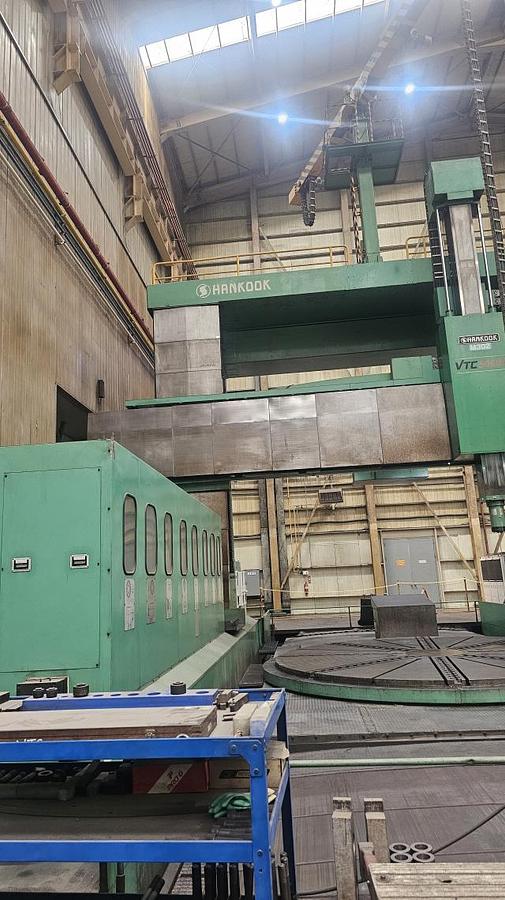

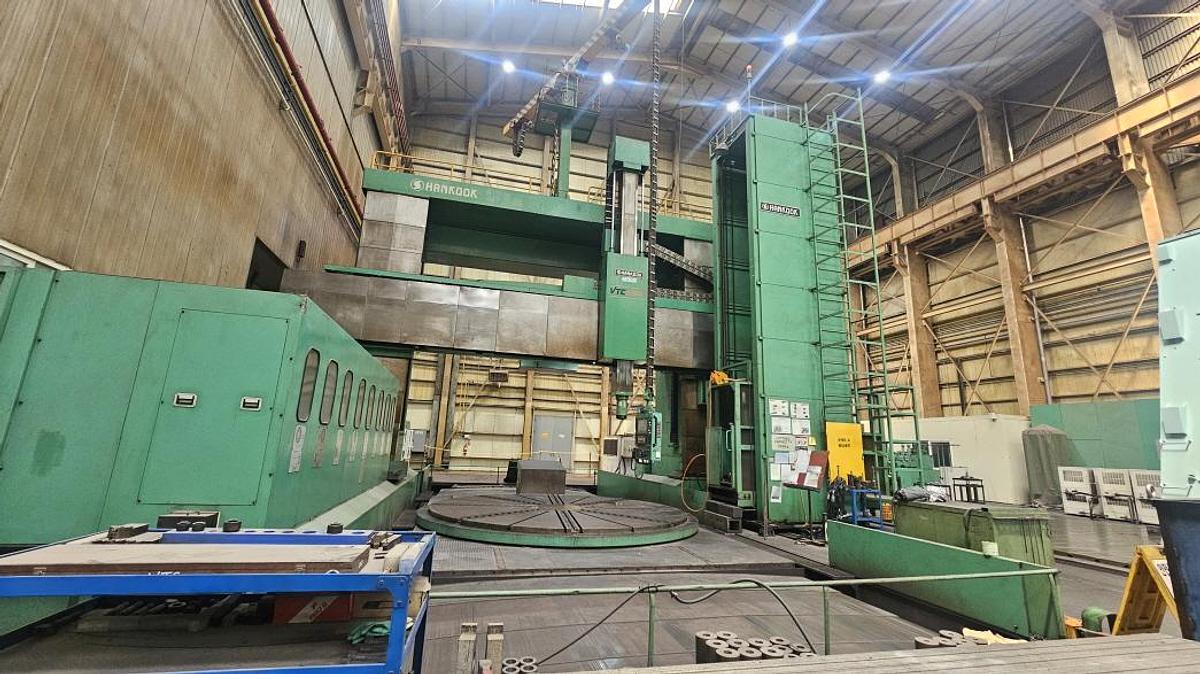

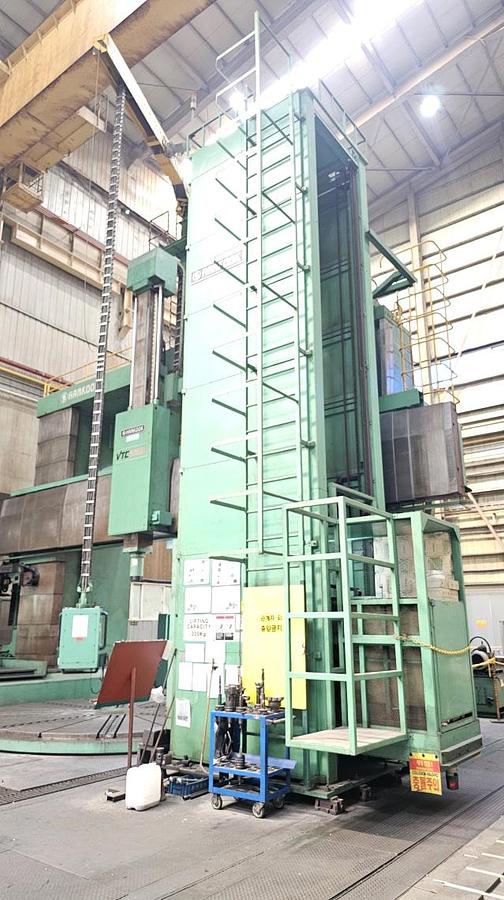

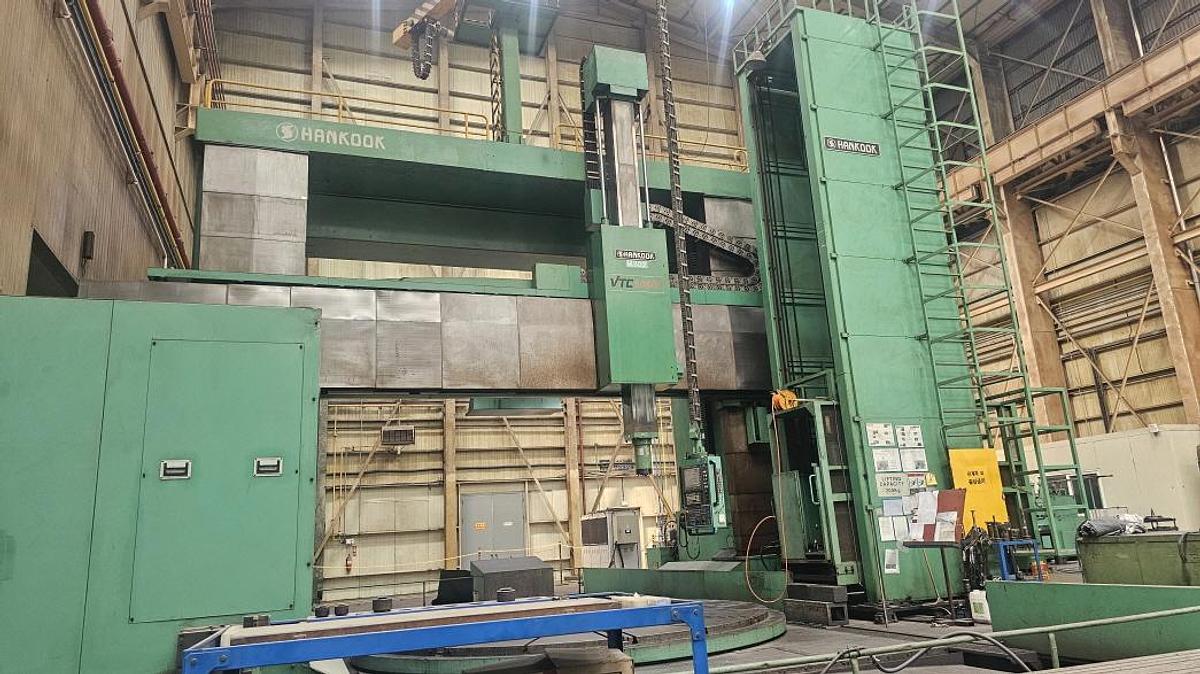

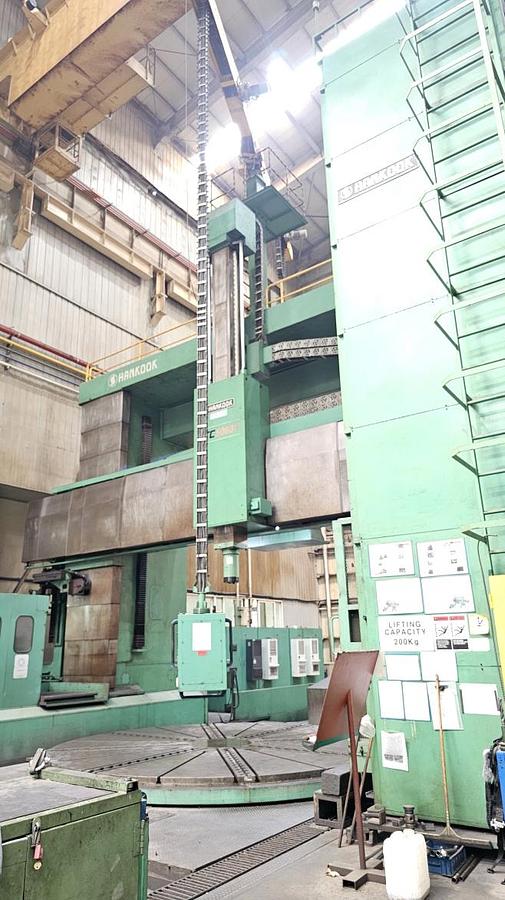

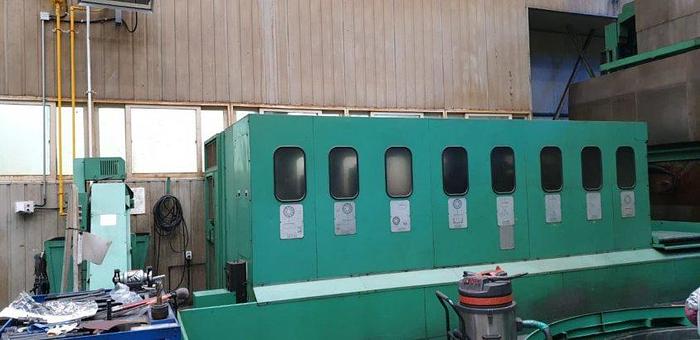

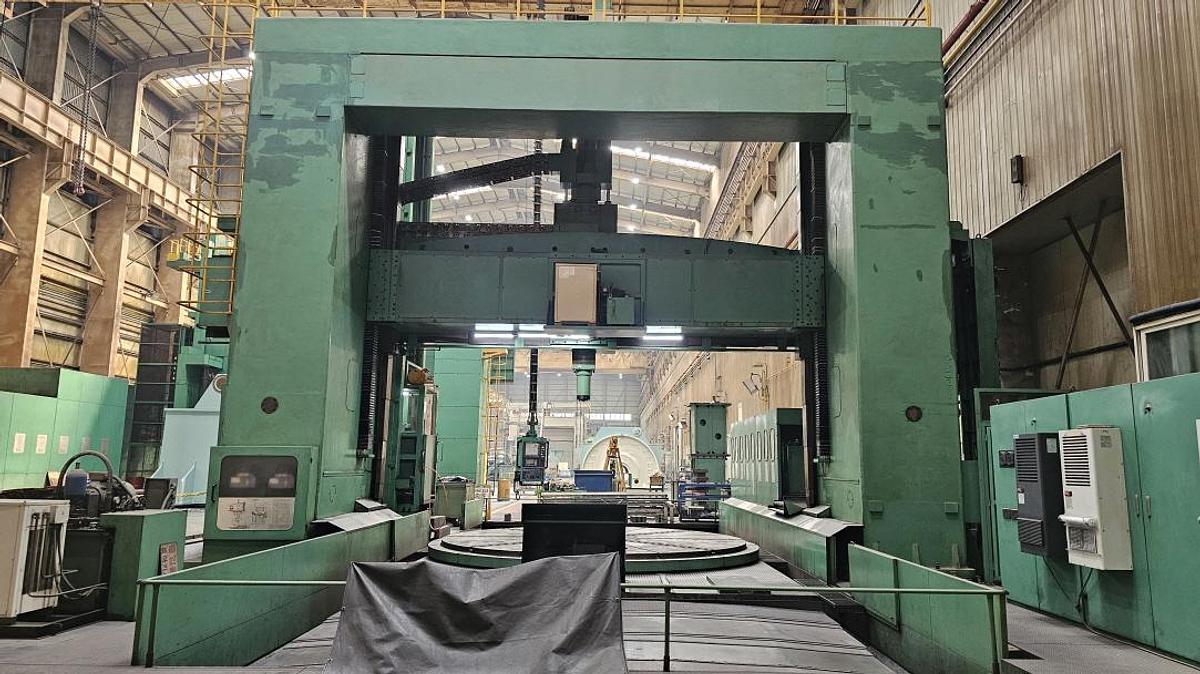

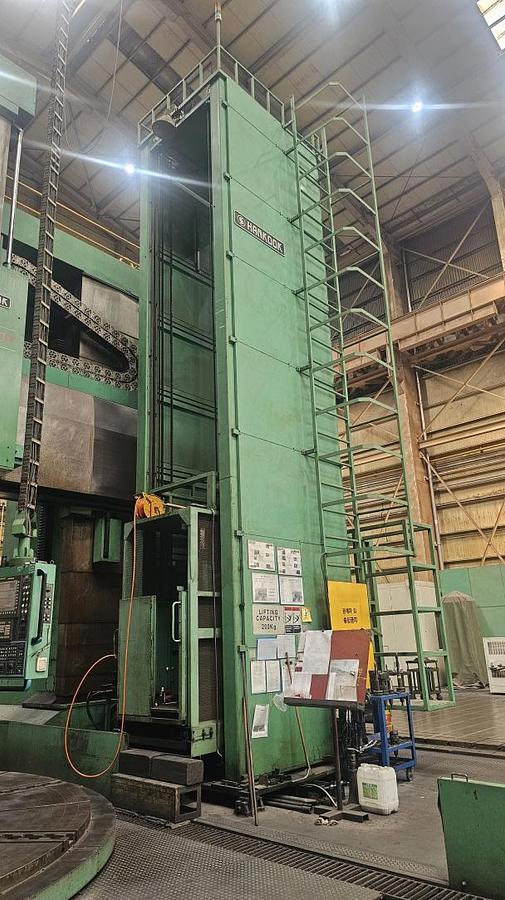

Hankook VTC 5060Y CNC Double Column Vertical Boring & Turning Machine with Y-Axis Traveling Table, Live Spindle, C-Axis
Hankook VTC 5060Y CNC Double Column Vertical Boring & Turning Machine with Y-Axis Traveling Table, Live Spindle, C-Axis
orCall 770-509-0744
Description

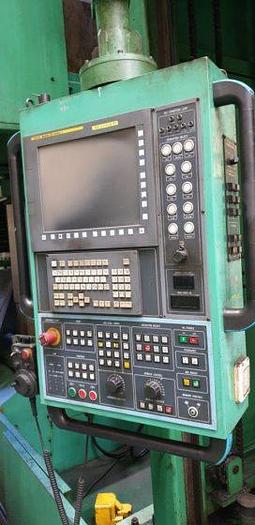

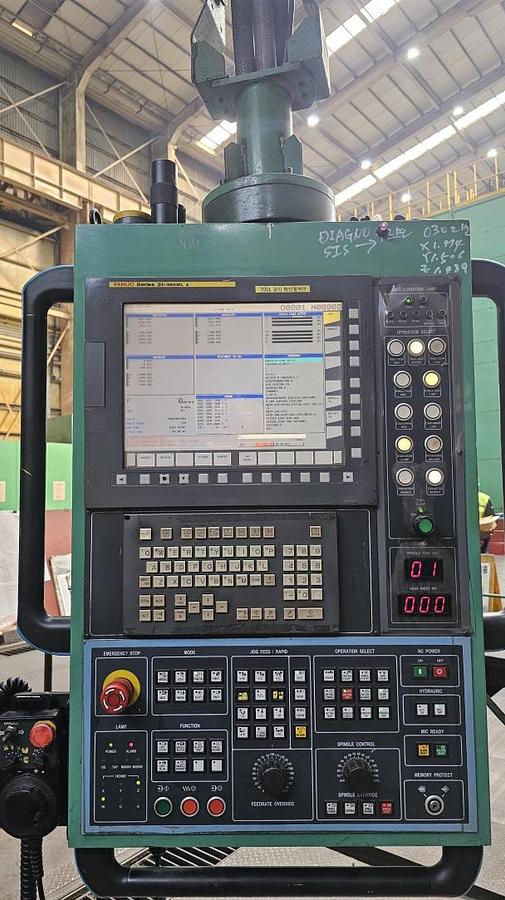

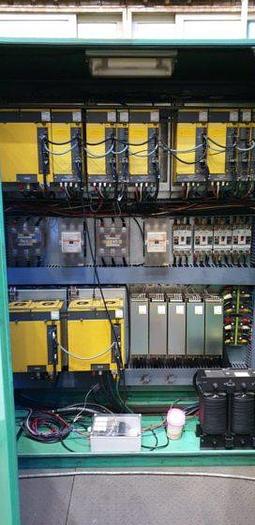

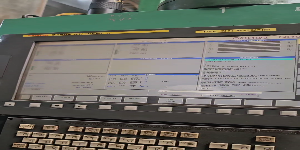

Fanuc 31i A CNC System M.P.G Handle Live Spindle Table C Axis

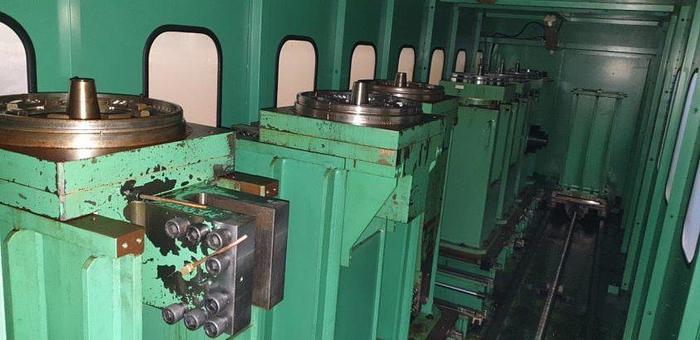

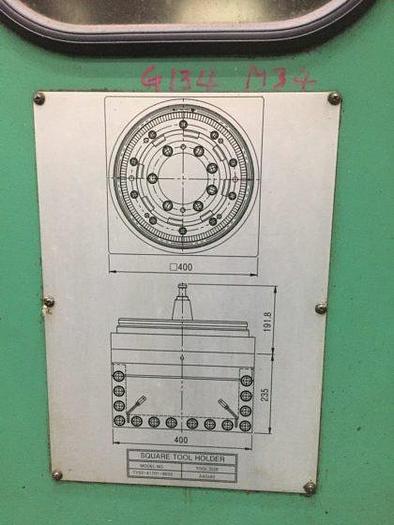

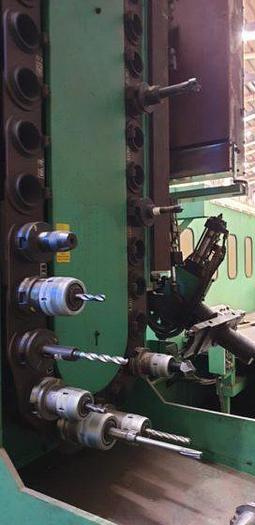

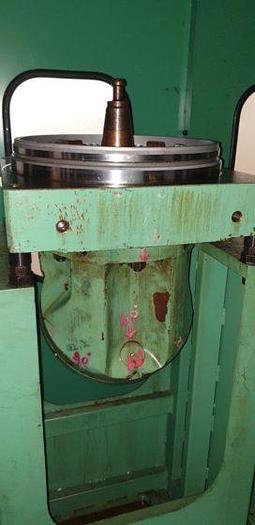

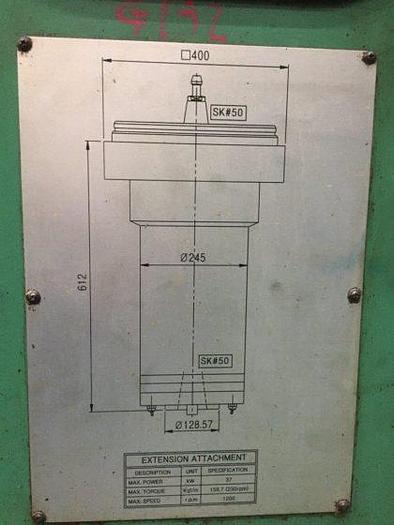

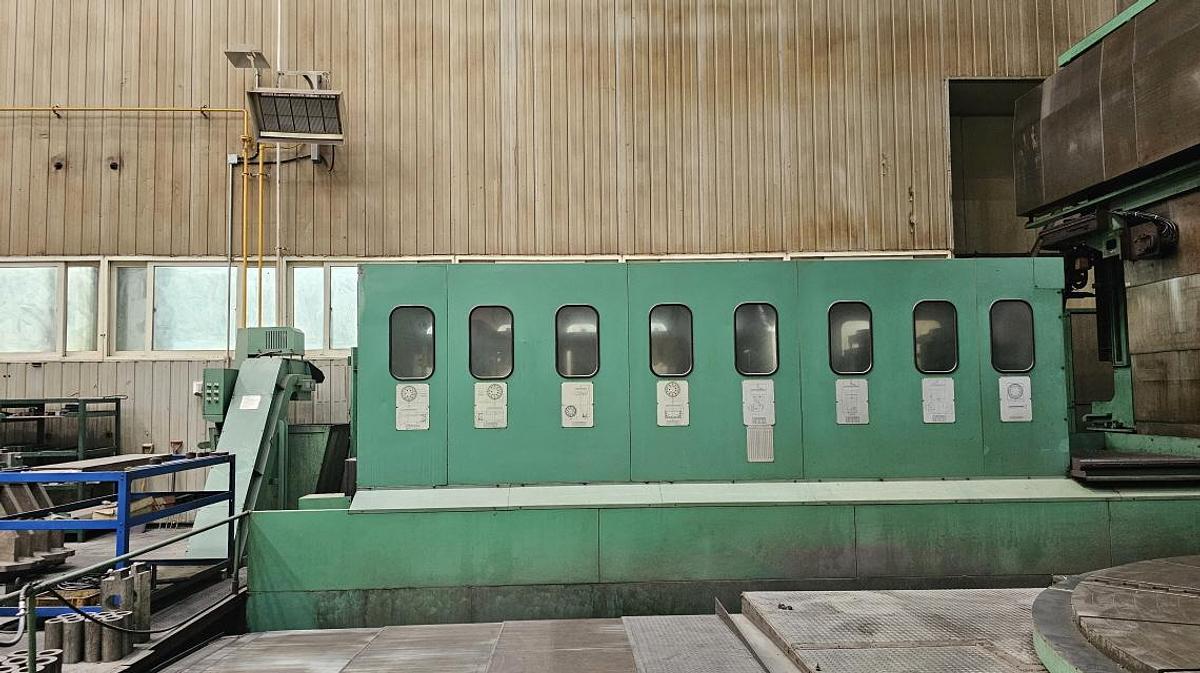

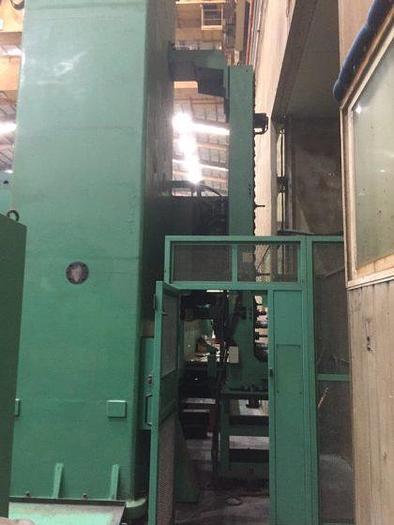

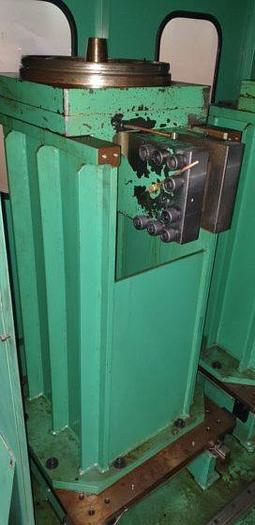

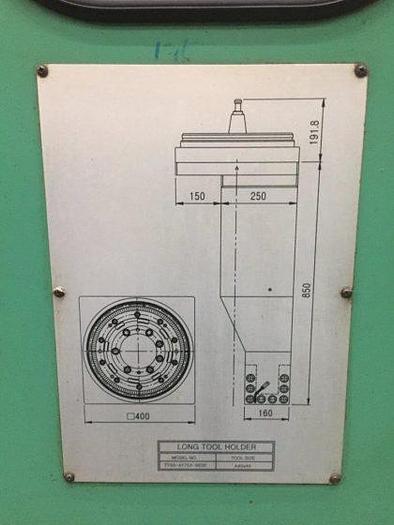

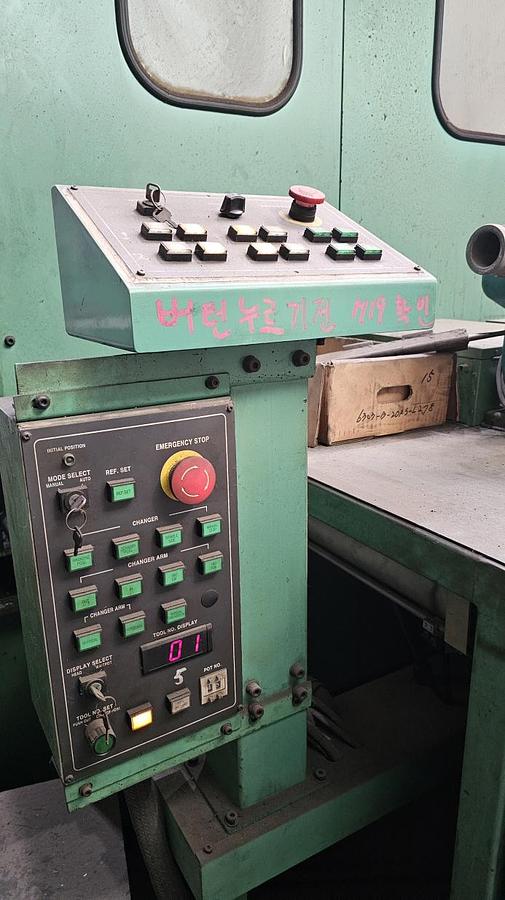

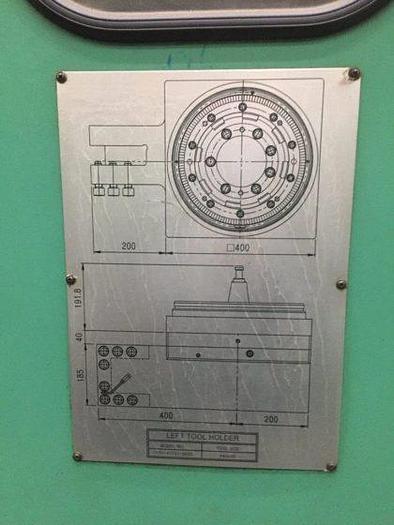

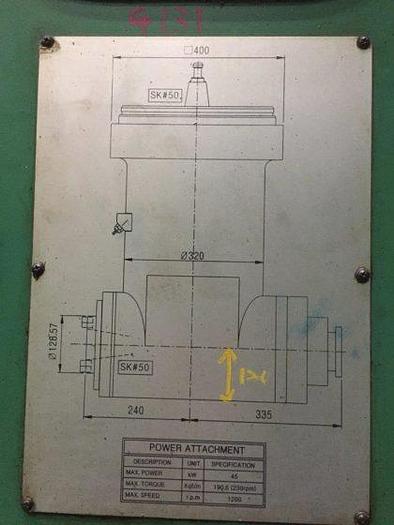

Table speed for turning (2 step) 1 - 50 rpm Crossrail Protection Steel Covers Column Protection Steel Covers 4-Jaw Independent Manual Chuck Jaws Hydraulic Power Unit Hinge Type Chip Conveyor Automatic NC Power off Operator Platform Automatic Tool Changer (A.T.C) Automatic Attachment Changer (A.A.C.) Power Attachment Extension Attachment Universal Attachment 4 Turning Tool Holders Linear Scale For X & Z-axis External Coolant System Through Spindle Coolant (T.S.C)
Specifications
| Manufacturer | Hankook |
| Model | VTC 5060Y |
| Year | 2010 |
| Condition | Used |
| Stock Number | 10675 |

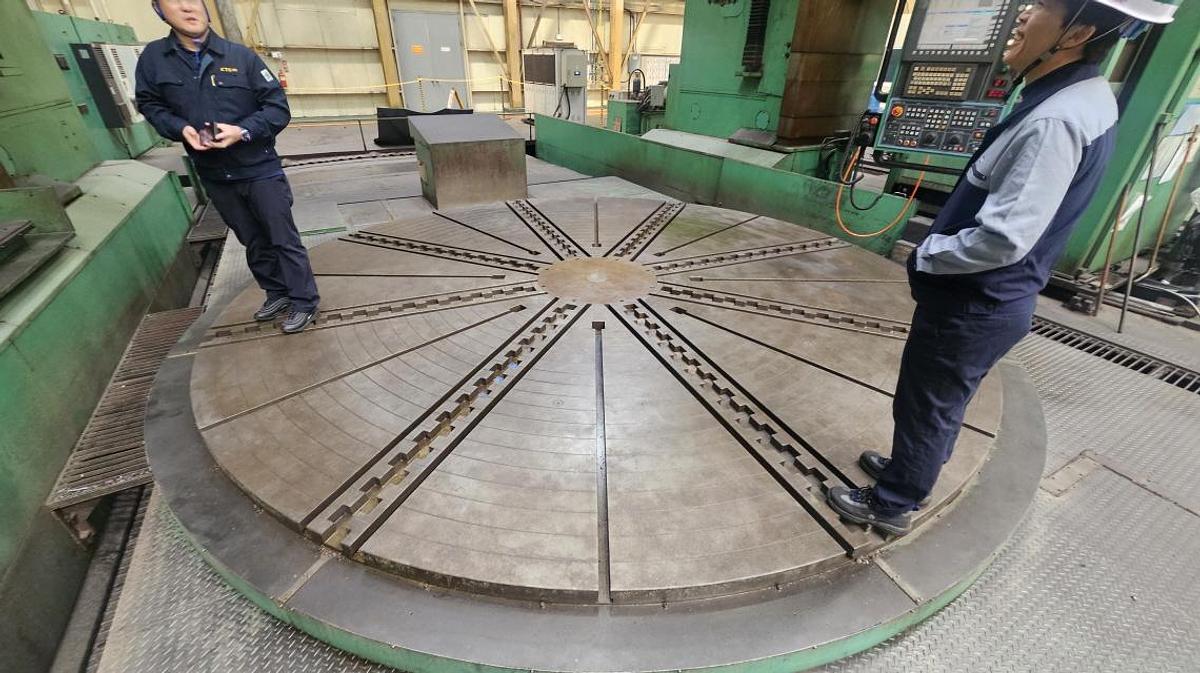

| Table diameter | 5,000 mm |
| Swing | 6,000 mm |
| Turning height | 4,500 mm |
| Table capacity | 100 Ton |
| Live spindle speed | 3,000 rpm |
| Table travel | 5,000 mm |
| Table turn speed | 50 rpm |
| Z axis travel | 2,500 mm |
| X axis travel | 8,405 mm |

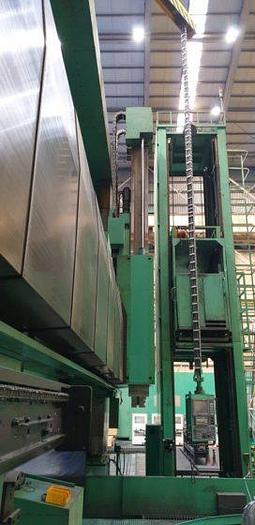

| Distance between columns | 6,920 mm |
| Distance between telescopic cover | 6,310 mm |
| Ram size | 400 x 400 mm |
| Table speed for indexing (c axis) | 0.333 rpm |
| Table indexing control (c axis) | 0.001 Degree |
| Milling spindle taper | ISO 50 |

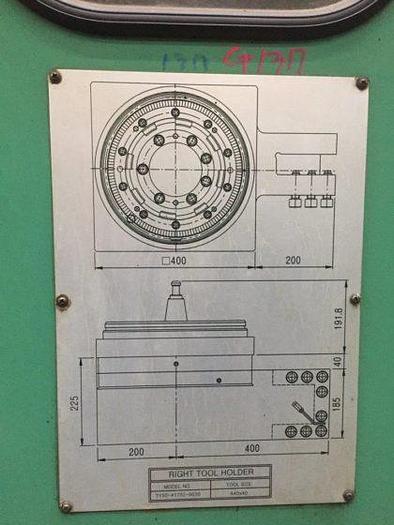

| Tool shank size | 40 x 40 mm |
| Rapid feed of ram head - x axis | 8,000 mm/min |
| Rapid feed of ram head - z axis | 6,000 mm/min |
| Rapid feed of ram head - y axis | 6,000 mm/min |
| Feed rate of ram head (x,y,z axes) | 1 - 3,000 mm/min |
| Vertical travel of cross rail | 3,000 mm |
| Main motor power for table drive, dc | 154 kW |
| Live milling spindle speed, ac | 37/45 kW |

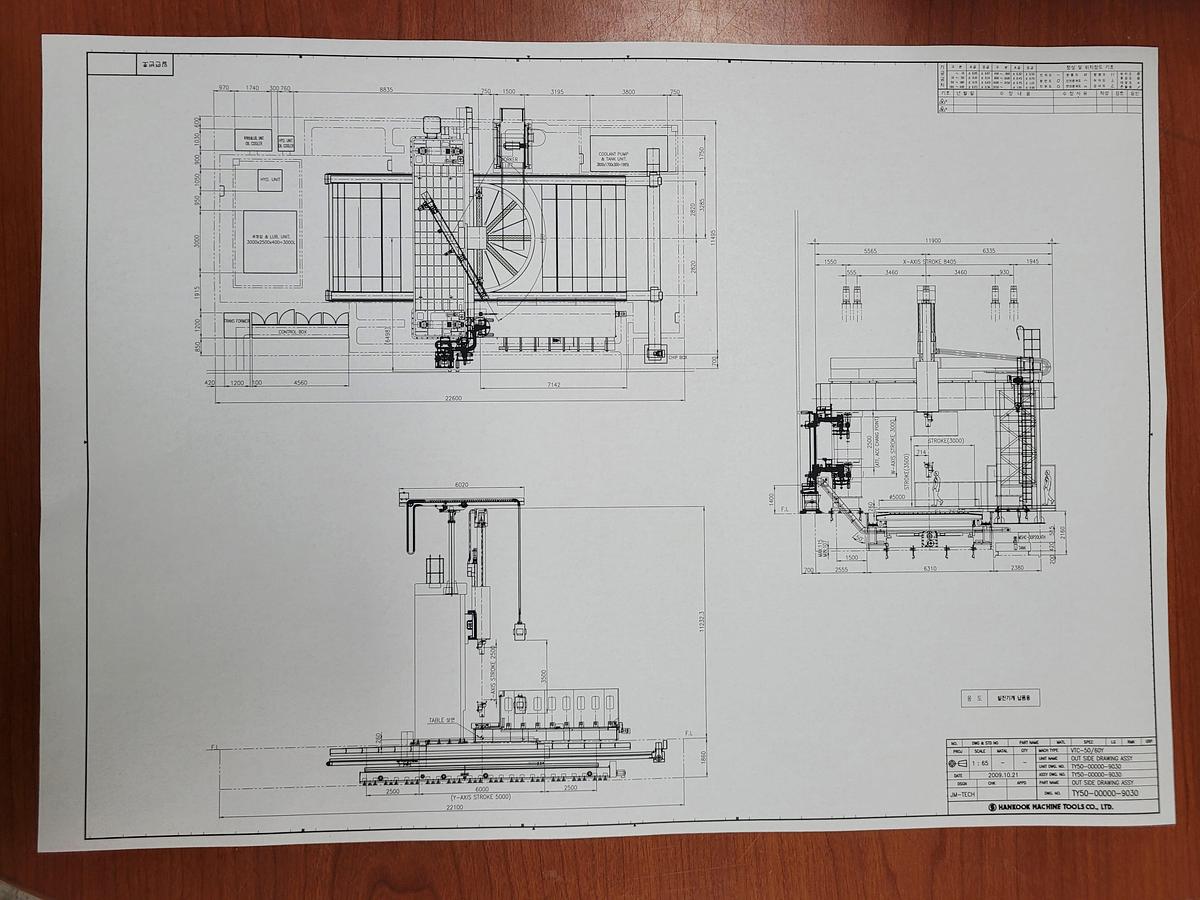

| Machine layout | 14,000 x 22,600 mm |
| Height from floor level to top of machine | 11,232 mm |
| Machine weight, approx. | 230 Ton |
