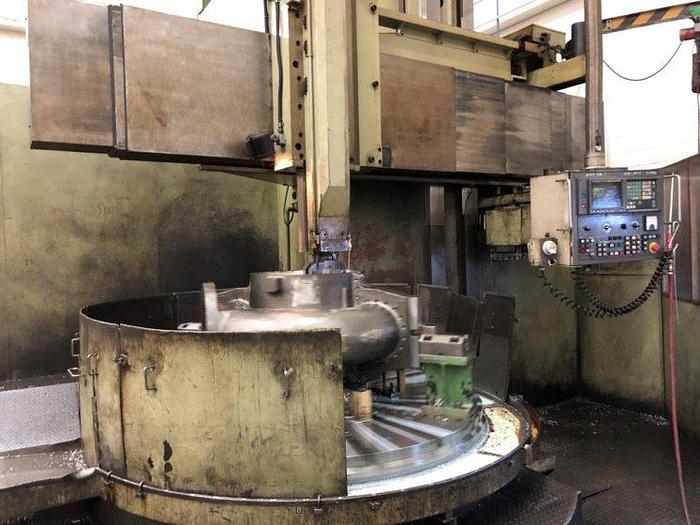

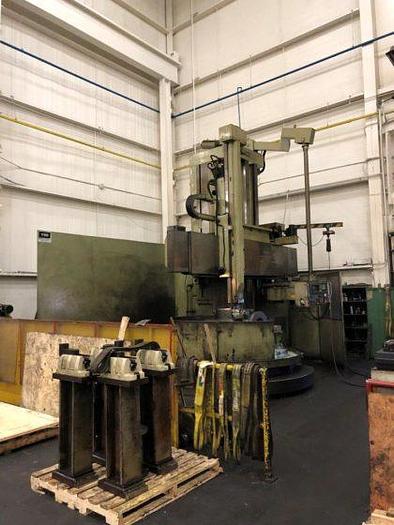

Toshiba TSS 20/55 CNC Vertical Turning & Boring Machine with Live Spindle Table C-Axis
![Used Toshiba TSS 20/55 CNC Vertical Turning & Boring Machine with Live Spindle Table C-Axis](https://i.machineryhost.com/3e7e0224018ab3cf51abb96464d518cd/fb8f58ccafed1208d428f44722e4cf07/large-IMG_1941-1-420x560.jpg)
Toshiba TSS 20/55 CNC Vertical Turning & Boring Machine with Live Spindle Table C-Axis
orCall 770-509-0744
Description
Fanuc Series 15-T Servo Fanuc (Analog) 24 Position Automatic Tool Changer
Table Speeds 2 - 80 rpm, 3 - 100 rpm
Specifications
Manufacturer | Toshiba |
Model | TSS 20/55 |
Condition | Used |
Stock Number | 10714 |
Table diameter | 2,000 mm |
Swing | 5,500 mm |
Turning height | 2,700 mm |
Table capacity | 25 Ton |
Table turn speed | 100 rpm |
Z axis travel | 1,500 mm |
X axis travel | 2,150 mm |
W axis travel | 2,000 mm |
Table motor | 45 kW |
Live spindle taper | CAT 50 |
Live spindle motor | 18.6 / 15 kW |
Machine dimensions | 8,128 x 5,944 mm |
Machine height | 7,010 mm |
Machine weight | 30 Ton |
