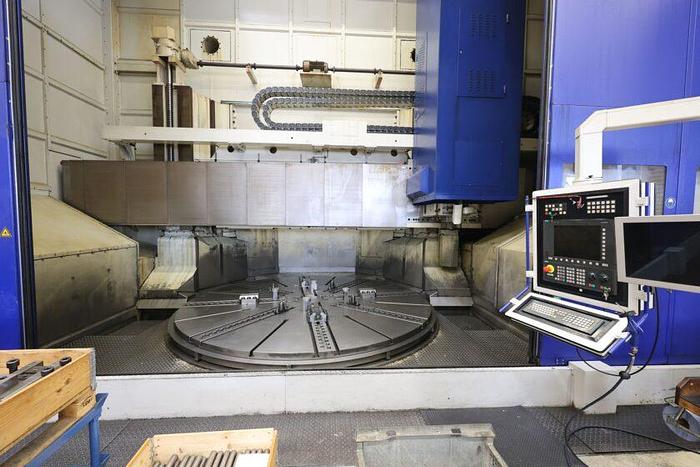

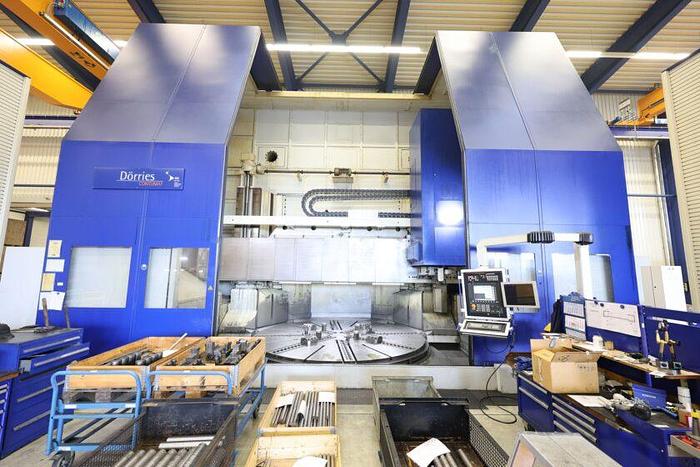

Dorries Scharmann CONTUMAT VC 5000/450 MC CNC Vertical Turning Boring & Milling Machine
Dorries Scharmann CONTUMAT VC 5000/450 MC CNC Vertical Turning Boring & Milling Machine
orCall 770-509-0744
Description

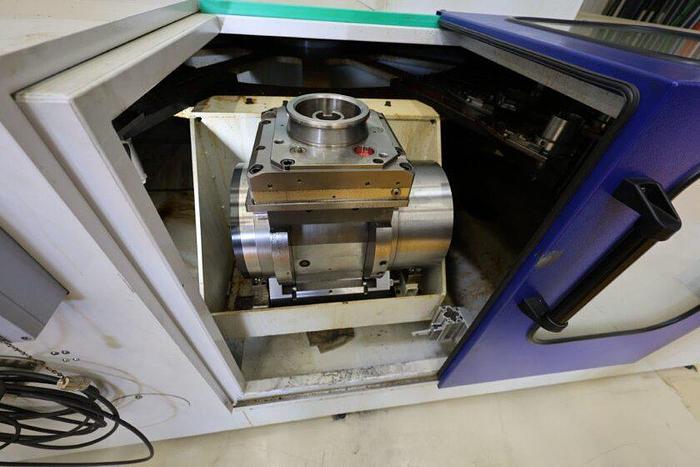

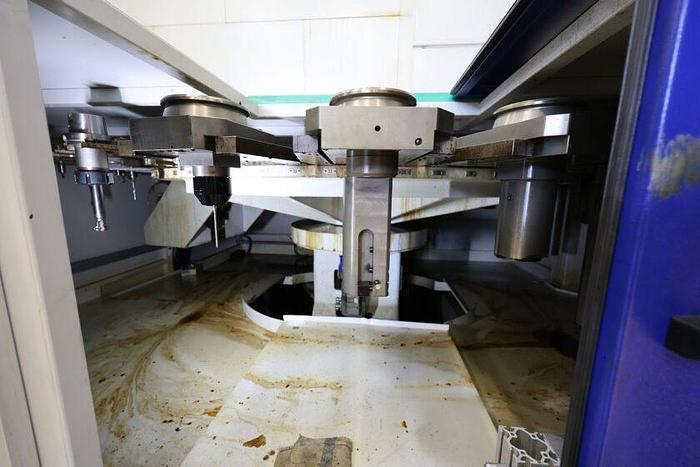

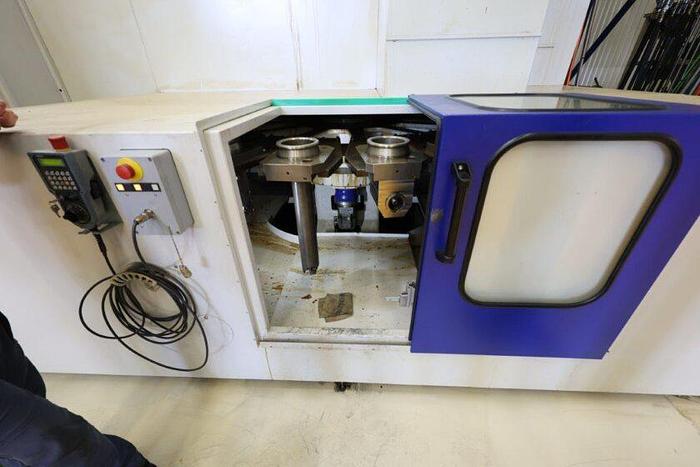

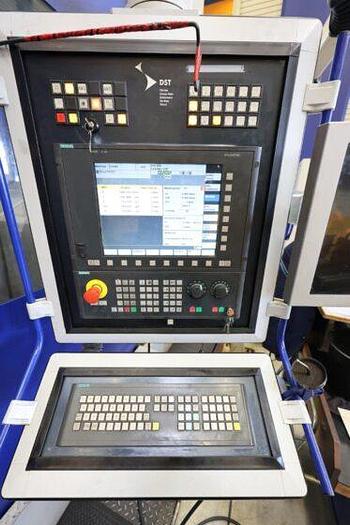

Siemens 840 D CNC Control System Table C-Axis Live Spindle Hydrostatic guides of the linear axes UWFK milling head 500 Nm +/- 90°, tool and workpiece measurement Tool and process monitoring ARTIS CTM system Workspace visualization via video camera on the support Tool magazine (arranged on the floor) for turning and milling tools as well as storage for milling heads Work area protection completely closed with automatic covering of the Chip chutes Coolant system with filter system Chip conveyor Various tool holders Documentation
Specifications
| Manufacturer | Dorries |
| Model | VC 5000/450 |
| Year | 2009 |
| Condition | Used |
| Stock Number | 10978 |

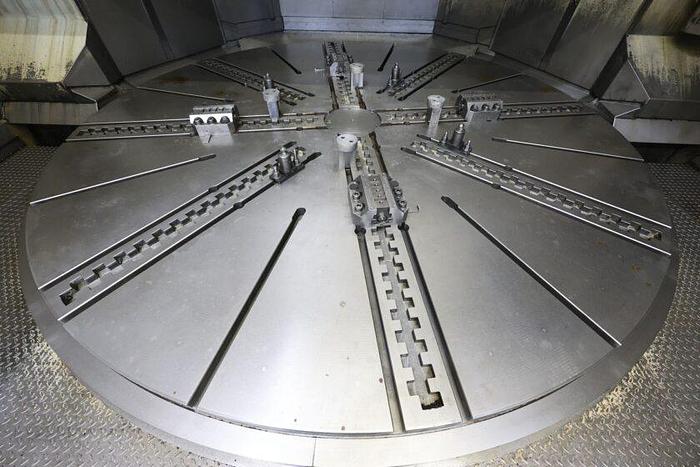

| Table diameter | 4,500 mm |
| Swing | 5,000 mm |
| Turning height | 2,645 mm |
| Table capacity | 80 Ton |
| Table turn speed | 95 rpm |
| Live spindle speed | 3,000 rpm |
| Z axis travel | 2,000 mm |
| W axis travel | 1,500 mm |
| Live spindle motor | 37 kW |
| Live spindle taper | HSK 100 |

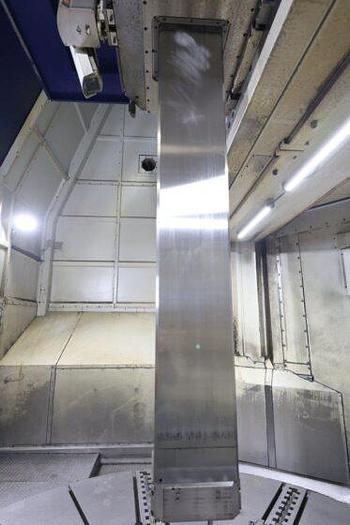

| Ram size | 300 x 300 mm |
| Main drive | 2 x 80 kW |
