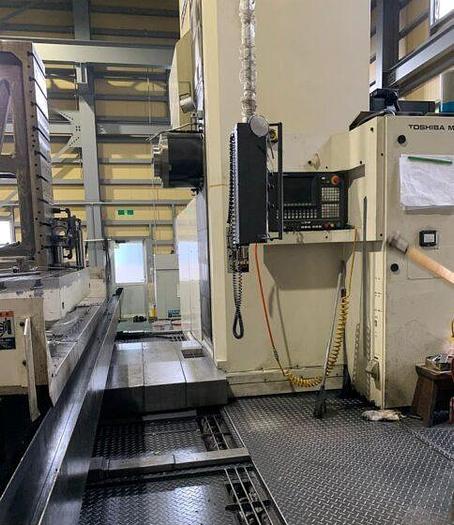

Toshiba BTD 130H R22 CNC Table Type Horizontal Boring Machine
No longer available
Toshiba BTD 130H R22 CNC Table Type Horizontal Boring Machine
Description

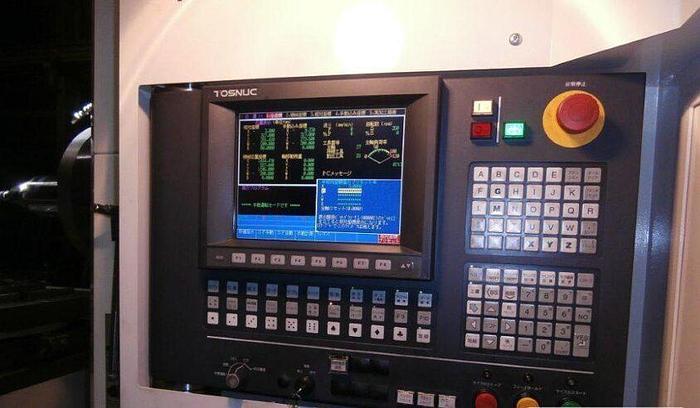

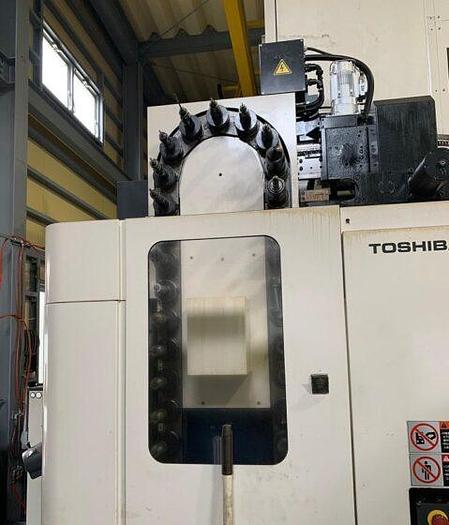

Tosnuc 999 CNC Control 60 Position Automatic Tool Changer Chip Conveyor Scale Feedback (X,Y,Z & B Axis) 360 Position Full B-Axis Built in Rotary Table
Specifications
| Manufacturer | Toshiba |
| Model | BTD 130H |
| Year | 2019 |
| Condition | Used |
| Stock Number | 10906 |

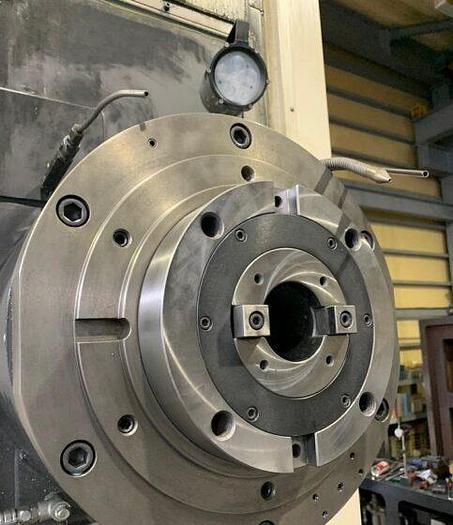

| Spindle diameter | 130 mm |
| Spindle speeds | 2,500 rpm |
| X axis travel | 3,000 mm |
| Y axis travel | 2,300 mm |
| Z axis travel | 1,600 mm |

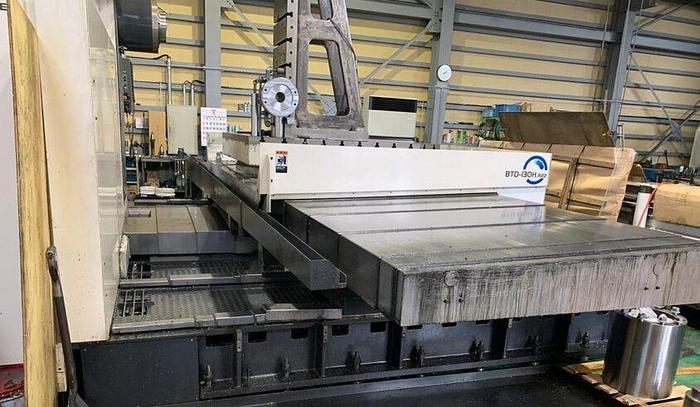

| Table dimensions | 1,800 x 2,200 mm |
| Table capacity | 12,000 kg |
| W axis travel | 700 mm |
| Spindle diameter - milling | 250 mm |
| Spindle taper | 7/24 Taper No 50 |
| Spindle drive motor | 30/22 kW |
| B axis | 500 deg/min |
| Distance table to spindle centerline | 0 - 2,300 mm |
| Distance table centerline to spindle | 800 - 2,400 mm |
| Table b-axis indexing | 0.0001 Degree |
| X,y,z axes | 10,000 mm/min |
| W axis | 6,000 mm/min |
| Feed rate - x,y,z axes | 1 - 4,000 mm/min |
| Type of tool shank | MAS BT50 |
| Machine height | 4,865 mm |
| Floor space | 6,925 x 6,920 mm |
| Machine weight | 39 Ton |
